Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Bulletin 040 Rev. A
Bulletin 040 Rev. A
Model G5-56 300
Quick Response
Concealed Automatic
300 psi (20,7 bar) Rated
Sprinkler
The G5-56 300 Concealer®
A Quick Response Concealed Sprinkler
with ¾” (19mm) Adjustment
For adjustable K5.6 sprinklers refer to Bulletin
162 for Technical Specifications and Approvals
Features
1. Cover plate attachment (Plain or Perforated)
with ¾” (19mm) total adjustment. Does not
require clips or springs.
2. Smooth aesthetic ceiling profile.
3. Factory installed protective cap.
4. Available in chrome and white painted finishes.
5. Ordinary and intermediate temperature rating.
6. 300 psi (20,7 bar) maximum pressure rating.
Listings & Approvals
1. Listed by Underwriters Laboratories, Inc. and Certified
by UL for Canada (cULus) - Quick Response
Note: Approvals are for light and ordinary hazard. The
cup and skirt are fabricated from plated steel and are
recommended for interior, non-corrosive applications.
Note: Paint or any other coatings applied over the factory
finish will void all approvals and warranties.
US. Patent Number 6,554,077
The Model G5-56 300 Concealer®is a cULus Listed Quick
Response Concealed Sprinkler intended for use in accor-
dance with NFPA 13.
Product Description
The Reliable Model G5-56 300 Concealer®uses a proven
quick response fusible element in a standard style sprin-
kler frame with a drop-down deflector. This assembly is re-
cessed into the ceiling and concealed by a flat cover plate
assembly. This threaded engagement provides ¾” (19mm)
of cover adjustment. The flat cover plate is attached to the
skirt using 135°F (57°C) ordinary temperature classification
solder or 165°F (74°C) intermediate temperature classifica-
tion solder. When the ceiling temperature rises, the solder
holding the flat cover plate melts, the flat cover plate re-
leased thus exposing the sprinkler inside to the rising ambi-
ent temperature.
The subsequent fusing of the solder element in the sprin-
kler opens the waterway and causes the deflector to drop
into position to distribute the discharging water. Any secure
engagement between the cover plate and cup will assure
that the drop-down deflector is properly located below the
ceiling.
Application
The Reliable Model G5-56 300
Concealer®is a versatile quick
response concealed sprin-
kler. It provides the best form
of fire protection while offering
an attractive appearance and
¾” (19mm) cover plate adjust-
ment for ease of installation. The
small diameter cover plate as-
sembly is easily attached and

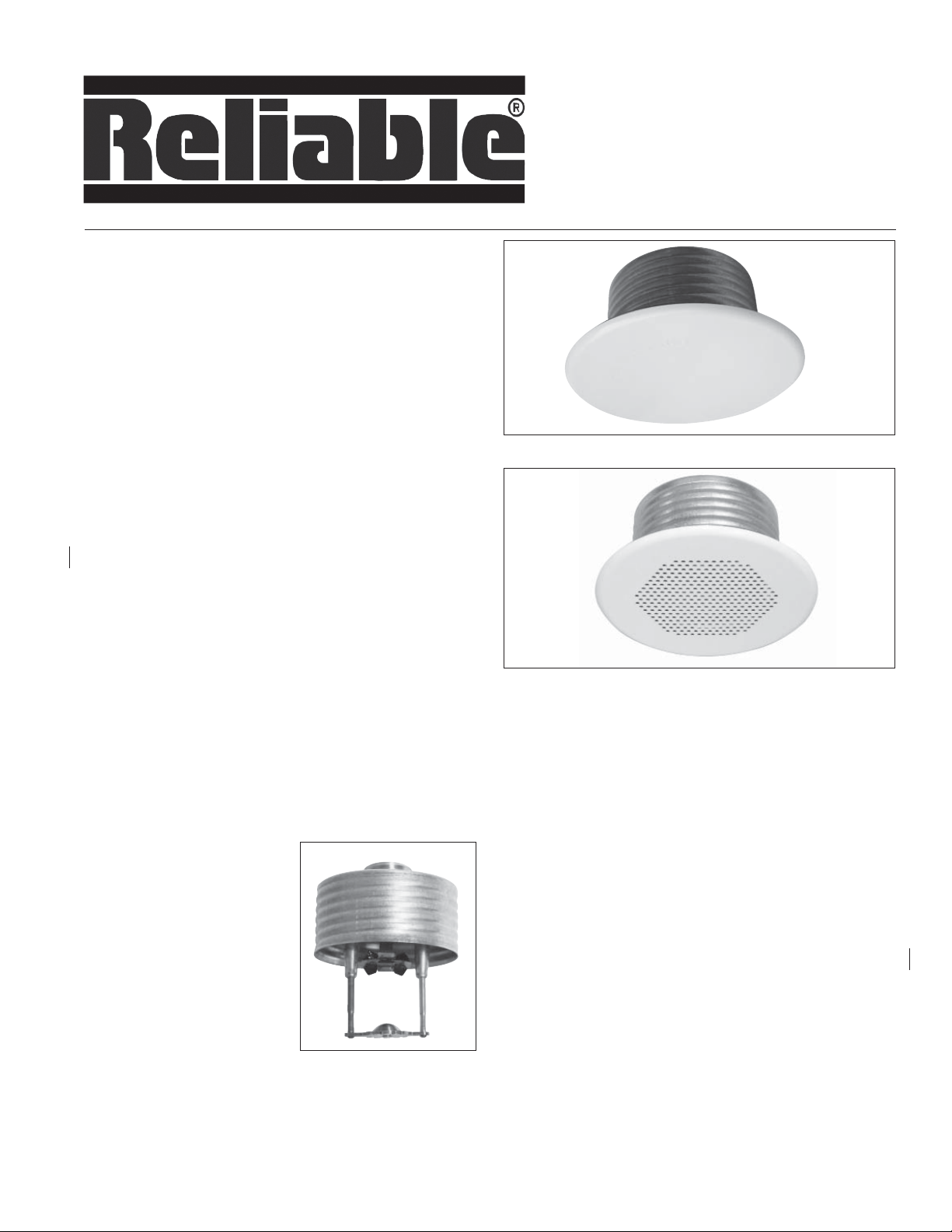

Plain Cover Plate
Perforated Cover Plate
blends into the ceiling, concealing the most dependable
fire protection, an automatic sprinkler system.
The Model G5-56 300 Concealer®is designed for use
where aesthetic appearance is important. It can be used
at working pressures up to 300 psi (20,7 bar).

Installation
Do not install the G5-56 300 in ceilings which have pos-
itive pressure in the space above.
• Cut a 25 /
8” inch (67mm) diameter hole in the ceiling,
the sprinkler is easily installed with the Model FC
Wrench. The wrench has a socket drive which is in-
serted into the body of the sprinkler. When installing
a sprinkler the wrench is first positioned into the sprin-
kler/cup assembly until the wrench socket engages
the body of the sprinkler. The sprinkler is then tight-
ened into the pipe fitting. When inserting or remov-
ing the wrench from the sprinkler/cup assembly, care
should be taken to prevent damage to the sprinkler.
DO NOT WRENCH ON ANY OTHER PART OF THE
SPRINKLER/CUP ASSEMBLY. Install the cover plate
by hand turning the cover in the clockwise direction
until it is tight against the ceiling.
A protective cap is provided to protect the drop-down
sprinkler deflector from damage which could occur dur-
ing construction before the cover plate is installed. The
cap is factory installed inside the sprinkler cup. Remove
cap to install sprinkler, then re-install cap until the cover
plate is installed.
Maintenance
The Model G5-56 300 Concealer®should be inspected
and the sprinkler system maintained in accordance with
NFPA 25. Do not clean sprinklers with soap and water,
ammonia or any other cleaning fluids. Remove dust by
using a soft brush or gentle vacuuming. Remove any
sprinkler that has been painted (other than factory ap-
plied) or damaged in any way. A stock of spare sprin-
klers should be maintained to allow quick replacement
of damaged or operated sprinklers. Prior to installation,
sprinklers should be maintained in the original cartons
and packaging until used to minimize the potential for
damage to sprinklers that would cause improper opera-
tion or non-operation.
Ordering Information
Specify:
1. Sprinkler Model
2. Nominal Orifice
3. Flat Cover Plate Assembly Finish
UL Listing Category
Sprinklers, Automatic and Open
Quick Response Sprinkler
UL Guide Number
VNIV
Cover Plate Finishes(1)
Standard Finishes
Chrome
White Paint
Special Application
Finishes(2)(3)
Bright Brass
Finished Bronze
Black Plating
Black Paint
Off White
Satin Chrome
(1) Other finishes and colors are available on special order. Consult
factory for details. Coverplate custom paint is semi-gloss, unless
specified otherwise.
(2) For the perforated style coverplate, consult factory for availability on
these and other custom finishes.
(3) Available upon request.
Standard Temperature Ratings
Classification Sprinkler Link
Color
Cover
Plate
Max. Ambient
Temp.
Ordinary 165°F/74°C Black 135°F/57°C 100°F/38°C
Intermediate 212°F/100°C White 165°F/74°C 150°F/66°C
Model FC Sprinkler
Wrench
2.

Technical Data
Sprinkler
Inlet
Total
Adjustment
Nominal
Orifice
Nominal K Factor Thread Approvals Sprinkler Identification
Number (SIN)
US Metric
Non Adjustable ¾” (19mm) ½” (15mm) 5.6 80 ½” NPT (R½) 1 RA4014
Notice
FOR USE AS A REPLACEMENT OF MODEL G4A-300 SPRINKLERS
NOTE:
1. Testing has shown that use of a “nipple extension” will not affect the listing of the sprinkler.
2. For RETROFIT installations, per NFPA 13 (2010) section 8.15.19.4, “which allows the use of nipples as the same
pipe thread size as the existing outlet when revamping existing systems”.
3. Do not exceed 8-18 ft-lbs of torque during installation.
3.

Reliable Automatic Sprinkler Co., Inc.
[phone] Sales Offices
[phone] Sales Fax
[phone] Corporate Offices
www.reliablesprinkler.com Internet Address
Manufactured by
Recycled
Paper
Revision lines indicate updated or new data.
EG. Printed in U.S.A. 11/14 P/N 9999970431
The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory
Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.
Products manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly
qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
