Bulletin 171 January 2020
Bulletin 171 January 2020
Model G4 XLO-QR ECLH/ECOH
Quick-Response Extended Coverage
K11.2 (160 metric)
Concealed Pendent (SIN R7146)
Quick-Response for Light Hazard and
Ordinary Hazard occupancies
Spacing up to 20ft x 20ft (6.1m x 6.1m)
Features
1. Extended Coverage protection to 400 ft2
(37.2 m2) per sprinkler.
2. Nominal K-factor of 11.2 (160 metric).
3. Ordinary temperature rated - 165°F (74°C).
4. Flat cover plate with ½ inch (13 mm) assem-
bly adjustment.
5. Smooth aesthetic ceiling profile.
6. Cover plate available in a wide variety of
colors and finishes.
7. Cover plate does not require clips or springs.
Approvals
1. Listed by Underwriters Laboratories, Inc.
and certified by UL for Canada (cULus).
UL Listing Category
Sprinklers, Automatic and Open Extended Coverage Sprin-
klers-Light Hazard and Ordinary Hazard Occupancy UL
Guide Number – VNIV.
Product Description
The Reliable Model G4 XLO-QR ECLH/ECOH Concealed
sprinkler is an Extended Coverage Sprinkler for use in Light
Hazard and Ordinary Hazard occupancies with a coverage
area of up to 400 square feet (37.2 m2) per sprinkler.
The use of extended coverage sprinklers can provide lower
installation costs by requiring fewer sprinklers, less piping and
reduced labor. The larger K-factor 11.2 (160 metric) provides
for reduced pressures to achieve the required flow compared
with smaller K-factor sprinklers.
The G4 XLO-QR ECLH/ECOH can eliminate the need for
precise cutting of drop nipples. The Push-on/Thread-off cover
plate assembly provides up to 1/2” (13 mm) of adjustment to
allow the cover to fit accurately against the ceiling. The fire
protection system need not be shut down when adjusting or
removing the Push-on/Thread-off cover plate assembly.
G4 XLO-QR ECLH/ECOH Concealed
Design Criteria
G4XLO-QR ECLH/ECOH sprinklers are to be installed ac-
cording to the design criteria shown in this Bulletin, NFPA 13,
and all other local codes and ordinances. Flows and pres-
sures, as shown in the Flow Requirements chart on page 2
of this Bulletin, must be selected based on the spacing and
hazard classifications.
The following criteria also apply:
• Minimum sprinkler spacing is 9 ft (2.75 m).
• Sprinklers have a minimum flow requirement for each
spacing as shown in the Flow Requirements chart on
page 2.
• Sprinklers are only to be used in systems hydraulically
designed per NFPA 13.
• Deflector to commodity clearance shall be a minimum
of 18 inches (457 mm).
• Sprinklers shall be installed in unobstructed construc-
tion as defined in NFPA 13.
• Sprinklers can be installed under a sloping ceiling not
exceeding 2 inches (50.8 mm) of rise in 12 inches
(304.5 mm).
• Maximum working pressure is 175 psi (12.1 bar) at the
sprinkler.

2.
G4 XLO-QR ECLH/ECOH Concealed Pendent
Technical Data
Sprinkler
Model Type
Nominal
K-factor
Temperature
Rating
Max.
Ceiling
Temp.
Maximum
Sprinkler
Spacing
ft (m)
Maximum
Coverage
Area
ft2(m2)
Thread
Size Approvals
gpm/psi1/2
(lpm/bar1/2)°F °C °F °C
G4 XLO-QR
ECLH/ECOH
Concealed
Pendent 11.2 (160) 165 74 100 38 20 (6.1) 400 (37.2)
¾”NPT
or
ISO 7-1 R3/4
cULus
Flow Requirements - Quick Response
Spacing
ft (m)
Coverage
Area
ft2(m2)
Light Hazard Ordinary Hazard Group 1 Ordinary Hazard Group 2
Flow
gpm (lpm)
Pressure
psi (bar)
Flow
gpm (Lpm)
Pressure
psi (bar)
Flow
gpm (lpm)
Pressure
psi (bar)
14 x 14 (4.3 x 4.3) 196 (18.2) 30 (113.5) 7.2 (0.5) 30 (113.6) 7.2 (0.5) 39 (147.6) 12.1 (0.8)
16 x 16 (4.9 x 4.9) 256 (23.8) 30 (113.5) 7.2 (0.5) 39 (147.6) 12.1 (0.8) 51 (193.0) 20.7 (1.4)
18 x 18 (5.5 x 5.5) 324 (30.1) 33 (125.0) 8.7 (0.6) 49 (185.5) 19.1 (1.3) 65 (246.0) 33.7 (2.3)
20 x 20 (6.1 x 6.1) 400 (37.2) 40 (151.0) 12.8 (0.9) 60 (227.1) 28.7 (2.0) 80 (302.8) 51.0 (3.5)
Installation
Do not install the MODEL G4
XLO-QR ECLH/ECOH in ceilings
which have positive pressure in
the space above. After installa-
tion, inspect all sprinklers to en-
sure that both the gap between
the cover plate and ceiling and
the 4 drive slots in the cup are
open and free from any air flow
impediment.
After a 25 /
8” (67 mm) diameter
hole is cut in the ceiling, the
Maintenance
Model G4XLO-QR ECLH/ECOH sprinklers should be in-
spected and maintained in accordance with NFPA 25. Do
not clean sprinklers with soap and water, ammonia or any
other cleaning fluids. Remove dust by using a soft brush
or gentle vacuuming. Replace any sprinkler or cover plate
assembly, which has been painted (other than factory ap-
plied) or damaged in any way. A stock of spare sprinklers
should be maintained to allow quick replacement of dam-
aged or operated sprinklers. Prior to installation, sprin-
klers should be maintained in their original cartons and
packaging until used to minimize the potential for damage
to sprinklers that would cause improper operation or non-
operation. Once operated automatic sprinklers and cover
plates cannot be reassembled and reused. New sprin-
klers of the same size, type and temperature rating must
be installed. A cabinet of replacement sprinklers should
be provided for this purpose.

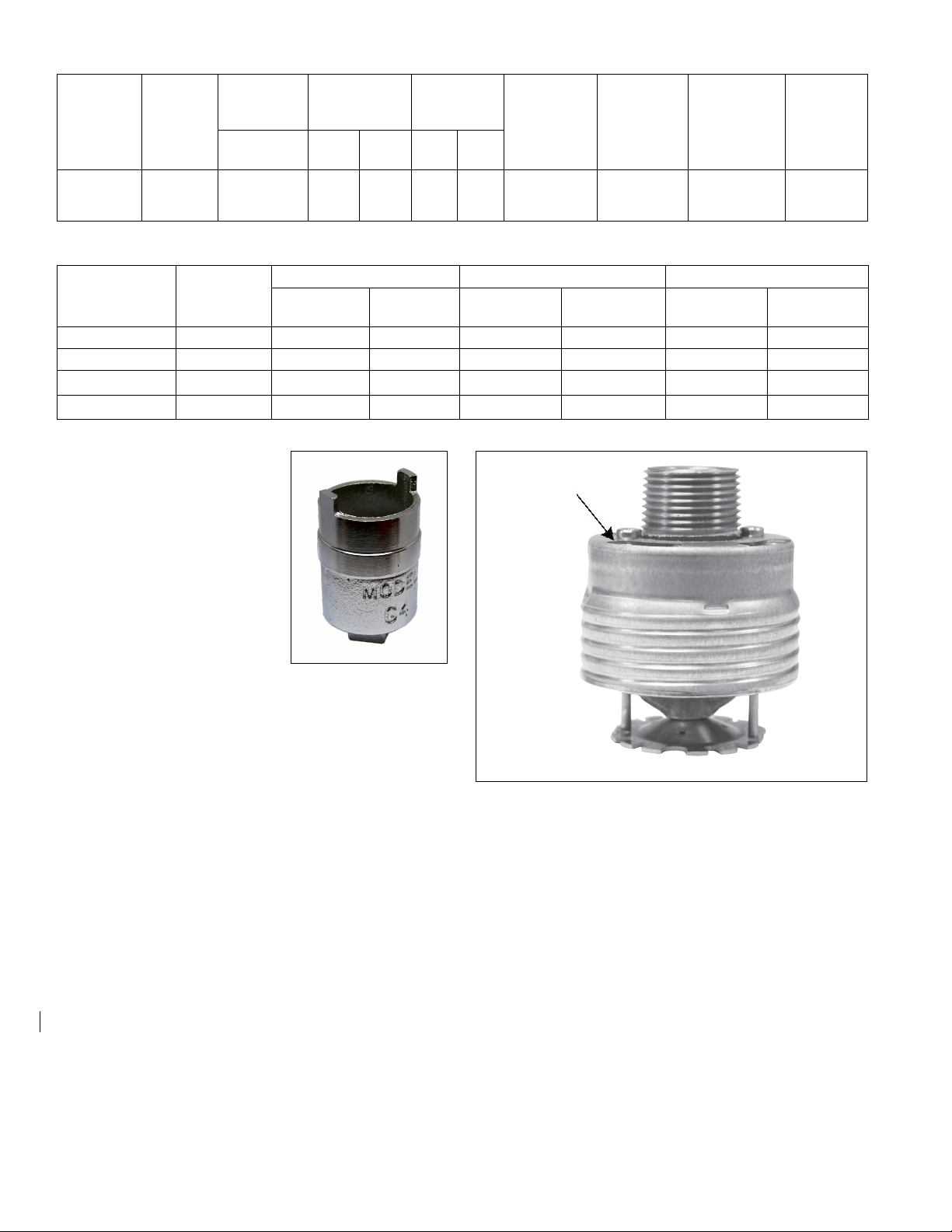

Model G4 Wrench
sprinkler is to be installed with the Model G4 Wrench.
When installing a sprinkler, the wrench is first positioned
into the sprinkler/cup assembly until two wrench tangs
fully engage drive slots in the top of the cup. The sprin-
kler is then tightened into the pipe fitting. When inserting
or removing the wrench from the sprinkler/cup assembly
care should be taken to prevent damage to the sprin-
kler. DO NOT WRENCH ON ANY OTHER PART OF THE
SPRINKLER/CUP ASSEMBLY.
A protective cap is provided to protect the drop down
deflector from damage which could occur during con-
struction before the cover plate is installed. The cap is
factory installed inside the sprinkler cup. Remove the
cap to install the sprinkler, then replace the cap until the
cover plate is installed.
THE MODEL G4 XLO-QR ECLH/ECOH SPRINKLER
MUST BE INSTALLED ONLY WITH A 135°F RATED
MODEL G4/G5 COVER PLATE WHICH HAS BEEN
LISTED WITH THE SPRINKLER.
DRIVE SLOT
(TYP. of 4)

3.
Model Model G4XLO-QR ECLH/ECOH Con-
cealed Pendent Sprinkler Specification
Sprinklers shall be a cULus listed as Quick-Response
Extended Coverage sprinklers for Light Hazard, Ordinary
Hazard Group 1, and Ordinary Hazard Group 2 occupan-
cies. Sprinklers to be of bronze frame construction with brass
cover plate and copper alloy retainer flange assembly. Water
seal assembly shall consist of a PTFE coated Belleville spring
washer and machined brass cup containing no plastic parts.
Method of attaching the cover plate to the sprinkler cup shall
be a Push-on and Thread-off design allowing a 1/2” (13 mm)
cover plate adjustment. Sprinklers shall have a nominal K-
factor of 11.2 (160 metric), and 3/4” NPT threads. Sprinkler
temperature rating shall be 165°F (74°C) with a cover plate
temperature rating of 135°F (57°C). Sprinklers shall be ca-
pable of a maximum coverage area of 20 ft. x 20 ft. (6.1 m x
6.1 m), with a minimum horizontal spacing of 9 ft. (2.75 m).
Rated working pressure shall be 175 psi (12.0 bar). A plastic
protective cap shall be provided and factory installed onto
the sprinkler cup to protect the sprinkler prior to installation of
the cover plate. Cover plate type: G4/G5. Cover plate finish:
[White] [Chrome] [Custom Finish–specify]. Quick-Response
Extended Coverage Concealed Pendent Sprinklers for Light
Hazard and Ordinary Hazard Occupancies shall be Reliable
Model G4XLO-QR ECLH/ECOH. SIN R7146 (Bulletin 171).
Ordering Information
Specify:
1. Sprinkler Model: G4XLO-QR ECLH/ECOH (SIN
R7146)
2. Cover Plate Finish: [See Cover Plate Finishes chart]
3. Cover Plate Type: Model G4/G5
4. Thread Size: 3/4” NPT unless otherwise specified,
ISO 7-1 R3/4 available by special order
The installation wrench is Model G4.
Sprinkler Identification Number (SIN): R7146
Cover Plate Finishes
Standard Finishes
White Paint
Chrome
Special Application
Finishes
Off White Paint
Black Paint
Custom Color Paint – Specify(1)
Raw Brass (Lacquered)
Bright Brass
Finished Bronze
Satin Chrome
Stainless Steel Clad(2)
(1) Custom color paint is semi-gloss, unless specified otherwise.
(2) Stainless steel clad cover plates are Type 316 Stainless Steel on the
finished side and C102 Copper Alloy on the back side. Cover plates
are not listed or approved as corrosion resistant.
Note: Paint or any other coatings applied over the factory fin-
ish will void all approvals and warranties.
Fig. 1 - Sprinkler and Cover Plate Dimensions

Reliable Automatic Sprinkler Co., Inc.
[phone] Sales Offices
[phone] Sales Fax
[phone] Corporate Offices
www.reliablesprinkler.com Internet Address
Manufactured by
Recycled
Paper
Revision lines indicate updated or new data.
EG. Printed in U.S.A. 01/20
The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory
Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.
Products manufactured and distributed by Reliable have been protecting life and property for almost 100 years.
P/N 9999970465
Fig. 2 - Installation Dimensions
