Installation guide Ei6xxxGD...
E i 650 m GD IM t hh r series
E i 654 mGD IM t hh r
E i 6P0 m GD IM t hh r
I
Eng
F
D
EInstallation guide
Guía de instalación
Montageanleitung
Guide d'installation
Guida all'installazione
Outside
Inside
ONLY FOR PROXIMITY MODELS
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Declaración de conformidad
Por medio de la presente Salto SystemsS.L. (Pol. Lanbarren C/Arkotz,9 -
20180 Oiartzun – Spain - CIF B20708517), declara que este equipo cumple
con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE o la Directiva
89/336/EEC. Podrá encontrar una copia de la declaración de
conformidad original en la siguiente dirección de Internet:
http://www.saltosystems.com
Todos los modelos de proximidad son “Receiver class 3”.
Declaration of conformity
By means of the present Salto Systems S.L. (Pol. Lanbarren C/Arkotz, 9 -
20180 Oiartzun - Spain - CIF B20708517), declares that this equipment
fulfills the essential requirements and any other applicable or
indispensable dispositions of the Directive 1999/5/CE or the Directive
89/336/EEC. You will be able to find a copy of the original declaration
of conformity at the following Internet address:
http://www.saltosystems.com
All proximity models are "Receiver class 3".
E
Eng follow user manual
AT THIS POINT DO NOT
CLOSE THE DOOR
PROGRAM THE LOCK FIRST
ExteriorInterior
En este punto no cierre la puerta,
programe primero la cerradura
Consulte el manual del
usuario
Eng
E
t
DOOR
Doordetector
Detectordepuerta
DOOR
*
*
*
*Only Wireless model
*

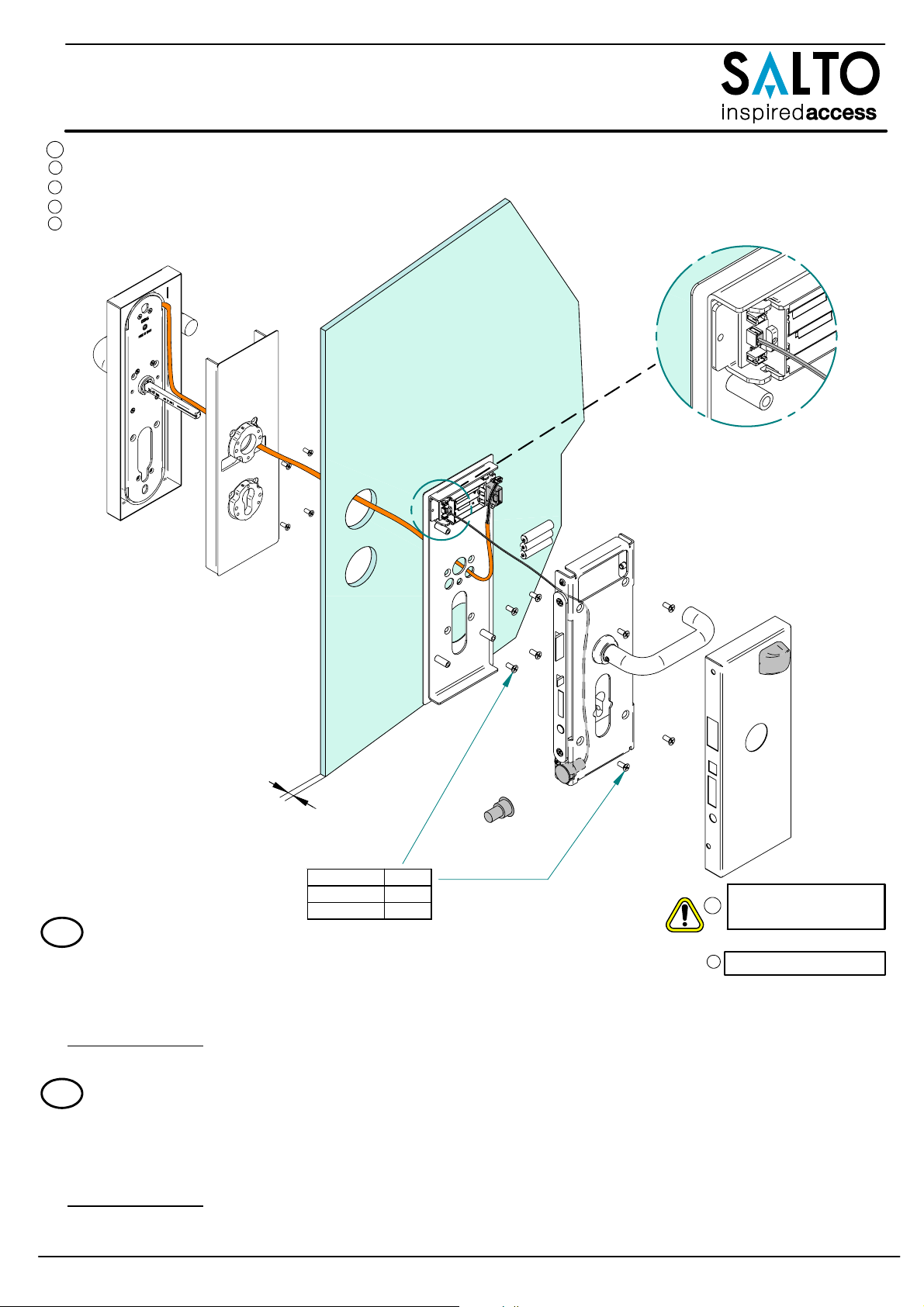

"t" door thick. screw
8-10 mm M5x12
12-14 mm M5x15

All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials. 220607 -ED0 -07/04/2010
©2010 SALTO Systems S.L.
Installation guide Ei6xxxGD... (Selection of Handing)
Inside
Outside
RH LH
Inside
Outside
Inside
Outside
Inside
Outside
RR LR
-Caution !
-Do not disconnect !
-No desconectar
-Verbindung nicht unterbrechen
-Ne pas déconecter
-No scollegare
-Atención
-Achtung
-Attention
-Attenzione
E
D
F
Eng
E
D
F
Eng
I
I
LH
SELECT HANDING
3-SELECCIONE MANO
-DRÜCKERRICHTUNG WÄHLEN
-CHOISIR LE SENSE DE LE POIGNÉ
-SELEZIONARE MANO
E
D
F
Eng
I
PULL
-TIRAR
-HERAUSZIEHEN
-TIREZ
-TIRARE
E
D
FEng
I
RH
RR
LR
2
5
4
1
2/4
-Notch Dimensions
DIN 18101 Glass door
HANDLE AXIS
1040 To finished floor
RECOMMENDED
O
50+2
0
80±1
57±1
6
RR
LR Models
6a
LH
RH Models

All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials. 220607 -ED0 -07/04/2010
©2010 SALTO Systems S.L.
=
=
78
910 11
12 13 14
3/4
Installation guide Ei6xxxGD...
Sólo Baterias LR03
Only LR03 Batteries
Eng
E
Reverse !
-TO FIX COUNTER-CLOCKWISE
-FIJACION: GIRAR SENTIDO ANTIHORARIO
-GEGEN UHRZEIGERSINN FESTSCHRAUBEN
-POUR FIXER, TOURNEZ EN SENS INVERSE
DES AIGUILLES D´UNE MONTRE
-FISSAGGIO: GIRARE SENSO ANTIORARIO
E
D
F
Eng
I
AT THIS POINT D O NOT
CLOSE THE DOOR
PROGRAM THE LOCK
FIRST
follow user manual
NO CIERRE LA PUERTA.
PROGRAME LA CERRADURA
TÜRE NICHT SCHLIESSEN.
ZUERST SCHLOSS
PROGRAMMIEREN
NE FERMEZ PAS LA PORTE.
PROGRAMEZ LA BÉQUILLE
AVANT
E
D
F
Eng
IPRIMA DI CHIUDERE LA
PORTA, PROGRAMARE LA
SERRATURA
Consulte el manual del usuario
E
Eng
¡Atencion! No pillar el
cable
E
Caution! Do not caugth
the wire
Eng

All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials. 220607 -ED0 -07/04/2010
©2010 SALTO Systems S.L.
Installation guide Ei6xxxGD... Models
4/4
E i 650xGDIMxxx
AUTOMATIC
E
AU
T
OMA
T
IC
E
AUTOMATIC
E
Euro Profile
Override
CE GD hh IM
Strike plates for Glass frames and fixed double doors
E i 654xGDIMxxx
E i 6P0xGDIMxxx
-Entry lock with key override and audit trail
-Modelo entrada con llave de emergencia y registro en auditor
-Beschlag mit Notschlüssel
-Béquille electronique avec clef de secours
-Modello entrata con chiave di emergenza e registrazione lista eventi
E
D
F
Eng
I
30 10
R15
b
Cerraderos para marcos de cristal y doble hoja fija
E
Eng
-Entry lock with europrofile cut out
-Modelo entrada con corte para cilindro
-Beschlag mit Profilzilinder-Lochung
-Béquille electronique avec coupe cylindre profil européen
-Modello di entrata con mezzo cilindro europeo
E
D
F
Eng
I
-Entry lock
-Modelo entrada
-Beschlag
-Béquille electronique
-Modello di entrata
E
D
F
Eng
I
Door Thickness b Measure
8mm 45
10mm 50
12mm 50
14mm 50
