Samsung SMT-I3105 User manual

SMT-i Series Phones
Quick Reference Document For Administrator
V0.3

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
1
TABLE OF CONTENTS
Introduction ........................................................................................................... 2
Quick Overview ...................................................................................................... 3
SMT-i5264 AOM (Add-On Module) ........................................................................ 4
Quick Setup Guide.................................................................................................. 5
Initial Configuration............................................................................................ 5
SMT-i5264 AOM (Add-On Module) ..................................................................... 6
Quick Software Upgrade Guide .......................................................................... 9
Service/Usage Tips............................................................................................... 13
External USB Port Specifications .......................................................................... 16

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
2
Introduction
This quick reference document briefly describes the steps for administrator to set up
the SMT-i3105/5200 series IP devices and to upgrade software on these devices.
These new SMT-I series of IP devices required to have OfficeServ 7000 MP software
v4.46 and up. No license is required to register and to operate these devices.
Preparation:
•OfficeServ 7000 system with v4.46 and up software
•Connect OfficeServ 7000 MP, MGI, PC and SMT-ixxxx to the same data network
•Power SMT-ixxxx devices either by PoE or AC power adaptor
MMCs:
•MMC 727: check software version number
•MMC 830: MP IP address
•MMC 840: IP set information
•MMC 209: AOM paring
•MMC 722: Station key programming
Two methods to enter to the engineering mode:
1. Initial setup
a. Press and hold * key while powering up SMT-i3105/5210/5220/5230
phone
i. There is no need to press any key while powering up SMT-i5243.
When powering up the SMT-i5243 the first time, it will automatically
enter the installation menu.
2. Subsequent setup
a. Press *153# while phone displays the phone information. Follow the
following sequence to display the phone information.
i. Menu -> Settings -> phone info; for i3105/5210/5220/5230
ii. Menu -> Phone -> phone information; for i5243

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
3
Quick Overview
In order to set up the phone or perform the software upgrade, the administrator needs
to enter the phone to the engineering mode.
i3105/i5210/i5220/i5230 i5243
Initial setup
•
Enter to the engineering mode
•Select “Easy Install”menu to set
up the phone
•Power up the phone and
follow on screen instructions
Re-configuration
•Enter to the engineering mode
•Select “Easy Install”menu to set
up the phone
•Enter to the engineering mode
•Select “Easy Install”menu to
set up the phone
Software Upgrade •Run TFTP server software on PC •Run TFTP/HTTP server
software on PC
Method 1: pull from
the phone (phone is
required to register
to the system)
•Enter to the engineering mode
•Select “S/W upgrade”
•Select “TFTP Server”and enter the
PC IP address
•Start upgrade
•Enter to the engineering mode
•Select “S/W upgrade”
•Select “TFTP or HTTP”type
and enter the PC IP address
•Start upgrade
Method 2: push
from MMCs (phone is
required to register
to the system)
•MMC 841:
oEnter PC (server) IP
address
oEnter 4 digits software
version
•MMC 840; enable and start
software upgrade
•MMC 841:
oEnter PC (server) IP
address
oEnter 4 digits software
version
•MMC 840; enable and start
software upgrade
Method 3: use USB
memory (phone is
not required to
registered to the
system)
•Copy software to the root
directory of the USB memory
•Plug-in USB memory to the
phone
•Enter to the engineering mode
•Select “Software upgrade”
•Select “USB”type
•Start upgrade

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
4
SMT-i5264 AOM (Add-On Module)
1. Setup
•Enter AOM to the set up mode
•Two methods to set up the AOM
oUse SMT-i5243 phone to set up the AOM
oUse web browser to set up the AOM
2. Software upgrade
•Run TFTP server software on the PC
•Use web browser to access the AOM and upgrade the software

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
5
Quick Setup Guide
Initial Configuration
SMT-i3105/5210/5220/5230 IP Phones
•Press and hold ‘*’key while powering up the phone to enter the configuration
menu.
•Select “Easy Install”
oSelect Dynamic IP if DHCP service is available.
If select static IP address, the IP address must be in the same subnet range
as the OfficeServ system.
oSelect OSPP (KP) as the system type
oSkip unused settings such as VLAN, 802.1x, etc.
oEnter OfficeServ system IP address
Ex. 192.168.1.10
oEnter system ID. This is the phone ID found in MMC 840.
Ex. 3201
oEnter password. This is the phone password found in MMC 840.
Ex. 1234
SMT-i5243 Phones
•Power up the phone and follow the on screen instructions.
oPress Next to advance to next screen
oPress Next to skip language and key pad type
oEnter
Server IP: 192.168.1.10 (OfficeServ system IP address)
ID: 3201 (phone ID)
Password: 1234 (phone password)
Server type: OfficeServ
oPress Next to advance to next screen
oMode:
Select Dynamic IP if DHCP service is available.
If select static IP address, the IP address must be in the same subnet range
as the OfficeServ system.

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
6
oPress Next to advance to next screen
oSkip unused settings such as VLAN, 802.1x, etc. and press Next
oPress Done
oPress Yes to Finish Easy Install
SMT-i5264 AOM (Add-On Module)
SMT-i5264 AOM will register to the OfficeServ system as an IP phone device. It need
the IP phone ID and password during the registration. The SMT-i5264 will receive an IP
phone extension. It can be paired to any IP phone or digital phone as the add-on
module. MMC 209 is used to pair the AOM extension to a master phone.

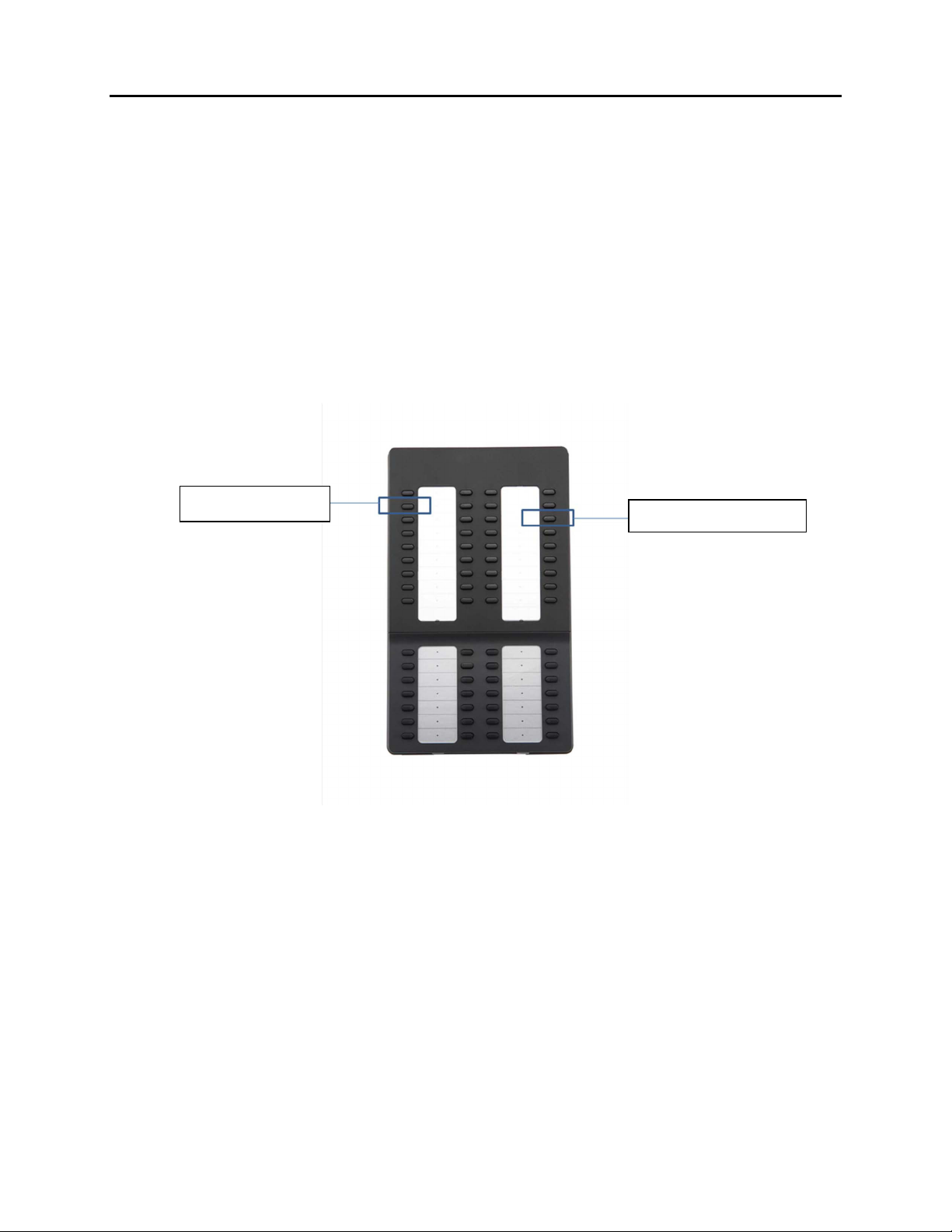

•Prepare AOM to the set up mode
oPress and hold 2nd key from the 1st column (left most columns) to enter the set
up mode.
oPress the 3rd key from the 4th column (right most columns) after this key is
flashing.
oTwo method to set up the AOM
•Use SMT-i5243 phone to set up the AOM.
oEnter SMT-i5243 phone to the engineering mode
oMenu -> phone -> phone information -> *153#
oSelect Network -> AOM to enter into the set up mode
oEnter the following data
Press Key 2 first
Then, press Key 51

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
7
If IP setting is DHCP skip this step
•IP address: (assign an AOM IP address)
•Gateway: (from MMC 830)
•Subnet Mask: (from MMC 830)
Server IP Address: (OfficeServ IP address from MMC 830)
(use navigation key to move to the following fields)
Server ID: (ITP ID from MMC 840)
Server Password: (ITP password from MMC 840)
Server Port: 6000 (press * key twice to switch input mode
to numeric mode)

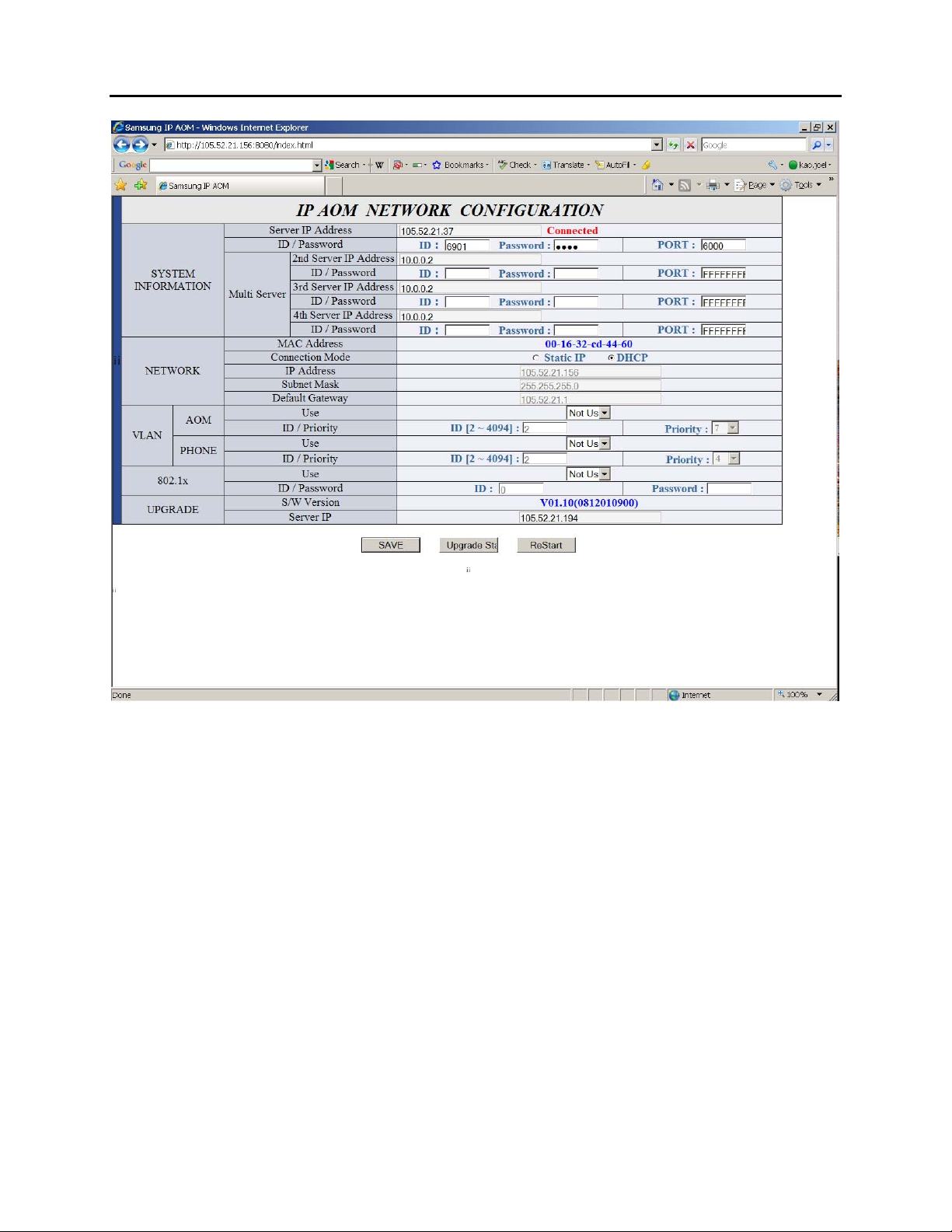

•Use Web UI
Type IP address with port 8080 in the address bar of IE browser. Default
AOM IP address is 10.0.0.3.
Ex.
•http://10.0.0.3:8080
•ID: admin
•Password: samsung
Fill in the required data. Must enter the following information.
•Server IP address is the OfficeServ MP IP address
oEx. 192.168.1.10
•Enter an ITP ID and password
Ex:
oid: 3210
opw: 1234
•default port is 6000
Press [Save] then [ReStart]
•Use MMC 209 to pair AOM to any IP/TDM phone.
•Use MMC 722 to assign buttons.

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
8
Re-Configuration
•Enter to the engineering mode
•Select the “Easy Install”item to re-configure the phone

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
9
Quick Software Upgrade Guide
•Register phones to the OfficeServ system
•Connect the PC to the same data network and set the TCP/IP properties to the same
subnet range
•Run server software on the PC and point root directory to the phone software folder
•Start phone software upgrade either by pulling from the phone or pushing from the
OfficeServe system
TFTP server software needs to support “block size”option to be used for the phone
upgrade.
•Freeware: tftpd32 with v3.35 works well, http://tftpd32.jounin.net/
HTTP server software can be used for SMT-i5230/5243 software upgrade
•Freeware: Mereo with v1.08 works well, http://www.ohloh.net/p/mereo

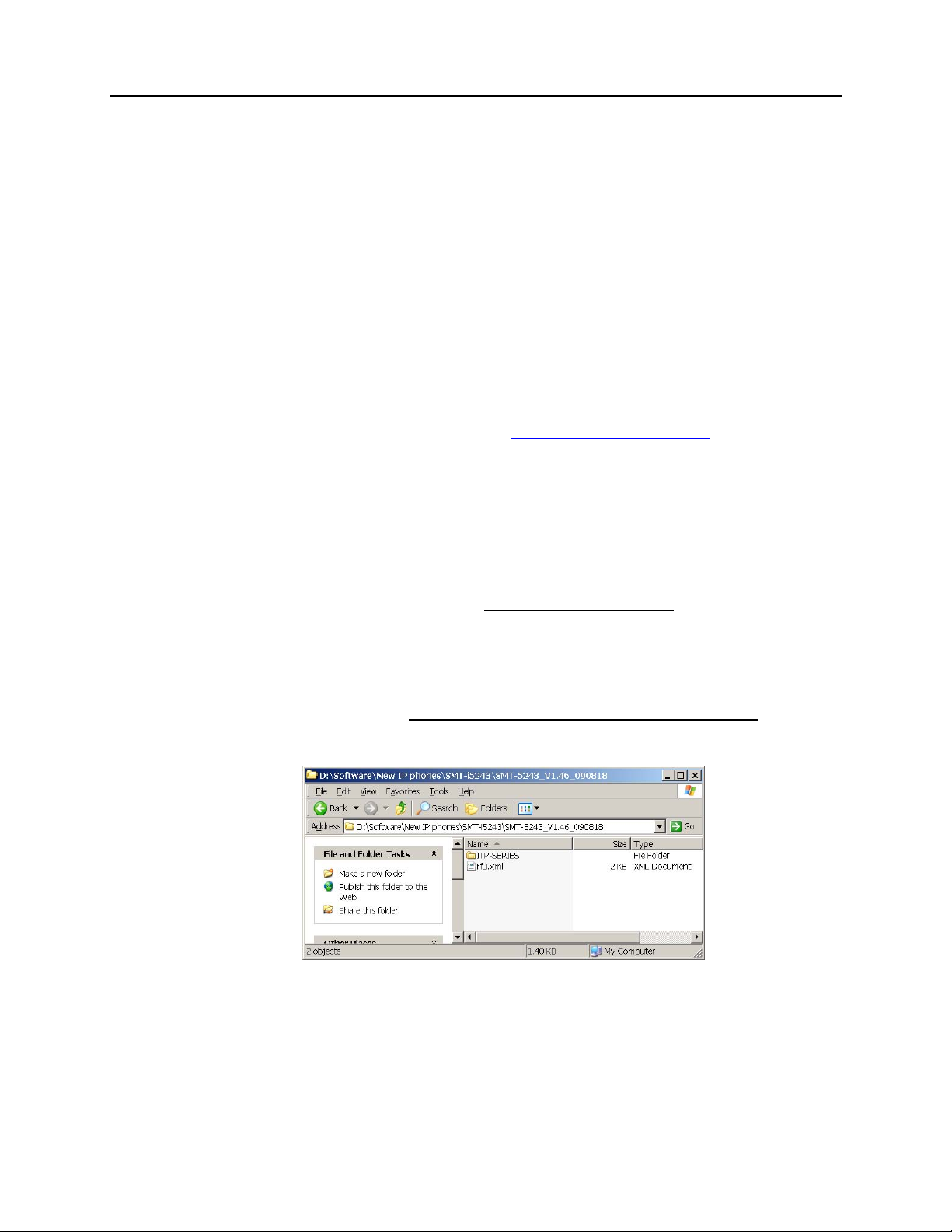

Note:
Need to point the server directory to the software version name. It should have the
sub folder called “ITP-SERIES”that contains the software files.
Example:
Point to the server directory to C:\Software\New IP phones\SMT-i5243\SMT-
i5243_V1.64_4_100405

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
10
Pull From the Phone
SMT-i3105/5210/5220/5230 IP Phones
(TFTP server must be running in the PC)
1. Enter to the engineering mode
2. Select “S/W Upgrade”
3. Select “Upgrade Server”or “TFTP Server”
oEnter the PC IP address
Use “*”to enter “.”
4. Press Enter (enter of the navigation button) key or Yes softkey to start the
process
SMT-i5243
Method 1: Use TFTP server
(TFTP server must be running in the PC)
1. Enter to the engineering mode
2. Select “S/W Upgrade”
oUpgrade type: TFTP
oURL: (enter PC IP address)
3. Press “Upgrade”softkey to start the process
Method 2: Use external USB memory stick
Phone doesn’t need to be registered to the OfficeServ system
1. Load SMT-i5243 software to the root directory of the USB memory stick

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
11
2. Plug in the USB memory stick to the phone
oEnter to the engineering mode
oSelect “S/W upgrade”
Upgrade Type: USB
oPress “Upgrade”to upgrade the software

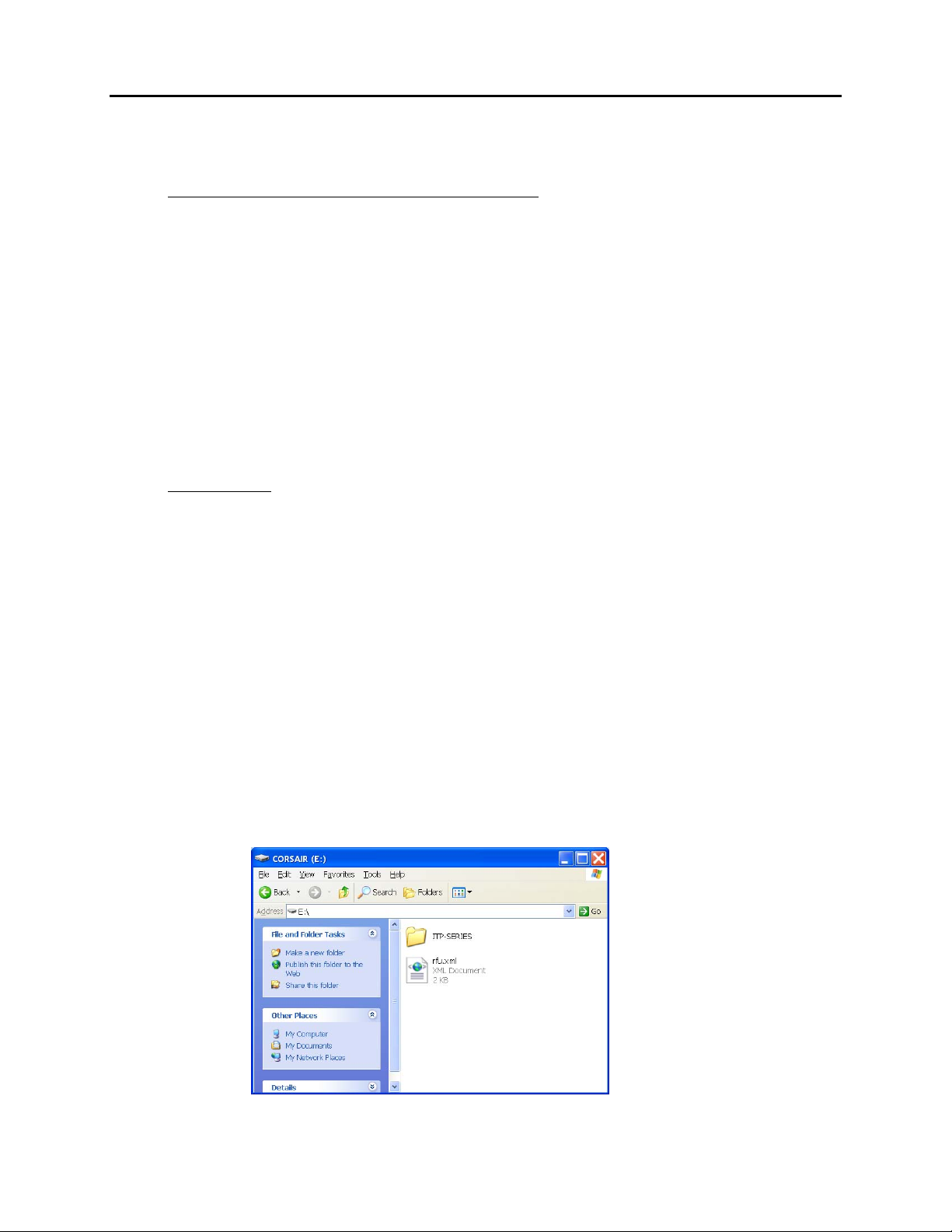

oNote: the USB memory must have the following file structure in the root
directory.
Push From the OfficeServ System
1. Run TFTP server software from the PC and set to the directory to the software
version number folder.
2. MMC 841
i. Enter 4 digits software version number to the phone model. Ex. v1.46
1. SMT-i5210: 0107
ii. Enter PC server IP address, Ex.
1. UPGRADE SVR IP: 105.52.21.194
2. PHONE SOFTWARE UPGRADE, TYPE:MMC COMMAND
3. MMC 840
i. Move to the phone extension number and start upgrade
1. [3201]SW UPGRADE, ARE YOU SURE?YES
Notes:
1. The OfficeServ will use HTTP method when pushing software to SMT-i5243
phone. It canot be changed. In other words, the HTTP server must be used to
upgrade SMT-i5243 phone if push method is used.
2. The OfficeServ will use TFTP method when pushing software to other SMT-I
series phones.

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
12
SMT-i5264 AOM
(TFTP server must be running in the PC)
1. Access to the AOM through the IP address
oUse MMC 209 to find the AOM extension number
oUse MMC 840 to obtain the AOM IP address
oUse port 8080
Ex: http://192.168.1.22:8080
Id: admin
Password: samsung
2. Enter the PC IP address in the UPGRADE -> Server IP
3. Press [Upgrade Start] button.
4. Restart the AOM unit

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
13
Service/Usage Tips
Antenna Bar Icon
The antenna bar icon on the top left corner of the SMT-i5243 during the conversation
indicates the packet loss status.
•5 antenna bar: 0-20% packet loss per 1 sec
•4 antenna bar: 20-40% packet loss per 1 sec
•3 antenna bar: 40-60% packet loss per 1 sec
•2 antenna bar: 60-80% packet loss per 1 sec
•1 antenna bar: 80-99% packet loss per 1 sec
•0 antenna bar: 100% packet loss per 1 sec
SMT-i5264 (AOM) to SMT-i5200 Connection
•If you need to connect a SMT-i5264 (AOM) to the SMT-i5200 phone, the LAN (data
network) input must connect to the AOM’s LAN port first then PC port to the
phone’s LAN port.
•This is critical if PoE switch is used. AOM unit can transfer PoE power but not SMT-
i5200 phones.
Headset
•Headset can be selected in the phone idle state by pressing the headset key.
•To switch between headset and handset (or speaker phone) during the
conversation, you need to put call on hold first.
Ring Tone
•To use station ring tones, you need to turn on option from MMC 110.
•Different ring tone can be selected for each phone book entry.
Phone Book
•Personal phonebook is stored locally on the phone. System doesn’t have a backup
copy.
•If LDAP server is available and the link is programmed on MMC 844 (LDAP SERVER
URL, ldap://xxx.xxx.xxx.xxx), the phone will show “Company Phonebook”option
when pressing “Phone Book”key.
•Search function is case sensitive on all models except SMT-i5243.

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
14
Video Calls
•Devices support video calls are SMT-i5243, softphone, and UC communicator
•Video calls are available between Samsung devices with peer to peer
configuration.
Phone Call Required MGI or MPS
Local to Local None
Local to Remote 2 MPS calls (4 MPS
channels)
Across SPnet 2 MPS calls (4 MPS
channels)
•Video call parameters (such as bandwidth, viceo codec, etc.) for on SMT-i5243
phone can be found and set under the Video Option in of the engineering mode.
The unit of the bandwidth is KB. It defines the average bandwidth for the video
call.
SMT-i5243 LCD display
•Default ON time is 08:00 to 18:00
•User changeable
•Menu -> Phone -> Screen -> LCD Power Saving
•During this period, LCD will turn dim after 30 seconds (user changeable)
•Outside this period, LCD will turn off (dark).
•LCD will turn on with any user activity or Incoming call
•SMT-i5243 LCD life is 15,000 hours
Speaker Phone
•SMT-i5230 and SMT-i5243 model have better speaker phone qualitythan other
models because these two models have dedicated chipset for speaker phone.

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
15
File Storage Capacity on SMT-i5243
•When connecting to OSC (UC Mode), users can download image files and ring
tones to the SMT-i5243 phone. The storage size can be found from the status bar
of OSC.
Item Max. Size (in byte) Max. Count
Wallpaper 3M 10
Phonebook icon 3M 500
Screen saver 3M 10
Ring tone 3M 10

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
16
External USB Port Specifications
The SMT-i5243 phone has one built-in USB v1.1 port that supports three
types of external USB devices (USB port does not support USB hub):
1. USB BLUETOOTH DEVICES: Users can make and receive calls through a Bluetooth
wireless headset when connected with the USB bluetooth dongle.
USB Bluetooth Dongle
Most of USB Bluetooth dongle that contains CSR (Cambridge Silicon Radio) chipsets
will work with the phone.There is no way to verify all the products in the market.The
following products have been verified with the phones:
•Billionton USB Bluetooth Adapter (v2.1 + EDR)
•Belkin Mini Bluetooth Adapter
•Billionton BT0003
•Inparo H-20
•Collection SS-BT2
•Hama Nano-Bluetooth USB Bluetooth Adapter v2.1 + EDR 102
Plug the supported USB memory stick into the USB port.
2
When phone is in idle screen, press Menu, Settings, and then User Data
Management.
3
Use Export Phonebook to USB to save your personal phonebook stored in the SMT-
i5243 phone into the USB memory, and Import Phonebook from USB to upload the
phonebook stored in the USB to your SMT-i5243 personal phonebook.
Bluetooth Headset:
•Jabra BT530
•Aliph Jawbone II Bluetooth Headset with NoiseAssassin
•Samsung WEP 250
•Plantronics Voyager 925
•Plantronics Voyager pro
•Plantronics Discovery 925

SMT-i SERIES QUICK REFERENCE DOCUMENT
ADMINISTRATOR DOCUMENT MAY 2010
17
2. USB CAMERA: Users can make and receive video calls among SMT-i5243 phones at
local or remote site (required MPS channels) when connected to a USB camera. Most of
the USB camera with UVC (USB video class) driver should not have issue with the
phone.There is no way to verify all the products in the market. The following products
have been verified with the phones:
•Logitech QuickCam Pro 9000
•Logitech QuickCam Deluxe
•Logitech Webcam C250
•Logitech Webcam C300
•Microsoft LifeCam VX-800
3. USB FLASH MEMORY: When connected to an external USB memory stick, users can
upload or download phone book items to the phone.Administrator can also use the
USB memory to upgrade the phone software.
Any USB memory sticks that support Linux operation system should not have any
issue with the phone.Most of recent USB memory sticks can support both Windows
and Linux operating systems. The phone support USB memory sticks with maximum
size of 4 GB.
The following products have been verified with the phones:
•Kingston DataTraveler I 2GB
•Kingston DataTraveler I 4GB
