San Jamar EZ-Fit Service manual

C2210C EZ-FIT®EURO CUP DISPENSER INSTALLATION INSTRUCTIONS
4 7/8” Dia.
124 mm
HOLE SAW RECOMMENDED
1. CUT HOLE IN COUNTER SURFACE
2. REMOVETRIM RINGTURNING
COUNTER CLOCKWISE
3. SECURE CUP DISPENSERTO COUNTER
WITH SUPPLIED SCREWS (#8 SCREWS)
4. SELECT PROPER SIZE GASKET FOR CUP
(SEE TABLE ON BACK)
5. INSTALL GASKET OVER POSTS IN
UNDERSIDE OF RING
6. REPLACE COVER RINGWITH GASKET BYTURNING
CLOCKWISE OVER MOUNTING RING UNTIL SECURE
7. LOAD CUPSTHROUGH GASKET
REPLACEMENT PARTS & ACCESSORIES (see reverse side for replacement gaskets)
X22MT Black Mounting Ring (new low profile)
X22TR BlackTrim Ring (new low profile)
C2215 Spring
C2203BK End Cap
C3426BK Cup Pusher
C2202SV Wire Cage for Surface Mount
C22XC ChromeTrim Ring

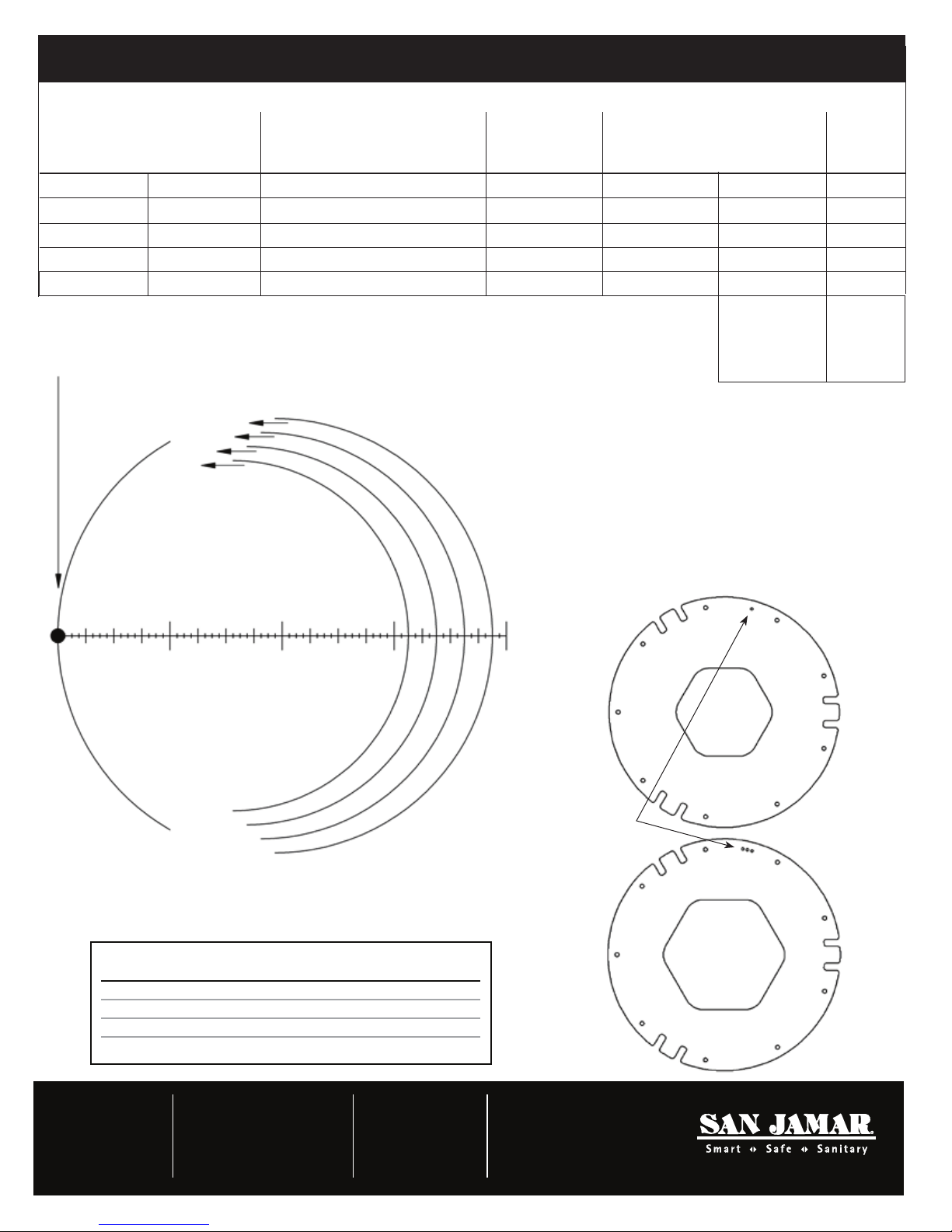

1.TURN CUP UPSIDE DOWN ON RULER,
WITH WIDEST POINT OF RIM TOUCHING
END OF RULER (BLACK DOT).
2. DETERMINE SIZE OF CUP RIM DIAMETER
(S, M, L, XL) BASED ON PLACEMENT OF
RIGHT SIDE OF CUP.
3. USE GASKET FOR THAT SIZE.
# OF
HOLES GASKET SIZE PART #
° SMALL XC2222S/XC2222SBK
° ° MEDIUM XC2222M/XC2222MBK
° ° ° LARGE XC2222L/XC2222LBK
° ° ° ° EXTRA LARGE XC2222XL/XC2222XLBK
PART QUANTITY
APPROXIMATE CUP APPROXIMATE CUP GASKET NUMBERS OF GASKETS
RIM DIAMETER SIZE RANGE SIZE (BLACK) (WHITE) IN KIT
REPLACEMENT GASKET KITS
MINIMUM MAXIMUM
2 7/8” (73mm) 3 1/8” (79mm) 6oz (177mL) to 10oz (296mL) SMALL XC2222SBK XC2222S 3
3 1/8” (79mm) 3 3/8” (86mm) 8oz (236mL) to 12oz (355mL) MEDIUM XC2222MBK XC2222M 3
3 1/2” (89mm) 3 5/8” (92mm) 12oz (355mL) to 22oz (650mL) LARGE XC2222LBK XC2222L 3
3 3/4” (95mm) 3 7/8” (98mm) 18oz (532mL) to 24oz (709mL) EXTRA LARGE XC2222XLBK XC2222XL 3
ONE OF EACH XC2226 4
PLACE RIM OF
CUP HERE
½” 1” 1½” 2” 2½” 4”
3”
SJCR México
Av. Universidad #1377-701
Colonia Axotla CP 01030
Del. Álvaro Obregón
MÉXICO, DF
T: [phone]
F: [phone]
[e-mail]
San Jamar
Chef Revival
555 Koopman Lane
Elkhorn,Wisconsin 53121
USA
T: +1.262.723.6133
F: +1.262.723.4204
[e-mail]
SJCR Europe
Schoorstraat 26A, bus-1
2220 Heist op-den Berg
BELGIUM
T: [phone]
F: [phone]
[e-mail]
SJCR Canada
3300 Bloor StreetWest
Center Tower, 11th Floor, Suite 3140
Toronto, ON M8X 2X3
CANADA
T: +1.416.760.7367
F: +1.416.207.2071
[e-mail] C2214 Rev C
SMALL GROUPING
OF HOLES ON EDGE
INDICATE GASKET
SIZE (SEE CHART)
GASKET SIZING GUIDE
Approximate Cup
Size Range
Gasket
Size
Quantity
of Gaskets
in Kit
minimum maximum black white
2 7/8” (73mm) 3 1/8” (79mm) 6 oz (177mL) to 10 oz (296mL) SMALL XC2222SBK XC2222S 3
3 1/8” (79mm) 3 3/8” (86mm) 8 oz (236mL) to 12 oz (355mL) MEDIUM XC2222MBK XC2222M 3
3 1/2” (89mm) 3 5/8” (92mm) 12 oz (355mL) to 22 oz (650mL) LARGE XC2222LBK XC2222L 3
3 3/4" (95mm) 3 7/8" (98mm) 18 oz (532mL) to 24 oz (709mL) EXTRA LARGE XC2222XLBK XC2222XL 3
XC2226
One each-
Small,
Medium, Large,
Extra Large
4
REPLACEMENT GASKET KITS
Approximate Cup
Rim Diameter Part Numbers
