The MPB-300 panic button is used to trigger a panic alarm or call for help in emergency
situations. It can also be used to control the operation of various devices (e.g. automation or
access control system devices). The button is supported by:
PERFECTA alarm control panels (WRL models),
VERSA-MCU controller,
MTX-300 controller,
MICRA alarm module (firmware version 2.02 or newer),
INT-RX-S expander (firmware version 1.04 or newer) –only in keyfob mode,
RK-1K / RK-2K / RK-4K / RK-4K SMA radio remote controller –only in keyfob mode.
This manual applies to the button with electronics version 1.2.
1. Features
Selectable operating mode:
–detector,
–keyfob.
Encrypted radio transmissions in the 433 MHz frequency band.
Battery status control.
LED indicator in the button configuration and testing mode.
Tamper protection against enclosure opening and removal from mounting surface.
2. Description
The button can operate as a wireless detector or a keyfob. Select the operating mode before
you register the button in the wireless system. The default setting is the wireless detector
mode. Depending on the selected operating mode, the button will be identified as:
MMD-300 detector,
MPT-350 keyfob.
2.1 Button operates as a detector
Radio transmissions
Every 15 minutes, the detector sends information about its state (periodical transmission).
Additional radio transmissions take place as a result of alarm.
Alarms
The panic button will report alarm:
when pressed,
when the tamper switch is open (tamper alarm).

SATEL MPB-300 3
Test mode
For 20 minutes after battery is inserted or tamper switch is opened, the button operates in
a special mode that allows you to test the button. The LED is enabled in the test mode.
LED
The LED will flash for about 5 seconds after the battery is inserted to indicate warm-up of the
button. The LED also works during the operating mode selection procedure (see “Selecting
the button operating mode”) and in the test mode, in which it indicates:
periodical transmission –short flash (80 milliseconds),
alarm –ON for 2 seconds,
Battery status control
When the battery voltage is below 2.75 V, information about low battery is sent during each
transmission.
2.2 Button operates as a keyfob
Radio transmissions
Radio transmissions are sent:
after pressing the button –same transmission as when the button is pressed on the
MPT-350 keyfob,
after opening the tamper switch –same transmission as when the button is pressed on
the MPT-350 keyfob.
Transmission is sent for the entire time when the button is pressed / the tamper switch is
open but no longer than 20 seconds (battery discharge protection).
LED
The LED indicates:
warm-up –ON for about 5 seconds after battery is inserted,
button is pressed / tamper switch is open –ON for 2 seconds.
The LED is also used during the operating mode selection procedure (see “Selecting the
button operating mode”).
Battery status control
When the battery voltage is below 2.75 V, information about low battery is sent during each
transmission.

4 MPB-300 SATEL
3. Electronics board
battery (CR14250).
tamper switch activated by removal from mounting surface.
button.
LED.
tamper switch activated by cover removal.
fixing screw hole.
4. Installation
There is a danger of battery explosion when using a different battery than
recommended by the manufacturer, or handling the battery improperly. Do not
crush the battery, cut it or expose it to high temperatures (throw it into the fire,
put it in the oven, etc.).
Do not expose the battery to very low pressure due to the risk of battery
explosion or leakage of flammable liquid or gas.
Be particularly careful during installation and replacement of the battery.
The manufacturer is not liable for the consequences of incorrect installation of
the battery.
The used batteries must not be discarded, but should be disposed of in
accordance with the existing rules for environment protection.

SATEL MPB-300 5
The button is designed for indoor installation.
1. Remove the button cover (Fig. 2).
2. If the button is to work in the MMD-300 detector mode, insert the battery (this operating
mode is set by default). If the button is to operate in the MPT-350 keyfob mode, select this
operating mode (see “Selecting the button operating mode”p. 7).
3. Register the button in the system as prescribed for the selected operating mode
(see: PERFECTA / VERSA control panel installer manual, MTX-300 controller manual or
MICRA module manual).
4. Replace the button cover. The marks on the cover and base will help you close the
enclosure (Fig. 3).

6 MPB-300 SATEL
5. Place the button at its future mounting location.
6. Press the button. If the transmission is received, continue with the installation. If the
transmission is not received, select a different mounting location and repeat the test.
Sometimes, it is sufficient to shift the detector ten or twenty centimeters.
7. Remove the cover.
8. Remove the battery.
9. Remove the electronics board (Fig. 4).

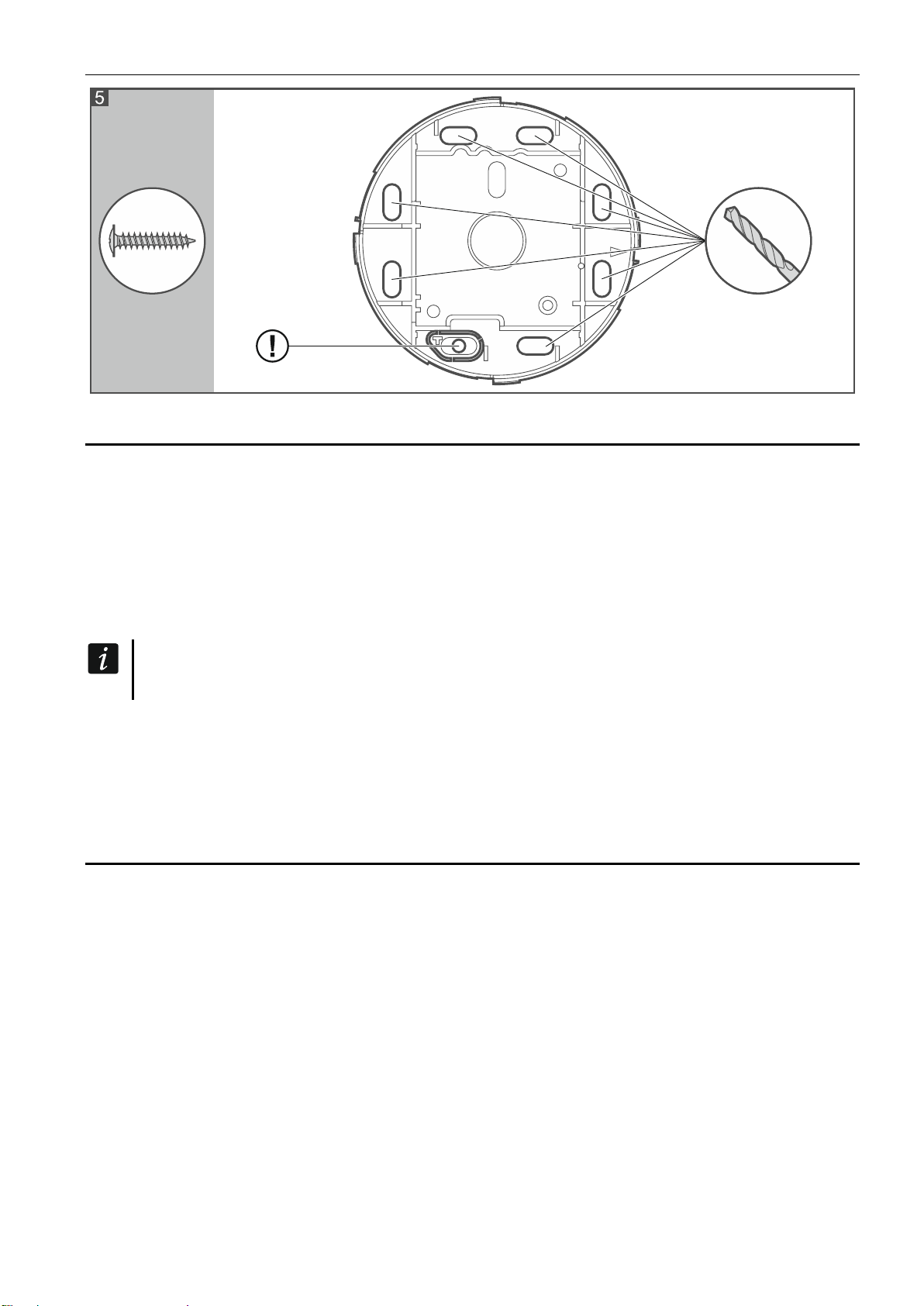

10.Drill the holes for screws in the enclosure base (Fig. 5). We recommend to mount the
enclosure base to the surface with 3 screws. Remember to take into account the
mounting hole in the tamper protection element as indicated by the sign in Fig. 5.
11.Use screws to mount the enclosure base to the surface. If necessary, select appropriate
wall plugs (anchors) based on the type of the mounting surface (different for concrete or
brick wall, different for plaster wall, etc.).
12.Fasten the electronics board.
13.Insert the battery.
14.Press and release the tamper switch to enable the test mode.
15.Press the button to see if the LED lights up.
16.Replace the button cover (Fig. 3).

SATEL MPB-300 7
4.1 Selecting the button operating mode
1. Remove the button cover (Fig. 2).
2. Press and hold the tamper switch activated by cover removal.
3. Insert the battery and release the tamper switch. The LED will start flashing rapidly.
4. Within 10 seconds after the battery is inserted:
–press the button once to select the MMD-300 detector mode,
–press the button twice to select the MPT-350 keyfob mode.
If you fail to press the button within 10 seconds after you inserted the battery,
the procedure will be interrupted and the operating mode will not change.
5. The settings will be saved 3 seconds after the operating mode is selected. The LED will
stop flashing, then it will indicate which of the operating modes has been selected:
–1 flash –MMD-300 detector,
–2 flashes –MPT-350 keyfob.
5. Specifications
Operating frequency band .......................................................................433.05 ÷434.79 MHz
Radio communication range (in open area)
PERFECTA............................................................................................up to 600 m
VERSA-MCU / MTX-300 / MICRA.........................................................up to 500 m
MRU-300................................................................................................up to 300 m
Battery ..................................................................................................................CR14250 3 V
Battery life expectancy.......................................................................................... up to 2 years
Standby current consumption...........................................................................................12 µA
Maximum current consumption........................................................................................11 mA
Environmental class according to EN50130-5.........................................................................II
Operating temperature range...............................................................................-10°C...+55°C
Maximum humidity..........................................................................................................93
±
