Instruction manual
73716, 73717
Motion LED PIR 1LT Wall
Technical data
Conformity with all relevant EC Directive requirements.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP44.
IP 44
Check that...
You have correctly identified the wires
The connections are tight
No loose strands have been left out of
the connection block.
Reseal the approved outdoor rated
external terminal block
Having correctly identified the wiring from your existing light fitting, pull the mains wire through the hole and connect to the
quick fit connection block inside the product in the following way:
Wiring
220-240 V~, 50 Hz
Supply
Voltage:
Conformity with all relevant UKCA Directive requirements.
This product is Class 1, must be connected to earth.
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
Care and Safety
This LED's are protected by a PC shade. The shade part must be replaced immediately should it
become cracked or damaged. This fitting must not be used without the PC shade in place.
Replace Cracked Shade
V4 17/03/2023
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
UK Manufacturer: BH17 7BY
SUPPLY LIGHT FITTING
SWITCHED LIVE BROWN (L)
BLUE (N)NEUTRAL
EARTH (GREEN/YELLOW) GREEN/YELLOW
PUSH DOWN
INSERT CABLE
Bulb
Type: 6W LED module (SMD) CCT, 3000/4000/6000K This product contains a light source of energy efficiency class D.
For further information, please visit https://www.lighting-info.co.uk/73716
Non-replaceable control gear
Non-replaceable light source

Warning
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current Building Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before installing or maintaining this fitting. Ensure other persons cannot
restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified electrician.
If replacing an existing fitting, make a careful note of the connections.
This light should be connected to a circuit with a 30mA RCD fitted.
This product is not suitable for location in or near a marine environment.
The entire unit gets hot whilst on for a period of time, ensure the fitting is mounted out of arms reach.
Never put anything on the product or hang anything on any part of this product.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Layout
Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between the junction box and the
each light fitting.
Avoid locating any cables in positions that would cause a hazard. Position cables and outdoor rated junction boxes
(not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade, rubber sheathed cable.
The mains supply cable must have a minimum cross section area of 1.0mm2.
Cables must be protected using suitable conduit or plastic trunking.
Take care not to drill into any pipes or mains cables beneath the surface during mounting holes preparation.
This product has special protection against the ingress of moisture and is IP44 rated.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully
note the position of each set of wires.
Note that the switch is turned off before installation.
Ensure that the screws and cable entry points are sealed to maintain the IP rating of the product.
After deciding the layout of the light fittings ensure that the cables are long enough to connect to desired positions
• Determine the position of your light fitting taking into account the entry position of the cable and the ARROW indicating
which WAY UP the base is to be fitted. Make sure there is sufficient cable coming out of the wall to connect to the terminal
block. Ensure that the mounting surface is solid, preferably a brick or block wall and ensure that there are no other cables
or pipes beneath the surface.
PIR Adjustment
• The unit must be installed in a vertical position, and fitted 1.8-2.5m above the ground.
• The PIR sensor can be adjusted, allowing the detection
distance to be altered to suit the location. The detection
angle is set at 120º. The duration that lamp stays on can
also be altered from 1 second - 5 minutes. The LUX
rang is 10-2000 lux. Use a small screwdriver to adjust
the "TIME" and "LUX" screws. When adjusting the
sensitivity (detection distance) in daylight it will be
necessary to cover the sensor to simulate night time.
.• This product is colur changing and can be either warm white (3000K) or cool white(4000K)
or daylight white (6000K), Choose your preferred colour before refitting the lampshade
by using the CCT switch on wall back of the product.
• Refit the lampshade to the wall back securely.
• Replace fuse or circuit breaker and switch on.
Your light is now ready for use.
1

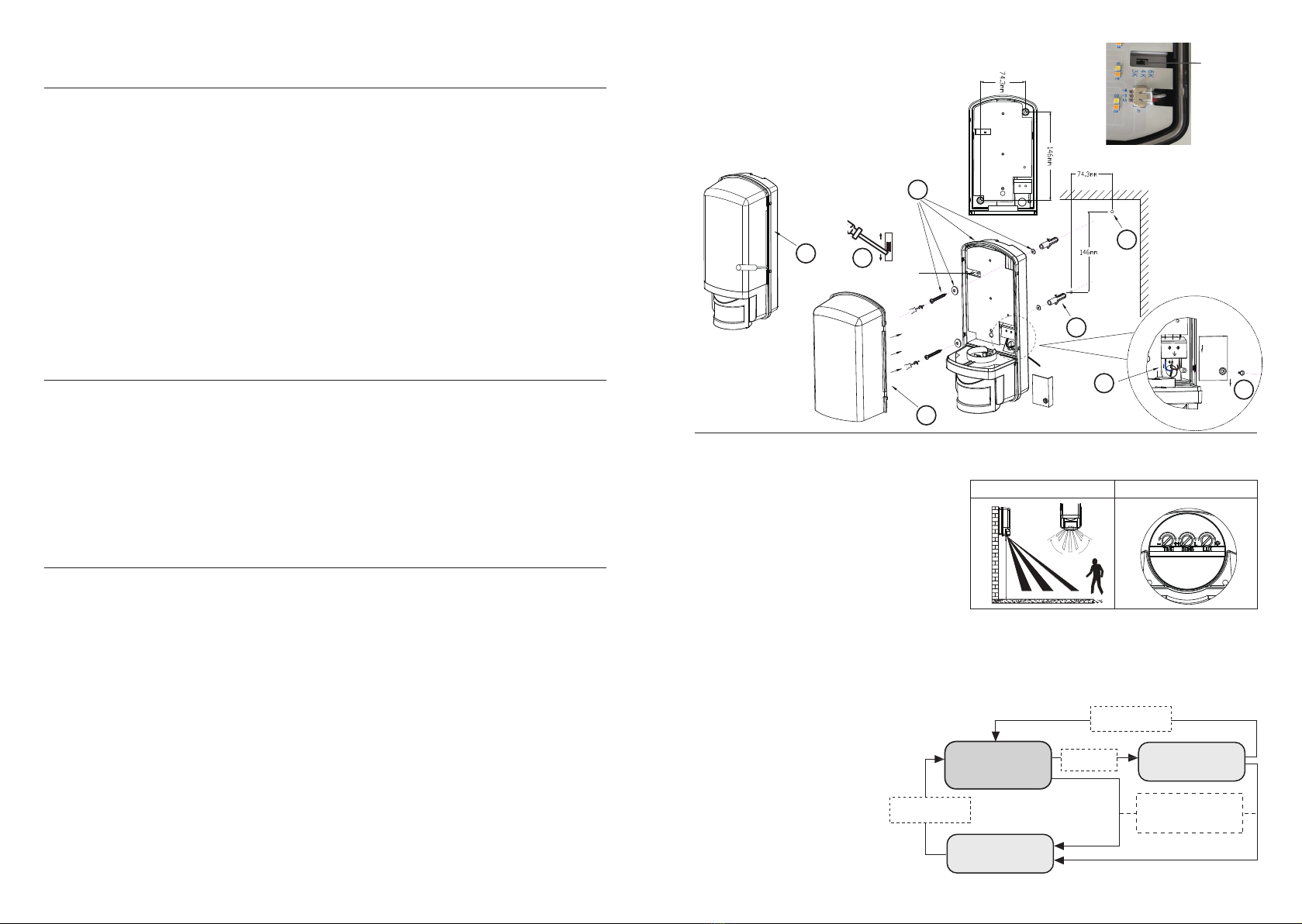

• Remove the lampshade from the wall back using a screwdriver.
• Hold the wall back in position and mark the location of the fixing holes.
PIR Adjustment
Adjustable up to 10 metres
1.8- 2.5Metres
4M 6M
10M
appro. 120º
7
2
5
CCT Switch
6000K
4000K
3000K
L N
L N
34
Screw A
Transparent P
6
8
When first switched on, the PIR sensor will goes into “warms up” self test:
1) If there are no action, the PIR sensor “warms up” self test for approx 60 seconds and then goes into AUTO mode;
2) If switch the power OFF and ON twice within 3 seconds (OFF-ON-OFF-ON), the PIR sensor will switch to MANUAL mode.
1) If switch the power OFF and ON twice within
3 seconds (OFF-ON-OFF-ON), the PIR
sensor will switch to MANUAL mode.
2) If switch the power OFF more than 10
seconds, the PIR sensor will return to
'warm up' self test process.
In AUTO mode, the light is with PIR function:
In MANUAL mode, the light will remain
ON permanently, without the PIR function:
1) If switch the power OFF more than 10
seconds, the PIR sensor will return to
'warm up' self test process.
POWER ON AUTO MODE
MANUAL MODE
“warms up” self test
Power OFF
more than 10 seconds
Power OFF
more than 10 seconds
(OFF-ON-OFF-ON)
Switch the power OFF/ ON
twice within 3 seconds
with PIR function
without PIR function
• Unscrew Screw A and remove the Transparent plate. Thread the cable through the rubber grommet in the wall back.
• Wire as detailed wiring diagram.
• Reattach the transparent plate.
• Fix the wall back to the wall using the screws and plugs supplied. Ensure the wall is capable of holding the weight of the
product. Take care to avoid damaging any concealed wiring and pipes. The correct fixings should be used for brick or
cavity walls.
No action
for 60 seconds
CCT Switch
The PIR sensor has a manual override function which can be operated by taking the following steps:
