REBOUNDER®MOUNTING INSTRUCTIONS
FSO Opener Flexicoil Drills
SCHAFFERT MFG. CO., INC. 308-364-2607 OR 800-382-2607
71495 rd. 397 ∙ indianola, ne 69034 ∙ 308-364-2607 or 800-382-2607 ∙ fax: [phone] ∙ [e-mail] ∙ www.schaffert.com ∙ 14 mar 2017
Rebounder covered by one or more of the following U.S. patents: 5,640,915; 5,918,557; 6,082,275; 6,283,050; 6,453,832; 6,763,773 and 7,121,216.
Before working on your planter or drill
DANGER: When storing or working on the planter always install cylinder stops or place the planter on stands to prevent personal injury or damage to the attachments.
PLEASE: Read instructions completely and verify all package contents before beginning installation.
Rebounder Package Contents
(per single row)
Item Quantity
Rebounder ....................... 1
Fender Washer.................... 1
5/16" x 1" Carriage Bolt ............. 1
5/16" Lock Nut .................... 1
Instruction Sheet .................. 1
Bracket Package Contents
(per single row)
Item Quantity
Mounting Bracket.................. 1
If applying liquids in furrow with the Rebounder, attach either Y-Not Split It, Hose Holder, or Straight
Shot kit by following kit directions.

INSTALL KIT BEFORE INSTALLING REBOUNDER TO PLANTER UNIT . See kit instructions.
Rebounder covered by one or more of the following U.S. patents: 5,640,915; 5,918,557; 6,082,275; 6,283,050; 6,453,832, 6,763,773 and 7,121,216.
71495 rd. 397 - indianola, ne 69034 - phone: [phone] - fax: [phone] - [e-mail] - www.schaffert.com - Setp 18,2009
SCHAFFERT MFG. CO. INC. - phone: [phone] - fax: [phone]
REBOUNDERTM MOUNTING INSTRUCTIONS
FSO Opener Flexicoil Drills
(Read Instructions Completely before Beginning Installation)
Before working on your planter or drill
DANGER:when storing or working on the planter always install cylinder stops or place the planter on stands to prevent personal injury or
damage to the Rebounder. WARNING:do not roll back or back up the planter in or on the ground as this can result in damage to the
Rebounder.
Mounting Instructions
Before you begin, verify all items listed in the “package contents” table.
NOTE: See HELPFUL HINTS FOR MOUNTING REBOUNDERS TO DRILLS.
Step #1: remove the 1 1/4” x 3/8” carriage bolt that holds the bottom of the seed
tube and seed boot in place.
Step #2: place Rebounder on bracket with fender washer on 5/16” lock nut.
Step #3: slide bracket with Rebounder mounted up between 18” disc and seed
boot. Replace 1 1/4” x 3/8” carriage bolt and install lock nut and tighten
in place.
Step #4: slide Rebounder up and down in slotted hole until trailing end of
Rebounder is 3/8” to 1/2" off ground when drill is sitting on the floor.
Optional fittings are available for fertilizer/chemical applications. Options
include, Y-Not Split-It, or Hose Holder, each available for an additional charge.
Rebounder Package Contents
(per single row)
Item Quantity
Rebounder..................1
fenderwasher...............1
5/16”locknut ..............1
InstructionSheet.............1
Bracket Package Contents
(per single row)
Item Quantity
Bracket....................1

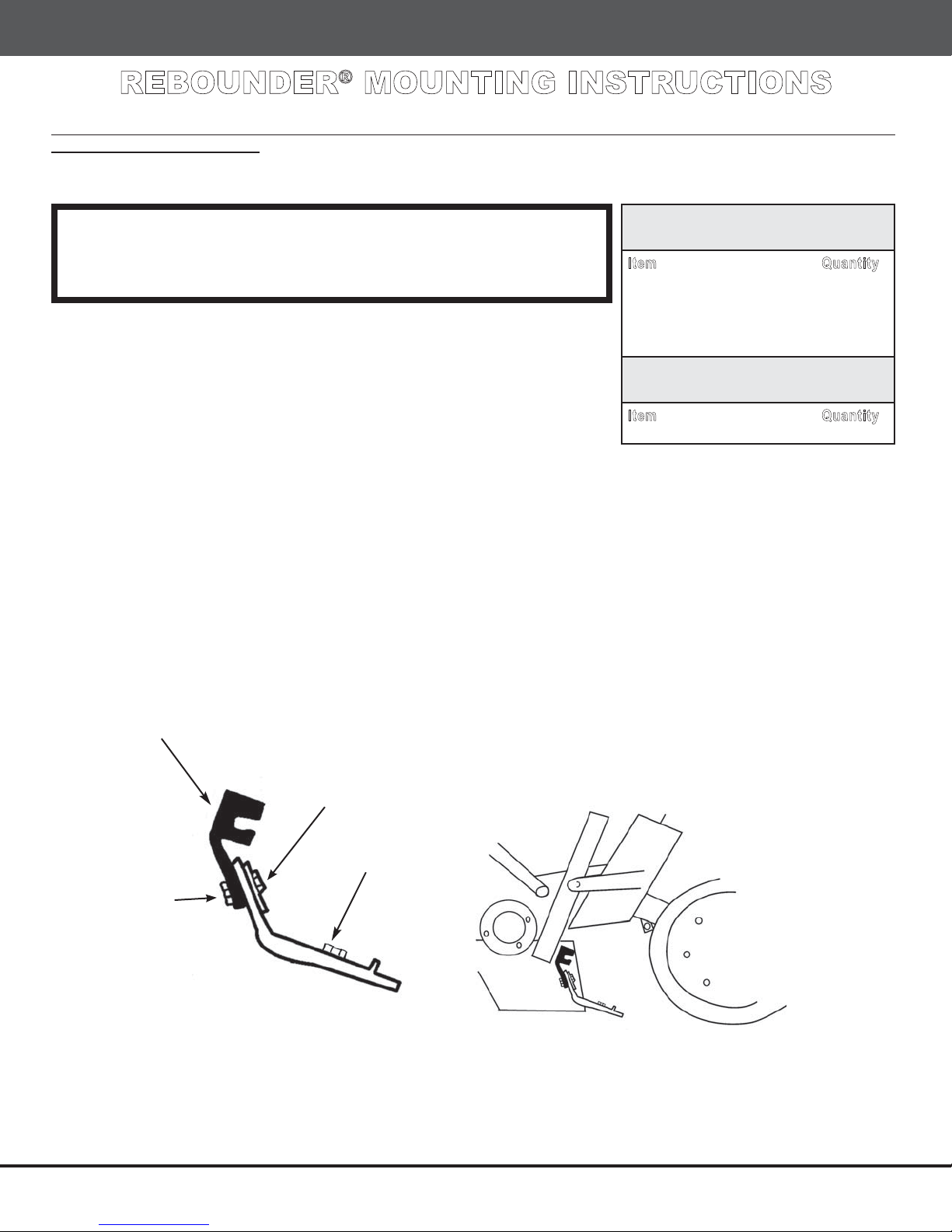

bracket
Rebounder
Rebounder mounted
on bracket Final Assembly
Remove the 1-1/4" x 3/8" carriage bolt that holds the bottom of the seed tube and seed boot in place.
Slide 5/16" x 1" carriage bolt in from the back through the square hole on the mounting bracket. From the
top side of the bracket, place the Rebounder then fender washer, and hold in place with 5/16" lock nut.
Slide bracket with Rebounder mounted up between 18" disc and seed boot. Replace original 1-1/4" x
3/8" carriage bolt and install lock nut and tighten in place.
Slide Rebounder up and down in slotted hole until trailing end of Rebounder is 3/8" to 1/2" off ground
when drill is sitting on the oor.
STEP #1:
STEP #2:
STEP #3:
STEP #4:
washer & 5/16" lock nut
5/16" bolt
