SDC Z7870 User manual

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [e-mail]
1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
2. Align template on edge of door with applicable horizontal at height line. Check the chart for drilling trim
holes on template and mark only holes for lock function being installed.
3. Mortise door edge according to measurements on
installation template and drill proper holes for trim.
4. Recess for face plate, the dimension is:
L 8-1/32" x W 1-5/16" x D 7/32".
Height
line
of lever
or knob
C
L
7/32"
Z7870/72 & Z7880/Z7882
MORTISE LOCK
of cylinder
of lockcase
of lever
or knob
Vertical centerline
C
Installation
template
C
L
C
L
C
L
L
of
door edge
OPTIONAL
DOOR CORE DRILLING GUIDE
#7000-DG
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
INSTALLATION INSTRUCTIONS

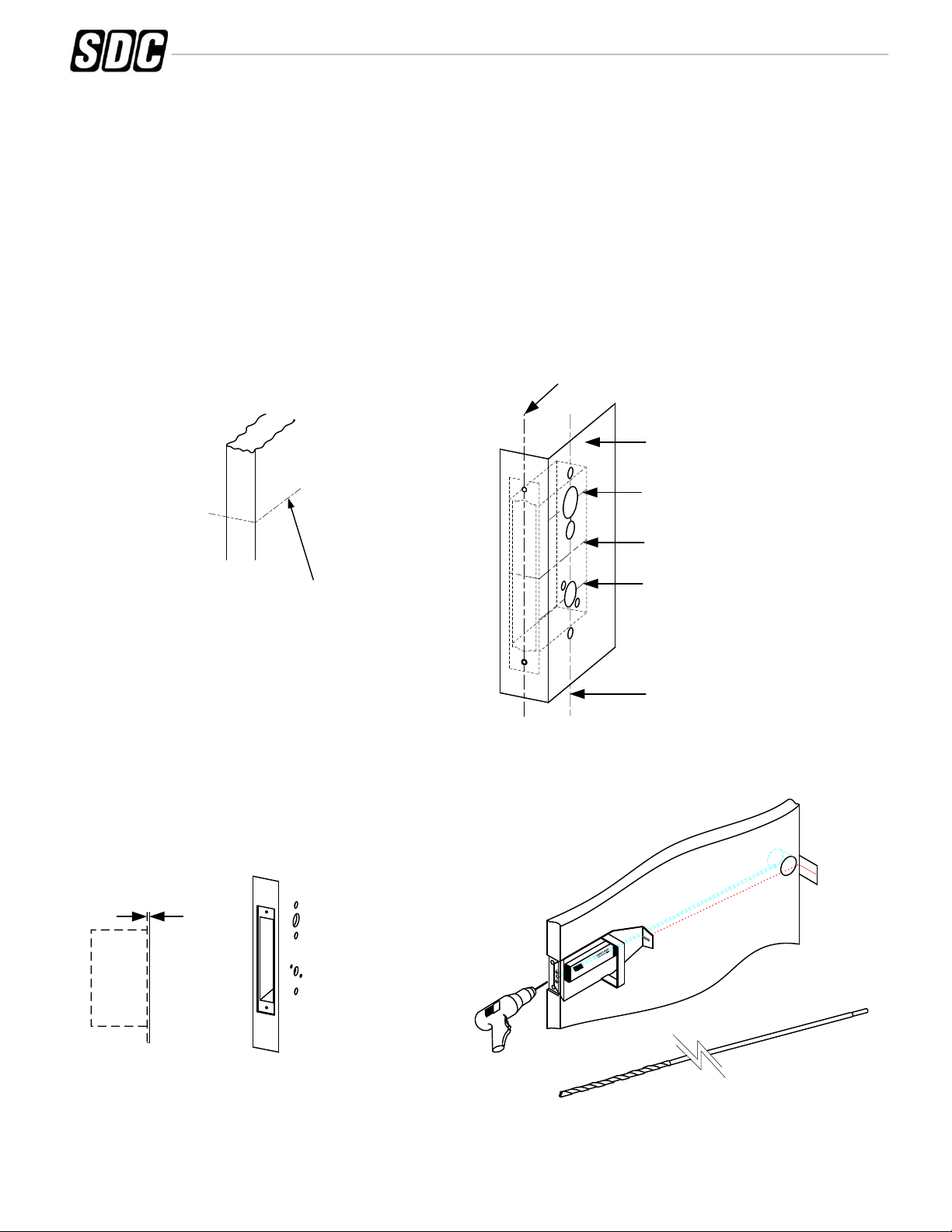

A. Door Preparation:

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 2

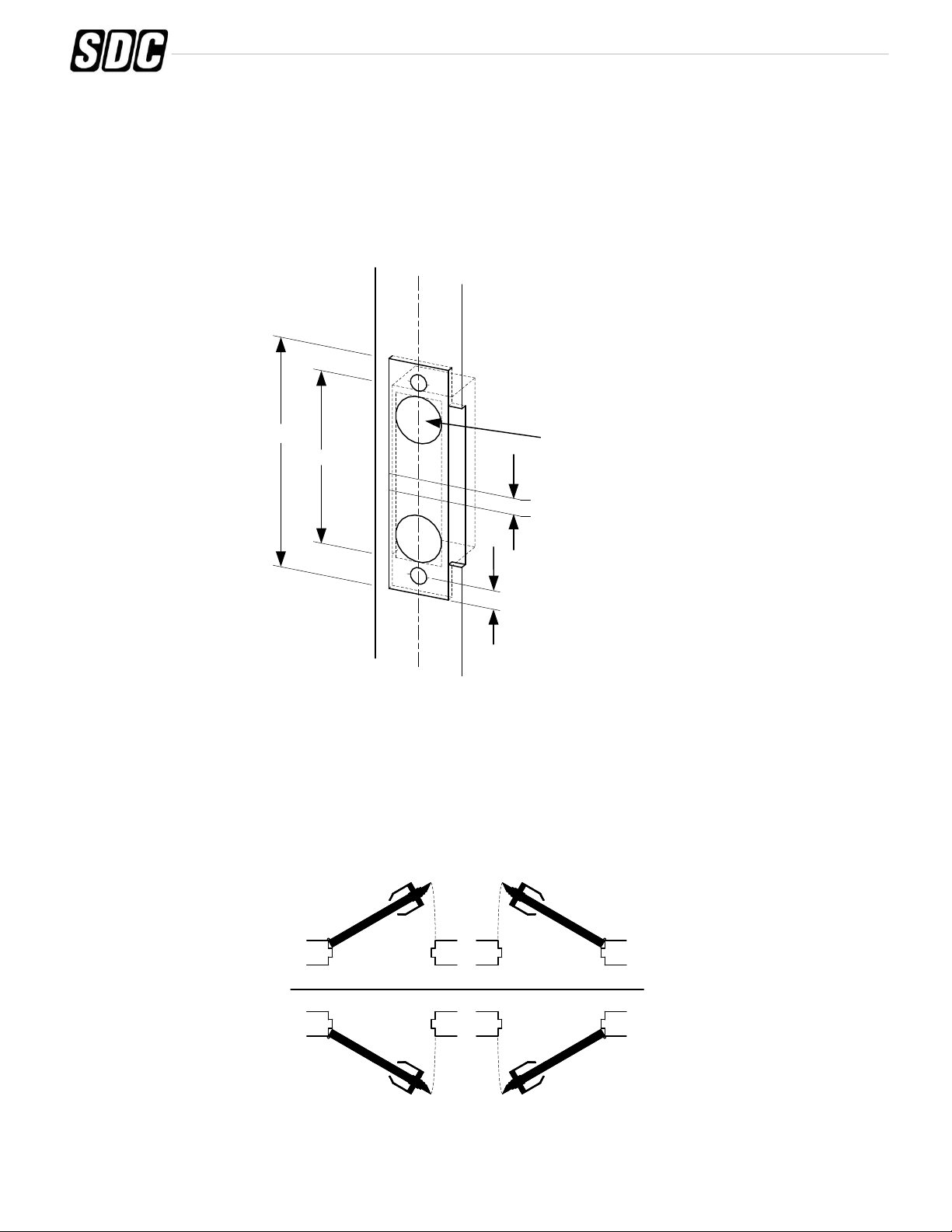

B. Strike Installation:
1. Align strike template on jamb. Be sure to keep 3/8" distance between lock centerline and strike
centerline. Recess 5/32" for flush fit of strike and dust box.
2. Mortise jamb according to measurement of strike template. Then fit strike and dust box into frame
and secure into place with supplied screws.
1. Make sure the lock hand matches the door hand, use the following diagram to determine the hand of door.
4-7/8"
3-17/32"
C
L
Strike
Lock C
L
3/8"
3/8"
1" Holes
1-1/8" Deep
C
L
Jamb
LH
Left Hand
LHRB
Left Hand
Reverse Bevel
INSIDE OF DOOR
OUTSIDE OF DOOR
RH
Right Hand
RHRB
Right Hand
Reverse Bevel
INSIDE OF DOOR
OUTSIDE OF DOOR
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

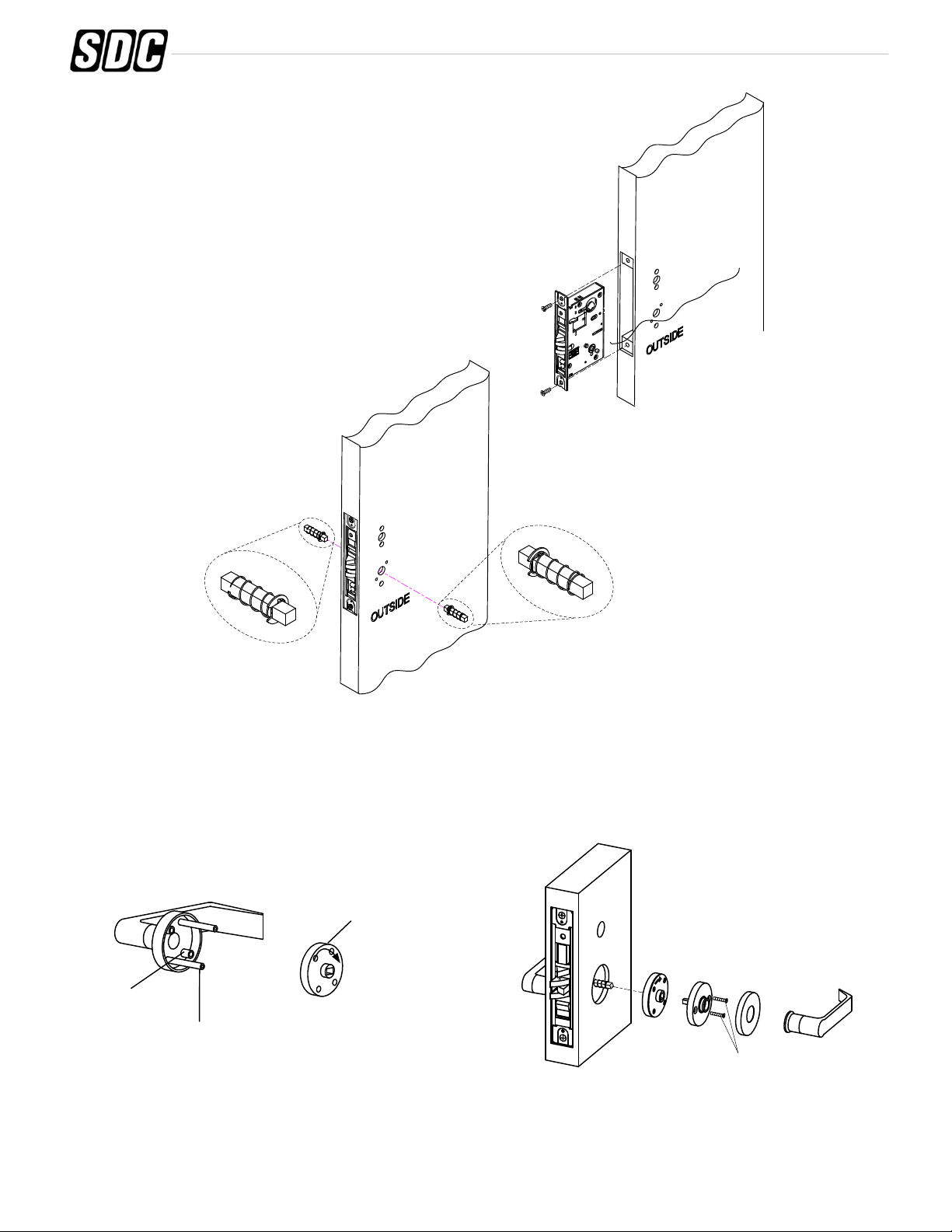

C. Install Lockcase

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 3
2. Change hand of lock
For RH and RHRB, the catch screw will be on the lock case side. For LH and LHRB, the catch screw will be on the
lock cover side.
Pull out and
turn
1. Change latchbolt handing
If the hand of the latchbolt doesn’t match the door hand, remove the fixing screw and pull the latchbolt out from
lock case. Turn the latchbolt 180 ° to change the handling. Position latchbolt back, into case and fasten it.
Remove
screw
Instructions for changing lock hand:
REX option Locksets are factory set per handing and can’t be changed in the field.
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
C Install Lockcase (Continued)

1. Insert spindles as shown
E. Install Lever trim
1. Place the reversible spring cage onto the ferrules with arrow pointing in direction of lever rotation.
2. Install outside trim with mounting posts through door and position lever onto the spindle.
3. Install inside spring cage onto the spindle with the arrow pointing in the direction of inside lever rotation.
4. Install inside mounting plate onto spindle. Tighten with provided screw.
5. Cap inside rose over mounting plate.
D. Install Spindles
Reversible spring
cage
Ferrule
Mounting
post Into Mounting
post
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 4
3. Connect wires as shown on the lock cover diagram.
4. Insert lockcase into mortise cut-out and fasten screws to door.
C. Install Lockcase (Continued)
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 5
1. Screw Mortise Cylinder into threaded hole of lock case.
2. Tighten the Set Screw against cylinder(s) by turning clockwise as shown.
3. Install Face Plate onto lock case front and fasten with supplied screws.

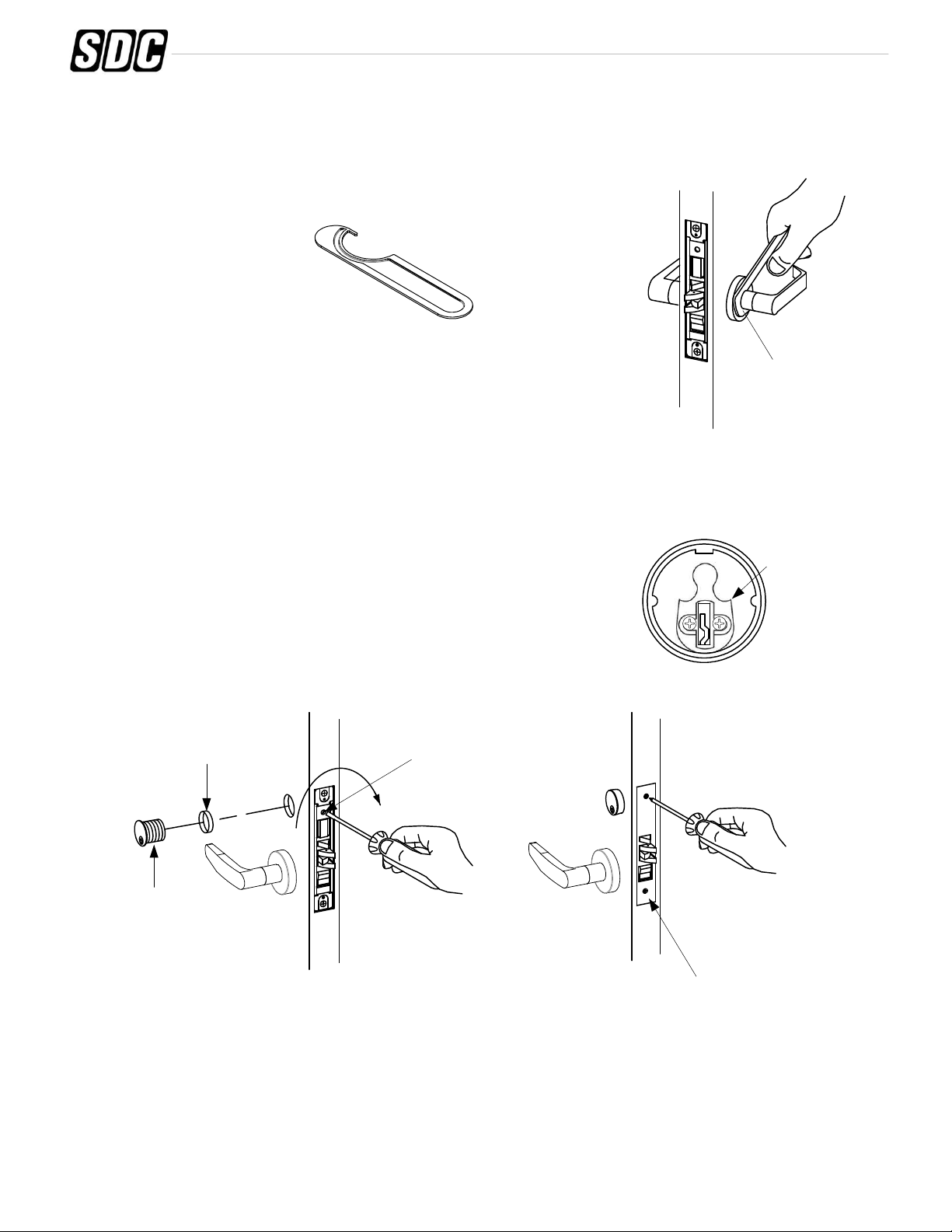

F. Install Cylinder and Armor Face Plate
6. Screw inside lever into position and tighten lever collar with supplied spanner wrench.
Spanner wrench
Spanner wrench
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
E. Install Lever trim (continued)
USE THIS CAM
(ILCO 863M
SCHLAGE “L” CAM
OR EQUIVALENT)
Face Plate
Mortise Cylinder Collar
(Not Provided)
Mortise Cylinder
Set Screw

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
E. Install for 07 lever trim
F. Install Cylinder and Armor Face Plate
Spanner
wrench
Collar
Spring
Outside Lever Assy
Spindle
Mounting
Plate
Rose
Inside Lever
Spring Cage
Spring
1. Place the spring, collar and then reversible spring cage onto the outside lever assembly with arrows pointing in
direction of lever rotation. Insert spindle into hub of lock case.
2. Install outside lever assembly with mounting posts through door and position lever assembly onto the spindle.
3. Install inside spring cage onto the spindle with the arrows pointing in the direction of inside lever rotation.
4. Install inside mounting plate over spindle and onto the mounting posts of outside assembly. Tighten with provided
screws.
5. Cap inside rose over mounting plate and insert second spring.
6. Screw inside lever into position and tighten lever collar with the supplied spanner wrench.
1. Screw Mortise Cylinder into threaded hole of the lock case.
2. Tighten the Set Screw against cylinder(s) by turning clockwise as shown.
3. Install Face Plate onto the lock case and fasten with supplied screw.
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 6
FACE PLATE
Mortise Cylinder Collar
(Not Provided)
Mortise Cylinder
Set Screw
USE THIS CAM
(ILCO 863M
SCHLAGE “L” CAM
OR EQUIVALENT)

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 7

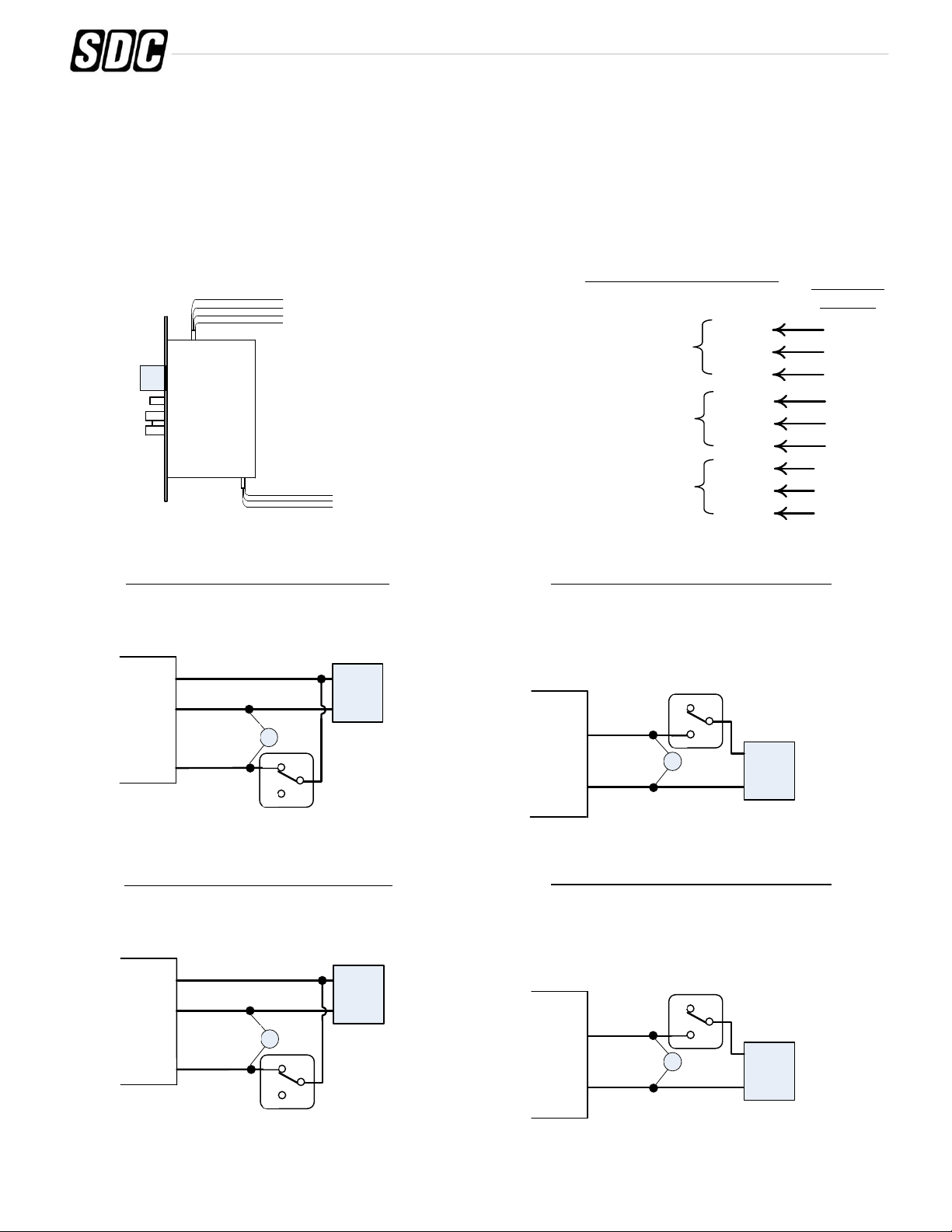

STANDARD WIRING
12 or 24VDC (Locks are voltage specific)
[email protected]; [email protected]
INSTALLATION WIRE DIAGRAM
Model 7870/72 & 7880/82 Series
WHT/BLK
ORG/BLK
YEL/BLK
WHT/RED
ORG/RED
YEL/RED
COM
NC
NO
COM
NC
NO
DEADBOLT STATUS (B)
SPDT 5A@30VDC
(switch polarity shown w/
deadbolt retracted)
REQUEST-TO-EXIT (R)
SPDT 5A@30VDC
(switch polarity shown w/
inside lever released)
Optional Monitoring Outputs From Lock
Chassis
Z7880 (Failsafe) Lock Power (12VDC)
Access control does not engage the outside lever when the
deadbolt is thrown. *Install MOV across coil to protect ACS
electronics, as close as possible to the lock
Z7882 (Failsecure) Lock Power (12VDC)
Access control does not engage the outside lever when the
deadbolt is thrown. *Install MOV across coil to protect ACS
electronics, as close as possible to the lock
MOV*
RED (+)
BLK (-)
Lock
Chassis
N/C
N/O
Access
Control
(N/O)
Pwr
Supply
+
(-)
WHT
ORG
YEL
COM
NC
NO
LATCH STATUS (L)
SPDT 5A@30VDC
(switch polarity shown w/
latch extended)
 Lock PWR
 Deadbolt Status
 Latch Status
 Request-to-Exit
(REX)
RED (+)
BLK (-)
BLK/BLU
Lock
Chassis
N/C
N/O
C
Access
Control
(N/C)
Pwr
Supply
+
(-)
MOV*
Z7880 (Failsafe) Lock Power (24VDC )
Access control does not engage the outside lever when the
deadbolt is thrown. *Install MOV across coil to protect ACS
electronics, as close as possible to the lock
RED (+)
WHT (-)
BLK/BLU
Lock
Chassis
N/C
N/O
C
Access
Control
(N/C)
Pwr
Supply
+
(-)
MOV*
Z7882 (Failsecure) Lock Power (24VDC)
Access control does not engage the outside lever when the
deadbolt is thrown. *Install MOV across coil to protect ACS
electronics, as close as possible to the lock
MOV*
RED (+)
WHT (-)
Lock
Chassis
N/C
N/O
Access
Control
(N/O)
Pwr
Supply
+
(-)
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

Z7870 (Failsafe) Lock Power (12VDC)
Access control always engages outside lever. *Install MOV
across coil to protect ACS electronics, as close as possible
to the lock
RED (+)
BLK (-)
Lock
Chassis
N/C
N/O
Access
Control
(N/C)
Pwr
Supply
+
(-)
Z7872 (Failsecure) Lock Power (12VDC)
Access control always engages outside lever. *Install MOV
across coil to protect ACS electronics, as close as possible
to the lock
MOV*
RED (+)
BLK (-)
Lock
Chassis
N/C
N/O
Access
Control
(N/O)
Pwr
Supply
+
(-)
MOV*
Z7870 (Failsafe) Lock Power (24VDC)
Access control always engages outside lever. *Install MOV
across coil to protect ACS electronics, as close as possible
to the lock
RED (+)
WHT (-)
Lock
Chassis
N/C
N/O
Access
Control
(N/C)
Pwr
Supply
+
(-)
MOV*
Z7872 (Failsecure) Lock Power (24VDC)
Access control always engages outside lever. *Install MOV
across coil to protect ACS electronics, as close as possible
to the lock
MOV*
RED (+)
WHT (-)
Lock
Chassis
N/C
N/O
Access
Control
(N/O)
Pwr
Supply
+
(-)
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 8
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

INSTALLATION WIRE DIAGRAM
Models with optional connectors
STANDARD WIRING
(NO OPTIONS)
+
-
RED
BLK
4 PIN
CONECTOR
WIRING WITH OPTIONS
GREEN COM
DEADBOLT STATUS (B) BLUE N/C
BROWN N/O
GREY COM
REQUEST TO EXIT (R) VIOLET N/O
WHITE COM
LATCH STATUS (L) YELLOW N/C
ORANGE N/O
MOV*
*Install MOV across each coil to protect ACS electronics.
Install as close as possible to the lock
Power
BLACK
RED
MOV*
(-)
(+)
*Install MOV across each coil to protect ACS electronics.
Install as close as possible to the lock
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82 REV E 09-21 Page 9
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
