Sealey VSAC135 User manual

13 PC AIR CONDITIONING PRESSURE TEST
CONNECTOR KIT
MODEL NO: VSAC135
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
WARNING! Any work carried out on the A/C system should only be performed by an Air Conditioning service technician following
the vehicle manufacturer’s service instructions or a proprietary manual to establish the current procedure and data.
8DO NOT use if damaged.
9Dispose of refrigerants according to local authority guidelines.
8DO NOT Allow refrigerant to vent to atmosphere.
9Maintain in a good condition for prolonged life and safe use.
9Wear suitable eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9Wear suitable protective clothing and gloves when working with refrigerant.
9Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9Account for all tools and parts being used and DO NOT leave them on or near the engine.
9On completion of work, put the equipment back and store in a cool, dry, childproof location.
WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product,
but must be applied by the operator.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions, or a
proprietary manual, to establish the current procedure and data.
2. INTRODUCTION
Designed to be suitable for a wide variety of vehicle air conditioning systems. Allows systems to be pressured for the purposes of leak testing
prior to repair and re-gassing. Connectors included for both high and low pressure ttings.
3. CONTENTS
Refer to attached Parts List for model numbers and contents descriptions.
Refer to
instructions Wear eye protection Wear protective
gloves Wear safety
footwear Wear protective
clothing
VSAC135 Issue 2 (ALL) 17/05/23
Original Language Version
© Jack Sealey Limited

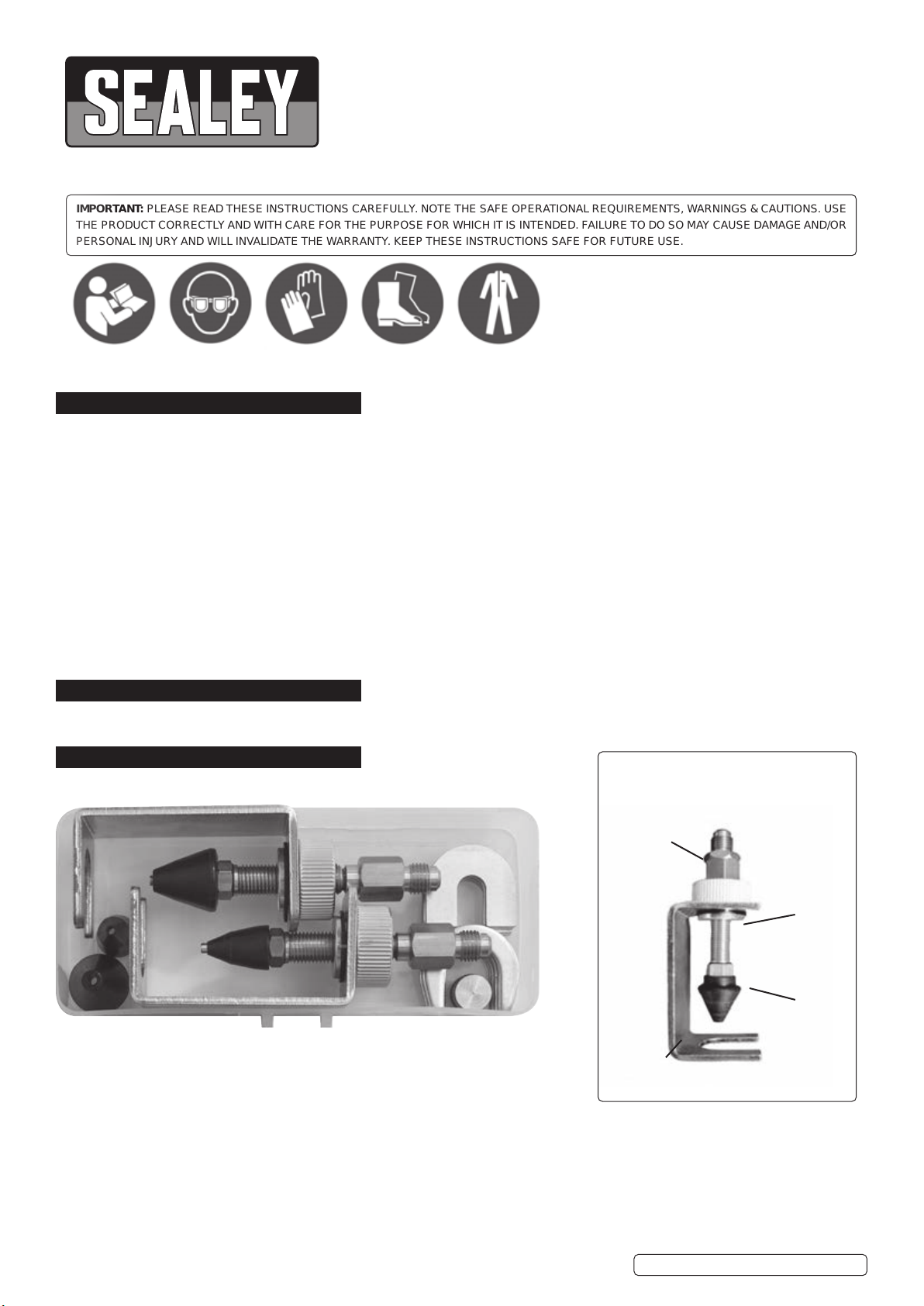

Forcing Nut
Clamp Screw
Clamp Assembly
Sealing
Cone

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling
centre and disposed of in a manner which is compatible with the environment. When the product becomes completely unserviceable and requires
disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
VSAC135 Issue 2 (ALL) 17/05/23
Original Language Version
© Jack Sealey Limited
4. APPLICATIONS
5. OPERATION
WARNING! Pressurised refrigerant may be present in hoses. De-pressurise system
before use. Never direct hoses toward yourself or any other persons.
5.1. Select the correct support plate to t the tube or line tting, locate over the connection
and turn the clamp screw until the cone is seated against the end of tube.
5.2. While holding the clamp screw by hand, Rotate the force nut 1/4 turn. The leak test gas
system can now be connected ensuring gas safety procedures and instructions are followed.
6. MAINTENANCE
6.1. Generally keep clean from dirt and grime to improve product life.
R134a hi & low side port 3/4” & 1/2” 1” hex & 7/8”
A/C service port 3/8” 1/4” MFL
