Seca 777 User manual

seca 777

Instructions for use and warranty . . . . . . . . . . . . . . . . . . . . 3
Mode d'emploi et garantie . . . . . . . . . . . . . . . . . . . . . . . . . 32
Instrucciones de uso y garantía . . . . . . . . . . . . . . . . . . . . 61
US
FR
ES

Contents • 3
English
17-10-07-651-100a/07-2019S
English
CONTENTS
1. Description of device . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Description of function . . . . . . . . . . . . . . . . . . . . 4
Measuring station . . . . . . . . . . . . . . . . . . . . . . 4
USB interface . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 User qualification . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Safety precautions in these instructions for
use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Basic safety precautions . . . . . . . . . . . . . . . . . . . 5
Handling the device . . . . . . . . . . . . . . . . . . . . . 5
Preventing electric shock . . . . . . . . . . . . . . . . . 6
Preventing injuries and infections . . . . . . . . . . . 6
Preventing damage to device . . . . . . . . . . . . . . 7
Handling measuring results . . . . . . . . . . . . . . . 7
Handling packaging material . . . . . . . . . . . . . . 8
Handling batteries and rechargeable
batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 View of device . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Display unit controls . . . . . . . . . . . . . . . . . . . . . 10
3.3 Symbols in the display . . . . . . . . . . . . . . . . . . . 11
3.4 Markings on the device and on the type
plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5 Markings on the packaging . . . . . . . . . . . . . . . . 12
4. Starting up device . . . . . . . . . . . . . . . . . . . . . . . . . . 13

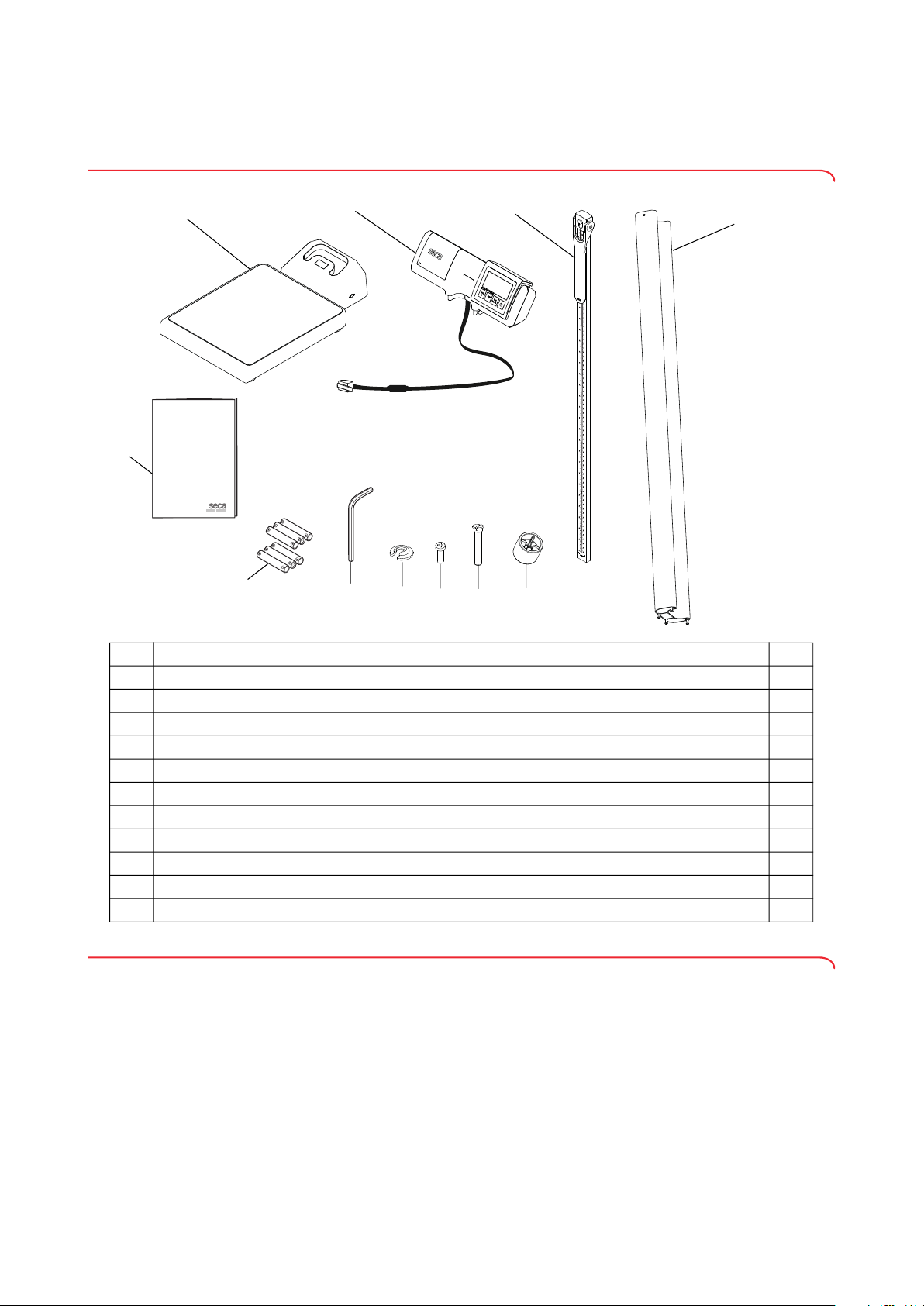

4.1 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Assembling the device . . . . . . . . . . . . . . . . . . . 13
Tools required . . . . . . . . . . . . . . . . . . . . . . . . 14
Fitting the measuring rod . . . . . . . . . . . . . . . . 14
Fitting the column . . . . . . . . . . . . . . . . . . . . . 15
Fitting the display head . . . . . . . . . . . . . . . . . 16
Switching the positions of the display unit
and the battery compartment . . . . . . . . . . . . 17
Setting up the device . . . . . . . . . . . . . . . . . . . 19
Disinfecting the device . . . . . . . . . . . . . . . . . . 19
4.3 Transporting the device . . . . . . . . . . . . . . . . . . 19
4.4 Establishing the power supply . . . . . . . . . . . . . . 20
Inserting batteries . . . . . . . . . . . . . . . . . . . . . 20
Connecting the plug-in power supply unit
(optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.1 Switching the device on and off . . . . . . . . . . . . 21
Switching on the device . . . . . . . . . . . . . . . . . 21
Switching off the device . . . . . . . . . . . . . . . . . 21
5.2 Switching units of measurement (variant-
dependent) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3 Measuring weight . . . . . . . . . . . . . . . . . . . . . . . 22
Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Taring off additional weight (Tare) . . . . . . . . . . 22
Displaying weight permanently (Hold) . . . . . . . 23
5.4 Measuring height . . . . . . . . . . . . . . . . . . . . . . . 23
Measuring heights < 1.22 m . . . . . . . . . . . . . 23
Measuring heights > 1.22 m . . . . . . . . . . . . . 24
5.5 Calculating and displaying body mass index
(BMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6. Hygiene treatment . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2 Disinfecting . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
6.3 Sterilizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7. Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
8. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9. Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
10.1 General technical data . . . . . . . . . . . . . . . . . . . 29
10.2 Weighing data . . . . . . . . . . . . . . . . . . . . . . . . . 29
11. Optional accessories . . . . . . . . . . . . . . . . . . . . . . . 30
12. Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
12.1 Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
12.2 Batteries and rechargeable batteries . . . . . . . . 30
13. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
14. Declarations of conformity . . . . . . . . . . . . . . . . . . 31
14.1 For Europe . . . . . . . . . . . . . . . . . . . . . . . . . . .31
14.2 For USA and Canada . . . . . . . . . . . . . . . . . . . .31

4 •
17-10-07-651-100a/07-2019S
1. DESCRIPTION OF DEVICE
1.1 Intended use
The seca 777 measuring station is used in accordance with national regula-
tions primarily in hospitals, medical practices and in-patient care facilities.
The seca 777 measuring station is for conventional determination of weight
and height and for determining the general state of nutrition; it supports the
attending physician in making a diagnosis or deciding on a course of treat-
ment.
To make an accurate diagnosis, however, the physician needs to commission
other specific examinations and take their results into account, in addition to
determining weight and height.
1.2 Description of function
Measuring station On the seca 777 measuring station, weight is recorded by four load cells.
Height is recorded with the integrated measuring rod.
Body mass index (BMI) can be calculated automatically from the measuring
results.
USB interface The USB interface allows the seca 777 measuring station to be connected to
a PC by means of a suitable USB cable (USB 2.0, mini USB type B, max.
cable length: 1.80 m). This makes it possible to process the weight values
displayed using the customer’s own software solution.
1.3 User qualification
Assembly Devices that are shipped partially assembled may only be mounted by suffi-
ciently qualified persons such as specialist dealers, hospital technicians or
seca Service technicians.
Operation The device may only be operated by healthcare professionals.
2. SAFETY INFORMATION
2.1 Safety precautions in these instructions for use
DANGER!
Used to identify an extremely hazardous situation. If you fail to take
note of this information, serious irreversible or fatal injuries will occur.
WARNING!
Used to identify an extremely hazardous situation. If you fail to take
note of this information, serious irreversible or fatal injuries may result.
CAUTION!
Used to identify a hazardous situation. If you fail to take note of this
information, minor to moderate injuries may result.

Safety information • 5
English
17-10-07-651-100a/07-2019S
NOTICE!
Used to identify possible incorrect usage of the device. If you fail to
take note of this information, you may damage the device, or the
measured results may be incorrect.
NOTE
Includes additional information about use of the device.
2.2 Basic safety precautions
Handling the device ►Please take note of the information in these instructions for use.
►Keep the instructions for use in a safe place. The instructions for use are a
component of the device and must be available at all times.
DANGER!
Risk of explosion
Do not use the device in an environment in which one of the following
gases has accumulated:
– oxygen
– flammable anesthetics
– other flammable substances/air mixtures
CAUTION!
Patient hazard, damage to device
►Additional devices which are connected to electrical medical
devices must provide evidence of compliance with the relevant IEC
or ISO standards (e.g. IEC 60950 for data-processing devices).
Furthermore, all configurations must comply with the requirements
of standards for medical systems (see IEC 60601-1-1 or Section 16
of edition 3.1 of IEC 60601-1 respectively). Anyone connecting
additional devices to electrical medical devices is considered a
system configurer and is therefore responsible for ensuring that the
system complies with the requirements of standards for systems.
This also applies to additional devices recommended by seca. Your
attention is drawn to the fact that local laws take precedence over
the above-mentioned requirements of standards. In the event of any
queries, please contact your local specialist dealer or Technical
Service.
►Have servicing carried out regularly as described in the relevant
section of this document.
►Technical modifications may not be made to the device. The device
does not contain any parts for servicing by the user. Only have
servicing and repairs performed by an authorized seca Service
partner. You can find service partners in your area at
www.seca.com or by sending an e-mail to [email protected].
►Only use original seca accessories and spare parts, otherwise seca
will not grant any warranty.
CAUTION!
Patient hazard, malfunction
►Keep other electrical medical devices, e.g. high-frequency surgical
devices, a minimum distance of approx. 1 meter away to prevent
incorrect measurements or wireless transmission interference.
►Keep HF devices such as cell phones a minimum distance of
approx. 1 meter away to prevent incorrect measurements or
wireless transmission interference.
►The actual transmission output of HF equipment may require
minimum distances of more than 1 meter. Details can be found at
www.seca.com.

6 •
17-10-07-651-100a/07-2019S
Preventing electric shock WARNING!
Electric shock
►Set up the device so that the power supply socket is easy to reach
and the device can be disconnected from the power supply quickly.
►Ensure that your local power supply matches the information on the
power supply unit.
►Do not touch the power supply unit with wet hands.
►Do not use extension cables or power strips.
►Make sure that cables are not pinched or damaged by sharp edges.
►Make sure that cables do not come into contact with hot objects.
►Do not operate the device at an altitude of more than 3000 m above
sea level.
Preventing injuries and infections WARNING!
Injury from falls
►Ensure that the device is positioned firmly and level.
►Route connecting cables (if present) in such a way that neither user
nor patient can trip over them.
►The device is not designed as a standing aid. Assist people with
limited motor skills when they are getting up, e.g. from a wheelchair.
►Make sure that the patient does not step onto and off the weighing
platform right at the edges.
►Make sure that the patient steps onto and off the weighing platform
slowly and safely.
WARNING!
Danger of slipping
►Ensure that the weighing platform is dry before the patient steps
onto it.
►Ensure that the patients feet are dry before he or she steps onto the
weighing platform.
►Make sure that the patient steps onto and off the weighing platform
slowly and safely.
WARNING!
Risk of infection
►Before and after every measurement, wash your hands to reduce
the risk of cross-contamination and nosocomial infections.
►Hygienically reprocess the device regularly as described in the
respective section in this document.
►Make sure that the patient has no infectious diseases.
►Make sure that the patient has no open wounds or infectious skin
alterations, which may come into contact with the device.

Safety information • 7
English
17-10-07-651-100a/07-2019S
Preventing damage to device NOTICE!
Damage to device
►Ensure that no liquids enter the device. They can damage the
electronics.
►Switch off the device before disconnecting the power supply unit
from the mains socket.
►For devices with power supply operation: Disconnect the power
supply unit from the mains socket if you intend to not use the device
for a longer period of time. Only this way it can be ensured that the
device is de-energized.
►For devices with battery or rechargeable battery operation: If you do
not use the device for an extended period of time, remove batteries
or rechargeable batteries. Only this way it can be ensured that the
device is de-energized.
►Make sure not to drop the device.
►Do not expose the device to any impacts or vibrations.
►Perform function controls regularly as described in the relevant
section in this document. Do not operate the device if it is damaged
or not working properly.
►Ensure that there is no heat source in the immediate vicinity. Do not
expose to direct sunlight. The excessive temperature could damage
the electronics.
►Avoid rapid temperature fluctuations. When the device is
transported so that a temperature difference of more than 20 °C
occurs, it must stay turned off for at least 2 hours before it can be
turned on again. Otherwise, condensation water will form which can
damage the electronics.
►Use the device only in the intended ambient conditions.
►Store the device only in the intended storage conditions.
►Do not use aggressive or abrasive cleaning agents.
►Do not use organic solvents (e.g. white spirit or petroleum spirit).
Handling measuring results CAUTION!
Patient hazard
In order to avoid misinterpretations, measuring results for medical use
must be displayed and used in SI units (weight: kilogrammes, length:
metres) only. Some devices offer the ability to display measuring
results in other units. This is only an additional function.
►Use the results exclusively in SI units.
►The use of measuring results in non-SI units is the sole responsibility
of the user.
NOTICE!
Inconsistent measuring results
►Before you electronically save measured values determined using
this device and use them further (e.g. in seca PC software or in an
EMR system), make sure that the measured values are plausible.
►If measured values are transmitted to seca PC software or an EMR
system, make sure prior to further use that the measured values are
plausible and are assigned to the correct patient.

8 •
17-10-07-651-100a/07-2019S
Handling packaging material WARNING!
Risk of suffocation
Packaging material made of plastic foil (bags) is a choking hazard.
►Keep packaging material out of reach of children.
►In the event that the original packing material may not be available
anymore, only use plastic bags with security holes in order to reduce
the risk of suffocation. Use recyclable materials if possible.
NOTE
Keep the original packing material for future use (e.g. returning for ser-
vicing).
Handling batteries and
rechargeable batteries
WARNING!
Personal injury as a result of improper handling
Batteries and rechargeable batteries contain harmful substances
which may explode if not handled properly.
►Do not try to recharge batteries.
►Do not expose (rechargeable) batteries to heat.
►Do not burn (rechargeable) batteries.
►If acid is leaking out, avoid contact with the skin, eyes and mucous
membranes. Rinse affected areas with plenty of clean water and
seek medical help at once.
NOTICE!
Damage to device and malfunctions with improper handling
►Only use the type of (rechargeable) battery specified in this
document.
►When replacing (rechargeable) batteries, always replace a complete
set at a time.
►Do not short-circuit (rechargeable) batteries.
►If you do not use the device for a long period of time, remove the
batteries (incl. rechargeable batteries). This prevents acid from leak-
ing into the device.
►If acid leaked into the device, discontinue use. Have the device
checked by an authorised seca Service partner and repaired if
necessary.

Overview • 9
English
17-10-07-651-100a/07-2019S
3. OVERVIEW
3.1 View of device
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Rear view 16
17
18
19
20
Item Device component Function
1Display head For supporting the display unit and housing the cables and batteries
2Display unit Serves as the central operating and display element
3Column For supporting the display head and the measuring rod
4Column holder For supporting the column
5Power supply
connection socket For connecting a seca plug-in power supply unit
6Weighing platform For weighing patients
7Battery compartment To take type AA batteries, 1.5 V
8Measuring rod For measuring height
9Head slide For sliding the measuring flap onto the lower telescopic element
10 Read-off edge 1 For reading off measuring results in measuring range 1
11 Read-off edge 2 For reading off measuring results in measuring range 2
12 Lower telescopic
element For measuring height in measuring range 1: Up to 1.22 m
13 Upper telescopic
element For measuring height in measuring range 2: From 1.22 m
14 Measuring flap Serves as a head stop for measuring height
15 Latch For releasing and latching the head slide

10 •
17-10-07-651-100a/07-2019S
3.2 Display unit controls
16 Cover panel For covering the cables
17 Recessed handle For transporting the measuring station
18 USB interface For transmitting the weight values displayed to the customer’s own software
solution (if you have any questions, contact seca Service)
19 Battery cable socket For connecting the battery cable
20 Connecting cable
socket For connecting the connecting cable
Item Device component Function
1
2
3
4
Item Control Function
1 On/off key
- Switch the device on and off
2
BMI kg/lbs key
• During the measurement procedure:
- Activate BMI mode (press key briefly)
- Switch between the units kilograms and pounds (press and hold key) (function
depends on variant)
• In BMI mode:
- Confirm height value and display BMI (press key briefly)
- Exit BMI mode (press key briefly again)
3
Tare  key
• During the measurement procedure:
- Activate/deactivate Tare function
• In BMI mode:
- Reduce height value
4
Hold  key
• During the measurement procedure:
- Activate/deactivate Hold function
• In BMI mode:
- Increase height value
