MOVIDRIVE®
Drive Inverter
Manual
MX_SHELL
Edition 03/99
0919 1917 / 0399

2 MX_SHELL
Notes
Conventions
A key to be pressed is in triangular brackets:
<RETURN>, <F1>, <ESC> etc.
A control button to be pressed in a window is in brackets:
[ESC], [F1], [INS] etc.
Menu titles/menu items are in italics:
“File/Exit” or “Options/Language” etc.
Mouse operation
Use the left mouse key to select menu titles and menu items.
Double-click on parameters which you wish to edit.
Keyboard operation
To select a menu title, press <Alt> + first letter of the title.
To select a menu item, enter the highlighted letter of the menu item or press <RETURN> when
the selection bar is on the menu item.
To select parameters, move the selection bar to the parameter, then press <RETURN>.

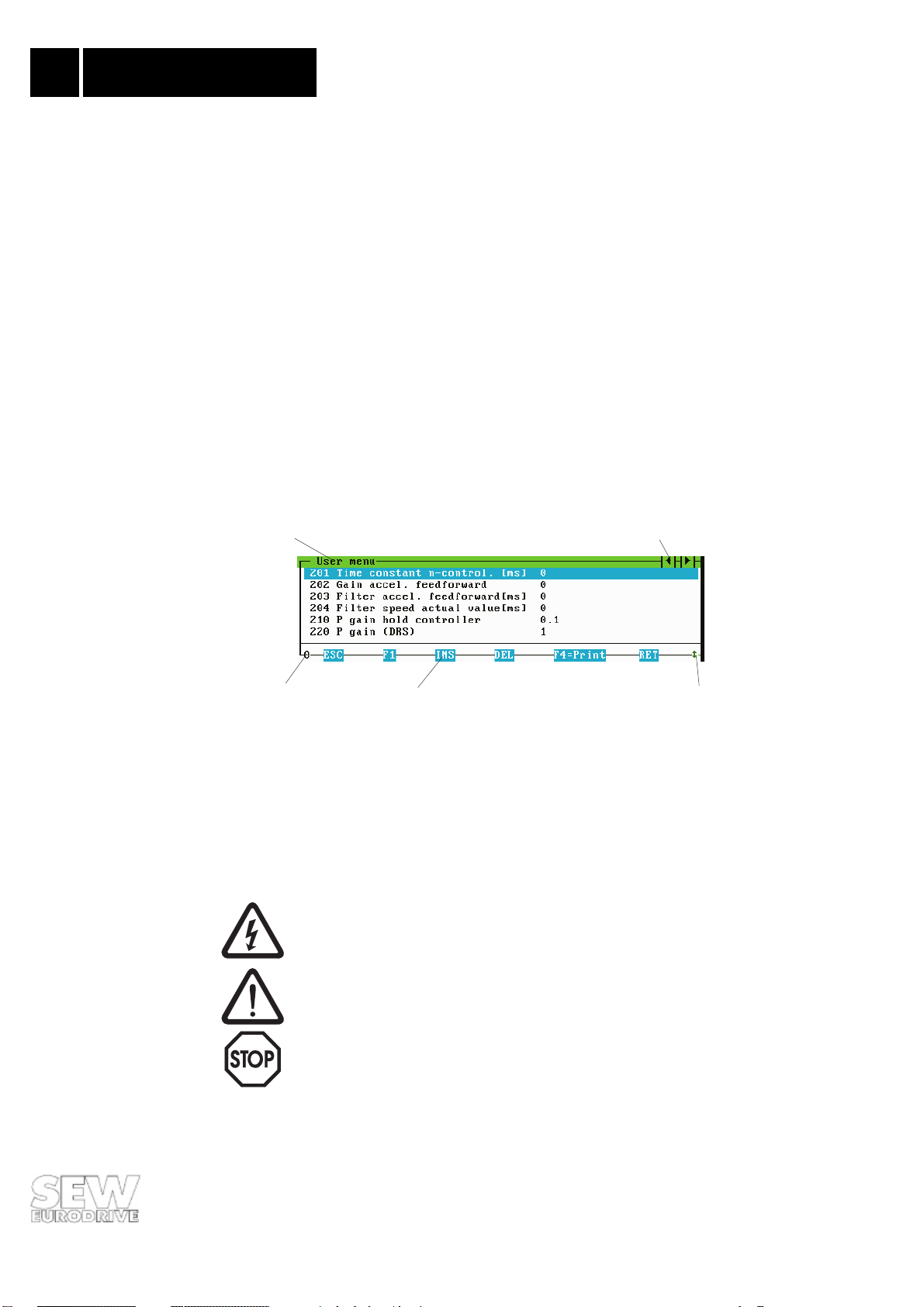

General window structure
01126AEN
Safety notes
Always follow the safety and warning instructions contained in this manual!
Safety notes are marked as follows:
Electrical hazard, e. g. during live working.
Mechanical hazard, e. g. when working on hoists.
Important instructions for safe and fault-free operation of the driven machine/
system, e. g. pre-setting before commissioning.
MX_SHELL allows you to change the function settings of MOVIDRIVE®
drive inverters in a
simple and straightforward manner.
As with all such systems there is the risk of an operating error, which may result in unexpected
(not uncontrolled, though!) system behavior. It is advisable to implement EMERGENCY stop
functions, especially during startup.
1 Name of window 4 Control button
2 Data can be edited with cursor keys 5 Height of window is adjustable
3 Window number
12
345

Contents
MX_SHELL
3
Contents
1 Introduction ...................................................................................... 4
2 Installation....................................................................................... 5
2.1 Hardware requirements .........................................................................................5
2.2 Installing and starting the program........................................................................5
2.3 PC/drive inverter connection..................................................................................5
3 Menu Functions ................................................................................. 7
3.1 File.........................................................................................................................7
3.2 Parameter ..............................................................................................................9
3.2.1 Parameter / Commissioning ...................................................................9
3.2.2 Parameter / Main menu ..........................................................................10
3.2.3 Parameter / User menu ..........................................................................11
3.2.4 Parameter / Signature................................................................................11
3.2.5 Parameter / Manual reset ..........................................................................11
3.2.6 Parameter / Manual operation ..............................................................12
3.2.7 Parameter / Fieldbus monitor .................................................................13
3.3 Communication ...................................................................................................14
3.3.1 Communication / PC interface ..............................................................14
3.3.2 Communication / Connect ....................................................................15
3.4 Options ................................................................................................................15
3.5 Screen .................................................................................................................16
3.6 IPOS ....................................................................................................................16
3.7 Help .....................................................................................................................17
4 Extended Program Start Settings........................................................... 18
4.1 MX_SHELL.INI file...............................................................................................18
4.2 MX_WIN.DAT file.................................................................................................18
4.3 MX_USER.MNU file .............................................................................................18
5 Index ............................................................................................ 19
Notes on the current software release
Please note the comments in the "README.TXT" file on the corresponding disk.

4 MX_SHELL
1 Introduction
1 Introduction
The MX_SHELL program is a software tool that allows you to parameterize and commission
MOVIDRIVE®
drive inverters simply and rapidly. Context-sensitive Help menus offer support for
each individual commissioning step right up to the documentation of the settings you have made.
Program features
• Commissioning, test and diagnosis of all unit versions and options (for DPI/DPA.. see the
MX_POS software).
• Uploading and downloading of parameter sets from the inverter to the PC and vice versa.
• Setting and editing of parameter sets offline on the PC, i.e. without an inverter connected.
• Integrated function modules for
– manual control and setpoint input from the PC (“Manual operation”)
– fieldbus diagnosis (“Fieldbus monitor”)
– programming and diagnosis of the IPOSplus integral positioning and sequence control
• Identification of a parameter set with a user “signature” for unique identification of a parameter-
ized inverter.

MX_SHELL 5
Installation 2
2 Installation
2.1 Hardware requirements
• PC/AT with 80286 CPU or better
• MS-DOS version 3.3 or higher
• Minimum 570K RAM
• 3.5" disk drive (1.44MB)
• VGA compatible video adapter (colour or monochrome, LCD)
• Approx. 2MB free hard disk space
• RS-232 serial interface to connect the MOVIDRIVE®
• Serial interface to connect the mouse
Use a standard serial interface cable (shielded) to connect the MOVIDRIVE®
to the PC.
00996AEN
2.2 Installing and starting the program
Start the install.bat installation routine on the floppy disk. Then follow the instructions of the
installation routine.
Start the MX_SHELL program with the mx_shell.exe command.

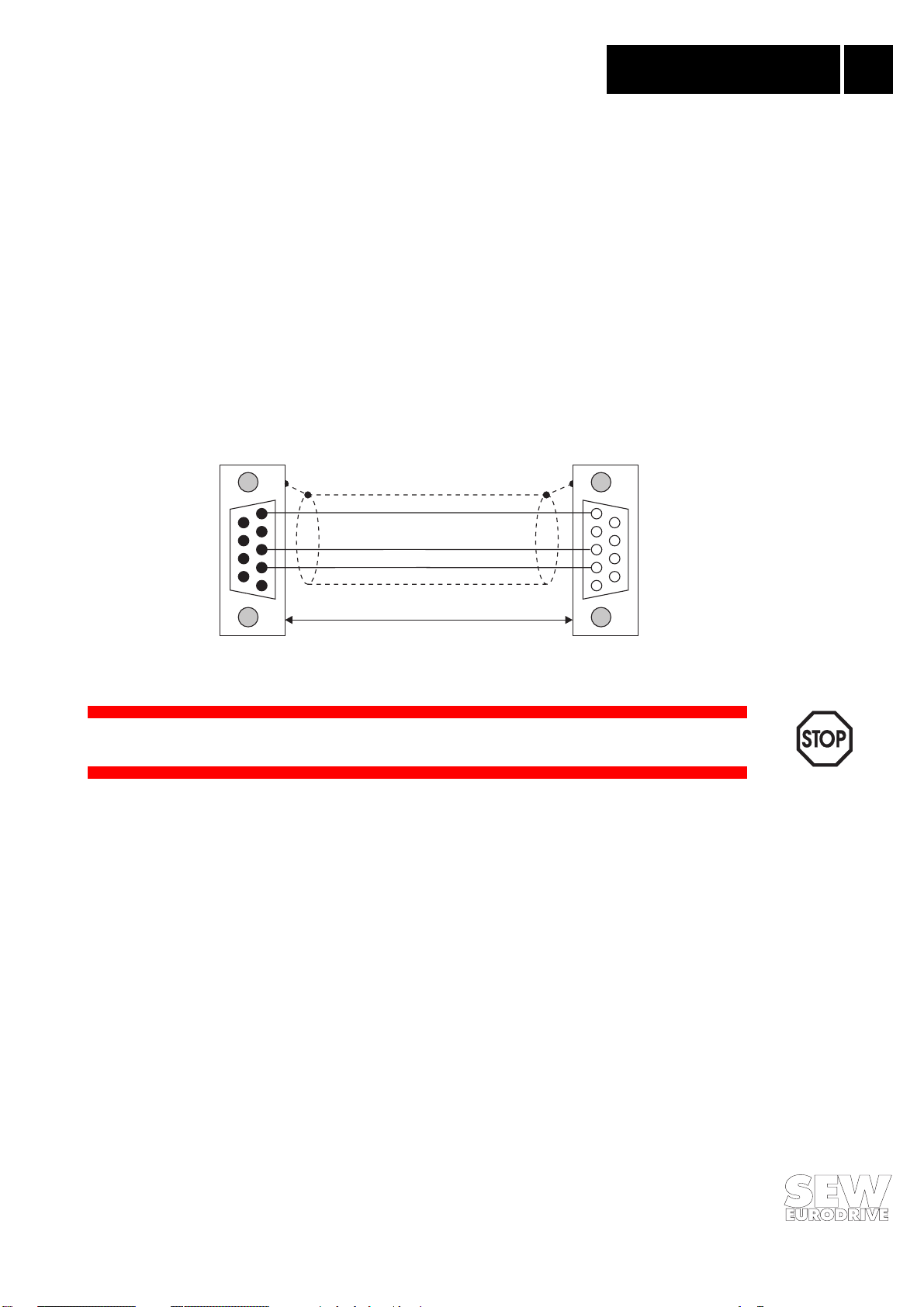

2.3 PC/drive inverter connection
If the communications link between the inverter and the PC is down or faulty, the parameter values
are substituted by dashes (---). In this case check the following settings:
IMPORTANT:
Switch off the mains supply before you connect the inverter to the PC!
RxD
TxD
2
3
5
2
3
5
max. 5 m (16.5 ft)
GND (ground)
Connection to PC (COM1-4)Connection to USS21A (MOVIDRIVE )
®
9-pin sub D connector (female)9-pin sub D connector (male)

6 MX_SHELL
2 Installation
Selecting the interface

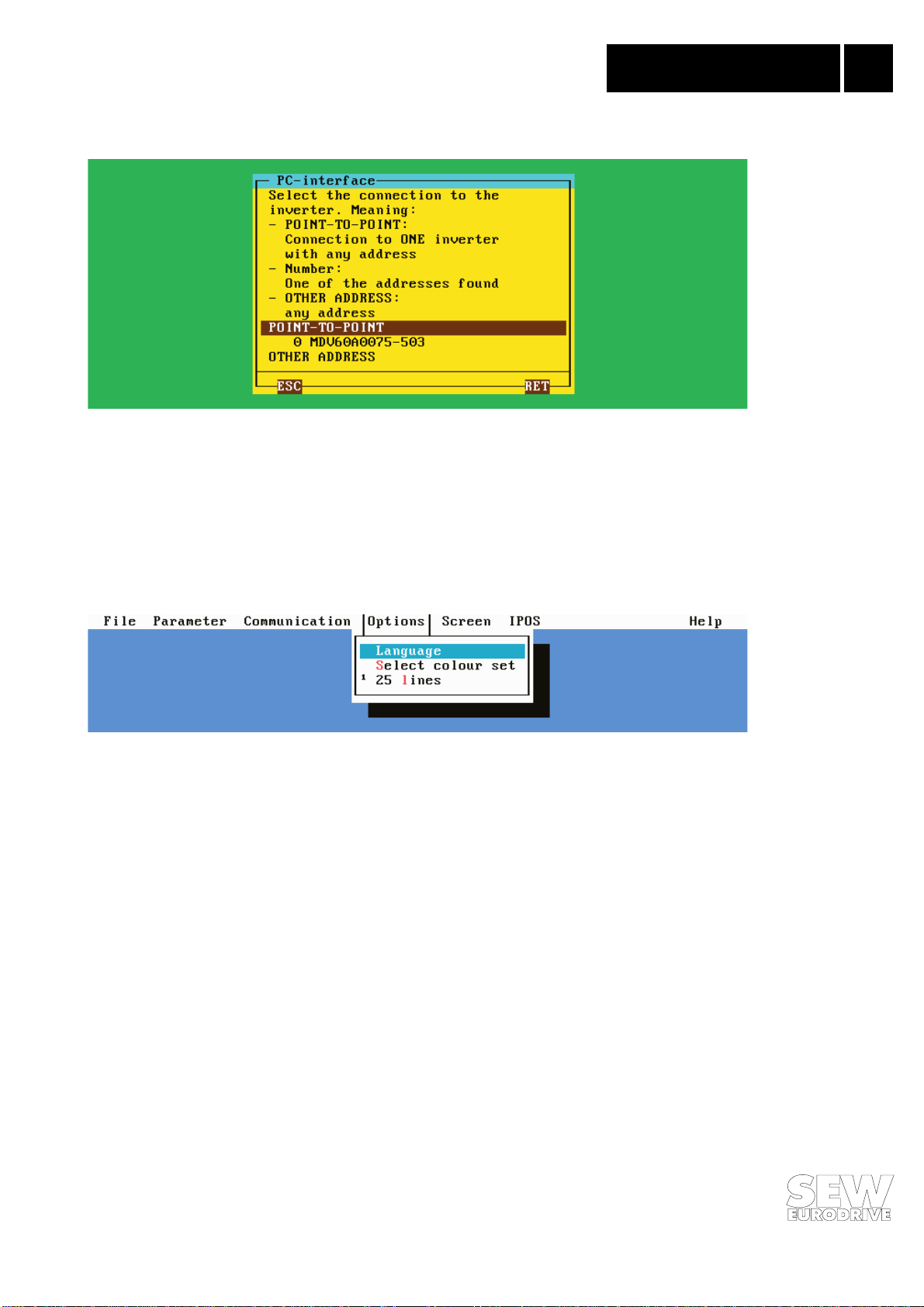

1. Set the required connection in the “Communication/PC interface” menu item.
2. Make sure that MX_SHELL is running online. Close “Communication/Offline”.
3. Select “Communication/Connect”. MX_SHELL will check all addresses from 0 ... 99 for a con-
nected inverter.
4. You may now select:
• “Point-to-point connection” if exactly one MOVIDRIVE®
is connected to your PC port (in this
case the address setting in MX_SHELL and the inverter is not important).
• “Number”, if you wish to establish a communications link to one of the inverter addresses
found.
• “Other address” if you wish to enter the desired address directly.
Note:
The MOVIDRIVE®
communications address for the RS-485/RS-232 serial interfaces is set with the
parameter 810 “RS-485 address”.
RS-485 connection
When you use the RS-485 interface, check whether the ends of the two RS-485 lines are connected
correctly.
Windows 95
Under Windows 95, the serial interfaces are permanently assigned to an application. This means
that the MX_SHELL and MX_SCOPE programs cannot be run in parallel (in two DOS boxes). Use
the direct program call via [File] / [MX_SCOPE], [File] / [MX_POS], [File] / [MX_SHELL] which is
integrated in the programs to switch between theses applications quickly.
Status line
The last but one line of the screen is the status line. It provides important information about the
status of MX_SHELL and the connected inverter. The status line has the following structure:
Online mode
Offline mode
Online Point-to-point No enable MDV60A0055-503 Customer XYZ
MX_SHELL
operating mode
Address of the assigned
inverter
Operating condition or
fault status of the inverter
Inverter type Parameter set signature
Offline FILE.MDX SAVED Customer XYZ
MX_SHELL
operating mode
Name of file last opened/
saved
File update status Not used Parameter set signature

MX_SHELL 7
Menu Functions 3
3 Menu Functions
General description of the window properties
You can open a maximum of 15 windows (10 application windows + 5 system windows) in
MX_SHELL. Application windows are identified by a window number in the bottom left corner.
Windows whose height you can adjust have a zoom symbol in the bottom right corner.
You can activate non-active windows:
– by clicking on them with the mouse
– with the <F6> key.
To change numerical values, texts, parameter settings, press the <RETURN> key, then change the
values with the cursor keys (active keys see bottom of window and bottom line of user interface).
Displayed process values are updated in regular intervals. These onscreen values are the values of
the inverter the program is communicating with. The address of the assigned drive inverter is
shown in the status line at the bottom of the screen. To change the address, select
“Communica-
tion/Change address”
or
“Communication/Connect”
.
3.1 File
The
“File”
menu title comprises the following menu items:
01127AEN
The following diagram gives an overview of the MX_SHELL menus: :
File Parameter Communication Options Screen IPOS Help
Load File Commissioning PC interface Language Configuration load Program Key assignment
Load Inverter Main Menu Connect Select colour set Configuration save Variables Use program windows
Save file User Menu Offline 25 Lines Auto configuration Information
Save to new file Signature Change Address
Save to inverter Manual operation Modem
Print Fieldbus monitor
MX_SCOPE Manual reset
MX_POS
Exit

8 MX_SHELL
3 Menu Functions
The file selection window comes up when you select
–
“Load file”
,
“Save file”
or
“Save to new file”
.
01128AEN
The File selection window has the following fields:
Name: Enter the name of the desired file.
To change the file name press the <→> key or click on it with the mouse.
Path: Shows the active path.
Remarks: Comment on the selected file.
To change the comment, press the <←> key or click on it with the mouse.
Files: List of all files with the extension *.mdx, which are located in the current directory.
Move the selection bar up or down to select a file, then press the <RETURN> key to confirm.
Directories: List of all the subdirectories of the current directory.
Move the selection bar up or down to select a subdirectory, then press the <RETURN> key to
confirm.
To select the higher-level directory, select parent directory, then press the <RETURN> key to
confirm.
Use the <TAB> key to move between Files and Directories.
To change to a different drive you can either:
– Enter the desired drive in the Name field
– Enter the letter for the drive (A to D) directly.
– Click on the desired drive in the bottom line of the window.
When you save a file you can attach a “comment field” to this file where you can enter additional
information for printout. This comment field can be defined user-specifically, saved to floppy disk
and loaded from there, and can be reused any time.
Functions in the “Comment field”:
• F3=OK Confirms and saves the entry in the comment field.
• F4=Open Reads and inserts a comment field from hard disk/floppy disk. A selection
window will open when pressed.
• F5=Save Saves and inserts a comment field to hard disk/floppy disk. A selection
window will open when pressed.
Comment field files have the extension *.hdr.
The
“MX_SCOPE” , “MX_POS” and “Exit” menu items
You can exit MX_SHELL with these menu items and open the associated programs. MX_SHELL
uses the search path set in the MX_SHELL.INI file to call the programs. If MX_SHELL cannot find
the search path or if the search path is invalid, a file window will open where you can search the
associated program file and set the call path in the MX_SHELL.INI file.

MX_SHELL 9
Menu Functions 3

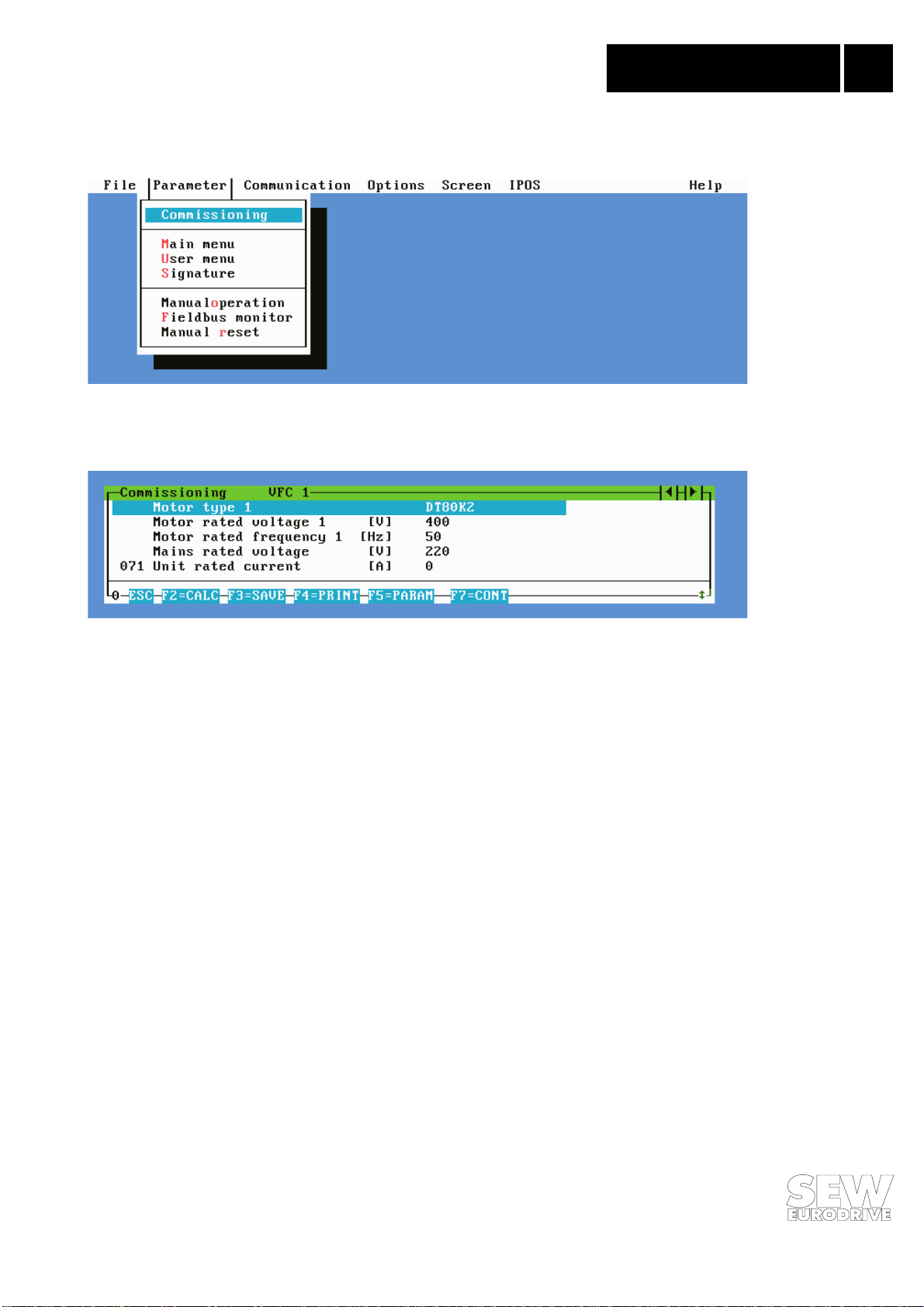

3.2 Parameter
The
“Parameter”
menu title comprises the following menu items:
01129AEN
3.2.1 Parameter / Commissioning
01130AEN
Please refer to the MOVIDRIVE® Manual for detailed commissioning instructions and follow these
closely.
Automatic setting of the most important parameters:
Set the parameters for your system, for instance:
– Motor type
– Motor rated voltage
– Brake with/without
– Damping of speed control loop
– Stiffness of speed control loop
– Time grid of positioning control
– Drive backlash-free/not backlash-free
– Load inertia reduced to motor shaft
– Shortest required ramp time
– Rated current (is automatically set when a drive inverter is connected)

10 MX_SHELL
3 Menu Functions
Operation
Press the <F2> key to calculate the parameters.
Press the <F5> key to display the parameters.
Press the <F7> key to set the speed controller.
Press the <F3> key to download the calculated values to the drive inverter.
The calculated values are shown in the column “Suggestion”. The actual values are displayed in the
column “Actual values”. When you download the calculated values to the inverter with the <F3>
key, the actual values are set to the calculated ones.
Individual values can be edited in the “Actual values” column any time and are downloaded to the
inverter immediately.

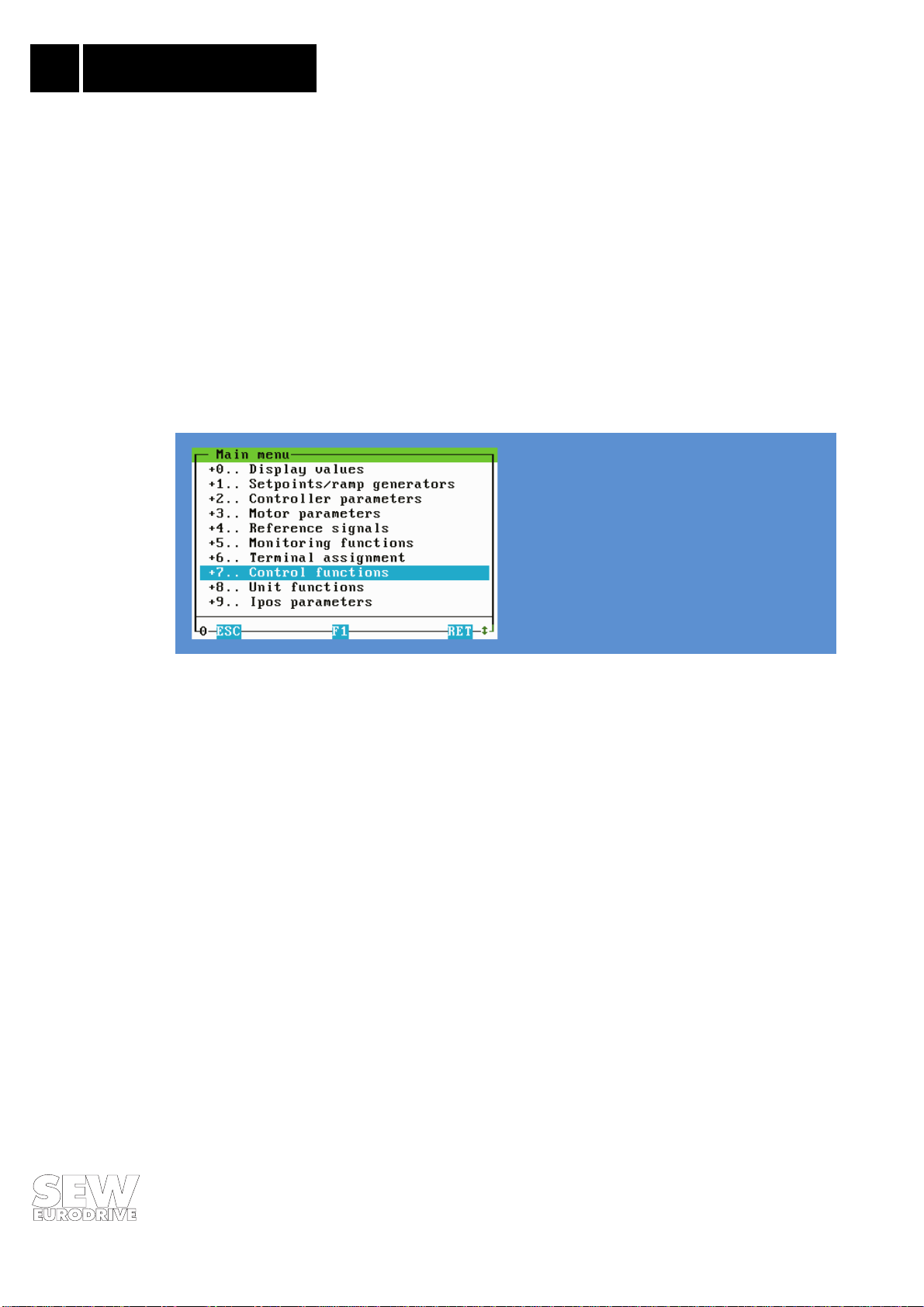

3.2.2 Parameter / Main menu
01131AEN
The main menu allows you to display and edit any parameters / process values.
To select a parameter or process value
– move the selection bar in the main menu to the desired entry, then press the <RETURN> key.
– move the selection bar in the submenu to the desired entry, then press the <RETURN> key.
To display the desired parameters / process values in an individual menu
To change values / entries:
– move the selection bar to the desired parameter, then press the <RETURN> key.
For general window functions see Sec. 2.

MX_SHELL 11
Menu Functions 3

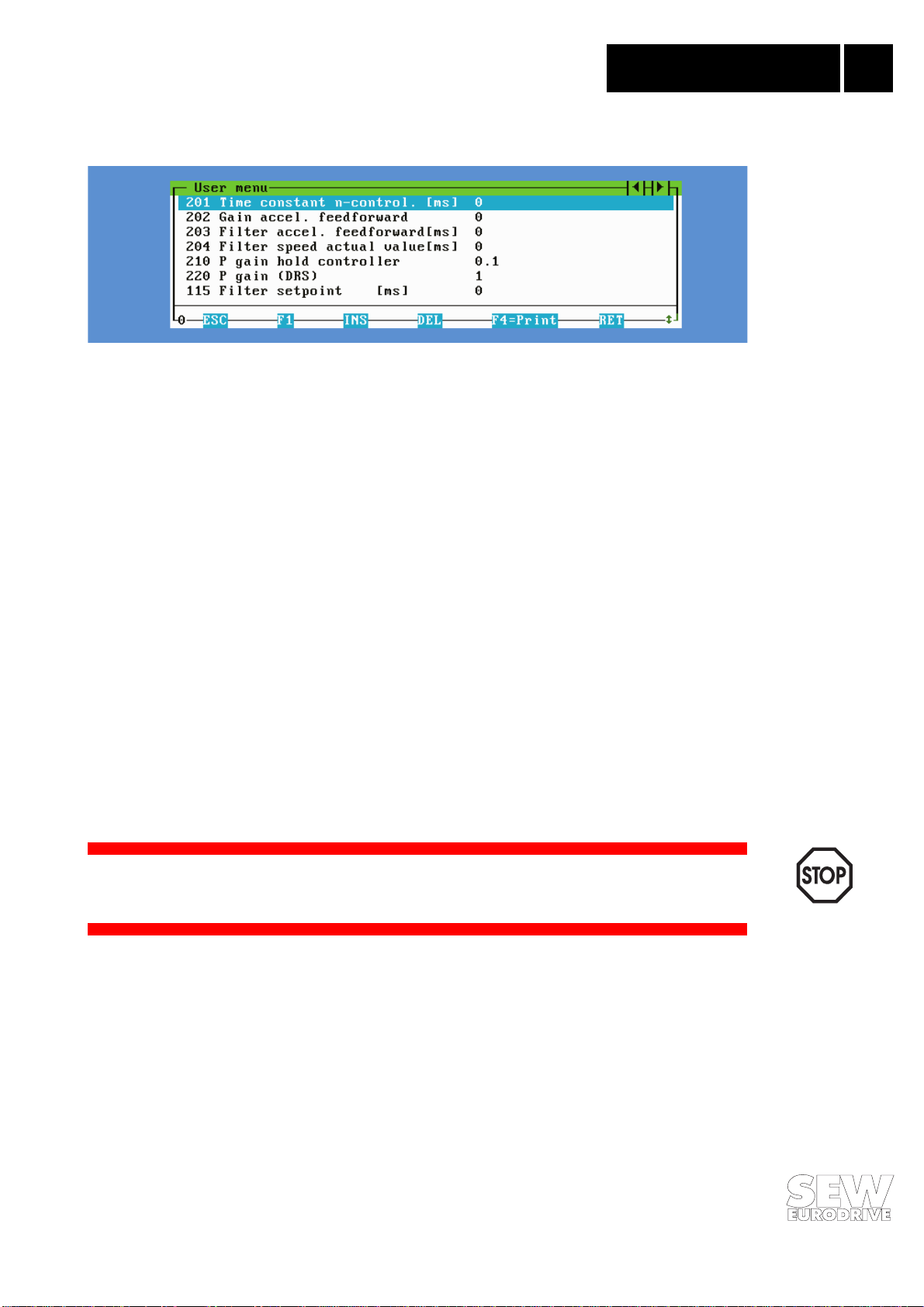

3.2.3 Parameter / User menu
01132AEN
The user menu is a customized menu where you can put together an individual selection of
parameters.
Inserting a parameter
Press the <Ins> key. Enter the desired parameter number in the editing window. Press the
<RETURN> key. The new parameter will be inserted.
If the new parameter is not inserted, this may be because
– the parameter number you have entered does not exist
– the parameter number you have entered is already included in the user menu
– the maximum number of entries (max. 100 entries) has been reached.
Deleting a parameter
Press the <Del> key. If the user menu contains only one parameter, then it is not possible to delete
this parameter.
Printing the parameters included in the user menu:
Press <F4>.
3.2.4 Parameter / Signature
You can store any 16 characters in the unit. This ensures unique identification of the parameter set
or the unit. This character string is shown in the MX_SHELL status line and printed in the header of
the hardcopy printout.
3.2.5 Parameter / Manual reset
This menu has the same effect as P840
“Manual reset”
= YES.
You may also reset the inverter with the <r> key.
IMPORTANT:
When you set the default user menu:
The existing user menu configuration will be overwritten.

12 MX_SHELL
3 Menu Functions

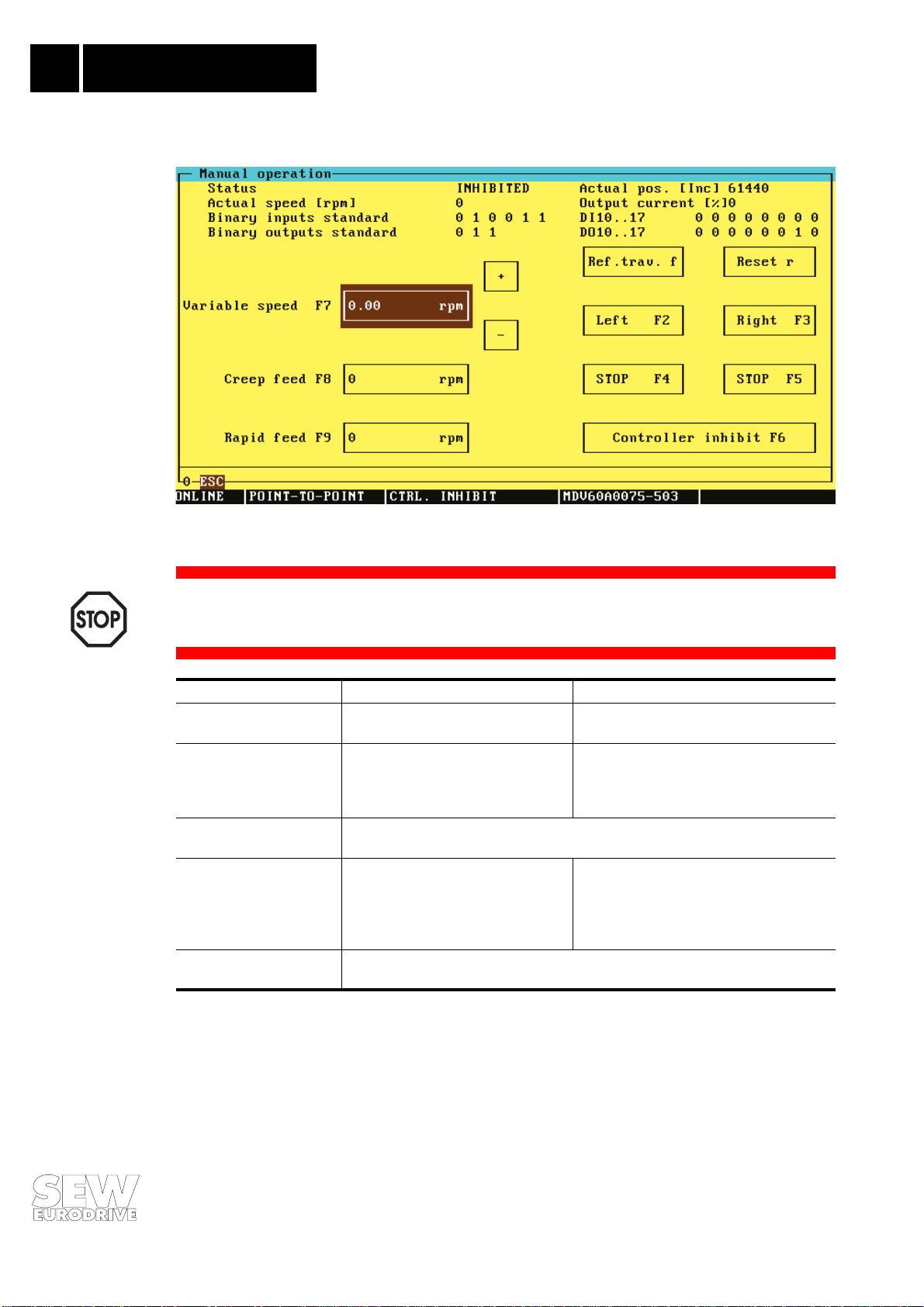

3.2.6 Parameter / Manual operation
01133AEN
Any present IPOS programs will continue running in manual operation, and the IPOS program will
respond to changes made in manual operation.
Recommendation:
Stop running IPOS programs to avoid undesirable reactions in manual operation.
ATTENTION:
The documentation for manual operation refers to MOVIDRIVE®
software version .15 and later. It
has become easier to activate and exit manual operation.
Functions Older versions Version .15 or later
Activate manual operation Terminal/Controller inhibit (DI00) = 0 The inverter only has to be in inhibit status, i.e.
no power supply to standstill and output stage.
Processing terminals or con-
trol functions
All programmed terminals will be evalu-
ated, i.e. the inverter requires the corre-
sponding enable data to respond to the
manual operation setpoint.
No terminal functions are evaluated, except
limit switch functions (LS CW/CCW).
Terminal function / Control-
ler inhibit (DI00)
Always set this input to 1 (= 24 V) to move drive.
Exiting manual operation The inverter is stopped at ramps t11/t12/
t21/t22 and remains in status „controller
inhibit“. A return to „normal“ operation is
accomplished by toggling terminal DI00
= 0, DI00 = 1.
Exit manual operation only in inhibit status.
Inverter behaviour after exit-
ing manual operation
The inverter responds to setpoints and terminal signals as programmed and might start
operating immediately.

MX_SHELL 13
Menu Functions 3
You may enter a speed value in the “Creep speed” and “Rapid speed” boxes and then operate the
drive with “CW” and “CCW”. The actual speed is also displayed in the “Variable speed” box, where
you can change it with the “+” and “-” keys. This allows you to change the speed setting of a drive,
which accelerates to rapid speed with a slow ramp, to a slower speed. You may also enter any
value you require in the “Variable speed” box, the drive will then accelerate to these values. The
entry in the “Variable speed” box is not stored.
The drive accelerates to rapid or creep speed using the t11/t12/t21/t22 ramps. “HALT” will decelerate
the drive to n=0 using these ramps. “Stop” will decelerate the drive to n=0 using the rapid stop
ramp t13/t23.
“Ref. travel” will carry out a reference travel. ”Reset” is used to reset any faults that may have
occurred. The “Controller inhibit F6” activates a function which has the same effect as the “Control-
ler inhibit” terminal and is independent of the level on the “Controller inhibit” terminal.
If you operate a key that has no function, it will activate the function „controller inhibit“.
3.2.7 Parameter / Fieldbus monitor
01344AEN
For the operation of the fieldbus monitor, the connected inverter must be fitted with a fieldbus pcb.
ATTENTION:
You can exit manual mode only in inhibit status by using the key combination <Alt-F3>. The termi-
nal conditions apply after exiting manual operation, i.e. inverter may start operating immediately,
if setpoints and corresponding enable are present.
12
3

14 MX_SHELL
3 Menu Functions
Two operating modes are available:
Monitor mode (press <F8> to activate)
The monitor mode allows you to monitor data received from (➀) and returned to (➁) an external
PLC when the inverter is communicating with the higher-level control over a fieldbus system. The
individual function bits of the control and status words 1 are shown in detail.
Control mode (press <F9> to activate)
This mode allows you to simulate an existing fieldbus system. When the external fieldbus master
(e.g. PLC) is not present yet, the bus monitor can send process output data (PO1...3) to the
inverter and display the process input data (PI1...3) returned from the inverter.
If you wish to influence a running fieldbus system, the PO data input of the control system is
ignored after you have selected <F9> and instead the PO1...3 values (see ➂) of the monitor window
will be used. Press <F7> to accept the PO data from the higher-level control system again.
<F7=PD_enable> corresponds to parameter 876 of the basic unit.
For a detailed description of the fieldbus functions please refer to our fieldbus documentation:
– Fieldbus unit profile
– Manuals for the fieldbus interfaces: CAN bus, INTERBUS, PROFIBUS
3.3 Communication
The menu title
“Communication
” comprises the following menu items:
01134AEN
3.3.1 Communication / PC interface
01135AEN
Select the interface to which the inverter is connected. If the window stays open after you have
selected the correct interface and confirmed your selection with the <RETURN> key, then the
selected interface does not exist or is already assigned.

MX_SHELL 15
Menu Functions 3
3.3.2 Communication / Connect
01297AEN
The communications link between the PC and the drive inverter can be established via one of the
COM ports of the PC (→Sec. 2.3).
3.4 Options
The menu title
“Options”
comprises the following menu items:
01136AEN
Options / Language
The program comes standard with German, English and French language files.
Options / Select colour set
You have a choice of 4 sets of colours.
Options / 25 lines
This item allows you to change the screen display from 25 to a 50 lines. (25 lines on = check-mark
in front of the menu item).

16 MX_SHELL
3 Menu Functions
3.5 Screen
The menu title “Screen” comprises the following menu items:
01137AEN
Screen / Configuration load
Loads the screen configuration last saved (screen configuration = position of opened windows).
Screen / Configuration save
Saves the current screen configuration.
Screen / Auto configuration
“Auto configuration” switched on. Saves the position of the opened windows when you exit
MX_SHELL. When you start MX_SHELL the next time, these windows will be displayed straight
away (auto-configuration on = check-mark in front of menu item).
3.6 IPOS
The
“IPOS”
menu title comprises the following menu items:
01138AEN
The operation of IPOSplus in conjunction with MX_SHELL is discussed in detail in the IPOSplus
Manual.

MX_SHELL 17
Menu Functions 3

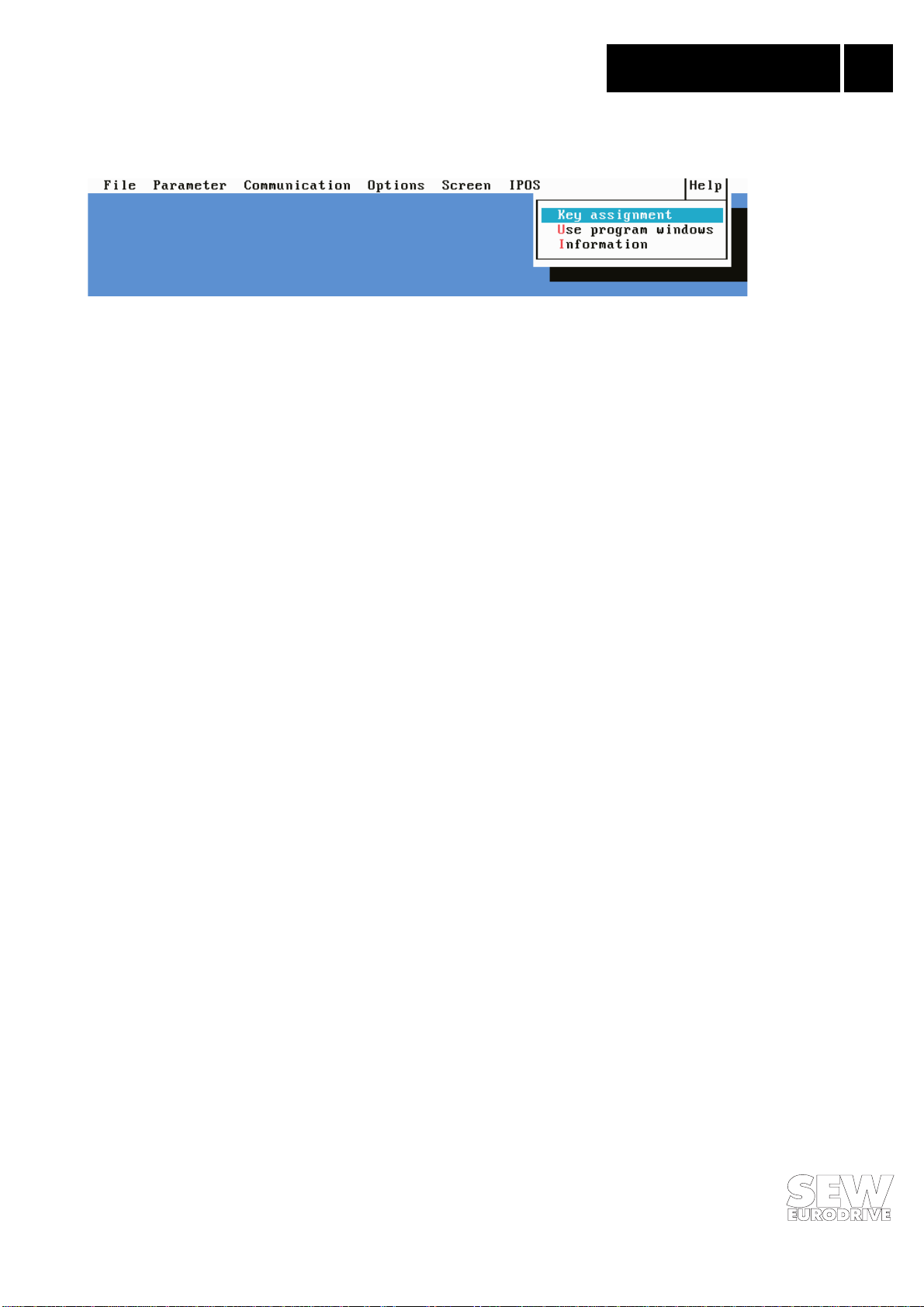

3.7 Help
The
“Help”
menu title comprises the following menu items:
01139AEN
Help / Key assignment
Explains all the keys and controls in all the windows. Select the desired window with the <TAB> key
and press the <RETURN> key to call up context-sensitive Help.
Help / Use program windows
Informs about the most important ways of operating MX_SHELL windows.
Help / Information
Gives the program’s version number and a telephone number which you can call if you need help
with the program.

18 MX_SHELL
4Extended Program Start
Settings
4 Extended Program Start Settings
To operate correctly, MX_SHELL requires several additional files, where, for example, important
program settings are stored. When the program is started, these files are read in, processed and
some of the information saved again.
4.1 MX_SHELL.INI file
This file contains all settings you made while the program was running. The file is saved as an
ASCII file and can be edited with most text editors. The data are loaded when the program is
started and saved back again when you exit.
The following parameters can be set:
MX_SCOPE='Path'
The parameter 'Path' specifies in which directory on your hard disk the MX_SCOPE program is
located. When you select the “Environment/MX_SCOPE” menu item, MX_SHELL is closed and
MX_SCOPE called from the 'Path' directory. If 'Path' and/or MX_SCOPE do not exist, a data selec-
tion window opens up to initiate the search for MX_SCOPE.
MX_POS='Path'
The parameter 'Path' specifies in which directory on your hard disk the MX_POS program (user
interface for the API/APA positioning control) is located. When you select the “Environment/
MX_POS” menu item, MX_SHELL is closed and MX_POS called from the 'Path' directory. If 'Path'
and/or MX_POS do not exist, a data selection window opens up to initiate the search for MX_POS.
4.2 MX_WIN.DAT file
This file contains all the program colour settings. If, for instance, you choose to change the
program's blue background, this change will be saved in the MX_WIN.DAT file.
4.3 MX_USER.MNU file
The user menu configuration is saved in the MX_USER.MNU file and is available again when you
restart MX_SHELL.
NOTE:
MX_SHELL will create the following files automatically. Normally there should be no need to
change them. You should only modify these files as an exception (e.g. abnormal termination of
MX_SHELL) or if the application requires you to.

Index 5
MX_SCOPE
19
5 Index
25 lines 15
A
Auto configuration 16
C
Comment field 8
Commissioning 9
Communication 14
Configuration load 16
Configuration save 16
Connect 15
Control mode
- fieldbus 14
Conventions 2
D
Deleting
- parameter 11
E
Exit 8
F
Fieldbus monitor 13
- Control mode 14
- Monitor mode
14
File 7
file selection window 8
- Directories 8
- Files
8
- Name
8
- Path
8
- Remarks
8
G
General window structure 2
H
Hardware requirements 5
Help 17
I
Information 17
Inserting
- parameter 11
Installation 5
interface
- selection 6
IPOS 16
K
Key assignment 17
Keyboard operation 2
L
Language 15
M
Main menu 10
Manual operation 12
Manual reset 11
Menu Functions 7
menu overview 7
Monitor mode
- fieldbus 14
Mouse operation 2
MX_POS 8
MX_SCOPE 8
MX_SHELL.INI 18
- MX_POS=’Path’ 18
- MX_SCOPE=’Path’
18
MX_USER.MNU 18
MX_WIN.DAT 18
O
Options 15
overview of the menus 7
P
Parameter 9
parameter
- delete 11
- insert
11
- print
11
PC interface 14
PC/drive inverter connection 5
Printing
- parameter 11
program
- install 5
- start
5
Program features 4
Program Start Settings 18
R
reset 11
reset, manual 11
RS-485 connection 6
S
Screen 16
Select colour set 15
Selecting the interface 6
Signature 11
Status line 6
- Offline mode 6
- Online mode
6
U
User menu 11
W
window properties 7
Windows 95 6

SEW-EURODRIVE right around the globe is
your competent partner in matters of power
transmission with manufacturing and assem-
bly plants in most major industrial countries.
We are available,wherever you need us.
Worldwide.
SEW-EURODRIVE GmbH & Co · P.O.Box 30 23 · D-76642 Bruchsal/Germany
Tel. [phone] · Fax [phone] · Telex 7 822 391
http://www.SEW-EURODRIVE.com · [e-mail]
