Sharp AR-162 User manual

This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
Parts marked with “ “ are important for maintaining the safety of the set.
Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.
SHARP CORPORATION
DIGITAL COPIER
AR-162S
MODEL AR-164
CODE : 00ZAR162S/A1E
[1] INTRODUCTION
The AR-162S and AR-164 are minor change models of the AR-162 and AR-163 digital copier.
Therefore this manual describes only the differences from the AR-162/163 and supplements.
For the other items, refer to the following Service documentation.
•AR-162/163 Service Manual : 00ZAR162//A1E Parts Guide : 00ZAR162//P1/
•AR-SP2 Service Manual : 00ZARSP2//A1E Parts Guide : 00ZARSP2//P2/
•AR-EB3 Service Manual : 00ZAREB3//A1E Parts Guide : 00ZAREB3//P1/
[2] LIST OF DIFFERENCES FROMAR-162/163
*Depending on the destination
AR-162 AR-162S AR-163 AR-164 Note
Copy Speed 16 sheets / minutes 16 sheets / minutes 16 sheets / minutes 16 sheets / minutes A4 or Letter / 100%
Standard tray 1 tray+MB 1 tray+MB 1 tray+MB 1 tray+MB 1 tray : 250 sheets
MB : 100 sheets
Option tray 1 tray or 2 tray Not Available 1 tray or 2 tray 1 tray or 2 tray
Duplex Not Available Not Available Not Available Not Available
Shifter Not Available Not Available Standard Standard
Scan Once Print Many Not AvailableNot AvailableStandard * Standard 1Page memory:10MB
Original size detection Not Available Not Available Not Available Not Available
SPF OPTION OPTION OPTION SPF Standard Option : AR-SP2
RSPF Not Available Not Available Not Available Not Available
Original cover Standard Standard Standard Not Available
E-sort OPTION Not Available OPTION Standard Option : AR-EB3
Fax OPTION Not Available OPTION OPTION Option : AR-FX2
Job Separator
(Paper exit full detection) OPTION Not Available OPTION OPTION Option : AR-TR2
Printer expansion Kit (PCL6) OPTION Not Available OPTION OPTION Option : AR-PB8
PS2 expansion Kit OPTION Not Available OPTION OPTION Option : AR-PS1
LCD Panel OPTION Not Available OPTION OPTION Option : AR-PA1
NIC card OPTION Not Available OPTION OPTION Option : AR-NC3D
     

AR-162S SPECIFICATIONS 3-1
[3] SPECIFICATIONS
1. Copy mode
A. Type
B. Machine composition
(1) Option
C. Copy speed
(1) Scan Once Print many
Condition : Copy speed in the normal copy from all the paper feed ports
including the manual paper feed port.
(2) Continuous copy speed (Sheets/min)
D. First copy time
(1) Basic speed
E. Document
(1) SPF / R-SPF
F. Paper feed
(1) Paper feed section of the copier
(2) Manual paper feed section
Type Desk-top
AR-162S 16-CPM option (Limited function model)
AR-164 16-CPM standard model (with shifter)
Machine Model Note
250 sheets paper feed unit AR-DE5 AR-162S cannot be installed.
250 sheets x 2 paper feed unit AR-DE6 AR-162S cannot be installed.
SPF AR-SP2 AR-164 standard
RSPF AR-RP1 Not available
Original cover AR-VR1 AR-162S standard
AR-164 cannot be installed.
Electronic sorting kit AR-EB3 AR-164 standard
AR-162S cannot be installed.
Printer expansion kit AR-PB8 AR-162S cannot be installed.
Facsimile extension kit AR-FX2 AR-162S cannot be installed.
LCD panel kit
(20 digits x 2 lines) AR-PA1 AR-162S cannot be installed.
Job separator tray AR-TR2 AR-162S cannot be installed.
PS2 expanstion kit AR-PS1 AR-162S cannot be installed.
Extension memory for FAX
(2MB) AR-MM5 AR-162S cannot be installed.
Extension memory for FAX
(4MB) AR-MM6 AR-162S cannot be installed.
Extension memory for FAX
(8MB) AR-MM7 AR-162S cannot be installed.
AR-162S Not available
AR-164 Available
Paper size
Normal Enlargement (200%) Reduction (50%)
AB
system
A3 9 9 9
B4 10 10 10
A4 16 16 14
A4R 12 12 12
B5 16 16 16
B5R 14 14 14
Paper size
Normal Enlargement (200%) Reduction (50%)
Inch
system
11" x 17" 9 9 9
8.5" x 14" 10 10 10
8.5" x 13" 11 11 11
8.5" x 11" 16 16 14
8.5" x 11"R 12 12 12
8.5" x 5.5" 16 16 16
First copy time 7.2sec (A4, 8.5" x 11" / 1st tray / with OC)
Max. document size A3, 11" x 17"
Document reference position Left side center
Detection (Platen) AR-162S None
AR-164
Detection size A3, B4, A4, A4R, B5, B5R, A5,
11" x 17", 8.5" x 14",8.5" x 13",
8.5" x 11",8.5" x 11"R, 8.5" x 5.5"
(8.5" x 13" is detected by key input.)
Standard / Option Option
SPF; AR-SP2 (AR-164 standard)
RSPF; Not available
Document load capacity 30 sheets (56 ~ 90g/m² equivalent)
(15 ~ 23.9 lbs.)
Document size
(Max. ~ Min.) A3 ~ A5 11" x 17" ~ 8.5" x 5.5"
(8.5" x 5.5", duplex is inhibited.)
Document replacement speed 16 sheets / min
(A4 x 8.5" x 11" normal copy)
Document set /
Paper feed direction Face up, Center reference, Paper feed from the top
Document weight 56 ~ 90g/m², 15 ~ 23.9 lbs
Document size detection On the document feed tray
Document mixture Copy mode : Not Available
Copy size
(Max. ~ Min.) (A3 ~ A6) 11" x 17" ~ 8.5" x 5.5"
Paper feed system AR-162S 1 cassette +
Multi manual paper feedAR-164
Paper feed
capacity AR-162S 250 x 1 (Paper feed tray) + 100 (Multi bypass feed tray)AR-164
Remaining
quantity detection Cassette section Empty detection available, size detection by key input
Manual tray Only empty detection available
Paper feed size A3, B4, A4, A4R, B5, B5R, A5,
11" x 17", 8.5" x 14", 8.5" x 13", 8.5" x 11",
8.5" x 11"R, 8.5" x 5.5"
(For A5 and 8.5" x 5.5", only No. 1 tray available.)
Side front Front
Paper feed
capacity 250 sheets (56 ~ 80g/m² equivalent) (15 ~ 21 lbs.)
Detection Paper empty detection available,
size detection (by key input)
Weight 56 ~ 80g/m² (15 lbs. ~ 21 lbs.)
Special paper Recycled paper
Paper feed size A3 ~ A6, 11" x 17" ~ 8.5" x 5.5"
Paper feed
capacity 100 sheets
Detection Size detection not available,
paper empty detection available
Weight 56 ~ 128g/m² (15 ~ 34 lbs.)
Special paper Recycled paper, OHP film, labels
Paper feed Single except for recycled paper
     !"#$%

AR-162S SPECIFICATIONS 3-2
(3) Option paper feed unit (for AR-164)
G. Job speed
Condition : With SPF
H. Multi copy
I. Warmup time
* May vary depending on the surrounding temperature.
J. Copy magnification ratio
K. Print density
L. Void width
M. Auto duplex
N. Paper exit/finishing
(1) Electronic sort board (AR-164 standard)
O. Additional functions
O : Available
X : Not available
P. Other specifications
Q. Package form
1-step paper feed unit 2-step paper feed unit
Model AR-DE5 AR-DE6
Paper feed size A3, B4, A4, A4R, B5, B5R,11" x 17", 8.5" x 14",
8.5" x 13", 8.5" x 11", 8.5" x 11"R
Capacity(56~ 80g/m²) About 250 sheets x
1 step About 250 sheets x 2 steps
Paper weight 56 ~ 80g/m² (15 ~ 21 lbs.)
Moisture preserving
heater None
Detection Paper empty detection, size detection
(by key input)
Paper size setting User setting (by key input)
External dimensions
(W x D x H) 590 x 471 x 88 mm 590 x 471 x 173.5 mm
Weight About 5kg About 10kg
Special paper Recycled paper
Power Supplied from the machine
S-S (1st step) 100% (document replacement rate)
Max. number of multi copy 99 sheets
Warmup time Approx. 35 sec *
Pre-heat Available
Fixed magnification ratio AB system : 50, 70, 81, 86, 100, 115,
122, 141, 200%
Inch system: 50, 64, 77, 95, 100, 121,
129, 141, 200%
Zooming 50 ~ 200%
Independent zooming/vertical Available (50 ~ 200%)
Independent zooming
(horizontal) Available (50 ~ 200%)
Density mode Auto / Manual / Photo
No. of manual adjustment 5 steps (Manual / Photo)
Toner save mode Set by the user program
Void area Lead edge 1 ~ 4mm, rear edge 4mm or less ,
both sides 4mm or less
Image loss Max. 4mm in total of lead edge and rear edge,
max. 4mm in total of right and left edges
(Normal copy)
Standard / Option Not available
Paper exit section
capacity Face down 250 sheets
Job separator Job separator, option (AR-TR2 : for AR-164),
Not available for AR-162S
Upper : FAX/Printer, Lower : Copier
Upper : 100sheets, Lower : 150sheets
Full detection Available (Job separator upper step)
Finishing Electronic sort board:AR-164 Standard
Not available for AR-162S
Electronic sort
capacity A4 (8.5" x 11") standard document 60 sheets
Offset function AR-162S None
AR-164 Available (by the shifter)
Staple function None
Electronic sort Sorting 60 sheets of A4 standard documents
Grouping 60 sheets of A4 standard documents
Rotation copy If there is paper of same size as the document,
the image is rotated to copy even though
the paper is set in different direction from
the document direction.
2 in 1, 4 in 1 Copies of 2 pages or 4 pages are integrated into
one surface. Divided by solid lines,
(Selectable by the user program.)
Edge erase The edges of the document are erased when
copying.
(Adjustable in 0 ~ 20mm by the user program.)
Center erase The image at the center is erased when copying.
(Adjustable in 0 ~ 20mm by the user program.)
Margin shift Binding margin is made at the left edge of the set
documents.
Memory for
electronic sort 16MB
Memory expansion SIMM x 3 slots (Max. 32MB x 3 slots)
AR-162S AR-164 Note
APS X O APS not available by flowing in
during use of SPF
<AR-164 only available>
AMS O O AMS not available by flowing in
during use of SPF
Duplex X X
Document count X X
Sorter X O Electrical sort / Offset
Independent
zooming O O Vertical / Horizontal : 50 ~ 200%
1 set 2 copy O O Enlargement inhibited,
inhibited during the use of SPF
Binding margin X O Shift width 9mm
Edge erase X O Width 5mm
(Adjustable 0 ~ 20mm)
Black-white
reverse O O Whole surface only
2 in 1, 4 in 1 X O
Rotation copy X O
Memory copy X O AR-164 only available
Pre-heat function O O Conditions set by the user
program
Auto power shut
off function O O Conditions set by the user program
Auto tray switching X O
Message display X O FAX / Printer extension
User program O O
Total counter O O
Photoconductor type OPC (Organic Photo Conductor)
Photoconductor drum diameter 30mm
Copy lamp Xenon lamp
Developing system Dry 2-component magnetic brush
development
Charging system Saw teeth charging
Transfer system (+) DC corotron
Separation system ( -) DC corotron
Fusing system Heat roller
Cleaning system Contact blade
Body Body / Accessories
 &    !"#$%

AR-162S SPECIFICATIONS 3-3
R. External view
S. Power source
T. Power consumption
* EnergyStar standard (The 2nd level conformity)
U. Digital performance
External dimensions
(W x D x H) 590 x 531 x 470 mm (AR-162S) 590 x 531 x 570 mm (AR-164)
Occupying area
(W x D) 590 x 531mm (When the manual tray is installed.)
Weight About 32kg (AR-162S)
About 35.5kg (AR-164)
Voltage AC120V ± 15%
Frequency 50/60Hz common
Max. power consumption About 1.3KWh
Pre-heat About 60Wh
Auto power
shut off 0wh about 4.8wh
(when FAX or the printer expansion kit is installed)
Resolution Reading 400 dpi
Writing 600 dpi
Gradation Reading 256 gradations
Writing Binary
[4] CONSUMABLE PARTS
1. Supply system table
A. USA/CANADA
2.Environment conditions
A.Transport condition
(1)Transport conditions
(2)Storage conditions (packed conditions)
B.Use conditions
C.Life (packed conditions)
Photoconductor drum (36 months from the production month)
Developer, toner (24 months from the production month)
NO Name Content Life Model name Remark
1 Toner cartridge (Black)
<With IC> Toner x 1 (Toner: Net Weight 475g)
Vinyl bag x 1
13K AR-201NT
(AR-201-J*1) Life setting by A4 6% document <Not compatible with the AR-160/200/205>
2 Developer Developer x 1
(Developer: Net Weight 400g)
Vinyl bag x 1
30K AR-201ND <Not compatible with the AR-160/200/205>
3 Drum kit Drum x 1
Drum fixing plate x 1 30K AR-201DR The AR-201 DR/DM can be used instead of the AR-200 MR/LR/CR.
Temperature
Humidity (%)
Temperature
Humidity (%)
Humidity (%)
Temperature
Use envi-
ronment
conditions
     !"#$%

AR-162S SPECIFICATIONS 3-4
3.Production number identification
[5] SIMULATION
Main
code Sub code Contents Details of operation Initial value Set range
26 10 Model name setting Used to set the model name of the machine used with the following numbers.
After entering the set value, press the start key and the set value is stored. 00~34
*:Destination
Division No.
EX production 1
Option 2
Same pack 3
1
The end digit of production year
January
September
October
November
December
1
9
0
X
Y
Factory
Production
month
~ ~
Ver. A
The end digit of production year
Ver.No.(ANS sequence)
January
September
October
November
December
1
9
0
X
Y
Indicates production in China.
Production
day.
Production
month.
Destination
(*)
~ ~
B
*:Destination
Division No.
Japan option 1
Ex option 2
Japan, same pack 6
Ex, same pack 7
<Toner cartridge>
The label on the toner cartridge shows the date
of production.
<Drum cartridge>
The label on the drum cartridge shows the date of production.
Key operation / Display
0: AL-1600 11: AR-N200 24: AR-163/S163
1: AL-1610 12: AR-N205 25: AR-201S
2: AL-1620 13: AL-1621 26: AR-201/S201
3: AL-1640/AL-1641 14: AL-1650 27: AR-206/S206
4: AR-160/AR-S160 15: AL-1670 28: AR-207
5: AR-161/AR-S161 16: AR-F200 29: AR-F161
6: AR-200S 17: DM-2000 30: AR-F201
7: AR-200/AR-S200 18: DM-2005 31: AR-F161P
8: AR-205/AR-S205 19: DM-2010 32: AR-F201P
9: AR-F160 20: DM-2015 33: AR-162S
10: AR-F205 23: AR-162/S162 34: AR-164
 '    !"#$%

AR-162S SPECIFICATIONS 3-5
[6] MAINTENANCE
1.Maintenance table
X : Check (Clean, adjust, or replace when required.) O : Clean : Replace : Adjust : Lubricate
*1: Recommendable replacement time: 30K (A4 (8.5" x 11"), 6% print)
2. Maintenance display system
*1:Installation of a new toner cartridge allows to display the remaining quantity.
Unit name Part name When calling or replacing
the kit 150k
Transfer section Charger unit O O
Transfer paper guide O O
Optical section Lamp unit Reflector O O
Mirror O O
No. 2/3 mirror unit Mirror O O
Pulley X X
CCD peripheral Lens O O
Glass Table glass O O
White plate O O
Other Drive wire X X
Rail X X
Document cover O O
Document size sensor O O
LSU Dust-proof glass O O
Paper feed section Multi paper feed
section Takeup roller O O Paper feed roller O O
Spring clutch O O
Cassette section Paper feed roller O O
Spring clutch O O
Paper transport section PS roller O O
Transport (paper exit) rollers O O
Spring clutch O O
Fusing section Upper heat roller O
Pressure roller O O
Pressure roller bearing X O
Upper separation pawl X O
Lower separation pawl X O
Drive section Gears X X
Belts X O
Paper exit section Ozone filter X X *1
Toner Life 13K
Remaining quantity check *1 a. Press and hold the density adjustment LIGHT key for more than 5 sec, and the machine will enter
the user program mode.
b. Press and hold the "%" key for more than 5 sec, and the remaining quantity will be displayed on
the copy quantity display in one of the following levels:
(Remaining quantity display levels: 100%, 75%, 50%, 25%, 10%, LO)
c. Press the density adjustment LIGHT key to cancel.
Remaining quantity NEAR EMPTY About 10% EMPTY
LED ON Flash
Machine Operation allowed Stop
Developer Life 30K
LED ON at 30K of the developer count.
Machine Selection is available between Not Stop and Stop by Service Simulation (SIM 26-37) Setup.
(If Stop is selected, the LED will flash and stop at 30K.)
*Default: Not Stop
*Clear: SIM 42-1
Maintenance LED Selection is available among 30K, 15K, 10K, 7.5K, 5K, and free (no lighting) with SIM 21-1.
*Default: 30K
*Clear: SIM 20-1
Machine Not stop.
 (    !"#$%

AR-162S SPECIFICATIONS 3-6
3.Note for replacement of consumable parts
A.Toner cartridge

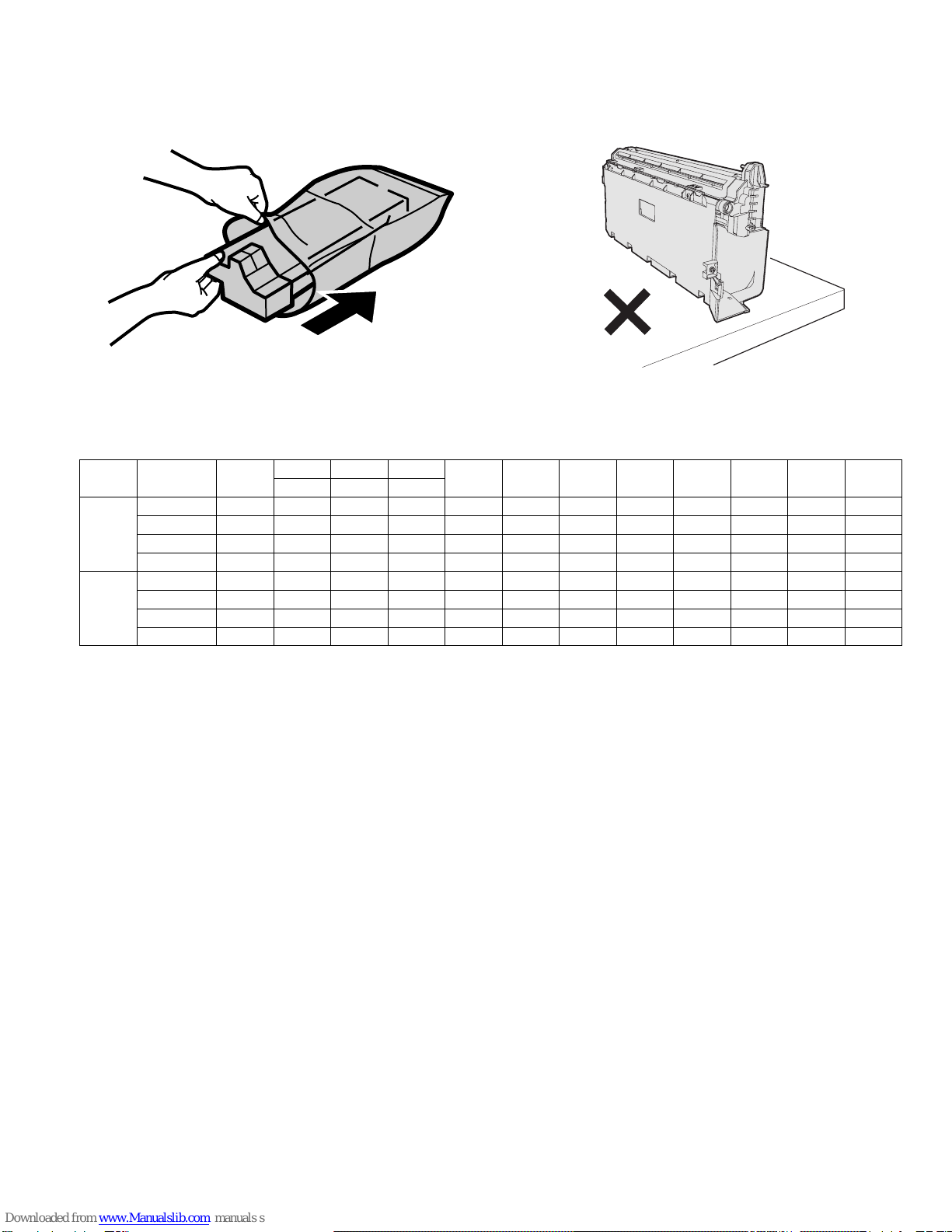

When a waste toner cartridge is removed from the machine, it must be
put in a polyethylene bag to avoid scattering of toner.
B.DV cartridge
Do not shake or put up the developer cartridge. Otherwise developer
may scatter.
[7] OTHER
1. MCU PWB Factory set-up
O : Mount
X : Not Mount
SOPM
Memory SPF Fax/PCL ERDH JP1 JP2 JP3 JP4 JP5 JP6 JP7 JP8
CN11 CN3 CN7
AB
Series AR-162 XOOOOOOOOOXO
AR-162S X O X X OOOOOOOO
AR-163 OOOOXOOXOOXO
AR-164 OOOOXOOXOOXO
Inch
Series AR-162 XOOOOOOOOXOO
AR-162S X O X X OOOOOOOO
AR-163 OOOOXOOXOXOO
AR-164 OOOOXOOXOXOO
     !"#$%&

– 1 –
■
■■
■PARTS GUIDE
[Note] This Parts Guide describes only the different points from the AR-162/163 Parts Guide (CODE: 00ZAR162//P1/).
For the automatic document feeder, refer to the AR-SP2 Parts Guide (CODE: 00ZARSP2//P2/).
1Exteriors
2Operation panel section
3Side door uint
42nd,3rd mirror unit
5Optical unit
5Optical unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1GCOVH0010QSZ4 BC C OC cover(AR162S)
2PSHEZ0058QSZ1 AU C OC sheet(AR162S)
10
CCAB-0012QS0Z BA N D Front exterior(AR164 USA)
CCAB-0012QS1A BA N D Front exterior(AR164 CANADA)
CCAB-0012QS0X BA N D Front exterior(AR162S USA)
CCAB-0012QS0Y BA N D Front exterior(AR162S CANADA)
501 CCOVH0010RS51 BG N E OC cover unit(AR162S)
502 CFIX-0008RS52 BC N E Table unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
3HPNLH0021QSZ6 AV N D Main Deco. panel(AR162S USA)
HPNLH0021QSZ5 AV N D Main Deco. panel(AR162S CANADA)
4HPNLH0022QSZ2 AL N D Special Deco. panel(AR162S USA)
HPNLH0022QSZ1 AK D Special Deco. panel(AR162S CANADA)
17 CPWBF0025QSE1 AY E ERDH operation PWB(AR164)
CPWBF0025QSE3 AH E ERDH operation PWB(AR162S)
19 CPWBF0024QSE2 CE E COPY operation PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
10 LFRM-0016QSZ3 AQ C Right door inner N
16 MSPRC0082QSZ1 AC C Pressure spring
18 CHLDZ0030RS51 BA E TC unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
4NPLYZ0017QSZZ AE C W pulley
9CPLTM0156QS02 AH B Pulley fixing plate R
13 CPLTM0155QS02 AH B Pulley fixing plate F
(Unit)
901 CMIR-0008QS32 BB E 2nd,3rd mirror unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
2CMIR-0008QS32 BB E 2nd,3rd mirror unit
18 NPLYZ0016QSZZ AF C Pulley
22 CPWBF1177DS63 AR E MHPS PWB
81 DHAI-0200QSZZ AS C CL harness
93 XEBSD30P06000 AA C Screw(3×6)
96 LPLTM4715FCZ1 AF C Wire fixing plate
97 TCAUH0933FCZZ AB D High temperature caution label
501 CREFL0004QS33 BL E Copy lamp unit
PRP00771
93
93
96
96
97

–2 –
6Middle frame unit
7Process unit
8DV cartridge unit
8DV cartridge unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
2CSW-M0007RS51 AQ B Iiter lock switch unit
3NCPL-0007QSZ1 AC C Hopper coupling
7DUNTK0041RS14 BG E LSU unit
10 CHAI-0109RS51 AN E BG-MCFB harness unit
11 CHAI-0107RS51 AG E MC harness unit
46 LFRM-0024QSZ3 BC D Middle frame
51 LANGT0003QSZ1 AC C SRU fixing angle
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
2CHLDZ0035RS51 BH E MC holder unit
3UCLEZ0009QSZ1 AQ C Cleaning blade
5PSEL-0130QSZZ AF C Seal R
6PSEL-0129QSZZ AF C Seal F
501 CFRM-0021RS67 BK N E Process frame unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
7PSEL-0066QSZ1 AC C TG seal LDAR
11 PCOVP0072QS12 AH D DV cover unit
23 NGERH0145QSZ1 AD C DV gear
27 LPLTM0002YSZ1 AP C Doctor reinforce plate
31 RDTCM0001YSZZ AZ B ATC sensor
36 LPLTM6022FCZZ AC C M4 plate
45 PSEL-0105QSZZ AA C TN seal FR
46 PSHEP0262QSZZ AC C DV UND sheet
47 PSEL-0114QSZZ AC C DV seal F
48 PSEL-0115QSZZ AD C DV seal F2
49 PSHEP0324QSZZ AC C DVB sheet FBR
A
A
A
PRP00772
49
49
46
48
47

–3 –

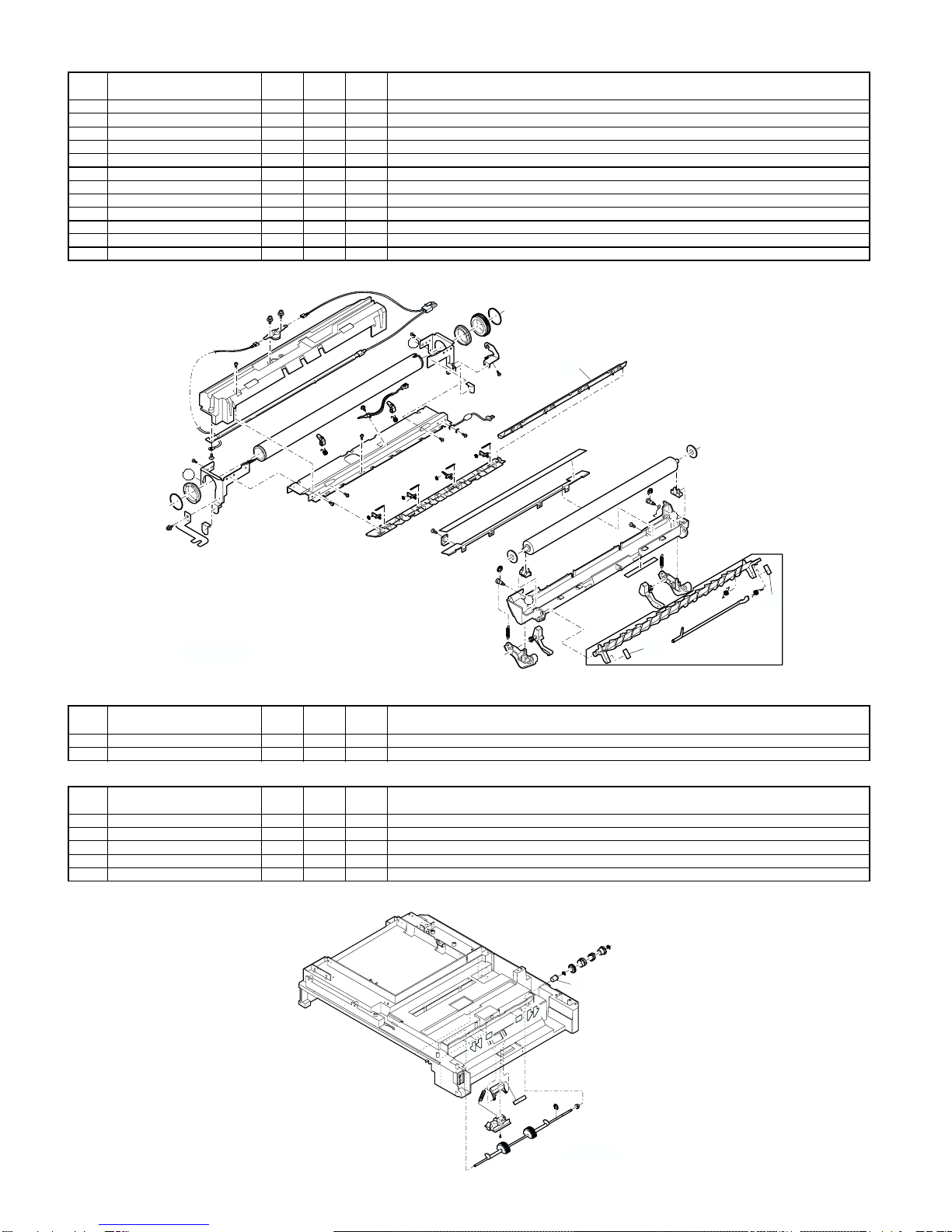

9Fusing unit
9Fusing unit
FMain drive unit
GBase plate unit 1
GBase plate unit 1
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
5PCOVP0029QSZ2 AT D Fusing cover
32 MSPRT0089QSZ2 AC C Pressure spring
33 MLEVP0018QSZ1 AF C Fusing pressure lever F
34 MLEVP0019QSZ3 AE C Release lever F
35 MLEVP0020QSZ3 AE C Release lever R
36 MLEVP0017QSZ1 AF C Fusing pressure lever R
57 TLABH0364QSZZ AA D Fusing label
58 CPLTM0255QS01 AS C Felt fixing plate
501 CPLTP0060RS52 BU E Release gate unit
(Unit)
901 DUNTW0037RS23 BV E Fusing unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
501 CGERH0011RS51 AE E MG gear unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
24 CPWBF1177DS66 AR E Manual paper feeding sensor PWB
34 CPWBF1177DS65 AR E Tray sensor PWB
40 CPWBF1177DS67 AR E PS sensor PWB
58 PCLR-0010QSZZ AC C Collar
A
B
A
B
57
PRP00773 57
58
PRP00774
58

–4 –
HBase plate unit 2
HBase plate unit 2
IManual paper feeding multi unit
JDelivery freme unit
KTC case unit
L250 sheets tray unit
MPacking material & Accessories
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
9DUNTK0049RS16 BC N E AC switch unit(100V series)
11 RDEN-0004QS12 BY E Composite power supply unit
!18 QACCD741BQCZZ AS B AC cord
30 CPLTM0071QS02 AL B Drive joint plate
37 CPWBX0096QSE6 CE N E MCU PWB unit(AR164)
CPWBX0096QSG2 CE N E MCU PWB unit(AR162S)
43 CPWBF0033QSE1 AP E RCU PWB unit
78 DHAI-0124QSZ2 AY C SPF harness(AR164)
120 LPFTF0001QSZZ AC C Pulley flange
501 DUNTK0050RS36 CC N E Power supply unit(120V)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
3LPLTP0056QSZ3 AD C Stopper plate
501 CFRM-0020RS51 BK E Manual paper feeding multi unit
502 CSOU-0009QS32 AZ E Manual paper feeding tray unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
3CPWBF0018RS54 AZ E Delivery interface PWB(AR164)
6NROLM0037QSZ1 AS C Delivery roller C(AR164)
18 LBOSZ0048QSZ1 AC C Separator laver boss(AR164)
29 CPWBF1177DS64 AS E Duplex P-out sensor PWB
39 LFRM-0027QSZ1 AV D Delivery frame
54 LSTPP0003QSZ1 AC C Shifter stopper(AR164)
61 CPWBF1177DS68 AR E Shifter HP sensor PWB(AR164)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
13 LHLDZ0031QSZ2 AH C TC sheet
(Unit)
901 CHLDZ0030RS51 BA E TC unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
2PSHEZ0054QSZ1 AC C Rotation plate sheet
6PTME-0022QSZZ AG C 250 Tray pawl F
10 PTME-0023QSZZ AG C 250 Tray pawl R
20 PSPAZ0022QSZZ AC C Rotation plate S spacer
(Unit)
901 CCASP0003RS52 BG D 250 Tray unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1SPAKC0415RSZZ AY N D Packing case(AR164)
SPAKC0414RSZZ AY N D Packing case(AR162S)
4SPAKA0173RSZZ BA N D Top packing cushion(AR164)
SPAKA0083RSZZ AD N D Top packing cushion OC(AR162S)
12 CCLEZ0005RS51 AQ D Charger cleaner unit
15 CPAKA0084RS01 AF B Bottom add
17 SPAKA0150RSZZ AA D Accessories protect packing cushion
PRP00775
120

–5 –
MPacking material & Accessories
PMCU PWB unit
RDuplex P-out sensor PWB
SMHPS PWB
TTray sensor PWB
UManual paper feeding sensor PWB
VPS sensor PWB
WRCU PWB unit
.Delivery interface PWB
aShifter HP sensor PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
20
TINSE0749QSZZ AW N D Operation manual COPY(AR164 USA)
TINSE0750QSZZ AT N D Operation manual COPY(AR164 CANADA English)
TINSF0751QSZZ AV N D Operation manual COPY(AR164 CANADA French)
TINSE0744QSZZ AV N D Operation manual COPY(AR162S USA)
TINSE0745QSZZ AT N D Operation manual COPY(AR162S CANADA English)
TINSF0746QSZZ AV N D Operation manual COPY(AR162S CANADA French)
21 SPAKA0167RSZZ AA D Tray protect sheet
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1VHI29F04008QS BB N B FLASH ROM(29F04008QS) [IC20]
18 QCNCW7191RC1B AG C Connector(12Pin) [CN12]
41 RCRSP0016QSZZ AD B Crystal(19.6608MHZ) [X1]
42 RCRUB0009QSZZ AP B Crystal(22.0000MHZ) [X2]
43 RCRUB0010QSZZ AP B Crystal(20.3094MHZ) [X3]
(Unit)
901 CPWBX0096QSE6 CE N E MCU PWB unit(AR164)
CPWBX0096QSG2 CE N E MCU PWB unit(AR162S)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF1177DS64 AS E Duplex P-out sensor PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF1177DS63 AR E MHPS PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF1177DS65 AR E Tray sensor PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF1177DS66 AR E Manual paper feeding sensor PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF1177DS67 AR E PS sensor PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF0033QSE1 AP E RCU PWB unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF0018RS54 AZ E Delivery interface PWB(AR164)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
(Unit)
901 CPWBF1177DS68 AR E Shifter HP sensor PWB(AR164)

– 6 –
■Index
PARTS CODE NO. PRICE
RANK
NEW
MARK
PART
RANK
[C]
CCAB-0012QS0X 1- 10 BA N D
CCAB-0012QS0Y 1- 10 BA N D
CCAB-0012QS0Z 1- 10 BA N D
CCAB-0012QS1A 1- 10 BA N D
CCASP0003RS52 16- 901 BG D
CCLEZ0005RS51 17- 12 AQ D
CCOVH0010RS51 1- 501 BG N E
CFIX-0008RS52 1- 502 BC N E
CFRM-0020RS51 13- 501 BK E
CFRM-0021RS67 7- 501 BK N E
CGERH0011RS51 10- 501 AE E
CHAI-0107RS51 6- 11 AG E
CHAI-0109RS51 6- 10 AN E
CHLDZ0030RS51 15- 901 BA E
"3- 18 BA E
CHLDZ0035RS51 7- 2 BH E
CMIR-0008QS32 4- 901 BB E
"5- 2 BB E
CPAKA0084RS01 17- 15 AF B
CPLTM0071QS02 12- 30 AL B
CPLTM0155QS02 4- 13 AH B
CPLTM0156QS02 4- 9 AH B
CPLTM0255QS01 9- 58 AS C
CPLTP0060RS52 9- 501 BU E
CPWBF0018RS54 14- 3 AZ E
"36- 901 AZ E
CPWBF0024QSE2 2- 19 CE E
CPWBF0025QSE1 2- 17 AY E
CPWBF0025QSE3 2- 17 AH E
CPWBF0033QSE1 12- 43 AP E
"27- 901 AP E
CPWBF1177DS63 23- 901 AR E
"5- 22 AR E
CPWBF1177DS64 14- 29 AS E
"22- 901 AS E
CPWBF1177DS65 11- 34 AR E
"24- 901 AR E
CPWBF1177DS66 11- 24 AR E
"25- 901 AR E
CPWBF1177DS67 11- 40 AR E
"26- 901 AR E
CPWBF1177DS68 14- 61 AR E
"37- 901 AR E
CPWBX0096QSE6 12- 37 CE N E
"20- 901 CE N E
CPWBX0096QSG2 12- 37 CE N E
"20- 901 CE N E
CREFL0004QS33 5- 501 BL E
CSOU-0009QS32 13- 502 AZ E
CSW-M0007RS51 6- 2 AQ B
[D]
DHAI-0124QSZ2 12- 78 AY C
DHAI-0200QSZZ 5- 81 AS C
DUNTK0041RS14 6- 7 BG E
DUNTK0049RS16 12- 9 BC N E
DUNTK0050RS36 12- 501 CC N E
DUNTW0037RS23 9- 901 BV E
[G]
GCOVH0010QSZ4 1- 1 BC C
[H]
HPNLH0021QSZ5 2- 3 AV N D
HPNLH0021QSZ6 2- 3 AV N D
HPNLH0022QSZ1 2- 4 AK D
HPNLH0022QSZ2 2- 4 AL N D
[L]
LANGT0003QSZ1 6- 51 AC C
LBOSZ0048QSZ1 14- 18 AC C
LFRM-0016QSZ3 3- 10 AQ C
LFRM-0024QSZ3 6- 46 BC D
LFRM-0027QSZ1 14- 39 AV D
LHLDZ0031QSZ2 15- 13 AH C
LPFTF0001QSZZ 12- 120 AC C
LPLTM0002YSZ1 8- 27 AP C
LPLTM4715FCZ1 5- 96 AF C
LPLTM6022FCZZ 8- 36 AC C
LPLTP0056QSZ3 13- 3 AD C
LSTPP0003QSZ1 14- 54 AC C
PARTS CODE NO. PRICE
RANK
NEW
MARK
PART
RANK
[M]
MLEVP0017QSZ1 9- 36 AF C
MLEVP0018QSZ1 9- 33 AF C
MLEVP0019QSZ3 9- 34 AE C
MLEVP0020QSZ3 9- 35 AE C
MSPRC0082QSZ1 3- 16 AC C
MSPRT0089QSZ2 9- 32 AC C
[N]
NCPL-0007QSZ1 6- 3 AC C
NGERH0145QSZ1 8- 23 AD C
NPLYZ0016QSZZ 5- 18 AF C
NPLYZ0017QSZZ 4- 4 AE C
NROLM0037QSZ1 14- 6 AS C
[P]
PCLR-0010QSZZ 11- 58 AC C
PCOVP0029QSZ2 9- 5 AT D
PCOVP0072QS12 8- 11 AH D
PSEL-0066QSZ1 8- 7 AC C
PSEL-0105QSZZ 8- 45 AA C
PSEL-0114QSZZ 8- 47 AC C
PSEL-0115QSZZ 8- 48 AD C
PSEL-0129QSZZ 7- 6 AF C
PSEL-0130QSZZ 7- 5 AF C
PSHEP0262QSZZ 8- 46 AC C
PSHEP0324QSZZ 8- 49 AC C
PSHEZ0054QSZ1 16- 2 AC C
PSHEZ0058QSZ1 1- 2 AU C
PSPAZ0022QSZZ 16- 20 AC C
PTME-0022QSZZ 16- 6 AG C
PTME-0023QSZZ 16- 10 AG C
[Q]
QACCD741BQCZZ 12- 18 AS B
QCNCW7191RC1B 20- 18 AG C
[R]
RCRSP0016QSZZ 20- 41 AD B
RCRUB0009QSZZ 20- 42 AP B
RCRUB0010QSZZ 20- 43 AP B
RDEN-0004QS12 12- 11 BY E
RDTCM0001YSZZ 8- 31 AZ B
[S]
SPAKA0083RSZZ 17- 4 AD N D
SPAKA0150RSZZ 17- 17 AA D
SPAKA0167RSZZ 17- 21 AA D
SPAKA0173RSZZ 17- 4 BA N D
SPAKC0414RSZZ 17- 1 AY N D
SPAKC0415RSZZ 17- 1 AY N D
[T]
TCAUH0933FCZZ 5- 97 AB D
TINSE0744QSZZ 17- 20 AV N D
TINSE0745QSZZ 17- 20 AT N D
TINSE0749QSZZ 17- 20 AW N D
TINSE0750QSZZ 17- 20 AT N D
TINSF0746QSZZ 17- 20 AV N D
TINSF0751QSZZ 17- 20 AV N D
TLABH0364QSZZ 9- 57 AA D
[U]
UCLEZ0009QSZ1 7- 3 AQ C
[V]
VHI29F04008QS 20- 1 BB N B
[X]
XEBSD30P06000 5- 93 AA C

– 9 –
MEMO

–7 –
CAUTION FOR BATTERY REPLACEMENT
(Danish) ADVARSEL !
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.
Udskiftning måkun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandoren.
(English) Caution !
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to manufacturer's instructions.
(Finnish) VAROITUS
Paristo voi räjähtää,jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan
tyyppiin. Hävitäkäytetty paristo valmistajan ohjeiden
mukaisesti.
(French) ATTENTION
ll y a danger d'explosion s'il y a remplacement incorrect
de la batterie. Remplacer uniquement avec une batterie du
même type on d'un type équivalent recommandépar
le constructeur.
Mettre au rébut les batteries usagées conformément aux
instructions du fabricant.
(Swedish) VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent
typ som rekornmenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens
Instruktion.
(German) Achtung
Explosionsgefahr bei Verwendung inkorrekter Batterien.
Als Ersatzbatterien dürfen nur Batterien vom gleichen Typ oder
vom Hersteller empfohlene Batterien verwendet werden.
Entsorgung der gebrauchten Batterien nur nach den vom
Hersteller angegebenen Anwerisugen.
CAUTION FOR BATTERY DISPOSAL
(For USA,CANADA)
Contains lithium-ion battery. Must be disposed of properly.
Remove the battery from the product and contact
federal or state environmental
agencies for information on recycling and disposal options.

COPYRIGHTC
CC
C2002BYSHARPCORPORATION
All rights reserved.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted,
in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise,
without prior written permission of the publisher.
SHARP CORPORATION
Digital Document Systems Group
Products Quality Assuarance Department
Yamatokoriyama, Nara 639-1186, Japan
2002 (February) t
