Sharp AR-M150 Online Setup guide

AR-M150/AR-M155
Online Manual
With the RSPF/SPF installed
Start
Start
Click this "Start" button.

2
CONTENTS INDEX
Introduction
This manual describes the printer and scanner functions of the AR-M150/AR-M155 digital multifunctional system.
Trademark Acknowledgments
●Microsoft®Windows®operating system is a trademark or copyright of Microsoft Corporation in the U.S.A. and other countries.
●Windows®95, Windows®98, Windows®Me, Windows NT®4.0, Windows®2000, and Windows®XP are trademarks or copyrights
of Microsoft Corporation in the U.S.A. and other countries.
●Acrobat®Reader Copyright©1987- 2002 Adobe Systems Incorporated. All rights reserved. Adobe, the Adobe logo, Acrobat, and
the Acrobat logo are trademarks of Adobe Systems Incorporated.
●All other trademarks and copyrights are the property of their respective owners.
●For information on the following topics, please refer to the Operation Manual for the digital multifunctional system.
• Basic machine procedures (adding paper, replacing the toner cartridge, removing misfeeds, using peripheral devices)
• Copier functions
• Scanning from the operation panel of the machine
• Specifications
●Where "AR-XXXX" appears in this manual, please substitute the name of your model for "XXXX".
●This manual refers to the Single Pass Feeder as the "SPF", and the Reversing Single Pass Feeder as the "RSPF".
●The SPF and RSPF (for only AR-M155) are the optional equipments. Please read the explanation about the SPF and RSPF in
this manual if you have the equipment.
●The screen images and procedures that appear in this manual are mainly for Windows XP. With other versions of Windows, some
screen images may be different from those in this manual.
●For information on using your operating system, refer to your operating system's manual or online Help.
The display screens, messages, and key names shown in the manual may differ from those on the actual machine due to product
improvements and modifications.
Note

3
CONTENTS INDEX
How to Use the Online Manual
This section explains how to view the online manual. Please read this section before using the online manual.
For information on using Acrobat Reader, see Acrobat Reader Help.
How to Control the Online Manual
In this manual, the following buttons are displayed at the
bottom of each page. Click these buttons to move quickly to
pages that you wish to view.
Displays the Contents of this manual. Click on a topic in the
Contents to jump directly to that section.
Displays the Index of this manual. Click on a topic in the Index
to jump directly to that section.
Takes you forward page by page.
Takes you back page by page.
Following Links
This manual uses a link function that allows you to jump to a
related page. If you click green, underlined text, the related
page will be displayed. (In the Contents and Index sections, the
linked areas are not underlined.)
Example: ☞Contents
To return to the previous page, click the button on the menu
bar of Acrobat Reader.
Using Bookmarks
Bookmarks have been created on the left side of this manual.
You can click on a bookmark to jump directly to that section.
How to Print Out This Manual
To print this manual, select "Print" from the "File" menu of
Acrobat Reader. Select the desired printer settings in the "Print"
dialog box, and then click the "OK" button.
CONTENTS
INDEX

4
CONTENTS INDEX
Contents
Introduction 2
How to Use the Online Manual 3
Basic Printing 5
Opening the Printer Driver From the "Start" Button 7
Printer Driver Settings 8
Printing Multiple Pages on One Page 9
Fitting the Printed Image to the Paper 10
Two-sided Printing (Only for models that support two-sided printing) 11
Rotating the Print Image 180 Degrees 12
Printing a Watermark 13
Outline of the Print Status Window 14
Sharing the Printer Using Windows Networking 15
Shared Printer Settings 16

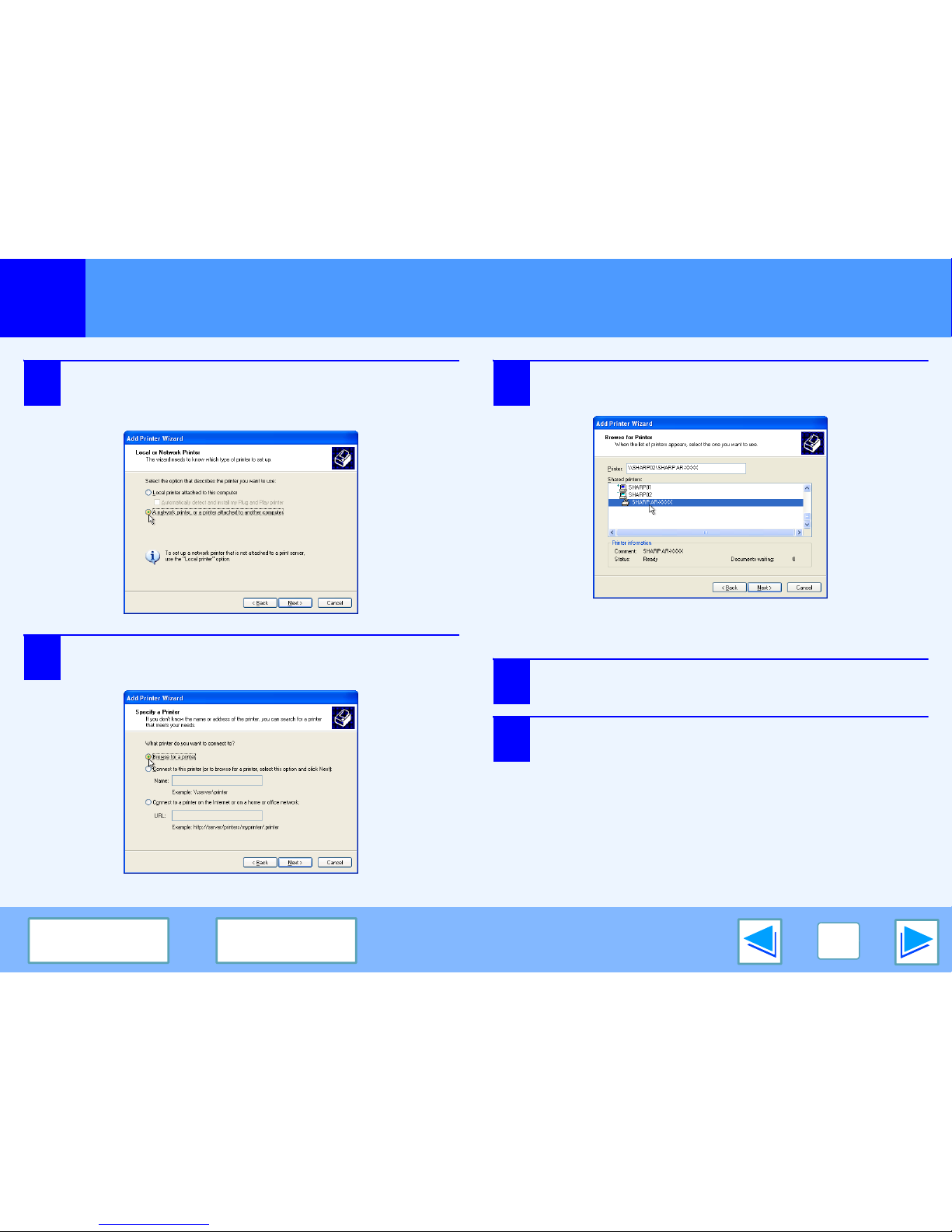

Client Settings 17
Scanning Overview 20
Scanning from a TWAIN-Compliant Application 21
Scanning from a WIA-Compliant Application (Windows XP) 26
Scanning from the "Scanner and Camera Wizard" (Windows XP) 28
Outline of Button Manager 31
Button Manager Settings 32
Troubleshooting 34
If a Notice Page is printed 40
Printer Driver Features 41
1PRINT
2PRINTER SHARING
3SCAN
4TROUBLESHOOTING
5PRINTER DRIVER FEATURES
6INDEX

1PRINT
5
CONTENTS INDEX
Basic Printing (part 1)
The following example explains how to print a document from WordPad.
Before printing, make sure that the correct size of paper for your document has been loaded in the machine.
1Start WordPad and open the document that you
wish to print.
2Select "Print" from the application's "File"
menu.
The "Print" dialog box will appear.
3
Make sure that "SHARP AR-XXXX" is selected as
the printer. If you need to change any print
settings, click the "Preferences" button
("Properties" button in Windows 95/98/Me/NT 4.0)
to open the printer driver setup screen.
The printer driver setup screen will appear.
Windows 2000 does not have the "Preferences" button
in this dialog box. Select settings as needed on each of
the tabs in the setup screen.
☞ Printer Driver Settings, Printing Multiple Pages on One Page ,
Fitting the Printed Image to the Paper,
Printing a Watermark , Two-sided Printing (Only for models that
support two-sided printing)
4Click the "Print" button ("OK" button in
Windows 95/98/Me/NT 4.0).
Printing begins. When printing begins, the Print Status
Window automatically opens.
☞Outline of the Print Status Window)
The print job is delivered to the output tray, with the position of
the paper offset slightly from the previous job (offset function).

1PRINT
6
CONTENTS INDEX
Basic Printing (part 2)
If the tray runs out of paper during printing
Printing will automatically resume when paper is loaded in the
tray.
When using the bypass tray, select printer mode with the mode
select key on the machine, load paper as instructed by the
message in the display, and then press the [START] key to
resume printing.
When the 250-sheet paper feed unit is installed:
Note that if the "AUTO TRAY SWITCH" setting in the user
programs is enabled and there is the same size of paper in
another tray, the machine will automatically switch to the other
tray and continue printing.
Cancel a print job
1
Select printer mode with the [MODE SELECT] key on
the operation panel of the machine, and then press
the [CLEAR] key ( ) or the [CLEAR ALL] key ( ).
2"CANCEL PRINT JOB?" will appear in the
display. Make sure that a checkmark appears in
front of "YES" and press the [ENTER] key.
When "Paper Source" is set to "Auto Select"
If "Paper Source" is set to "Auto Select" in the "Paper" tab of the
printer driver setup screen and the correct size of paper for a
print job is not loaded in the machine, the printing procedure will
vary depending on the "FORCED OUTPUT" setting in the user
programs (see "USER PROGRAMS" in the Operation Manual).
When "FORCED OUTPUT" is set to "OFF"
Select printer mode with the mode select key on the machine,
check the message in the display, load paper in the bypass
tray, and then press the [START] key to begin printing.
When "FORCED OUTPUT" is set to "ON"
Printing takes place on the paper loaded in the machine, even
though the paper size is different from the print image size.
When the machine is connected to your computer using
the USB 2.0 (Hi-Speed) ports on each, be sure to read
"System requirements for USB 2.0 (Hi-Speed mode)" in
the Operation Manual.
Caution

1PRINT
7
CONTENTS INDEX

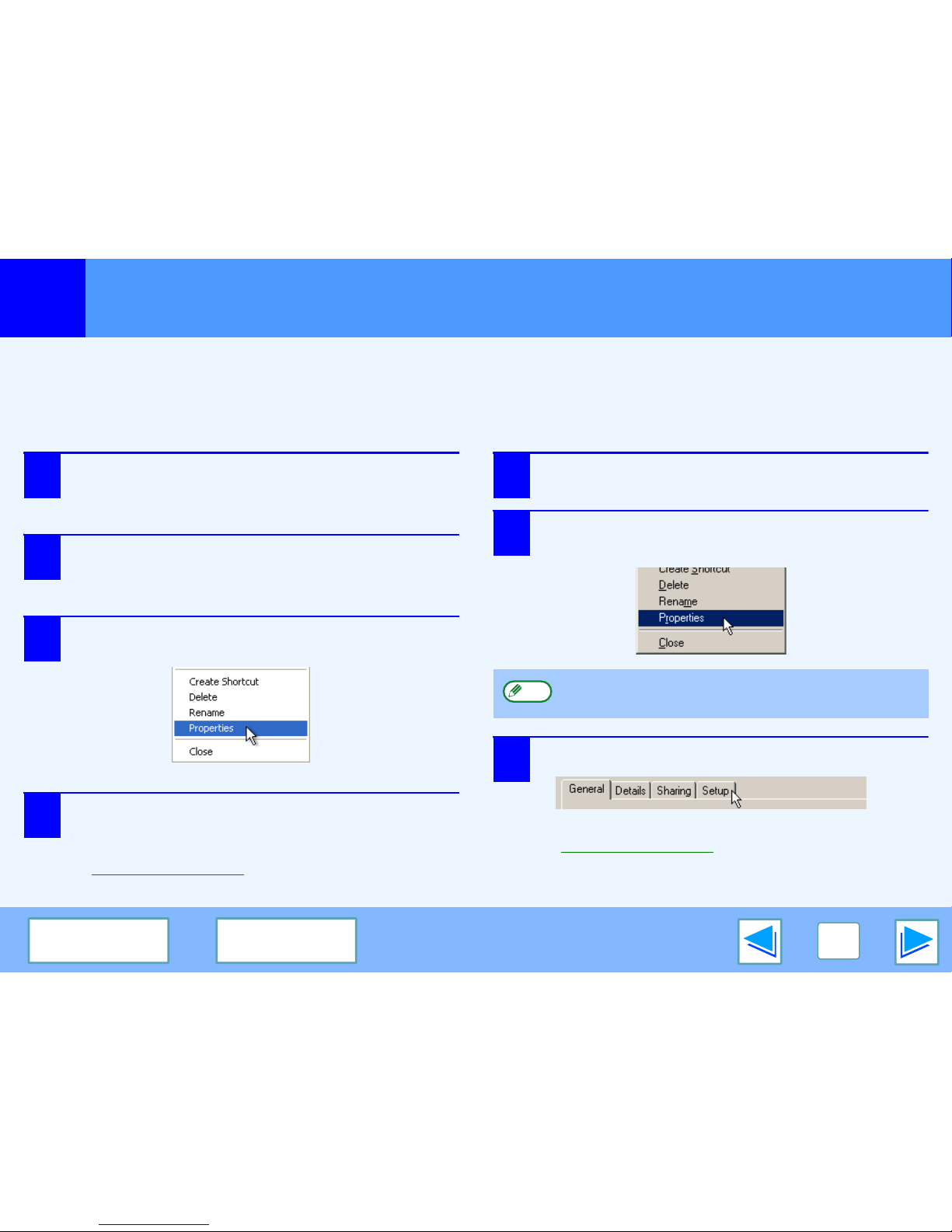

Opening the Printer Driver From the "Start" Button
You can open the printer driver and change the printer driver settings from the Windows "start" button. Settings adjusted in this way
will be the initial settings when you print from an application. (If you change the settings from the printer driver setup screen at the
time of printing, the settings will revert to the initial settings when you quit the application.)
Windows 2000/XP
1Click the "start" button, and then click "Control
Panel".
In Windows 2000, click the "Start" button and select "Settings".
2Click "Printers and Other Hardware", and then
click "Printers and Faxes".
In Windows 2000, click "Printers".
3
Click the "SHARP AR-XXXX" printer driver icon
and select "Properties" from the "File" menu.
4Click the "Printing Preferences" button in the
"General" tab.
The printer driver setup screen will appear.
☞Printer Driver Settings
Windows 95/98/Me/NT 4.0
1Click the "Start" button, select "Settings" and
then click "Printers".
2
Click the "SHARP AR-XXXX" printer driver icon
and select "Properties" from the "File" menu.
3In Windows 95/98/Me, click the "Setup" tab.
The printer driver setup screen will appear.
☞Printer Driver Settings
In Windows NT 4.0, select "Document Defaults" to open
the printer driver setup screen.
Note

1PRINT
8
CONTENTS INDEX

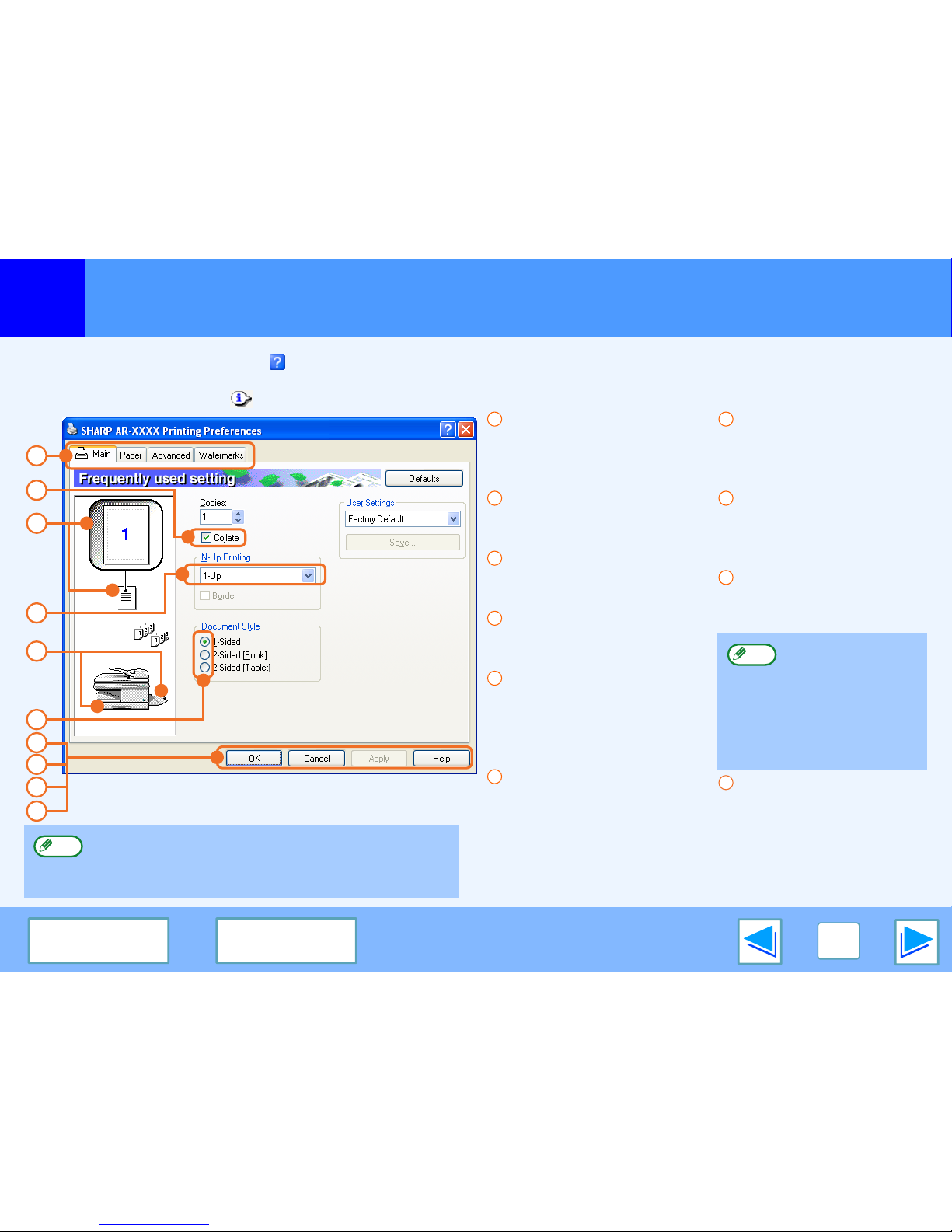

Printer Driver Settings
To view Help for a setting, click the button in the upper right-hand corner of the window and then click the setting.
Some restrictions exist on the combinations of settings that can be selected in the printer driver setup screen. When a restriction is
in effect, an information icon ( ) will appear next to the setting. Click the icon to view an explanation of the restriction.
Tab
The settings are grouped
on tabs. Click on a tab to
bring it to the front.
Checkbox
Click on a checkbox to activate
or deactivate a function.
Print setting image
This shows the effect of the
selected print settings.
Drop-down list
Allows you to make a selection
from a list of choices.
Image of paper trays
The tray selected in "Paper
Selection" in the "Paper" tab
appears in blue. You can also
click on a tray to select it.
Check button
Allows you to select one
item from a list of options.
"OK" button
Click this button to save
your settings and exit the
dialog box.
"Cancel" button
Click this button to exit the
dialog box without making any
changes to the settings.
"Apply" button
Click to save your settings
without closing the dialog box.
"Help" button
Click this button to display the
help file for the printer driver.
1
3
2
4
5
6
7
8
9
10
The above screen is the printer driver setup screen for
models that support two-sided printing.
The settings and the image of the machine will vary
depending on the model.
Note
1
2
3
4
5
6
Windows NT 4.0
does not have the
"Apply" button.
The "Apply" button
does not appear when
you open this window
from an application.
7
8
9
Note
10

1PRINT
9
CONTENTS INDEX
Printing Multiple Pages on One Page
This feature allows you to reduce and print two or four document pages on a single sheet of paper.
To use this function, open the printer driver setup screen and select "2-Up" or "4-Up" for "N-Up Printing" on the "Main" tab.
☞See Basic Printing for details on how to open the printer driver.
If you select the "Border" checkbox, borderlines will be printed around each page.
The "N-Up Printing" setting is not available when "Fit To Paper Size" is selected.
☞Fitting the Printed Image to the Paper
N-Up Border Border
"2-Up"
"4-Up"
Note

1PRINT
10
CONTENTS INDEX
Fitting the Printed Image to the Paper
The printer driver can adjust the size of the printed image to match the size of the paper loaded in the machine.
Follow the steps shown below to use this function. The explanation below assumes that you intend to print an A4 size document on
an A5 size paper.
☞See Basic Printing for details on how to open the printer driver.
1Click the "Paper" tab in the printer driver setup
screen.
2Select the original size (A4) of the print image in
"Paper Size".
3Check the "Fit To Page" box.
4Select the actual size of paper to be used for
printing (A5).
The size of the printed image will be automatically
adjusted to match the paper loaded in the machine.
The "Fit To Paper Size" setting is not available when "N-Up Printing" is selected.
☞Printing Multiple Pages on One Page
Note
A4
210 x 297 mm
A5
A4 on
Paper Size: A4
Fit To Paper Size: A5
A4 size document
(Paper Size)
A5 size paper
(Fit To Paper Size)
If "A3 [Fit to Page]", "B4 [Fit to Page]", or "Ledger [Fit to Page]"
is selected, the print image is fit to the A4 size even if "Fit to
Page" is not selected.
Note
