SICK HTE18 Series User manual

OPERATING INSTRUCTION
HTE18
Hybrid photoelectric sensors

OPERATING INSTRUCTION
HTE18
Hybrid photoelectric sensors
de
en
es
fr
it
ja
pt
ru
zh

Described product
H18 - SureSense
HTE18
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Production location
SICK Inc.
55438 Minneapolis, MN
USA
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is only
permissible within the limits of the legal determination of Copyright Law. Any modifica‐
tion, abridgment or translation of this document is prohibited without the express writ‐
ten permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
8017851.16K9 | SICK
Subject to change without notice 3

Contents
1 General safety notes......................................................................... 5
2 Notes on UL approval........................................................................ 5
3 Intended use...................................................................................... 5
4 Operating and status indicators...................................................... 6
5 Mounting............................................................................................. 6
6 Electrical installation........................................................................ 6
6.1 DC Output Operation................................................................................ 7
6.2 Connection Pinout.................................................................................... 11
6.3 Adjustments.............................................................................................. 11
7 Commissioning.................................................................................. 16
8 Troubleshooting................................................................................. 18
9 Disassembly and disposal............................................................... 19
10 Maintenance...................................................................................... 19
11 Technical data.................................................................................... 20
11.1 Dimensional drawing................................................................................ 20
CONTENTS
48017851.16K9 | SICK
Subject to change without notice

1 General safety notes
■Read the operating instructions before commissioning.
■
Connection, mounting, and configuration may only be performed by trained
specialists.
■
2006/42/EC
NO
SAFETY
Not a safety component in accordance with the EU Machinery Directive.
■
When commissioning, protect the device from moisture and contamination.
■These operating instructions contain information required during the life cycle of
the sensor.
2 Notes on UL approval
All housing types are Type 1 enclosure.
3 Intended use
The HTE18 is an opto-electronic photoelectric proximity sensor (referred to as “sensor”
in the following) for the optical, non-contact detection of objects, animals, and persons.
If the product is used for any other purpose or modified in any way, any warranty claim
against SICK AG shall become void.
The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector
(Radio Safety Class A). It may cause radio interference if used in a residential area.
GENERAL SAFETY NOTES 1
8017851.16K9 | SICK
Subject to change without notice 5

4 Operating and status indicators
2
3
2 3
4
1
1Potentiometer adjustment (if selec‐
tred by model configuration) or LED
Indicators
2LED indicator green: supply voltage
active
3LED indicator yellow: status of
received light beam
4Signal strength light bar (if selected
by model configuration)
5 Mounting
Mount the sensor using a suitable mounting bracket (see the SICK range of acces‐
sories).
NOTE
Note the sensor's maximum permissible tightening torque of 0.56 Nm.
6 Electrical installation
The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐
tion must be observed depending on the connection type:
– Plug connection: pin assignment
– Cable: wire color
Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐
tions have been established.
The green LED indicator on the top of the sensor lights up.
Explanation of connection terminology used in Tables 1-3:
BN = Brown
WH = White
BU = Blue
BK = Black
n. c. = no connection
Q1 = switching output 1
4 OPERATING AND STATUS INDICATORS
68017851.16K9 | SICK
Subject to change without notice

Q2 = switching output 2
L+ = supply voltage (Uv)
L1 = AC supply voltage
M = common
N = AC common
Test = Test input
L.ON = light switching
D.ON = dark switching
NOTE
The sensor outputs may come equipped with an adjustable ON delay or OFF delay. This
is indicated by the model configuration (Hx18-xxxxx_).
6.1 DC Output Operation

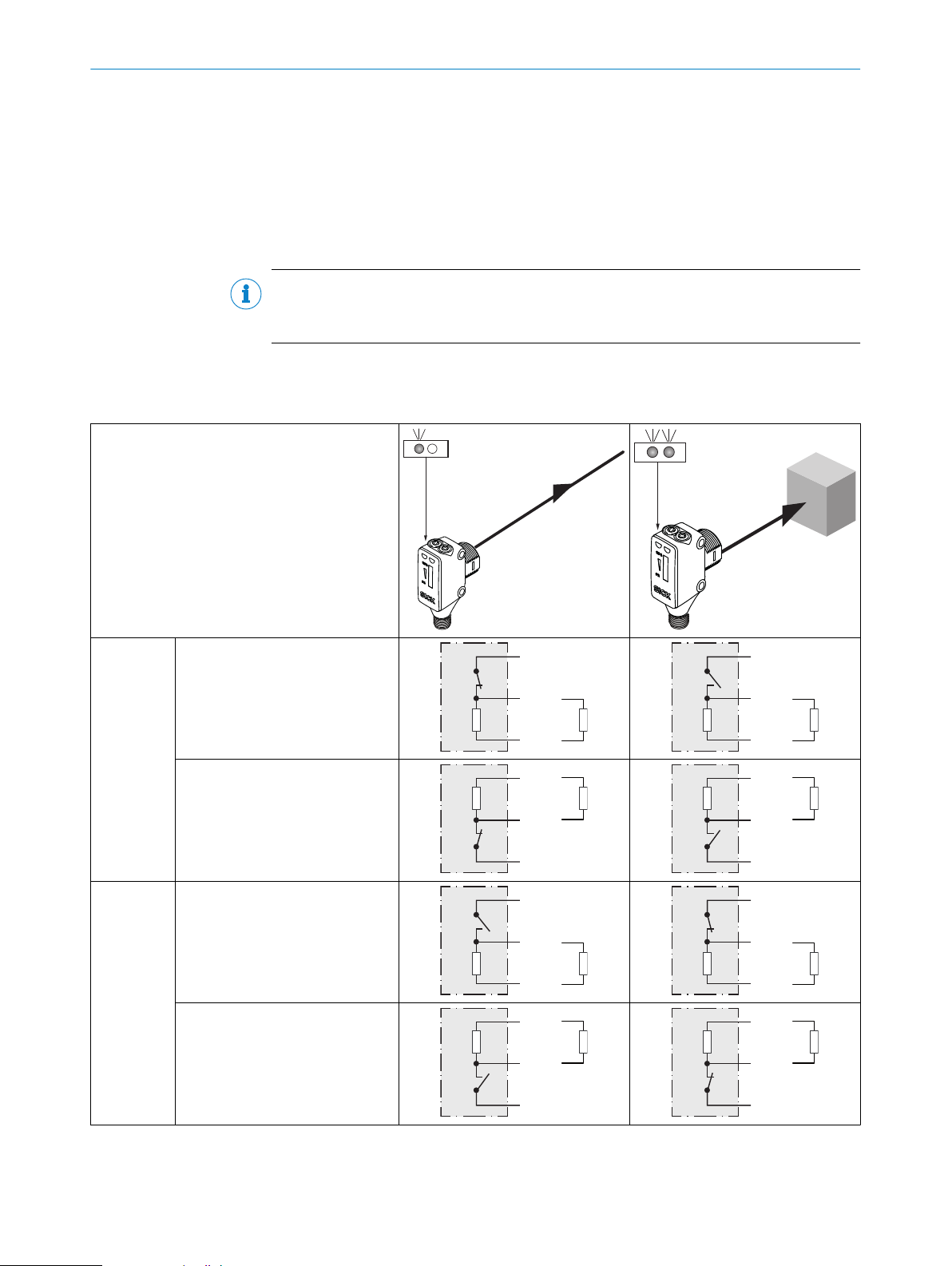

Table 1: Output Operation
HTX18-_xxxxx
-Axxxxx
Q1 = D.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = D.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Bxxxxx
Q1 = L.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = L.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load

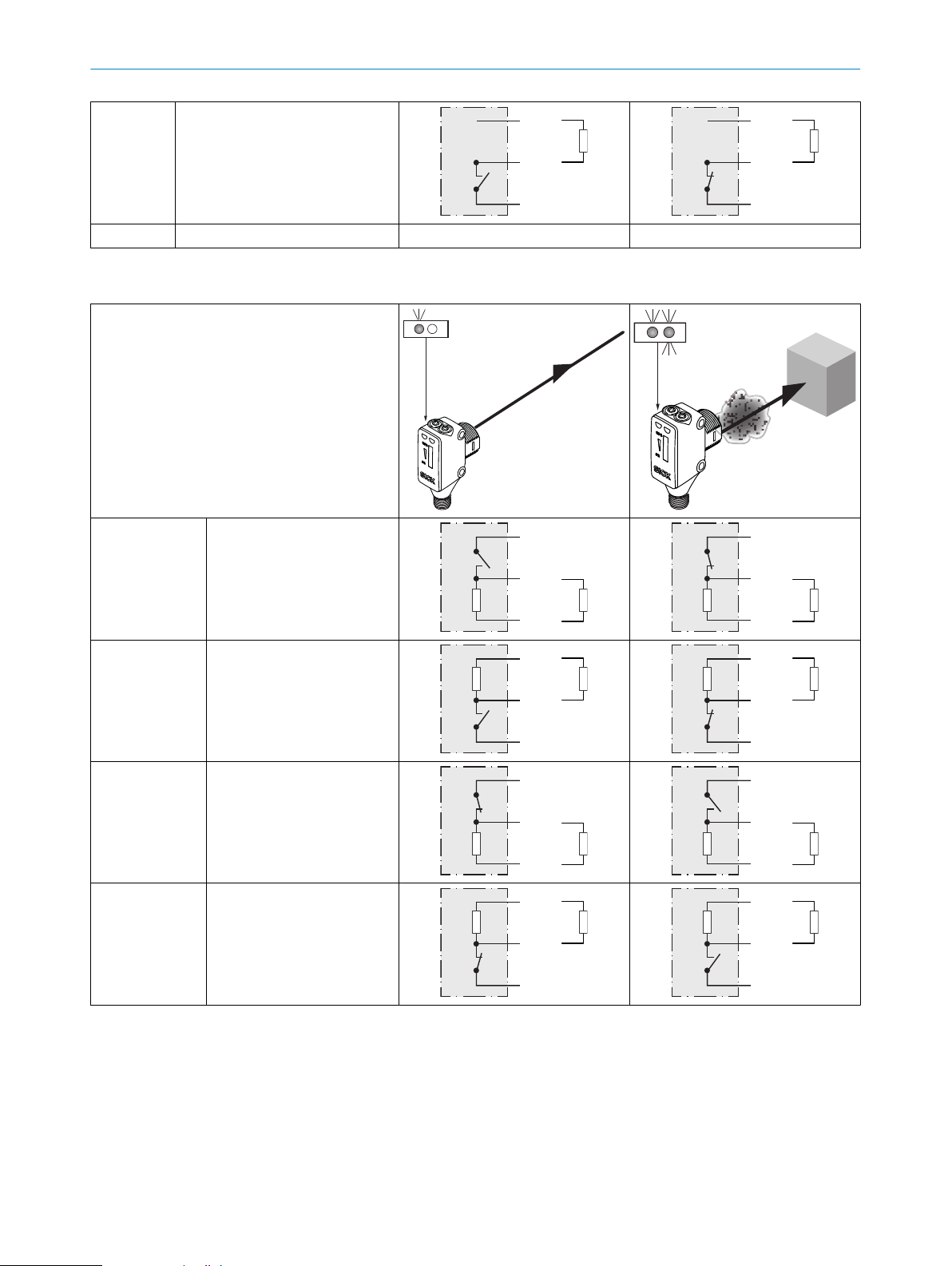

ELECTRICAL INSTALLATION 6
8017851.16K9 | SICK
Subject to change without notice 7

-Pxxxxx
Q1 = L.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = D.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Nxxxxx
Q1 = L.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = D.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Fxxxxx1
Q1 = L.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = D.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Vxxxxx Q1 = L.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Health, PNP (≤ 100 mA) see table 2, page 10 see table 2, page 10
-Wxxxxx Q1 = L.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Health, NPN (≤ 100 mA) see table 2, page 10 see table 2, page 10
6 ELECTRICAL INSTALLATION
88017851.16K9 | SICK
Subject to change without notice

-Xxxxxx Q1 = D.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Health, PNP (≤ 100 mA) see table 2, page 10 see table 2, page 10
-Yxxxxx Q1 = D.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Health, NPN (≤ 100 mA) see table 2, page 10 see table 2, page 10
-Gxxxxx Q1 = L.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Alarm, PNP (≤ 100 mA) see table 2, page 10 see table 2, page 10
-Hxxxxx Q1 = L.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Alarm, NPN (≤ 100 mA) see table 2, page 10 see table 2, page 10
-Jxxxxx Q1 = D.ON, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Alarm, PNP (≤ 100 mA) see table 2, page 10 see table 2, page 10
-Kxxxxx Q1 = D.ON, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
Q2 = Alarm, NPN (≤ 100 mA) see table 2, page 10 see table 2, page 10
-Mxxxxx Q1 = D.ON, MOSFET (≤ 100 mA)
+ (L
Q
‒ (
+ (L1)
Q
‒ (N)
Load
+ (L1)
Q
‒ (N)
Load
ELECTRICAL INSTALLATION 6
8017851.16K9 | SICK
Subject to change without notice 9

-Lxxxxx Q1 = L.ON, MOSFET (≤ 100 mA)
+ (L1)
Q
‒ (N)
Load
+ (L
Q
‒ (
+ (L1)
Q
‒ (N)
Load
-Zxxxxx Special output operation Contact SICK Contact SICK
1PNP output diagram pictured; NPN also possible by connecting the Load to + (L+) and Q
Table 2: Alarm/Health Operation
HTX18-_xxxxx
-Vxxxxx
-Xxxxxx Q2 = Health, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Wxxxxx
-Yxxxxx Q2 = Health, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Gxxxxx
-Jxxxxx Q2 = Alarm, PNP (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Hxxxxx
-Kxxxxx Q2 = Alarm, NPN (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
6 ELECTRICAL INSTALLATION
10 8017851.16K9 | SICK
Subject to change without notice

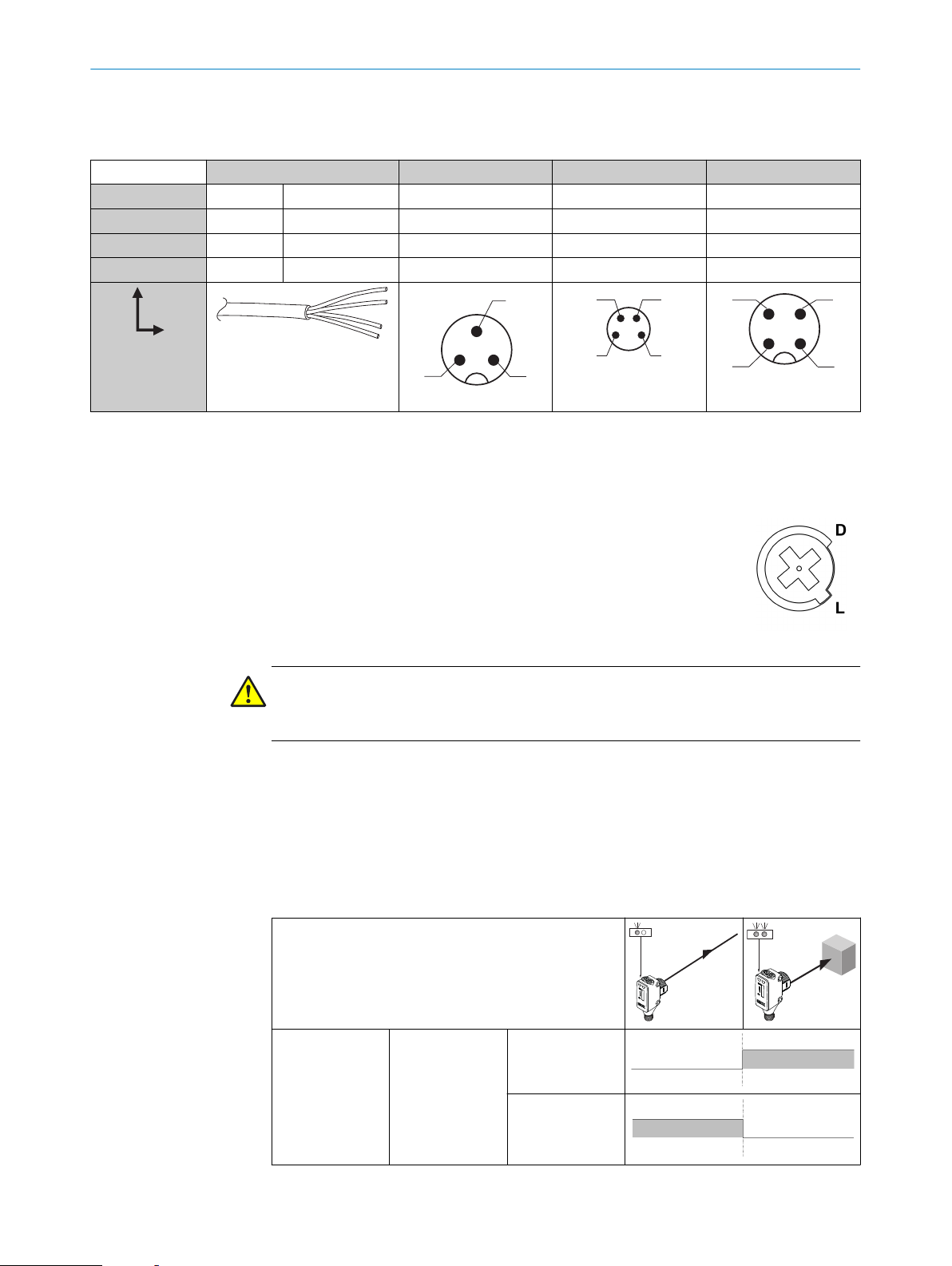

6.2 Connection Pinout
Table 3: Connection Pinout, DC
HT18 -x1xxxx -x2xxxx -x3xxxx -x4xxxx
1BN + (L+) + (L+) + (L+) + (L+)
2WH Q2 - Q2 2
3BU - (M) - (M) - (M) - (M)
4BK Q1 Q Q1 Q1
0.14 ... 1.5 mm2
12
3
IN = X A
2
1
4
3
IN = X A
12
4 3
IN = X A
6.3 Adjustments
L/D Switching
The sensor may be specified with a Light Switching or Dark Switching
(L/D) selection potentiometer.
Light Switching is selected for the Q1 output by rotating the poten‐
tiometer counterclockwise to the stop position. The potentiometer tab
will point toward the “L” printed on the sensor housing.
Dark Switching is selected for the Q1 output by rotating the poten‐
tiometer clockwise to the stop position. The potentiometer tab will
point toward the “D” printed on the sensor housing.
CAUTION
Over rotation of the potentiometer past the stop positions will cause permanent dam‐
age to the sensor.
If complimentary outputs are specified (Hx18-Pxxxxx, Hx18-Nxxxxx, Hx18-Fxxxxx), the
Q2 output will always be opposite switching state of the Q1 output. Therefore, the Q2
output will be Dark Switching when the potentiometer is in the “L” position and Light
Switching in the potentiometer is in the “D” position. If bipolar outputs are specified
(Hx18-Axxxxx, Hx18-Bxxxxx), the Q2 output will always have the same switching state as
the Q1 output. The L/D selection potentiometer does not impact a Health or Alarm out‐
put (if specified).
Table 4: Q1 output ACTIVE states with Light/Dark Switching selection potentiometer
HTX18-xxxx_
L/D Selection
Switch
-xxxxxE
-xxxxxH
-xxxxxI
-xxxxxK
-xxxxxP
Q1 = L.ON
Q1 = D.ON
ELECTRICAL INSTALLATION 6
8017851.16K9 | SICK
Subject to change without notice 11

Time delay
The sensor may be specified with an adjustable time delay. The delay
time is adjusted by rotating the 270° potentiometer.
Clockwise rotation in the direction of the “+” printed on the sensor will
increase the delay time (TDELAY). Maximum Delay time will occur at the
clockwise stop position.
Counter clockwise rotation in the direction of the “-“ printed on the
sensor will decrease the delay time. There will be no time delay at the
counter clockwise stop position.
CAUTION
Over rotation of the potentiometer past the stop positions will cause permanent dam‐
age to the sensor.
A L/D selection switch may be specified with an adjustable time delay. Adjustable time
delay does not impact a Health or Alarm output (if specified).
Table 5: Output ACTIVE states for complimentary output variants with adjustable time delay
HTX18-Pxxxx_
HTX18-Nxxxx_
HTX18-Fxxxx_
No Time Delay
Q1 = L.ON
Q2 = D.ON
Adjustabl
e ON
Delay1
-xxxxxC
-xxxxxF
-xxxxxI2
-xxxxxM
Q1 = L.ON
Q2 = D.ON
-xxxxxI3
Q1 = D.ON
Q2 = L.ON
Adjustabl
e OFF
Delay1
-xxxxxD
-xxxxxG
-xxxxxK2
-xxxxxN
Q1 = L.ON
6 ELECTRICAL INSTALLATION
12 8017851.16K9 | SICK
Subject to change without notice

Q2 = D.ON
-xxxxxK3
Q1 = D.ON
Q2 = L.ON
1ON or OFF Delay naming applies to the Q1 output
2L/D Selection Switch in in the “L” Light Switching position
3L/D Selection Switch in in the “D” Dark Switching position
Table 6: Output ACTIVE states for HTX18-Bxxxx_ variants with adjustable time delay
HTX18-Bxxxx_
No Time Delay
Q1 = L.ON
Q2 = L.ON
Adjustabl
e ON
Delay
-xxxxxC
-xxxxxF
-xxxxxI1
-xxxxxM
Q1 = L.ON
Q2 = L.ON
-xxxxxI2
Q1 = D.ON
Q2 = D.ON
Adjustabl
e OFF
Delay
-xxxxxD
-xxxxxG
-xxxxxK1
-xxxxxN
Q1 = L.ON
Q2 = L.ON
ELECTRICAL INSTALLATION 6
8017851.16K9 | SICK
Subject to change without notice 13

-xxxxxK2
Q1 = D.ON
Q2 = D.ON
1L/D Selection Switch in in the “L” Light Switching position
2L/D Selection Switch in in the “D” Dark Switching position

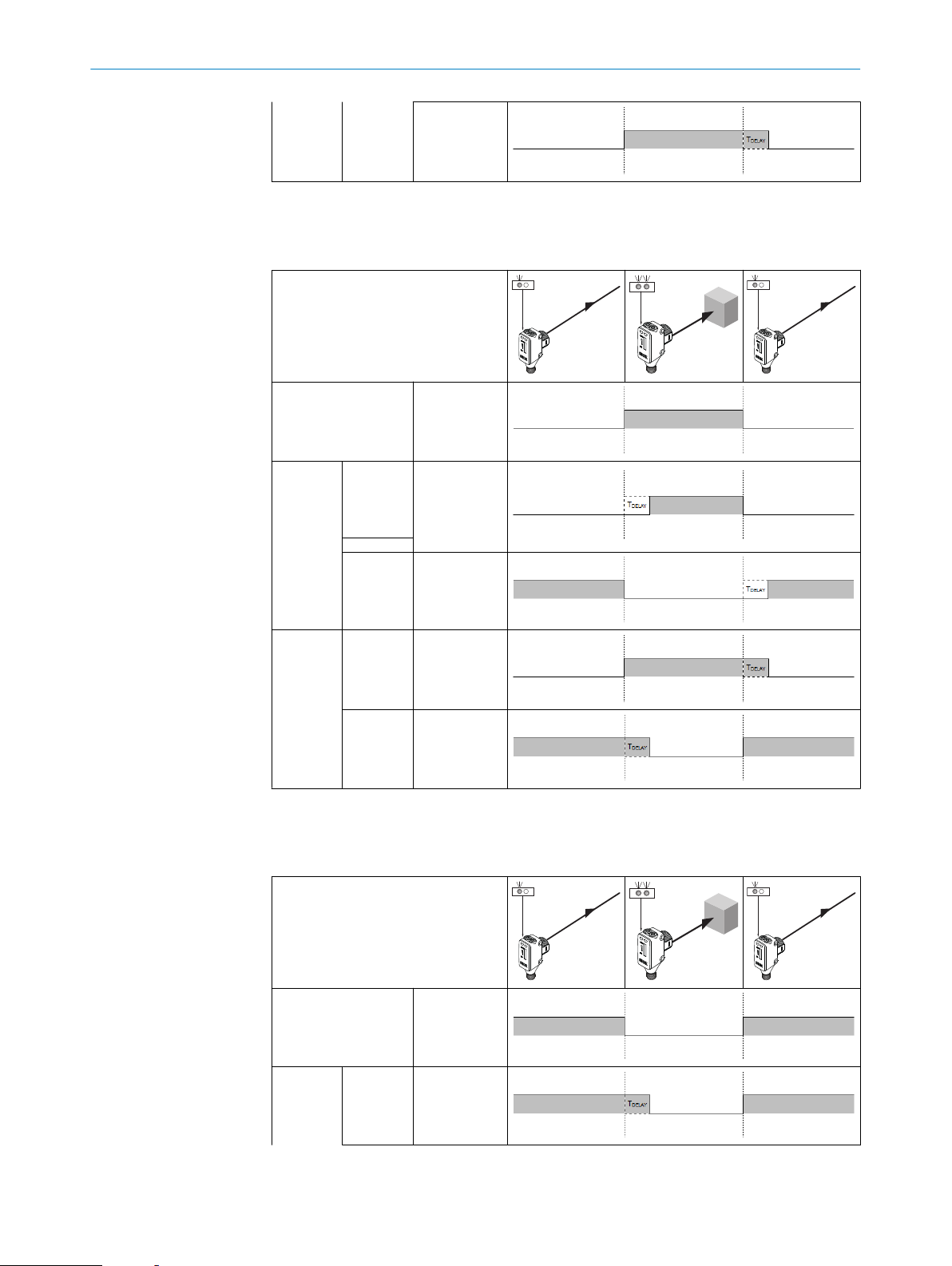

Table 7: Output ACTIVE states for HTX18-Axxxx_ variants with adjustable time delay
HTX18-Axxxx_
No Time Delay
Q1 = D.ON
Q2 = D.ON
Adjustabl
e ON
Delay
-xxxxxC
-xxxxxF
-xxxxxI1
-xxxxxM
Q1 = D.ON
Q2 = D.ON
-xxxxxI2
Q1 = L.ON
Q2 = L.ON
Adjustabl
e OFF
Delay
-xxxxxD
-xxxxxG
-xxxxxK1
-xxxxxN
Q1 = D.ON
Q2 = D.ON
-xxxxxK2Q1 = L.ON
6 ELECTRICAL INSTALLATION
14 8017851.16K9 | SICK
Subject to change without notice

Q2 = L.ON
1L/D Selection Switch in in the “D” Dark Switching position
2L/D Selection Switch in in the “L” Light Switching position
Table 8: Q1 output ACTIVE states for Dark Switching variants with Alarm/Health and adjustable
time delay
HTX18-Vxxxx_
HTX18-Wxxxx_
HTX18-Gxxxx_
HTX18-Hxxxx_
No Time Delay Q1 = L.ON
Adjustabl
e ON
Delay
-xxxxxC
-xxxxxF
-xxxxxI1
-xxxxxM
Q1 = L.ON
-xxxxxI2Q1 = D.ON
Adjustabl
e OFF
Delay
-xxxxxD
-xxxxxG
-xxxxxK1
-xxxxxN
Q1 = L.ON
-xxxxxK2Q1 = D.ON
1L/D Selection Switch in in the “L” Light Switching position
2L/D Selection Switch in in the “D” Dark Switching position
Table 9: Q1 output ACTIVE states for Dark Switching variants with Alarm/Health and adjustable
time delay
HTX18-Xxxxx_
HTX18-Yxxxx_
HTX18-Jxxxx_
HTX18-Kxxxx_
No Time Delay Q1 = D.ON
Adjustabl
e ON
Delay
-xxxxxC
-xxxxxF
-xxxxxI1
-xxxxxM
Q1 = D.ON
ELECTRICAL INSTALLATION 6
8017851.16K9 | SICK
Subject to change without notice 15

-xxxxxI2Q1 = L.ON
Adjustabl
e OFF
Delay
-xxxxxD
-xxxxxG
-xxxxxK1
-xxxxxN
Q1 = D.ON
-xxxxxK2Q1 = L.ON
1L/D Selection Switch in in the “D” Dark Switching position
2L/D Selection Switch in in the “L” Light Switching position
7 Commissioning
1Alignment
Sensor with red light:
Align sensor on object. Select the position so that the red emitted light beam hits the cen‐
ter of the object. You must ensure that the optical opening (front screen) of the sensor is
completely clear [see figure 1].
Sensor with infrared light (not visible):
Align sensor on object. Select the position so that the infrared light hits the center of the
object. The correct alignment can be detected via the signal strength light bar on the back
of the sensor and the LED on the top of the sensor. See figure 1 and table 1. You must
ensure that the optical opening (front screen) of the sensor is completely clear.
Figure 1: Alignment
2Sensing range
Check the application conditions: Adjust the sensing range and the remission capability of
the object according to the corresponding diagram [see table 10]. (x = sensing range, y =
operating reserve).
During this process, an object can only be detected in front of a background if the remis‐
sion capability of the object is significantly higher than that of the background or if the dis‐
tance between the object and the background is sufficiently long.
7 COMMISSIONING
16 8017851.16K9 | SICK
Subject to change without notice

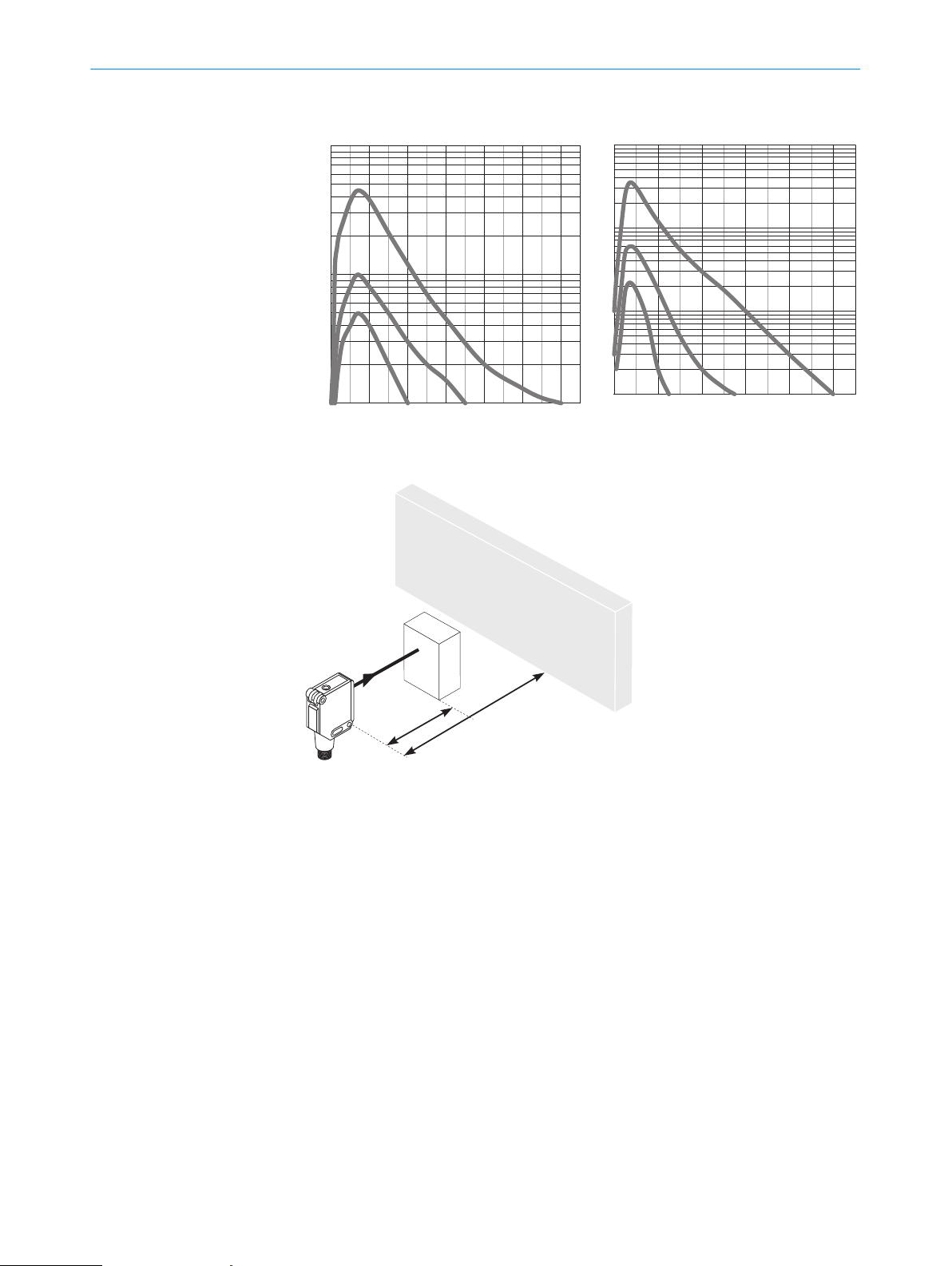

Table 10: % of sensing range
0 100
(3.94)
200
(7.87)
300
(11.81)
400
(15.75)
500
(19.67)
600
(23.62)
100
10
1
Operating reserve
Distance in mm (inch)
3
2
1
Figure 2: Redlight
0
1,000
100
10
1
Operating reserve
400
(15.75)
200
(7.87)
1,000
(39.37)
600
(23.62)
800
(31.50)
Distance in mm (inch)
3
2
1
Figure 3: Infraredlight
y
x
Figure 4: Description of the sensing range areas
3Sensing range setting
Sensor which it is not possible to set: The sensor is adjusted and ready for operation.
Refer to graphic to check the function. If the switching output fails to behave in accordance
with graphic, check application conditions. See section Fault diagnosis.
Sensor with potentiometer:
The sensing range is adjusted relative to the background with the potentiometer (type:
270°).
Clockwise rotation: sensing range increased; counterclockwise rotation: sensing range
reduced.
Turn the potentiometer clockwise until the yellow LED indicator lights up. When an object is
moved into the path of the beam, the yellow LED indicator must go out. If the yellow LED
indicator remains lit when an object is moved into the path of the beam, repeat the adjust‐
ment.
COMMISSIONING 7
8017851.16K9 | SICK
Subject to change without notice 17

0 %
100 %
0 %
100 %
0 %
100 %
0 %
100 %
0 %
100 %
0 %
100 %
0 %
100 %
0 %
100 %
Sensing range min. Sensing range max.
Set switching point
Figure 5: Signal strength light bar during adjustment
The optimum setting can be achieved and checked using the signal strength light bar on
the back of the sensor. The LEDs on the signal strength light bar light up in relation to the
object position and the set switching point. If no LEDs or only the red LEDs light up, the
object is positioned in front of the set switching point and cannot be detected. The first yel‐
low LED lights up when the object is behind the set switching point. More green LEDs light
up when the object is moved further away from the sensor into the background (see
figure 5). The sensor is adjusted and ready for operation. Refer to graphics see table 1,
page 7 to check the function. If the switching output fails to behave in accordance the
graphic, check application conditions. See section Fault diagnosis.
The sensor is adjusted and ready for operation.
4Alarm output
The sensor (HTE18) features a pre-failure notification output (“Q2” in connection diagram
[B], if the alarm option is selected), which issues a notification if the signal strength of the
light being received is not sufficient. Possible causes: Sensor is contaminated, sensor is
out of alignment. In the good state: LOW (UV < V); if excessively contaminated: HIGH (>+UV-
V). The LED indicator flashes in this case.
Health output: The sensor (HTE18) features a health status notification output (“Q2” in
connection diagram [B], if the health option is selected), which issues a notification if the
signal strength of the light being received is sufficient. Possible causes, if the signal
strength is not sufficient: Sensors are contaminated, sensors are out of alignment, or
cable is damaged. In the good state: HIGH (>+UV- V); if excessively contaminated or in the
event of cable interruption: LOW (UV < V). The LED indicator flashes in this case.

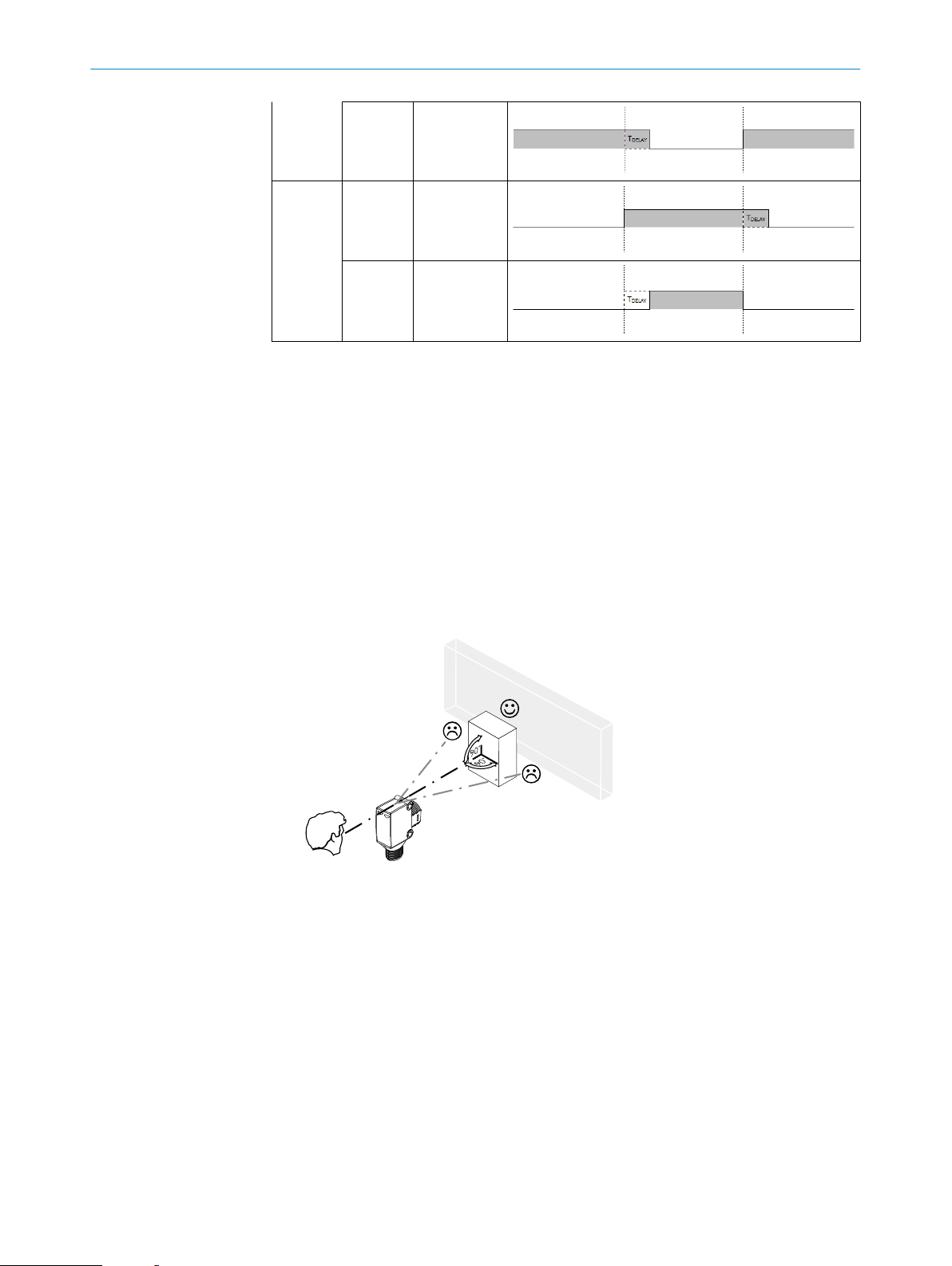

Time types: HTE18 with optional On-delay or Off-Delay adjustment: t0 = no time delay, t1 =
time delay when object is detected, t2 = time delay when no object is detected. The time
setting can be selected using the potentiometer according to A.
Timer stages can be set from 0 to 2 seconds.
8 Troubleshooting
The Troubleshooting table indicates measures to be taken if the sensor stops working.
Table 11: Troubleshooting
LED indicator/fault pattern Cause Measures
Yellow LED does not light up
even though the light beam is
aligned to the object and the
object is within the set sensing
range
No voltage or voltage below
the limit values
Check the power supply,
check all electrical connec‐
tions (cables and plug connec‐
tions)
Voltage interruptions Ensure there is a stable power
supply without interruptions
Sensor is faulty If the power supply is OK,
replace the sensor
8 TROUBLESHOOTING
18 8017851.16K9 | SICK
Subject to change without notice

LED indicator/fault pattern Cause Measures
Yellow LED flashes; if Health is
present then take note of the
corresponding output signal; if
Alarm is present then take note
of the corresponding output
signal
Sensor is still ready for opera‐
tion, but the operating condi‐
tions are not ideal/addition‐
ally with health output: power
supply interrupted
Check the operating condi‐
tions: Fully align the beam of
light (light spot) with the
object / Clean the optical sur‐
faces / Check sensing range
and adjust if necessary, see
figures in chapter 7 / With
health output: Check the volt‐
age supply, check all electrical
connections (cables and plug
connections).
Yellow LED lights up, no object
in the path of the beam
Excessive background remis‐
sion
Check changes to the back‐
ground. Reduce the sensitivity
of the sensor or use sensors
with background suppression
Object is in the path of the
beam, yellow LED does not
light up
Sensitivity is set too low or dis‐
tance between the sensor and
the object is too long
Increase the sensing range,
take note of the distance
between the sensor and the
background, see Figure see
table 10, page 17
Object is in the path of the
beam, yellow LED does not
light up
Remission capability of the
object is insufficient
Increase the sensing range,
take note of the distance
between the sensor and the
background, see Figure see
table 10, page 17
9 Disassembly and disposal
The sensor must be disposed of according to the applicable country-specific regula‐
tions. Efforts should be made during the disposal process to recycle the constituent
materials (particularly precious metals).
NOTE
Disposal of batteries, electric and electronic devices
•According to international directives, batteries, accumulators and electrical or
electronic devices must not be disposed of in general waste.
•The owner is obliged by law to return this devices at the end of their life to the
respective public collection points.
•
WEEE: This symbol on the product, its package or in this document, indi‐
cates that a product is subject to these regulations.
10 Maintenance
SICK sensors are maintenance-free.
We recommend doing the following regularly:
•Clean the external lens surfaces
•Check the screw connections and plug-in connections
No modifications may be made to devices.
DISASSEMBLY AND DISPOSAL 9
8017851.16K9 | SICK
Subject to change without notice 19

Subject to change without notice. Specified product properties and technical data are
not written guarantees.

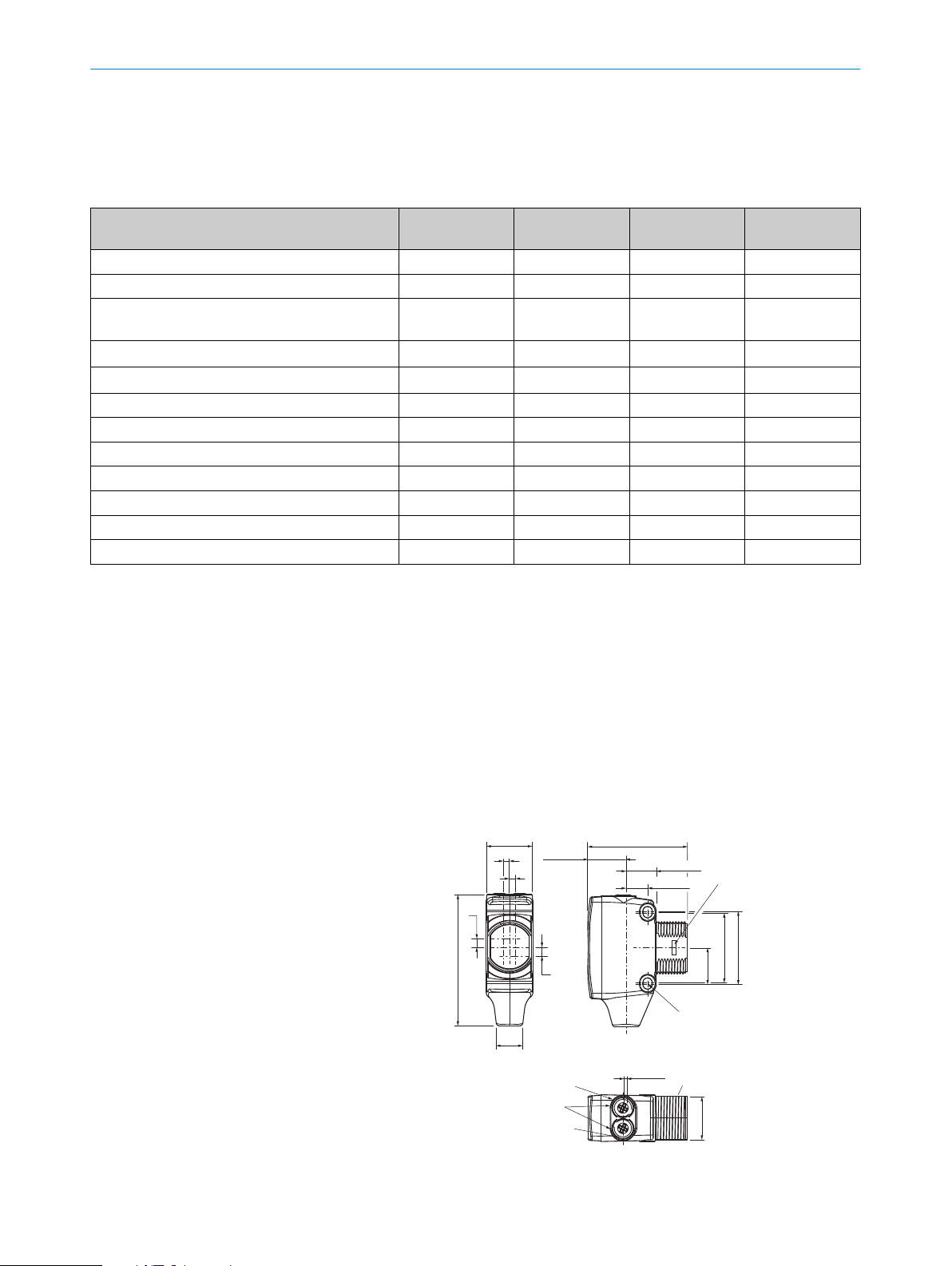

11 Technical data
HTE18-xxx2xx -Mxx2xx / -
Lxx2xx / -Uxx2xx
-xxx1xx -Mxx1xx / -
Lxx1xx / -Uxx1xx
Sensing range 10 ... 200 mm 10 ... 200 mm 10 ... 250 mm 10 ... 250 mm
Sensing range max. 5 ... 600 mm1) 5 ... 600 mm1) 5 ... 1,000 mm1) 5 ... 1,000 mm1)
Light spot diameter/distance 110 mm / 800
mm
Supply voltage VSDC 10 ... 30 V2) AC 90 ... 250 V3) DC 10 ... 30 V2) AC 90 ... 250 V3)
Output current Imax. ≤ 100 mA ≤ 100 mA ≤ 100 mA ≤ 100 mA
Switching current (switching voltage) 4) 4) 4) 4)
Max. switching frequency 1,000 Hz5) 1,000 Hz5) 1,000 Hz5) 1,000 Hz5)
Max. response time ≤ 0.5 ms6) ≤ 0.5 ms6) ≤ 0.5 ms6) ≤ 0.5 ms6)
Enclosure rating IP67, IP697) IP67, IP697) IP67, IP697) IP67, IP697)
Protection class III II8) III II8)
Circuit protection A, B, D9) A, B, D9) A, B, D9) A, B, D9)
Ambient operating temperature -40 ... +70 °C -40 ... +70 °C -40 ... +70 °C -40 ... +70 °C
1) Object with 90 % remission (based on standard white DIN 5033)
2) Limit value; operation in short-circuit protection mains max. 8 A; residual ripple max. 5 Vss
3) Limit values
4) Usage category: AC-15, DC-13 (EN 60947-1)
5) With light / dark ratio 1:1
6) Signal transit time with resistive load
7) Replaces IP69 K pursuant to ISO 20653: 2013-03
8) valid for Q\ on Pin2, if configured with software
8) Rated voltage AC/DC 250 V, overvoltage category II
9) Reference voltage DC 50 V
9) A = UV-connections reverse polarity protected
B = inputs and output reverse-polarity protected
D = outputs overcurrent and short-circuit protected
11.1 Dimensional drawing
AC version,
cable
4
7.5 (0.30)
10.5 (0.41)
24.1 (0.95)
25.4 (1.00)
12.7
(0.50)
13.1 (0.52)
34.4 (1.35)
3
7.9
(0.31)
45.5 (1.79)
A
C
B
D
16.2 (0.64)
0.9 (0.04)
2
5
1
15 (0.59)
M18 x 1
1Snap connection for flush ring (sold sep‐
aratly)
11 TECHNICAL DATA
20 8017851.16K9 | SICK
Subject to change without notice
