SICK GTB6L User manual

OPERATING INSTRUCTION
GTB6L
Miniature photoelectric sensors

OPERATING INSTRUCTION
GTB6L
Miniature photoelectric sensors
de
en
es
fr
it
ja
pt
ru
zh

Described product
G6L
GTB6L
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Production location
SICK Malaysia
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is only
permissible within the limits of the legal determination of Copyright Law. Any modifica‐
tion, abridgment or translation of this document is prohibited without the express writ‐
ten permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
Laser
1
2006/42/EC
NO
SAFETY
8025391 | SICK
Subject to change without notice 3

Contents
1 General safety notes......................................................................... 5
2 Notes on UL approval........................................................................ 5
3 Intended use...................................................................................... 5
4 Operating and status indicators...................................................... 5
5 Mounting............................................................................................. 6
6 Electrical installation........................................................................ 7
7 Commissioning.................................................................................. 8
7.1 Alignment.................................................................................................. 8
7.2 Sensing range........................................................................................... 8
7.3 Settings..................................................................................................... 9
8 Troubleshooting................................................................................. 10
9 Disassembly and disposal............................................................... 10
10 Maintenance...................................................................................... 11
11 Technical specifications................................................................... 12
11.1 Dimensional drawing................................................................................ 12
11.2 Light spot diagram.................................................................................... 13
CONTENTS
48025391 | SICK
Subject to change without notice

1 General safety notes
■Read the operating instructions before commissioning.
■
Connection, mounting, and configuration may only be performed by trained
specialists.
■
2006/42/EC
NO
SAFETY
Not a safety component in accordance with the EU Machinery Directive.
■
When commissioning, protect the device from moisture and contamination.
■These operating instructions contain information required during the life cycle of
the sensor.
EN/IEC 60825-1:2014
IEC60825-1:2007
LASER CLASS 1
Laser
1
Maximum pulse power < 5.95 mW
Puls length: 2 µs
Wavelength: 670 - 690 nm
Complies with FDA performance
standards except for conformance with
IEC 60825-1 Ed. 3,
as described in Laser Notice No. 56,
dated May 8, 2019
ATTENTION
WARNING: Interruption, manipulation or incorrect use can lead to hazardous exposure
due to laser radiation.
2 Notes on UL approval
UL Environmental Rating: Enclosure type 1
3 Intended use
The GTB6L is an opto-electronic photoelectric proximity sensor (referred to as “sensor”
in the following) for the optical, non-contact detection of objects. If the product is used
for any other purpose or modified in any way, any warranty claim against SICK AG shall
become void.
4 Operating and status indicators
Photoelectric proximity sensor with background suppression.
GTB6L-xxx1x
GENERAL SAFETY NOTES 1
8025391 | SICK
Subject to change without notice 5

1
2 3 23
1

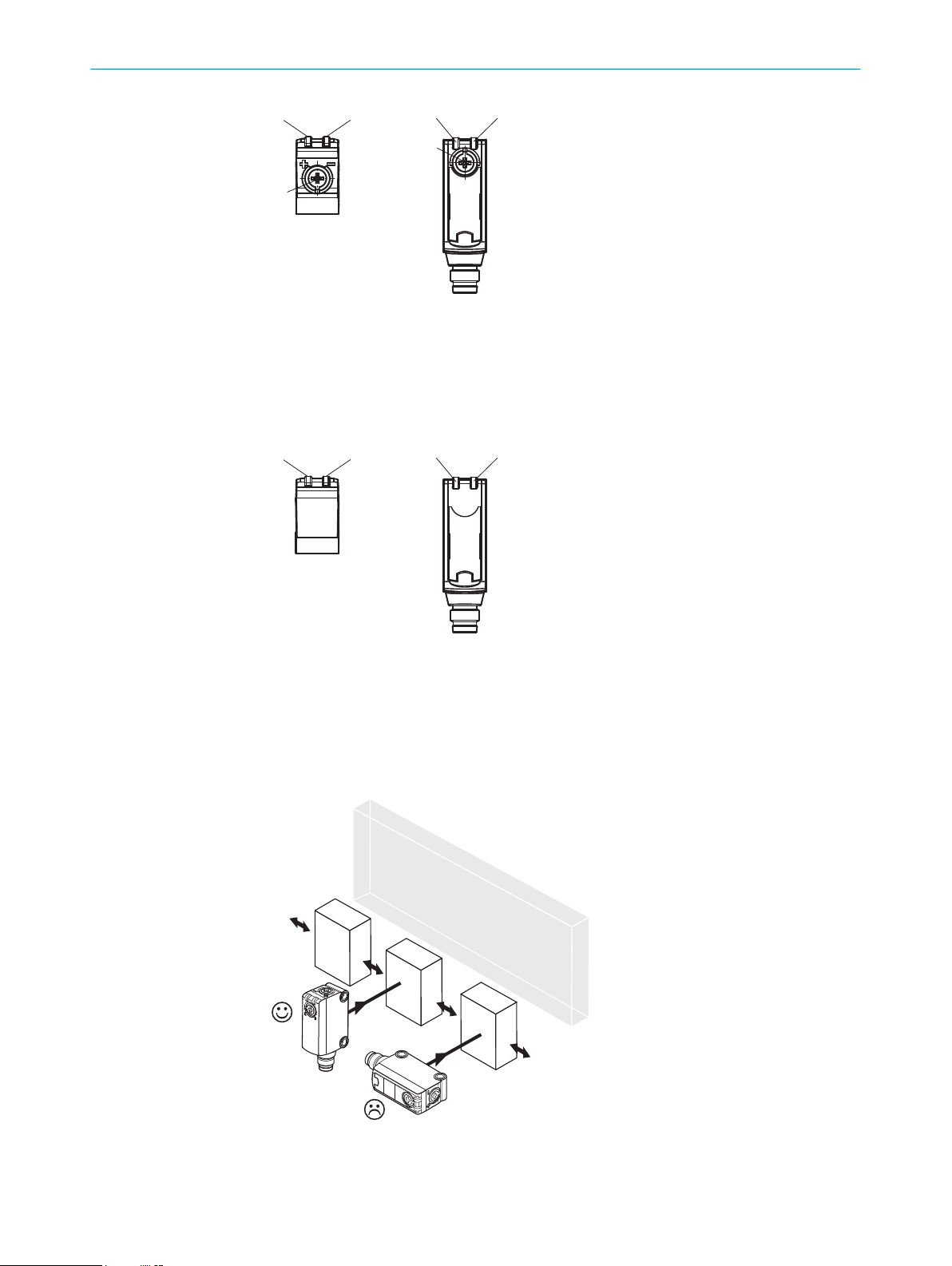

1Potentiometer: sensitivity adjustment
2Yellow LED indicator: Switching output
3LED indicator green: supply voltage active
GTB6L-xxx3x
Sensor which it is not possible to set: The sensor is adjusted and ready for operation.
2 3 23
5 Mounting
Mount the sensor using a suitable mounting bracket (see the SICK range of acces‐
sories).
Note the preferred orientation of the sensor relative to the direction of object motion,
refer to figure 1.
Figure 1: Sensor orientation relative to object direction
4 OPERATING AND STATUS INDICATORS
68025391 | SICK
Subject to change without notice

6 Electrical installation
The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐
tion must be observed depending on the connection type:
– Plug connection: pin assignment
– Cable: wire color
Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐
tions have been established.
Explanation of connection terminology:
BN = Brown
WH = White
BU = Blue
BK = Black
n. c. = no connection
Q = switching output 1
Q = switching output 2
L+ = supply voltage (Uv)
M = common
L.ON = light operate
D.ON = dark operate

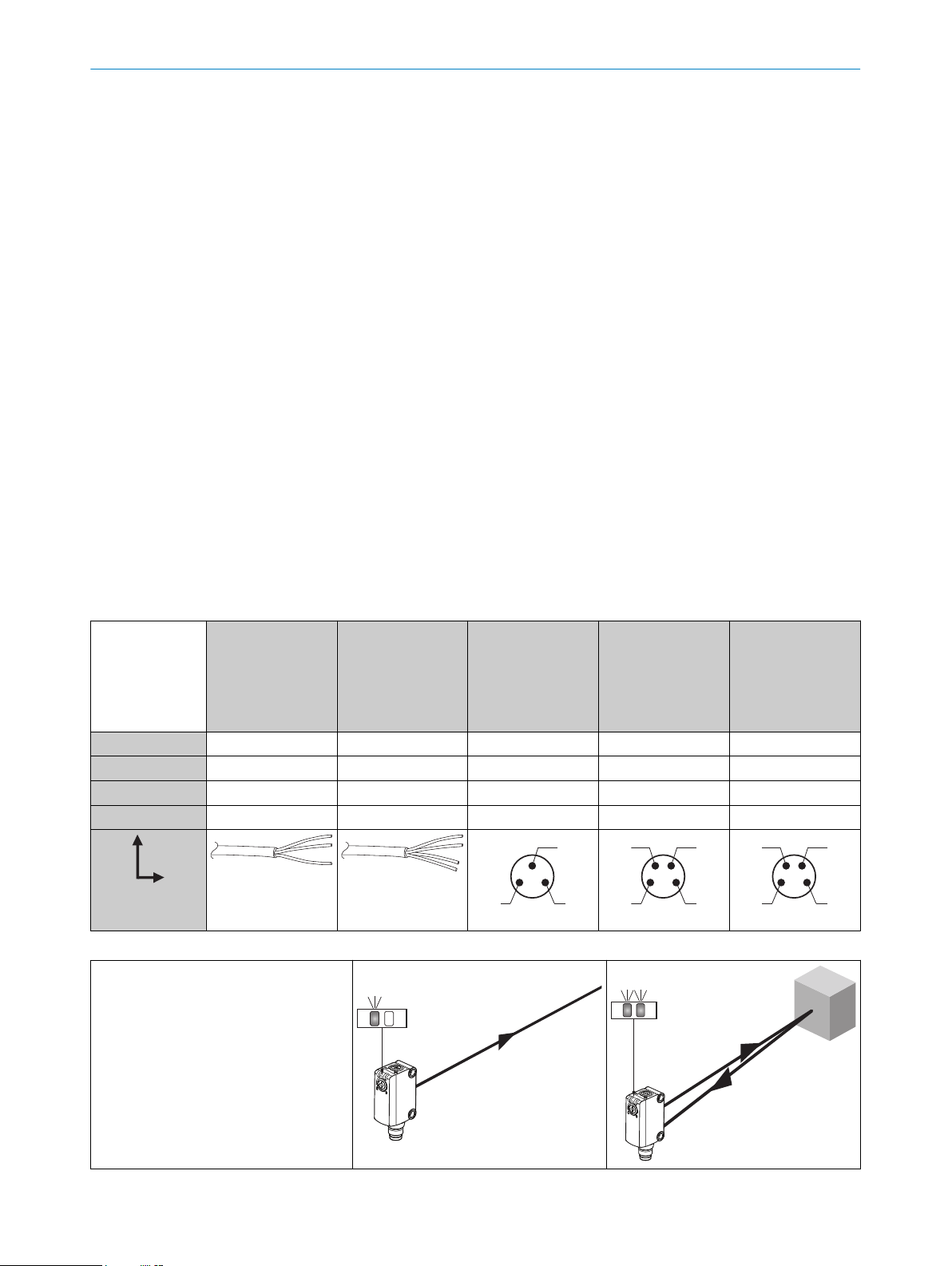

Connection and Output detail:
Table 1: DC
GTB6L -P1xxx
-N1xxx
-E2xxx
-F2xxx
-P3xxx
-N3xxx
-P5xxx
-N5xxx
-P4xxx
-N4xxx
-P6xxx
-N6xxx
-P7xxx
-N7xxx
-E4xxx
-F4xxx
-E6xxx
-F6xxx
-E7xxx
-F7xxx
1 = BN + (L+) + (L+) + (L+) + (L+) + (L+)
2 = WH -Q- n. c. Q
3 = BU - (M) - (M) - (M) - (M) - (M)
4 = BK Q Q Q Q Q
0.205 mm2 /
AWG24 0.205 mm2 /
AWG24
1
4
3
2
1
4
3
2
1
4
3
Table 2: Output function
GTB6L
ELECTRICAL INSTALLATION 6
8025391 | SICK
Subject to change without notice 7

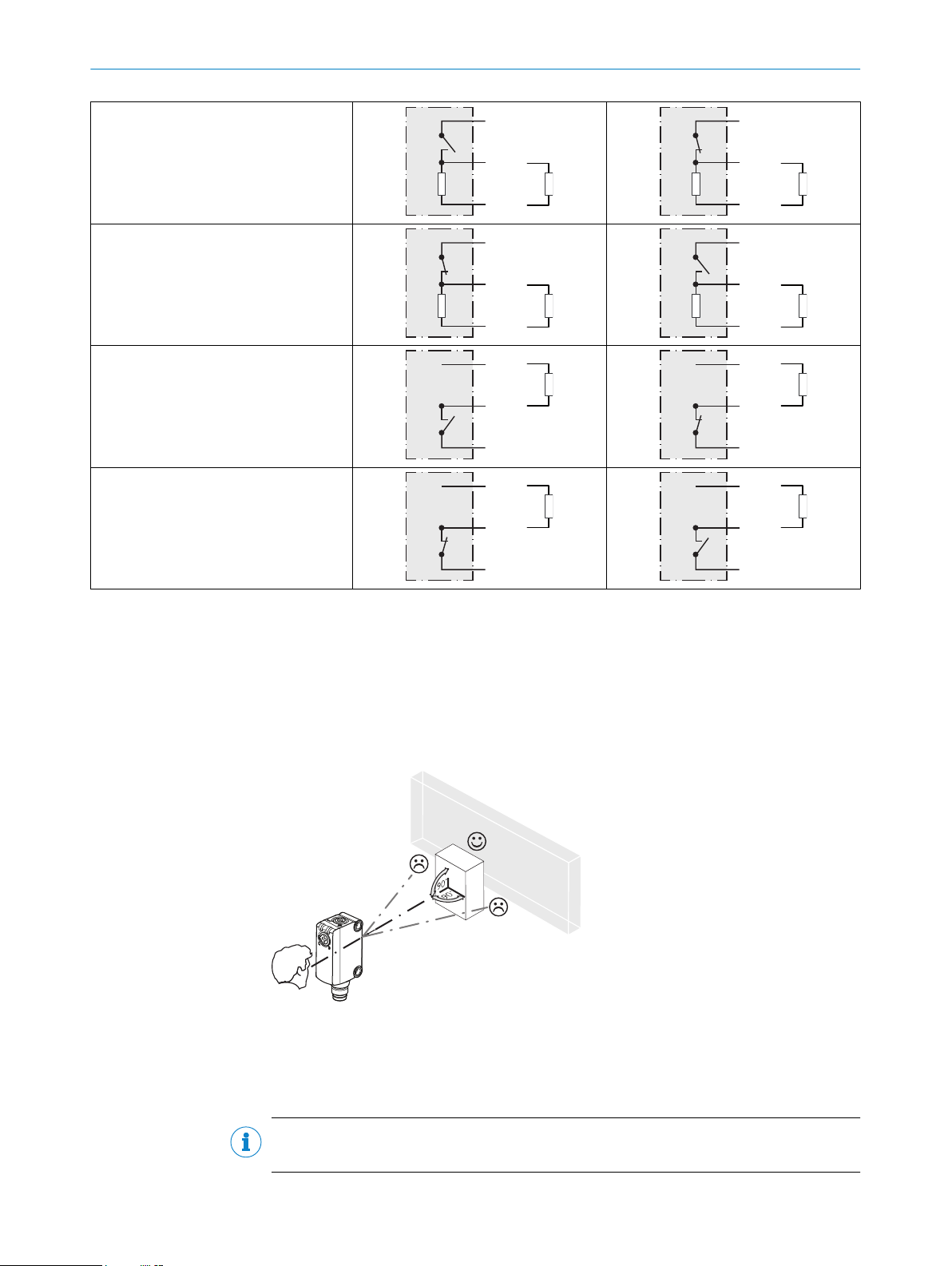

-Px1xx
-Px2xx
-Px3xx
-Px4xx
L.ON, PNP: Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Px1xx
-Px2xx
-Px5xx
-Px6xx
D.ON, PNP: Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Nx1xx
-Nx2xx
-Nx3xx
Nx4xx
L.ON, NPN Open Collector Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)
Load
-Nx1xx
-Nx2xx
-Nx5xx
-Nx6xx
D.ON, NPN Open Collector Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
7 Commissioning
7.1 Alignment
Align sensor on object. Select the position so that the red emitted light beam hits the
center of the object. You must ensure that the optical opening (front screen) of the sen‐
sor is completely clear [see figure 0].
7.2 Sensing range
Adjust the mounting position so that the sensing range and background are within
specification. Refer to see figure 2, page 9.
NOTE
Please note the minimum range of 5 mm.
7 COMMISSIONING
88025391 | SICK
Subject to change without notice

Use see table 2, page 7 to check the function. If the switching output fails to behave in
accordance with see table 2, page 7, check the application conditions.

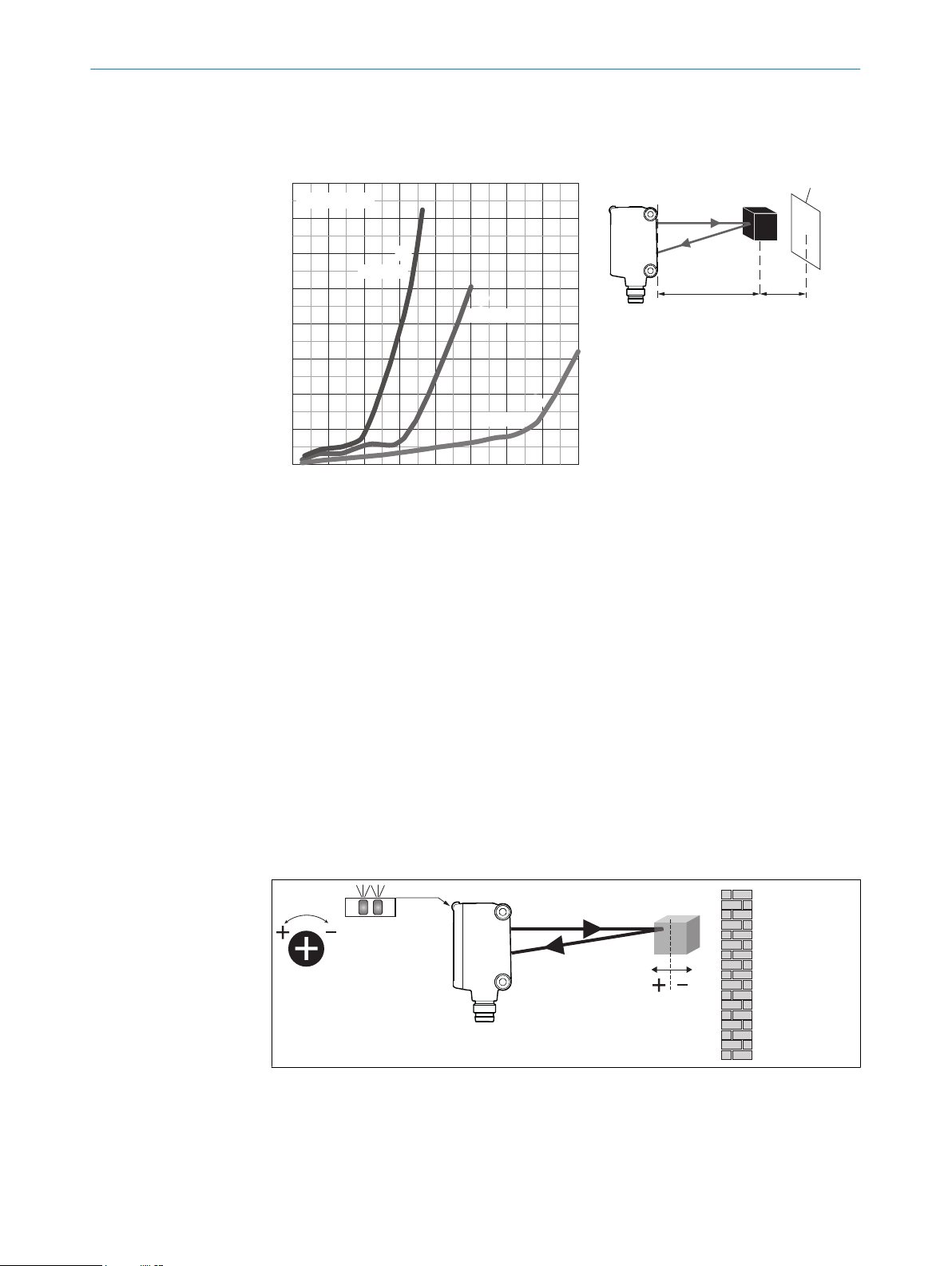

6%/90%
18%/90%
90%/90%
1
2
3
GTB6L-xxx1x
yx
Example:
Sensing range on black, 6%,
x = 150 mm, y = 20 mm
white
background (90%)
0
5
10
15
25
20
30
50
(1.97)
100
(3.94)
150
(5.91)
200
(7.87)
300
(11.81)
250
(9.84)
0
Distance in mm (inch)
350
(13.78)
400
(15.75)
35
40
Min distance between object to background (mm)
Figure 2: GTB6L
1Sensing range on black, 6% remission
2Sensing range on gray, 18% remission
3Sensing range on white, 90% remission
7.3 Settings
Sensing range setting
Sensor which it is not possible to set: The sensor is adjusted and ready for operation.
The sensing range is adjusted with the potentiometer (type: 5-turn). Clockwise rotation:
sensing range increased; counterclockwise rotation: sensing range reduced. We recom‐
mend placing the object within the sensing range, e.g. see figure 2. Once the sensing
range has been adjusted, the object is removed from the path of the beam, which
causes the background to be suppressed and the switching output to change [see
table 2].
Table 3: Adjustment sensing range
COMMISSIONING 7
8025391 | SICK
Subject to change without notice 9

The sensor is adjusted and ready for operation.
8 Troubleshooting
The Troubleshooting table indicates measures to be taken if the sensor stops working.
Table 4: Troubleshooting
LED indicator/fault pattern Cause Measures
Yellow LED does not light up
even though the light beam is
aligned to the object and the
object is within the set sensing
range
No voltage or voltage below
the limit values
Check the power supply,
check all electrical connec‐
tions (cables and plug connec‐
tions)
Voltage interruptions Ensure there is a stable power
supply without interruptions
Sensor is faulty If the power supply is OK,
replace the sensor
Yellow LED flashes Sensor is still ready for opera‐
tion, but the operating condi‐
tions are not ideal
Check the operating condi‐
tions: Fully align the beam of
light (light spot) with the
object / Clean the optical sur‐
faces / Check sensing range
and adjust if necessary
Yellow LED lights up, no object
in the path of the beam
The sensing range distance is
too large
Reduce the sensing range
Object is in the path of the
beam, yellow LED does not
light up
Distance between the sensor
and the object is too long or
sensing range is set too short
Reduce the sensing range
9 Disassembly and disposal
The sensor must be disposed of according to the applicable country-specific regula‐
tions. Efforts should be made during the disposal process to recycle the constituent
materials (particularly precious metals).
8 TROUBLESHOOTING
10 8025391 | SICK
Subject to change without notice

NOTE
Disposal of batteries, electric and electronic devices
•According to international directives, batteries, accumulators and electrical or
electronic devices must not be disposed of in general waste.
•The owner is obliged by law to return this devices at the end of their life to the
respective public collection points.
•
WEEE: This symbol on the product, its package or in this document, indi‐
cates that a product is subject to these regulations.
10 Maintenance
SICK sensors are maintenance-free.
We recommend doing the following regularly:
•Clean the external lens surfaces
•Check the screw connections and plug-in connections
No modifications may be made to devices.
Subject to change without notice. Specified product properties and technical data are
not written guarantees.
MAINTENANCE 10
8025391 | SICK
Subject to change without notice 11

11 Technical specifications
Laser class 1
Sensing range 30 ... 400 mm
Sensing range max. 10 ... 400 mm1)
Light spot diameter/distance 0.4 mm / 150 mm
Supply voltage UBDC 10 ... 30 V2)
Output current Imax. 30 mA
Switching frequency 1,000 Hz3)
Max. response time 0.625 ms 4)
Enclosure rating IP67
Protection class II5)
Circuit protection A, B, C6)
Ambient operating temperature -20 ... +50 °C
1) Object with 90 % remission (based on standard white DIN 5033)
2) Limit values. UB connections reverse-polarity protected. Residual ripple max 5 VPP
3) With light / dark ratio 1:1
4) Signal transit time with resistive load
5) Reference voltage DC 50 V
6) A = UB-connections reverse polarity protected
B = inputs and output reverse-polarity protected
C = Interference suppression

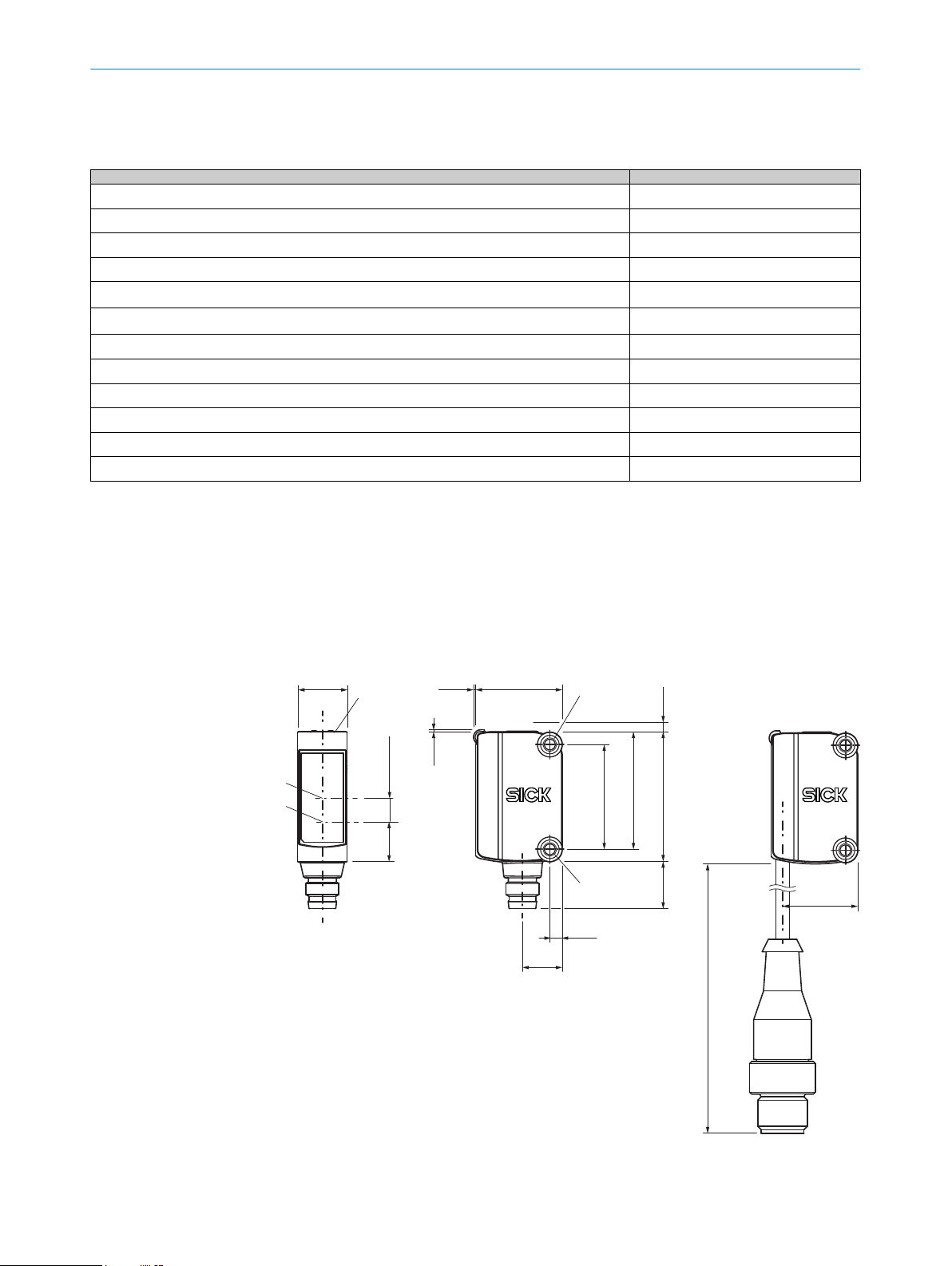

11.1 Dimensional drawing
10.2 (0.4) 6.9 (0.27)
0.5
(0.02)
21
(0.83)
0.5
(0.02)
9.7
(0.38)
3
(0.12)
11.5
(0.45)
31.5 (1.24)
28.5 (1.12)
25.4 (1.00)
2.3
(0.09)
18.3
(0.72)
305 (12.01)
9.7
(0.38)
12
(0.47)
1
2
4
4
3
Figure 3: Dimensional drawing
11 TECHNICAL SPECIFICATIONS
12 8025391 | SICK
Subject to change without notice

1Center of optical axis, sender
2Center of optical axis, receiver
3Operating and status indicators
4M3 threaded mounting hole

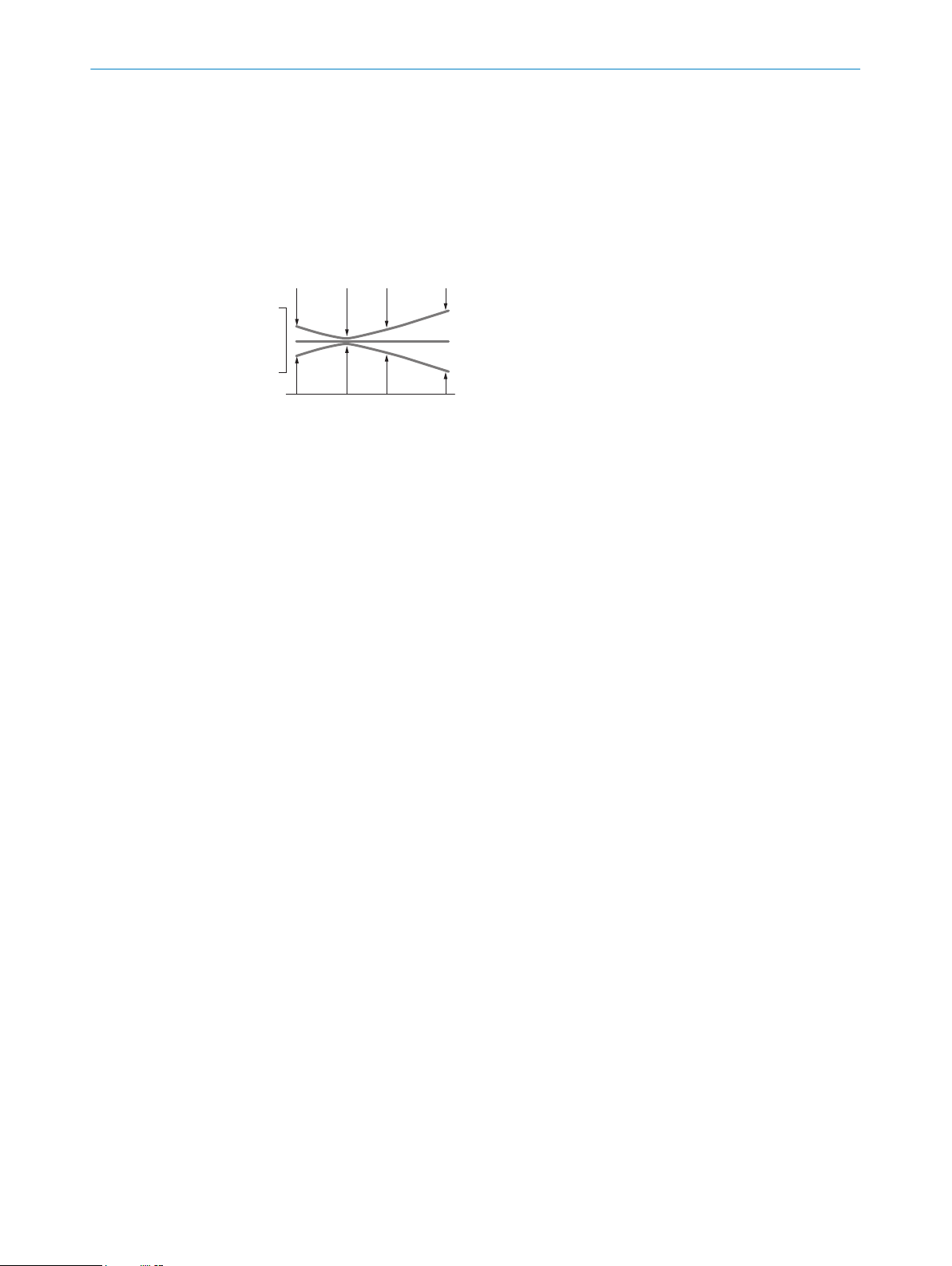

11.2 Light spot diagram
Sensor
Ø 0.4
(0.02)
Ø 2.2
(0.09)
Ø 1.8
(0.07)
Ø 4.6
(0.18)
Distance in mm (inch)
Diameter in mm (inch)
25
(0.98)
150
(5.91)
250
(9.84)
400
(15.75)
TECHNICAL SPECIFICATIONS 11
8025391 | SICK
Subject to change without notice 13

BETRIEBSANLEITUNG
GTB6L
Miniatur-Lichtschranke
de
en
es
fr
it
ja
pt
ru
zh

Beschriebenes Produkt
G6L
GTB6L
Hersteller
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Deutschland
Fertigungsstandort
SICK Malaysia
Rechtliche Hinweise
Dieses Werk ist urheberrechtlich geschützt. Die dadurch begründeten Rechte bleiben
bei der Firma SICK AG. Die Vervielfältigung des Werks oder von Teilen dieses Werks ist
nur in den Grenzen der gesetzlichen Bestimmungen des Urheberrechtsgesetzes zuläs‐
sig. Jede Änderung, Kürzung oder Übersetzung des Werks ohne ausdrückliche schriftli‐
che Zustimmung der Firma SICK AG ist untersagt.
Die in diesem Dokument genannten Marken sind Eigentum ihrer jeweiligen Inhaber.
© SICK AG. Alle Rechte vorbehalten.
Originaldokument
Dieses Dokument ist ein Originaldokument der SICK AG.
Laser
1
2006/42/EC
NO
SAFETY
8025391 | SICK
Subject to change without notice 15

Inhalt
12 Allgemeine Sicherheitshinweise..................................................... 17
13 Hinweise zur UL Zulassung.............................................................. 17
14 Bestimmungsgemäße Verwendung............................................... 17
15 Betriebs- und Statusanzeigen.......................................................... 17
16 Montage.............................................................................................. 18
17 Elektrische Installation..................................................................... 19
18 Inbetriebnahme................................................................................. 20
18.1 Angleichung............................................................................................... 20
18.2 Schaltabstand........................................................................................... 20
18.3 Einstellungen............................................................................................. 21
19 Störungsbehebung............................................................................ 22
20 Demontage und Entsorgung............................................................ 22
21 Wartung.............................................................................................. 23
22 Technische Daten.............................................................................. 24
22.1 Maßzeichnung........................................................................................... 24
22.2 Lichtfleckdiagramm.................................................................................. 25
INHALT
16 8025391 | SICK
Subject to change without notice

12 Allgemeine Sicherheitshinweise
■Lesen Sie vor der Inbetriebnahme des Geräts die Betriebsanleitung.
■
Der Anschluss, die Montage und die Konfiguration des Geräts dürfen nur
von geschultem Fachpersonal vorgenommen werden.
■
2006/42/EC
NO
SAFETY
Bei diesem Gerät handelt es sich um kein sicherheitsgerichtetes Bauteil im
Sinne der EU-Maschinenrichtlinie.
■
Bei der Inbetriebnahme ist das Gerät ausreichend vor Feuchtigkeit und Ver‐
schmutzung zu schützen.
■Die vorliegende Betriebsanleitung enthält Informationen, die während des Lebens‐
zyklus der Lichtschranke benötigt werden.
EN/IEC 60825-1:2014
IEC60825-1:2007
LASERKLASSE 1
Laser
1
Maximale Pulsleistung: 5,95 mW
Impulsdauer: 2 µs
Wellenlänge: 670 - 690 nm
Entspricht den FDA
Leistungsstandards mit Ausnahme der
Konformität mit IEC 60825-1, Ed. 3
wie im Laserhinweis Nr. 56 vom
08.05.2019 beschrieben
ACHTUNG
WARNUNG: Eingriffe, Manipulation oder eine unsachgemäße Verwendung können zu
gefährlicher Exposition gegenüber Laserstrahlung führen.
13 Hinweise zur UL Zulassung
UL Environmental Rating: Enclosure type 1
14 Bestimmungsgemäße Verwendung
Die GTB6L ist ein optoelektronischer Reflexions-Lichttaster (im Folgenden Sensor
genannt) und wird zum optischen, berührungslosen Erfassen von Sachen eingesetzt.
Bei jeder anderen Verwendung und bei Veränderungen am Produkt verfällt jeglicher
Gewährleistungsanspruch gegenüber der SICK AG.
15 Betriebs- und Statusanzeigen
Reflexions-Lichttaster mit Hintergrundausblendung.
GTB6L-xxx1x
ALLGEMEINE SICHERHEITSHINWEISE 12
8025391 | SICK
Subject to change without notice 17

1
2 3 23
1
1Potentiometer: Einstellung der Empfindlichkeit
2Anzeige-LED gelb: Schaltausgang
3Anzeige-LED grün: Versorgungsspannung aktiv
GTB6L-xxx3x
Sensor ohne Einstellmöglichkeit: Sensor ist eingestellt und betriebsbereit.
2 3 23
16 Montage
Den Sensor unter Verwendung eines geeigneten Befestigungswinkels montieren (siehe
SICK-Zubehörpalette).
Bevorzugte Ausrichtung der Lichtschranke relativ zur Bewegungsrichtung des Objekts
beachten, siehe Abbildung 4.
Abbildung 4: Ausrichtung der Lichtschranke relativ zur Objektrichtung
15 BETRIEBS- UND STATUSANZEIGEN
18 8025391 | SICK
Subject to change without notice

17 Elektrische Installation
Anschluss der Sensoren muss spannungsfrei (UV = 0 V) erfolgen. Je nach Anschlussart
sind die folgenden Informationen zu beachten:
– Steckeranschluss: Anschlussbelegung
– Leitung: Aderfarbe
Erst nach Anschluss aller elektrischen Verbindungen die Spannungsversorgung (UV
> 0 V) anlegen bzw. einschalten.
Erläuterung der Anschlussterminologie:
BN = braun
WH = weiß
BU = blau
BK = schwarz
n. c. = unbeschaltet
Q = Schaltausgang 1
Q = Schaltausgang 2
L+ = Versorgungsspannung (Uv)
M = gemeinsam
L.ON = Hellauswertung
D.ON = Dunkelauswertung
Anschluss- und Ausgangsdetails:
Tabelle 5: DC
GTB6L -P1xxx
-N1xxx
-E2xxx
-F2xxx
-P3xxx
-N3xxx
-P5xxx
-N5xxx
-P4xxx
-N4xxx
-P6xxx
-N6xxx
-P7xxx
-N7xxx
-E4xxx
-F4xxx
-E6xxx
-F6xxx
-E7xxx
-F7xxx
1 = BN + (L+) + (L+) + (L+) + (L+) + (L+)
2 = WH -Q- n. c. Q
3 = BU - (M) - (M) - (M) - (M) - (M)
4 = BK Q Q Q Q Q
0,205 mm2 / AWG2
40,205 mm2 / AWG2
4
1
4
3
2
1
4
3
2
1
4
3
Tabelle 6: Ausgangsfunktion
GTB6L
ELEKTRISCHE INSTALLATION 17
8025391 | SICK
Subject to change without notice 19

-Px1xx
-Px2xx
-Px3xx
-Px4xx
L.ON, PNP: Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Px1xx
-Px2xx
-Px5xx
-Px6xx
D.ON, PNP: Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-Nx1xx
-Nx2xx
-Nx3xx
Nx4xx
L.ON, NPN Open Collector Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)
Load
-Nx1xx
-Nx2xx
-Nx5xx
-Nx6xx
D.ON, NPN Open Collector Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
18 Inbetriebnahme
18.1 Angleichung
Sensor am Objekt ausrichten. Die Position so wählen, dass der rote Sendelichtstrahl
die Mitte des Objekts trifft. Es muss sichergestellt werden, dass die Optiköffnung
(Frontscheibe) des Sensors komplett frei ist [siehe Abbildung 0].
18.2 Schaltabstand
Die Montageposition so anpassen, dass der Schaltabstand und der Hintergrund inner‐
halb der Spezifikationen liegen. Siehe "Abbildung X".
HINWEIS
Den Mindestabstand von 5 mm beachten.
18 INBETRIEBNAHME
20 8025391 | SICK
Subject to change without notice
