Siemens SINAMICS G120P User manual

dV/dt filter plus Voltage Peak Limiter
___________________
___________________
___________________
___________________
___________________
___________________
SINAMICS
SINAMICS G120P
dV/dt filter plus Voltage Peak
Limiter
Operating Instructions
Control version V4.6
04/2014
A5E32847105B AB
Safety information
1
General
2
Mechanical installation
3
Electrical installation
4
Maintenance and servicing
5
Technical specifications
6

Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E32847105B AB
Ⓟ
03/2014 Subject to change
Copyright © Siemens AG 2013 - 2014.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
mai
ntenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 5
Table of contents
1 Safety information ................................................................................................................................... 7
1.1 Warnings ........................................................................................................................................7
1.2 Components that can be destroyed by electrostatic discharge (ESD) ..........................................9
2 General................................................................................................................................................. 11
3 Mechanical installation .......................................................................................................................... 15
4 Electrical installation.............................................................................................................................. 19
5 Maintenance and servicing.................................................................................................................... 23
6 Technical specifications ........................................................................................................................ 25

Table of contents
dV/dt filter plus Voltage Peak Limiter
6Operating Instructions, 04/2014, A5E32847105B AB

dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 7
Safety information
1
1.1
Warnings
WARNING
Danger to life if the fundamental safety instructions and remaining risks are not carefully
observed
Non-compliance with the fundamental safety instructions and residual risks stated in
Chapter 1 of the Installation Manual for PM330 Power Modules can result in accidents with
severe injuries or death.
•Adhere to the fundamental safety instructions.
•When assessing the risk, take into account residual risks.
Note
Use of copper cables for a UL-approved system
For a UL
-approved system use 60/75°C copper conductors only.
Preconditions
The persons responsible for the safety of the plant or system must ensure that the following
conditions are met:
●Basic planning work for the system and all work relating to transportation, assembly,
installation, commissioning, maintenance and repairs is carried out by qualified personnel
and checked by responsible, suitably skilled personnel.
●The Operating Instructions and machine documentation are always available.
●The technical specifications regarding the applicable installation, connection,
environmental, and operating conditions are always observed.
●The plant-specific assembly and safety guidelines are observed and personal protection
equipment is used.
●Unqualified personnel are forbidden from using these machines and working near them.
These Operating Instructions are intended for qualified personnel and only contain
information and notes relating to the intended purpose of the machines.
The Operating Instructions and machine documentation are written in different languages as
specified in the delivery contracts.

Safety information
1.1 Warnings
dV/dt filter plus Voltage Peak Limiter
8Operating Instructions, 04/2014, A5E32847105B AB
Note
Support by SIEMENS service centers
We recommend engaging the support and services of your loc
al Siemens service center for
all planning, installation, commissioning and maintenance work.

Safety information
1.2 Components that can be destroyed by electrostatic discharge (ESD)
dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 9
1.2
Components that can be destroyed by electrostatic discharge (ESD)
CAUTION
Components sensitive to electrostatic charge
The board contains components that can be destroyed by electrostatic discharge. These
components can be easily destroyed if not handled properly. If you do have to use
electronic boards, however, please observe the following:
•You should only touch electronic boards if absolutely necessary.
•When you touch boards, however, your body must be electrically discharged
beforehand.
•Boards must not come into contact with highly insulating materials (such as plastic
parts, insulated desktops, articles of clothing manufactured from man-made fibers).
•Boards must only be placed on conductive surfaces.
•Boards and components should only be stored and transported in conductive packaging
(such as metalized plastic boxes or metal containers).
•If the packaging material is not conductive, the boards must be wrapped with a
conductive packaging material (such as conductive foam rubber or household aluminum
foil).

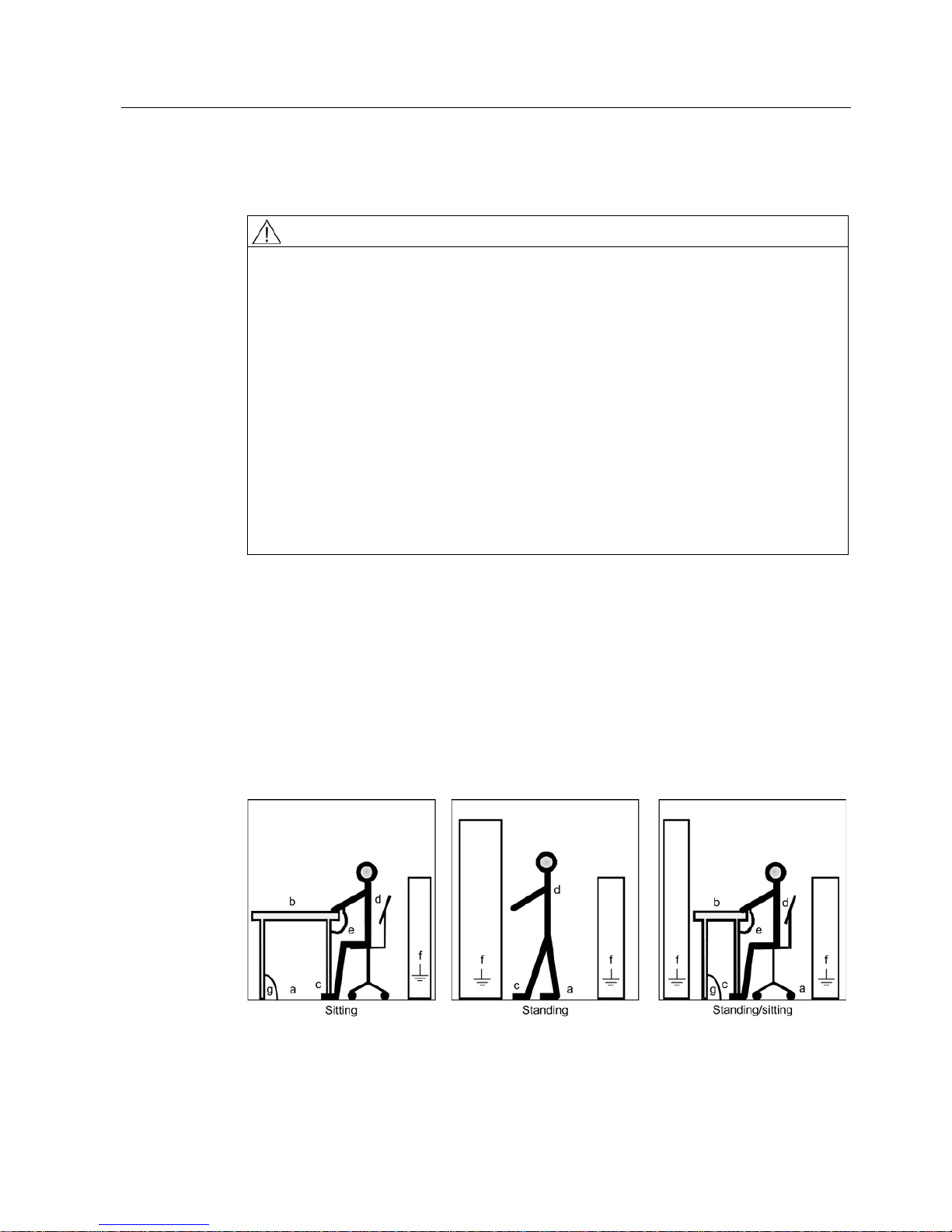

The necessary ESD protective measures are clearly illustrated in the following diagram:
●a = conductive floor surface
●b = ESD table
●c = ESD shoes
●d = ESD overall
●e = ESD wristband
●f = cabinet ground connection
●g = contact with conductive flooring
Figure 1-1 ESD protective measures

Safety information
1.2 Components that can be destroyed by electrostatic discharge (ESD)
dV/dt filter plus Voltage Peak Limiter
10 Operating Instructions, 04/2014, A5E32847105B AB

dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 11
General
2
Description
The du/dt filter plus voltage peak limiter comprises two components: the du/dt reactor and
the Voltage Peak Limiter, which cuts off the voltage peaks and returns the energy to the DC
link.
The du/dt filters plus Voltage Peak Limiter must be used for motors for which the proof
voltage of the insulation system is unknown or insufficient.
du/dt filters plus Voltage Peak Limiters limit the rate of voltage rise to values < 500 V/µs and
the typical voltage peaks with rated line voltages to < 1000 V at Uline < 575 V
Assignment of du/dt filter plus Voltage Peak Limiter and Power Module
Table 2- 1 Assignment of du/dt filter plus Voltage Peak Limiter and Power Module
Power Module
Rated power of the Power Module
Matching du/dt filter plus Voltage Peak
Limiter
Line voltage 380 – 480 V 3 AC
6SL3310-1PE33-0AA0
160 kW
6SL3000-2DE35-0AA0
6SL3310-1PE33-7AA0
200 kW
6SL3000-2DE35-0AA0
6SL3310-1PE34-6AA0
250 kW
6SL3000-2DE35-0AA0
6SL3310-1PE35-8AA0
315 kW
6SL3000-2DE38-4AA0
6SL3310-1PE36-6AA0
355 kW
6SL3000-2DE38-4AA0
6SL3310-1PE37-4AA0
400 kW
6SL3000-2DE38-4AA0
WARNING
Fire hazard due to overheating because of inadequate ventilation clearances
Inadequate ventilation clearances can cause overheating with a risk for personnel through
smoke development and fire. This can also result in increased failures and reduced service
lives of braking resistors.
•Maintain 100 mm ventilation clearances above and below the component.

General
dV/dt filter plus Voltage Peak Limiter
12 Operating Instructions, 04/2014, A5E32847105B AB
CAUTION
Risk of burns due to high surface temperature of the du/dt reactor
The surface temperature of the du/dt reactors may exceed 80 °C. You can get seriously
burnt when touching the surface.
•Mount the du/dt reactors so that they cannot be touched. If this is not possible, attach a
clearly visible and understandable warning notice at hazardous positions.
NOTICE
Damage to the Voltage Peak Limiter due to interchanged connections
The Voltage Peak Limiter will be damaged if the input and output connections are
interchanged.
•Connect the incoming cable from the DC link of the Power Module to DCPS, DCNS.
•Connect the outgoing cable to the du/dt reactor to 1U2, 1V2, 1W2.
NOTICE
Damage to the du/dt filter by using components that have not been released
When using components that have not been released, damage or malfunctions can occur
at the devices or the system itself.
•Only use du/dt filters that SIEMENS has approved for operation with SINAMICS.
NOTICE
Damage to the du/dt filter if it is not activated during commissioning
The du/dt filter may be damaged if it is not activated during commissioning.
•Activate the du/dt filter during commissioning via parameter p0230 = 2. The pulse
frequency will then be limited automatically to permissible values following this.
NOTICE
Damage to the du/dt filter if a motor is not connected
Du/dt filters which are operated without a motor being connected can be damaged or
destroyed.
•Never operate a du/dt filter connected to the Power Module without a connected motor.
Note
Cable lengths
Keep the connecting cables to the Power Module as short as possible (max. 5 m).

General
dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 13
Components
The order numbers of the individual components (du/dt reactor and voltage peak limiter) are
listed in the following table:
Table 2- 2 du/dt filter plus Voltage Peak Limiter, order numbers of the individual components
du/dt filter plus Voltage Peak Limiter
du/dt reactor
Voltage limiting network
Line voltage 380 V – 480 V 3 AC
6SL3000-2DE35-0AA0
6SL3000-2DE35-0CA0
6SL3000-2DE35-0BA0
6SL3000-2DE38-4AA0
6SL3000-2DE38-4CA0
6SL3000-2DE38-4BA0
Limiting the rate of voltage rise and the voltage peaks using an output reactor and du/dt filter plus
Voltage Peak Limiter
Fast-switching IGBTs in the converter result in high voltage gradients du/dt at the converter
output. If long motor cables are used, this leads to an additional current load on the
converter due to capacitive charge/discharge currents. The high voltage gradients, and the
resulting transients at the motor terminals, cause the motors' electrical winding load to
increase as compared with direct on-line operation.
The du/dt filter plus Voltage Peak Limiter limits the rate of voltage rise to values < 500 V/µs
and the typical voltage peaks ÛLL to < 1000 V at Uline ≤575 V (for motor cable lengths of ≤
150 m)

General
dV/dt filter plus Voltage Peak Limiter
14 Operating Instructions, 04/2014, A5E32847105B AB

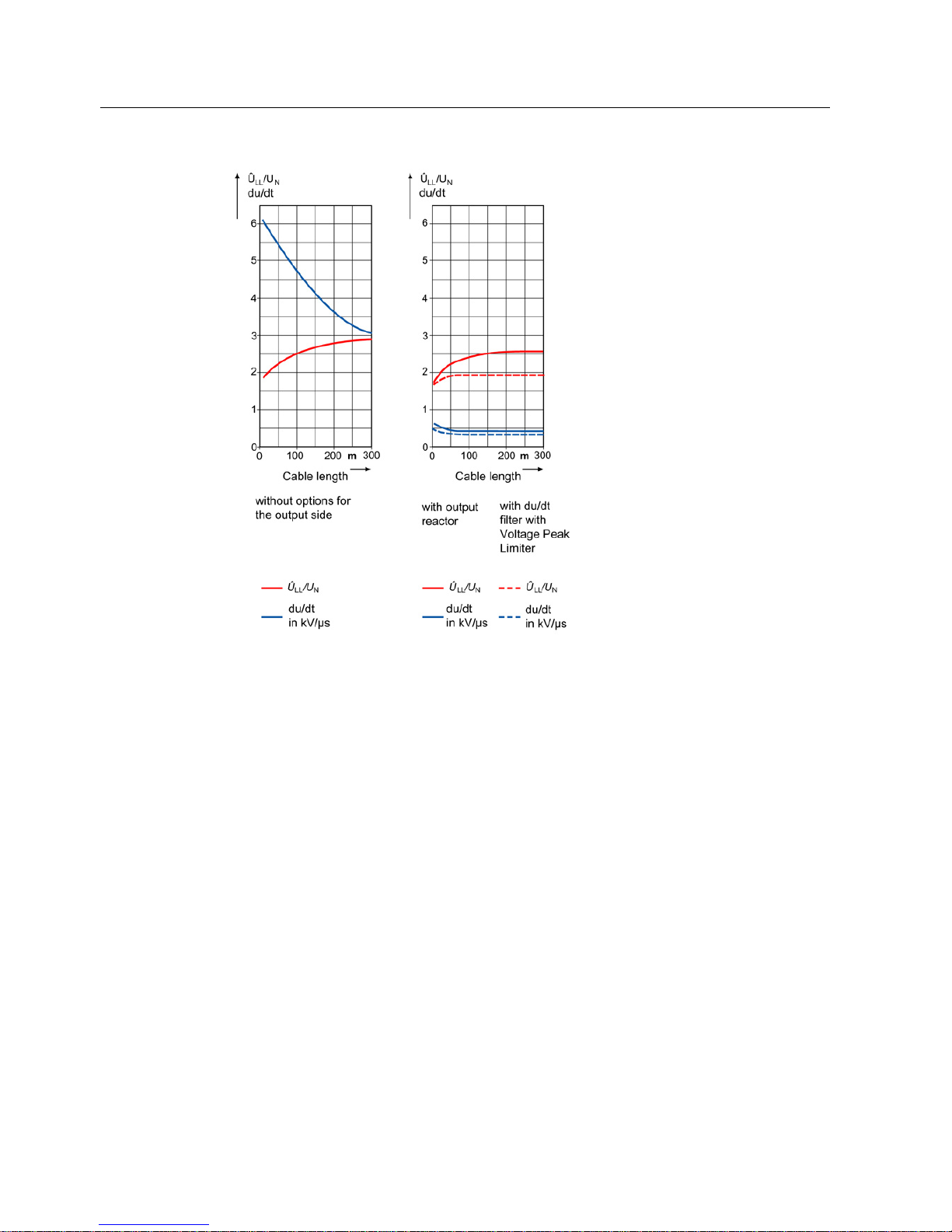

Figure 2-1 Limiting the rate of voltage rise and the voltage peaks using an output reactor and du/dt
filter plus Voltage Peak Limiter

dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 15
Mechanical installation
3
When the du/dt filter plus Voltage Peak Limiter is installed in a cabinet, it must be positioned
near the Power Module.
Dimension drawing

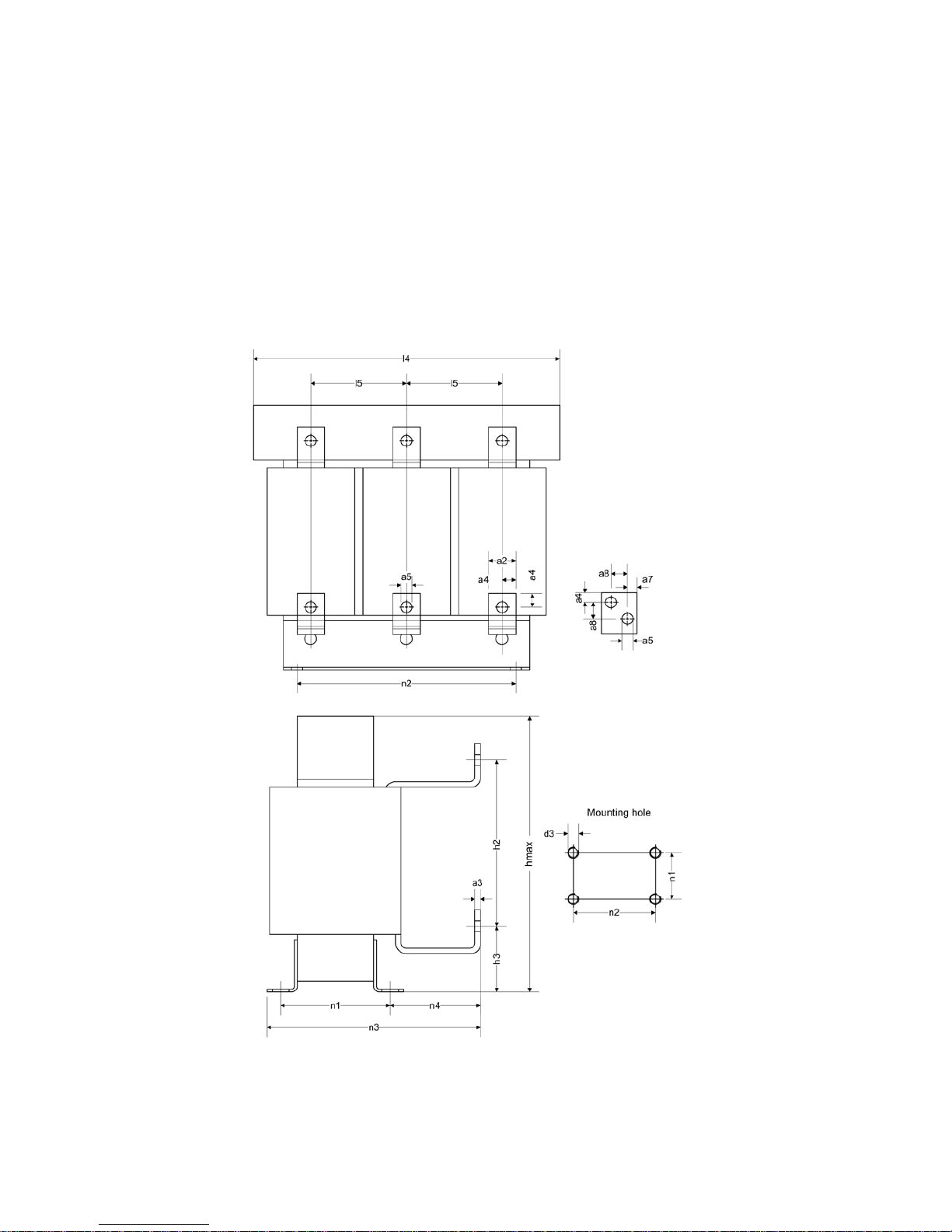

Figure 3-1 Dimension drawing, du/dt reactor

Mechanical installation
dV/dt filter plus Voltage Peak Limiter
16 Operating Instructions, 04/2014, A5E32847105B AB
Table 3- 1 Dimensions of du/dt reactor, 380 V - 480 V 3 AC (all values in mm)
6SL3000-
2DE35-0CA0
2DE38-4CA0
a2
30
30
a3
6
6
a4
17
17
a5
14 x 18
14 x 18
a6
9
9
a7
-
-
a8
-
-
I4
460
460
I5
152.5
152.5
hmax
370
370
h2
240
240
h3
83
83
n1
1)
182
182
n2
1)
356
356
n3
275
275
n4
71
71
d3 M12 (15 x 22) M12 (15 x 22)
1)
Lengths n1 and n2 correspond to the distance between holes
Dimension drawing of the voltage peak limiter

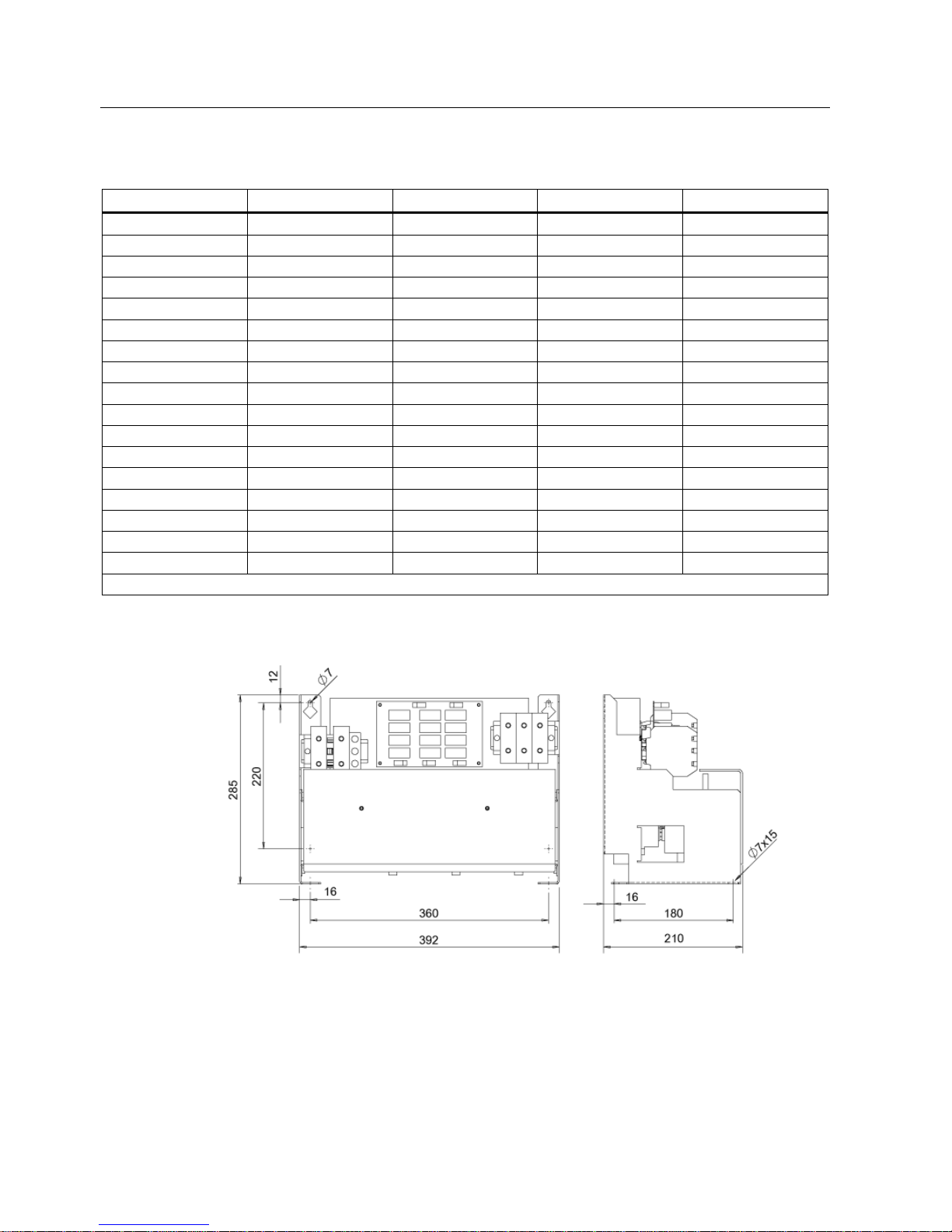

Figure 3-2 Dimension drawing, voltage limiting network, order number 6SL3000-2DE35-0BA0

Mechanical installation
dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 17

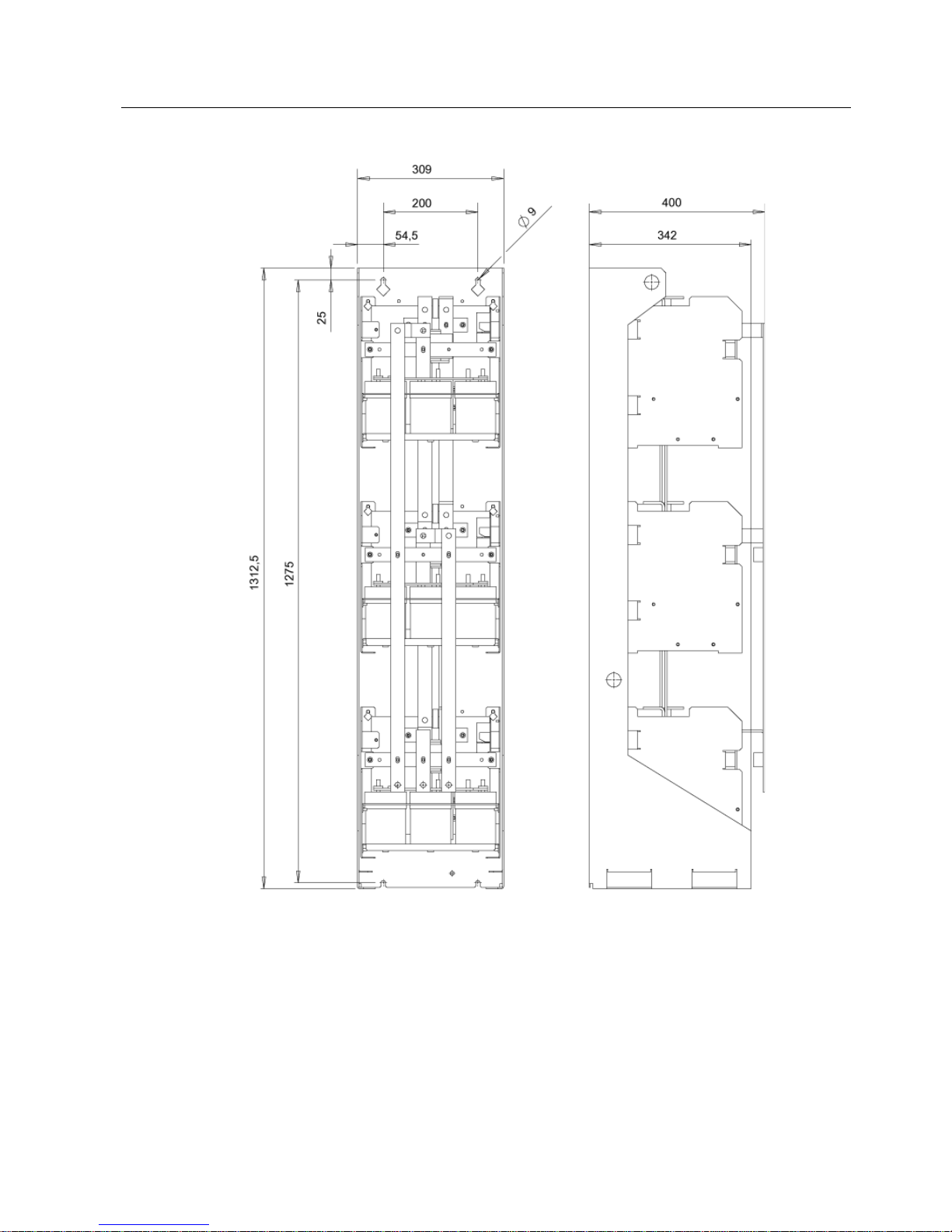

Figure 3-3 Dimension drawing, voltage limiting network, order number 6SL3000-2DE38-4BA0

Mechanical installation
dV/dt filter plus Voltage Peak Limiter
18 Operating Instructions, 04/2014, A5E32847105B AB

dV/dt filter plus Voltage Peak Limiter
Operating Instructions, 04/2014, A5E32847105B AB 19
Electrical installation
4
Interface overview
Figure 4-1 Interface overview voltage limiting network, order number 6SL3000-2DE35-0BA0

Electrical installation
dV/dt filter plus Voltage Peak Limiter
20 Operating Instructions, 04/2014, A5E32847105B AB

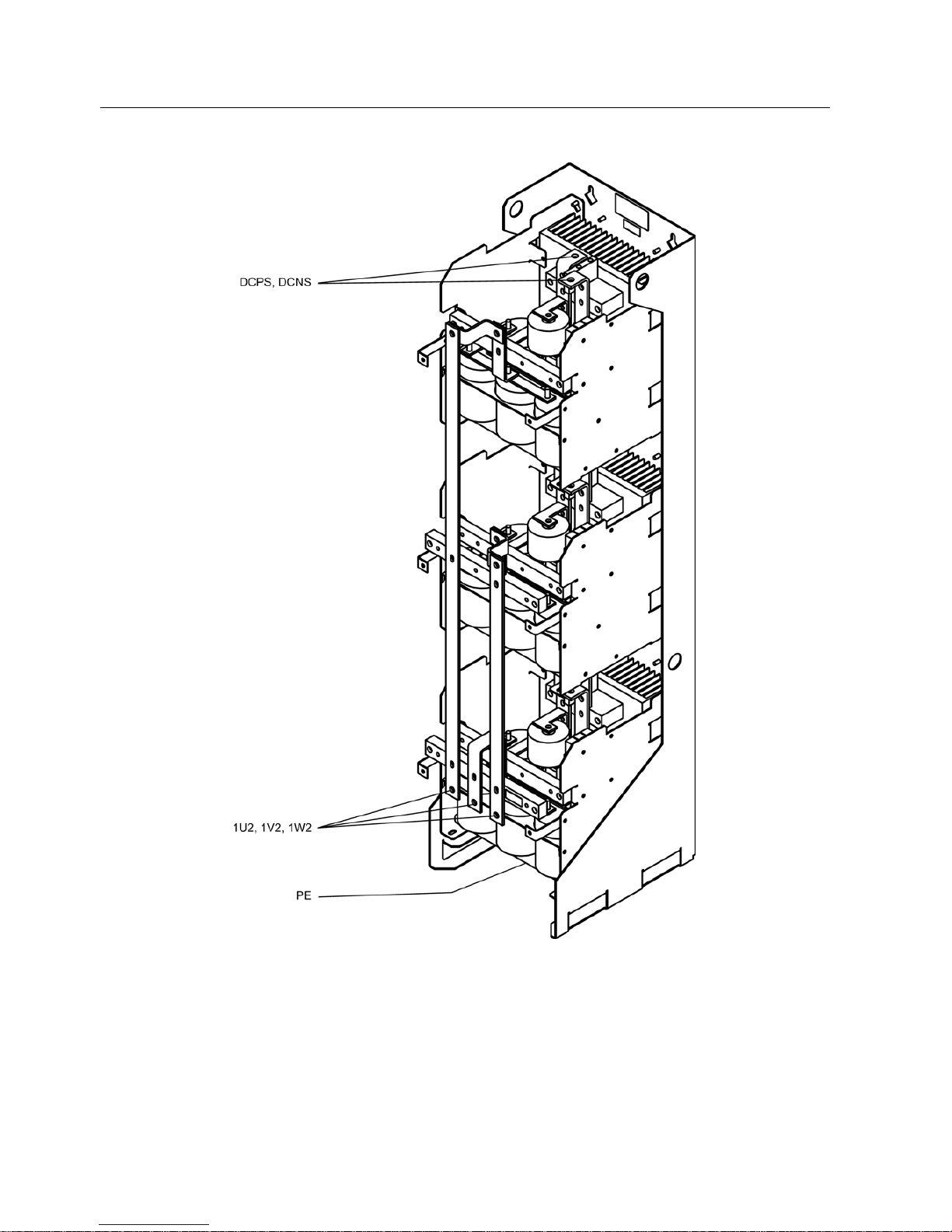

Figure 4-2 Interface overview voltage limiting network, order number 6SL3000-2DE38-4BA0
