Singer Arido SDHM-10L User manual

SDHM-10L
SDHM-12L
SDHM-16L
Dehumidifier
Αφυγραντήρας
Влагоабсорбатор
GB INSTRUCTION MANUAL
GR ΒΙΒΛΙΟ ΟΔΗΓΙΩΝ
BG ИНСТРУКЦИИ ЗА ЕКСПЛОАТАЦИЯ
R290

GB ENGLISH....................................... 3
GR EΛΛΗΝΙΚΑ .................................. 30
BG БЪЛГАРСКИ ............................... 61

3
ENGLISH
This product is using the Environment
friendly refrigerant R290. R290 has no
damaging influence on the ozone layer
(ODP), a negligible greenhouse effect (GWP)
and is available worldwide. This refrigerant is
tasteless and combustible, moreover, it can
burn and explode under certain condition.
Special precautions must be taken into
consideration before using and maintenance
of this appliance due to the coolant's high
flammability: so please read this user manual
carefully before using and maintenance.
SYMBOLS FROM THE UNIT AND USER MANUAL
This unit uses a flammable refrigerant gas.
If refrigerant gas leaks and comes in contact
to fire or heating part, it will be created harmful
gas and there is risk of fire.
Read the USER MANUAL carefully before op-
eration and maintenance.
Further information is available in the USER
MANUAL and the SERVICE MANUAL.
Service personnel are required to carefully
read the USER and SERVICE MANUAL before
operation and maintenance.
Additional warning for appliance with R290 refrigerant gas
(refer to the rating plate for the type of refrigerant gas used).
R290 refrigerant gas complies with European environmental
directives.

4
ENGLISH
WARNINGS (FOR USING R290 REFRIGERANT ONLY)
Appliance shall be installed, operated and
stored in a room with a floor area larger than 4
m2.
This product needs to be in a room without con-
tinuously operating ignition sources (for exam-
ple: open flames, an operating gas appliance,
an operating electric heater or stove with open
fire, etc.)
• Be aware that the refrigerants may not contain an odor.
• Do not pierce or burn.
• Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
• Compliance with national gas regulations shall be observed.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored so as to prevent mechanical
damage from occurring.
• A warning that the appliance shall be stored in a well-ventilat-
ed area where the room size corresponds to the room area as
specified for operation.
• Any person who is involved with working on or breaking into a
CAUTION: RISK OF FIRE
FLAMMABLE MATERIAL
READ THE MAΝUAL CAREFULLY
BEFORE USING THE APPLIANCE.
MAKE SURE TO SAVE THIS MANUAL
FOR FUTURE REFERENCE.

5
ENGLISH
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance
with an industry recognized assessment specification.
• Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring
the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of
flammable refrigerants.
IMPORTANT SAFETY INFORMATION
• Avoid installation behind a door.
• Use only with the supply voltage specified on the rating plate
of the Dehumidifier.
• Before installing, cleaning and servicing turn off the power and
unplug the unit.
• Do not place appliance close to a radiant heat source.
• Do not use the appliance near flammable gas of combustibles,
such as gasoline, bezene, thinner, etc.
• Do not immerse in liquid or allow liquid to run into the interior of
the appliance, as this could create an electrical shock hazard.
• Do not use this appliance on a wet surface, or where it can fall
or be pushed into water.
• Do not reach for an appliance that has fallen into water. Switch
off at supply and unplug immediately.
• Do not operate any appliance with a damaged cord, plug or
after the appliance malfunctions or has been dropped or dam-
aged in any manner. Refer appliance to a qualified electrical

6
ENGLISH
person for examination, electrical or mechanical adjustment,
service or repair before further use.
• Do not operate appliance with wet hands.
• This appliance is intended for indoor household use only and
not for commercial or industrial use.
• Use this appliance only as described in this manual. Any other
use is not recommended by the manufacturer and may cause
fire, electric shock or injury.
• Do not use this appliance in a window as rain may cause elec-
tric shock.
• Do not use abrasive cleaning products on this appliance. Wipe
with a soft cloth to clean the exterior. Always remove plug from
the mains supply before cleaning.
• Switch off the appliance before changing its position.
• Do not remove the power plug from the socket by pulling the
cord – grip the plug instead.
• Always unplug appliance when not in use.
• Do not run cord under carpeting, throw rugs or runners etc.
Arrange cord away from areas where it is likely to be tripped
over.
• Do not modify power cord length or share the outlet with other
appliances.
• Disconnect the power if strange sounds, smell or smoke
comes from it.
• Do not place heavy object on the power cord and take care so
that the cord is not compressed.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabili-
ties, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.

7
ENGLISH
• Young children should be supervised to ensure they do not
play with the appliance.
• If the supply cord is damaged, it must be replaced by a quali-
fied electrical person in order to avoid a hazard.
• Do not spray pesticides or flammable gas near the unit.
• Do not scrape the unit using sharp objects.
• Do not splash any oil or water into the unit.
• Install the unit on a flat, horizontal surface to avoid vibration
and noise.
• Do not put heavy objects on the appliance.
• Do not cover the intake or exhaust opening with cloths or tow-
els.
• Do not drink or use the water drained from the unit.
• Do not take the water tank out during operation.
• Empty the water tank before moving the unit to avoid water
spilling.
• Do not tilt the unit to prevent water from spilling and damaging
the machine.
• Do not insert or allow slim rods or other foreign objects to enter
any opening, as this may cause an electric shock, fire or dam-
age to the appliance.
• Never insert your finger or other foreign objects into grills or
openings. Take special care to warn children of these dangers.
• If any abnormal situations occur, immediately turn off the pow-
er supply.

8
ENGLISH
SERVICE & REPAIR
1. For service or repair under warranty, please contact the au-
thorized service company that is mentioned on the guarantee
card that accompanies the product.
2. Do not operate any product with a damaged cord or plug. If
the supply cord is damaged, return the appliance to a SINGER
service center for examination repair or adjustment. Do not at-
tempt to dismantle any part of the appliance. This should only
be done at an authorized SINGER service centre.
3. The partial or total non-respect of the safety instructions in the
present instruction manual will automatically release Singer of
any type of responsibility in case of malfunction of the machine
or injuries to persons or animals.
4. In case of manipulation, repairing or any modification of the
machine made by unqualified persons or in case of improper
use, the guarantee will be automatically cancelled.
PRODUCT DESCRIPTION
The dehumidifier is used to remove excessive moisture from the
air. The resulting reduction in relative humidity protects buildings
and their contents from the adverse effects of excess humidity.
Before Initiation
• To avoid any damage, place the unit in an upright position for
at least 24 hours before initiation.
• Make sure that the air outlet and air inlet are never blocked.
• Only operate the unit on a horizontal surface to ensure no wa-
ter leaks out.
• After removing the packaging, make sure that the appliance is
in good condition.
• Do not allow children to play with the packaging materials as
there is risk of suffocation.

9
ENGLISH
Touch panel
Air outlet
Front shell
Right side shell
Castors
OVERVIEW

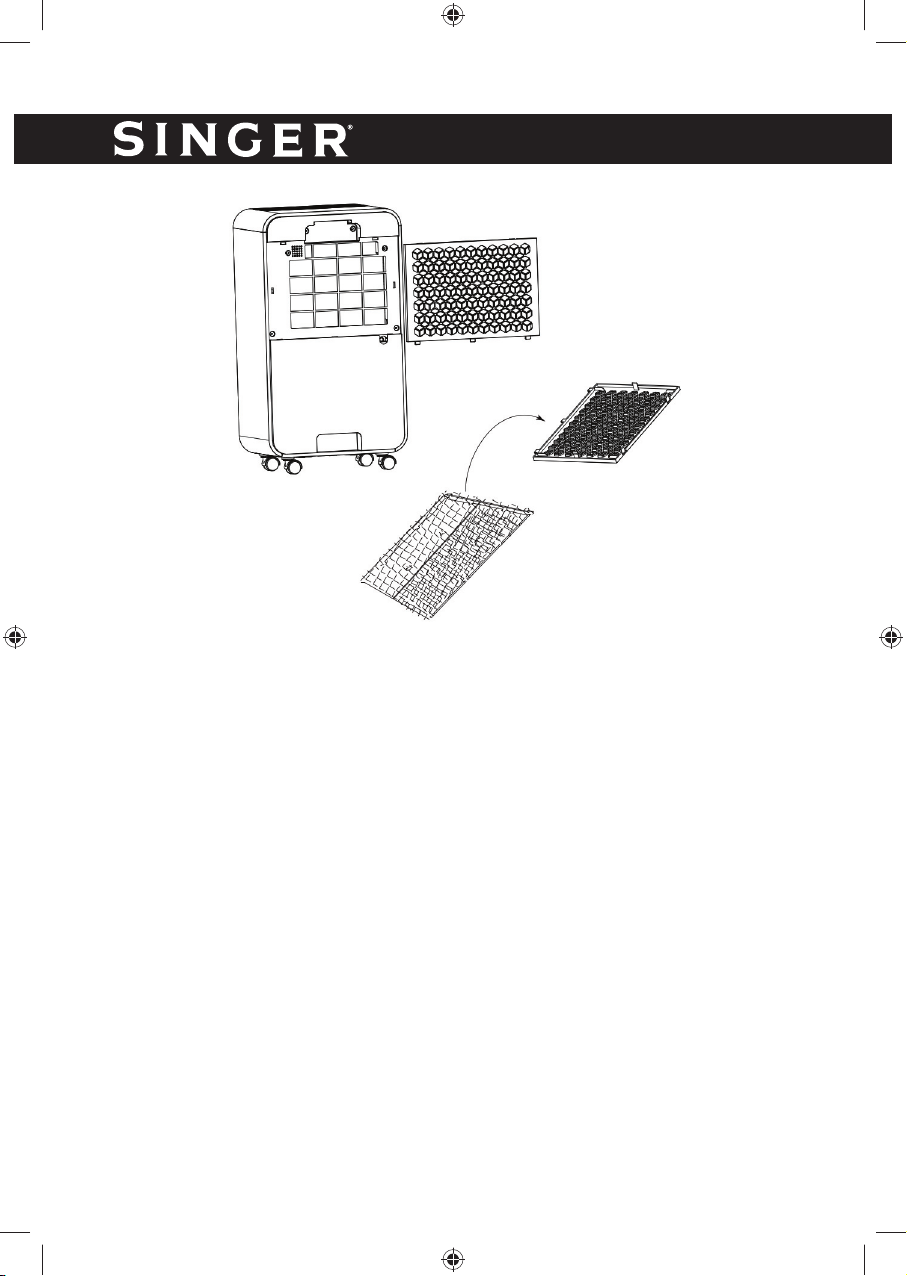

2 IN 1 FILTER gives a healthy and fresh atmosphere.
ACTIVE CARBON FILTER (BLACK): is the filter most used to remove gases.
The result is purifying the air from contaminants and particulates.
ION FILTER (BLUE): succeeds disinfection and sterilization.
Back shell
Air filter
Water tank

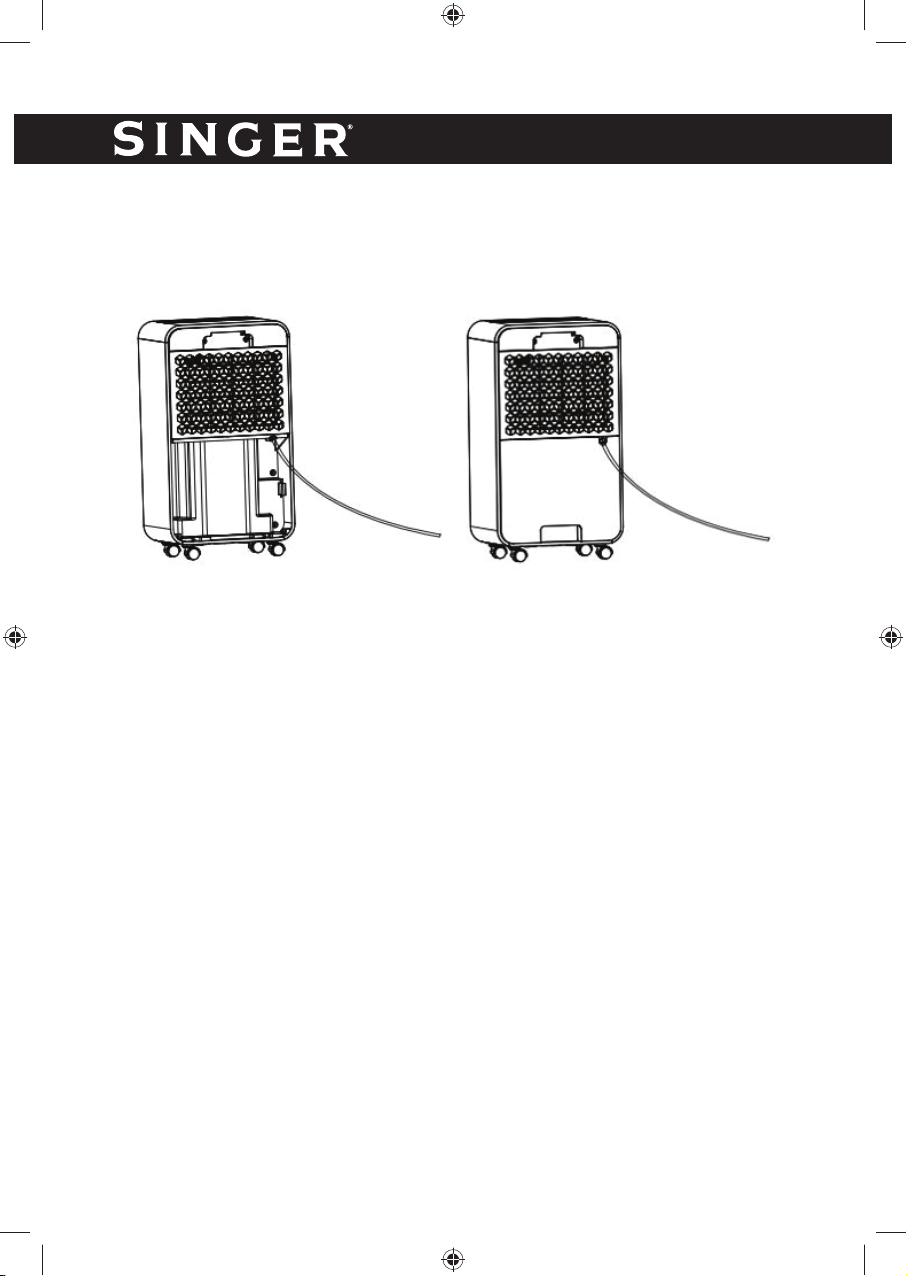

Continuous
drainage

10
ENGLISH
FEATURES
• Powerful moisture removal (up to 10 or 12L/day dehumidification according
to the model)
• LED display shows current air humidity
• Auto mode automatically adjusts humidity levels
• 24-hour timer to set the time of operation
• Effectively removes moisture, dust from the air
• Low power consumption-energy efficient
• Quiet fan has two speed settings
• Auto shut-off/ auto restart
• Electronic control
• Child-lock function
• Laundry drying function
• Active carbon filter + ION filter (2 in 1)
• Continuous drainage or 2L water tank
ACTIVE CARBON FILTER (BLACK)
+ ION (BLUE)

11
ENGLISH
PARAMETERS
Home Dehumidifier SDHM-10L ARIDO SDHM-12L ARIDO SDHM-16L ARIDO
Power Supply AC220V-240V/50Hz AC220V-240V/50Hz AC220V-240V/50Hz
Power Consumption 180W(30ºC,80%) 180W(30ºC,80%) 270W(30ºC,80%)
Rated Current 0.95A(30ºC,80%) 0.95A(30ºC,80%) 1.4A(30ºC,80%)
Dehumidify Capacity 10L/D (30ºC,80%) 12L/D (30ºC,80%) 16L/D (30ºC,80%)
Noise >36dB(A) >36dB(A) ≤38dB(A)
Air Circulation 130m3/hr 130m3/hr 150m3/hr
Full Water Quantity 2L 2L 2L
Refrigerant /Charge R290/60g R290/60g R290/65g
Working Temp. 5ºC-35ºC 5ºC-35ºC 5ºC-35ºC
Body Size 280x200x500mm 280x200x500mm 280x200x500mm
Net Weight 12kg 12kg 12kg
BEFORE FIRST USE
Install the unit in a convenient position as per the diagram shown below.
Notes:
• Before moving the unit, remove any water from the water tank.
• To save energy, keep windows and door closed when unit is running.
• Please install the unit on a flat horizontal surface.
minimum 20cm
minimum 20cm
minimum 20cm
minimum 20cm
minimum 20cm

12
ENGLISH
CONTROL PANEL
Power
In the standby state, press the power button to turn on, the operation indicator
lights up and the default fan speed is high, at the same time the POWER lights
up and the default humidity is 50%. In the power-on state, press the power
button to turn off, the running indicator light goes off and the compressor stops
immediately, and then the fan shut down after 30 seconds delay.
Humidity
Touch the humidity button to check the current environment humidity, touch
this button again and you can set the humidity. The range of target humidity is
20%-25%-30%- 35% - 40% - 45% - 50% - 55%- 60% - 65% -70% - 75%- 80%.
After setting 3 seconds, the system confirms the input value and then the ma-
chine exits the setting state and returns the current humidity.
In the drying mode, the target humidity cannot be changed.
Long Press humidity button for 5 seconds to display the current ambient tem-
perature.
Mode
Press this button to switch between 2 modes: Auto mode; Continuous (clothes
drying) mode.
1. Auto mode: Auto mode is the default mode when the power is on. But-
ton Auto lights up and the fan speed is low. Appliance operate under default
humidity 50% RH. Both fan speed and humidity can be adjusted under auto
mode.Then the fan speed can be changed according to the environmental
humidity.

13
ENGLISH
2.
C
ontinuous (clothes dryin
g
) mode: Pre
ss
t
h
i
s
b
utton to
s
witc
h
to continu
-
ous clothes drying mode.
T
he
is on under this mode. There will be hi
g
h
f
an speed under this mode,
an
d
t
h
e
h
umi
d
ity cannot
b
e c
h
an
g
e
d
. T
h
e environmental
h
umi
d
ity can
b
e
s
h
own on t
h
e panel
T
i
me
r
Press the timer button to set the 0-24 hours timin
g
f
unction. The interval is 1
h
our. Eac
h
time
y
ou press t
h
is
b
utton, t
h
e value increase
d
1
h
ours an
d
t
h
en
t
h
e correspon
d
in
g
timin
g
value is
d
isplaye
d
on t
h
e screen. T
h
e settin
g
value is
“00” to cancel the timer
f
unction. The indicator turn
s
out. A
f
ter the timer i
s
s
et
and completed, the timer LED is on durin
g
the timin
g
period. A
f
ter the timin
g
is
o
ver, the timer LED turns o
ff
automaticall
y.
In the runnin
g
state, set the time to turn o
ff
the machine
.
in t
h
e stan
dby
state, set t
h
e time to turn on t
h
e mac
h
ine
.
Slee
p
mode LOW DEHUMIDIFYING (ECONOMY) mode
Press this button, the button li
g
hts up and the Low Dehumidifyin
g
(Economy)
mode turns on. All indications
g
radually become darker and the
f
an speed au
-
tomatically chan
g
es
f
rom hi
g
h to low. Touch any button to activate the display.
Touch the
S
leep button a
g
ain to exit this mode. The default humidity in this
mo
d
e i
s
60% RH
.
Fa
n
Press t
h
is
b
utton to set t
h
e
h
i
gh
win
d
or low win
d
, an
d
t
h
en t
h
e correspon
d
in
g
indicator li
g
hts up. In Continuously (clothes dryin
g
) mode, Sleep LOW DEHU
-
M
IDIFYING (ECONOMY) mode and defrostin
g
period, the fan speed cannot
b
e c
h
an
g
e
d.

14
ENGLISH
Child-lock
Press this button for 3 seconds, the Child Protection Key will be turn on and
no other function will be operated. The Child Protection Key will turn off if you
press again this button.
LED DISPLAY
Fan high speed
Fan low speed
Sleep mode LOW DEHUMIDIFYING (ECONOMY) mode
Child lock
Full tank
Timer
Auto mode
Continuous (clothes drying) mode
Power ON/OFF
Room Humidity, room temperature, timer (hours)

15
ENGLISH
WATER TANK INDICATOR
When the water tank is full for 5 seconds, the indicator light shows red,
the buzzer will warn for 15 times and the unit stops automatically. At this time,
empty the water tank and put it back to correct position.

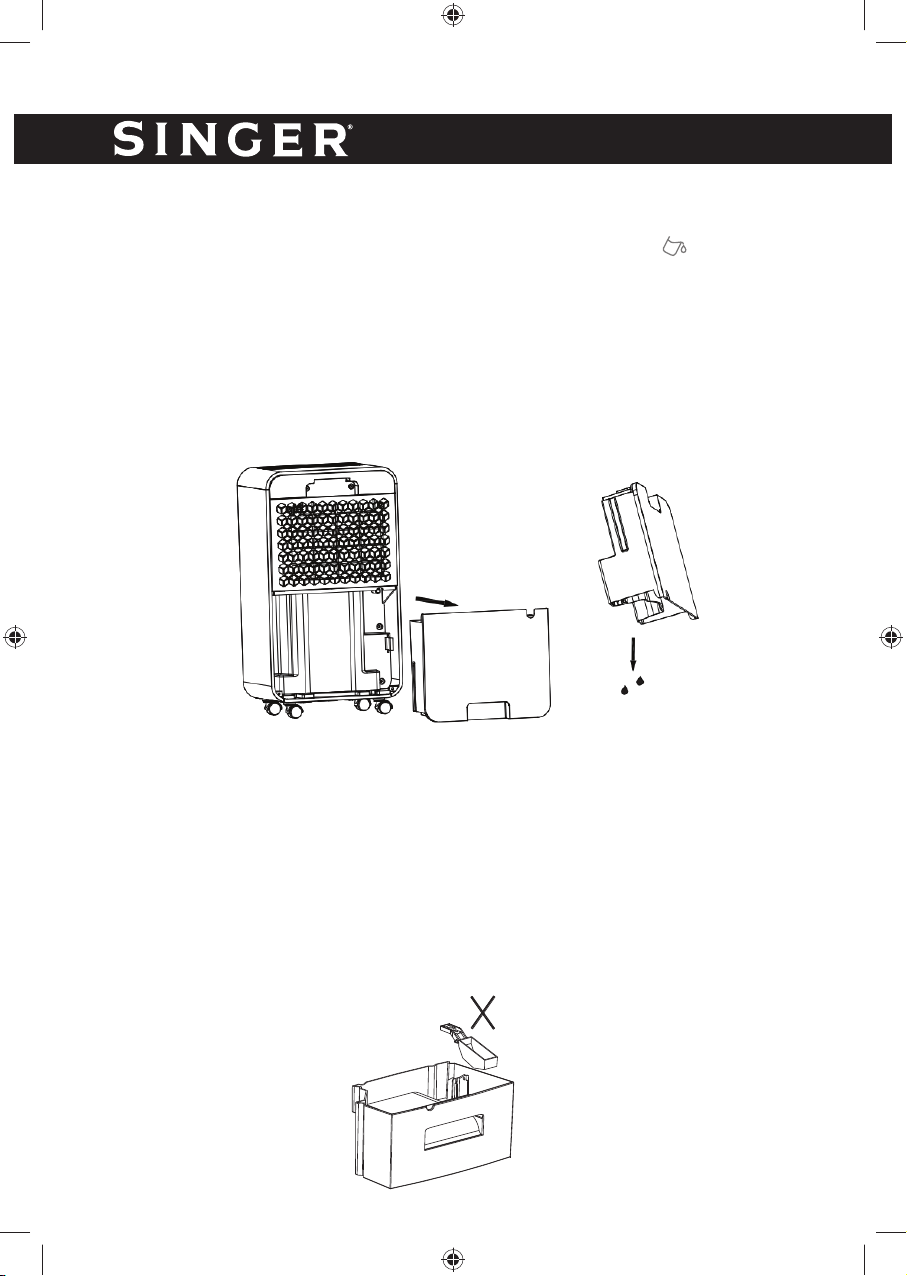

EMPTY THE TANK
●Grab the notch at the bottom of the tank and pull it out with both hands.
Take it slowly and steadily in case of spilled water.
●Empty the water.
●Put the water tank back in position. The dehumidifier automatically starts
working again.
MAINTENANCE
CAUTIONS
1. Do not remove the float in the water tank, otherwise, the machine cannot
start work or power on

16
ENGLISH
2. If the water tank is dirty, clean by cool water or warm water, cannot use
cleaner, steel wool, chemical rag duster, gas oil, benzene, thinner or other
solvent to clean it, otherwise, it would damage the water tank and lead to
leakage.
3. When you place the water tank back into place, please use two hands to
push the water tank into the machine and force to the right position. If you do
not place the water tank in the right position, the machine would not power
on or start.

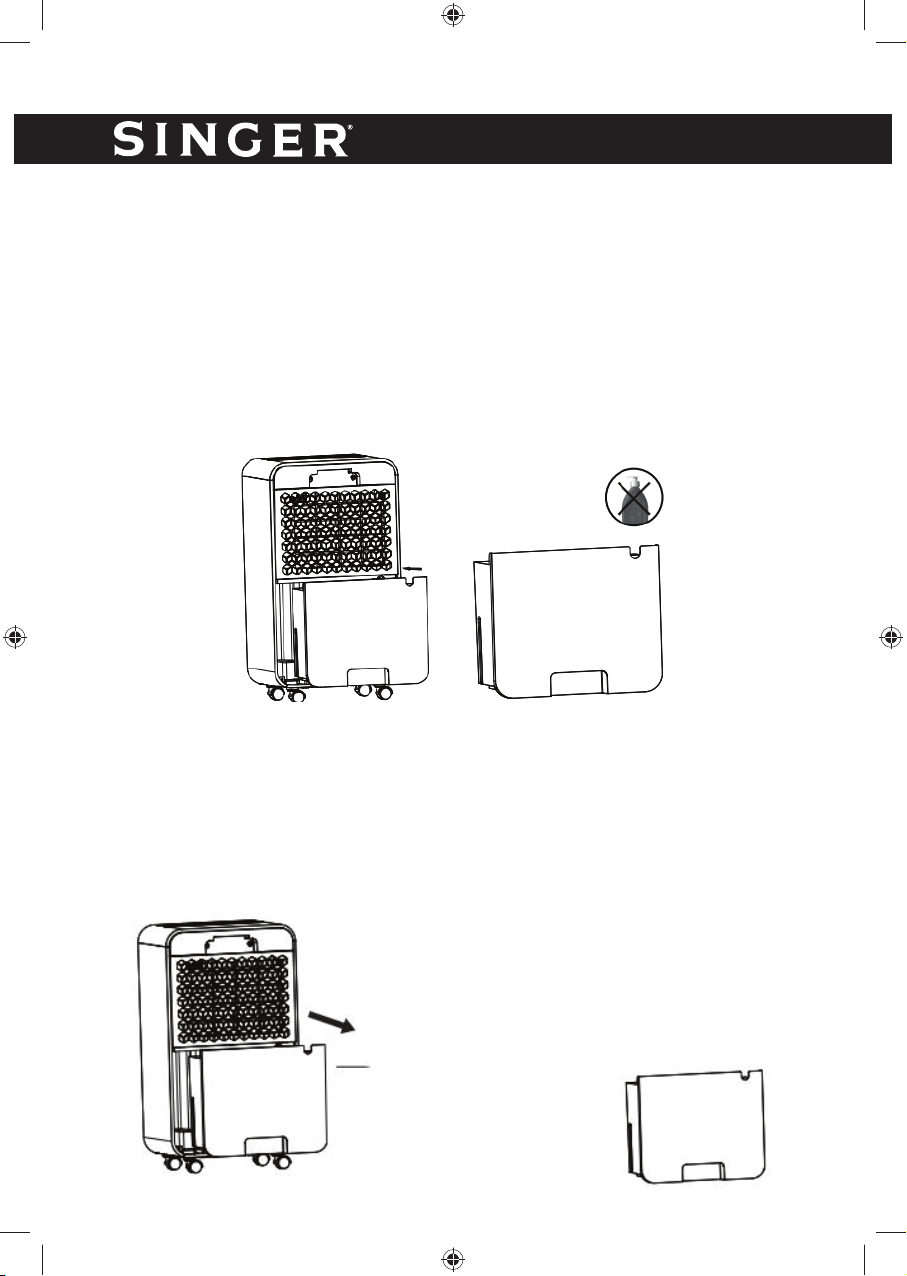

CONTINUOUS DRAINAGE
This dehumidifier has a continuous drainage hole which used to be connected
by a plastic tube (inside diameter is 9mm), then the dehumidification water can
be continuous drainage.
●Take out the water tank
Take out the water tank

17
ENGLISH
●Use a water hose(diameter=9.5mm) to connect the water outlet.
●Passes the water hose through the cutting hole in the tank and put the tank
back.
For continuous drainage, the end of the hose should not be submerged in wa-
ter to prevent it from being blocked or damaged.
CLEANING AND MAINTENANCE
The unit must be regularly cleaned to prolong its life and keep it functioning
properly.
Warning: Before performing any cleaning, turn off the unit and unplug it to
avoid electrical shocks.
Do not use hot water or chemical solvents for cleaning.
1. Regularly, clean the Water Tank and its cover with cold or warm water and
dry with a soft cloth to avoid any mildew.
2. Clean the surface of the unit using a moist cloth. Do not use detergents or
abrasive sponges that can cause damage to the plastic surface.
3. Clean the Washable Air Filter as described in the following section.

18
ENGLISH

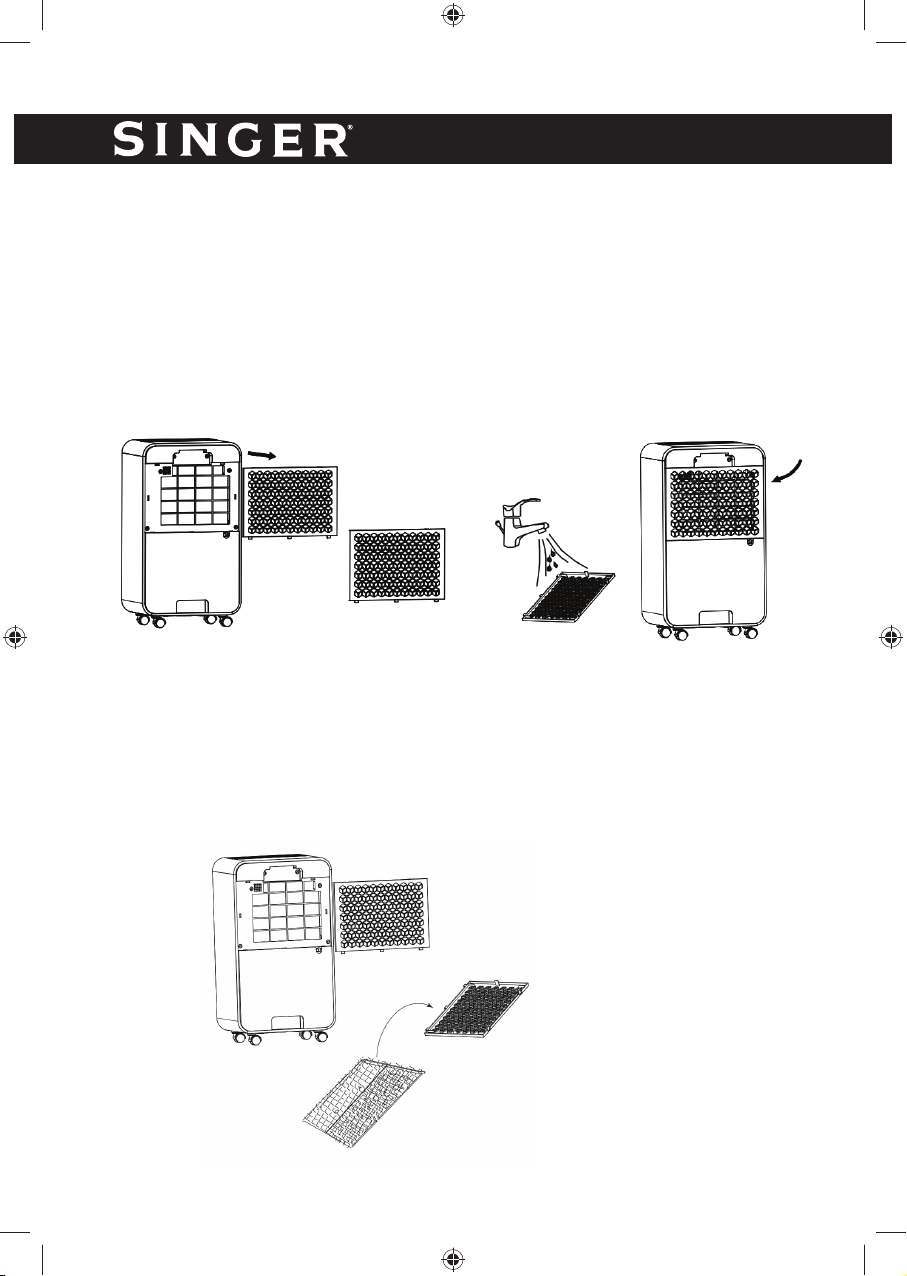

WASHABLE AIR FILTER
There is a Washable Air Filter on the rear of the unit (see Overview diagram)
that must be removed and cleaned regularly.
Caution: Do not use hot water or chemical solvents for cleaning.
• If there is only a little dust, you may use a soft cloth or a vacuum cleaner
to remove the dust.
• If the air filter is dirty, you can wash it in warm water (temperature < 40°C).
• To avoid deformation, let the filter air dry, away from any heated surfaces.
2 IN 1 FILTER ACTIVE CARBON + ION
This filter is not washable and should be replaced every 3 months.
Note: Removing the Active Carbon+ Ion Filter reduces the air-filtering ability
of the unit but does not affect any other functionality. The unit is fully functional
without the Active Carbon + Ion Filter.
Active Carbon + Ion Filter

19
ENGLISH
Storage
If the dehumidifier will not be used for an extended period:
1. Drain the water tank completely and make sure no more water stocked
inside.
2. Unplug the unit and fold up the power supply cord.
3. Remove and clean the air filter, allow it to dry completely and reinstall it.
4. Store the dehumidifier in a cool, dry location, away from direct sunlight, ex-
treme temperature and excessive dust.
TROUBLESHOOTING
1. OPERATION TEMPERATURE
Please check if the ambient temperature is very low or very high (when opera-
tion temperature is lower than 5℃or higher than 35℃, the unit will not work).
When the ambient temperature is ≤16°C, the compressor automatically de-
frosts at regular intervals. During defrosting, the compressor stops and the fan
continues to operate.
2.BEFORE CALLING FOR SERVICE
Before contacting professional service, please review the trouble shooting list
that includes common occurrences that are not the result of a defect in work-
manship or materials.
Problem Possible Cause Solution
Not working
No power supply Connect to a function-
ing outlet and switch on
Water Full Indication
Flashes
Drain water tank and
reset it, or re-position
the water tank to right
place
Room temperature ˂
5°C,or ˃35 °C
Self-Protection de-
signed to protect the
unit. Cannot work under
such temperature

20
ENGLISH
Bad functioning
Is the air filter clogged? Clean the air filter as
instructed
Is the intake duct or
discharge duct ob-
structed?
Remove the obstruction
from the discharge duct
or intake duct.
No air intake Is the filter clogged? Wash the filter
Loud noise when run-
ning
Is the machine put in
the plat place?
Put the machine on the
plat ground
Is the filter clogged? Wash the filter
E2 Humidity sensor prob-
lem Change a sensor
LO Environmental humidity
is below 20%
The dehumidifier shuts
down for self- protec-
tion
HI Environmental humidity
is above 90%
CL
Low temperature
protection, the envi-
ronmental tempera-
ture<5℃
CH
High temperature
protection, the envi-
ronmental tempera-
ture>35℃
PRODUCT REPAIR FOR APLLIANCES CONTAINING R290
Warnings
• Do not exceed impedance greeter than 0.236ohm in supply the appli-
ance is connected to. Failure to comply may lead the supply authority
to impose restrictions to connection. Please consult your energy supply
authority if the use of equipment exceeds 0.236 ohm.
• All operators or refrigeration circuit maintenance personnel should obtain
a valid certificate issued by an industry-approved assessment agency to
