Skil 1490 User manual

MULTI-FUNCTION TOOL
1490 (F0151490 . . )
SKIL Europe BV - Konijnenberg 60 01/12 2610Z00410
4825 BD Breda - The Netherlands
 ORIGINAL INSTRUCTIONS 5
NOTICE ORIGINALE 8
ORIGINALBETRIEBSANLEITUNG 11
 ORIGINELE GEBRUIKSAANWIJZING 15
BRUKSANVISNING I ORIGINAL 18
 ORIGINAL BRUGSANVISNING 21
ORIGINAL BRUKSANVISNING 24
 ALKUPERÄISET OHJEET 27
MANUAL ORIGINAL 30
MANUAL ORIGINAL 34
ISTRUZIONI ORIGINALI 37
EREDETI HASZNÁLATI UTASÍTÁS 40
 PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 44
 ORİJİNAL İŞLETME TALİMATI 47
 INSTRUKCJA ORYGINALNA 50
 ПОДЛИННИК РУКОВОДСТВА
ПО ЭКСПЛУАТАЦИИ 54
 ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ 58
 ΠΡΩΤΟΤΥΠΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΗΣ 61
 INSTRUCŢIUNI DE FOLOSIRE
ORIGINALE 65
 ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ 69
 PÔVODNÝ NÁVOD NA POUŽITIE 72
 ORIGINALNE UPUTE ZA RAD 76
 ORIGINALNO UPUTSTVO ZA RAD 79
 IZVIRNA NAVODILA 82
 ALGUPÄRANE KASUTUSJUHEND 85
 ORIĢINĀLĀ LIETOŠANAS PAMĀCĪBA 88
 ORIGINALI INSTRUKCIJA 91
 100
 98
www.skilmasters.com

2
1
¹ÌÌ
ʿʿʽ
ʾƓʾÿ
ʽʾƯʿʽʽˀ
ʾʿʽʽʽƘ
ʾˆʽʽʽƯÅÁÆ
ˆˀÅÅ
OIS
1490
A
B
C
D
EFG
H
J
K
L
M
P (3x) Q (3x)
fine,fin
fein,fijn
2
ʿˀʽ
Ƙ
ʿˁʽ
Oscillating
Interface
System
OIS
4
3

3
30º
0º
60º
90º
-30º
-60º
-90º
5
6

4
45º
7
8 9
0
F

5

Multi-function tool 1490
INTRODUCTION
• This tool is intended for sawing and cutting in wood,
plastic, plaster, metals and soft wall tiles as well as for dry
sanding of small surfaces
• Due to the oscillating drive the accessory swings up to
22000 times per minute for 3°, which makes the tool
particularly suitable for precise work on edged,
narrow and other hard-to-reach places

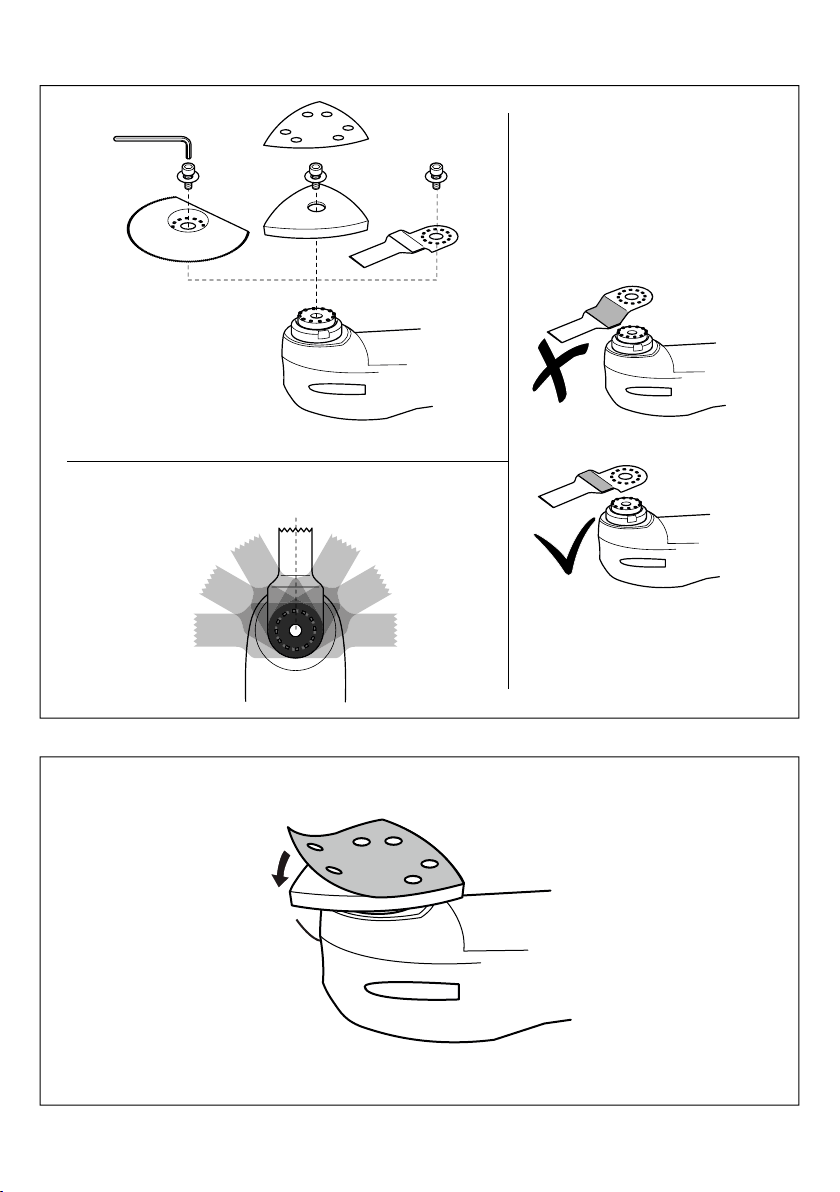

• This tool accepts most commonly available multi-tool
accessories, including existing BOSCH OIS accessories 3
• Read and save this instruction manual 4
TECHNICAL SPECIFICATIONS 1

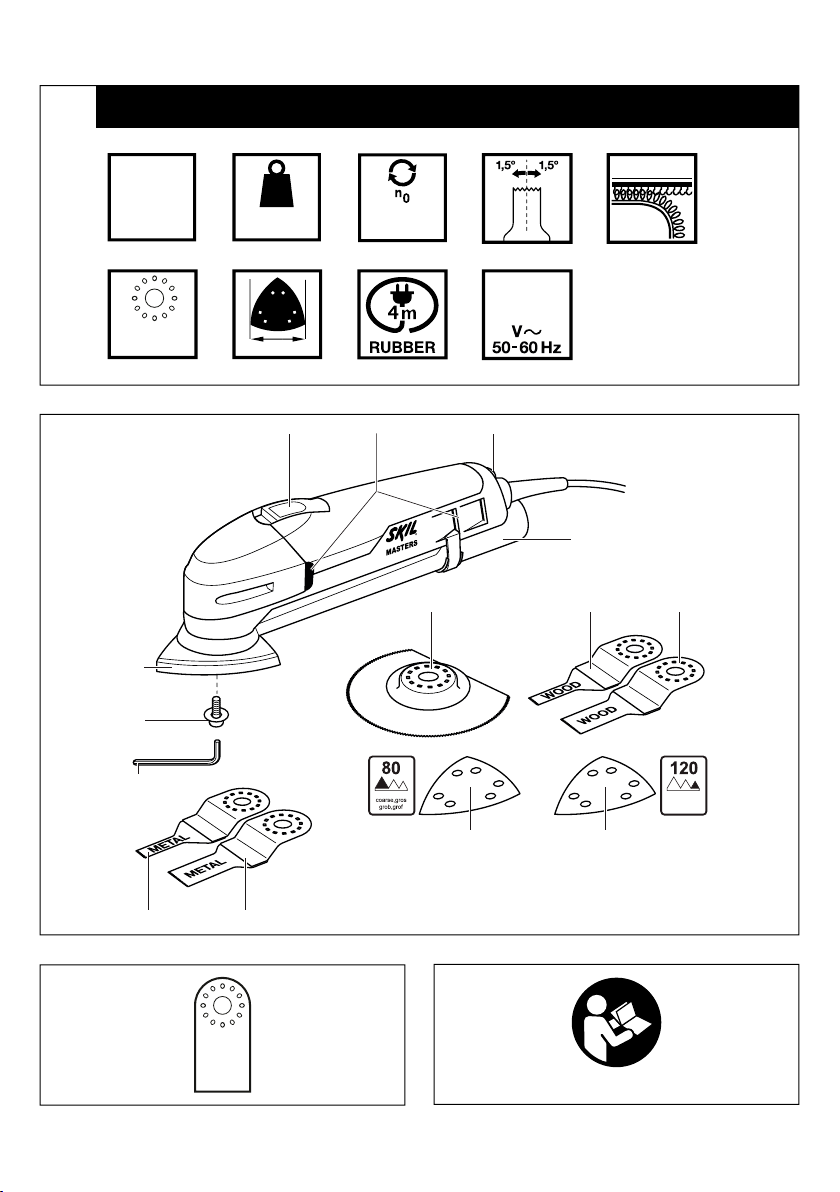

TOOL ELEMENTS 2
A Clamping screw with washer
B Hex key
C Sanding pad
D Dust extraction device
E On/o switch
F Speed selection wheel
G Ventilation slots
H Segment saw blade
J Plunge-cut saw blade (metal, 20 mm)
K Plunge-cut saw blade (metal, 10 mm)
L Plunge-cut saw blade (wood, 20 mm)
M Plunge-cut saw blade (wood, 10 mm)
P Sanding sheet (coarse)
Q Sanding sheet (ne)
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury. Save
all warnings and instructions for future reference. The
term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodied plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.

6
d) Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR MULTI-FUNCTION
TOOLS
GENERAL
• This tool should not be used by people under the age of
16 years
• Use completely unrolled and safe extension cords with a
capacity of 16 Amps (U.K. 13 Amps)
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool (tools with
a rating of 230V or 240V can also be connected to a
220V supply)
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely
than by hand)
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Always disconnect plug from power source before
making any adjustment or changing any accessory
• When working, always hold the tool rmly with both
hands and take a secure stance
• Always keep the cord away from moving parts of the tool;
direct the cord to the rear, away from the tool
• Use protective gloves when changing accessories
(contact with the accessory can lead to injuries)
• In case of electrical or mechanical malfunction,
immediately switch o the tool and disconnect the plug
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
• Never use the tool when cord is damaged; have it
replaced by a qualied person
• When you put away the tool, switch o the motor
and ensure that all moving parts have come to a
complete standstill
WHEN SAWING/CUTTING
• Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord (a cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock)
• Keep hands away from cutting area; never reach
underneath the material for any reason while cutting
• Use suitable detectors to find hidden utility lines or
call the local utility company for assistance (contact
with electric lines can lead to re or electrical shock;
damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Do not use a saw blade which is cracked,
deformed or dull
WHEN SANDING
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic (such
as oak and beech dust) especially in conjunction with
additives for wood conditioning; wear a dust mask and
work with a dust extraction device when connectable
• Follow the dust-related national requirements for the
materials you want to work with
• Use the tool only for dry sanding (penetration of water
into the tool increases the risk of an electric shock)
• Do not touch the moving sanding sheet
• Do not continue to use worn, torn or heavily clogged
sanding sheets
• When sanding metal, sparks are generated; do not use
vacuum cleaner and keep other persons and combustible
material from work area
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut o the cord of this tool, it
must be disposed of safely and not left unattended
USE

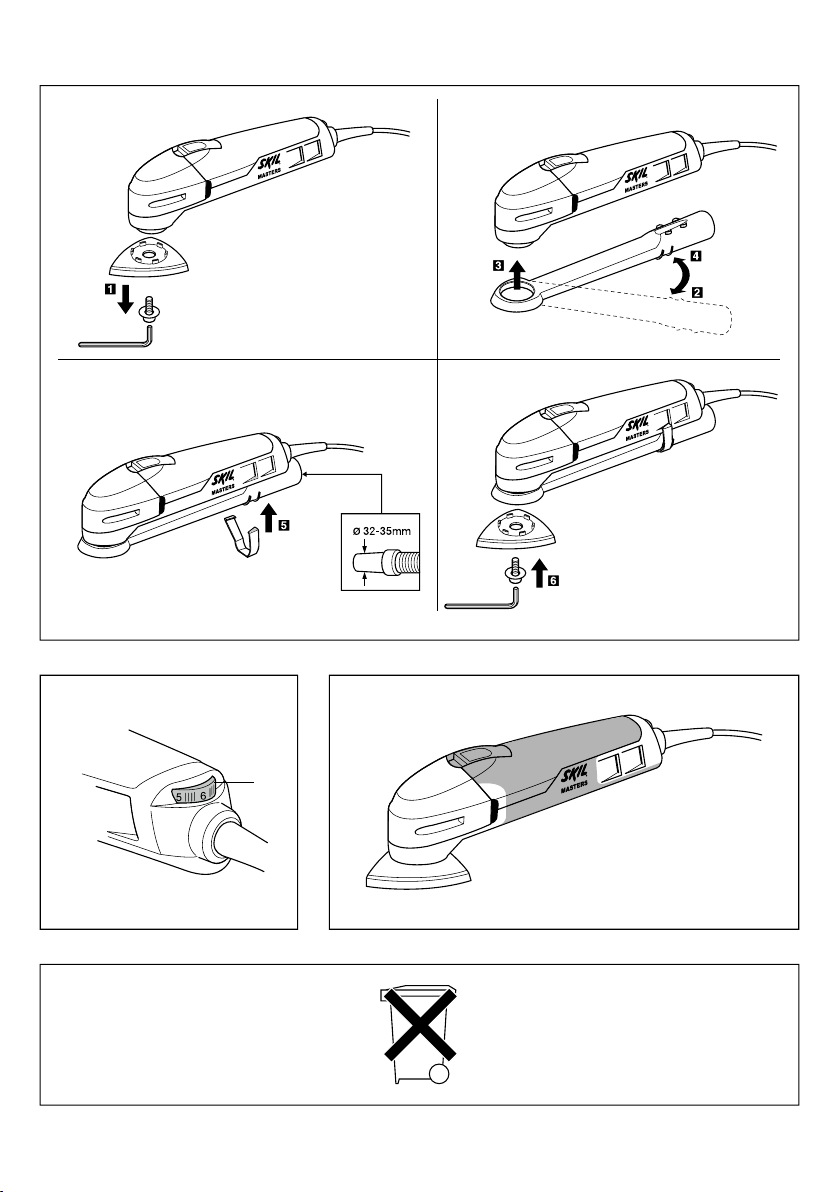

• Changing accessories 5
! disconnect the plug
- remove/mount the required accessory as illustrated
- ensure that the openings of the accessory
engange into the tabs of the tool head
(any snap-in position possible)
- mount the accessory with the depressed centre
pointing downwards
- loosen/fasten screw A with hex key B
- check the tight seating of the accessory (incorrect
or not securely fastened accessories can come loose
during operation and create a hazard)
• Mounting of sanding sheet 6
- knock the dust out of the VELCRO material on sanding
pad C 2 before mounting the sanding sheet
- mount VELCRO sanding sheet as illustrated

7
! the dust suction requires the use of perforated
sanding sheets
! perforation in sanding sheet should correspond
with perforation in sanding foot
! replace worn sanding sheets in time
! always use the tool with the total VELCRO
surface covered with sanding paper
• Dust/chip extraction 7
- mount dust extraction device D as illustrated
- connect vacuum cleaner
! do not use dust extraction device/vacuum cleaner
when sanding metal
- clean dust extraction device D regularly for optimal
dust pick-up performance
• On/o
- switch on/o the tool by pushing switch E 2 in "I"/"O"
position
! before the accessory reaches the workpiece, the
tool should run at full speed
! before switching off the tool, you should lift it
from the workpiece
• Adjusting working speed 8
- with wheel F the required oscillating frequency
can be adjusted from low (1) to high (6) (also while tool
is running)
- the optimal working speed depends on the material
and can be determined with practical trials
• Holding and guiding the tool
! while working, always hold the tool at the
grey-coloured grip area(s) 9
- keep ventilation slots G 2 uncovered
- do not apply too much presssure on the tool
(excessive pressure will cause excessive heat and
may shorten the service life of the accessory)
APPLICATION ADVICE
• Use segment saw blade H 2 for separating and plunge
cuts in wood, plaster, gypsum and plastics (also for
sawing close to edges, in corners and other hard-to-
reach areas)
• Use plunge-cut saw blade J 2 for separating and deep
plunge cuts in ferrous and non-ferrous metals
• Use plunge-cut saw blade K 2 for smaller separating
and plunge cuts in ferrous and non-ferrous metals
• Use plunge-cut saw blade L 2 for separating and deep
plunge-cuts in wood, plaster, gypsum and soft plastics
(also for sawing close to edges, in corners and other
hard-to-reach areas)
• Use plunge-cut saw blade M 2 for smaller separating and
plunge-cuts in wood, plaster, gypsum and soft plastics
MAINTENANCE / SERVICE
• Always keep tool and cord clean (especially ventilation
slots G 2)
! disconnect the plug before cleaning
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skilmasters.com)
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol 0 will remind you of this when the need for
disposing occurs
DECLARATION OF CONFORMITY
• We declare under our sole responsibility that this product
is in conformity with the following standards or
standardized documents: EN 60745, EN 61000,
EN 55014, in accordance with the provisions of the
directives 2004/108/EC, 2006/42/EC
• Technical file at: SKIL Europe BV (PT-SEU/PJE),
4825 BD Breda, NL
Arno van der Kloot
Vice President
Operations & Engineering
SKIL Europe BV, 4825 BD Breda, NL
Jan Trommelen
Approval Manager
12.01.2012
NOISE/VIBRATION
• Measured in accordance with EN 60745 the sound
pressure level of this tool is 85 dB(A) and the sound
power level 96 dB(A) (standard deviation: 3 dB),
and the vibration ✱ (hand-arm method)
✱ when surface grinding 4.1 m/s² (uncertainty K = 1.5 m/s²)
✱ when cutting with plunge-cut saw blade 7.4 m/s²
(uncertainty K = 1.5 m/s²)
✱ when cutting with segment saw blade 7.1 m/s²
(uncertainty K = 1.5 m/s²)
• The vibration emission level has been measured in
accordance with a standardised test given in EN 60745; it
may be used to compare one tool with another and as a
preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
- using the tool for dierent applications, or with dierent
or poorly maintainted accessories, may signicantly
increase the exposure level
- the times when the tool is switched o or when it is
running but not actually doing the job, may signicantly
reduce the exposure level
! protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work patterns
