Skov DA 60-920 Manual

2022.03.29 • 612501
DA 60-920
Technical User Guide

DA 60-920
Product and Documentation Changes
SKOV A/S reserves the right to change this manual and the product described herein without prior notice. In
case of doubt, please contact SKOV A/S.
The date of change appears on the front and back pages.
Note
•All rights reserved. No part of this manual may be reproduced in any manner whatsoever without
the express written permission from SKOV A/S.
•SKOV A/S has made all reasonable efforts to ensure the accuracy of the information contained in
this manual. Should any mistakes or imprecise information occur in spite of this, SKOV A/S would
appreciate being notified thereof.
•Irrespective of the above, SKOV A/S shall not have any liability with respect to loss or damage
caused or alleged to be caused by reliance on any information contained herein.
•Copyright by SKOV A/S.
Check the product for defects or damages (e.g. transport damages) prior to initial operation. In case of defect or
damage, please contact SKOV A/S or the nearest distributor.

4Technical User Guide
DA 60-920

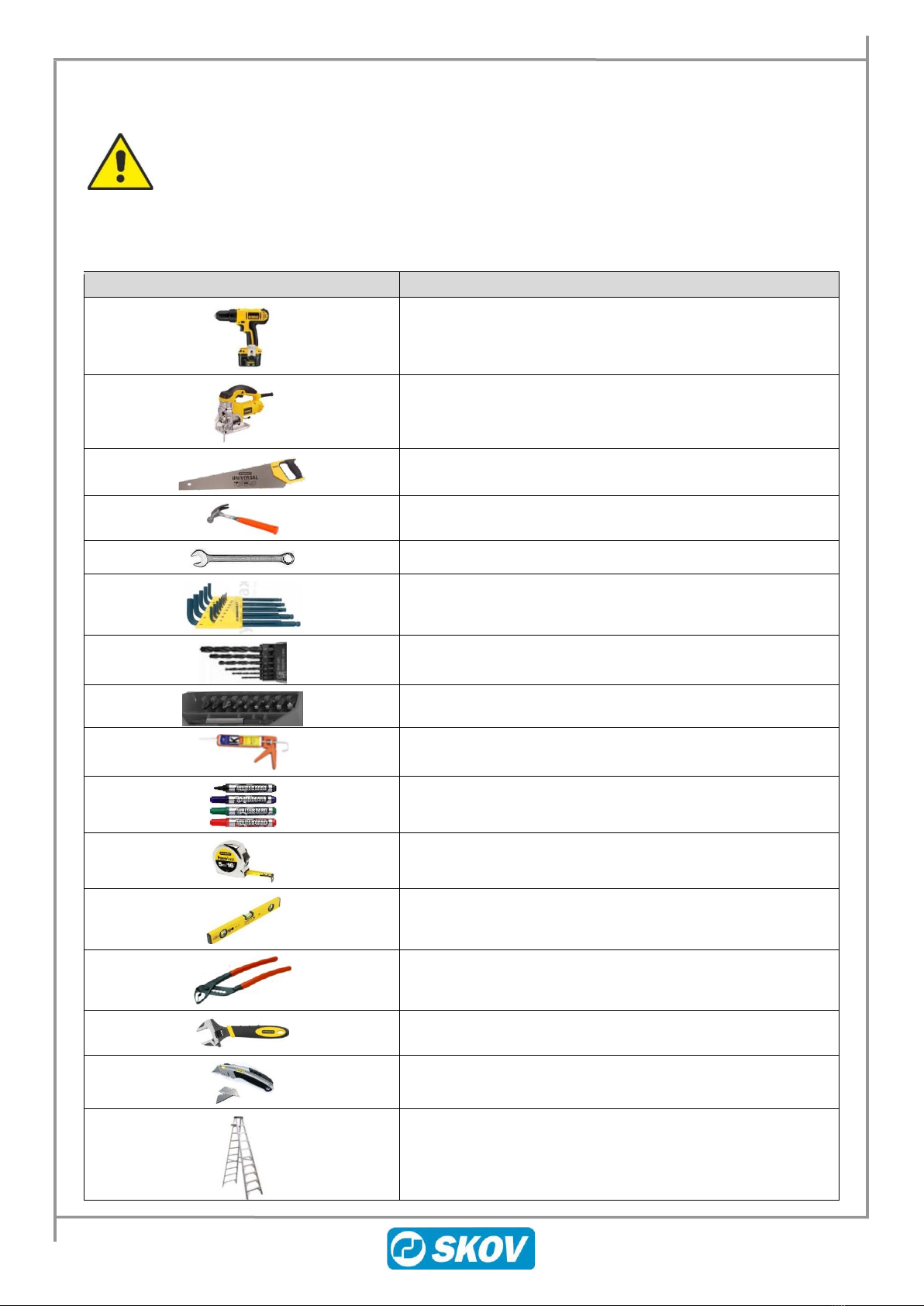

1RECOMMENDED TOOLS..............................................................................13
2MOUNTING EXAMPLES................................................................................14
2.1 DA 60-920 side mounted........................................................................................14
2.2 DA 60-920 ridge mounted.......................................................................................14

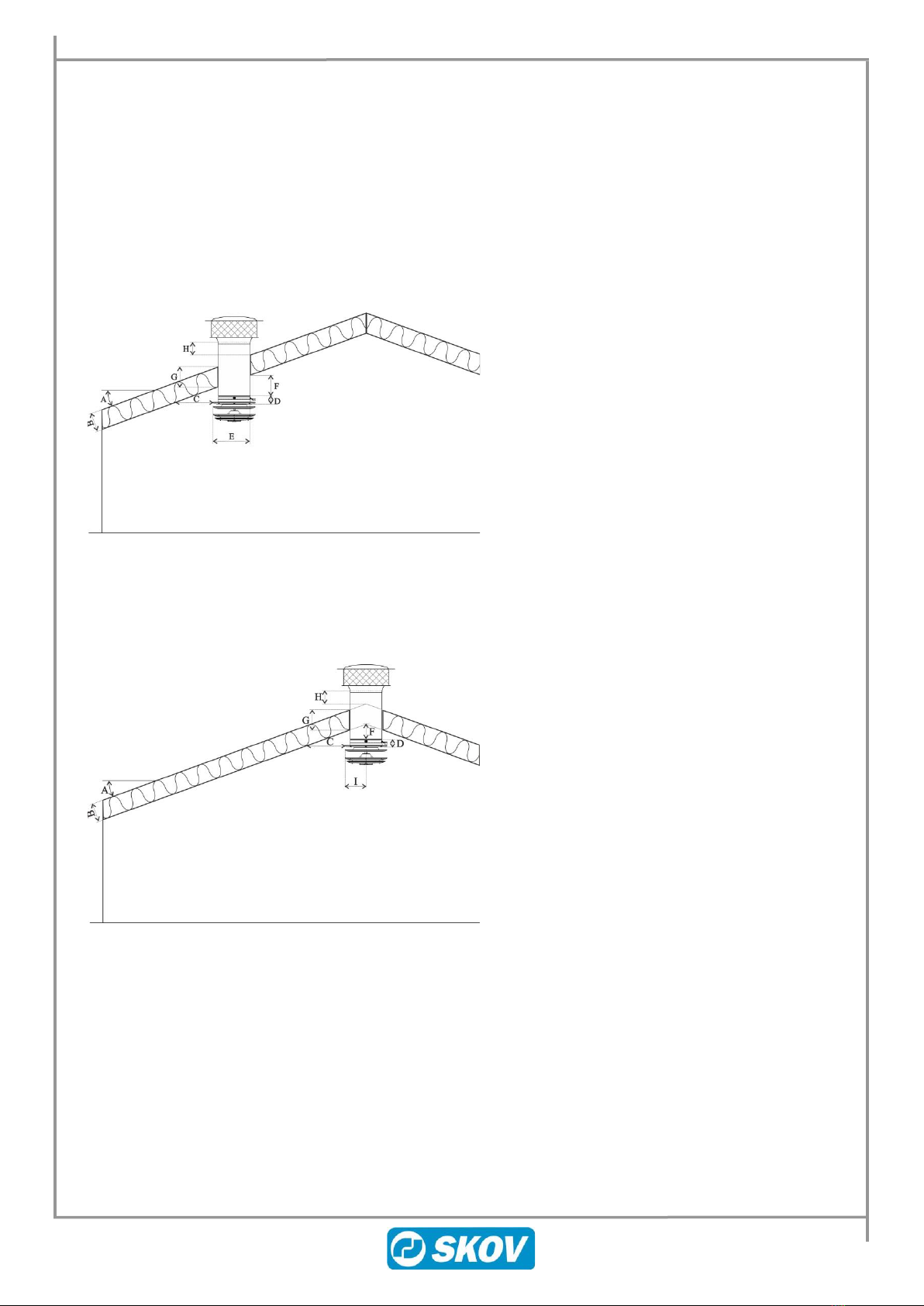

3PLACEMENT IN THE LIVESTOCK HOUSE..................................................15
3.1 Examples of livestock house placement..............................................................15

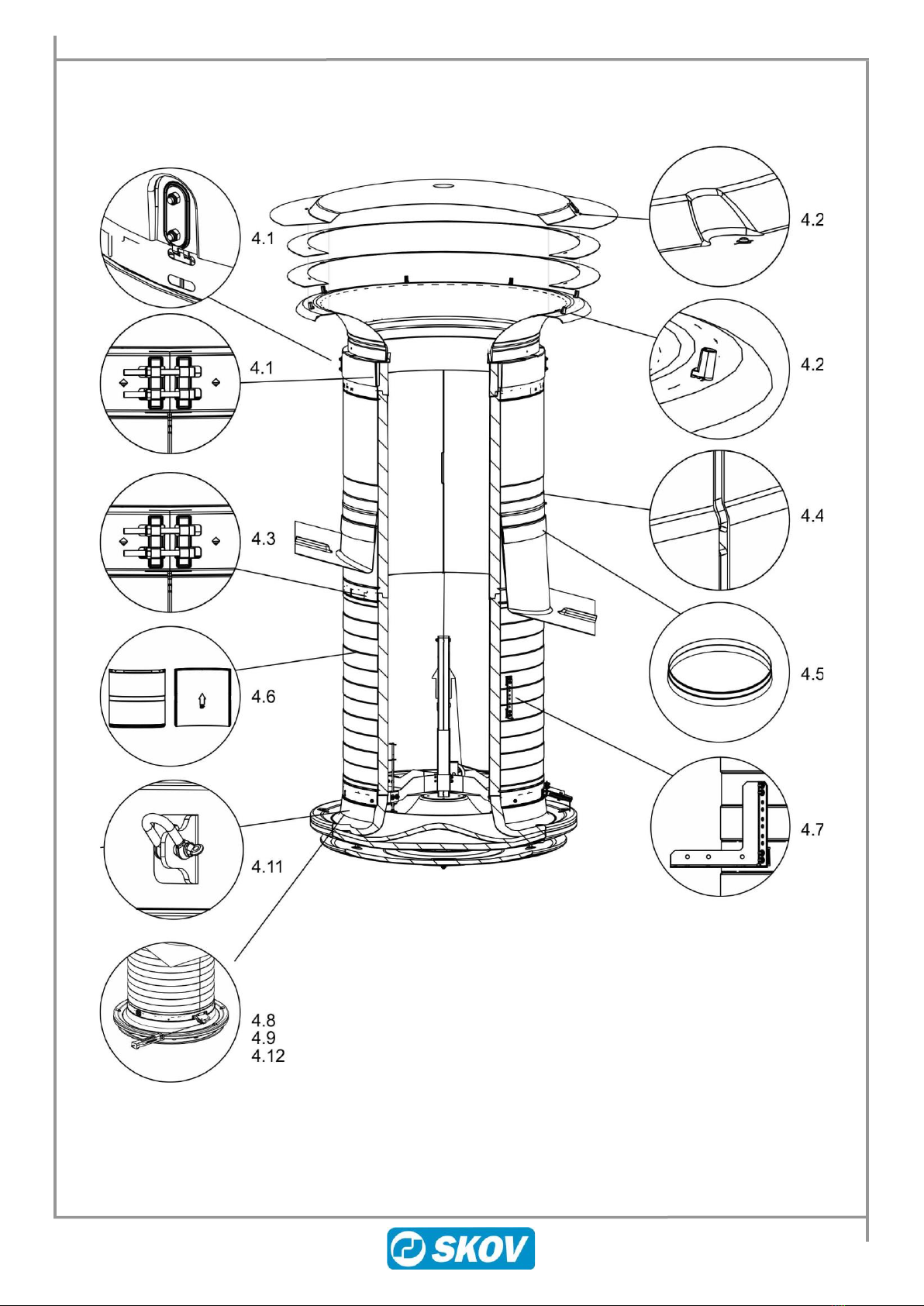

4GENERAL DRAWINGS..................................................................................16
4.1 Mounting the bell mouth........................................................................................17
4.2 Mounting the roof cap............................................................................................18
4.3 Mounting duct connectors on ducts.....................................................................18
4.4 Applying joint sealer at flashing............................................................................19
4.5 Transition between ducts and roofing sheets......................................................19
4.6 Connecting ducts....................................................................................................20
4.7 Mounting anchoring for ducts on rafters..............................................................22
4.8 Mounting the outlet funnel.....................................................................................23
4.9 Mounting the Intermediate and bottom plates .....................................................25
4.10 Mounting the recirculation fan ..............................................................................26
4.11 Mounting of wire suspension ................................................................................26
4.12 Mounting the pull rod/suspension ........................................................................27
5LEAD-THROUGH IN ROOF ...........................................................................28
5.1 Roof holes considering the roof pitch..................................................................28
6MOUNTING OF ROOFING SHEET................................................................28
7LEAD-THROUGH IN CEILING.......................................................................28
7.1 Centre marking for ceiling hole.............................................................................28
7.2 Ceiling holes considering the ceiling pitch..........................................................29
7.3 Wooden ceiling frame.............................................................................................29
8FLASHING WITH FLEX FLASHING ..............................................................30
8.1 Between roofing sheets and DA 920 smooth roofing sheet ...............................30
8.2 Flashing on sheet steel roofs ................................................................................30

Technical User Guide 5
DA 60-920
9FLASHING WITH NEOPRENE CLOTH.........................................................31
9.1 Mounting with neoprene cloth...............................................................................31
10 ELECTRICAL CONNECTION ........................................................................32
10.1 Cable chart for recirculation fan............................................................................32
10.2 Connection box connection...................................................................................32
10.3 Circuit diagram for recirculation fan.....................................................................33
10.3.1 ON/OFF..............................................................................................................................33
10.3.2 Stepless.............................................................................................................................34
11 CLEANING......................................................................................................35
12 REMOVAL FOR RECYCLING/DISPOSAL....................................................35
13 TROUBLESHOOTING GUIDE .......................................................................35
14 DIMENSIONED SKETCH...............................................................................37

6Technical User Guide
DA 60-920
PRODUCT DESCRIPTION
The DA 60 air supply unit is an air intake that combines high output with low air velocity for the animals'
occupational zone.
The DA 60-920 supplies up to 20,000 m3/h at 40 Pa negative pressure. The high output is obtained without
using fans.
The DA 60 has a parallel motion system which makes sure that the air supply unit opens uniformly round the
unit to ensure uniform distribution of air throughout the house.
The unit can be adjusted to the air jet range desired for the current time of year. It is in this way possible to
always create a combination of negative pressure and opening which gives the desired relation between output
and air velocity.
The DA 60 air supply unit is moulded in PUR with high insulation capacity and the metal parts are made from
stainless steel A2.

Technical User Guide 7
DA 60-920
PRODUCT SURVEY
1-9 Above Roof
10-19 Lead-Through
20-29 Attic/Section

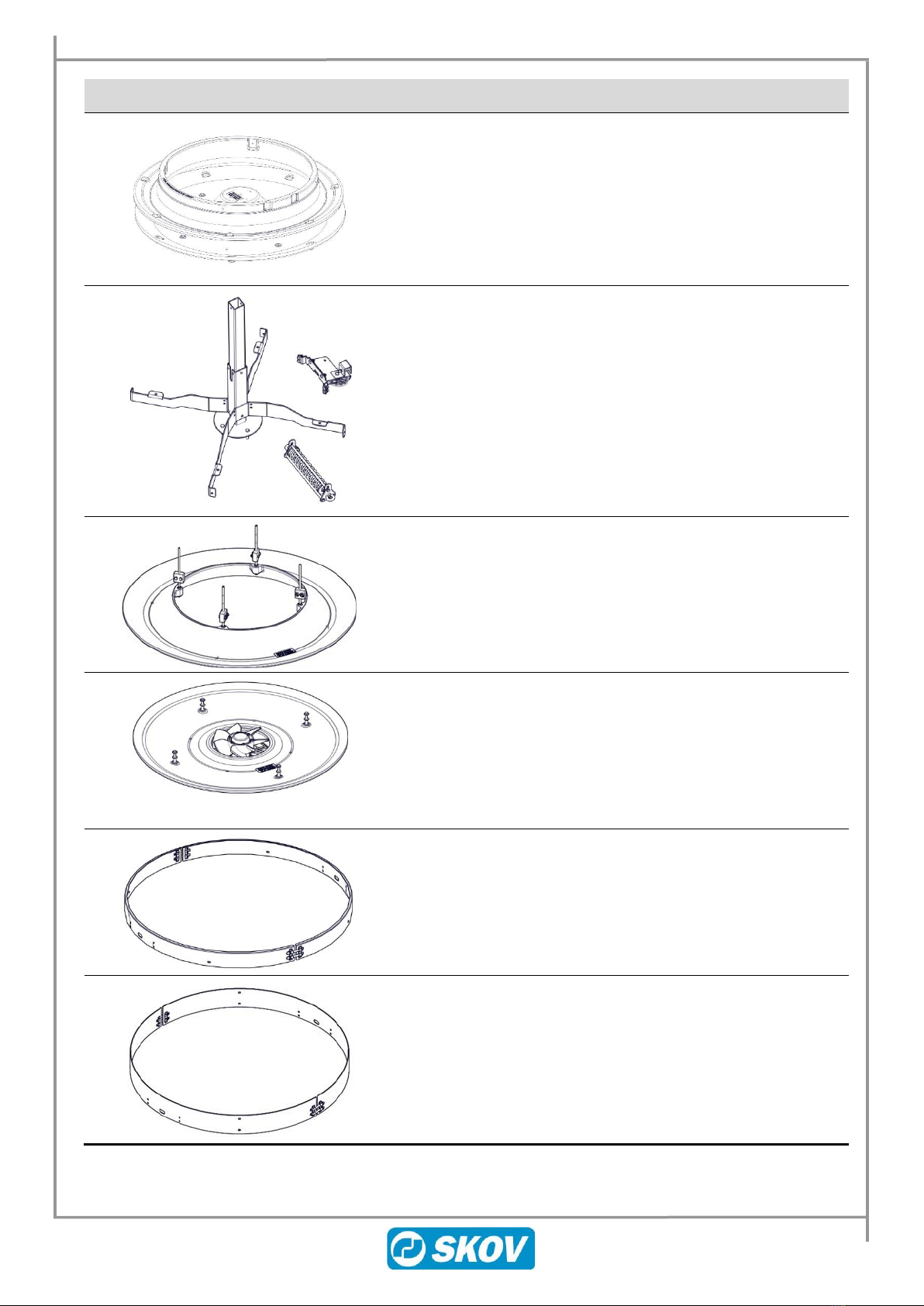

30-39 Air Supply

8Technical User Guide
DA 60-920

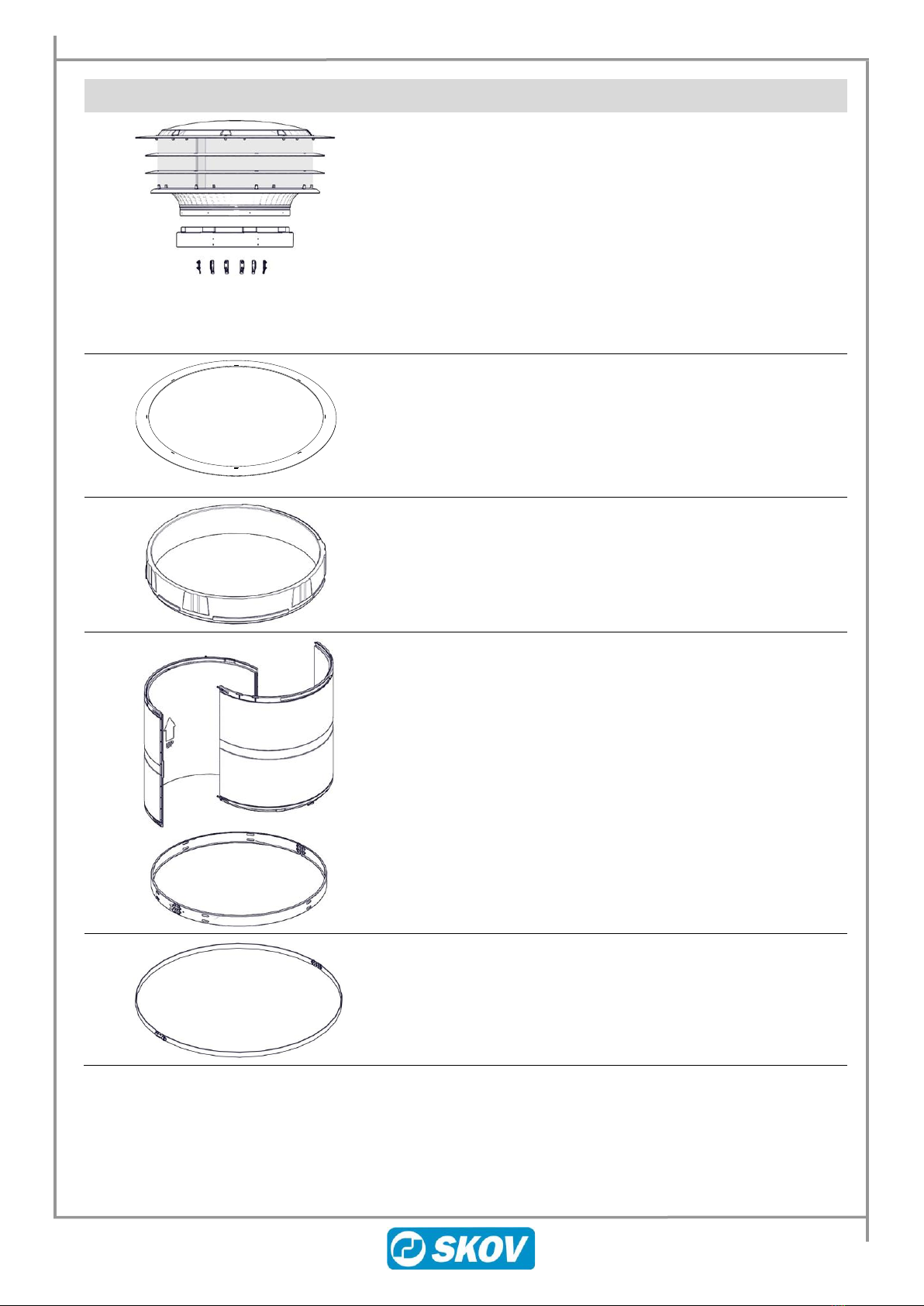

DA 60-920 above foof
1
433479 DA 60-920 Roof cap, complete, gray
433579 DA 60-920 Roof cap, complete, black
Used for air intakes above roof.
A rain screen is mounted on the mesh for protection from weather.
The top of the bell mouth is designed so that water running down
along the mesh is always led out to the roof.
The bell mouth and roof cap are made from weather resistant fibre
glass. The mesh is hot-dip galvanised with a mesh of 10 x 25 mm and
a height of 250 mm.
The DA 60-920 is delivered unassembled.
2
433489 DA 60-920 Rain screen for roof cap, gray
433589 DA 60-920 Rain screen for roof cap, black
The DA 60 is as a standard delivered with 2 rain screens for the roof
cap.
Additional rain screens can be bought if necessary, if further
reduction of rain and snow entering.
3
434155 DA 920 duct end, black
Used at transition to roof cap, bell mouth or duct end.
1 unit per DA 60-920 roof inlet.
4
434157 DA 920 duct 1000 mm, gray
434160 DA 920 duct 1000 mm, black
434158 DA 920 duct 1500 mm, gray
434161 DA 920 duct 1500 mm, black
The DA 920 ducts are available in two different lengths, 1000 and
1500 mm.
The duct is delivered with DA 920 duct connector and a mounting set
for connecting the ducts.
5
434162 DA 920 support band, A2
One support band should be used per DA 920 duct.
On ducts with anchoring (434153) the support bands can be omitted.

Technical User Guide 9
DA 60-920

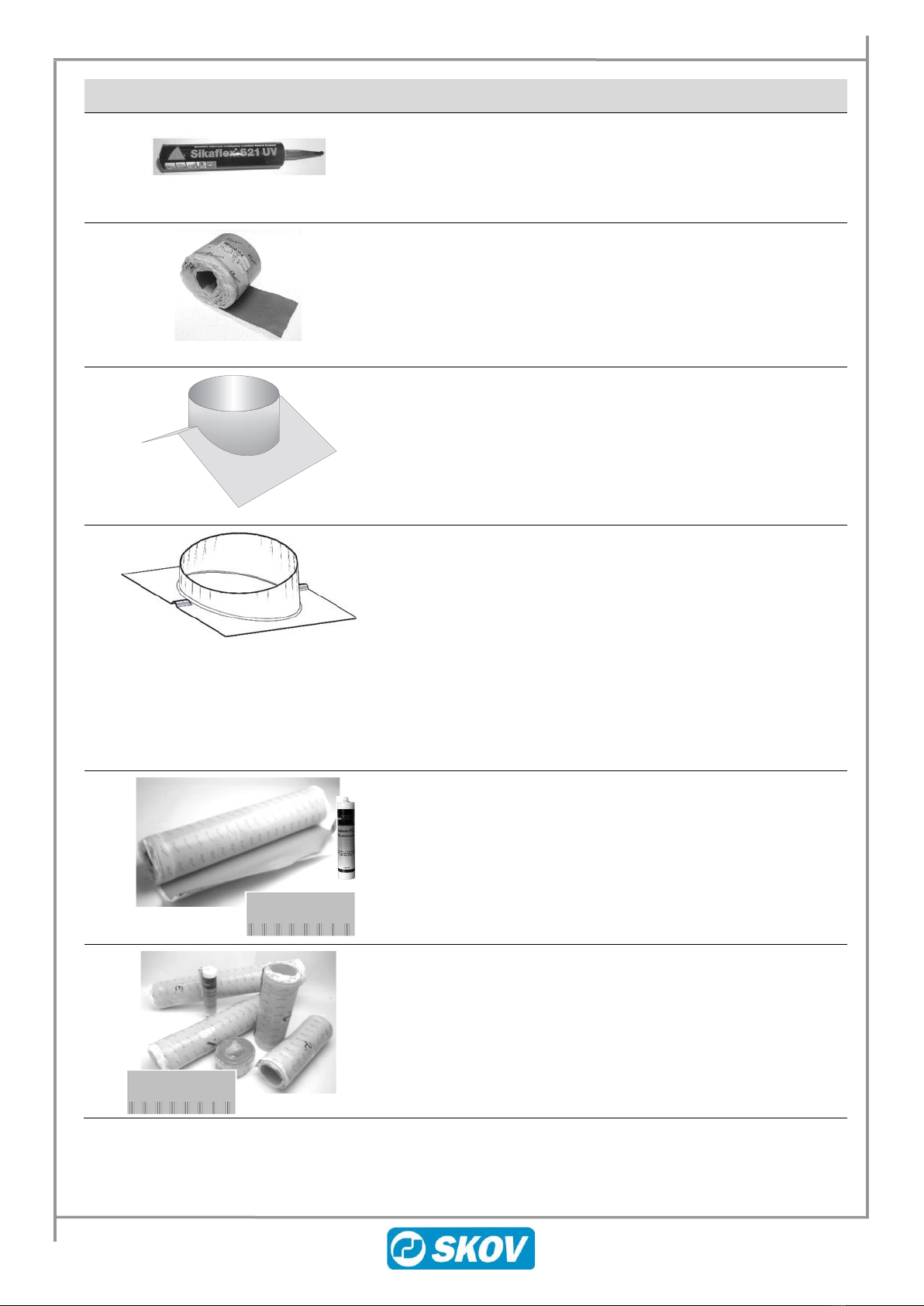

DA 60-920 lead-through
10
530155 Joint sealer, Sikaflex 221, gray 300 ml
530156 Joint sealer, Sikaflex 221, black 300 ml
Used for sealing ducts.
1 for 20 DA 60-920 roof inlets.
11
434118 DA 920 flashing band, gray
434119 DA 920 flashing band, black
The DA 920 flashing bands (3250 mm x 156 mm) with 3.5 m clips
are always used as a transition between the DA 920 ducts and the DA
920 roofing sheets.
1 per each DA 920 roofing sheet.
12
434107 DA 920 roofing sheet, ridge, gray
434127 DA 920 roofing sheet, ridge, black
The roof sheet is designed for mounting on the ridge and is available
in different versions in terms of roof sheet types and pitches.
It is always to be used if the DA 920 is to be mounted on the ridge.
Remember to always order flashing bands (434118, 434119).
13
434106 DA 920 roofing sheet, side, gray
434116 DA 920 roofing sheet, side, black
The roof sheet is designed for slope mounting and is available in
different versions in terms of roof sheet types and pitches.
This solution is recommended when slope mounting on roofs that do
not use steel sheet, for example on asbestos roofs.
Remember to always order flashing bands (434118, 434119).
If using DA 920 roofing sheet with smooth sides there is also a need
for using flex flashing for smooth side roofing sheets (433099,
433093).
14
433099 Flex flashing for smooth side roofing sheet, black
433093 Flex flashing for smooth side roofing sheet, gray
The flex flashing (1925 mm x 470 mm) is always used for transition
between the roofing sheet of the building and DA 920 smooth side
roofing sheets.
Contains flex flashing, supports and construction adhesive.
1 per each DA 920 smooth side roofing sheet.
15
433094 Flex flashing for steel roofing sheets, gray
433096 Flex flashing for steel roofing sheets, black
The flex flashing is always used for steel roofing sheets at the
transition between the building's steel roof and slope mounted DA
60-920 roof inlets.
Contains flex flashing, supports and construction adhesive.
1 per each DA 60-920 roof inlet.

10 Technical User Guide
DA 60-920
DA 60-920 lead-through
16
433493 Neoprene cloth 1.9m x 1.7m
An inexpensive alternative to the DA 920 roofing sheet side or flex
flashing. Neoprene cloths can be used at the transition between the
building's roofing sheets and slope mounted DA 60-920 roof inlets.
1 per each DA 60-920 roof inlet.
