SkyLink SA-001S User manual

Model: SA-001S User’s Instructions
Wireless External Alarm

1
TABLE OF cONTENT
INTRODUCTION...................................................................................................
INSTALLATION..............................................................................................
PROGRAMMING –
LEARN REMOTE OR SENSORS OR CONTROL PANEL.......................
ERASE REMOTE OR SENSOR OR CONTROL PANEL FROM
THE WIRELESS EXTERNAL ALARM..........................................................
ALARM SOUND DURATION........................................................................
ARMING SEQUENCE.....................................................................................
OPERATING THE SKYLINK SECURITY CONTROL PANEL...................
CONNECT THE WIRELESS EXTERNAL ALARM WITH YOUR
EXISTING ALARM SYSTEM.........................................................................
ALERT NOTIFICATION JUMPER.................................................................
BATTERY...........................................................................................................
TAMPER PROTECTION.....................................................................................
SOLAR POWER INSTALLATION............................................................
MAINTENANCE..............................................................................................
TROUBLE SHOOTING......................................................................................
FCC ......................................................................................................................
IC......................................................................................................................
CE......................................................................................................................
WARRANTY ....................................................................................................
CUSTOMER SERVICE .............................................................................
2
2-4
4-6
7
7
8-9
10-11
11
12
13
13
13-14
14
15
16
17
17
17
18

2
INTrOducTION
Congratulations on purchasing the Skylink Wireless External Alarm SA-001 Series.
The SA-001 Series provide you with a piercing siren and powerful features yet ease
to use. You will nd the installation to be simple and be able to get the unit up and
running easily.
The following items are included in this package:
- One Wireless External Alarm
- AC adapter *
- Rechargeable Battery Pack
- User’s Instructions
* - Option
INsTALLATION
- Remove the cover of the Wireless External Alarm as shown.
Undo the 2 screws in both sides.

3

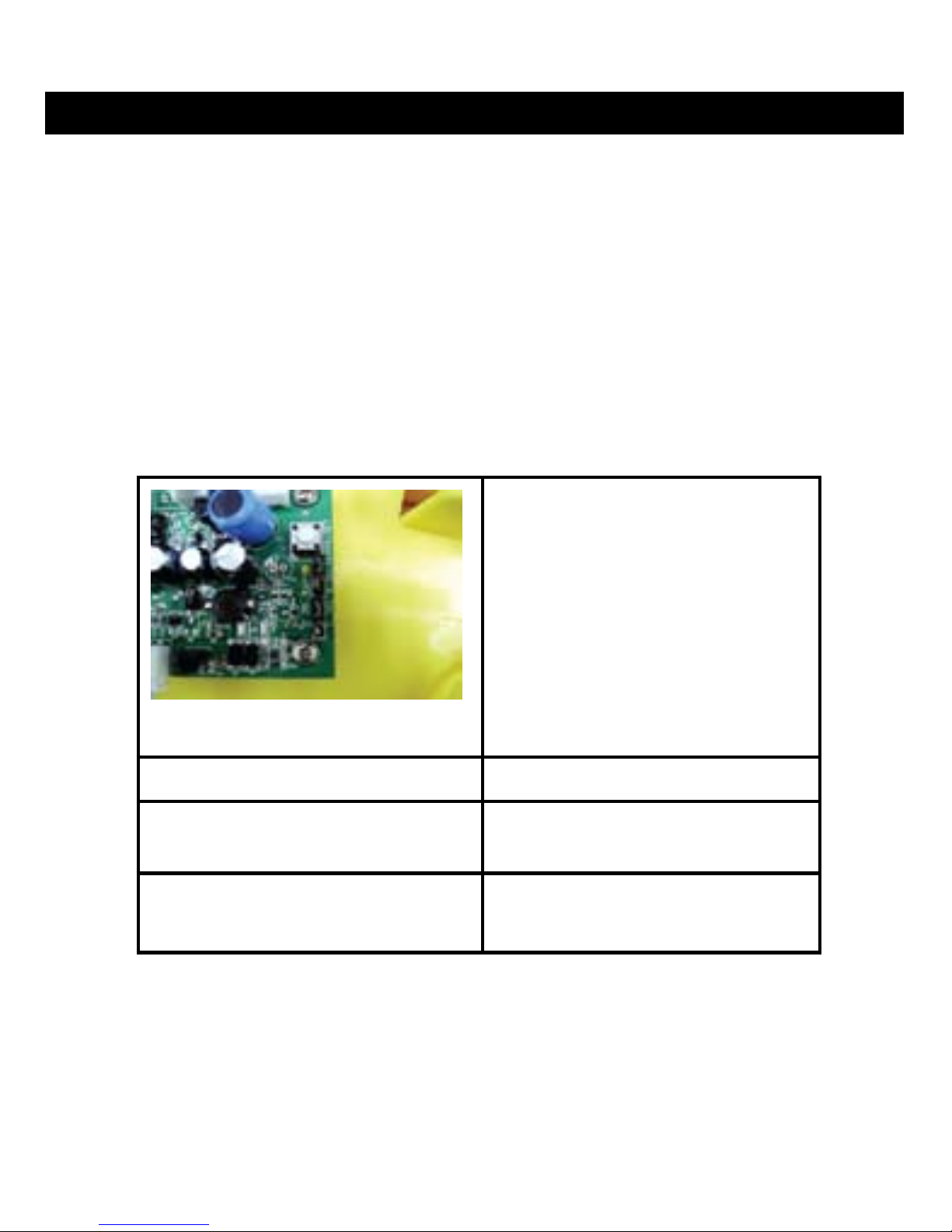

- Set Compatibility Jumper:
Refer to the following table to setup the Wireless External Alarm to work with
different Skylink’s Security System or Sensors. To select, you will see a jumper
connector marked “J2” as shown below. Use a paper clip to remove the jumper
connector and re-locate to the proper posts.
- Insert 3 AA-size batteries (not included) to the battery holder or rechargeable
battery pack (included) to the unit. Insert the rechargeable battery pack to
the black connector marked “NiMH” as shown. The Learn/Set LED will turn on
for 1 second and then off. The PWR LED will keep ashing.
- Plug in the AC adapter to an AC outlet and the other end into the DC jack on
the Wireless External Alarm. The PWR LED indication will stay on steadily.
Models Jumper (J2) Setting
SC-001, AM-001, ML-001,
4B-101, GS-101, KP-434,
PS-101, VS-101, WA-101,
WD-101, 4B-434, FS-433,
PS-434A, VS-433, WT-433
Set the connector to top 2
posts (1-2)
MA-103, 4B-103, GS-103,
KP-103, PS-103, VS-103,
WA-103, WD-103
Set the connector to bottom 2
posts (2-3)

4
cAuTION:
The adaptor as a disconnect devices: − the socket-outlet shall be installed near the
equipment and shall be easily accessible.
In order for the remote or sensor or control panel to communicate with the Exter-
nal Wireless Alarm properly, this need be programmed into the Wireless External
Alarm previously. Follow the brief instructions below to program it to the Wireless
External Alarm.
Before proceeding, ensure you have both the Wireless External Alarm and the re-
mote or sensor or control panel next to you.

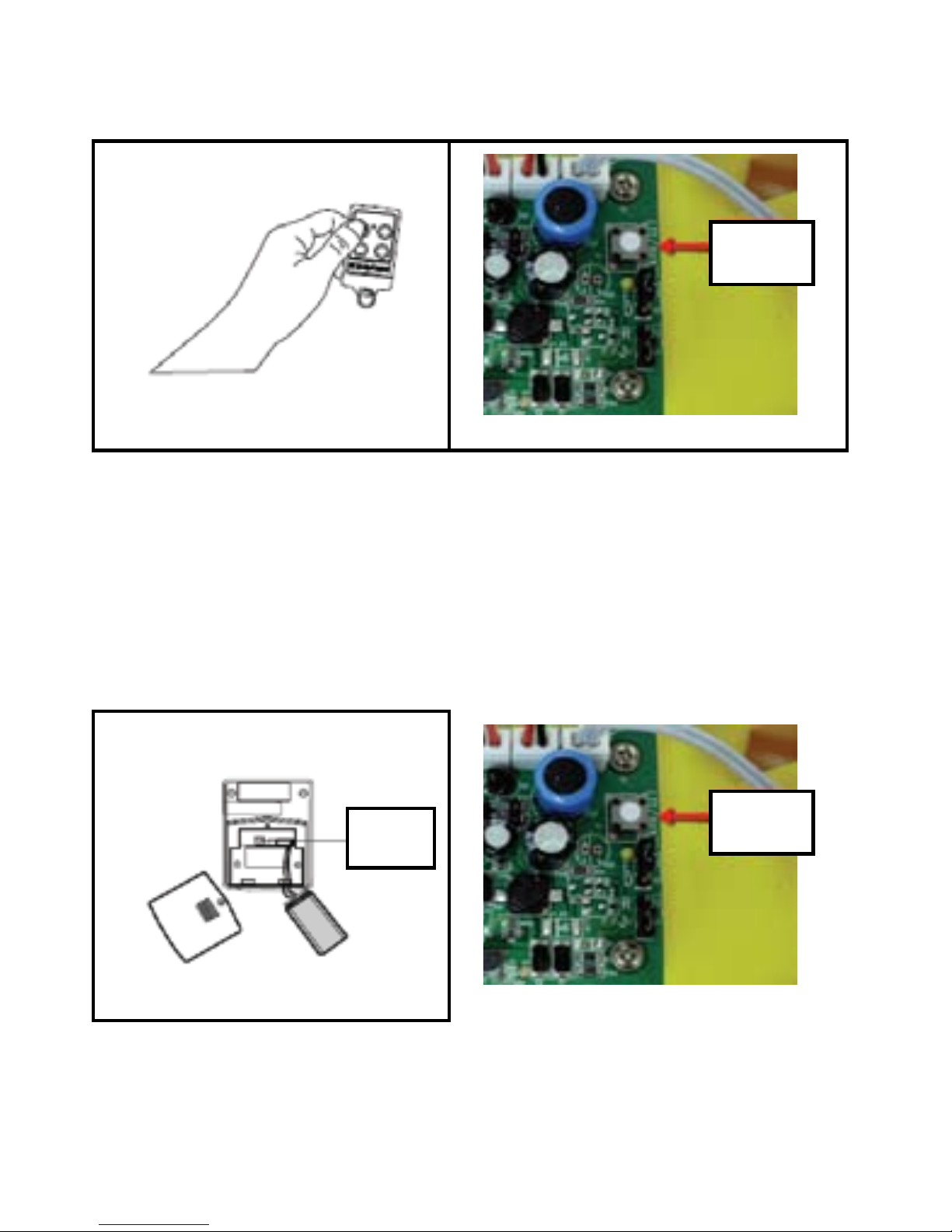

3A – Learn remote to the Wireless External Alarm:
- Press and hold the Learn button on the Wireless External Alarm for 2
seconds and then release. The Learn/Set LED will ash.
- Activate the remote by pressing any one of the buttons.
- You will hear 2 beeps and the LEDs will ash twice indicating the remote is now
programmed to the Wireless External Alarm.

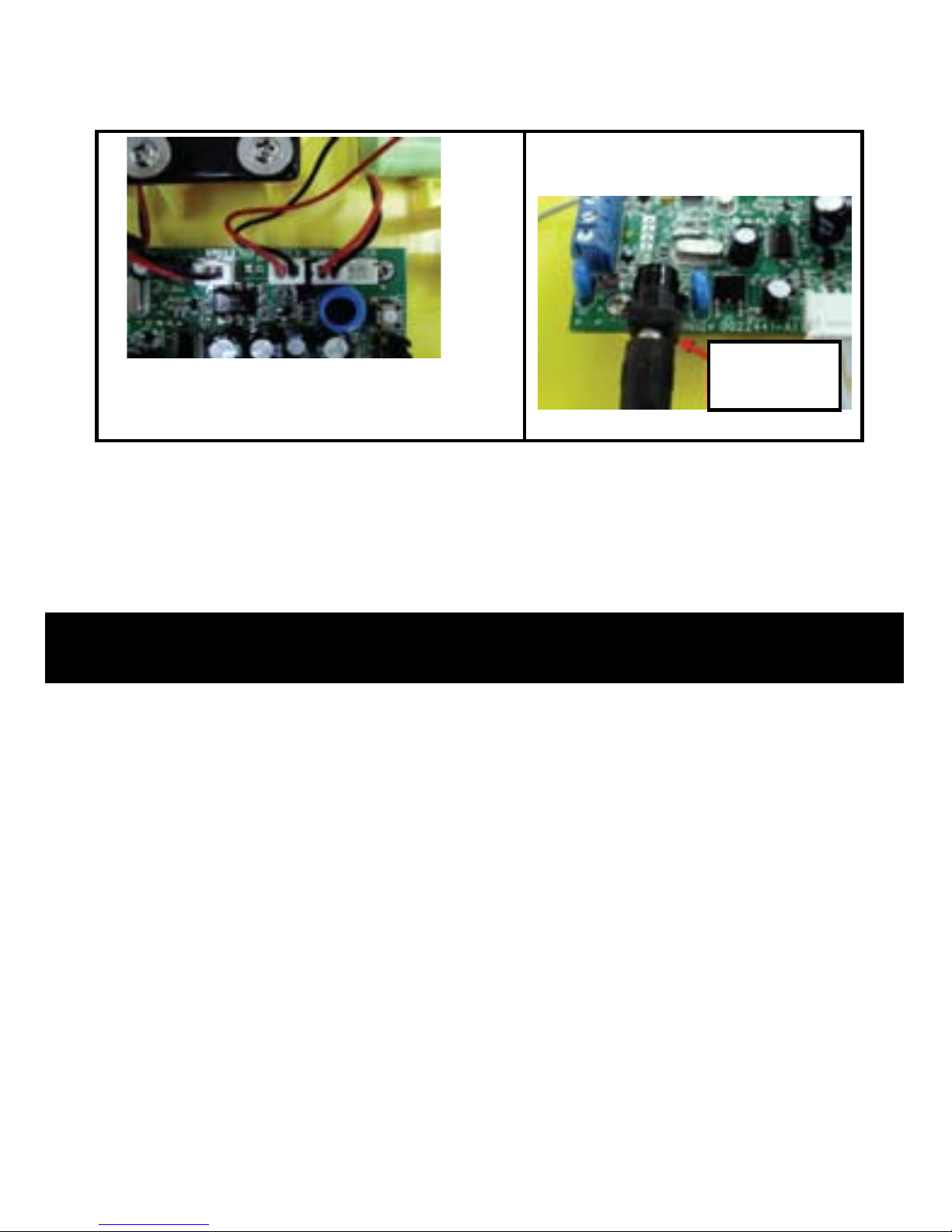

Insert the rechargeable battery pack
to the black connector marked “NiMH” Plug in AC adapter
Plug in AC
adapter
PrOgrAmmINg –
LEArN rEmOTE Or sENsOrs Or cONTrOL PANEL

5
3B – Learn motion sensor to the Wireless External Alarm:
- Press and hold the Learn button on the Wireless External Alarm for 2 seconds
and then release. The Learn/Set LED will ash.
- Activate the motion sensor by pressing the “Test/Set” button on the motion
sensor. This “Test/Set” button is located inside the battery compartment.
- You will hear 2 beeps and the LEDs will ash twice indicating the sensor is
now programmed to the Wireless External Alarm.
Learn/ Set
Learn/ Set
Press Set
button

6
Mute
button

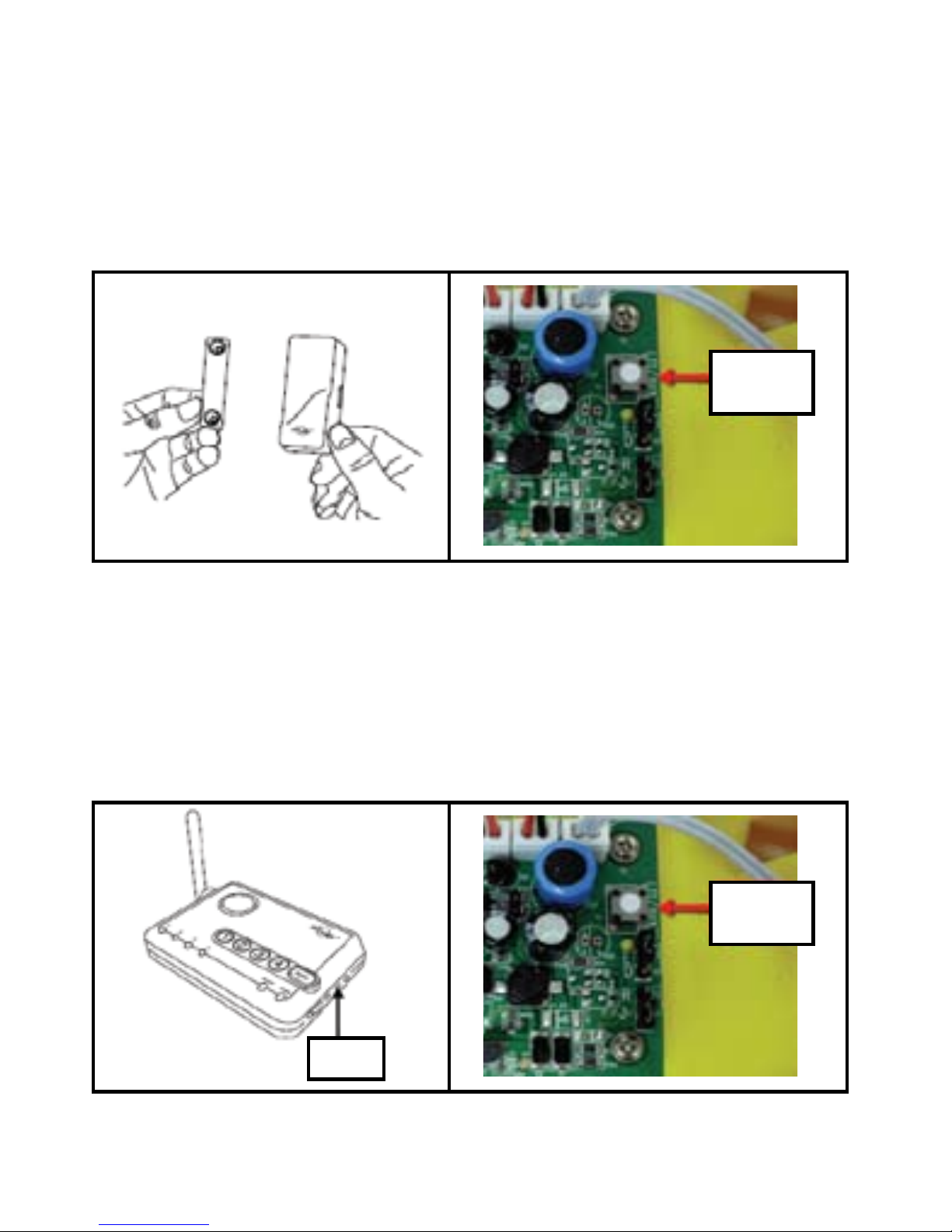

3C – Learn door/window sensor to the Wireless External Alarm:
- Press and hold the Learn button on the Wireless External Alarm for 2 seconds
and then release. The Learn/Set LED will ash.
- Activate the Door/Window Sensor, by separating the magnets to send the signal.
- You will hear 2 beeps and the LEDs will ash twice indicating the sensor is
now programmed to the Wireless External Alarm.
3D – Learn control panel MA-103 to the Wireless External Alarm:
- Press and hold the Learn button on the Wireless External Alarm for 2 seconds
and then release. The Learn/Set LED will ash.
- Activate the control panel MA-103 by pressing and hold the Mute button on the
side of the control panel for 3 seconds.
- You will hear 2 beeps and the LEDs will ash twice indicating the control panel
MA-103 is now programmed to the Wireless External Alarm.
Learn/ Set
Learn/ Set

7
To erase unwanted remote(s) or sensor(s) or control panel(s) from the Wireless
External Alarm will erase all learned devices from the Wireless External Alarm.
- Press and hold the Learn/Set button on the Wireless External Alarm for
8 seconds.
- While holding the Learn/Set button on the Wireless External Alarm until the
Learn/Set LEDs turn on. You may release the Learn/Set button when the
Learn/Set LED stay on.
- Press and hold the Learn/Set button again on the Wireless External Alarm for
2 seconds until it emits 2 beeps and all the LEDs ash twice. Now you may
release the ‘Learn’ button.
- All the learned devices have been erased.
User can customize the alarm period from 30 seconds up to 10 minutes. The factory
default of the alarm period is 3 minutes.
- Press and hold the Learn/Set button on the Wireless External Alarm for
5 seconds, you may release the Learn/Set button while all the LEDs turn on.
- While the PWR and Learn/Set LED stay on, press the Learn/Set button once
on the Wireless External Alarm, the LEDs ash once indicating the alarm
period is set to 30 seconds.
- If you would set the other alarm period, continue to press the Learn/Set button.
Refer to the table below for the alarm period. The LEDs will ash corresponding
to the number you pressed the Learn/Set button.
1- 30 seconds
2- 60 seconds
3- 3 minutes
4- 5 minutes
5- 10 minutes
- Press and hold the Learn/Set button to conrm your setting. You will hear
2 beeps and the LEDs will ash twice indicating the alarm period is now
programmed to the Wireless External Alarm.
PrOgrAmmINg – ErAsE rEmOTE Or sENsOr Or cONTrOL
PANEL FrOm ThE WIrELEss ExTErNAL ALArm
PrOgrAmmINg – ALArm sOuNd durATION

8
The Wireless External Alarm can be programmed to react 2 arming sequences
when it receives the signal from the sensor. In order to arm the Wireless External
Alarm, the remote (optional) must be programmed to the Wireless External Alarm.
You may arm the Wireless External Alarm in 2 different sequences:
6A – Arm Home Sequence:
This setting is used when you wish to secure the area but will be at home and
moving around within the armed area. In Arm Home setting, any motion sensor will
not respond to any movement. Alarm will sound instantly if any of the sensors (e.g.
door/window sensor) is activated (except motion sensor).
- Pressing the ARM HOME button on the remote will arm the Wireless
External Alarm in Home mode.
- You will hear 2 beeps and the LEDs will ash twice indicating the Wireless
External Alarm in Home mode.
6B – Arm Away Sequence:
This setting is used when you are the last one to leave the premises. By arming
the Wireless External Alarm in Away mode, you will have 30 seconds to leave the
premises after arming. After 30 seconds, all sensors in the premises are armed.
Activating these sensors in Arm Away mode will result in 30 seconds delay. The
alarm will sound if not disarm during the 30 seconds period.
- Pressing the ARM AWAY button on the remote will arm the Wireless
External Alarm in Away mode.
PrOgrAmmINg – ArmINg sEquENcE
PANIC
ARM
HOME
ARM
AWAY
DISARM

9
- You will hear 1 beep and the LEDs will ash once indicating the Wireless
External Alarm is being counted to Away mode.
- After 30 seconds, you will hear 2 beeps and the LEDs will ash twice indicating
the Wireless External Alarm in Away mode.
6C – Disarm
- Pressing the DISARM button on the remote will disarm the Wireless External
Alarm instantly.
- You will hear 2 beeps and the LEDs will ash twice indicating the Wireless
External Alarm is disarmed.
6D - Panic
- Pressing the Panic button on the remote will cause siren instantly.
Note:
- During the Arm Away mode, you will have 30 seconds to leave the premises.
This is called the exit delay. When the exit delay expires, the Wireless
External Alarm is armed.
- If a sensor is triggered while the Wireless External Alarm is armed, such as
entering the premises, an entry delay will be triggered. User is allowed to
disarm the Wireless External Alarm during the 30 seconds entry delay. You
will hear beeping every 5 seconds during the entry delay interval. If the
Wireless External Alarm is not disarmed within 30 seconds, alarm will sound
immediately.

10
The Wireless External Alarm is designed to work with the Skylink security control
panel such as AM-001, ML-001 and SC-001. Put the control panel that you plan to
program into programming mode. Refer to the User’s Instructions of that control
panel.
7A – Learn control panel AM-001 or ML-001 to the Wireless External Alarm:
- Press and hold the Learn button on the Wireless External Alarm for 2 seconds
and then release. The Learn/Set LED will ash.
- Activate the control panel AM-001 or ML-001 by pressing [ARM] and then
enter your current Master PIN (MPIN) [factory default 1 2 3 4].
- You will hear 2 beeps and the LEDs will ash twice indicating the control panel
is now programmed to the Wireless External Alarm.
7B – Learn control panel SC-001 to the Wireless External Alarm:
- Press and hold the Learn button on the Wireless External Alarm for 2 seconds
and then release. The Learn/Set LED will ash.
- Activate the control panel SC-001 by entering your current Master PIN
(MPIN) [factory default 0 0 0], then enter [B], [B].
- You will hear 2 beeps and the LEDs will ash twice indicating the control panel
is now programmed to the Wireless External Alarm.
OPErATINg ThE skyLINk sEcurITy cONTrOL PANEL
Learn/ Set

11

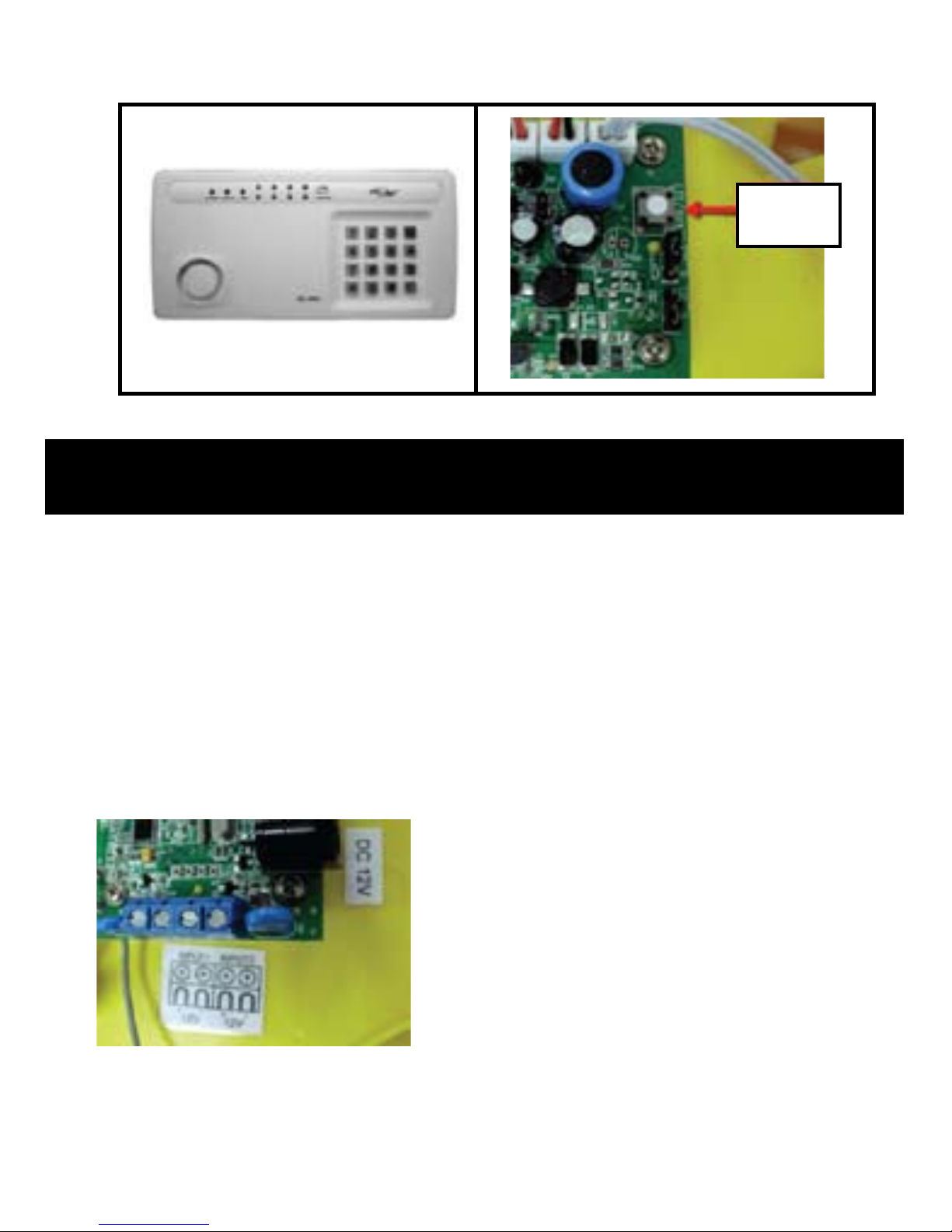

You may connect your existing alarm system with the Wireless External Alarm so
that the Wireless External Alarm will be triggered by your alarm system. There are
2 ways you can connect your Wireless External Alarm with your existing alarm
system. The input terminals (INPUT1 or INPUT2) can be a Normally Open (NO)
momentary dry contact or the DC voltage of 12V.
8A – Connect your existing alarm system to the INPUT1, this provides the
delay trigger until the Wireless External Alarm is armed.
8B – Connect your existing alarm system to the INPUT2, this provides the
instant alarm.
cONNEcT ThE WIrELEss ExTErNAL ALArm WITh
yOur ExIsTINg ALArm sysTEm
Learn/ Set

12
You can enable or disable the Alert Notication. When it is set to enable, the
Wireless External Alarm will beep when arm or disarm or during the entry/exit
countdown period. When it is set to disable, the Wireless External Alarm will not
beep when arm or disarm or during the entry/exit countdown period. However, the
LED will remain ashing as it is. The Wireless External Alarm will still siren when
it is triggered.
Unplug all the power (batteries and AC adapter) when setup the Alert Notication.
Factory default is set to “Enable”. To select, you will see a jumper connector marked
“J1” as shown below. Use a paper clip to remove the jumper connector and
re-locate to the proper posts. Apply the power to the Wireless External Alarm again
after setup the Alert Notication
A LErT NOTIFIcATION JumPEr
Alert Notication Jumper (J1)
Mode Jumper (J1) Setting
Enable Set the connector to top 2
posts (1-2)
Disable Set the connector to bottom 2
posts (2-3)

13
When the battery power is being reduced, the Wireless External Alarm will emit 3
beeps when the remote arm or disarm the unit. It is time to replace the batteries or
recharge the battery pack (rechargeable battery only) as soon as the low battery
signal appears. Ensure all the batteries are replaced altogether at the same time.
The Wireless External Alarm is powered by 3 AA-size Alkaline batteries as the
backup purpose. Follow the instructions below to replace the batteries;
1. Remove the cover of the Wireless External Alarm as shown.
2. Remove the old battery. Insert 3 new AA-size Alkaline batteries to the
battery compartment. Beware of the battery polarity.
3. Install the cover.
cAuTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The Wireless External Alarm is built-in with the Tamper Protection for system
security. When the cover is removed or move the unit to other location after
mounted on the wall, the Wireless External Alarm will siren when the Tamper Switch
is activated.
Please disarm the unit before you replace the battery or before you conduct any
kind of service maintenance (i.e. checking or cleaning the unit)
The External Wireless Alarm SA-001S is equipped with a solar panel, this solar pan-
el is installed on top of the cover to charge rechargeable batteries during the day.
During darkness, a insignicant amount of energy is released from the rechargeable
battery to operate the external wireless alarm.
The Wireless External Alarm should be installed to the outside of your house or
building in a position to gather as much sunlight as possible. Avoid any shadows
cast by walls, trees and roof overhangs to the Wireless External Alarm. Ideally to
install the Wireless External Alarm facing due south optimize for solar exposure.
However, install the unit facing east or west position will sufce.
BATTEry
TAmPEr PrOTEcTION
sOLAr POWEr INsTALLATION (ONLy APPLIcABLE TO sA-001s)

14
Your Wireless External Alarm requires few simple maintenance to ensure its con-
tinued reliability and operation.
- The solar panel on the top housing should be cleaned using the soft and
damp cloth. This will ensure the solar panel receives all the available light.
- Test the Wireless External Alarm periodically to ensure the unit is working.
mAINTENANcE

15
Questions Solutions
Why the Wireless External
Alarm does not respond to the
sensors or remote?
You must program the sensors or remote
to the Wireless External Alarm before they
can work together.
Why I can’t arm my system? Make sure none of the sensors are trig-
gered. For example, the door/window
sensor should be in close status.
Why isn’t the Wireless External
Alarm beeping yet the lights are
all ashing?
You have set the Alert Notication Jumper
to ‘Disable’, this will disable the beeping.
Reset this jumper to ‘Enable’ will enable
the beeping.
How can I erase just one sen-
sor or remote from the Wireless
External Alarm?
You cannot erase just one sensor or
remote from the unit. You must erase all
sensors or remote and then program the
ones that you want to keep.
Will the Wireless External
Alarm function properly if no
back up batteries are installed?
The Wireless External Alarm will function
properly if there is AC power (model SA-
001A), even without the backup batteries.
The backup batteries provide power when
there is no AC power, e.g. during power
failure.
TrOuBLE shOOTINg

16
Fcc
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
WArNINg:
Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

17
WArrANTy
If, within one year from date of purchase, this product should become defective
(except battery), due to faulty workmanship or materials, it will be repaired or
replaced, without charge. Proof of purchase and a Return Authorization Number
are required.
Ic
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux ap-
pareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
cE
Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic com-
patibility, EN 300220-2, EN301489-3, EN61058-1. This equipment conforms to the
essential requirement of the Directive (1999/5/EC) of the European Parliament and
of the Council.

18
cusTOmEr sErVIcE
If you would like to
- nd out the up-to-date specications
- know more about features and applications
- download documents, i.e. user’s instructions
- order Skylink products
or if you have difculty getting the products to work, please:
1. visit our FAQ section at www.skylinkhome.com, or
2. email us at [email protected]
cusTOmEr sErVIcE
Rm 1303, Block B, Veristrong Industrial Centre,
36 Aupuiwan Street, Fotan, N.T. Hong Kong.
Email:[email protected]
http://www.skylinkhome.com
©2012 SKYLINK GROUP
17 Shread Avenue,
Brampton, Ontario,
Canada L6Y 1J3
Email:[email protected]
http://www.skylinkhome.com
©2012 SKYLINK GROUP

19
101Y035DEC,2012
