SMART-AVI HDX-W100S User manual

HDX-W100
Extend HDMI signals up to 150 feet
using slim, space-saving wall plates
Wall Plate HDMI Extender over Single
WWW.SMARTAVI.COM
VIDEO
Resolution Full HD (1920x1080 @ 60 Hz)
Color Depth Deep Color 36/30/24 Bit at 1080p and 3D
Video Bandwidth 4.95 Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts (TTL)
AUDIO
Format Up to PCM 8 channel, Dolby Digital TrueHD, and
DTS-HD Master Audio
Input Interface HDMI (Integrated)
Output Interface HDMI (Integrated)
IR
Signal Type 38kHz
Interface 3.5 mm Jack Socket (Female)
I/O CONNECTOR (Transmitter)
Input • HDMI-A 19PIN Socket
• 3.5mm Jack for IR Receiver
Output • RJ45 Jack
• 3.5mm Jack for IR Emitter
I/O CONNECTOR (Receiver)
Input • RJ45 Jack
• 3.5mm Jack for IR Receiver
Output • 3.5mm Jack for IR Emitter
• HDMI-A 19PIN Socket
SYSTEM
Interface RJ-45
Cable Requirements CAT5/5e/6
Maximum Length 150 ft.
OTHER
Max Power
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
ORDER INFO
Part No. Description
HDX-W100S
HDX-W100TXS
HDX-W100RXS
Technical Specications
USER MANUAL
Designed and Manufactured in the USA
Tel: 800.AVI.2131 • 818.503.6200
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
HDMI, IR, CAT5e/6 Wall Plate Extender.
Includes: [HDX-W100TX, HDX-W100RX,
PS5V2A-WLLMNT]
HDMI, IR, CAT5e/6 Wall Plate Transmitter.
Includes: [HDX-W100TX, PS5V2A-WLLMNT]
HDMI, IR, CAT5/5e/6 Wall Plate Receiver.
Includes: [HDX-W100RX, PS5V2A-WLLMNT]
•5VDC Jack
•Internal 5VDC Input
5VDC2A @24W
•5VDC Jack
•Internal 5VDC Input

Introduction
Features
• Extends HDMI Output over a Single Cat5e/6 Cable
• Extends IR Control Signals for Remote Control
• Supports uncompressed HD video
up to 1080p (@60Hz)
• HDMI 1.3 and HDCP Compliant
• Supports Bi-Directional IR Communication
• Transmits high-quality Dolby TrueHD and DTS-HD
Audio Signals
• Supports Automatic EDID Callback
• Compatible with DVI-D with Converter
• Cascadable for Additional Extensions
• VESA DDC and Hot Swap Technology (HPD)
• Receiver Features POE

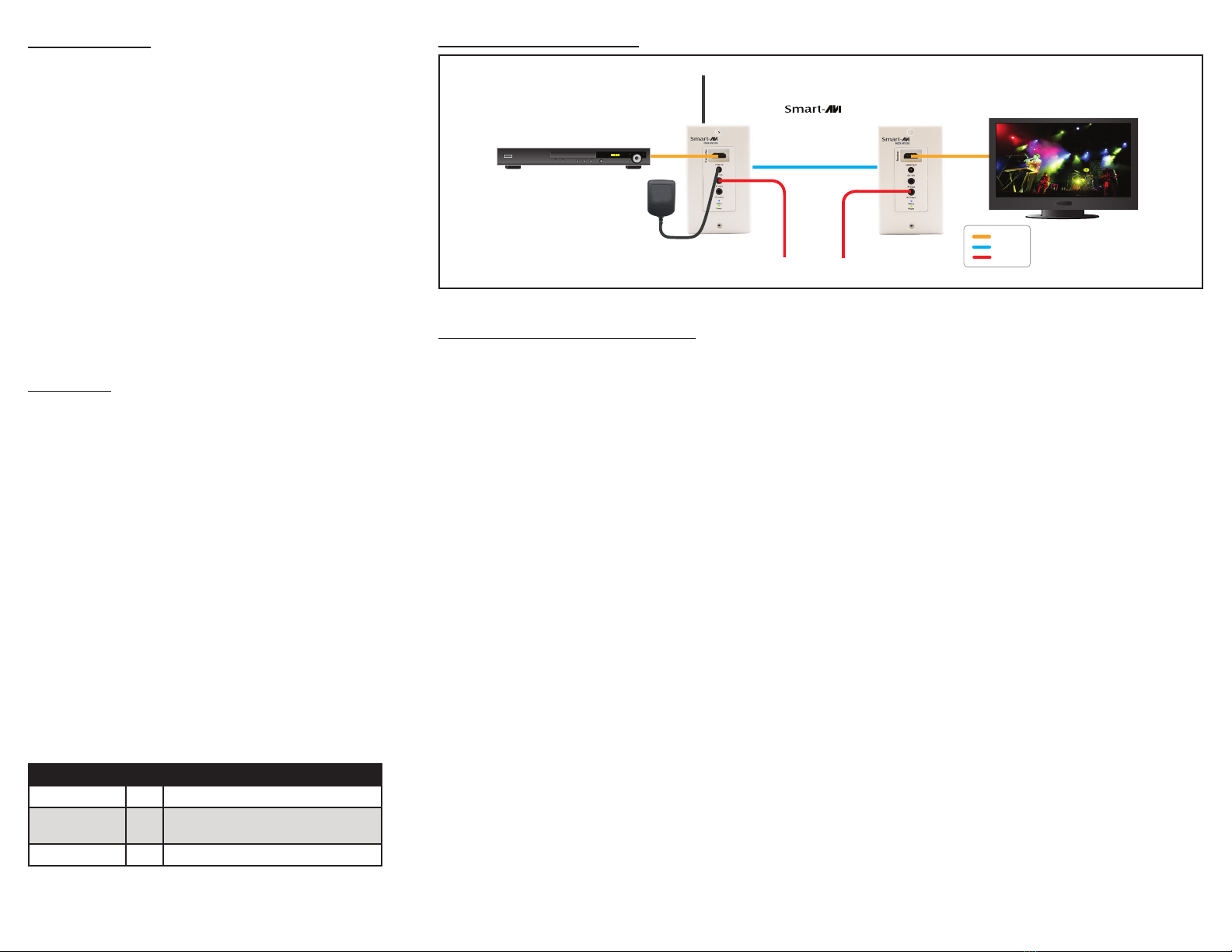

Application Diagram
Connecting the HDX-W100
1. Power o the HDMI source and display.
2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the HDX-W100 transmitter.
3. Connect an IR emitter (optional) to the IR OUT port on the transmitter.
4. Connect the HDX-W100 transmitter to the HDX-W100 receiver using a CAT5e/6 cable (up to 150ft).
5. Connect an IR receiver (optional) to the IR IN port on the receiver.
6. Connect an HDMI cable from the HDMI OUT port on the HDX-W100 receiver to the HDMI Display.
NOTE: If the RX side has connected DC adapter, TX can get the DC power over the CAT5e/CAT6 cable,
so leave DC input port empty. Only 1 power supply is required for both units.
8. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass
the date into the TX automatically.
PART NO. QTY DESCRIPTION
HDX-W100RXS 1 HDMI, IR, CAT5/5e/6 Wall Plate Receiver.
HDX-W100TXS 1 HDMI, IR, CAT5e/6 Wall Plate
Transmitter.
Power Supply 2
What’s in the Box?
HDX-W100-TX
HDX-W100
Monitor
HDMI Source
HDX-W100-RX
DC Power
Supply
Internal
DC Connection
(up to 150ft)
IR Emitter IR Receiver
HDMI
Cat5e/6
IR
HDMIHDMI
Cat5e/6
The HDX-W100 is an HDMI over Cat5e/6 extender that
utilizes slim wall plates to keep the wires as concealed
as possible while providing 150ft high-quality HD video
extension. The device supports high-resolution video
up to 1080p (@60Hz). The unit makes controlling the
attached video source easy with its bi-directional IR
communication, so users can adjust the source while at
the screen’s location, hundreds of feet away. For
corporate, academic, industrial and home applications,
the HDX-W100 provides afully-integrated solution for
HDMI extension. Both the transmitter and receiver can
be powered through asingle 5V power adapter
connected to the transmitter.
PS5V2A-WLLMNT
7. Connect the power on the HDX-W100 transmitter plugging in their power adapters (5VDC2A)
or provide 5VDC input from the rear DC input port.
