Installation guide
1
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
1. Introduction 2
2. Safety 2
2.1. Safety and liability 2
 
 
 
5. Commissioning 5
5.1. (OFF/ ) selector switch 5
5.2. Adding/Deleting a Sunis Indoor WireFree™ RTS 5
 
5.4. Sunlight simulation 7
5.5. (Mode) button 8
 
6. Use 10
7. Tips and recommendations 12
7.1. Questions about the Sunis Indoor WireFree™ RTS? 12
 
 
CONTENTS

Installation guide
2
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
1. Introduction
The Sunis Indoor WireFree RTS is a wireless solar sensor that
transmits radio signals using Radio Technology Somfy (RTS).
Depending on the detected level of sunlight intensity, the sensor
sends a raise or lower order to the motors or RTS receivers.
This permits automatic control of the sun protection end-products that
protect your interiors (e.g. your furniture, plants, etc.) and to assist
you in saving energy (in summer only).
2. Safety
2.1. Safety and liability
Before installing and using this product, please read this guide
carefully.
This Somfy product must be installed by a professional motorisation
and home automation installer, for whom this guide is intended.
Moreover, the installer must comply with the current standards and
legislation in the country in which the product is being installed, and
inform the customer of the operating and maintenance conditions for
the product.
          
prohibited. Doing so would void the warranty and releases Somfy of
all liability, as does any failure to comply with the instructions given
herein.

product with the associated equipment and accessories.

Installation guide

Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN

To avoid damage to the product:
1) Never immerse it in a liquid!
2) Avoid sharp bumps or blows!

4) Never pierce it!
5) Do no use abrasive products or solvents to clean the product.

1
4
2
5



Installation guide
4
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
3. Contents
1 Sunis indoor WireFree™ RTS
1 Suction cup

a) Protective front cover
b) Sun sensor
c) Battery
d) Rear cover
e) Sunlight detection area
f) Suction cup
g) Potentiometer for setting the sunlight threshold
h) Sun LED
i) (OFF/ ) selector switch
j) Programming button (PROG)
(Mode) button
b gdc ja h if e

Installation guide
5
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
5. Commissioning
 
Slide the (OFF/ ) selector switch to to activate the sunlight
sensor functions.


(PROG) button inactive.
(Mode) button inactive.
Sun LED inactive (No energy
consumption).

(sun LED glows for 5 seconds).
(PROG) button active.
(Mode) button active.
Sun LED active.

The procedure for adding or deleting a
sensor is the same.
To add or delete a Sunis Indoor WireFree™
RTS, use the RTS control point already
programmed to the end-product.
1) Slide the (OFF/ ) selector to .
2) Press on the sides of the front protective
cover and pull to remove it.

Installation guide

Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
Press and hold the (PROG) button on
the already assigned RTS control point
     
forth: the motor or RTS receiver RTS
enters programming mode for 2 minutes.
4)
      
Sunis Indoor WireFree™ RTS. The
     
Sunis Indoor WireFree™ RTS is
programmed.
           
assigned to this sensor.

Clean the surface on which the sensor is to be mounted.

5.3.1. On an inside window sill
1) Screw the suction cup to the bottom of the
sensor (A).
2) Moisten the suction cup.
Position the sensor with the sunlight intensity
detection area (B) towards the exterior and

AB

Installation guide
7
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN

1)         
sensor (C).
2) Moisten the suction cup.
Position the sensor below the area to be
protected by the end-product (D) and press
on the sensor.


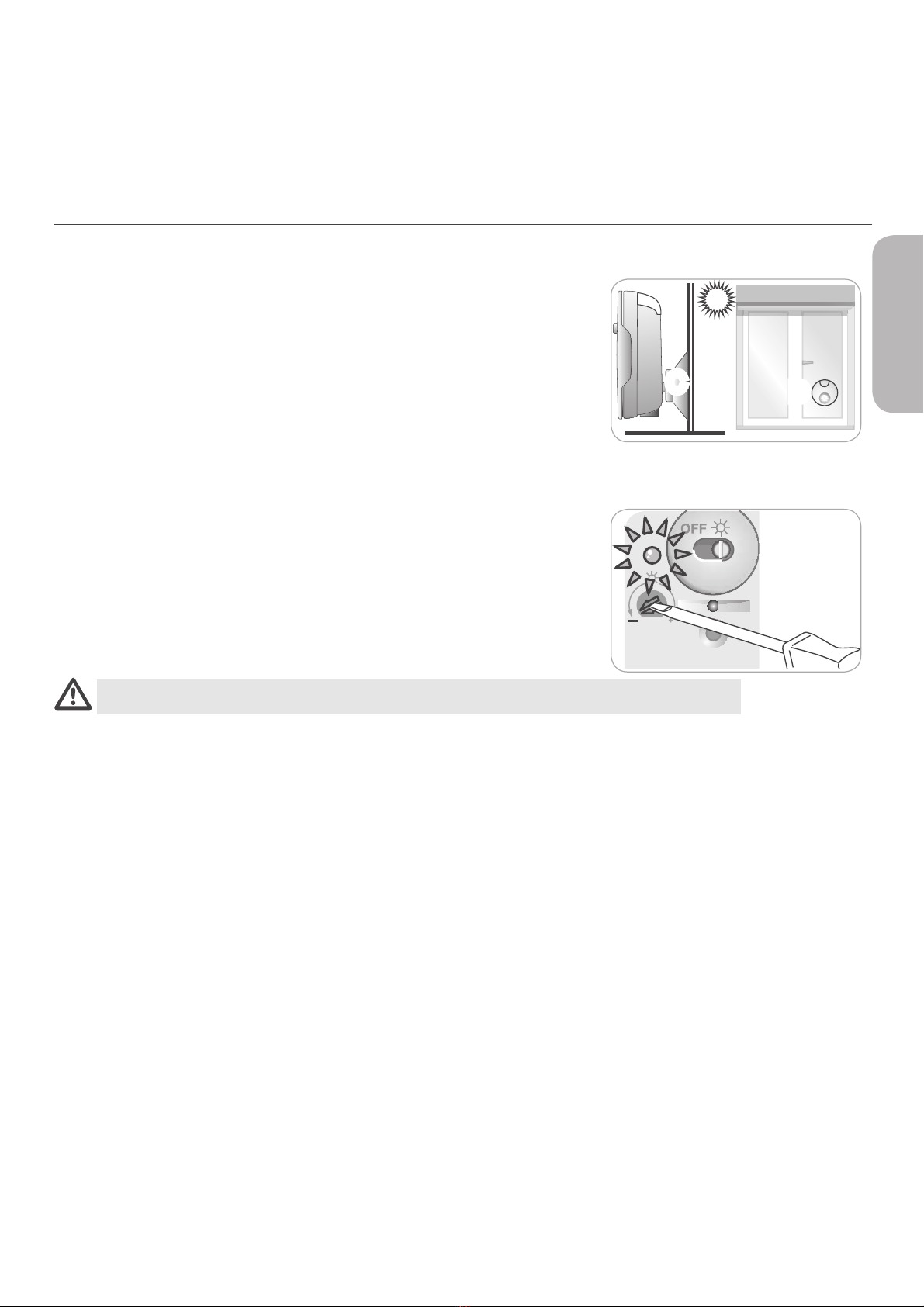

If you turn the potentiometer to the (-) position,
the sensor simulates continuous sunlight,
the LED glows green and the end-product is
lowered, stops level with the sensor and is then
raised slightly above the level of the sensor.
Do not leave the sunlight threshold setting at this level.
CD

Installation guide
8
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
5.5. (Mode) button

Press and hold the (Mode) button to activate demonstration mode.
5.5.1. Information mode


If the LED (red/green) is permanently lit: the sensor is in operating mode.
If the LED is red: the level of sunlight intensity is lower than the set
sunlight threshold.
If the LED is green: the level of sunlight intensity is greater than the
set sunlight threshold.

         

Do not change the sunlight threshold setting in demonstration
mode.
The same procedure is used to activate or deactivate
demonstration mode.
- Press and hold (>2 sec.) the (Mode) button to
activate or deactivate demonstration mode.
       
     
is activated. > 2 s

Installation guide
9
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
If the red/green LED is lit permanently, then demonstration mode is
deactivated.

mode then the sensor automatically switches to operating mode.

To increase the sunlight threshold, turn the potentiometer setting
toward the (+). To decrease the sunlight threshold, turn the
potentiometer setting toward the (-).
To adjust the threshold according to the
sunlight intensity of the moment, follow the
steps below:
1) Slide the (OFF/ ) selector switch to .
2)       
glows green or red.
Turn the potentiometer up to the (+) position:
the LED glows red.
4) Slowly turn the potentiometer towards the
(-) position until the LED changes from red
to green: the sunlight threshold is set on the
basis of the current intensity.
+

Installation guide
10
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
The LED is red when the sunlight is not strong enough to trigger a
command to lower the end-product.
The LED is green when there the sunlight is strong enough to
trigger a command to lower the end-product.
6. Use
Slide the (OFF/ ) selector switch to .


If the sunlight intensity is greater than the set sunlight threshold for
more than 5 min. (5 sec. in demonstration mode), the end-product is
lowered, stops at the level of the sensor and is then raised to slightly
above the level of the sensor.
If the sunlight intensity falls below the set sunlight threshold for more

is fully raised.
If the sunlight intensity rises above sunlight threshold during this
operation, then the end-product stops.
If the sunlight intensity falls below the set sunlight threshold again,
the end-product is raised fully even if the sunlight level rises
above the set value during the raise operation. The end-product
will not be lowered again during the day or will not be lowered
again until the sun has disappeared and reappeared.

Installation guide
11
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
09:00   12:00 12:00
Upper
end
limit
position
Time:
If the end-product is lowered manually (e.g. using a remote
control) or automatically (e.g. using a timer) and the sensor is no
longer exposed, then the sunlight detection function is deactivated
until the end-product is opened again manually or automatically.


Installation guide
12
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
7. Tips and recommendations

 Possible causes Solutions
The end-product
does not react to
sunlight.
The sensor is off. Slide the (OFF/ ) selector
switch to .
The sensor is not
programmed.
See the section "Adding/
Deleting a Sunis Indoor
WireFree™ RTS".
The sunlight
threshold is not set
correctly.
Set the sensitivity level
again.
The battery is

Replace it.
The sensor is dirty. Clean the sensor.
The sensor is
poorly positioned.
Reposition the sensor.
The end-product
reacts too often.
The sensor is in
"Demonstration
mode" or
"Simulation mode".
Deactivate the
"Demonstration mode" or
sun "Simulation mode".
The end-product
reacts abnormally.
A light source is
interfering with the
sensor.
Move the light source.

Installation guide

Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN

1) Unclip the front protective cover.
2) Open the sensor.
Push the used battery out of its housing
using a plastic object.
4) 

sign (+) is visible.
5) Push the battery fully into its housing.

Installation guide
14
Copyright © 2010 - 2011 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
Close the sunlight sensor.
7) 

Radio frequency 
Power supply 
Safety level Class III
Operating temperature 
Protection class 
Adjustable sunlight threshold
(min. - max.) 
Batteries or accumulators have to be separated from other
type of waste and must be recycled through your local
treatment and recycling system.
