Soliris io EN
15Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
TRANSLATED VERSION
These instructions apply to all versions of Soliris io, the dierent models of which are available in the
current catalogue.
CONTENTS
GENERAL INFORMATION
Safety instructions
Danger
Indicates a danger which may result in immediate death or serious injury.
Warning
Indicates a danger which may result in death or serious injury.
Precaution
Indicates a danger which may result in minor or moderate injury.
Attention
Indicates a danger which may result in damage to or destruction of the product.
1. INTRODUCTION
1.1. FIELD OF APPLICATION
The Solirisio sensor is a wind and sun sensor equipped with io-homecontrol® radio technology.
Connected directly to io-homecontrol® motors for terrace awnings, vertical blinds, pergolas, external
venetian blinds or swinging shutters, Solirisio allows these applications to be controlled automatically if the
wind blows stronger than a pre-set threshold and according to the lighting intensity (Sun).
Wind and sun sensitivity thresholds are pre-set by default, but they can be adjusted on the sensor, according
to requirements and actual climatic conditions.
1. Introduction 15
1.1. Field of application 15
1.2. Liability 16
1.3. Specific safety advice 16
1.4. Contents 16
1.5. Tools required 16
1.6. Solirisio in detail 17
2. Installation 17
2.1. Installation recommendations 17
2.2. Mounting the sensor bracket 17
2.3. Wiring 17
2.4. Fitting the protective housing 20
2.5. Commissioning 20
2.6. Tips and advice on installation 23
3. Use and maintenance 25
3.1. Wind, Sun and Rain functions 25
3.2. Behaviour of the motorised product
according to climatic conditions 26
3.3. Questions about the product ? 27
4. Technical data 28

EN Soliris io
16 Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1.2. LIABILITY
Before installing and using Solirisio, please read these instructions carefully.
The Soliris io sensor must be installed by a home motorisation and automation professional, in
accordance with Somfy’s instructions and the applicable regulations in the country of installation.
Any operation of the Solirisio sensor outside the scope of application described above is prohibited. Such
use, and any failure to comply with the instructions given in this guide, absolves Somfy of any liability and
invalidates the warranty.
The installer must inform his customers of the usage and maintenance conditions of the Solirisio sensor
and must provide them with the user and maintenance instructions after installing the Solirisio sensor. Any
after-sales service operation on the Solirisio sensor requires intervention by a home motorisation and
automation professional.
Never begin installing without first checking the compatibility of this product with the associated equipment
and accessories.
Somfy accepts no liability in the event of damage to equipment caused by weather conditions not detected
by the sensor.
Should any doubt arise during installation of the Solirisio sensor or for additional information, consult a
Somfy contact or visit www.somfy.com.
1.3. SPECIFIC SAFETY ADVICE
Attention
To prevent damage to the sensor:
• Avoid impacts!
• Do not drop it!
• Do not submerge it.
• Do not use abrasive products or solvents to clean the product.
• Do not clean it using a water spray or high pressure cleaning methods.
Ensure that the sensor is kept clean and regularly check it is operating correctly.
This sensor does not protect the motorised products in the event of strong gusts of wind. If there is a risk
of this kind of weather, ensure that the motorised products remain closed.
1.4. CONTENTS
Description Quantity
ASolirisio sensor 1
BCable (depending on version) 1
CScrews 2
DPlugs 2
1.5. TOOLS REQUIRED
• Drill and drill bit
• Cross-head screwdriver
• Flat-blade screwdriver
• Pencil
• Depending on the sensor version, some accessories required for installation are not supplied with
the kit:
-Power cable whose section is between 0.75 and 1.5 mm2and meeting the standards in force in the
country of installation
A
CD
B

Soliris io EN
17Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1.6. SOLIRISIO IN DETAIL
Description
ESun sensor
FAnemometer
G Protective housing
H Mounting bracket
IPROG button
J Sun LED
K Wind LED
L Sun potentiometer
M Wind potentiometer
2. INSTALLATION
2.1. INSTALLATION RECOMMENDATIONS
• Choose a location with maximum wind detection and which is not hindered by obstacles: install the
sensor in a location that is not sheltered from the wind
• Choose a sunny location where sunshine detection is compatible with wind detection.
• Install the sensor near the product which it controls.
• Never install the sensor underneath the motorised product or
under artificial lighting.
• Always fit the sensor with the anemometer (F) on top!
The articulated structure of the Soliris io sensor enables it to be
mounted on walls or roofs with a slope of up to 15°.
2.2. MOUNTING THE SENSOR BRACKET
1] Drill two holes, 38 mm apart and horizontally aligned.
2] Push the plugs (D) in (use the plugs supplied or a suitable model
for the medium)
3] Remove the protective housing (G) and then fix the sensor
mounting bracket (H) to the wall using the screws(C) supplied.
2.3. WIRING
2.3.1. Solirisio wiring
Attention
Perform disassembly and wiring operations away from any dust, moisture or foreign bodies to maintain
tightness.
38 mm
1]
2]
D
H
C
3]
H
I
G
J
K
F
E
L
M

EN Soliris io
18 Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1] Switch o the mains power supply.
2] Unscrew the front panel (N) of the mounting bracket to access
the terminal block.
Attention
Never remove the cover located under the anemometer.
3] Unscrew the left-hand metal tab (O).
4] Drill a hole in the left-hand sealant pad (P).
Attention
• Never remove the sealant pad.
• The hole drilled in the pad must not exceed the diameter of the
cable in order to maintain tightness.
5] Feed the cable (B) through the sealant pad.
6] Connect the power supply cable (B) to the sensor using the left-
hand terminal block marked "230V" (Q).
Attention
The cable must be stripped to 6mm.
7] Screw in the metal tab (O): the cable must be fed under the tab.
Attention
The cable sheath must exceed the tab by at least 2mm.
To add the wiring for a rain sensor (e.g. Ondeis), go to section 2.3.2.
8] Check the presence, good condition and the position of the seal
(R) before fitting the cover.
9] Screw the front panel (N) of the mounting bracket back on.
Attention
Tighten the screws completely to maintain the tightness of the
mounting bracket.
To complete the installation, go to section 2.4.
OFF
1]
N
2]
O
3]
P
4]
6]
B
Q
5]
B
O
7]
230V
≥2mm
RAIN
≥2mm
8]
R
N
9]

Soliris io EN
19Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.3.2. Connecting a rain sensor (e.g. Ondeis) to the Solirisio sensor
Attention
• In addition to the instructions provided in this manual, you must also comply with the detailed
instructions in the rain sensor manual.
• Perform disassembly and wiring operations away from any dust, moisture or foreign bodies to maintain
tightness.
To connect a rain sensor after completing the procedure in section 2.3.1., go directly to step 4].
To add the wiring for a rain sensor later on, after the Solirisio sensor has been installed, follow the procedure
below :
1] Switch o the mains power supply.
2] Remove the protective housing (G).
3] Unscrew the front panel (N) of the mounting bracket to access
the terminal block.
Attention
Never remove the cover located under the anemometer.
4] Unscrew the right-hand metal tab (S).
5] Drill a hole in the right-hand sealant pad (T).
Attention
• Never remove the sealant pad.
• The hole drilled in the pad must not exceed the diameter of the
cable in order to maintain tightness.
6] Feed the rain sensor output cable (U) through the right-hand
sealant pad.
7] Connect the rain sensor output cable (U) to the Solirisio sensor
using the right-hand terminal block marked "RAIN" (V).
8] Screw in the metal tab (W): the cable must be fed under the tab.
Attention
The cable sheath must exceed the tab by at least 2mm.
OFF
1]
2]
FR
STOP
90°
G
N
3]
S
4]
5]
T
6]
U
7] V
U
8]
230V
≥2mm
RAIN
≥2mm
W

EN Soliris io
20 Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.3.3. Activating a rain sensor
Presentation of the operating modes
When it is connected to the Solirisio sensor, the rain sensor can be configured in 2 operating modes: safety
mode or comfort mode.
• In safety mode, the motorised product moves to the safety position if the rain sensor detects rain.
This position is determined by the type of motorised product and protects the motorised product
from the rain.
• In comfort mode, when the rain sensor detects rain:
-If it is paired with a Somfy io bi-directional control point (e.g. TaHoma), via Solirisio, follow the
instructions for this control point.
-Otherwise, the motorised product goes to its lower end limit. This mode serves, for example, to
protect users from the rain under their awning.
Selecting the operating mode
By default, the mode selection button (X) is set to the central position:
the rain sensor is not activated.
To activate it, select a mode on the Solirisio sensor mounting bracket:
• Turn the mode selection button to C: the rain sensor is activated
in comfort mode.
• Turn the mode selection button to S: the rain sensor is activated in safety mode.
Attention
Do not use tools to turn the mode selection button (X).
Fitting the mounting bracket
1] Check the presence, good condition and the position of the seal
(R) before fitting the cover.
2] Screw the front panel (N) of the mounting bracket back on.
Attention
Tighten the screws completely to maintain the tightness of the
mounting bracket.
To complete the installation, go to section 2.4.
2.4. FITTING THE PROTECTIVE HOUSING
1] Insert the protective housing (G) on the mounting bracket (H)
until it clicks into position.
2] Fix the protective housing (G) onto the mounting bracket using
the screws.
3] Connect the cable (B) to the power supply.
2.5. COMMISSIONING
2.5.1. Pairing Solirisio with an io motor or receiver
Prerequisite: The motorised product must already be adjusted and paired with an io-homecontrol® control
point.
C
S
C
S
C
S
C
S
C
S
C
S
X
1]
R
N
2]
G
1]
H
G
2]

Soliris io EN
21Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1] Switch on the power supply.
2] Press the PROG button on the Somfy io control point paired with
the motorised product for about 2s until the motorised product
completes an up-and-down movement.
3] Briefly press the PROG button on Solirisio.
The motorised product performs another up-and-down
movement.
The Solirisio sensor is paired.
To pair the Solirisio sensor with other io motors or receivers, repeat this procedure.
To pair using an io-homecontrol® control point from a partner brand or a Somfy io bi-directional control
point (e.g.TaHoma), please refer to the relevant guide.
The Solirisio sensor can also be paired with a Somfy io bi-directional control point (e.g.TaHoma), please
refer to the relevant guide.
2.5.2. Checking Solirisio pairing
1] Position the motorised product at the lower end limit.
2] Turn the Wind potentiometer (M) to the Demo position.
The motorised product moves up and down briefly.
3] Turn the anemometer (F) manually to simulate the wind blowing.
The motorised product automatically moves to safety position
after 2s.
The Solirisio sensor is paired with this io motor or receiver.
Attention
Never leave the Wind potentiometer set to Demo.
2.5.3. Setting the wind sensitivity threshold
Table of thresholds
In addition to the value in km/h and the number of flashes indicating the level set, the corresponding value on
the Beaufort scale is given for information purposes.
Thresholds 1 2 3 4 5 6
km/h 28 38 49 61 74 88
Number of flashes ★★★★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★
Beaufort
equivalent Bf 5 Bf 6 Bf 7 Bf 8 Bf 9 Bf 10
ON
1]
2]
PROG.
3]
PROG.
1]
2]
3]

EN Soliris io
22 Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
Initial setting

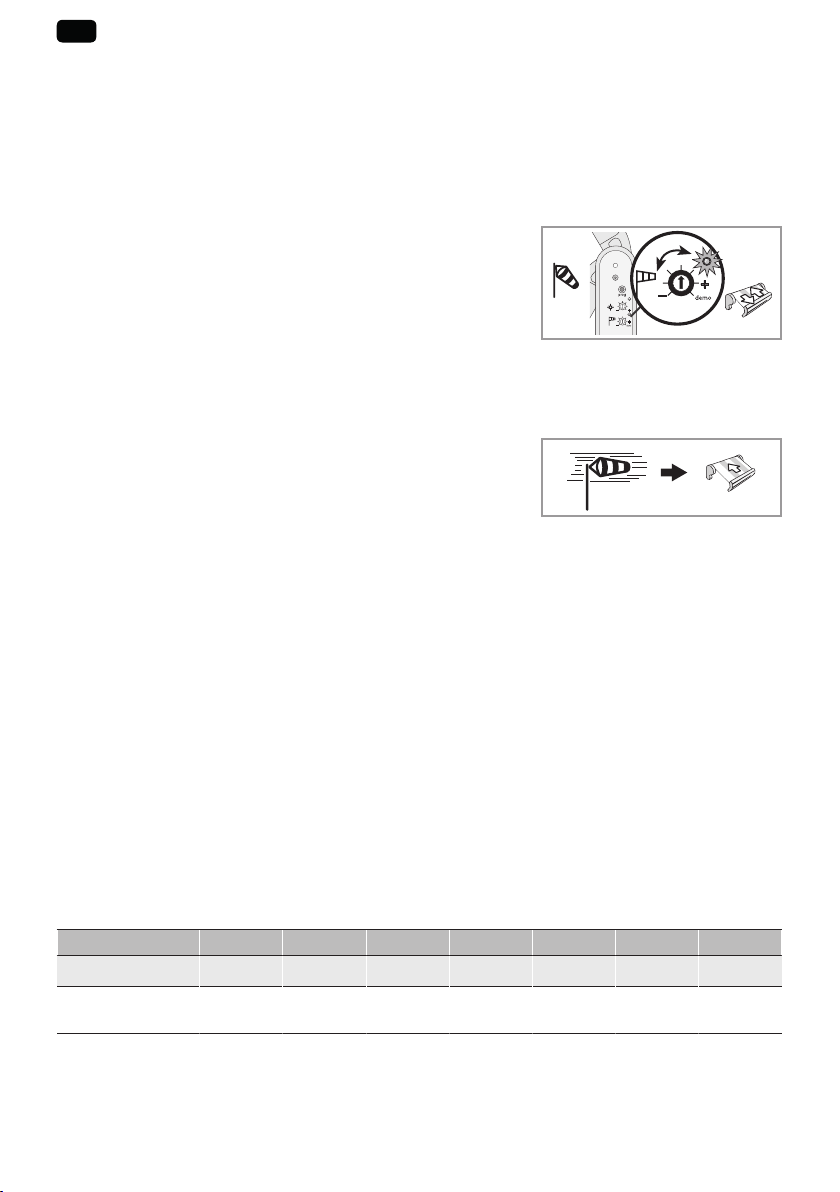

Set the Wind potentiometer (M) to the threshold adapted to the type of motorised product according to
the table of thresholds.
After about 2s, the Wind LED flashes a certain number of times indicating the threshold level set.
Adjusting the threshold
The sensitivity threshold setting can be changed according to the actual weather conditions and
requirements.
1] Turn the potentiometer to the right or left until the Wind LED (K)
is permanently lit green :
The wind sensor's sensitivity threshold is set according to the
current wind value.
Note :
-Wind LED o: the sensitivity threshold set has not been reached, the wind is blowing below the set
threshold: the motorised product does not move.
-Wind LED permanently lit green: the sensitivity threshold set has been reached, the wind is blowing above
the set threshold: the motorised product moves to the safety position.
2] Check that the motorised product reacts automatically when
the wind blows stronger than the threshold set and that, in these
conditions, the motorised product is not damaged.
If the motorised product does not react as desired, adjust the sensitivity threshold :
• Turn the potentiometer towards the (+) sign to increase the sensitivity threshold: a stronger wind
causes the motorised product to be moved to the safety position.
• Turn the potentiometer towards the (-) sign to decrease the sensitivity threshold: a weaker wind
causes the motorised product to be moved to the safety position.
2.5.4. Setting the sun sensitivity threshold
The sensitivity threshold setting can be changed according to the actual weather conditions and
requirements.
Turn the Sun potentiometer until the Sun LED (J) is permanently lit green :
The sun sensor’s sensitivity threshold is set according to the current level of sunshine.
Note :
-Sun LED o: the sensitivity threshold set has not been reached, the sun is shining below the set threshold:
the motorised product does not move.
-Sun LED permanently lit green: the sensitivity threshold set has been reached, the sun is shining above the
set threshold: the motorised product is lowered automatically after a few minutes.
Table of thresholds
Values are accurate to within ± 3.5 kilolux. The position of the sensor on the location influences the detection.
Thresholds 1 2 3 4 5 6 7
klx ≈1 ≈8,3 ≈16,7 ≈25 ≈33,3 ≈41,7 ≈50
Number of flashes ★★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★
★ ★
★ ★ ★ ★ ★
★ ★
To adjust the sensitivity threshold :
• Turn the potentiometer towards the (+) sign to increase the sensitivity threshold: the sun must shine
more brightly to cause the motorized product to lower.
• Turn the potentiometer towards the (-) sign to decrease the sensitivity threshold: the sun must shine
less brightly to cause the motorized product to lower.
1]
2]

Soliris io EN
23Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.6. TIPS AND ADVICE ON INSTALLATION
2.6.1. Questions about the product ?
Observations Possible causes Solutions
The sensor cannot
be paired with the io
motor or receiver.
The io motor or receiver memory
is full.
Unpair at least one sensor to be able to
connect the Soliris io sensor.
The sensor is fixed on a metal part. Move the sensor to distance it from the
metal part.
The sensor is not within the io
motor or receiver's range.
Move the sensor closer to the io motor or
receiver.
The motorised product
rises once an hour.
The sensor is not operating. Check the operation of the motorised
product with the io control point.
Check the operation of the sensor on
the motor using the Demo mode.
Check the sensor wiring .
Replace the sensor if it is faulty; see
2.6.4.
The sensor is not within the io
motor or receiver's range.
Move the sensor closer to the io motor or
receiver.
The motorised product
does not automatically
retract when the wind
is detected.
The sensor does not work
because the wiring is incorrect. Check the sensor wiring; see 2.3.
The sensor is not paired with the
io motor or receiver. Pair the sensor with io motor or receiver; see 2.5.
The wind sensitivity threshold is
incorrectly set. Alter the wind sensitivity threshold; see 2.5.3.
External radio equipment
is interfering with the radio
reception (e.g. Hi-Fi radio
headphones).
Turn o all radio equipment nearby.
The motorised product
does not react when
the sun appears/
disappears.
The sun sensitivity threshold is
incorrectly set. Alter the sun sensitivity threshold; see 2.5.
2.6.2. Disassembling Solirisio
Attention
• Perform disassembly and wiring operations away from any dust, moisture or foreign bodies to maintain
tightness.
• Never remove the cover located under the anemometer.
1] Switch o the mains power supply.
2] Loosen the screws located on the protective housing  G) and
unclip the protective housing(G) from the mounting bracket(H).
OFF
1]
2]
FR
STOP
90°
G

EN Soliris io
24 Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3] Unscrew the front panel of the mounting bracket (O) to remove
the housing and access the terminal blocks and the mode selector.
4] If necessary, loosen the screws fastening the mounting bracket
to the wall.
2.6.3. Unpairing Solirisio from an io receiver or motor
The procedure to be followed to unpair Solirisio from an io receiver or motor is identical to the pairing
procedure, see 2.5.1.
2.6.4. Replacing a broken or faulty Solirisio
1] Press the PROG button on the Somfy io local control point until
the motorised product performs an up-and-down movement (≈
2 s).
2] Press the PROG button (I) on the new Soliris io sensor for
7seconds:
The Wind LED (K) on the new Solirisio sensor is lit green after
2seconds and remains lit for 5 seconds:
All the broken or faulty sensors are deleted from the memory of the io motor(s) or receiver(s).
3] Pair the new Solirisio sensor with the io motor(s) or receiver(s); see 2.5.1.
2.6.5. Returning Solirisio to its original configuration
1] Press the PROG button (I) on Solirisio for 7 seconds:
The Wind LED (K) is lit green after 2s and remains lit for 7s:
The original Solirisio settings have been restored and the io bi-directional control points have been
deleted.
2] To use Solirisio again, carry out a complete commissioning procedure; see 2.5.
K
3]
2 s
1]
PROG.
7 s
2]
PROG.

Soliris io EN
25Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3. USE AND MAINTENANCE
This product is maintenance-free and no maintenance operations should be performed on it.
3.1. WIND, SUN AND RAIN FUNCTIONS
Wind function
LED Behaviour of the motorised product
1Wind threshold exceeded: the Wind
LED is permanently lit green.
Moves to the safety position automatically and remains
blocked as long as the threshold is exceeded.
2Wind level below the threshold: the
Wind LED goes o.
It is then possible to control the motorised product in
manual mode after 30s.
All the automatic functions remain locked for another
11min 30s.
Sun fonction
LED Behaviour of the motorised product
3Sun sensitivity threshold exceeded:
the Sun LED is permanently lit green.
Moves to the sun protection position after 5min.
It is then possible to control the motorised product in
manual mode.
4Sunshine level below the threshold:
the Sun LED goes o.
Moves to the safety position automatically after a
waiting time of 20 to 35min* (except for a roller shutter
at its lower end limit: it remains in this position).
It is then possible to control the motorised product in
manual mode.
*This delay prevents the motorised product from making unnecessary movements every time a cloud crosses
the sun, for example.
Rain function in safety mode
Behaviour of the motorised product
5Moves to the safety position automatically and remains blocked as long as the sensor detects
rain.
6It is then possible to control the motorised product in manual mode after 30s.
All the automatic functions remain locked for another 11min 30s.
Rain function in comfort mode
Behaviour of the motorised product
7
Moves to the lower end limit (or my) position automatically and remains blocked as long as the
sensor detects rain.
If the sensor is paired with a Somfy io bi-directional control point (e.g. TaHoma ), the scenario
programmed by the user is activated.
8It is then possible to control the motorised product in manual mode and the wind/sun/rain
automatic functions are reactivated.

EN Soliris io
26 Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3.2. BEHAVIOUR OF THE MOTORISED PRODUCT ACCORDING TO CLIMATIC
CONDITIONS
3.2.1. Wind and Sun (without rain sensor)
Check that the Sun function is activated on the remote control: position the cursor (A/M) on Auto (refer to the
remote control guide for more information). When the Sun function is not activated: see conditions without
sun.
Climatic conditions Priority of functions
Wind function, see 3.1. 1
Wind function, see 3.1. 1
Wind function then Sun function, see 3.1. 2 and 3
Wind function then Sun function, see 3.1. 2 and 4
3.2.2. Wind, Sun and Rain in Safety mode or Comfort mode
When a rain sensor is connected to the Soliris io sensor and the mode is selected.
Climatic conditions Priority of functions
in Safety mode Priority of functions in Comfort mode
Wind fonction, see 3.1. 1Wind function, see 3.1. 1
Wind function, see 3.1. 1Wind function, see 3.1. 1
Wind and Rain functions, see 3.1. 1
and 5Wind function, see 3.1. 1
Wind and Rain functions, see 3.1. 1
and 5Wind function, see 3.1. 1
Sun fonction, see 3.1. 3Sun fonction, see 3.1. 3
Rain function, see 3.1. 5Rain function, see 3.1. 7
Wind and Rain functions then Sun
function , see 3.1. 2, 6and 4
Wind function then Rain and Sun
functions , see 3.1. 2, 8and 4
Rain function, see 3.1. 5Rain function, see 3.1. 7

Soliris io EN
27Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3.3. QUESTIONS ABOUT THE PRODUCT ?
Observations Possible causes Solutions
The motorised product does not
automatically retract when the
wind is detected.
External radio equipment
is interfering with the radio
reception (e.g. Hi-Fi radio
headphones).
Turn o all radio equipment
nearby.
The Wind threshold is incorrectly
set. Contact an installer.
The motorised product does
not react when the sun appears/
disappears.
The Sun function is not activated
on the remote control. On the remote control, position the cursor (A/M) on Auto -
refer to the remote control
instructions.
The sun sensor is dirty or blocked
with dust, leaves or snow. Clean the sun sensor with a dry cloth.
External radio equipment
is interfering with the radio
reception (e.g. Hi-Fi radio
headphones).
Turn o all radio equipment
nearby.
The sensor is detecting wind and
inhibiting the Sun function. Wait until the sensor has not detected any wind and unlock the
motorised product.
The motorised product rises
once an hour. The sensor is not operating. Contact an installer.

EN Soliris io
28 Copyright©2019-2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
4. TECHNICAL DATA
Radio frequency 868-870 MHz io-homecontrol®, two-way Tri-band
Frequency bands and maximum power used 868.000 MHz - 868.600 MHz e.r.p. <25 mW
868.700 MHz - 869.200 MHz e.r.p. <25 mW
869.700 MHz - 870.000 MHz e.r.p. <25 mW
Degree of protection IP34
Electrical insulation Class II
Power supply 230 V 50 Hz
Operating temperature - 20°C to + 50°C
Dimensions in mm (LxH x l) 235 x 160 x 60 mm
Maximum number of associated motors Unlimited
Type-1 automatic action device.
For more information about the technical data relating to this product, please contact a Somfy representative.
We care about our environment. Do not dispose of the appliance with the household waste. Take it
to an approved collection point for recycling.
SOMFY ACTIVITES SA hereby declares that the radio equipment covered by these instructions
is in compliance with the requirements of Radio Directive 2014/53/UE and the other essential
requirements of the applicable European directives.
The full text of the EU Declaration of Conformity is available at www.somfy.com/ce.
H
L
l

SOMFY ACTIVITES SA
50 avenue du Nouveau Monde
F-74300 Cluses
www.somfy.com
SOMFY ACTIVITES SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy, 303.970.230 - 03/2020 Images not contractually binding
5151207B
