SOMFY Sonesse 30 DCT User manual

Sonesse 30 DCT
EN Instructions
FR Notice
ES Instrucciones
IT Istruzioni

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 3
ORIGINAL INSTRUCTIONS
These instructions apply to all Sonesse 30 DCT drives, the different versions of which
are available in the current catalogue.
CONTENTS
1.
Prior information........................................................................................... 5
1.1. Field of application............................................................................ 5
1.2. Liability ............................................................................................... 5
2.
Installation...................................................................................................... 6
2.1. Assembly ............................................................................................ 6
2.2. Compatible power supplies (for US only)....................................... 9
2.3. Wiring ................................................................................................. 9
2.4. Commissioning .................................................................................. 11
2.5. Tips and advice on installation......................................................... 13
3.
Use and maintenance .................................................................................... 16
3.1. Mode selection: Roller or Tilting Mode.......................................... 16
3.2. Controlling Up, Down, my: in Roller mode .................................... 17
3.3. Controlling Up, Down, my: in Tilting mode.................................... 18
3.4. Favourite position (my) .................................................................... 18
3.5. Adjusting the speed........................................................................... 19
3.6. Tips and advice on operation........................................................... 20
4.
Technical data ................................................................................................ 21

EN Sonesse 30 DCT
4Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
GENERAL INFORMATION
Safety instructions
DANGER
Indicates a danger which may result in immediate death or
serious injury.
WARNING
Indicates a danger which may result in death or serious
injury.
PRECAUTION
Indicates a danger which may result in minor or moderate
injury.
CAUTION
Indicates a danger which may result in damage to or
destruction of the product.

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 5
1.PRIOR INFORMATION
1.1.Field of application
The Sonesse 30/24 drives are designed to drive all types of interior blinds and
projection screens up to 2 Nm except pantographs.
The installer, who must be a motorisation and home automation professional, must
ensure that the motorised product is installed in accordance with the standards in
force in the country in which it is installed such as EN13120 relating to interior blinds.
1.2.Liability
Before installing and using the drive, please read these instructions carefully.
In addition to the instructions provided in this guide, please also comply with the
instructions provided in the attached Safety instructions document.
The drive must be installed by a home motorisation and automation
professional, in accordance with Somfy’s instructions and the applicable
regulations in the country of installation.
Any operation of the drive outside the field of application described above is
prohibited. Such use, and any failure to comply with the instructions given in this guide
and in the attached Safety instructions document, absolves Somfy of any liability and
invalidates the warranty.
After installing the drive, the installer must inform his customers of the operating and
maintenance conditions for the drive and must provide them with the operating and
maintenance instructions, and the attached Safety instructions document. Any After-
Sales Service operation on the drive must be performed by a home motorisation and
automation professional.
Never begin installing without first checking the compatibility of this product with the
associated equipment and accessories. If in doubt when installing this product and/or
to obtain additional information, contact a Somfy representative or visit the website
www.somfy.com.
Using this drive with any power supply which is not listed in the attached
"Compatibility matrix" document or in the drive leaflet shall also render invalid any
Somfy warranty and release Somfy from any liability.

EN Sonesse 30 DCT
6Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
2.INSTALLATION
WARNING
• These instructions are mandatory for the home motorisation and
automation professional installing the drive.
• Comply with current standards and legislation in the country of installation.
CAUTION
• Never drop, knock or puncture the drive or immerse it in liquid.
• Install an individual control point for each drive.
• To insure optimized silent operation, the gaps between the drive, the
accessories, the tube and the tube end piece must be minimized.
• Never cut or remove the cable label.
2.1.Assembly
2.1.1.Replace the head cover with a different color (Optional)
NOTICE
Head has interchangeable covers to fit with the fabric.
1] Unclip the cover.
2] Clip the new cover on the head.
2.1.2.Preparing the drive
CAUTION
• Sonesse 30 DCT : interior diameter of the tube has to be Ø27.7 mm or
greater.
• The crown is mandatory.

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 7
1] Fit the accessories required to integrate
the drive into the tube:
ð Fit the crown (a) and the wheel (b) to
the drive.
2] Measure the length (L) between the inner
edge of the drive head and the rim of the
wheel.
L
1]
2]
ab
2.1.3.Preparing the tube
1] Cut the tube to the required length.
2] Deburr the tube and remove the debris.
1] 2]
2.1.4.Assembling the drive-tube
1] Slide the drive into the tube. For tubes
with a smooth interior, position the cut
notch on the crown.
2] The wheel must be locked in place to
prevent any movement in the tube.
1]
2]
L
▪ This can be achieved by fastening the tube to the wheel using self-tapping
screws, or steel pop rivets, placed between 5mm and 15mm from the outer
edge of the wheel, regardless of the tube.
▪ or by using a wheel lock, for non-smooth tubes.
CAUTION
The screws or pop rivets must only be fastened on the wheel and not on the
drive.

EN Sonesse 30 DCT
8Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
2.1.5.Installing the drive-tube assembly
CAUTION
• The motorised product must not be compressed between the brackets.
• Do not use the plastic cross without the metal bracket adapter.
▪ The drive can be fixed directly onto the drive bracket (the screw holes are
spaced 29mm apart). Use 2screws (3.5 x 9mm). A manual tightening torque of
1Nm is recommended.
▪ Drive plates are also available in the current
catalogue (Select the correct drive plate
adapted to the bracket and check the
torque requirements in the system). Use
the 2 screws (3 x 6mm) delivered with the
motor plate. A manual tightening torque of
0,3Nm is recommended.
1] Screw the bracket adapter to the drive
head.
2] Install and fix the drive-tube assembly
onto the end bracket (c) and onto the
drive bracket (d).
dc
CAUTION
• Do not let the tube hanging by the head side only.
• Ensure that the drive-tube assembly is secured onto the end bracket. This
operation prevents the tube-drive assembly from coming out of the end
bracket attachment.
• Light gap reduced: Do not pinch cable or be careful they are not in contact
with moving parts.

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 9
2.2.Compatible power supplies (for US only)
For USA and CANADA, use only SOMFY power supply listed in the leaflet. For other
countries, see Compatibility Matrix document for appropriate power supply.
References Designations
1870196 5 motors / Somfy Control Distribution panel
1870192 10 motors / Somfy Control Distribution panel
1870197 15 motors / Somfy Control Distribution panel
1870198 20 motors / Somfy Control Distribution panel
1870259 Somfy Power Panel
2.3.Wiring
2.3.1.Wiring of the power cable
WARNING
To ensure electrical safety, this Class III drive must be powered by a “class 2”
power source (SELV -Safety Extra Low Voltage) + LPS (Limited Power Supply).
PRECAUTION
• Cables routed through a metal wall must be protected and insulated by
sleeving or sheathing.
• Secure the cables to prevent any contact with moving parts.
• If the drive is used outdoors and if the power supply cable is of the H05-VVF
type, run the cable in a UV-resistant duct, e.g. trunking.
• The drive cable cannot be removed. If it is damaged, return the drive to the
After-Sales department.
CAUTION
• Leave the drive power supply cable accessible: the product must be easily
replaceable.
• Always make a loop in the power supply cable to prevent water from
entering the drive.

EN Sonesse 30 DCT
10 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
CAUTION
• The product is intended for being supplied by Class II output of an external
power supply.
• Do not use an extension cord. If the power supply cord is too short, have a
qualified electrician install an outlet near the motorised product.
NOTICE
Sonesse 30 DCT is a dry contact drive. It can’t be controlled with power going
through the setting tool cable.
Connect the drive to the power supply:
▪ Black wire: -
▪ Red wire: +
2.3.2.Wiring of the control point
2.3.2.1.Setting tool or 4 wires switch
(a): Up (White/Blue wire)
(b): Stop (Blue wire)
(c): Down (White/Orange wire)
(d): Common (Orange wire).
1
3
4
2
a
c
b
d
a
c
b
d
2.3.2.2.Smoove IB+
(a): Up (White/Blue wire) or Down (White/Orange
wire)
(b): Up (White/Blue wire) or Down (White/Orange
wire)
(c): Common (Orange wire).
1
2
3
a
c
b
2.3.2.3.Wall switch
(a): Up (White/Blue wire) or Down (White/Orange
wire)
(b): Up (White/Blue wire) or Down (White/Orange
wire)
(c): Common (Orange wire).
1
2
3
a
c
b

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 11
2.3.2.4.Correspondence
ST OPST OP ST OP
2.4.Commissioning
NOTICE
Orange LED blinks continuously in setting mode.
2.4.1.Checking the direction of rotation
Press the Up button on the setting tool:
a] If the motorised product rises, the direction of
rotation is correct: move onto Setting the end
limits [}11].
b] If the motorised product lowers, the direction
of rotation is incorrect: move onto the next step.
b1] Press the Stop button on the setting tool until
the motorised product moves up and down: the
direction of rotation has been modified and green
LED blinks 5 times.
b2] Press the Up button on the setting tool to
check the direction of rotation.
a]
b]
b1] b2]
2.4.2.Setting the end limits
NOTICE
The end limits can be set in any order.
NOTICE
With the setting tool, it is possible to cancel and exit the end limits setting mode
by simultaneously pressing the Up, Stop and Down buttons. This mode is also
cancelled with inactivity of 2 minutes.

EN Sonesse 30 DCT
12 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
1] Press and hold the Up button to move the
motorised product to the desired up
position. If necessary, adjust the up
position using the Up or Down buttons.
2] To memorize the up limit: Press the
Stop and Down buttons simultaneously
and release once the motorised product
begins to move.
ð The up limit is memorized and green
LED blinks 5 times.
3] Press the Stop button when the
motorised product reaches the desired
down position. If necessary, adjust the
down position using the Up or Down
buttons.
4] To memorize the down limit: Press the
Stop and Up buttons simultaneously and
release when the motorised product
begins to move.
ð The down limit is memorized and

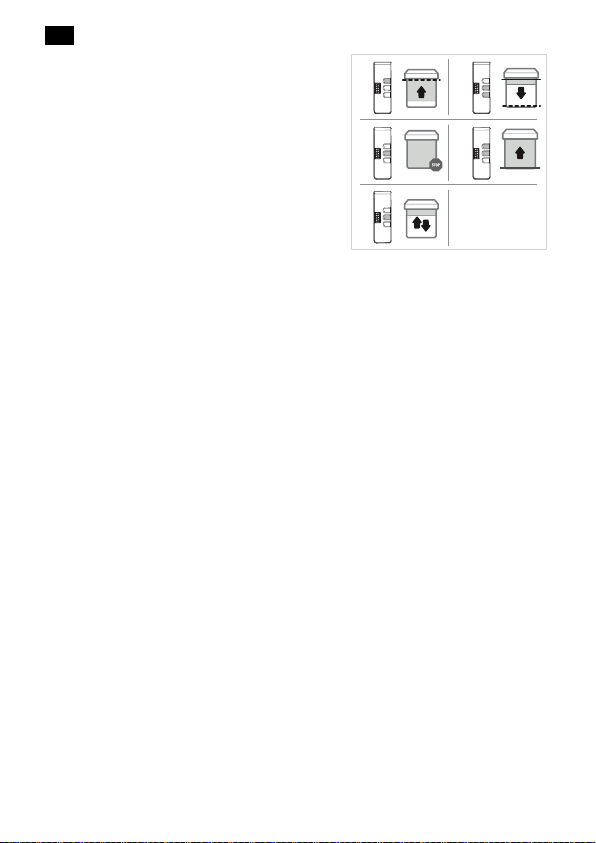

green LED blinks 5 times.
ð The motorised product moves up and
stops at its upper limit.
5] To confirm and complete end limits
programming: Press and hold the Stop
button until the motorised product briefly
moves up and down.
g The end limits are recorded and green
LED blinks 5 times.
1] 2]
3]
5]
4]

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 13
2.5.Tips and advice on installation
2.5.1.Questions about the product?
Observations Possible causes Solutions
The motorised product is
noisy.
The wheel and the crown
are not adapted to the used
tube.
Change the wheel and the
crown.
The mechanical plays
between drive, accessories,
tube and end of tube are
too high.
The mechanical plays
between drive, accessories,
tube and end of tube must
be decreased to the
minimum.
The wheel is not properly
fixed to the tube.
Fix the wheel properly to
the tube.
The equipment is
constrained between the
brackets.
Decrease the constraint
between the brackets.
The length of the notch is
not adapted to the drive
hook or to the used crown.
Adapt the length of the
notch to the drive hook or
to the used crown.
Debris, screws or other are
in the tube.
Empty the tube.
The temperature of the
environment is not in
conformity with the
operating temperature.
Change the environment
temperature.
The motorised product
stops too soon or too late.
The end limits of the
motorised product slip.
Re-set the end limits
referring to Readjusting
the end limits [}15]
End-limits are not properly
adjusted.
Adjust the end-limit
referring to Readjusting
the end limits [}15]

EN Sonesse 30 DCT
14 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
Observations Possible causes Solutions
The motorised product
does not fall within the
recommended weight
limits.
Check the compatibility of
the motorised product.
Consult a Somfy contact or
visit www.somfy.com.
The motorised product
does not work.
Wiring is incorrect. Check the wiring and
modify it if necessary.
The drive is neither set nor
paired. Orange LED lights
fixed on.
Proceed to
Commissioning [}11]
The drive is in setting
mode. Orange LED blinks.
Proceed to Setting the
end limits [}11].
The drive is in thermal
protection mode. LED Red
= ON then lights OFF.
Wait for the drive to cool
down.
An obstacle hinders the
movement of the
motorised product. The
Red LED lights fixed on.
Remove the obstacle.
Drive position is out of the
end limits. Red LED blinks 2
times intermittently and
continually.
Proceed to Setting the
end limits [}11]

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 15
2.5.2.Readjusting the end limits
NOTICE
Orange LED blinks slowly until the new end limit is recorded.
2.5.2.1.Readjusting the upper end limit
1] Briefly press the Up button, to move the
motorised product to the upper end limit.
2] Press and hold the Up and Down buttons
simultaneously until the motorised
product briefly moves Up and Down.
3] Press and hold the Up or Down button to
move the motorised product to the new
desired position.
4] To confirm the new position press and
hold the Stop button until the motorised
product briefly moves up and down and
green LED blinks 5 times.
1] 2]
3] 4]
2.5.2.2.Readjusting the lower end limit
1] Briefly press the Down button to move
the motorised product to the lower end
limit.
2] Press and hold the Up and Down buttons
simultaneously until the motorised
product briefly moves up and down.
3] Press and hold the Up or Down button to
move the motorised product to the new
desired position.
4] To confirm the new position press and
hold the Stop button until the motorised
product moves up and down and green
LED blinks 5 times.
1]
3]
2]
4]

EN Sonesse 30 DCT
16 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
2.5.3.Modifying the drive rotation direction
To reverse the drive rotation direction:
1] Press and hold the Up and Down buttons
simultaneously until the motorised
product briefly moves up and down.
2] Press and hold the Stop button until the
motorised product briefly moves up and
down.
1] 2]
2.5.4.Erasing the memory of the drive (factory default)
To reset the drive, press and hold the drive head
programming button or the Up, Stop and Down
buttons simultaneously, until the motorised
product briefly moves up and down 3 times.
→ All the settings are erased. Green LED blinks 5
times then orange LED is fixed on.
x3
3.USE AND MAINTENANCE
NOTICE
This drive does not require any maintenance operations.
3.1.Mode selection: Roller or Tilting Mode
The drive is designed to work in 2 modes: Tilting mode or Roller mode.
This feature allows the drive to be set according to the type of application.
NOTICE
The drive is set (by default) to work in Roller mode.
To change the mode:

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 17

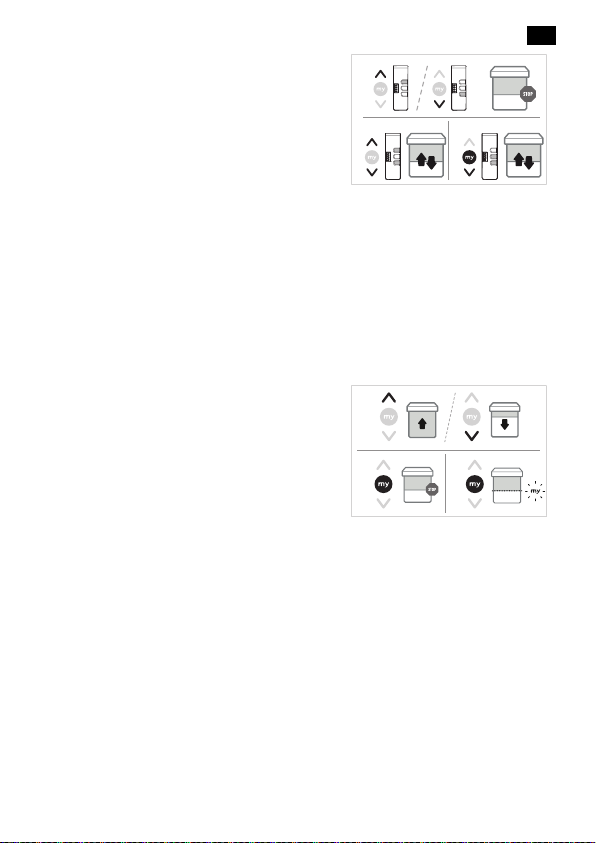

1] Move the motorised product away from
the end limits.
2] Simultaneously press and hold the Up and
Down buttons until the motorised
product briefly moves up and down.
3] Press and hold the my/Stop and Down
buttons simultaneously until the
motorised product briefly moves up and
down to change from Roller mode to
Tilting mode.
g Green LED blinks twice to indicate that
the drive is in Roller mode or three
times to indicate that the motor is in
Tilting mode.
1]
2] 3]
3.2.Controlling Up, Down, my: in Roller mode
1] To move the motorised product from a
limit to the other limit, briefly press the Up
or Down button.
2] To stop the motorised product, briefly
press the my button.
3] If a favourite position (my) is recorded: To
move the motorised product to the
favourite position (my), briefly press the
my button.
1]
2] 3]

EN Sonesse 30 DCT
18 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
3.3.Controlling Up, Down, my: in Tilting mode
1] To move the motorised product from a
limit to the other limit, briefly press (less
than 0,5s) the Up or Down button.
2] To stop the motorised product, press the
my button.
3] If a favourite position (my) is recorded: To
move the motorised product to the
favourite position (my), briefly press the
my button. The motorised product
automatically moves to the down end limit
(first) then to the favourite position (my).
4] To tilt the slats, press and hold the Up or
Down button until the slats reach the
desired position.
2 s 2 s
1]
2]
4]
3]
3.4.Favourite position (my)
NOTICE
An intermediate position, which is called the “favourite (my) position” and is
different from the upper and lower positions, can be programmed.
3.4.1.Programming or modifying the favourite (my) position
NOTICE
Only one favourite (my) position is permitted.
1] Place the motorised product in the desired
favourite position (my).
2] Press and hold the my button until the
motorised product briefly moves up and
down:
g The desired favourite position (my) is
programmed and green LED blinks 5
times.
1]
2]

Sonesse 30 DCT EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 19

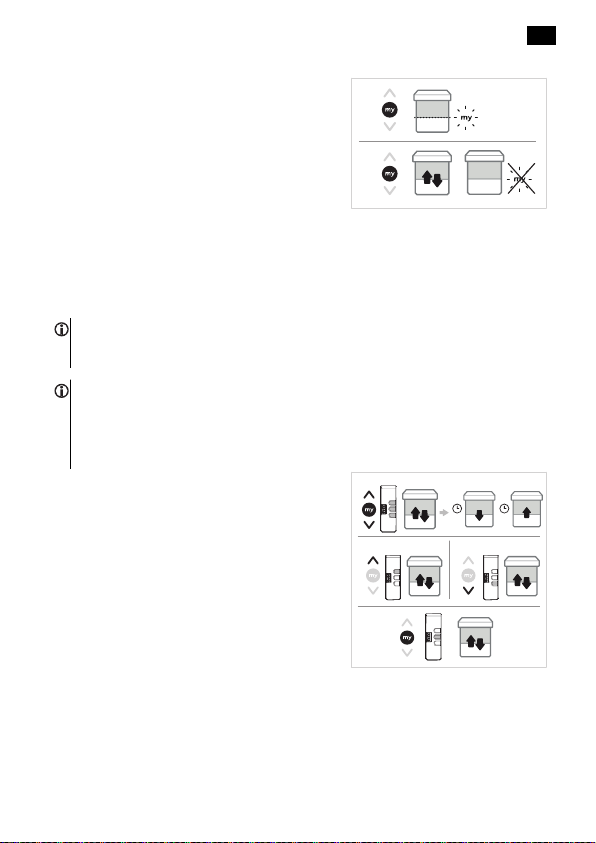

3.4.2.Deleting the favourite position (my)
1] Press the my button:
ð The motorised product starts to move
and stops in the favourite position
(my).
2] Press and hold the my button until the
motorised product briefly moves up and
down:
g The favourite position (my) is deleted
and green LED blinks 5 times.
1]
2]
3.5.Adjusting the speed
NOTICE
Orange LED blinks slowly in this mode.
NOTICE
With the setting tool, it is possible to cancel and exit the speed adjustment mode
by simultaneously pressing the Up, Stop and Down buttons. This mode is also
cancelled with inactivity of 2 minutes.
1] Move the motorised product away from
the end limits. Press and hold the Up, my/
Stop and Down buttons simultaneously,
until the motorised product briefly moves
up and down once.
ð The motorised product moves up and
down automatically in 10 second
cycles and green LED blinks 5 times to
validate entering in speed adjustment
mode.
2] To increase the speed, press and hold the
Up button until the motorised product
briefly moves up and down and green LED
blinks 5 times. Repeat as needed.
2]
1]
4]
3]
10 s 10 s

EN Sonesse 30 DCT
20 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
NOTICE
Maximum speed is reached when the
motorised product moves briefly 3 times in one
direction and 3 times in the other direction.
Red LED blinks 3 times and 3 times
intermittently.
3] To decrease the speed, press and hold the
Down button until the motorised product
briefly moves up and down. Repeat as
needed.
NOTICE
Minimum speed is reached when the motorised
product moves briefly 3 times in one direction
and 3 times in the other direction.
4] To confirm the new speed, press and hold
the my/Stop button until the motorised
product briefly moves up and down and
green LED blinks 5 times.
NOTICE
Other functions are available, for more information, contact your Somfy
representative.
3.6.Tips and advice on operation
3.6.1.Questions about the product?
Observations Possible causes Solutions
The motorised product
does not operate.
The drive is in thermal
protection mode. LED Red
= ON then lights OFF.
Wait for the drive to cool
down.
