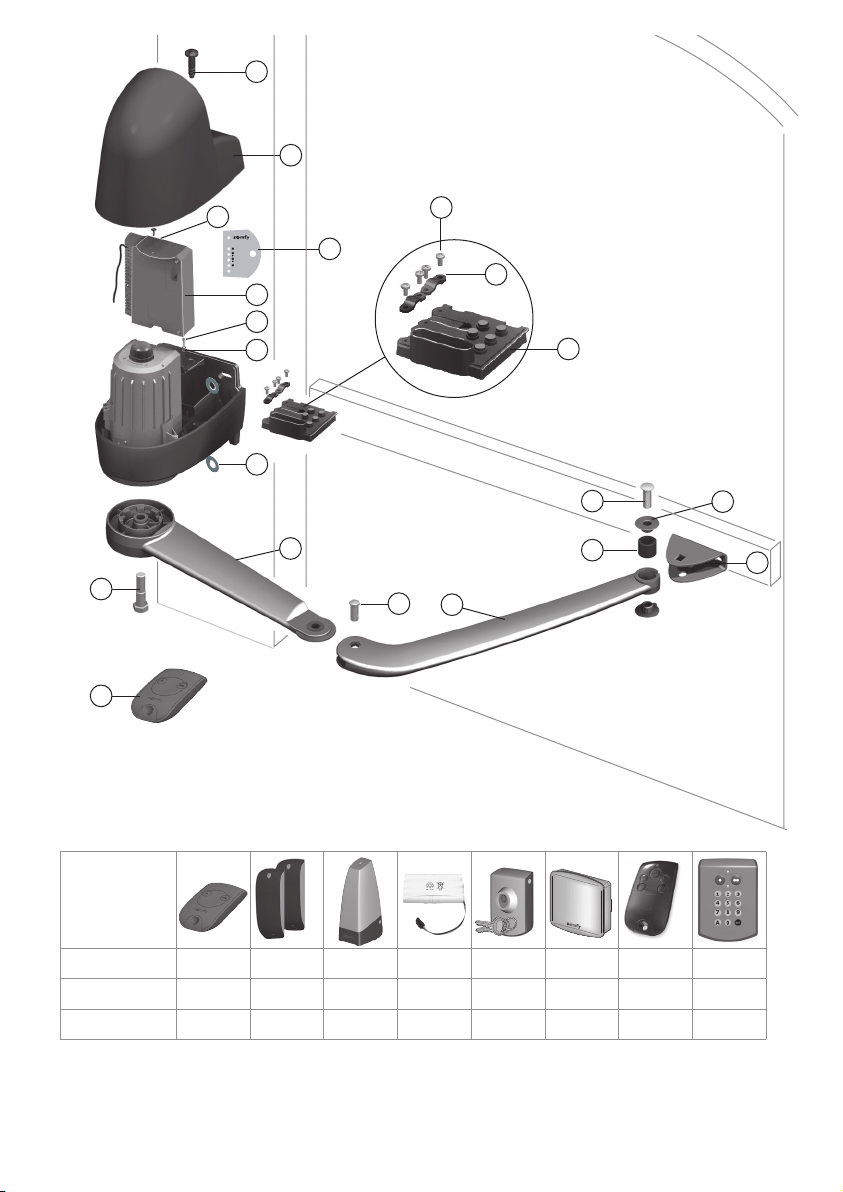

SOMFY SGA 6000 User manual

MOTOR DRIVES
FOR LEAF GATES
SGA 6000
SGA 6000 INTÉGRAL
SGA 6000 INTÉGRAL +

TOTAL + PIETON
RADIO
TOTAL
FERMETUREAUTO
SEQUENTIEL
RAZMEMOIRE
STATUT
15
19
14
12
17
6
13
18
16
7
8
20
1
2
3
5
4
TOTAL + PIETON
RADIO
TOTAL
FERMETURE AUTO
SEQUENTIEL
RAZ MEMOIRE
STATUT
10
9
11
x 2
SGA 6000
-2111
INTEGRAL 2111111
INTEGRAL + 2111 111

1
17
TOTAL + PIETON
RADIO
TOTAL
FERMETURE AUTO
SEQUENTIEL
RAZ MEMOIRE
STATUT
9
8
10
18
15
16
14
13
11 12
5
6
1
2
7
20
19
9 m : 2 x 1 mm²

2
M10
x4
x4
x8
x8
M10 x 150 M6 x 40
M6
HM10
x8
HM6
x4
5 7 8
5 7 8
Not included in the kit

3
English
CONTENTS
Foreword ........................................................................... 4
Safety instructions.................................................. 5
Product description............................................... 6
Preliminary operations....................................... 8
5-step installation :
1. Preparing and drilling gateposts.................. 12
2. Installing the motors.............................................. 14

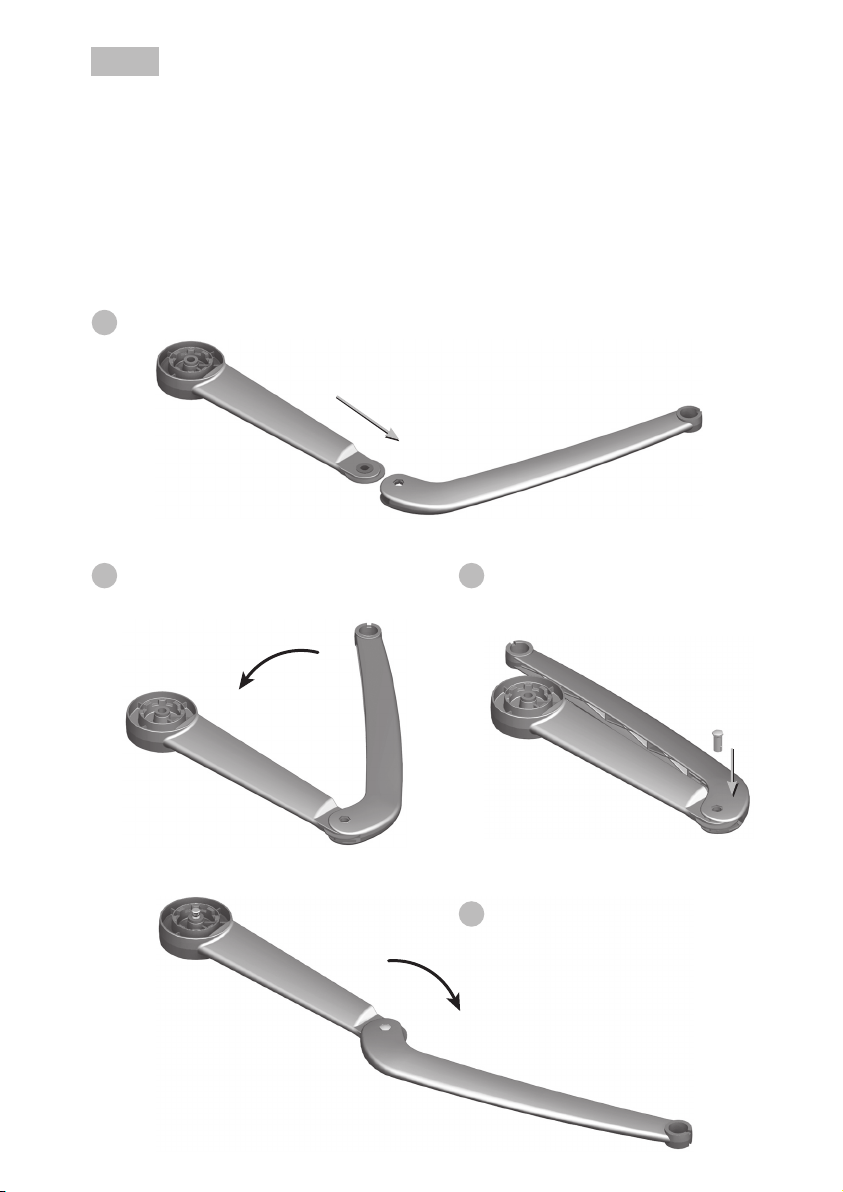

3. Mounting the arms .................................................. 16
4. Electrical connections .......................................... 20
5. Settings............................................................................ 23
Usage .................................................................................... 29
Troubleshooting........................................................ 31
Accessories.................................................................... 32

4
Foreword
Thank you for choosing a Somfy product. This equipment has been designed,
manufactured and distributed by Somfy in accordance with a quality policy
complying with the ISO 9001 standard.
Who are Somfy?
Somfy develops, manufactures and sells automatic control devices for domestic
opening and closing systems. We offer alarm systems, automatic control
devices for awnings, roller shutters, garages and gates. We guarantee all Somfy
products will meet your expectations in terms of safety, comfort and time saving
on a daily basis.
At Somfy, the pursuit of quality is a continuous process of improvement. Somfy’s
reputation has been built upon the reliability of its products and the Somfy brand
is synonymous with innovation and technological expertise worldwide.
This product fully complies with the essential safety guidelines and specifications
set out by the directive according to the EN 60335-2-103 standard.
Assistance
Getting to know our customers, listening to them, meeting their needs: this is
Somfy’s approach.
For further information on how to choose, purchase or install Somfy systems,
please ask for advice at your DIY store or contact a Somfy advisor directly for
help and assistance.
Somfy UK Hotline : [phone]
Internet: www.somfy.com

5
English
Safety Instructions
Somfy declares that this product complies with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A Declaration of Conformity is available at www.somfy.com/ce.
Product can be used in the European Union and Switzerland.
Before installing your motor, carefully read all the instructions in this guide. All the
instructions given must be followed closely and this guide must be stored in a safe
place throughout the service life of your product.
Failure to follow these installation instructions may result in serious injury or
damage to the equipment. Somfy shall not be held liable in this event.
This device is not designed to be used by persons (including children) whose
physical, sensory or mental capacity is impaired, or persons with little experience
or knowledge, unless they are under supervision or have received instructions on
using the device by a person responsible for their safety.
Do not allow children to play with the fixed control devices.
Remote controls must be placed out of sight and out of reach.
If you are using a switch without a locking device***, ensure that other people
remain at a distance.
Frequently check the product to detect any defects in balance in the gate or any
signs of wear. Do not use the motor if it requires repair or adjustment.
Disconnect the supply motor during cleaning operations or other maintenance
operations.
Before installing the motor, ensure that the driven part is in good mechanical
condition, that it is correctly balanced and that it opens and closes correctly.
Ensure that any danger zones (crushing, cutting, trapping) between the driven
part and the surrounding fixed parts created by the opening of the driven part are
avoided.
Watch your gate while it is moving.
Any switch without a locking device*** must be in direct view of the driven part, but
away from any mobile parts. It must be installed at a minimum height of 1.5 m and
must not be accessible to the public, unless it is key-operated. Ensure that people
remain at a distance when it is in use.
Maintain a clear area of 500 mm from the end of the gate when it is completely
open.
*** example: intercom, key switch, keypad, etc.
Do not dispose of your scrapped appliances, nor your used batteries
with household waste. You are liable to dispose of all your electronic or
electrical equipment waste by relocating over to a dedicated collection
point for recycling.

6
Product description
This product is intended for gates for residential houses (described on page 8).
Supply voltage 230 V~ / Solar
Motor type 24 V
Motor power 120 W
Maximum power consumption
(with zone lighting)
600 W
Consumption in standby mode 4.5 W
Average frequency of use per day 20 cycles / day
10 cycles / day using solar power
Length of time to open* 10 s. to 90°
Automatic detection of obstacles Complies with standard EN 12453
Operating temperature -20°C to +60°C
Thermal protection Yes
Level of Protection IP 54
Integrated radio receiver Yes
Remote controls:
● Radio frequency
● Range of use
● Number of controls memorisable
433.42 MHz
~ 30 m
32
Possible connections :
● Orange LED output
● Area lighting output, powered contact
● Additional power outputs
● Backup battery input
● Photoelectric cell input
● Dry contact control input
Blinking, 24 V, 10 W
500 W maxi en 230 V
15 W / 24 V using solar power
24 Vdc / 15 W max
Yes
Yes
Yes (230 V only)
lTechnical characteristics
* Variable depending on the gate’s characteristics.
Max. weight per leaf (P) 200 kg
Max. height per leaf (H) 2 m
Min. width per leaf (L) 0,8 m
Max. width per leaf (L) 2 m
lDimensions and maximum weight of the leaves

7
English
Product description
English

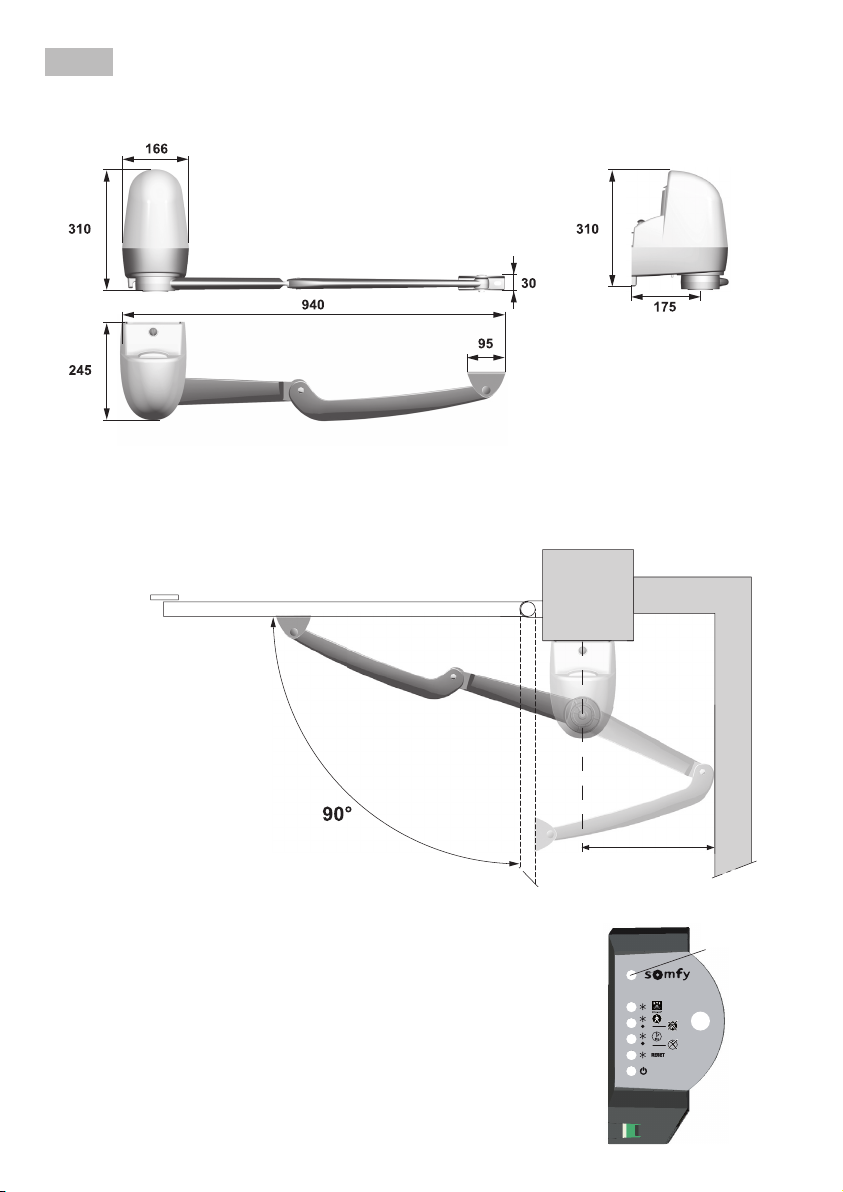

lOverall dimension of the SGA (in mm)
lAmbient light detector
lMinimum clearance with gate open (in mm)
The motor’s electronic unit is fitted with an ambient light detector
which detects whether or not the cover is fitted. This means that
settings mode is only available when the cover is removed. If the
cover is fitted, the motor is in standby mode.
Greater than or superior
to 405 mm
Light detector

8
Preliminary operations
lStops on the gate
Stops must be set firmly in the ground so
as to limit the opening and closing travel
the leaves.
The location of these stops is determined
by the leaves’ opening angle (< or = to
120°).
The two leaves may have different opening
angles.
lTypes of gates able to be motorised
Your SGA can be used with any type of gate, provided its structure is sufficiently sturdy.
Brackets
nPoints to be checked before installing
lChecking your gate
Your gate is in good condition: It will open and close normally without being forced.
It remains horizontal as it is swinging open/closed. Opens inward.
Renfort
Patte de
fixation
lBrackets located on the gate
The fastening lugs for the motor drive’s
arms must be mounted on the horizontal
brackets of the leaves, at about 1/3 of the
height of the gate.
If there are no such brackets, use backing
plates approx. 4 mm thick.
Fastening
lug Bracket

9
English
Preliminary operations
English
lChecking the gateposts
The gateposts must be sturdy and at least 25 cm wide. Otherwise, your gateposts may
need servicing to ensure that they are firmly set in the ground and that the angle bracket is
securely fastened.
lQuality of gateposts’ surface
Gateposts which are not level or have a non-flat surface require the use of an intermediate
support bearing plate. Likewise, when the motor fastening lugs do not completely fit on the
gatepost or are close to the gatepost’s angle, this intermediate bearing plate (prod. 2400485)
must be attached.
Platine
intermédiaire
Cornière
(non fournie)
Platine
intermédiaire
Intermediate
bearing plate
Intermediate
bearing plate
Angle bracket
(not included)

10
Preliminary operations

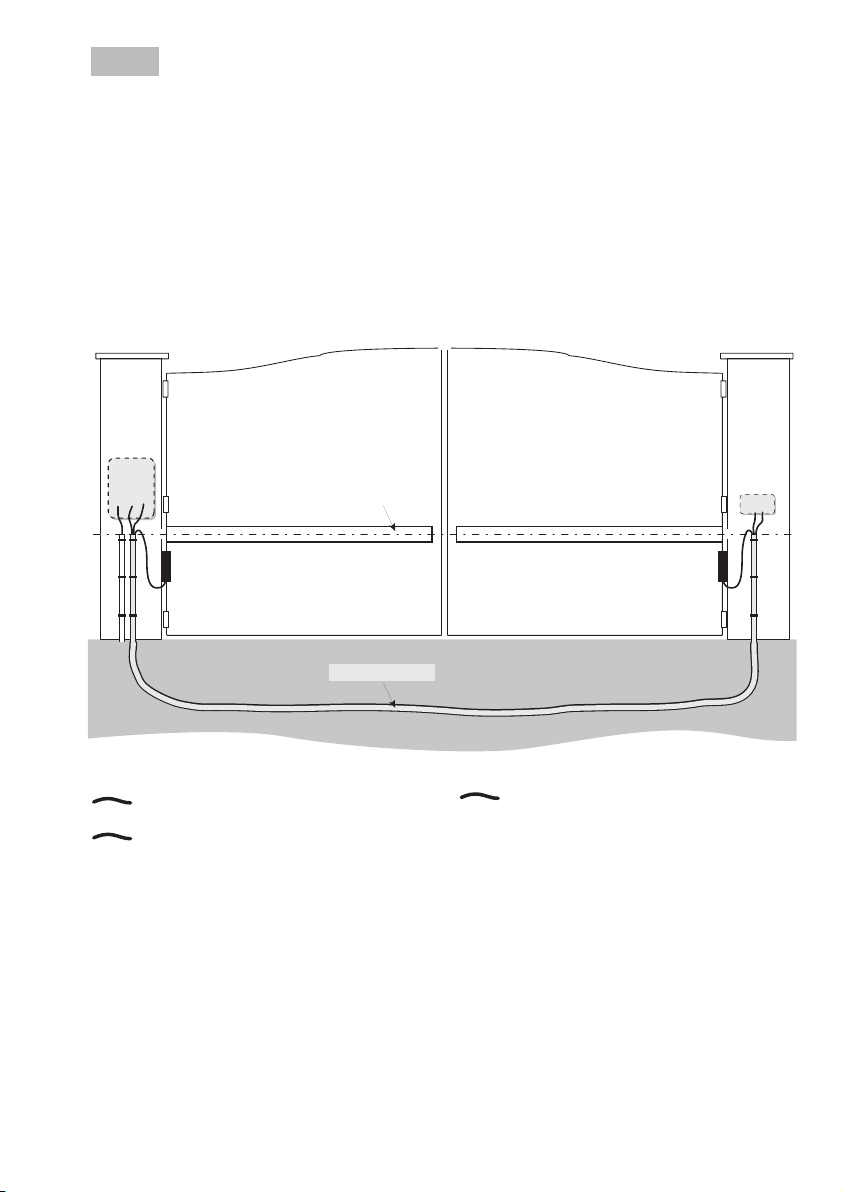

nElectrical pre-wiring
To motorise your gate:
• Install a 230 V electric supply on one of the gateposts, as near as possible to the SGA
motor.
• Interconnect the gateposts using the 2 x 1 mm2cable provided (or two cables for
photocells).
Use a 25-mm-diameter Orange ICT protective sheath for burying the cables.
If you cannot dig a cable trench between the two gateposts, use a raceway that will bear the
weight of vehicles passing over it (ref. 2400484).
• Provide a ducted connection between the two gateposts to wire the photocells.
2
1
3
4
23
1Bracket
Electronic
control unit
Junction box
(not supplied)
2 x 1 mm2cable between motors
2 x 0.75 mm2cable between cells
23
Flexible ICT duct ( )
Power input from mains: (3 x 1.5 mm2)
24-V connection between the two motors
provided: (2 x 1 mm2)
2
1
3
4
24-V connection between
the two cells for automatic
operation: (2 x 0.75 mm2)
2
1
3
4
lMains power
To operate, the gate opener must be powered at 230 V, 50 Hz.
The electrical wire must be:
• Used only for the gate opener.
• Protected: — by a 10-A fuse or circuit breaker,
— by a differential device (30 mA).
• Installed in compliance with electrical safety standards in force locally.
An all-pole power disconnection means must be provided:
• either a supply cable with an electrical plugt,
• or a switch which keeps the contacts at least 3 mm apart at each pole (see standard EN
60335-1).
It is recommended to install a lightning arrestor (with a maximum residual voltage of 2 kV).
1
2
3

11
EnglishEnglish
Preliminary operations
English

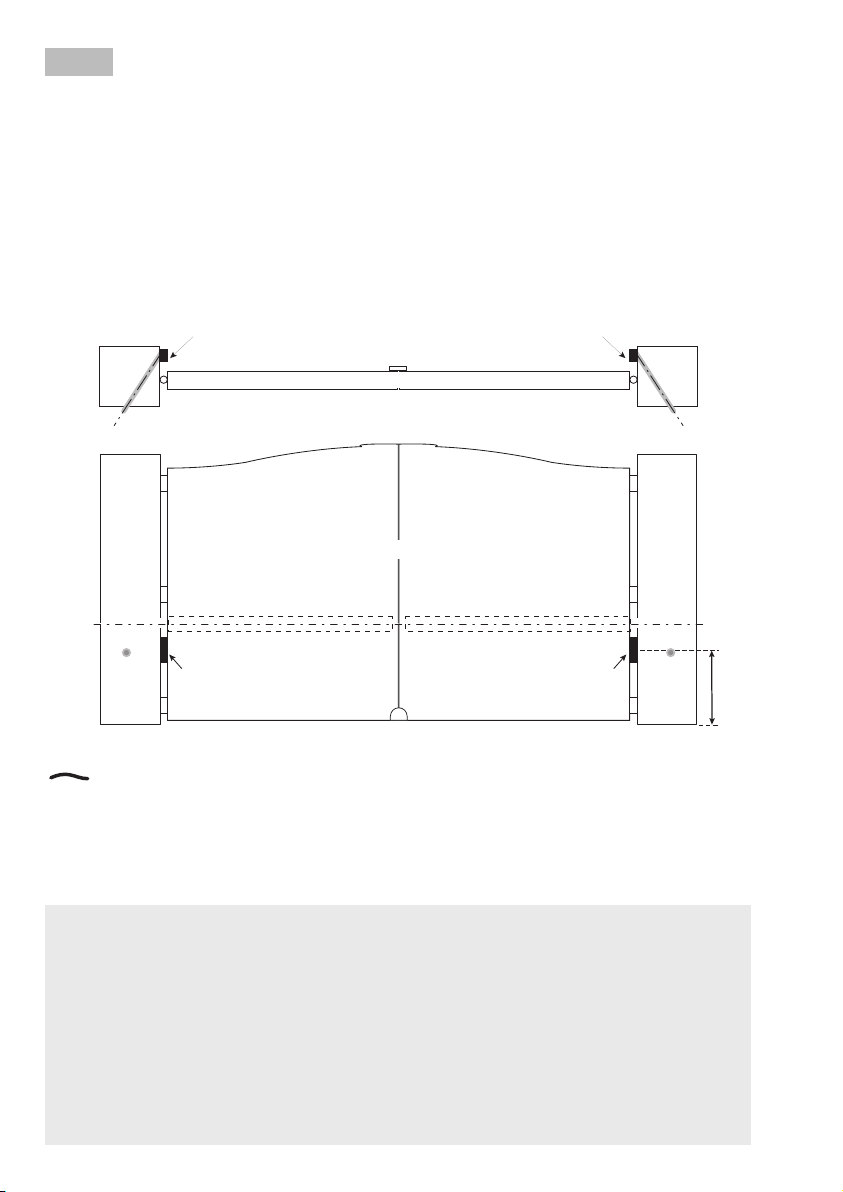

Inside
Outside
Outside
Receiving cell
Receiving cell 40 cm
Transmitting cell
Transmitting cell
4 4
4 4
Top view
Front view
nSafety Instructions
These safety instructions must be followed throughout the whole installation process:
• Remove your jewellery (including bracelets and chains) during installation.
• When drilling and soldering, wear special goggles and appropriate protection.
• Use appropriate tools, as specified on page 2.
• Handle the motorisation system with caution to avoid injury.
• Do not connect the motor to the mains or the (optional) backup battery until the mounting
process has been completed.
• Never use a high-pressure water flow rate for cleaning.
Running a duct into the gateposts
2
1
3
4
lPhotocells (optional)
The photocells are necessary for automatic-mode operation and for gates opening onto the
public highway.
• Wiringthephotocells (see page 36)
The 24-V input and information received from the contacts (receiving cell) must be
under the cells.
Drill the gateposts to pass the ducts through them.
4

12

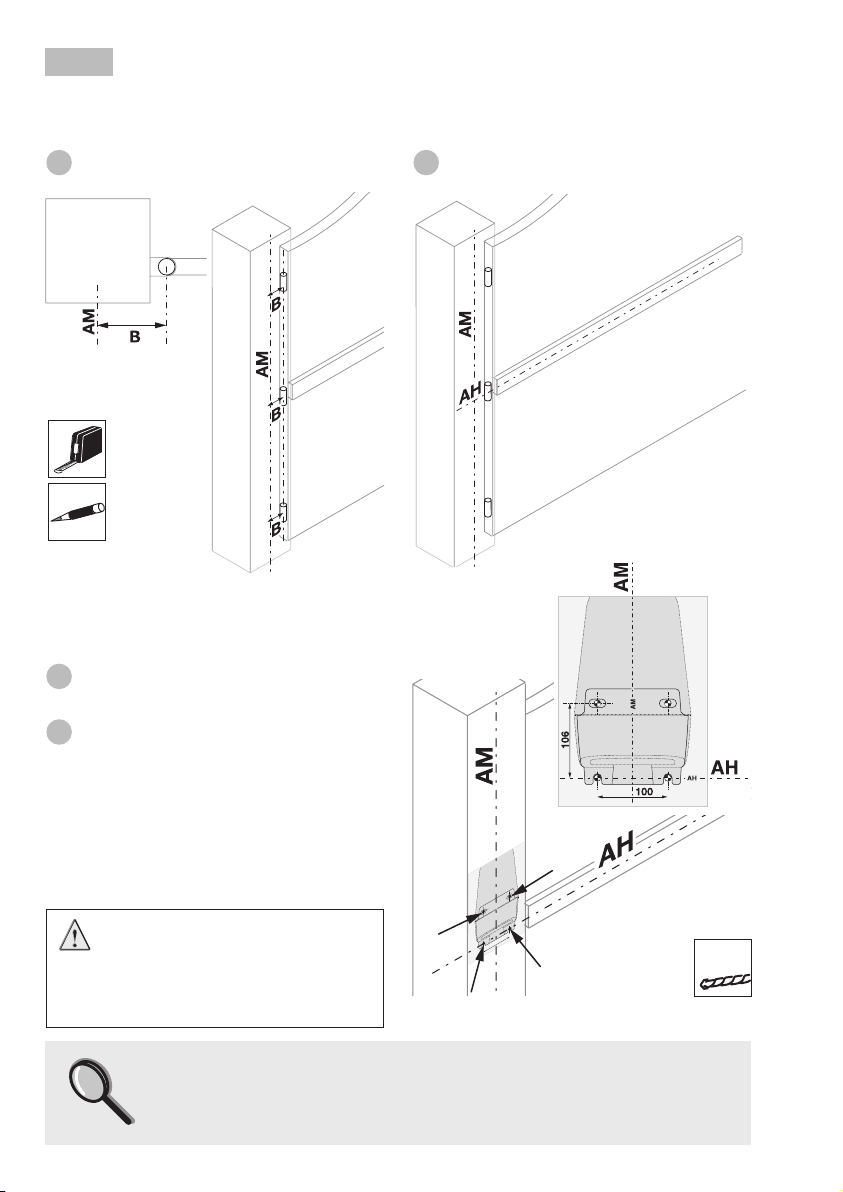

Preparing and drilling gateposts
1
nSteps :
oDimension measurement
The type of gate determines where the motors are to be placed.
Measure the dimensions described below to determine their position on the gateposts:
For these measurements, the leaves and their hinges are supposed to be on the same
axis. If the hinges are not aligned (offset), the leaves’ maximum opening angle will be
less than the values shown.
oDimension measurement.
oMarking the AM and AH baselines.
oDrilling the gateposts.
lMeasure dimension A
Using the table below, determine:
• the maximum opening value of the leaves,
• dimension Bto determine the vertical
positioning axis of the motors on the
gateposts.
.
D
Dimension A (mm) Maximum opening (°) Dimension B (mm)
0 120 205
0 110 160
0 105 150
50 100 150
100 95 150
≥ 150, ≤ 250 90 150
lCheck dimensions D and L
For safety’s sake, check:
• dimension Dwhich must be greater
than or equal to 405 mm,
• dimension Lwhich must be between
800 and 2,000 mm.

13
English
Preparing and drilling gateposts
1
CarrydimensionB overandtraceavertical
baseline (AM) onto the gateposts.
Take care to follow the
recommendations in the
instructions provided with the chemical
sealants when determining the drilling
method and diameters.
oDrilling the gateposts.
oMarking the AM and AH baselines.
5 7 8
1
Using a small-diameter (4 or 5 mm)
concrete drill bit, pre-drill 4 holes for filling
with chemical sealants into each gatepost,
in the positions marked on the template.
Finish drilling the 4 holes using a concrete
drill bit whose diameter corresponds to
the chemical sealants.orrespondant aux
scellements chimiques.
2
Trace the horizontal line (AH) onto the
post, halfway up the bracket.
2
100
Position the template at the intersection
of baselines AM and AH.
1
Self-check before the next step
Have you properly aligned the AM and AH baselines on the
template and gatepost?

14
Installing the motors
2
nSteps :
oSelecting the motors
For this step, the upper parts of the motors’ casings must be removed using a coin.
Place the motor which includes the electronic control unit on the gatepost where the power
supply is located.
oApplying the sealants.
For dependability, SOMFY advises that you fasten the motor using a chemical sealant.
oSelecting the motors.
oApplying the sealants.
oInstalling the motors.
Position the motor on the gatepost
and check that the mounting holes are
perfectly aligned with the holes drilled in
the gateposts.
1Remove the motor. Place the 4 chemical
sealants and the threaded rods into the
holes drilled in the posts.
Wait for the chemical sealants to fully
harden.
2

15
English
Installing the motors
2
EnglishEnglish
oInstalling the motors.
Position the motor by fastening it onto the
lower threaded rods using the washers
and nuts.
1Check that the motors are level. Continue
tightening if necessary.
2
Finish mounting the motor on the upper threaded rods, using the washers and nuts.
3
10 19 17
10 19 17
10 19 17
Self-check before the next step
Have you checked that the motor is perfectly horizontal?

16
Mounting the arms
3
nSteps :
Fold the arms so that the inner grooves
are aligned.
2Insert the short shaft.
The hexagonal head must be fully
engaged in the arm.
3
oAssembling the arms.
oAssembling the arms.
oMounting the arms on the motors.
oMounting the arms on the leaves.
Engage the two arms.
1
Unfold the arms completely.
4
