Sony HKSR-5804 User manual

NETWORK INTERFACE BOARD
HKSR-5804
• If this board is installed incorrectly, personal injury or damage to peripheral items may occur
due to fire, shock, or other accidental circumstances. To avoid such risks, installation should
be performed by trained service technicians.
• Refer to the SRW-5800’s Operation Manual for instructions on how to operate the SRW-
5800 after installing this board.
To the technician installing the board
• Please refer to the Installation Manual supplied with this product for installation instructions.
• Before installing the board, be sure to turn off the SRW-5800 and wait until the internal
temperature drops.
OPERATION MANUAL [English]
1st Edition (Revised 2)

2
For the customers in the U.S.A.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
For the customers in Canada
This Class A digital apparatus complies with Canadian
ICES-003.
For the customers in Europe
This product with the CE marking complies with the EMC
Directive issued by the Commission of the European
Community.
Compliance with this directive implies conformity to the
following European standards:
• EN55103-1 : Electromagnetic Interference(Emission)
• EN55103-2 : Electromagnetic Susceptibility(Immunity)
This product is intended for use in the following
Electromagnetic Environment: E4 (controlled EMC
environment, ex. TV studio).
For the customers in Europe, Australia and New
Zealand
WARNING
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the
user may be required to take adequate measures.
For the customers in Europe
The manufacturer of this product is Sony Corporation, 1-
7-1 Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Germany.
This apparatus shall not be used in the residential area.
Pour les clients au Canada
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
Pour les clients en Europe
Ce produit portant la marque CE est conforme à la
Directive sur la compatibilité électromagnétique (EMC)
émise par la Commission de la Communauté européenne.
La conformité à cette directive implique la conformité aux
normes européennes suivantes:
• EN55103-1: Interférences électromagnétiques
(émission)
• EN55103-2: Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans l’environnement
électromagnétique suivant: E4 (environnement EMC
contrôlé, ex. studio de télévision).
Pour les clients en Europe, Australie et Nouvelle-
Zélande
AVERTISSEMENT
Il sagit dun produit de Classe A. Dans un environnement
domestique, cet appareil peut provoquer des interfrences
radio, dans ce cas lutilisateur peut tre amen prendre des
mesures appropries.
Pour les clients en Europe
Le fabricant de ce produit est Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japon.
Le reprsentant autoris pour EMC et la scurit des produits
est Sony Deutschland GmbH, Hedelfinger Strasse 61,
70327 Stuttgart, Allemagne.
Ne pas utiliser cet appareil dans une zone résidentielle.
Für Kunden in Europa
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt
die EMV-Richtlinie der EG-Kommission.
Angewandte Normen:
• EN55103-1: Elektromagnetische Verträglichkeit
(Störaussendung)
• EN55103-2: Elektromagnetische Verträglichkeit
(Störfestigkeit)
Für die folgende elektromagnetische Umgebung: E4
(kontrollierter EMV-Bereich, z.B. Fernsehstudio).

3
Table of Contents
Für Kunden in Europa, Australien und
Neuseeland
WARNUNG
Dies ist eine Einrichtung, welche die Funk-Entstörung
nach Klasse A besitzt. Diese Einrichtung kann im
Wohnbereich Funkstörungen verursachen; in diesem Fall
kann vom Betreiber verlangt werden, angemessene
Maßnahmen durchzuführen und dafür aufzukommen.
Für Kunden in Europa
Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
Der autorisierte Repräsentant für EMV und
Produktsicherheit ist Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Deutschland
Dieser Apparat darf nicht im Wohnbereich verwendet
werden.
Table of Contents
Overview .....................................................5
Features of the HKSR-5804 .........................5
System Configuration Example....................6
Locations of Parts .........................................6
Setting Up the System ...............................7
Overview of the Setup Procedure.................7
Preparations ..................................................7
Network Settings ..........................................8
NFS Server Setup .........................................8
VTR Format Settings....................................9
VTR Remote Mode Setup ............................9
Accessing the VTR From the Web Client....9
Mounting the NFS Server From the Web
Application Through the Web Browser......10
Proxy and GUI Settings ...........................11
Proxy Setup ................................................11
Saving and Recalling the GUI Setup
Data.............................................................13
Importing Files..........................................14
Overview of the Import Procedure .............14
File Format Setup .......................................14
File Name and Directory Setup ..................17
Setting IN/OUT Points on a Tape ..............19
Importing the Clips.....................................21
Exporting Files .........................................23
Overview of the Export Procedure .............23
VTR Setup ..................................................23
Selecting the Clip To Be Exported.............24
Specifying the Recording Start Position (IN
Point) on the Tape ......................................27
Exporting the Clips.....................................27
Controlling the VTR..................................29
VTR CONTROL Window .........................29
Warning Messages......................................29
List of Keyboard Shortcuts.........................29
VIEWER Window......................................30
Controlling the On-board Functions ......31
Downconverter Settings .............................31
Lookup Table (LUT) Settings ....................32
Color Control Function for the Monitor
Output .........................................................33

4Table of Contents
Outputting Tele-File Information...............34
Other Functions ....................................... 36
Checking the Network Functions of This
Board ..........................................................36
Displaying the IP Address of the Web
Client ..........................................................36
Log File Management ................................ 36
Using the Export Log Files ........................ 36
Automatic Execution Using a Job File....... 38
Dubbing Uncompressed Data .................... 38
Specifications........................................... 40
Appendix................................................... 41
LUT File Formats Applicable to This
Board ..........................................................41
Job File Samples ........................................42

5
Overview
Overview
The HKSR-5804 is a network interface board that is
installed into the SRW-5800 HD Digital Videocassette
Recorder (VTR).
With the HKSR-5804 board installed, the VTR can be
directly connected to a network where image data can be
transferred as the DPX 1) files between the VTR and other
devices. The VTR, with its uncompressed recording
function, can also be used to back up and archive 2K/4K 2)
material.
1) A digital image file format that is generally used by image processing and
editing equipment. In addition to DPX, this board is compatible with the
CIN (Cineon) and TIFF file formats.
2) This board supports any size of data between HD and 4K (4096 × 3112).
The optional board configuration of the VTR (SRW-5800)
determines the file formats that are supported. The HKSR-
5804 is operable only with the file formats that the VTR
supports.
Features of the HKSR-5804
Direct connection of the VTR into a
network
Installing the HKSR-5804 in the VTR makes it possible to
instantly connect the VTR to a server or non-liner editor
within a Gigabit Ethernet (GbE) environment.
The file transfer can simply be controlled by using the
general web browser on the PC/workstation. It is easy to
make a correction to the material on the tape—retrieve the
relevant tape material over the network, manipulate it, and
then rewrite the corrected image back to tape.
File conversion on the VTR
The HKSR-5804 provides conversion between video and
file on the VTR, which allows direct file transfer to a
server or non-linear editor. Video signal (HDCAM-SR
format) on the VTR is converted into image files and can
be transferred over the network.
Then, image files transferred from the network to the VTR
are converted back into HDCAM-SR format video signal
and re-recorded to the tape.
The file format is DPX, which is widely used in digital
intermediate (DI) workflow.
2K/4K uncompressed data recording
2K/4K material (DPX files) can be transferred via Gigabit
Ethernet and recorded to tape as uncompressed data. The
material can also be viewed on an HD monitor.
Transferring the MXF files as the material
Pictures and the audio data on the tape can be transferred
as the MXF files.
With the HKSR-5804, MXF files can be transferred from
the HDCAM tape as well.
The HKSR-5804 can transfer the material as the MXF files
only when the signal format is 4:2:2 YCbCr.
Note
Note

6Overview
System Configuration Example
The following illustration shows an example of a network system configuration with an SRW-5800 incorporating the
HKSR-5804.
Locations of Parts
This section explains the connectors that are added to the
connector panel of the SRW-5800 when the HKSR-5804
is installed.
For details on the other panel connectors, refer to the
Operation Manual supplied with the SRW-5800.
aAUX INPUT A/B connectors (BNC type)
Use the A connector for dubbing uncompressed data.
For details, see “Dubbing Uncompressed Data” on page
38.
bAUX OUTPUT (monitor output) A/B connectors
(BNC type)
For outputting video signals to the HD monitor.
While dubbing uncompressed data, the data stream is
output from the A connector.
For details on how to specify the type of output signal, see
“To specify the type of signal output from the AUX
OUTPUT connectors” on page 9.
cNETWORK (network) 2 connector
For transferring files between the shared server and VTR
and for controlling the VTR from the web client.
• For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to this
port. Follow the instructions for this port.
• When you connect the NETWORK cable of the unit to
peripheral device, use a shielded-type cable to prevent
malfunction due to radiation noise.
• Par mesure de sécurité, ne raccordez pas le connecteur
pour le câblage de périphériques pouvant avoir une
tension excessive à ce port. Suivez les instructions pour
ce port.
• Lors de la connexion du câble NETWORK de l’appareil
au périphérique, utilisez un câble blindé afin d’empêcher
tout dysfonctionnement dû au bruit de rayonnement.
• Aus Sicherheitsgründen nicht mit einem
Peripheriegerät-Anschluss verbinden, der zu starke
Spannung für diese Buchse haben könnte. Folgen Sie
den Anweisungen für diese Buchse.
Shared file server Switching hub
Web client
VTR HD monitor
1AUX INPUT A/B connectors
2AUX OUTPUT A/B connectors
3NETWORK 2 connector
CAUTION
ATTENTION
VORSICHT

7
Setting Up the System
• Verwenden Sie beim Anschließen des NETWORK-
Kabels des Geräts an ein Peripheriegerät ein
abgeschirmtes Kabel, um Fehlfunktionen aufgrund von
Störungen zu vermeiden.
Setting Up the System
Overview of the Setup Procedure
The following diagram gives an overview of the procedure
for setting up the system.
r
r
r
r
r
r
Preparations
Connect the shared file server, web client and VTR within
the same segment of the LAN (Gigabit Ethernet), as
illustrated below.
Connect the shared file server, web client, and VTR into
the LAN (see page 7)
Set the network profile from the control panel of the VTR
(see page 8)
Set up the shared file server (see page 8)
Set the format for the VTR (see page 9)
Set the remote mode for the VTR (see page 9)
Access the VTR from a web client (see page 9)
Mount the shared directory (provided by the shared file
server) using the web application (see page 10)

8Setting Up the System
a) SRW-5800 installed with the HKSR-5804
Shared file server
The shared file server provides disk space for the storage
of picture data transmitted between the VTR and the file
server.
Any operating system can be used on the server, as long as
it supports NFS 1) server functions.
1) This board supports CIFS as well as NFS. In this manual, both the NFS
server and the CIFS server are referred to as “NFS server.”
Web client
The web client controls the VTR through the web
application provided on the VTR. The computer can serve
as both web client and NFS server at the same time. Any
operating system can be used on the web client, as long as
a web browser (Internet Explorer, Safari, Firefox, etc.) is
installed.
installed.
Only one NFS server can be connected to one VTR. Up to
five web clients can be connected to one VTR.
Network Settings
Network settings can be made using the OTHERS CHECK
menu in the MAINTENANCE menu provided on the
VTR.
For details on the MAINTENANCE menu of the VTR, refer
to the Installation Manual supplied with the SRW-5800.
1 On the VTR, open the NETWORK SETUP menu from
the OTHERS CHECK menu. Then, press the ALT
button to open the NETWORK2 SETUP menu.
2 Open the NET2 IP menu from the NETWORK2
SETUP menu.
3 Set the following menu items.
IP Address*: IP address of the VTR (example:
192.168.1.251)
Subnet Mask*: subnet mask of the VTR (example:
255.255.255.0)
Default Gateway: default gateway of the VTR
(example: 192.168.1.254)
Host Name: host name of the VTR (example: srw)
MTU*: maximum transmission volume in bytes
(example: 9000)
*Requireditem
4 Open the UID/GID SETUP menu from the
NETWORK2 SETUP menu and set the user ID and
group ID of the VTR.
User ID: user ID of the VTR (example: 500)
Group ID: group ID of the VTR (example: 500)
Consult your NFS server administrator to set the two
items above properly.
5 Open the DOMAIN SETUP menu from the
NETWORK2 SETUP menu and set the following
items, if necessary.
Domain Name: Domain name of the network
DNS Server 1: IP address of DNS server 1
DNS Server 2: IP address of DNS server 2
DNS Server 3: IP address of DNS server 3
DNS Server 4: IP address of DNS server 4
NFS Server Setup
Permission must be set properly on the NFS server for the
shared directory mounted by the VTR to allow the VTR
(user) to execute (x), read (r), and write (w) contents on the
shared directory.
The user ID and group ID of the VTR can be set from the
control panel of the VTR.
Note
Switching hub
Shared file server
Web client
VTR a) (NFS client/
web server)
Note

9
Setting Up the System
For details on NFS server settings, consult your system
administrator.
VTR Format Settings
The VTR format can be set with the SYSTEM MENU
from the OTHERS CHECK menu within the
MAINTENANCE menu on the VTR.
For details on the MAINTENANCE menu of the VTR, refer
to the Installation Manual supplied with the SRW-5800.
All the formats described below are applicable only to
HDCAM-SR-format tape.
1 On the VTR, open the SYSTEM MENU from the
OTHERS CHECK menu.
2 Set the items in the menu according to the format that
you want to use.
For downconverting 4K/2K files to record in HD
format, set the items to the values indicated in the
columns below “Compression (HDCAM-SR) format”
header in the table below.
The formats described in the table above are the VTR
formats that the HKSR-5804 supports.
The AUX output from the HKSR-5804 is not
guaranteed when the SRW-5800 is set to a system
format other than the ones described in the table above.
To specify the type of signal output from
the AUX OUTPUT connectors
Perform the procedure below to specify the type of SDI
signal output from the AUX OUTPUT A/B connectors.
1 On the VTR, open the 3G/DUAL menu from the
SYSTEM MENU, and then open the AUX OUTPUT
menu from the 3G/DUAL menu.
2 Select the appropriate signal type.
DUAL: Dual link (conventional 1.5G dual mode)
3G: 3G output
The monitor output (4:2:2 single ×2) is not guaranteed if
“3G” is selected in step 2above and “YCbCr” is specified
as the signal in the MONITOR tag display of the web
application or as the color space in menu item “B02: NW
MON CTRL” in the VTR SETUP menu of the SRW-5800.
VTR Remote Mode Setup
Press to light up the NETWORK 2 button on the upper
control panel of the SRW-5800.
Accessing the VTR From the Web
Client
Access the VTR from the web client by entering the IP
address of the VTR in the address bar of the web browser.
Note
Compression
(HDCAM-SR) format
Uncompression
(DATA) format
SYSTEM
MODE
1920 × 1080 DATA
SYSTEM
SCAN
PsF or interlace PsF
SYSTEM
FRAME
23.98, 24, 25, 29.97,
or 30
25 or 29.97
SYSTEM
SIGNAL
444SQ, 422, or
444HQ
—
Note
Note
NETWORK 2 button

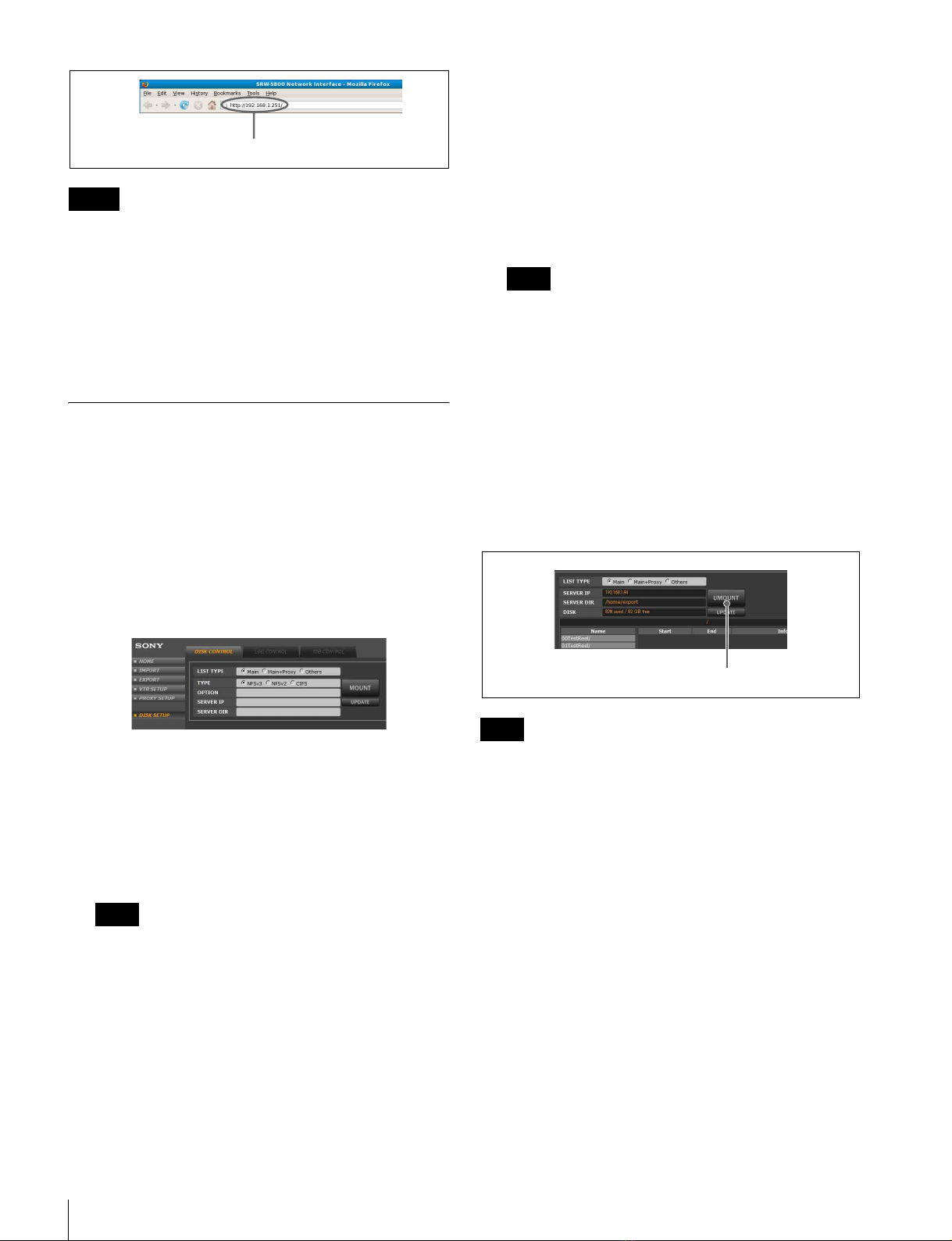

10 Setting Up the System
• Before accessing the VTR, make sure Javascript and
cookies are enabled in the web browser.
• When the web application of the VTR is used, the
[Return] and [Update] buttons in the browser menu do
not operate. If the display of the browser cannot be
updated or abnormality has occurred in the display
contents, do not click the [Update] button. In this case,
re-enter the IP address of the VTR.
Mounting the NFS Server From the
Web Application Through the Web
Browser
Perform the procedure below to mount the NFS server.
1 From the web client, access the VTR and display the
web application. Click the DISK SETUP menu select
button, and then click the DISK CONTROL tab.
The DISK CONTROL tag display appears.
2 Set the following items.
TYPE: disk sharing protocol of the NFS server
OPTION: NFS mount option
SERVER ID: IP address of the NFS server
SERVER DIR: path to the shared directory provided
by the NFS server
The OPTION column should be left blank during
normal use. If, however, you want to specify the block
size for files at the time of disk mounting so as to
optimize transfer speeds, then enter the data as shown
in the following example.
Example) wsize=32768,rsize=32768
Consult your NFS server administrator if it is
necessary to set the mount option.
3 Press the MOUNT button to mount the NFS server.
When the server is mounted, the MOUNT button
changes to the UMOUNT button.
4 Set the LIST TYPE column to select how picture clips
on the shared directory are displayed.
Main Only: Only main picture clips are displayed.
Main+Proxy: Both main picture clips and proxies are
displayed.
Others: Shows the files other than pictures.
Even when “Main+Proxy” is selected, only the main
picture clips are always displayed on the DISK
CONTROL tag display in the EXPORT menu.
When “CIFS” is selected for TYPE in step 2above
To access the shared directory specified in SERVER
DIR, additionally set USER NAME, DOMAIN, and
PASSWORD.
To unmount the NFS server
Click the UMOUNT button on the DISK CONTROL tag
display.
Unmount the NFS server before turning off the VTR or
before the VTR restarts after changing the VTR format
settings.
About automatic changes in the VTR SETUP
menu settings that occur during VTR operations
conducted through the web application
Note that the settings of following items in the VTR
SETUP menu of the SRW-5800 are changed automatically
as indicated below when the respective VTR operations
are conducted through the web application.
• Import or export of files
- Menu item “606: TCG MODE select” changes to
“regene”.
- Menu item “607: TCG REGENE SOURCE select”
changes to “int-LTC”.
• First Rec (first recording operation)
Menu item “601: DF/NDF MODE select” changes to
“drop frame” or “non-drop frame” according to the
setting on the web application.
• Any VTR operation (including import and export)
Notes
Note
Enter the IP address of the VTR here.
Note
Note
UMOUNT button

11
Proxy and GUI Settings
- Menu item “005: SERVO AV REFERENCE select”
changes to “input” 1).
- Menu item “602: TIMER MODE select” changes to
“TC”.
- Menu item “A10: 9-pin TC sense select” changes to
“LINE”.
1) It is recommended that you leave the “input” specification as is during use
of the networking function of the HKSR-5804.
About the VTR SETUP menu setting to prevent
import or export failure
During import or export, the SRW-5800 repeats “run and
stop” movement. If the SRW-5800 enters standby off
mode while stopped (in STILL status) during import or
export, the SRW-5800 may fail to servo-lock by the time
it reaches the next IN point. This will cause the import or
export operation to be canceled. To prevent this, it is
recommended that menu item “501: STILL TIMER” in the
VTR SETUP menu of the SRW-5800 be set to eight
minutes (the default setting) or longer.
If the same problem occurs due to extremely slow network
speed, etc., the menu item “501: STILL TIMER” setting
should be even longer to prevent the SRW-5800 from
entering tape protection mode while in stop (STILL)
status.
Proxy and GUI Settings
Proxy Setup
1 Access the VTR from the web client to display the web
application, click the PROXY SETUP menu select
button, and then click the PROXY SETUP tab.
The PROXY SETUP tag display appears.
2 Set the following items.
In the table below, the default setting is indicated by an
asterisk (*).
Item Function/settings
GUI TYPE Selects the size of the proxy and
whether the jog dial appears or
not in the GUI.
Normal Proxy without JOG Dial*:
The proxy is displayed with a
320-pixel width. The jog dial
does not appear in the VTR
CONTROL display.
Normal Proxy with JOG Dial: The
proxy is displayed with a 320-
pixel width. The jog dial
appears in the VTR
CONTROL display.
Large Proxy without JOG Dial:
The proxy is displayed with a
640-pixel width. The jog dial
does not appear in the VTR
CONTROL display.
This setting also determines the
file size of the proxy that is
generated automatically during
export.
Note
The proxy that appears in the
DISK SETUP menu is always
displayed with a 320-pixel width,
regardless of this setting.

12 Proxy and GUI Settings
GUI MODE Selects how the items in the
display are shown.
Tab*: Items are divided into
multiple tag displays.
Flat: Items are shown in one
display.
GUI EFFECT Determines whether to apply
effects such as fade in/out when
switching to another display.
disable*: Effects are not applied.
enable: Effects are applied.
Note
When “enable” is selected, the
response of the computer when
switching to another display may
become extremely slow
depending on the computer in
use.
FORMAT Selects the file type of the proxy
displayed on the GUI.
BMP: Bitmap
JPG*: JPEG
Note that the file type of the proxy
that is generated automatically
during file export is also
determined by this setting.
MODE Selects the display mode of the
proxies that appear in the GUI
during tape playback.
Normal*: Displays the picture.
Waveform(Parade) : Displays the
waveforms (red, green, and
blue).
Waveform(Red): Displays the
waveform (red).
Waveform(Green): Displays the
waveform (green).
Waveform(Blue): Displays the
waveform (blue).
Vector: Displays the vector scope.
Vector(×2): Displays the vector
scope at 2-fold magnification.
WF TYPE Selects the drawing method of the
waveform.
Dot*: Dots
Line: Lines
WF OVERLAY Selects the display method of the
waveform(s).
off*: Does not display the picture.
Only the waveform(s) is (are)
displayed.
on: Waveform(s) is (are) displayed
over the picture.
on(Mix):Waveform(s) and the
picture are mixed and
displayed.
Item Function/settings
WF ALPHA Specifies the waveform
transparency when the
waveform(s) and the picture are
mixed.
Low*: Low transparency
Middle: Medium transparancy
High: High traneparency
AUTO GEN Determines whether or not
proxies are automatically
generated.
disable: Proxies are not generated
automatically.
enable: When previewing files in
the clip list or when exporting
files, proxies are
automatically generated for
picture files that do not have
their own proxies.
enable(as Temporarily)*: Proxies
are generated for display on
the GUI. However, the
generated proxies are not
stored on the disk.
Note
Due to system limitations, during
the export of uncompressed data,
proxies are not generated for
main picture files that are greater
than about 62 MB.
Item Function/settings

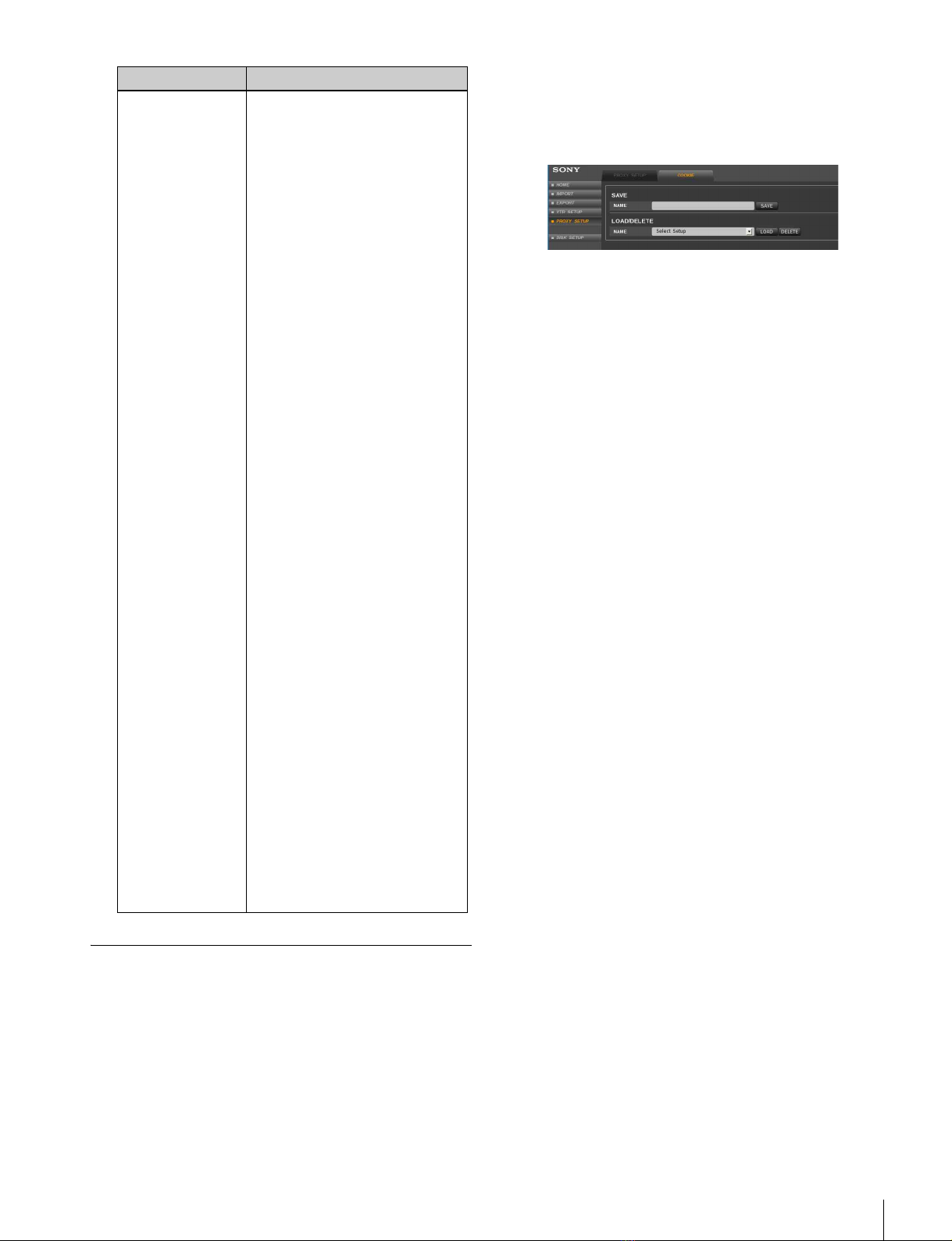

13
Proxy and GUI Settings
Saving and Recalling the GUI Setup
Data
GUI setup data are temporarily stored in a cookie in the
web browser.
You can name and store the cookie on a mounted disk to
recall the GUI settings.
1 Access the VTR from the web client to display the web
application, click the PROXY SETUP menu select
button, and then click the COOKIE tab.
The COOKIE tag display opens.
2 Enter a name for the cookie in the NAME box of the
SAVE area, and then click the SAVE button.
The entered file name is automatically appended with
the date.
Then, the cookie is stored in the directory for cookies
on the mounted NFS server.
To recall GUI setup data
Click the NAME box of the LOAD/DELETE area, select
the stored cookie, and then click the LOAD button.
Selecting “Factory Preset” at this time resets the GUI
settings to their default values.
To delete GUI setup data
Click the NAME box of the LOAD/DELETE area, select
the stored cookie, and then click the DELETE button.
PROXY DIR Determines the directory where
the generated proxies are stored.
Same as Main Files: Proxies are
stored in the same directory
as the main picture files.
Proxy Directory*: “proxy/”
directory is automatically
created right under the
directory where the main
picture files are stored.
Proxies are stored in the
“proxy/” directory.
Resolution directory: When the
main picture files are stored
in directories labeled
according to size (e.g., 1920
× 1080), a directory for
storing small-size picture files
(e.g., 320 × 180) is created to
store proxies. When the main
picture files are not stored in
directories according to
picture file size, proxies are
stored in the same directory
where their main picture files
are stored.
When importing files, a
directory for storing main
picture files and a directory
for storing their proxies
labeled according to size
(e.g., 1920 × 1080, 320 ×
180) are created directly
under the specified directory.
The main picture files and
their proxies are stored in
these directories.
When importing
uncompressed files, note that
the “Resolution directory”
setting is not applied when
FILE DIR in the DISK
CONTROL tag display of the
IMPORT menu (see page 19)
is set to “Org Structure” and
the original picture files are
not stored in the directory
according to size. When FILE
DIR is set to “All Files into
Selected Directory,”
directories according to size
are created.
Item Function/settings

14 Importing Files
Importing Files
In this section, the settings required for importing
compressed data (HDCAM-SR format) are described first.
Next, the additional settings required for importing
uncompressed data (DATA format) are explained, as well
as settings that can only be made for uncompressed data.
Overview of the Import Procedure
The following diagram gives an overview of the import
procedure.
r
r
r
File Format Setup
The following procedure sets the format of files imported
from the VTR to the NFS server and the picture data
conversion function.
1 Access the VTR from the web client to display the web
application, click the IMPORT menu select button,
and then click the FILE SETUP tab.
The FILE SETUP tag display opens.
2 Set the following items.
In the table below, the default setting is indicated by an
asterisk (*).
Set the file format (see page 14)
Set the file name and directory (see page 17)
Specify the IN/OUT points on the tape (see page 19)
Import the clips (see page 21)
For compressed data
Item Function/settings
FILE TYPE Selects the file type of the main
picture files to be imported from
the VTR to the NFS server.
DPX(RGB 4:4:4)*: RGB 4:4:4
DPX
DPX(YCbCr 4:2:2): YCbCr 4:2:2
DPX
CIN: CIN (Cineon)
TIFF: TIFF
MXF(SR-SQ): MXF SR-SQ
(normal MPEG4 SStP
HDCAM-SR compression)
MXF(SR-Lite): MXF SR-Lite (as
twice highly compressed as
normal mode)
None (proxy only): Main picture
files are not imported. Only
proxies of the picture files are
imported.
Note
Additional settings are required
when “MXF(SR-SQ)” or
“MXF(SR-Lite)” is selected as the
file type.
For details, see “Settings required
when “MXF(SR-SQ)” or
“MXF(SR-Lite)” is selected as the
file type” on page 16.

15
Importing Files
DEPTH
(for DPX, CIN, or
TIFF files)
Specifies the bit depth of the main
picture files to be imported.
8: 8 bits
10(DPX/CIN Only)*: 10 bits
16: 16 bits
Note
Video data is recorded on the
tape using 10 bits. Therefore,
when the bit depth of a main
picture file is set to 8 bits, the
lower 2 bits of the video data are
dropped.
Normally, when the bit depth is set
to 16 bits, only the upper 10 bits of
the video data are effective.
However, if a lookup table (LUT) is
used to convert the 10-bit depth of
the input signal to 12- or 16-bit
depth for output, the upper 12 bits
become effective.
IMAGE SIZE Shows the size of the main picture
files.
RANGE
(for DPX, CIN, or
TIFF files)
Specifies how the signal level is
converted for the main picture
files to be imported.
Head t Full: During import, the
effective video signal range
(64-940) of video signals with
headroom is extended to full
range (0-1023).
Head tHead: Video signals with
headroom are imported as is.
Full tFull*: Full-range (0-1023)
picture data are imported as
is.
LUT
(for DPX, CIN, or
TIFF files)
Selects the lookup table to be
applied to imported main picture
data.
off*: No lookup table is applied.
BANK1 to BANK8: Select lookup
table bank 1 to 8.
By using the LUT tag display of
the VTR SETUP menu, it is
possible to store the lookup tables
in the respective lookup table
banks. Stored lookup tables are
maintained even after the VTR is
turned off.
FLIP
(for DPX, CIN, or
TIFF files)
Specifies how main picture files
are to be flipped during import.
H FLIP: Main picture files are
flipped horizontally.
V FLIP: Main picture files are
flipped vertically.
TRANSFER
(for DPX files)
From the options below, select the
information to be recorded to the
TRANSFER field of the header of
imported DPX files.
User Defined, Printing density,
Linear*, Logarithmic, Unspecified
Video, SMPTE 274M, ITU-R 709-
4
Item Function/settings
COLOR
(for DPX or CIN
files)
Selects the information to be
recorded to the COLORIMETRIC
field of the header of imported
DPX files or the Channel 1
designator field of the header of
imported CIN files.
For DPX files: User Defined,
Printing Density, Unspecified
Video, SMPTE 274M*or ITU-
R 709-4
For CIN files: Printing Density or
CCIR-X/11 (Rec709)*
METADATA
(for DPX or CIN
files)
Specifies how the ANC metadata
stored on the tape is inserted into
the DPX/CIN files.
Off*: Does not insert the ANC
metadata into the DPX/CIN
files.
All Data:The ANC metadata is
inserted into the user-defined
data area in the DPX/CIN
files. The Keykode contained
in the ANC metadata is
inserted into the Industory/
Motion-picture film
information header of the
DPX/CIN files.
Keykode Only: The Keykode
contained in the ANC
metadata is inserted into the
Industory/Motion-picture film
information header of the
DPX/CIN files.
Notes
• In order to insert the ANC
metadata into the DPX/CIN
files, the actual line number at
the point where the metadata is
actually inserted on the tape
must be specified by using
HDCAM-SR METADATA LINE
SELECT within the
MAINTENANCE menu on the
VTR.
For details on the
MAINTENANCE menu of the
VTR, refer to the Installation
Manual supplied with the SRW-
5800.
• The Keykode contained in the
ANC metadata is effective only
when it conforms to the format
specified by SMPTE RP215.
Item Function/settings

16 Importing Files
Settings required when “MXF(SR-SQ)” or
“MXF(SR-Lite)” is selected as the file type
• In order to use the MXF files with the HKSR-5804, the
VTR must be SRW-5800/2 or later.
• When “NFSv2” is selected for the TYPE column in step
2in “Mounting the NFS Server From the Web
Application Through the Web Browser” on page 10, an
MXF file of 2 GB or greater cannot be created.

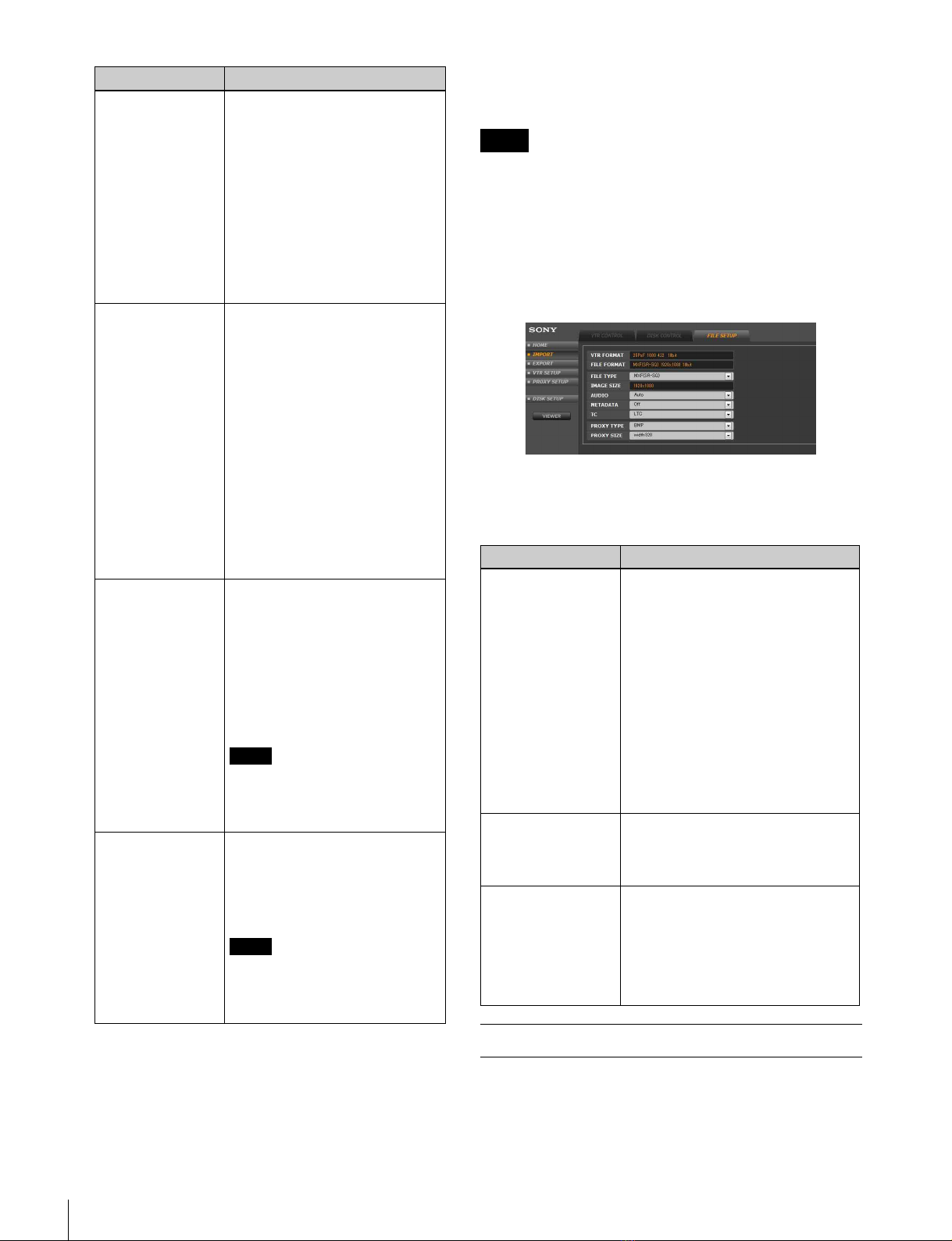

The FILE SETUP tag display us shown below.
Set the following items.
In the table below, the default setting is indicated by an
asterisk (*).
The FILE SETUP tag display is shown below.
REEL NAME (on
the first field)
(for DPX or CIN
files)
Selects the information to be
recorded to the INPUT DEVICE
NAME field or CREATOR field of
the header of imported DPX files
or the Input Device field of the
header of imported CIN files.
Auto*: The cassette ID in the
Tele-File or the reel number of
the EDL is recorded.
Manual: Enter the reel name to
the second field manually.
Cassette ID: The cassette ID in
the Tele-File is recorded.
REEL NAME (on
the third field)
(for DPX or CIN
files)
Selects the field to which the
information selected by “REEL
NAME (in the first field)” is
recorded. (For DPX files only. For
CIN files, this selection has no
effect and the selected
information is always recorded to
the Input Device field.)
CREATOR field: The information
is recorded to the CREATOR
field.
INPUT DEVICE NAME field*: The
information is recorded to the
INPUT DEVICE NAME field.
TV Reserved Field: The
information is recorded to the
TV reserved field.
PROXY TYPE
(for DPX, CIN,
TIFF, or MXF files)
Selects the file type of imported
proxies.
BMP: Bitmap
JPG*: JPEG
None: Proxies are not imported.
Temporary: Proxies are imported
for display in the GUI.
Imported proxies, however,
are not stored on the disk.
Note
In consideration of transfer speed,
selecting “BMP” than “JPG” is
recommended for importing MXF
files.
PROXY SIZE
(for DPX, CIN,
TIFF, or MXF files)
Selects the size of imported
proxies.
Width:640: 640 pixels in width
Width:320*: 320 pixels in width
Width:160: 160 pixels in width
Note
Due to system limitations, proxies
are not imported for main picture
files that are greater than about
62 MB.
Item Function/settings
Notes
Item Function/settings
AUDIO Specifies the number of audio
channels to be added to the MXF
files.
0CH: No audio channel is added.
2CH: Channel 1 and 2
4CH: Channel 1 to 4
6CH: Channel 1 to 6
8CH: Channel 1 to 8
10CH: Channel 1 to 10
12CH: Channel 1 to 12
AUTO*: When the tape format is
HDCAM-SR, channel 1 to 12 are
added. When the tape format is
HDCAM, channel 1 to 4 are
added.
METADATA Selects whether or not to add ANC
metadata to the MXF files.
OFF*: ANC metadata is not added.
ON: ANC metadata is added.
TC Specifies the type of timecode to be
written to the header of the MXF
files.
LTC*: LTC
VITC: VITC
Recount: The value counted from the
IN point timecode is written.
For uncompressed data

17
Importing Files
For uncompressed data, the following three items must be
specified.
In the table below, the default setting is indicated by an
asterisk (*).
File Name and Directory Setup
This section explains the settings for file names of main
picture files imported from the VTR to the NFS server and
how to specify the directory (target directory) on the NFS
server where imported files are stored.
1 Access the VTR from the web client to display the web
application, click the IMPORT menu select button,
and then click the DISK CONTROL tab.
The DISK CONTROL tag display opens.
2 Specify the directory where imported files are to be
stored.
The directory that is currently open is specified as the
target directory.
You can use the lower part of the DISK CONTROL
tag display to create or delete a directory. A directory
name can also be changed with this display.
To create a directory
Enter the directory name in the MKDIR box, and then
click the MKDIR button. A new directory is created
right under the directory whose name is currently
displayed in the center of the display.
By entering certain character strings, corresponding
information is automatically obtained from the system
and entered as a new directory name.
The character strings and information obtained are as
follows:
<casid>: cassette ID
<date>: date (year, month, day)
<time>: time (hour, minute, second)
The following is an example of the directory name
when the cassette ID is “0123456789” and
“test<casid>_<date><time>” is entered at 17:42:35 on
February 16, 2009.
test0123456789_20090216174235/
To change a directory name
Click the Select Directory box and select the directory
whose name you want to change. Then enter the new
name in the RMDIR/RENAME box and click the
RENAME button.
Item Function/settings
FILE TYPE Selects the file type of main picture
files to be imported from the VTR to
the NFS server.
Same as original*: Files of the same
type as the original files on the
tape are imported.
None (Proxy only): Main picture files
are not imported. Only proxies of
picture files are created.
PROXY TYPE Selects the file type of proxies to be
created.
Selectable settings are the same as
“PROXY TYPE” in “For compressed
data” section (see page 16).
PROXY SIZE Selects the size of proxies to be
created.
Selectable settings are the same as
“PROXY SIZE” in “For compressed
data” section (see page 16).
Width:160: 160 pixels in width
Note
Due to system limitations, during the
import of uncompressed data,
proxies are not generated for main
picture files that are greater than
about 62 MB.
For compressed data

18 Importing Files
To delete a directory
Click the Select Directory box and select the directory
that you want to delete. Then click the RMDIR button.
3 Set the following items.
In the table below, the default setting is indicated by an
asterisk (*).
Example of file name
The following example shows a file name for which
“clip_” has been entered in the BASE NAME box of the
DISK CONTROL tag display.
Item Function/settings
BASE NAME Sets the base name of imported
files.
For details on how files are
named, see “Example of file
name” on page 18.
+SubID check box When checked, a sub ID is added
to the picture file name and
directory name to identify the
clips. The sub ID is incremented
by 1 each time importing is
carried out.
Note
You should check this box when
multiple clips of the same name
are imported to the same
directory.
FILE DIR Sets the directory where imported
picture files are stored.
Use Selected Directory: Imported
picture files are stored right
under the directory whose
name is currently displayed at
the center of the display.
Make New Directory*: A new
directory is created directly
under the specified directory
each time files are imported.
Imported picture files are
stored in the created
directory.
For details on how the created
directories are named, see
“Example of directory name” on
page 19.
+CasID check box When checked, a directory with
the same name as the cassette ID
is created when picture files are
imported. The imported picture
files are stored in the created
directory.
START Sets the starting serial number of
the file name (@@@@@@).
Note
A number exceeding 2147483647
(0x7fffffff) cannot be specified.
END Shows the highest (last) serial
number of the file name.
TC check box When checked, the value of the IN
point timecode converted into
frame count is set as the starting
serial number (@@@@@@) of
the file name.
For example, when the timecode
of the IN point is “01:00:00:00” at
24 PsF, the starting serial number
is “86400.”
DIGIT Specifies the number of digits of
the serial number of the file name
(@@@@@@).
The default setting is six digits.
When the serial number of an
imported file exceeds six digits,
the number of digits is
automatically increased.
DELIMITER Specifies the delimiter to be used
between the file name specified in
BASE NAME and the serial
number (@@@@@@).
“_” (underbar)*, “.” (period), or “-”
(minus) can be selected.
IMPORT LOG Specifies whether or not an
import log file is created and
where the created file is stored.
Disable: An import log file is not
created.
Enable(Log Dir): The import log
file is stored in the directory
for log storage.
Enable(Selected Dir): The import
log file is stored right under
the specified directory.
To view the created import log file,
click the Import LOG button at the
lower right of the DISK CONTROL
tag display.
For details on the import log file,
see “Import log display” on page
22.
For details on how to manage the
import log file, see “Log File
Management” on page 36.
COMMENT Enter comments here to be
written to the import log file.
Item Function/settings

19
Importing Files
clip_###_@@@@@@.dpx
Example of directory name
When “Make New Directories” is selected for the FILE
DIR box in the DISK CONTROL tag display, a new
directory is created right under the specified directory each
time a clip is imported.
The following example shows a directory name for which
“clip_” has been entered in the BASE NAME box of the
DISK CONTROL tag display.
XXXXXXXX/clip_###/
The following table explains the additional settings made
for the directory where main picture files that are imported
from the VTR to the NFS server are stored (target
directory).
The DISK CONTROL tag display is shown below.
For uncompressed data, the only items that must be
specified are the four items in the table below and the
target directory (step 2in “File Name and Directory
Setup” on page 17).
In the table below, the default setting is indicated by an
asterisk (*).
Setting IN/OUT Points on a Tape
This section explains how to import files from a tape
loaded into the VTR. There are two ways to import files
from the tape: by specifying the section to be imported
while the tape is playing and by loading an EDL.
Specifying IN/OUT points while playing the
tape
1 Access the VTR from the web client to display the web
application, click the IMPORT menu select button,
and then click the VTR CONTROL tab.
The VTR CONTROL tag display opens.
For uncompressed data
Serial number that is added to each DPX file in
the clip. The default starting number is “000000.”
The starting number can be changed.
Sub ID for identifying clips that is added only when the
+SID box is checked. The default starting number is “000.”
File name entered in the BASE NAME box
Delimiter
Sub ID for identifying clips that is
added only when the +SID box is
checked. The default starting number
is “000.”
File name entered in the BASE NAME box
Specified directory
Item Function/settings
FILE DIR Specifies the directory where
imported picture files are stored.
Org Structure*: Imported picture
files are stored in the same
directory as the original files.
Org Structure (Under Selected Dir):
A directory with the same
structure as that of the original
files is created directly under the
specified directory. Picture files
are stored in the created
directory.
All Files into Selected Directory:
Picture files are stored right
under the selected directory.
OVERWRITE Specifies the action to be taken
when the same file name already
exists in the directory where the file
is imported.
Keep Existing File*: The existing file
is not overwritten. (The imported
file is not saved with a different
name.)
Overwrite Existing File: The existing
file is overwritten.
IMPORT LOG Specifies whether or not an import
log file is created and where the
created log file is stored.
The settings are the same as those
when importing compressed data
(see page 18).
COMMENT Enter comments here to be written to
the import log file.
For compressed data

20 Importing Files
2 Determine the section on tape to be imported.
There are four ways to determine the section to be
imported.
• While playing the tape and monitoring the proxies
on the left side of the display or the monitor
connected to the VTR, click the MarkIn button at the
point that you want to specify as the IN point. Then,
click the MarkOut button at the point that you want
to specify as the OUT point.
• Enter the IN point timecode in the IN box, and enter
the OUT point timecode in the OUT box.
• Enter the IN point timecode in the IN box, and enter
the duration of the section to be imported in the DUR
box.
• Click the MarkIn button in the IN box at the point
you want to specify as the IN point. Then enter the
duration of the section to be imported in the DUR
box.
To enter timecode in drop frame mode
Enter a comma “,” or a semi-colon “;” as the delimiter
between the seconds and the frames, instead of a colon
“:”.
Specifying IN/OUT points by loading an
EDL
The section to be imported can be specified by loading an
EDL created using an external editor.
Click the Browse… button at the right of the EDL box in
the VTR CONTROL tag display and specify the EDL that
is stored on a disk of the web client or external media, and
then click the LOAD button.
The EDL formats that can be loaded are CMX, GVG, and
BVE-9000/9100.
To put handles to the IN/OUT point positions by
frame
Enter the value (frames) in the HANDLES box. According
to the entered value, the IN point shifts in the reverse
direction and the OUT points shifts in the forward
direction compared to the original positions of the IN/OUT
points in the EDL.
Loading a clip sequence from the export
log display
For details, see “To load a clip sequence from the export
log display” on page 28.
Loading a clip sequence from Tele-File
By selecting the clip from the clip list stored in the Tele-
File label on the cassette tape, the clip sequence can be
loaded directly to the clip list.
Click the Tele-File button at the right of the EDL box in the
VTR CONTROL tag display to open the CASSETTE tag
display, and select the clip to be loaded from the clip list
stored to the Tele-File label on the cassette tape. Then,
select “Direct to Import List” for the FILE TYPE box, and
then, click the SAVE button.
For details see “Outputting Tele-File Information” on
page 34.
Checking the clip list and transposing
clips
After specifying the IN/OUT points, double-click the
proxy to register the section between the IN and OUT
points in the clip list. Registered clips can be viewed in the
CLIP LIST area of the VTR CONTROL tag display.
Registered clips can be transposed through drag-and-drop
operations.
When multiple clips are registered, importing starts from
the top of the list and continues to the bottom of the list.
To clear the contents of the clip list
Click the CLEAR button in the CLIP LIST area of the
VTR CONTROL tag display.
To remove a specific clip
Double-click the clip.
To leave out the clips with the same reel name
While holding down the Shift key and the Ctrl key (or the
Alt key) on the keyboard, double-click one of the
registered clips. The clips with the same reel name remain
and all other clips are deleted.
The reel name is indicated above the IN/OUT/DUR boxes
in the CLIP LIST area.
The VTR CONTROL tag display opens as shown below.
For uncompressed data
