Sony MAV-555A User manual

MULTI ACCESS VIDEO DISK RECORDER
MAV-555A
INSTALLATION MANUAL
1st Edition
Serial No. 10001 and Higher

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the
supply circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please
make sure that the internal air ambient temperature
of the rack is within the specified limit of this
product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please
make sure that the rack does not achieve
hazardous condition due to uneven mechanical
loading.
MAV-555A
5. Install the equipment while taking the operating
temperature of the equipment into
consideration
For the operating temperature of the equipment,
refer to the specifications of the Operation Manual.
6. When performing the installation, keep the rear
of the unit 10 cm (4 inches) or more away from
walls in order to obtain proper exhaust and
radiation of heat.
When using a LAN cable:
For safety, do not connect to the connector for
peripheral device wiring that might have excessive
voltage.

1 (E)
MAV-555A
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Related manuals................................................................................................... 3 (E)
Contents ............................................................................................................... 3 (E)
Trademark ............................................................................................................ 3 (E)
1. Installation
1-1. Cautions before Installation .................................................................. 1-1 (E)
1-2. Installation Procedure............................................................................ 1-2 (E)
1-3. Operating Conditions and Installation Space ........................................1-2 (E)
1-3-1. Operating Conditions ........................................................... 1-2 (E)
1-3-2. Installation Space ................................................................. 1-3 (E)
1-4. Power Supply ........................................................................................ 1-4 (E)
1-4-1. Information for Power Supply .............................................1-4 (E)
1-4-2. Power Cord ...........................................................................1-4 (E)
1-5. Installing the Option Boards ................................................................. 1-4 (E)
1-6. Rack Mounting ...................................................................................... 1-8 (E)
1-7. Signal Input and Output ...................................................................... 1-11 (E)
1-8. Connecting Connectors and Cable ...................................................... 1-14 (E)
1-9. Settings upon Completion of Installation ............................................1-15 (E)
1-9-1. Erasing All Materials in the HDD ...................................... 1-15 (E)
1-9-2. NTSC/PAL Setting .............................................................1-15 (E)
1-9-3. Setting the Operation Mode ............................................... 1-16 (E)
1-9-4. Setting the Record Rate ...................................................... 1-16 (E)
1-9-5. Setting the Setup Level ...................................................... 1-17 (E)
1-9-6. Setting the Network ............................................................ 1-17 (E)
1-9-7. System Time Settings ......................................................... 1-17 (E)
1-10. Attaching the Seal ...............................................................................1-18 (E)
2. Service Overview
2-1. Cleaning the Air Filter .......................................................................... 2-1 (E)
2-2. Description of Internal Switches and Indicators ................................... 2-2 (E)
2-2-1. DPR-189A/189B Board ....................................................... 2-2 (E)
2-2-2. DM-127 Board ..................................................................... 2-3 (E)
2-2-3. EM-3 Board .......................................................................... 2-7 (E)
2-2-4. FM-81 Board ........................................................................ 2-9 (E)
2-2-5. FP-128 Board ..................................................................... 2-13 (E)
2-2-6. IF-837 Board ...................................................................... 2-14 (E)
2-2-7. PU-121 Board ..................................................................... 2-15 (E)

3 (E)
MAV-555A
Manual Structure
Purpose of this manual
This manual is the installation manual of the MAV-555A Multi Access Video Disk
Recorder.
This manual is intended for use by trained system and service engineers, and
describes the information regarding installation.
Related manuals
Besides this Installation Manual, the following manuals are available for the
MAV-555A.
..
..
.MAV-555A
Operation Manual (Supplied with MAV-555A)
This manual describes the application and operation.
..
..
.MAV-555A Series
Maintenance Manual (Available on request)
This manual describes the information that premise the service based on parts
replacement (diagnostics, parts replacement, electrical alignment, and circuit
descriptions, block diagrams, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
Contents
The following is a summary of all the section for understanding the contents of this
manual.
Section 1 Installation
Explains how to install the MAV-555A, and the connector and cable information for
peripheral equipment connections, etc.
Section 2 Service Overview
Explains the function and factory setting of the switches and list of periodic replace-
ment parts.
Trademark
Registered trademarks used in this manual is follows.
.Ethernet is a registered trademark of XEROX corporation.

1-1 (E)
MAV-555A
1-1. Cautions before Installation
The Hard Disk Drives (HDD) are installed in this unit.
The HDD is a precision part. The causes such as shock, vibration and static electricity to the unit, and the
conditions of temperature and humidity may damage HDD or its data.
Before installation, read fully the following cautions, and perform the installation with extra care.
Cautions about shock and vibration
When transporting and moving;
.Pack the unit using the packaging materials specified by the manufacturer.
.Use a proper cart.
.Put a cushion*on the cart.
.Avoid rough routes, and manage the cart gently.
When placing on a floor or table;
.Put a cushion*on stable and horizontal place, and put the unit on it gently.
.Do not place the unit near vibrating equipments.
For the unit;
.Never hit the unit by tool, and drop the tool on the unit.
Take extra care;
.Never give vibration or shock to the unit while the power is turned on, or within about 30 seconds after
turning off the power.
*Cushion: Polyethylene foam (density: 38 kg/m3, surface intrinsic resistance : 1011 to 1012 Z, thickness: 50 mm) or equivalent.
Cautions about rack mounting the unit
.Be careful not to give shock to the HDD.
Caution about static electricity
.Keep static-producing items such as plastics away from the working area.
.When touching the HDD unit, be sure to wear a grouded earth-band to protect against static electricity.
Cautions about temperature and humidity
.Temperature and humidity of storage and operating condition must be kept within the correct specified
range.
.Never turn on the power with the cabinet is removed in consideration of the air-cooling effect.
Cautions when an error appears in a HDD
.Treat this unit conform to the above cautions, even when an error appeared.
.Keep the unit in the condition in which the error appeared, and record the details of the error.
Section 1
Installation

1-2 (E) MAV-555A
1-2. Installation Procedure
The following flow chart shows the installation procedure
of the MAV-555A. For details of each item, refer to the
relevant section.
1-3. Operating Conditions and
Installation Space
1-3-1. Operating Conditions
1. Set the operating temperature and humidity
within the following conditions.
Operating Temperature : +5 dC to +40 dC
Operating humidity : 20 % to 90 %
(Condensation not allowed)
Storage temperature : _20 dC to +60 dC
2. Do not install this unit in the following
locations.
.Areas where the unit will be exposed to direct
sunlight or any other strong lights.
.Dusty areas or areas where the unit will be subject to
vibration.
.Areas with strong electric or magnetic fields.
.Areas near heat sources.
.Areas where the unit will be subjected to electrical
noise.
.Areas where the unit will be subjected to static
electricity noise.
.Unstable and unbalanced places.
3. To prevent the internal temperature from
rising, ensure air ventilation of the place
where the unit is installed.
The rear side of the unit should be 10 cm away from
the walls for proper ventilation.
c
Do not block the ventilation slots.
If the ventilation slots are blocked, overheating inside the
unit may cause fire.
1-2. Installation Procedure
1-3. Operating Conditions and Installation Space
Start
Determination of
installation place
Option boards
installation
Rack mounting
Connection
Settings of
setup menu
Attaching the seal
on the control panel
End
1-3. Operating Conditions
and Installation Space
1-4. Power Supply
1-5. Installation of Optional
Board
1-6. Rack Mounting
1-8. Connecting Connectors
and Cable
1-9. Settings upon Completion
of Installation
1-10. Attaching the seal

1-3 (E)
MAV-555A
1-3-2. Installation Space
m
.The rear side of this unit should be 50 cm away from the walls for maintenance and replacement.
.If the power is turned on with the cabinet is removed, the air-cooling effect of the fan will be greatly
reduced, damaging the HDD or its data. Do not operate the unit with the cabinet is removed.
1-3. Operating Conditions and Installation Space
Unit : mm
12
592
578
667
650
265.6
290.7
424
132.8
13
68
624
123.8
263.5
415.9
631

1-4 (E) MAV-555A
1-4. Power Supply
1-4-1. Information for Power Supply
A switching regulator is used for the power supply of this
unit. Voltage within the range of 100 V to 240 V can be
used without changing the supply voltage.
Power supply voltage : AC 100 to 240 V
Power supply frequency : 50/60 Hz
Power consumption : 550 W (continuous rating)
Inrush current (peak current) : 29 A (AC 100 V)
69 A (AC 240 V)
1-4-2. Power Cord
w
.Use the specified power cord only
.Otherwise, fire or electric shock may occur.
w
.Do not damage the power cord.
.Otherwise, fire or electric shock may occur.
c
.Ground the unit safety.
.Otherwise, electric shock may occur.
Recommended parts
For customers in U.S.A. and Canada.
1Power cord : !1-557-377-11
2Plug holder : 2-990-242-01
For customers in the United Kingdom.
1Power cord : !1-782-929-11
2Plug holder : 3-613-640-01
12AC inlet
(MAV)
12
AC inlet
(MAV)
Safety earth (Green/Yellow)
Live (Brown)
Neutral (Blue)
1-4. Power Supply
1-5. Installing the Option Boards
1-5. Installing the Option Boards
Installing the BKMA-540
n
.For all the procedures before starting installing the
BKMA-540, refer to the BKMA-540 Installation
Manual.
.Among the cables that are supplied with the BKMA-540,
the four cables of YEL, ORG, BLK and RED cables are
used. (The BLU cable is used for installation of MAV-
555.)
1. Open the harness clamper 1.
2. Cut the re-usable band as shown in the illustration.
n
When cutting the re-usable band, be very careful not to
damage nor cut the cables.
3. While pushing the stopper of the re-usable band in the
direction of the arrow A, remove it in the direction of
arrow B through the hole of the chassis.
n
The re-usable band that is removed in the above step,
cannot be used again. Discard it.
A
B
Harness clamper 1
Harness clamper 2
Re-usable band
Band portion
Cut here
Stopper
Cables
Hole of the
chassis

1-5 (E)
MAV-555A
4. Insert the BKMA-540 into the slot No. 4 along with
the guide rail.
5. When installing the BKMA-540, close the two board
levers in the direction of the arrow A and insert it into
the deep end of the slot securely in the direction of the
arrow B.
n
When installing the circuit board, push the two board
levers at the same time. Be careful not to pinch the
harnesses.
6. Insert the four supplied cables, into the connectors
(CN7, CN9, CN11, CN13) of the BKMA-540.
7. Insert the other ends of the cables to the connectors of
the main unit.
CN7([YEL])
CN9([ORG])
CN111([BLK])
CN13([RED])
BKMA-540
Original cable ([BLU])
of the main unit
Connectors of
the main unit
YEL
ORG
BLK
RED
1-5. Installing the Option Boards
8. Insert the top of the supplied re-usable band in the
manner of binding the all cables until top of the new
re-usable band comes out about 15 mm. (See Fig. 1.)
9. While pushing the stopper of the re-usable band in the
direction of the arrow A, insert it into the hole of the
chassis. (See Fig. 2.)
A
15 mm
Harness
clamper
Harness
clamper
Re-usable band
Re-usable band
Stopper
Top of the re-usable band Top of the re-usable band
Hole
Hole of the
chassis
Cables
Fig. 1 Fig. 2
Board levers
BKMA-540
Slot No. 4
A
A
B

1-6 (E) MAV-555A

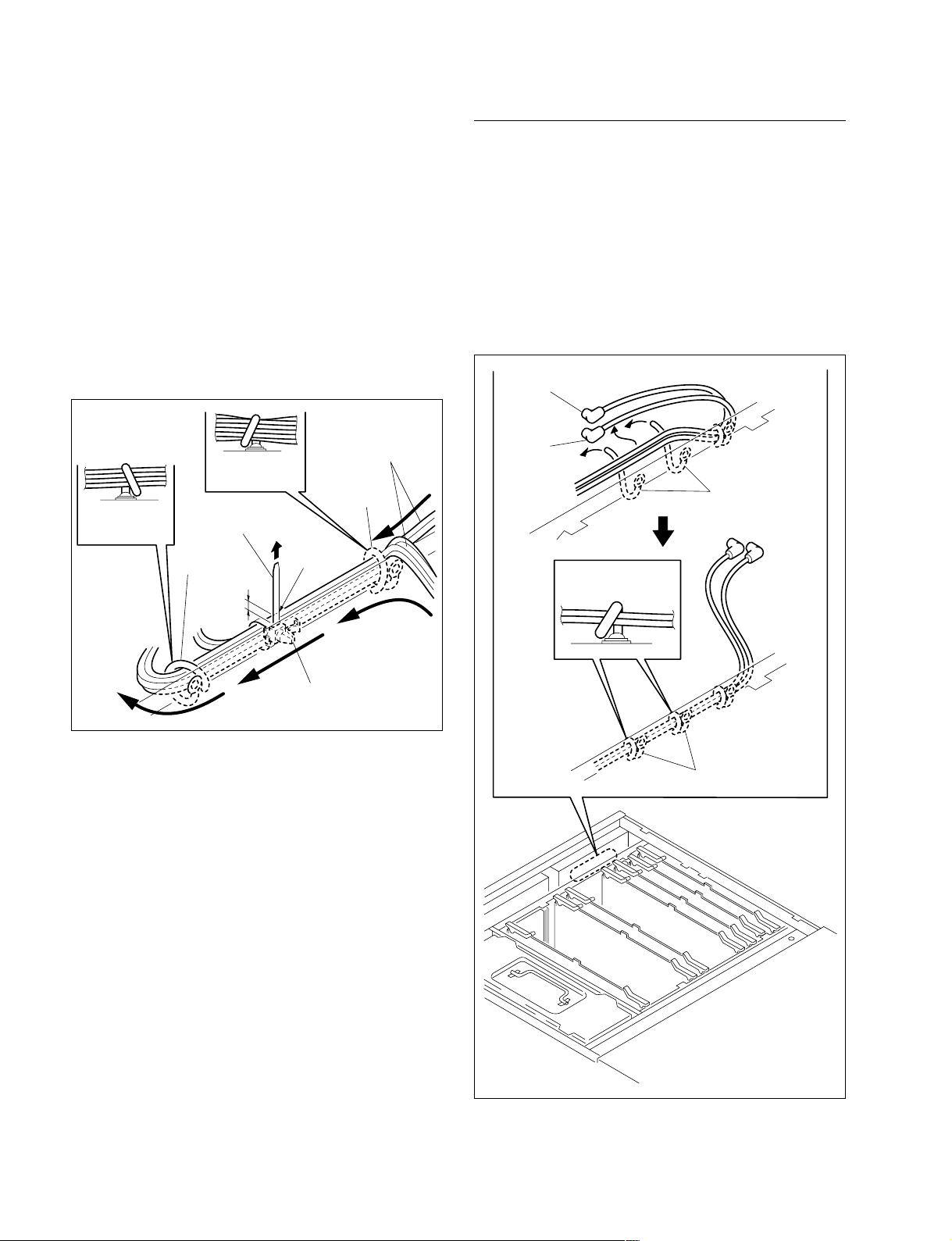

10. While removing play of the cables by pulling them in
the direction of arrow A, fix the cables with the
harness clamper 1.
11. While removing play of the cables by pulling them in
the direction of arrow B, pull up the top of the re-
usable band in the direction of the arrow, and tie the
cables.
12. While removing play of the four cables that are
connected to the BKMA-540 by pulling them in the
dirrection of arrow C, fix the cables with the harness
clamper 2.
13. Cut the excess length of the re-usable band so that
extra length of 2 to 3 mm is left.
n
For all the procedures after installation of the BKMA-540
is completed, refer to the BKMA-540 Installation Manual.
A
A
B
C
Harness
clamper 1
Cables
Harness
clamper 2
Re-usable band
Top of the band
Cut here
View from the top
(six cables)
View from the top
(four cables)
2 to
3 mm
1-5. Installing the Option Boards
Installing the BKMA-560
n
For all the procedures before starting installing the
BKMA-560, refer to the BKMA-560 Installation Manual.
1. Open the two harness clampers and remove the cable
([BLU]) and the cable ([GRN]) one cable after
another. (See Fig. 1.)
2. Fix the cables using the harness clamper at the two
locations. (See Fig. 2.)
Cable
([BLU])
Cable
([GRN])
Harness clampers
View from the top
Harness clampers
Fig. 1
Fig. 2

1-7 (E)
MAV-555A
1-5. Installing the Option Boards
3. Insert the BKMA-560 into the slot No. 11 along with
the guide rail.
4. Insert the cables that are prepared in steps 1 and 2 into
the connectors (CN901, CN902) of the BKMA-560.
5. When installing the BKMA-560, closing the two board
levers in the direction of arrow A and insert it into the
deep end of the slot securely in the direction of arrow
B.
n
When installing the circuit board, push the two board
levers at the same time. Be careful not to pinch the
cables.
n
For all the procedures after installation of the BKMA-560
is completed, refer to the BKMA-560 Installation Manual.
CN901 (
[BLU]
)
CN951 ([GRN])
Slot No.11
BKMA-560
Board levers
A
A
B

1-8 (E) MAV-555A
1-6. Rack Mounting
c
Install the unit in a stable location.
The unit could drop and cause physical injury if installed
in an unstable location or on a cart at an angle.
c
Be sure to use the specified rack mount rail.
The unit could drop and cause physical injury if installed
in any other racks than the specified one due to insufficient
strength of the rails.
This unit can be mounted in a 19-inch standard rack.
Install the units into racks in accordance with the specified
installation procedure using the specified rack rail. The
units could unexpectedly drop or the rack collapse if the
units are not installed correctly.
n
Mount the unit in the rack with the HDD removed from the
unit.
Supplied rack mount kit
RMM-555 (optional)
Components of the RMM-555
.Slider rail : 2 pcs
.Rack angle : 2 pcs
.Bracket : 4 pcs
.Plate nut (long) : 4 pcs
.Plate nut (short) : 4 pcs
.Screw PSW4 x16 : 4 pcs
.Screw B4 x8 : 16 pcs
.Hexagon socket screw : 8 pcs
.Flat washer : 8 pcs
.Screw RK5 x14 : 4 pcs
.Ornamental washer : 4 pcs
n
Standard tightening torque
Screw size Standard tightening torque
M3.0 0.7 to 1.0 N.m (7 to 9 kgf.cm)
M4.0 1.2 to 1.6 N.m (12 to 16 kgf.cm)
Attaching the inner rail in the unit
1. Turn off the power of the rack mounted unit incorpo-
rating the HDD.
2. Remove the four screws on both sides of the unit, and
remove the four foot-holder assemblies while lifting
up the unit.
3. Remove the inner rail while pressing the stopper on
the inner rail.
Foot-holder
assembly
Stopper
Outer rail
Inner rail
1-6. Rack Mounting

1-9 (E)
MAV-555A
4. Remove the eight screws on both sides of the unit.
Attach the inner rails to the unit using the eight screws
supplied.
5. Remove the four screws on both sides of the unit.
Attach the rack angles to the unit using the four screws
supplied.
Rack angle
PSW4 x16
Rack angle
PSW
4 x16
B4 x8
B4 x8
Inner rail
Inner rail
1-6. Rack Mounting
Attaching the outer rails to the rack
1. Attach the brackets to the outer rails 1with plate nuts
(long) and the screws temporarily as shown.
n
Attach the brackets such that the screw hole of the
outer rail 1becomes visible when the outer rail 2is
moved to the front and rear.
2. Adjust the outer rail position so that the distance
between the rack angle mounting surface and the outer
rail 1tip becomes 50 to 55 mm as shown when the
outer rail is attached to the rack. Tighten the screws
of the bracket that were temporary tightened in step 1.
Plate nut
Plate nut
Bracket
Bracket
Outer rail 1
Outer rail 2
B4 x8
B4 x8
50 to 55 mm
Rack angle
mounting surface Rack
Outer rail 1

1-10 (E) MAV-555A
Wide type
3. Attach the brackets to the rack with plate nuts (short),
hexagon head cap bolts and flat washers.
c
Be sure to mount the unit with at least two persons to avoid
back injuries and prevent the unit from falling.
Universal type
Hexagon
head cap
screws
Flat washer
Flat washer
Plate nut (short)
Bracket
Hexagon
head cap
screws
Flat washer
Flat washer
Plate nut (short)
Bracket
12.7
12.7
Installing the unit in the rack
1.
While pressing down the stoppers of the inner rails, align
and insert the unit into the outer rails. Confirm that the
unit can be smoothly moved to the front and rear. Then
tighten securely the hexagon head cap screws that were
temporarily tightened to fix the bracket.
2. Attach the rack angles to the rack with screws and
ornamental washers.
c
Secure the rack angles to the rack with the screws. Other-
wise the unit may slide and fall off, resulting in injury.
When inserting the unit into the rack,
push in the sliding bearing deep
inside as shown.
Inner rail
Sliding bearing
Outer rail 2
Inner rail
Stopper
1-6. Rack Mounting
Rack angle
RK5 x14
RK5 x14
Ornamental
washers
Ornamental washers

1-11 (E)
MAV-555A
1-7. Signal Input and Output
Input
REFERENCE (BNC)
(With Loop Through Output) Sync : 0.3 Vp-p, Burst : 0.3 Vp-p, 75 Z(Sync negative)
(With bult-in switch for termination) Black burst or composite sync
VIDEO IN (COMPOSITE) R1, R2 (BNC)
(With Loop Through Output) 1 Vp-p, 75 Z(Sync negative)
(With bult-in switch for termination)
AUDIO IN (AES/EBU) R1, R2, R3 (BNC)
1 Vp-p (75 Z), Unbalanced
Conforms to the AES-3id-1995
SDI IN R1, R2, R3 (BNC)
(With Active Through Output) Conforms to the CCIR-656-3/ SMPTE-259M
TIME CODE IN R1, R2, SYSTEM (BNC)
0.5 to 18 Vp-p, Impedance 10 kZ, Unbalanced
Conforms to the SMPTE-12M
Output
VIDEO OUT (COMPOSITE) P1 to P3 (BNC)
1 Vp-p, 75 Z(Sync negative)
AUDIO OUT (AES/EBU) P1 to P3 (BNC)
1 Vp-p (75 Z), Unbalanced
Conforms to the AES-3id-1995
SDI OUT P1 to P3 (BNC)
Conforms to the CCIR-656-3/ SMPTE-259M
TIME CODE OUT P1 to P3 (BNC)
2.2 Vp-p (600 Z) Impedance 50 Z, Unbalanced
MONITOR OUT (BNC)
SDI (SUPER) :
Conforms to the CCIR-656-3/ SMPTE-259M
ANALOG COMPOSITE (SUPER) :
1 Vp-p, 75 Z(Sync negative)
(XLR 3-pin, male)
AUDIO L : +4 dBm/ 600 Zload,
Low impedance, Unbalanced
AUDIO R : +4 dBm/ 600 Zload,
Low impedance, Unbalanced
HEAD PHONES (JM-60)
_12 dBu (8 Z), Unbalanced
1-7. Signal Input and Output

1-12 (E) MAV-555A
REMOTE IN 1 to 4 : RS-422A (D-sub 9-pin, Female)
REMOTE SPARE
< External View >
Pin No. Signal
1 GND
2 TX (_)
3 RX (+)
4 GND
5NC
6 GND
7 TX (+)
8 RX (_)
9 GND
REMOTE IN/OUT 1, 2 : RS-422A (D-sub 9-pin, Female)
Pin No. Signal
1 GND
2 RX (_)
3 TX (+)
4 GND
5NC
6 GND
7 RX (+)
8 TX (_)
9 GND
ETHER : 10BASE-TX (8-pin modular jack)
< External View >
Pin No. Signal
1 TX +
2 TX _
3 RX +
4 RXCT
5 RXCT
6 RX _
7 TXCT
8 TXCT
51
6
9
1
8
1-7. Signal Input and Output
VIDEO CONTROL : D-sub25 -pin, Male
< External View >
Pin No. Signal
1 GND
2 RX1 +
3 TX1 +
4 RX2 +
5 TX2 +
6 GND
7 RX3 +
8 TX3 +
9 RX4 +
10 TX4 +
11 GND
12 RVD +
13 +12 V
14 RX1 _
15 TX1 _
16 RX2 _
17 TX2 _
18 GND
19 RX3 _
20 TX3 _
21 GND
22 RX4 _
23 TX4 _
24 RVD _
25 +12 V
25 14
113

1-13 (E)
MAV-555A
17 1
33
50 34
18
Pin No. Signal
27 GPI OUT5
28 CPI OUT8
29 GPI OUT11
30 GPI OUT14
31 GPI OUT17
32 GPI OUT20
33 GPI OUT23
34 GPI IN3
35 GPI IN6
36 GPI IN9
37 GPI IN12
38 GPI IN15
39 GPI IN18
1-7. Signal Input and Output
Pin No. Signal
1 GPI IN1
2 GPI IN4
3 GPI IN7
4 GPI IN10
5 GPI IN13
6 GPI IN16
7 GPI IN19
8 GPI IN22
9 GPI OUT1
10 GPI OUT4
11 GPI OUT7
12 GPI OUT10
13 GPI OUT13
Pin No. Signal
14 GPI OUT16
15 GPI OUT19
16 GPI OUT22
17 GND
18 GPI IN2
19 GPI IN5
20 GPI IN8
21 GPI IN11
22 GPI IN14
23 GPI IN17
24 GPI IN20
25 GPI IN23
26 GPI OUT2
REMOTE PARALLEL I/O (50P) : GPI (D-sub 50-pin, Female)
< External View >
Pin No. Signal
40 GPI IN21
41 GPI IN24
42 GPI OUT3
43 GPI OUT6
44 GPI OUT9
45 GPI OUT12
46 GPI OUT15
47 GPI OUT18
48 GPI OUT21
49 GPI OUT24
50 GND
Electric Specifications
.GPI IN Level : CMOS level (5 V)
Pulse width : 30 ms or more
.GPI OUT Level : Open-collector
.Input/output timing (example of PLAY command)
Reference
Reference
Pulse width :
30 ms or more
n-1 n+1n+2n+3n+4n+5n+6n
200 lines 100 lines
4 Frames
There must be a falling edge of the command between here.
A/V Output
Ref Frame
Command
Input
(PLAY)
Status
Output
(PLAY)
Invalid Valid Valid Valid

1-14 (E) MAV-555A
1-8. Connecting Connectors and Cable
When connecting cables to various connectors on the rear panel, connect the following connectors/cable
or their equivalent.
MAV-555 Matching Connector/Cable
Panel Indication Connector Connector Sony Part No.
VIDEO IN (COMPOSITE) BNC, 75 ZBNC, 75 Z1-569-370-12
VIDEO OUT (COMPOSITE) 5C-2V cable *1
AUDIO IN (AES/EBU)
AUDIO OUT (AES/EBU)
SDI IN
SDI OUT
REFERENCE
DSK IN (VIDEO)
DSK IN (KEY)
SDTI-CP (IN)
SDTI-CP (OUT)
SDTI-CP (MONITOR OUT)
MONITOR OUT (SDI (Super))
MONITOR OUT
(ANALOG COMPOSITE (Super))
TIME CODE IN
TIME CODE OUT
MONITOR OUT XLR 3-pin, Male XLR 3-pin, Female 1-508-083-00*2
(AUDIO L/R)
REMOTE IN 1 to 4 D-sub 9-pin, Female D-sub 9-pin, Male 1-560-651-00 (Connector)
REMOTE IN/OUT 1, 2 1-561-749-00 (Shell)
REMOTE SPARE
VIDEO CONTROL D-sub 25-pin, Female D-sub 25-pin, Male 1-766-367-11 (Connector)
1-563-377-11 (Shell)
REMOTE PARALLEL I/O D-sub 50-pin, Female D-sub 50-pin, Male 1-565-516-11 (Connector)
(50P) 1-563-379-11 (Shell)
ETHER RJ-45 modular jack *3–––––– ––––––
*1 : Use of the coaxial cable 5C-2V of Fujikura America Inc./Fujikura Europe Ltd. (FEL) or equivalent is recommended.
*2 : ITT Cannon XLR-3-11C or the equivalent.
*3 : Conforms to the IEEE 802.3 Ethernet 10BASE-TX standard.
1-8. Connecting Connectors and Cable
