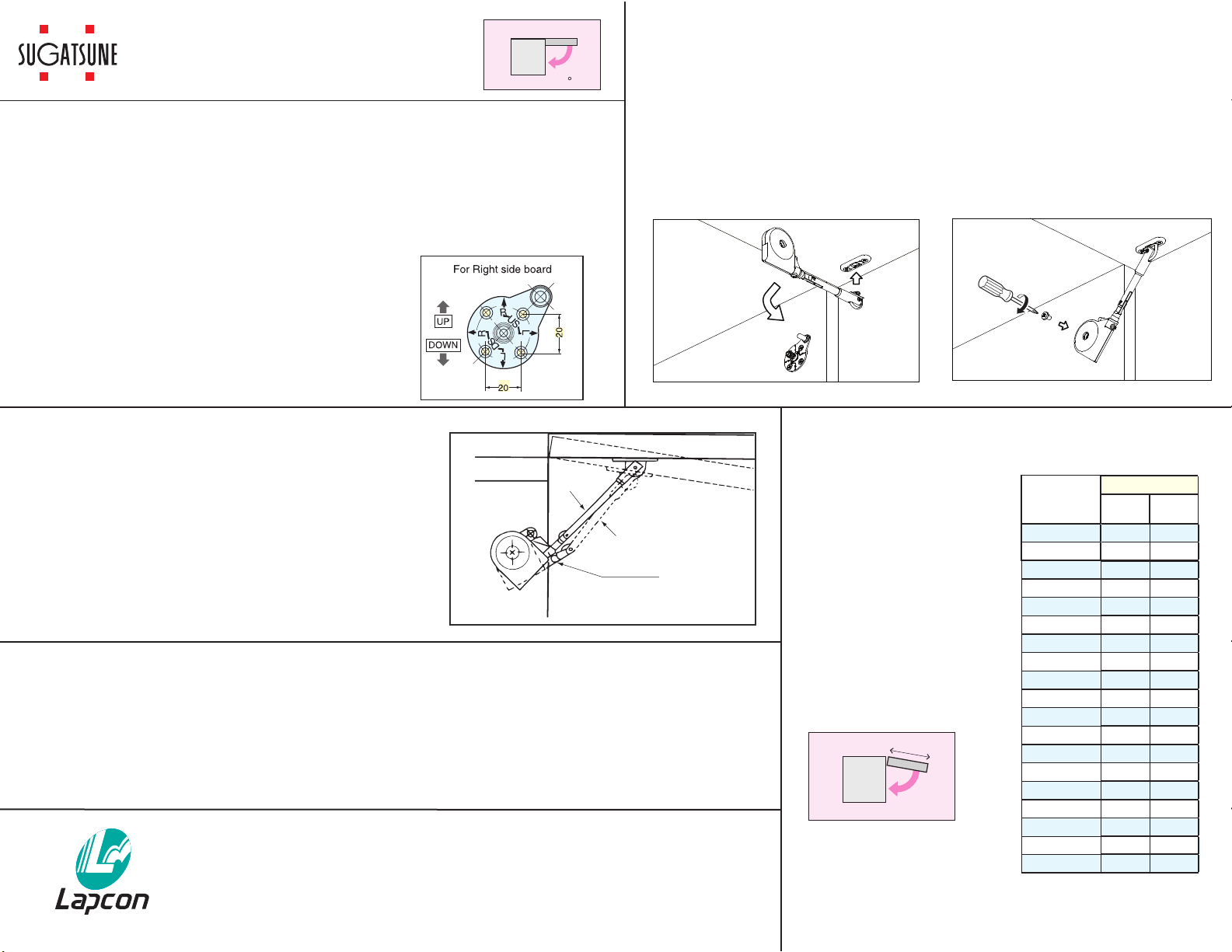

SUGATSUNE SDS-C301N User manual

Insert the “key” of the arm into the arm xing plate. The main body must be placed
at 90 degrees angle against the xing angle.
Turn the main body 90 degrees and insert the center gear of the mounting plate to
the hole of the main body.
③
③
Fix the main body with the bind screw.
①
①
②
②
Step 2 - Install the Main Body
Step 3 - Adjustment and Operation
If the lid stay is sagging (A), turn the adjustment screw(Z) at the
base of the arm until the lid stay straightens (B). The lid can then
be closed by pushing down gently on the lid. When the lid is
closing, do not put additional pressure on the lid (to close more
quickly, etc.) as it may damage the stay. If you have diculty with
operation or adjustment of the lid stay, please contact Sugatsune
for technical assistance.
(A)
(B)
Screw (Z)
Door
Height
(inch)
Door Weight(lbs)
Min Max
10 14.0 24.0
11 12.7 21.8
12 11.7 20.0
13 10.8 18.5
14 10.0 17.1
15 9.3 16.0
16 8.8 15.0
17 8.2 14.1
18 7.8 13.3
19 7.4 12.6
20 7.0 12.0
21 6.7 11.4
22 6.4 10.9
23 6.1 10.4
24 5.8 10.0
25 5.6 9.6
Door Weight Range
Per pair, in Lbs
8 17.5 30.0
9 15.6 26.7
Height
Weight and Door Height
The SDS-C301 must be used
taking the weight and door
height into consideration.
The table indicates the usable
weight range per door height
when using two stays. When
using one stay, the weight
range will be half of what is
shown.
For doors outside of the
recommended weight range,
please contact Sugatsune for
the recommended lid stay.
Remarks
• Do not attempt to disassemble or modify the lid stay as serious damage and/or injury may
occur.
• For extreme environments(high temperature, humidity, etc.), please contact Sugatsune for
technical assistance before installation.
• The product has been develop for use as a lid stay - other applications are not recommended.
Sugatsune America, Inc.
18101 Savarona Way
Carson, CA 90746-1411
SDS-C301N Installation
For Upward Opening Door 90
Step 1 - Position and Install Mounting Plates
The hinge type and the coverage aect the placement of the mounting plate and arm
xing plate. Please use the corresponding diagram on page 2 to determine the mounting
dimensions for your application. Position and install mounting plate and arm xing plate
using supplied screws.
For installation of the mounting plate on the right hand side,
the arrow of “R” on the “US” side should point upward
vertically. For the left side, the arrow of “L” on the “US”side
should point upward vertically.
All diagrams are shown for right side mounting.
Before installation, please check the Door Weight Range Table to determine
if the SDS-C301N is the correct stay for the size and weight door.
26 5.4 9.2
Toll Free [phone]
[phone] Fax [phone]
www.sugatsune.com
Page 1 of 2
081010SDSC301UP

13/32”
(10.5mm)
5-5/8”
(143mm)
1-25/32”
(45mm)
1-17/64”
(32mm)
Arm Fixing Plate
Mounting Plate
Door Top Edge
Door
Top Board
Side Board
Top Board
Door
Arm Fixing Plate
4-1/4”
(108mm)
13/32”
(10.5mm)
5-5/16”
(135mm)
1-25/32”
(45mm)
1-17/64”
(32mm)
Arm Fixing Plate
Mounting Plate
Hinge Center
Door
Top Board
Side Board
Top Board
Door
Arm Fixing Plate
3-15/16”
(100mm)
13/32”
(10.5mm)
5-13/64”
(132mm)
1-25/32”
(45mm)
1-17/64”
(32mm)
Arm Fixing Plate
Mounting Plate
Door
Side Board
Top Board
Door
Arm Fixing Plate
3-13/16”
(97mm)
Top Board
Hinge Center
Inset Single Knuckle(Piano, Butt, etc) Hinge
3/4”
(19mm)
Overlay Concealed Hinge(Euro Hinge) Installation
Overlay Single Knuckle(Piano, Butt, etc) Hinge
13/32” + Overlay (10.5mm + Overlay)
Door Side Edge
13/32” + Overlay (10.5mm + Overlay)
Door Side Edge
Upward Opening Doors
Top Board
Door
3/4”
Top Board
5-25/32”
(147mm)
1-25/32”
(45mm)
Arm Fixing Plate
Mounting Plate
13/32”
(10.5mm)
1-17/64”
(32mm)
Arm Fixing Plate
4-13/32”
(112mm)
Side Board
Inset Concealed Hinge(Euro Hinge) Installation Page 2 of 2

Insert the “key” of the arm into the arm xing plate. The main body must be placed at
90 degrees angle against the xing angle.
Turn the main body 90 degrees and insert the center gear of the mounting plate to the
hole of the main body.
③
Fix the main body with the bind screw.
①
②
Step 2 - Install the Main Body Page 1 of 2
Step 3 - Adjustment and Operation
If the lid stay is sagging (A), turn the adjustment screw(Z) at the
base of the arm until the lid stay straightens (B). The lid can then
be closed by pushing down gently on the lid. When the lid is
closing, do not put additional pressure on the lid (to close more
quickly, etc.) as it may damage the stay. If you have diculty with
operation or adjustment of the lid stay, please contact Sugatsune
for technical assistance.
③
①
②
(A)
(B)
Screw (Z)
Door
Height
(inch)
Door Weight(lbs)
Min Max
10 14.0 24.0
11 12.7 21.8
12 11.7 20.0
13 10.8 18.5
14 10.0 17.1
15 9.3 16.0
16 8.8 15.0
17 8.2 14.1
18 7.8 13.3
19 7.4 12.6
20 7.0 12.0
21 6.7 11.4
22 6.4 10.9
23 6.1 10.4
24 5.8 10.0
25 5.6 9.6
26 5.4 9.2
Door Weight Range
Per pair, in Lbs
8 17.5 30.0
9 15.6 26.7
Weight and Door Height
The SDS-C301 must be used
taking the weight and door
height into consideration.
The table indicates the usable
weight range per door height
when using two stays. When
using one stay, the weight
range will be half of what is
shown.
For doors outside of the
recommended weight range,
please contact Sugatsune for
the recommended lid stay.
Remarks
• Do not attempt to disassemble or modify the lid stay as serious damage and/or
injury may occur.
• For extreme environments(high temperature, humidity, etc.), please contact
Sugatsune for technical assistance before installation.
• The product has been develop for use as a lid stay - other applications are not
recommended.
Height
SDS-C301N Installation
For Top Opening Door(Toy Box)
Step 1 - Position and Install Mounting Plates
The hinge type and the coverage aect the placement of the mounting plate and arm
xing plate. Please use the corresponding diagram on page 2 to determine the mounting
dimensions for your application. Position and install mounting plate and arm xing plate
using supplied screws.
Before installation, please check the Door Weight Range Table to determine
if the SDS-C301N is the correct stay for the size and weight door.
Sugatsune America, Inc.
18101 Savarona Way
Carson, CA 90746-1411
Toll Free [phone]
[phone] Fax [phone]
www.sugatsune.com

Inset Single Knuckle(Piano, Butt, etc) Hinge
Overlay Concealed Hinge(Euro Hinge) Installation
Overlay Single Knuckle(Piano, Butt, etc) Hinge
13/32”
(10.5mm)
B
1-17/64”
(32mm)
Arm Fixing Plate
Mounting Plate
Door Back Edge
Door
Back Board
Side Board
Back Board
Door
Arm Fixing Plate
A
13/32” + Overlay
(10.5mm + Overlay)
Door Side Edge
Opening angle
80°
90°
5-9/16” (141mm)
100°
5-7/32” (132.5mm)
4-63/64” (126.5mm)
A
1-1/4” (31.9mm)
B
1-19/64” (32.9mm)
1-9/32” (32.3mm)
E
G
D
2-9/32” (57.7mm)
D
2-1/4” (57.1mm)
2-19/64” (58.1mm)
G
E
3-55/64” (98.2mm)
3-1/2” (88.7mm)
3-3/16” (81.2mm)
4-9/32” (108.8mm)
3-63/64” (101.3mm)
3-49/64” (95.8mm)
13/32”
(10.5mm)
1-17/64”
(32mm)
Arm Fixing Plate
Hinge Center
Back Board
Side Board
Back Board
Door
Arm Fixing Plate
13/32” + Overlay
(10.5mm + Overlay)
Door Side Edge
A
B
Mounting Plate
E
G
D
Opening angle
80°
90°
5-29/64” (138.5mm)
100°
5-1/16” (128.5mm)
4-25/32” (121.5mm)
A
1-9/32” (32.6mm)
B
1-21/64” (33.9mm)
1-5/16” (33.2mm)
2-15/64” (56.8mm)
D
2-13/64” (56.1mm)
2-17/64” (57.4mm)
G
E
3-47/64” (94.8mm)
3-17/64” (83.1mm)
2-61/64” (75.2mm)
4-1/4” (107.9mm)
3-57/64” (98.9mm)
3-21/32” (92.8mm)
13/32”
(10.5mm)
1-17/64”
(32mm)
Arm Fixing Plate
Door
Side Board
Top Board
Door
Arm Fixing Plate
Top Board
Hinge Center
3/4”
(19mm)
A
B
Mounting Plate
E
G
D
Opening angle
80°
90°
5-5/64” (129mm)
100°
4-21/32” (118.5mm)
4-3/8” (111mm)
A
1-1/4” (31.7mm)
B
1-9/32” (32.5mm)
1-17/64” (32mm)
2-9/32” (58mm)
D
2-17/64” (57.5mm)
2-19/64” (58.3mm)
G
E
3-13/32” (86.7mm)
2-31/32” (75.3mm)
2-5/8” (67mm)
3-51/64” (96.3mm)
3-13/32” (86.7mm)
3-5/32” (80mm)
Side Board
Mounting Plate
13/32”
(10.5mm)
1-17/64”
(32mm)
Arm Fixing Plate
Arm Fixing Plate
Door
Back Board Back Board
Door
5-11/32” (135.5mm)
1-19/64”
(32.75mm)
2-1/4”
(57.25mm)
3-37/64”
(90.9 mm)
4-9/64”
(105mm)
Inset Concealed Hinge(Euro Hinge) Installation 90 Degree Opening Page 2 of 2
