Sunjoy A102012900 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
A
SSEMBLY IN
S
TRUCTION
I
tem
/Article #
：
A102012900
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
 This product is intended for domestic outdoor use only.
 The product should be placed on flat, horizontal ground.
 Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
 This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
 Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
 During installation, follow all safety warnings provided with your tools, and use safety glasses.
 In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
 Any assembly or maintenance of the product must be carried out by adults only.
 Arrange necessary manpower when assembling or moving the product.
 Some parts may contain sharp edges. Wear protective gloves if necessary.
 Keep children and pets away while setting up the gazebo.
 Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
 Repairing and replacing parts should be done by a qualified technician.
 This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
 Do not light any fires inside or near the product！
 Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
 firemen allow you to do so.
 Do not hang heavy weights on the roof frame.
 Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
 Retain the original packaging to store the gazebo.
Important Safety Inst
ructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3/ 38
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•

•
•

•
•

•
Country of Origin: China
Pais d’origine: Chine
Production Number:XXXXXXXXXX
Numéro de fabrication: XXXXXXXX

4 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
• Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.

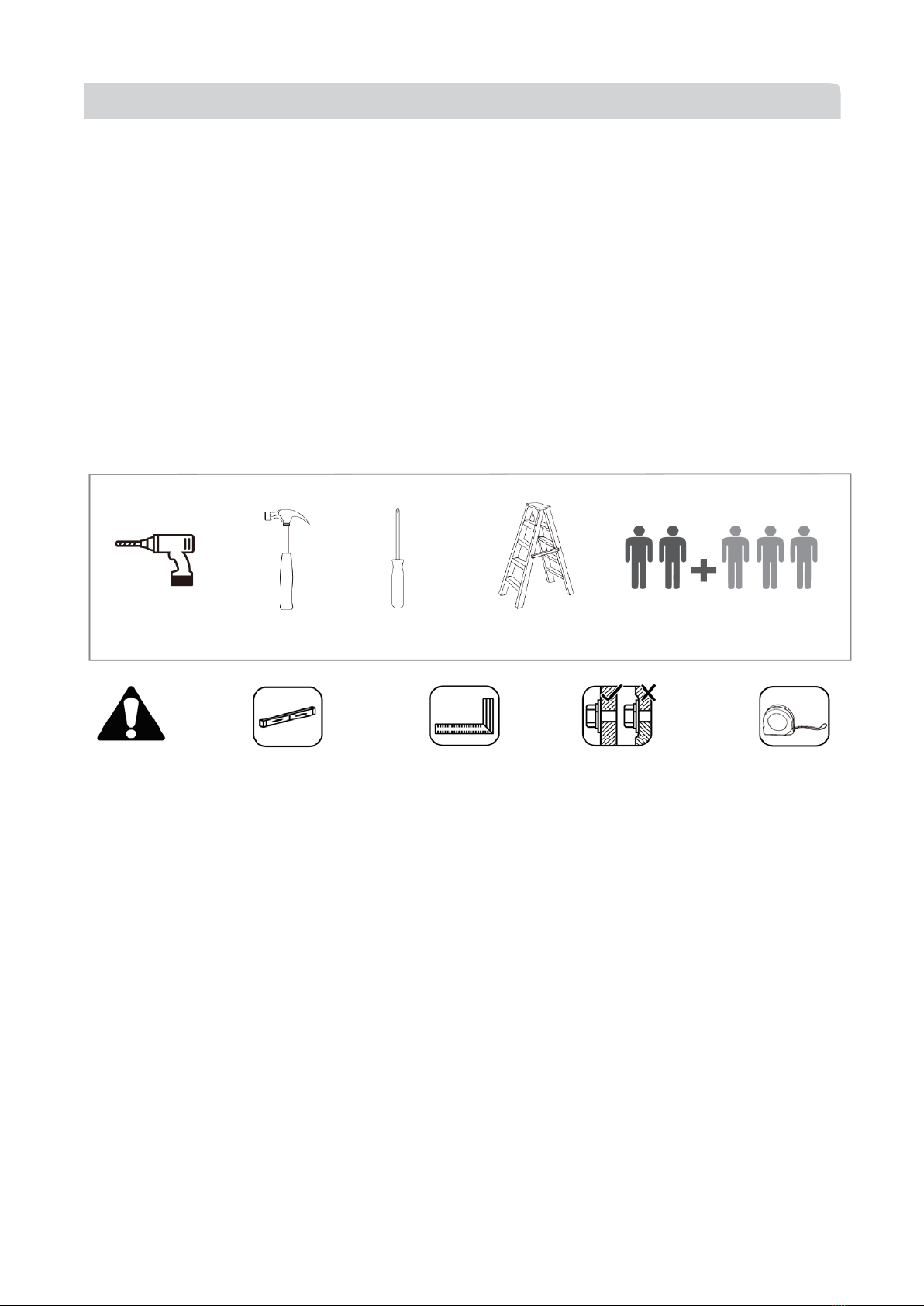

•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill Hammer Screwdriver Ladder 5 people

5/ 38
IMPORTANT:
•

•
•

•

•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   5 personnes
Country of Origin: China
Pais d’origine: Chine Production Number: XXXXXXXXXX
Numéro de fabrication: XXXXXXXX

6 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

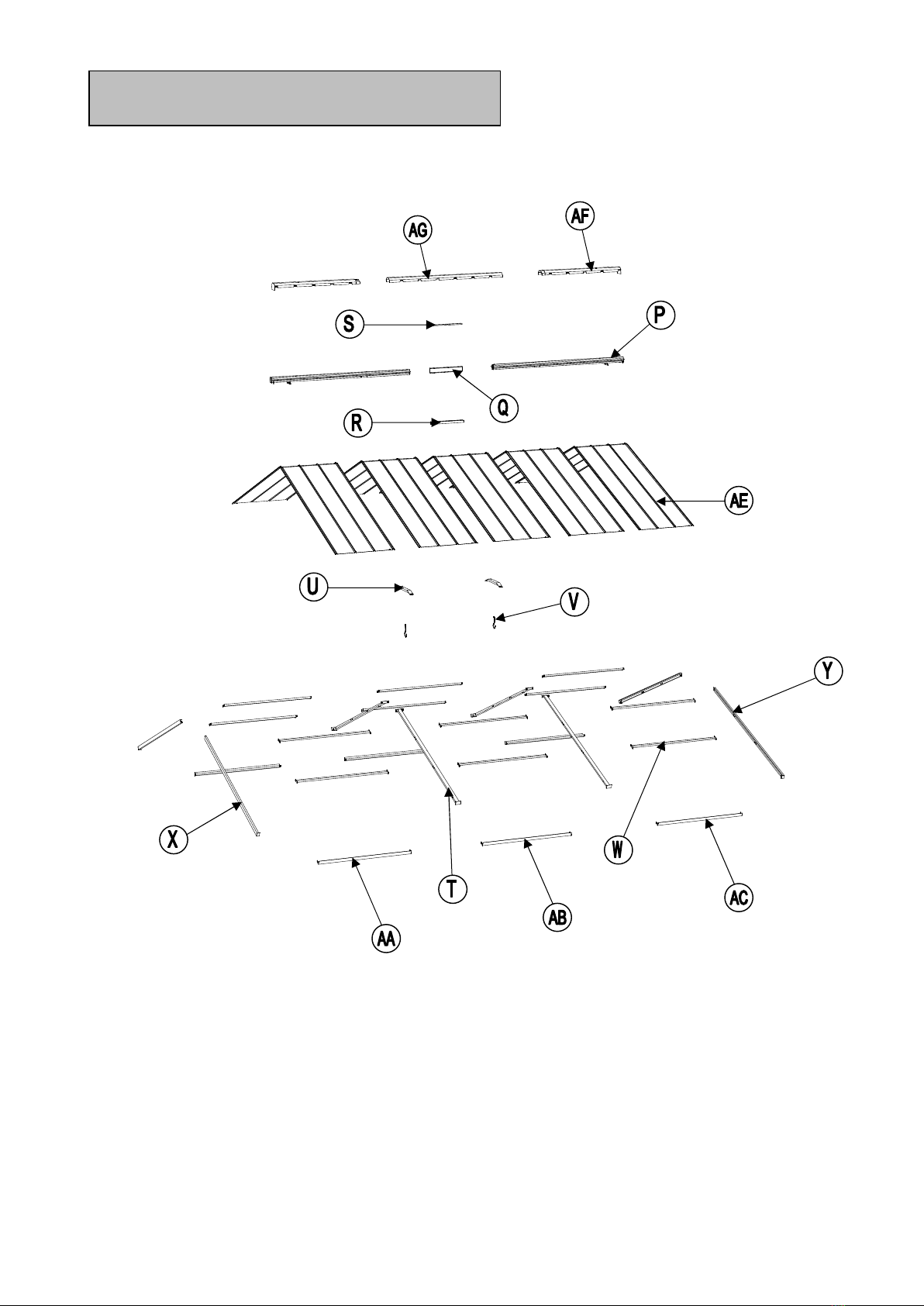

EXPLODED DRAWING/ DESSIN ÉCLATÉ

7 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
EXPLODED DRAWING/ DESSIN ÉCLATÉ

8 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
Parts List
Label Part Number Description Qty Part Image
01 P00020065201 Post 1 4
02 P00020065301 Post 2 4
A P00010045301 Post Base 8
B P00620002601 Fence 1 2
C P00620002701 Fence 2 2
D P00050166301 Corner Connector
1 2
E P00050166401 Corner Connector
2 2
F P00060215001 Big Roof Sloping
Beam 1 2
G P00060215101 Big Roof Sloping
Beam 2 2
J P00220000901 Slanting Beam Cap
2
K P00040124401 Cross Beam 1 2
L P00040124501 Cross Beam 2 2
M P00050166501 Cross Beam
Connector 2
N P00050166901 Middle Beam
Connector 4
P P00060215201 Big Roof Top Beam
2
Q P00050166601 Top Beam
Connector 1 1
R P00050166701 Top Beam
Connector 2 1

9 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
Liste de Pièces
Étiquette Numéro de
la Pièce Description Quantité Numéro de la Pièce Diagramme
01 P00020065201 Poteau 1 4
02 P00020065301 Poteau 2 4
A P00010045301 Base du Poteau 8
B P00620002601 Barrière 1 2
C P00620002701 Barrière 2 2
D P00050166301 2
E P00050166401 2
F P00060215001 2
G P00060215101 2
J P00220000901 2
K P00040124401 2
L P00040124501 2
M P00050166501 2
N P00050166901 4
P P00060215201 2
Q P00050166601 Connexion de la
Poutre Supérieure 1 1
R P00050166701 Connexion de la
Poutre Supérieure 2 1
Connexion du Coin
1
Connexion du Coin
2
Poutre Inclinée du
Grand Toit 1
Poutre Inclinée du
Grand Toit 2
Capuchon de la
Poutre Inclinée
Traverse 1
Traverse 2
Connexion de la
Traverse
Connexion de la
Poutre Centrale
Poutre Supérieure du
Grand Toit

10 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

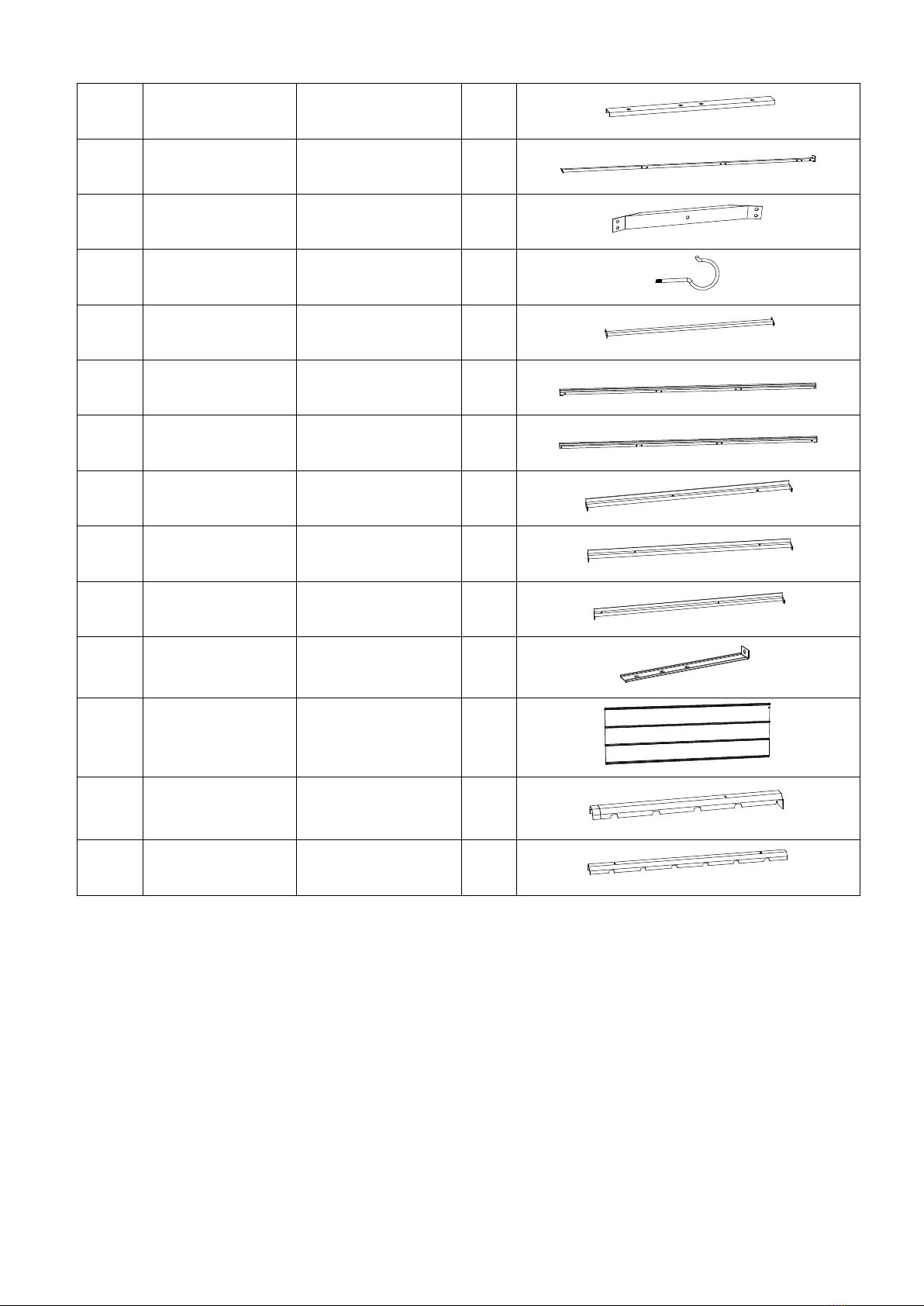

S P00050166801 Top Beam
Connector 3 1
T P00060215501 Middle Beam 4
U P00500062301 Support Tube 2
V P005800001 Hook 2
W P00060215601 Top Small Beam 12
X P00060215301 Roof Panel Flashing
(Side) 1 2
Y P00060215401 Roof Panel Flashing
(Side) 2 2
AA P00060215701 Roof Panel Flashing
(Lower) 1 2
AB P00060215901 Roof Panel Flashing
(Lower) 2 2
AC P00060216001 Roof Panel Flashing
(Lower) 3 2
AD P00050167001 Triangular
Connector 4
AE P00070105901 Top Roof Panel 10
AF P00080036401 Roof Cap 1 2
AG P00080036501 Roof Cap 2 1

11 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
S P00050166801 Connexion de la
Poutre Supérieure 3 1
T P00060215501 Poutre Centrale 4
U P00500062301 Tuyau de Support 2
V P005800001 Crochet 2
W P00060215601 Poutre Petite
Supérieure 12
X P00060215301 Solin du Panneau du
Toit (Latéral) 1 2
Y P00060215401 Solin du Panneau du
Toit (Latéral) 2 2
AA P00060215701 Solin du Panneau du
Toit (Inférieur)1 2
AB P00060215901 Solin du Panneau du
Toit (Inférieur 2 2
AC P00060216001 Solin du Panneau du
Toit (Inférieur)3 2
AD P00050167001 4
AE P00070105901 10
AF P00080036401 Pommeau du Toit 1 2
AG P00080036501 Pommeau du Toit 2 1
Connexion
Triangulaire
Panneau du Toit
Supérieur

12 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

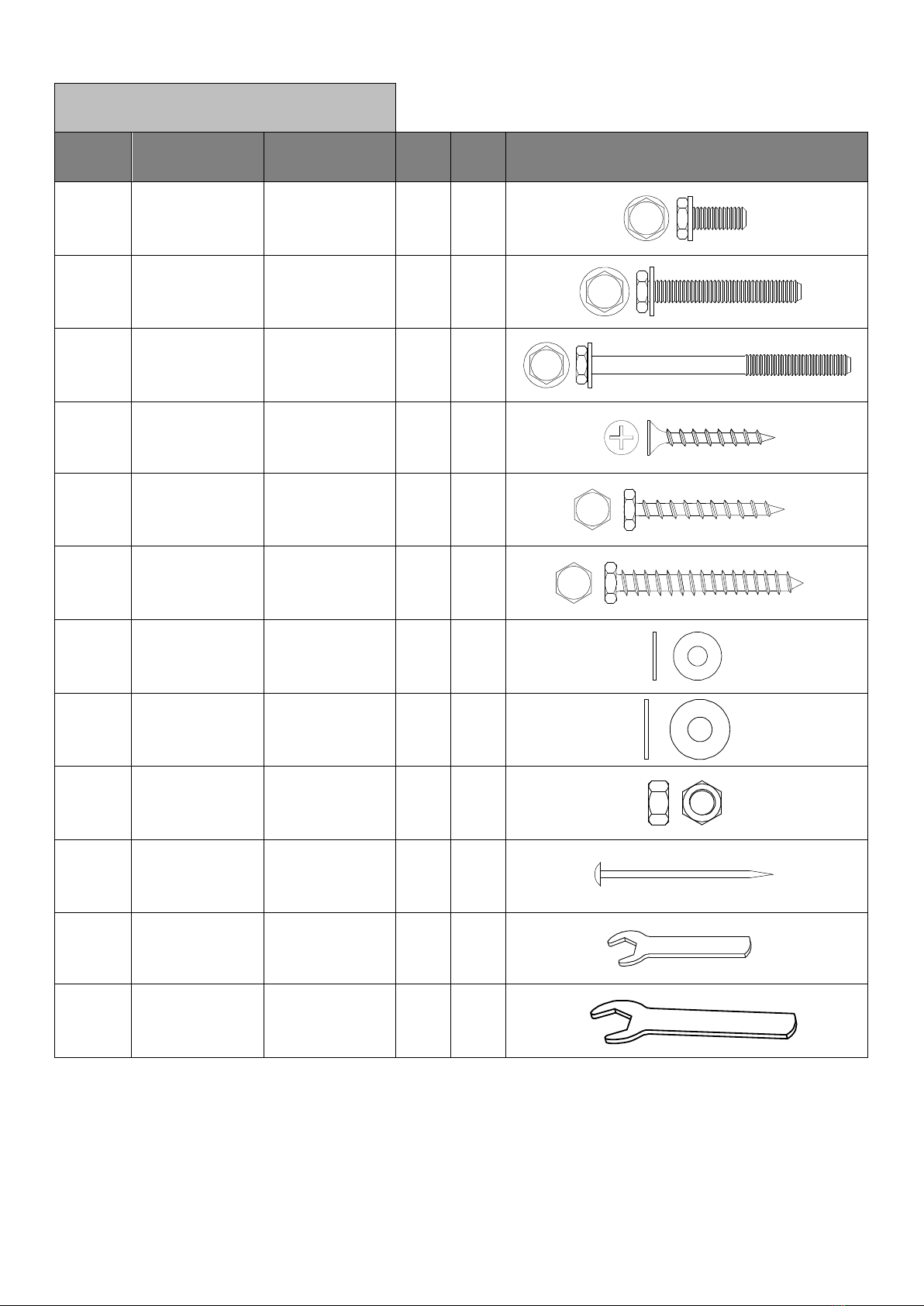

Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010047 Bolt M6*20 174 9
H2 H100010046 Bolt M6*40 12 1
H3 H100010074 Bolt M6*75 4 1
H4 H030050058 Screw M5*30 32 2
H5 H030010125 Screw M6*45 24 2
H6 H030010123 Screw M8*50 32 2
H7 H050030001 Flat Washer
M6 28 2
H8 H050080007 Flat Washer
M8 32 2
H9 H040010004 Nut M6 4 1
HS H070010003 Stake Φ8*180 16 0
HW1 H090010017 Wrench M6 2 0
HW2 H090010012 Wrench M8 1 0

13 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
Pack Quincaillerie
Étiquette Numéro de
la Pièce Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010047 BoulonM6*20 174 9
H2 H100010046 BoulonM6*40 12 1
H3 H100010074 Boulon M6*75 4 1
H4 H030050058 Vis M5*30 32 2
H5 H030010125 Vis M6*45 24 2
H6 H030010123 Vis M8*50 32 2
H7 H050030001 Rondelle plate
M6 28 2
H8 H050080007 Rondelle plate
M8 32 2
H9 H040010004 Nut M6 4 1
HS H070010003 Piquet Φ8*180 16 0
HW1 H090010017 Clé M6 2 0
HW2 H090010012 Clé M8 1 0

14 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

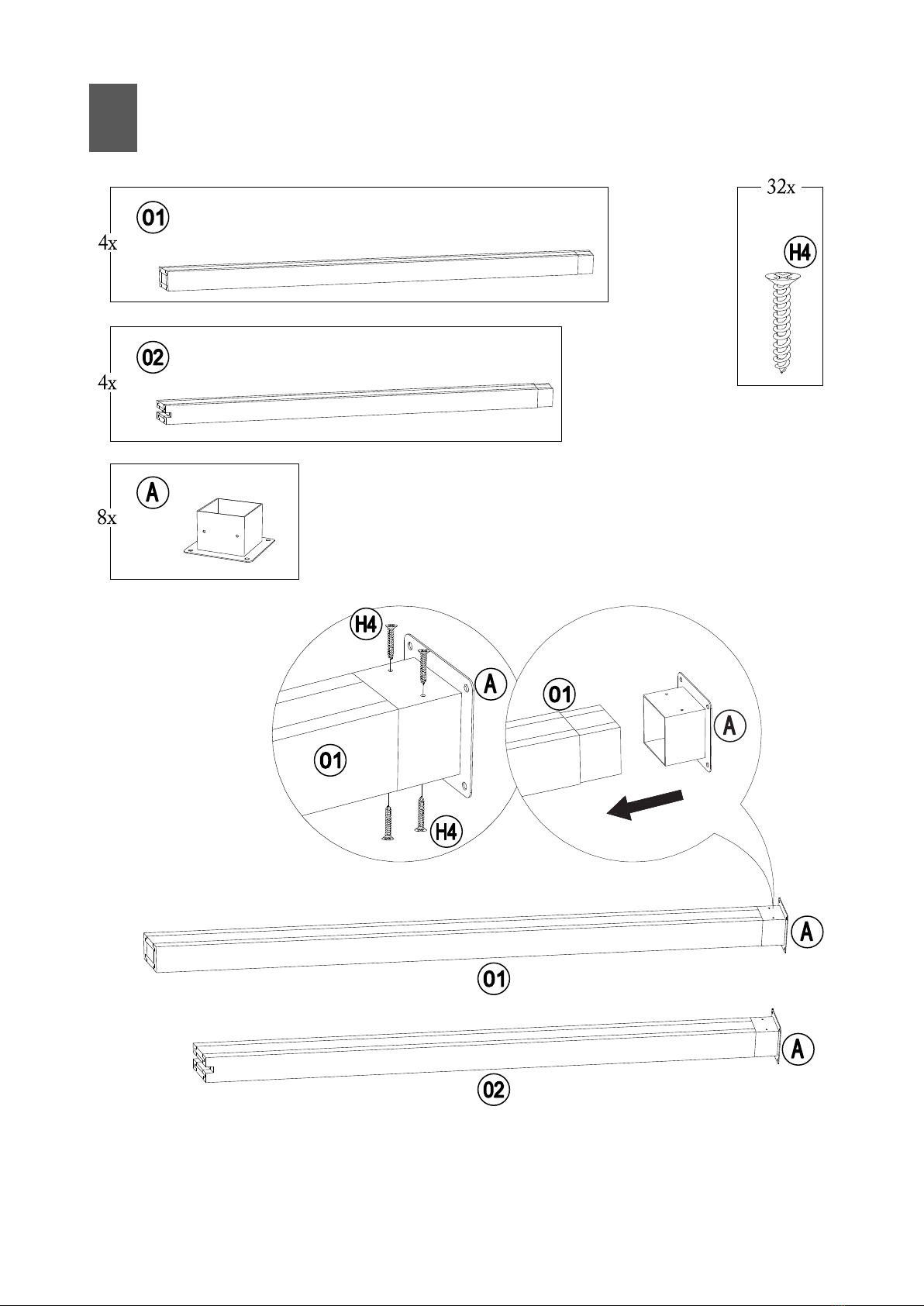

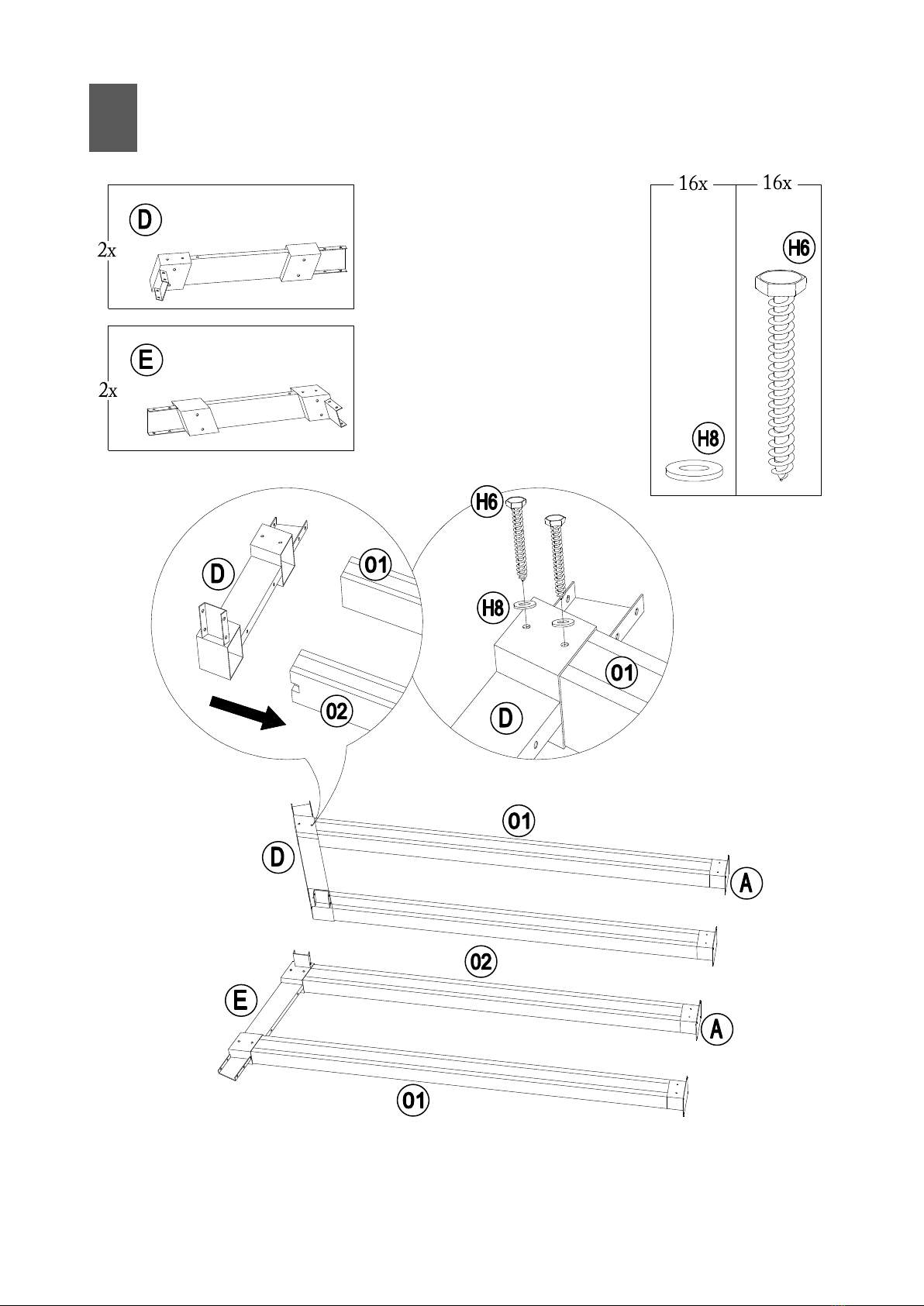

1

15 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
2

16 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
3

17 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
4

18 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

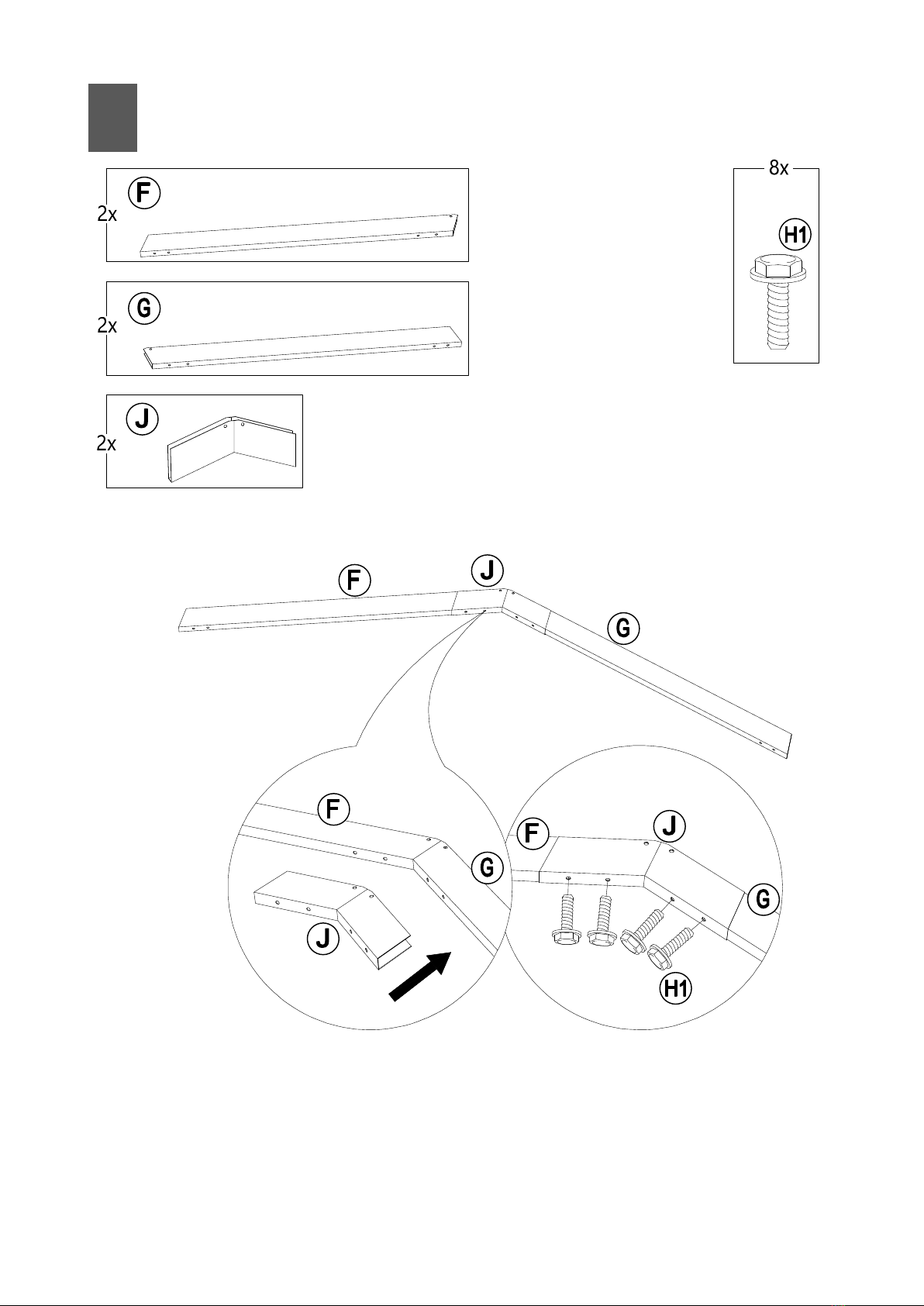

5

19 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

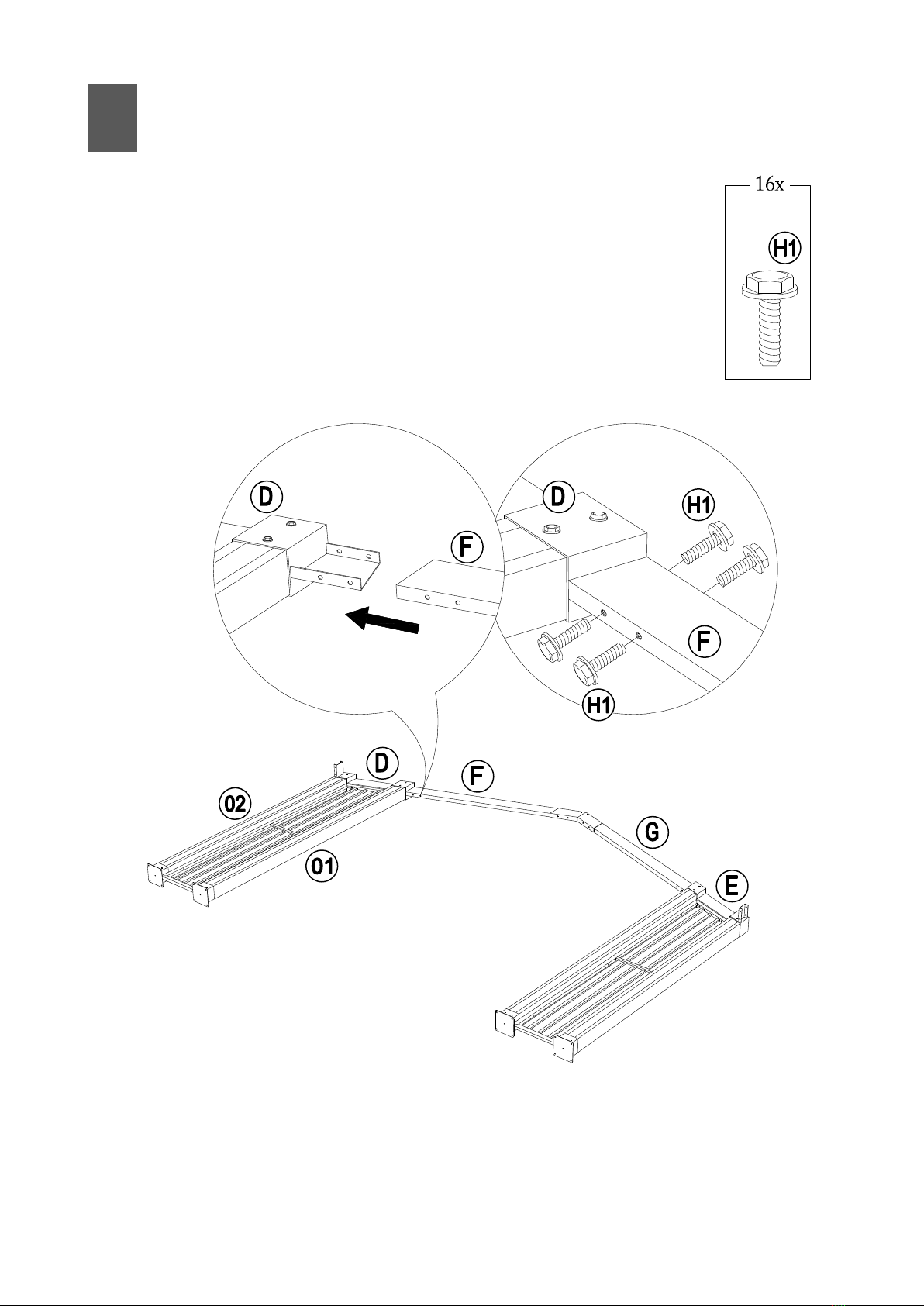

6

20 / 38
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

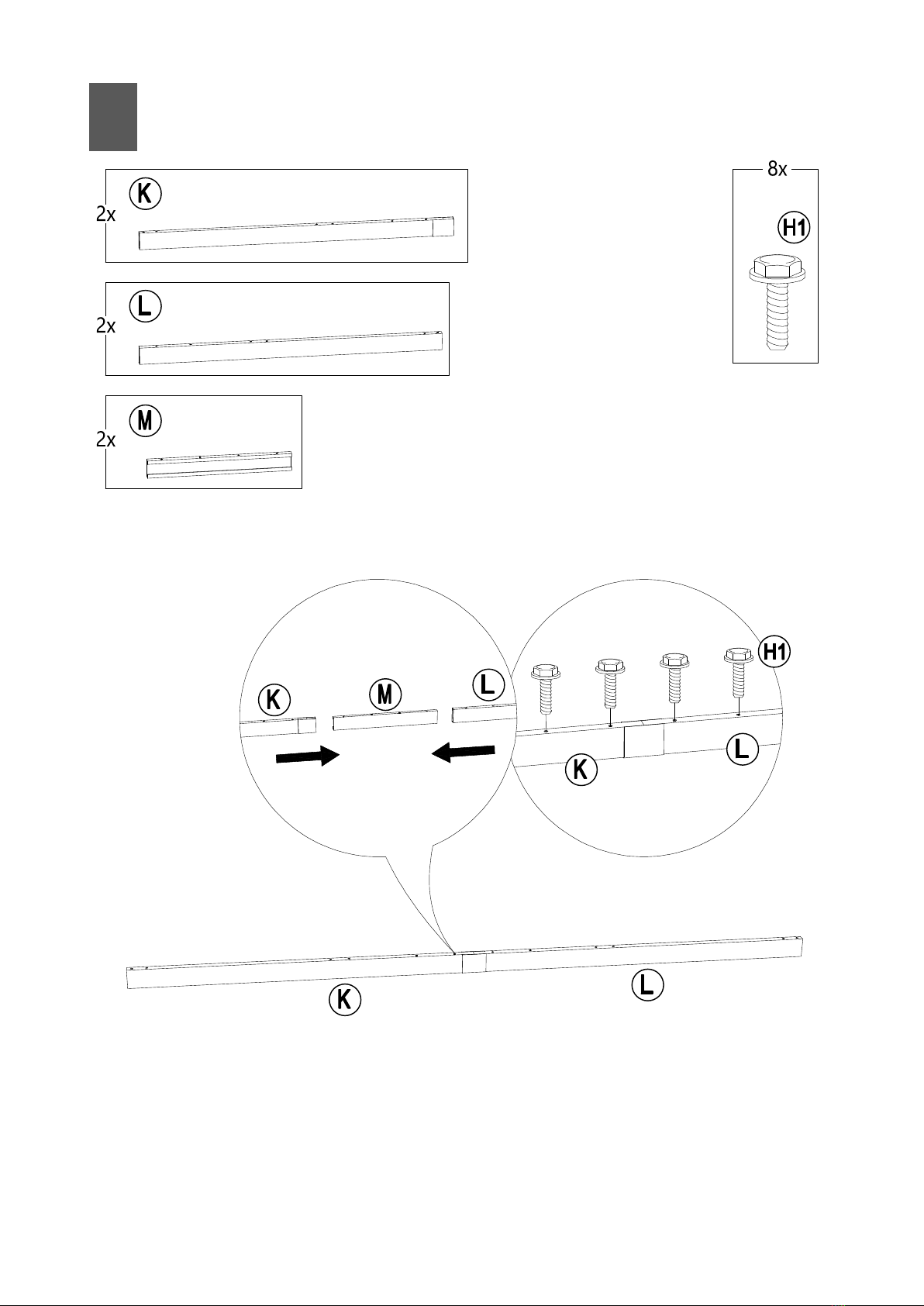

7
