Technogym Selection Cable Jungle User manual

1
S E L E C T I O N
T H E S T R E N G T H E V O L U T I O N
Cable Jungle
User manual
All equipment

2
Cable Jungle
Contents
Identification of the manufacturer and equipment ............................ 3
Description of the equipment............................................................ 4
Technical data ................................................................................... 5
Safety devices and warnings ............................................................ 6
Place of installation ........................................................................... 8
Lifting and moving the equipment..................................................... 9
Assembly......................................................................................... 11
Anchoring to the floor...................................................................... 19
Fitting the number holder ................................................................ 21
Routine maintenance ...................................................................... 22
Replacing the padded parts............................................................ 23
Replacing the cables....................................................................... 24
Replacing the spring hook .............................................................. 29
Technical Service............................................................................. 30
Storage............................................................................................ 31
Disposal........................................................................................... 32
Using the equipment ....................................................................... 33
User manual ...................................................................................... 1
Contents............................................................................................ 2

3
Cable Jungle
D
E
A
B C F
Identification of the manufacturer and equipment
The equipment and manufacturer identification plate, fixed to the upper inside part of the frame, gives the following details:
AManufacturer's name and address
BCE Mark
CSerial number
DMaximum user weight
EEquipment classification
FConsultation of user manual required

4
Cable Jungle
3
E
34
C
2
1
D
B
A
C
Description of the equipment
A Frame: load-bearing structure of the equipment. The user stands in front of any of the four sides of the frame to perform the
exercises. On sides 2and 4there are high pulleys; on side 1there is an adjustable output pulley; on side 3there is a low pulley
and a high pulley.
B Adjustable cable outlet: adjust height using knob (D).
C Weight stacks: each pulley, operated by the user, moves the weights along two guide rails by means of a cable. A pin (E) is used
to select the workload, to adjust the exercise effort level.

5
Cable Jungle
2 1
3
4
2
3
1918 mm
(76")
2290 mm
(90")
1679 mm
(66")

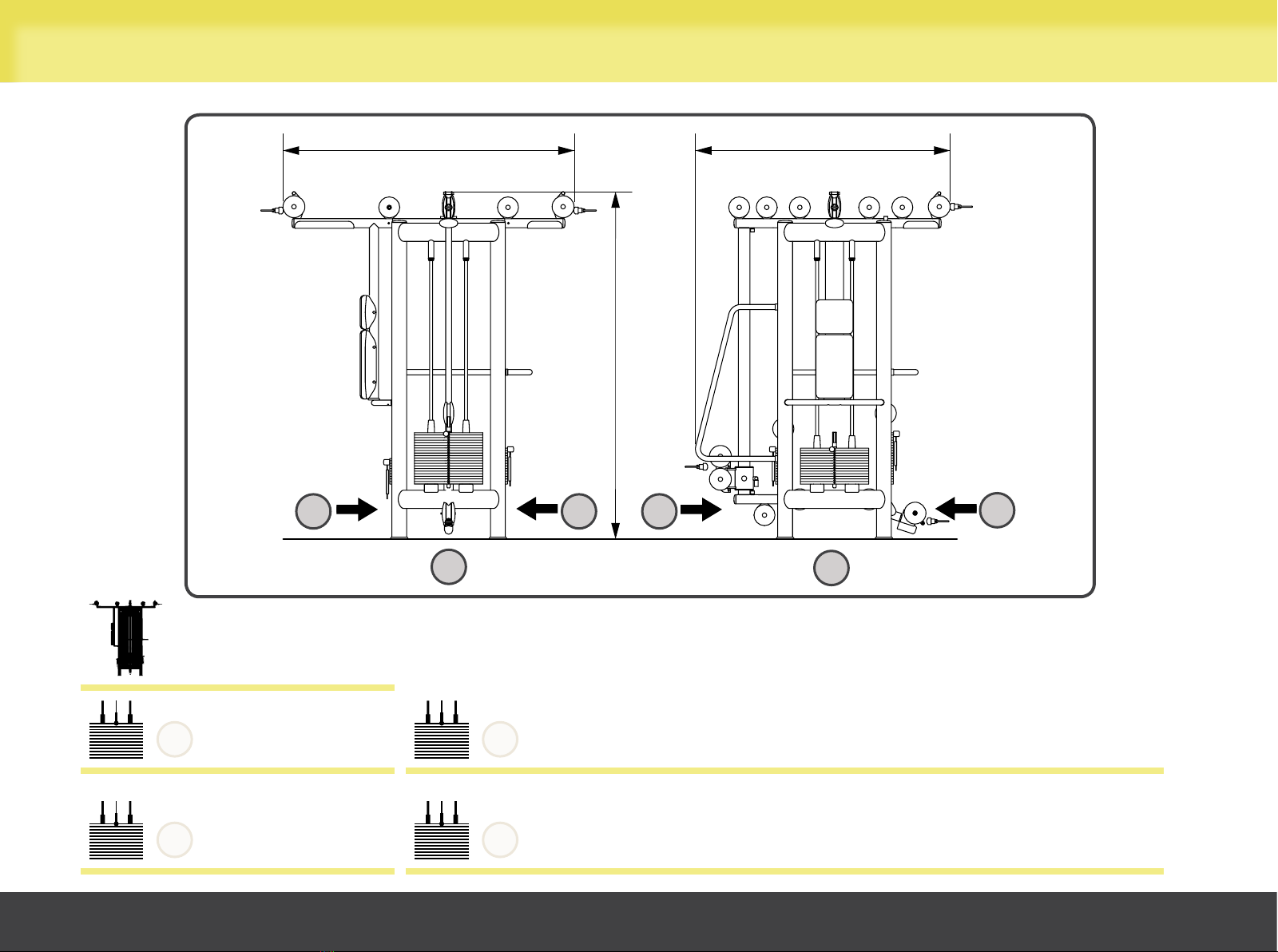

Technical data
518 kg (1142 lb)
250 kg (100 lb) 155 kg (110 lb). Effective handgrip workload: 27.5 kg (55 lb)
470 kg (140 lb) 3100 kg (200 lb). Effective handgrip workload: 50 kg (100 lb)

6
Cable Jungle
Safety devices and warnings
The maximum user weight is 180 kg.
The equipment has no sharp corners.
All parts which come into contact with the user's body are suitably protected with rubber coverings or padding.
Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF
CRUSHING”.
This symbol accompanies safety warnings. It is used to draw attention to potential risks of personal injury. Pay attention
to all safety warnings accompanied by this symbol to avoid possible injury.
WARNING
During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where
body parts may become trapped.

7
Cable Jungle
Safety devices and warnings
WARNINGS
Attention must be paid to the labels attached to the equipment, as they provide
information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or difficult
to read.
67 x 259
WARNING
SERIOUS INJURIES CAN OCCUR
ON THIS EQUIPMENT. YOU MUST
ALWAYS TAKE THE FOLLOWING
PRECAUTIONS TO AVOID INJURY!
Before using the equipment, read all the
warnings and all the instructions. Be
certain on the use of the equipment.
Use the equipment only for its intended use.
Do NOT modify the equipment.
Always consult with a qualified and
licensed medical professional before
starting any exercise program.
If you feel any pain or abnormal symptoms,
stop your workout immediately and consult
your physician.
Keep body, hair and clothing away from all
moving parts.
Check the equipment before use.
Do not use the equipment if you see signs
of wear or damages. In this case notify the
staff immediatley.
Before using the equipment check that the
cables are correctly routed inside the races
of all the pulleys, and check the state of
wear of the cables and their connections.
If you see signs of wear, notify the staff
immediatley.
Be certain that the weight pin is completely
inserted. Use only the pin provided by the
manufacturer. If unsure, seek assistance.
Never pin the weights in an elevated
position. DO NOT use the equipment if found
in this condition. Seek assistance from floor
staff.
Do not use attachments not recommended
by the manufacturer.
Do not allow children unsupervised access
to the equipment. Close supervise
teenagers.
DO NOT REMOVE THIS LABEL.
REPLACE IF DAMAGED.
ENG
WARNING
Before use be certain that the equipment
is secured to the wall or to the floor.
If not, notify the staff immediatley.
If unsure, seek assistance.

8
Cable Jungle
Place of installation
To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sufficient lighting to make the area a safe and relaxing place to exercise;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the
regulations currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specifically controlled by the
owner.
When installing the equipment, use suitable personal protective equipment.

9
Cable Jungle
01083016
A
Lifting and moving the equipment
Use the four castor wheels (optional) to move the equipment.
If the equipment has already been anchored to the floor, it needs to be released
from the anchorage and its original feet refitted: follow the instructions in the
paragraph describing anchoring to the floor in reverse order.
WARNING
Move the equipment very carefully, because it may become unstable
and tip over.
The castors for moving the equipment snap on underneath the feet of the
equipment, after it has been raised, and are held in place by the special straps.
Raise the equipment using a pallet truck or fork-lift truck; and for greater safety
place a wedge under the frame to keep the equipment raised.
WARNING
We recommend placing padded material between the frame and the
wedge and between the frame and the machinery used to lift it.
Fit two of the wheels: fit the castor stems (A) into the holes provided under the
equipment feet, then push hard until they snap in.

10
Cable Jungle
Proceeding in the same way, lift the equipment from the other side and insert
the other two wheels.
Lastly, lift the equipment again, remove the safety wedges and place the wheels
on the floor.
WARNINGS
Do not use the equipment with the castors fitted. The castors are to
be used only for moving the equipment and must be removed before
exercising on it. After moving the equipment, it must be anchored to
the floor before use.
Lifting and moving the equipment

11
Cable Jungle
2
4
CB
AA
Assembly
WARNING
When installing the equipment, use suitable personal protective
equipment.
Assembling the weight stacks on sides 2 and 4
Loosen the two screws (A) inside each of the guards (B) on sides 2 and 4, then
lower the guide rails (C) until they are resting on the floor.
WARNING
Screws (A) secure the guide rails (C); hold on to the guide rails when
loosening these screws to prevent them from dropping on the floor.
The weight stacks must be made up as follows:
- side 2 weight stack with backrest: 9 wide weights, plus wide crosspiece;
- side 4 weight stack with high pulley: 13 wide weights, plus wide crosspiece.

12
Cable Jungle
C C
E
Assembly
Assemble one weight stack at a time.
For every weight stack take the crosspiece (E) from the crate and then take the
weights out one by one, starting from the last one (the one with the highest
number), and insert them in guide rails (C) from above.
WARNINGS
The weights must be assembled with the selection holes facing the
outside of the equipment and the numbers upright.
To keep the weights in the correct order always take them out of the
packaging and insert them ONLY one at a time; this will ensure that
the numbers stamped on the weights will be in the right order in each
weight stack.

13
Cable Jungle
F
A
C C
F
E
Assembly
Once the weight stacks have been assembled insert their respective
crosspiece (E) above the weights; carefully insert guide rails (C) into their upper
housings (F); then tighten screws (A) to lock them in position.
Proceed in the same way for the other weight stack.
After completing the weight stacks on sides 2 and 4, assemble the cables (see the Assembling the pulleys and cables section).

14
Cable Jungle
D
B
C
A
B
Assembly
Assembling the supports
Side 2
Insert upper cross-bar (A) into the frame and secure it with the three screws (B),
two at the sides and one underneath.
Fit handgrip (C) into the two frame pins and secure it with the four screws (D),
two on each side.

15
Cable Jungle
F
D
G
E
Assembly
Side 4
Insert pulley mount (E) into the frame and secure it with the three screws (G),
two at the sides and one underneath.
Fit handgrip (F) into the two frame pins and secure it with the four screws (H),
two on each side.

16
Cable Jungle
A
24
A
Assembly
Assembling the pulleys and cables
Re-route the cables on sides 2 and 4as shown in the illustrations, threading them through the holes (A) provided in the equipment
tubing. Check that the cables are correctly positioned in the pulley grooves.

17
Cable Jungle
B
D
C
Assembly
After re-routing, the cables must be secured: fit rubber gaiter (B) on to the end
of the cable, insert the cable into connector (C) and then thoroughly tighten
screws (D).

18
Cable Jungle
A
min.
50 kg
Anchoring to the floor
The following anchoring parts are supplied: 4 feet, feet protections, anchor screws.
WARNING
To anchor the equipment, use anchor screws suited to the kind of floor,
and which strictly comply with the following minimum requirement:
minimum guaranteed load of 50 kg.
When anchoring the equipment to the floor, the feet need to be replaced: loosen
screw (A) to remove all the supporting feet.
Do not throw the original feet away, so that you can use them for inserting castors
when moving the equipment.

19
Cable Jungle
C
D
B
Anchoring to the floor
Apply adhesive protection (B) to the new feet.
Attach all 4 new feet to the equipment using the screws (C) provided.
Mark the position of the holes to be drilled in the floor.
Drill the holes in the floor.
Insert anchor screws (D) and screw then tightly to the floor.
WARNING
The equipment must be anchored to the floor. Technogym accepts no
responsibility for injury caused by failure to anchor it to the floor.

20
Cable Jungle
B
A
Fitting the number holder
The number holder must be fixed immediately underneath the cross-bars: standing
facing the equipment, attach the number holder to the left tube supporting the
guide rail, so that it is flush with the rubber stop on the guide rail.
The number holder is made up of two sections: the larger section (A) must be
placed at the front; the curved closing section (B) must be placed at the back of
the equipment.
Insert the two screws (Tbic M5x6 Z) from the front of the equipment, coupling them
with the two M5 cap nuts at the rear; then tighten the nuts using the appropriate
spanners.
The number holder is optional.
