Chest Press
User manual
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Accessories
Assembling the number holder
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling the
equipment

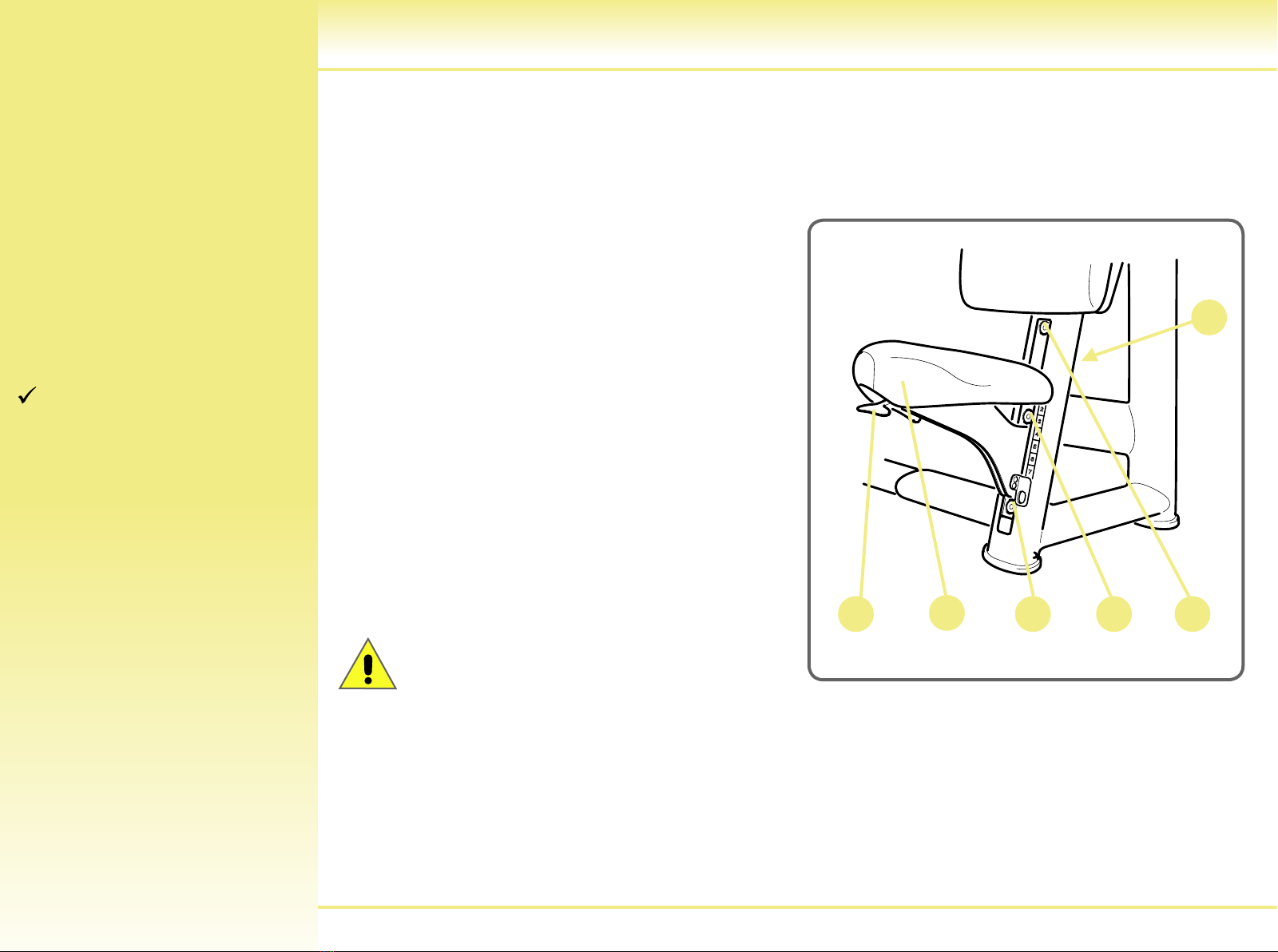

Adjusting the equipment
Routine maintenance
Replacing the padded
components
Replacing the cable

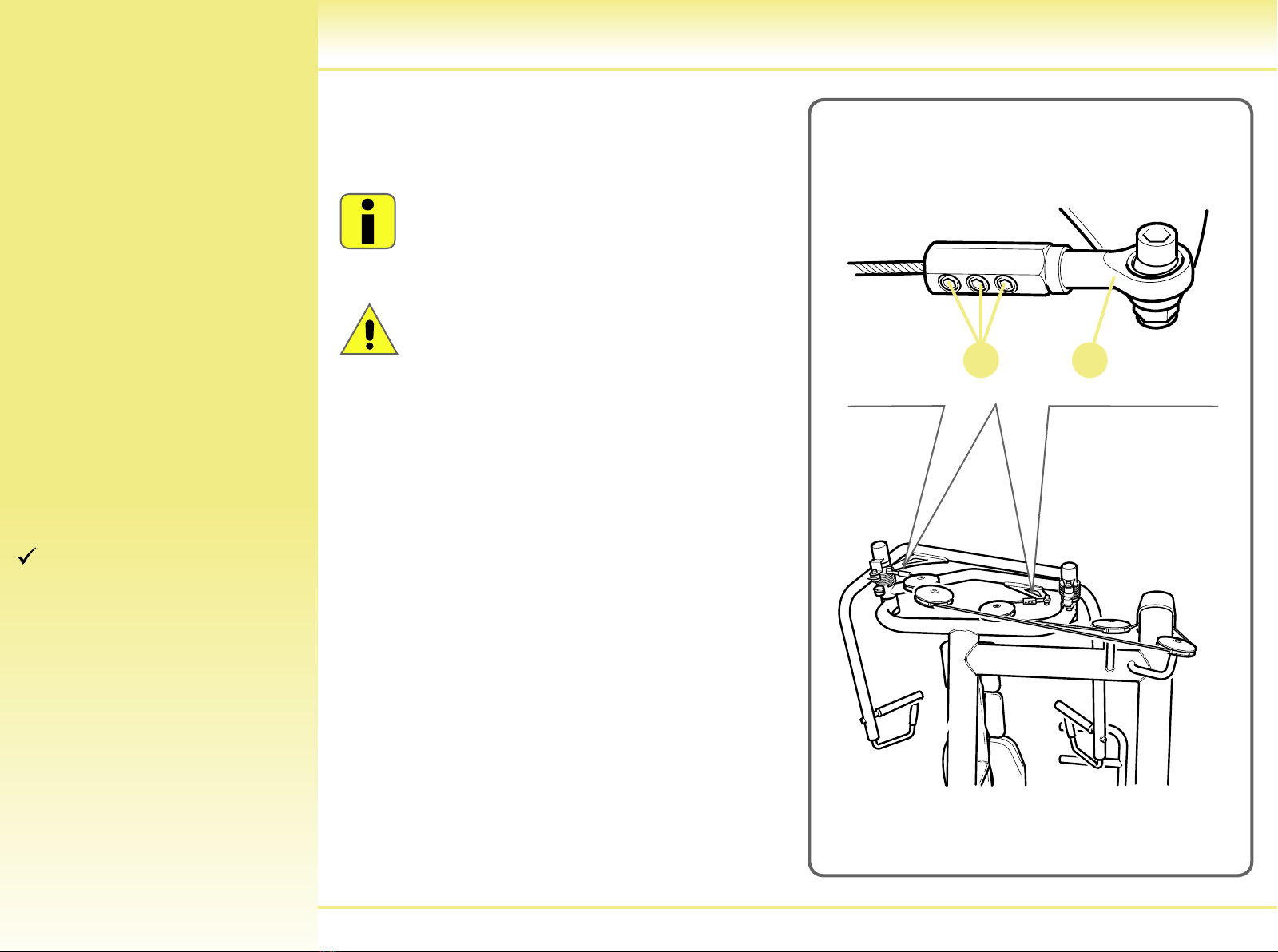

Adjusting cable tension
Disassembling the front protective
weight stack panel
Technical Service
Codes for original spare parts
Storage
Disposing of the equipment
Using the equipment
