Thermo Scientific Emerald Wireless Remote Sensor Owner's manual

Compatible Sensors for Smart-Vue
Pro Duo / Quatro Data Logger
Emerald Wireless Remote Sensor
Triple - CO2, Temperature and Humidity Sensor
Differential Pressure Sensor
Supplemental User Guide
331942H01 • Revision B • 12/21/2020

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in
damage to the unit, injury to operating personnel, and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are
subject to change without notice. Thermo Fisher Scientific makes no representations or warranties with
respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising
from or related to the use of this manual.
© 2020 Thermo Fisher Scientific Inc. All rights reserved.

Contents
Notices and Safety....................................................... 1
Smart-Vue Pro Data Logger..................................... 1
Device Maintenance ................................................ 2
Emerald Wireless Remote Sensor ............................ 3
Certifications and Compliance...................................... 4
Smart-Vue Pro Data Logger..................................... 4
Emerald Wireless Remote Sensor ............................ 6
Differential Pressure Smart Sensor;
Temperature, Humidity and CO2 Smart Sensor......... 8
Introduction ................................................................. 9
Emerald Bluetooth Enabled Wireless Remote Sensors. 10
Wireless Remote Sensor Calibration......................... 10
Key Specifications.................................................... 11
Inserting the Battery into your Emerald Sensor ......... 11
Activating an Emerald Wireless Remote Sensor........ 11
Mounting your Emerald Sensor ................................ 12
Using Adhesive Tape................................................ 12
Using Wireless Remote Sensors with your
Data Loggers ........................................................... 12
Wireless Remote Sensors in Smart-Vue Pro Web
Application ............................................................... 15
Maintaining your Emerald Wireless Remote Sensors 17
CO2, Temperature and Humidity Smart Sensor ............ 18
Overview .................................................................. 18
Key Specifications.................................................... 19
Placing the Sensor and Smart-Vue Pro Data Logger 19

Differential Pressure Smart Sensor............................... 22
Overview .................................................................. 22
Usage ...................................................................... 22
Tube Placement....................................................... 23
Key Specifications.................................................... 24
Placement and Assembly......................................... 24
Velcro location on Extension box.............................. 25
Appendix 1 - Troubleshooting...................................... 26
Appendix 2 – Emerald Battery Life ............................... 29
Battery Details.......................................................... 29

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Notices and Safety | 1
Notices and Safety
Smart-Vue Pro Data
Logger
IMPORTANT NOTE: Do not use this product for protection
or as part of an automated emergency system or as for any
other application that involves protecting people and/or
property. This product is designed for use in environments
where children are not likely to be present. Customers and
users of Thermo Scientific products are responsible for
ensuring that the product is fit for the intended usage. Do not
open the product casing and do not disassemble or modify
internal components in any manner. Thermo Scientific
products do not contain any internal components that require
user intervention or repair. If the device shows signs of
improper operation, disconnect it immediately from its power
source or remove the battery and contact Thermo Scientific
technical services.
Electrical Warning
Battery Warning
CAUTION: To reduce the risk of electric shock,
do not open or remove the product casing. No user
serviceable parts inside. Refer servicing to qualified
service personnel. The lightning flash with
arrowhead symbol is intended to alert the user to
the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to a person.
CAUTION: This product contains two non
rechargeable 3.6V lithium batteries. Plugging the
device into the AC adapter (USB) does not recharge
the batteries. Ensure you respect polarity (+/-) as
indicated inside the battery compartment while
inserting batteries into Thermo Scientific devices.
Reversing polarity by inserting the batteries
incorrectly can cause the product to heat up and
may lead to battery liquid leakage. Use only
batteries recommended by Thermo Scientific.
Do not use a different type of battery such as
rechargeable, alkaline and magnesium or use
batteries of different brands or even different types
of batteries of the same brand. Never dispose of
batteries in fire. Do not charge regular batteries that
are not specifically rechargeable. When the battery
is low or in case the battery-operated device in
question remains unused for a lengthy period of
time remove the battery from the device in order to
avoid any risk of battery liquid leakage. Never leave
batteries within the reach of children. In case of a
battery leak, avoid all contact with the liquid present
on the batteries. Rinse with clear water immediately
in case the battery liquid comes into contact with
the eyes, mouth or skin. Contact a doctor or
emergency service immediately. Battery liquid is
corrosive and can damage vision or cause
blindness or chemical burns.

2 | Notices and Safety Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
Device Maintenance
CAUTION: Do not attempt to disassemble the
device. There are no user serviceable parts inside.
CAUTION: Do not misuse the device. Follow
instructions on proper operation and only use as
intended. Misuse could make the device
inoperable, damage the device and / or other
equipment or harm users.
CAUTION: Do not apply excessive pressure or
place unnecessary weight on the device. This could
result in damage to the device or harm to users.
CAUTION: Do not use this device in explosive or
hazardous environments.
CAUTION: Do not expose your device to any
extreme environment where the temperature or
humidity is high. Such exposure could result in
damage to the device or fire.
CAUTION: Do not expose the device to water, rain,
or spilled beverages. It is not waterproof. Exposure
to liquids could result in damage to the device.
CAUTION: Do not place the device alongside
computer discs, credit or travel cards or other
magnetic media. The information contained on
discs or cards may be affected by the device.
CAUTION: Using accessories, such as antennas,
that Thermofisher has not authorized or that are not
compliant with Thermofisher accessory
specifications may invalidate the warranty.

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Notices and Safety | 3
Emerald Wireless Remote
Sensor
Disclaimer and Limitation of
Liability
OCEASOFT assumes no responsibility for any loss or claims
by third parties which may arise through the use of this
product. In particular, users must not use the product in any
manner not specifically indicated by OCEASOFT. OCEASOFT
shall not be held liable for improper use of this product. This
document is non-contractual and subject to change without
notice.
Safety Instructions
IMPORTANT NOTE: Do not use this product for protection
or as part of an automated emergency system or as for any
other application that involves protecting people and/or
property. Customers and users of OCEASOFT products are
responsible for making sure that the product is fit for the
intended usage. Do not open the product casing and do not
disassemble or modify internal components in any manner.
OCEASOFT products do not contain any internal
components that require user intervention or repair. If the
device shows signs of improper operation, disconnect it
immediately from its power source and contact OCEASOFT
technical services.
Battery Warning
CAUTION: This product contains a lithium battery.
Make sure you respect polarity (+/-) when inserting
batteries into OCEASOFT devices. Reversing
polarity by inserting the batteries incorrectly can
cause the product to heat up, and may lead to
battery liquid leakage. Use only batteries
recommended by OCEASOFT. Do not change
battery types, such as rechargeable, alkaline and
magnesium, or use batteries of different brands, or
even different types of batteries of the same brand.
Incorrect batteries may cause the device to heat up,
and may result in a fire or battery liquid leakage.
Never dispose of batteries in fire. Do not charge
regular batteries that are not specifically
rechargeable. When the battery is low, or in case
the battery-operated device in question remains
unused for a lengthy period of time, remove the
battery from the device in order to avoid any risk of
battery liquid leakage. Never leave batteries within
the reach of children. In case of a battery leak, avoid
all contact with the liquid present on the batteries.
Rinse with clear water immediately in case the
battery liquid comes into contact with the eyes,
mouth or skin. Contact a doctor or emergency
service immediately. Battery liquid is corrosive and
can damage vision or cause blindness or chemical
burns.

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
Certifications and Compliance
Smart-Vue Pro Data
Logger
FCC part 15 modular qualification:
FCC IDs:
- Contains Bluetooth component 2AA9B04.
- Contains LoRaWAN™ component XTLCMABZ.
This paragraph pertains to 915 MHz Smart-Vue Pro™
wireless devices. This device complies with part 15 of the
FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received
including interference that may cause undesired
operation.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna should not be less than
20 cm (8 inches) during normal operation. End users must
follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other antenna
or transmitter.
Industry Canada RSS-210 modular qualification.
IC:
- Contains Bluetooth component 12208A-04.
- Contains LoRaWAN™ component 9337A-CMABZ.
This paragraph pertains to 915 MHz Smart-Vue Pro™
wireless devices. This device complies with Industry
Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause interference.
4 | Certifications and Compliance
2. This device must accept any interference including
interference that may cause undesired operation of the
device.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
This paragraph pertains to 868 MHz Smart-Vue Pro™
wireless devices. The Thermo Scientific product (contains
Bluetooth component BMD-300, LoRaWAN component
CMWX1ZZABZ) is compliant with the essential requirements
and other relevant requirements of the following standards
and/or normative documents.
Directives:
• 2014/53/EU Radio Equipment Directive (RED)
• 2014/30/EU EMC Directive
• 2014/35/EU Low Voltage Directive
• 2011/65/EU and the amendment of (EU) 2015/863
Restriction of Hazardous Substances Directive.
In application of the following standards:
• ETSI EN 300 220-2 V3.1.1
• EN 301 489-1 V2. 2.1
• EN 301 489-3: V2.1.1
• EN 301 489-17 V3. 2.1
• EN 300 328 V2. 2.2
• EN 61326-1:2013
• UL/CSA 61010-1: 2012 3rd edition and
• IEC/EN 61010-1: 2010 3rd edition.
FCC Statements
IC Statements
CE - Conformity with European Regulations
CAUTION: Any changes or modifications not
expressly approved by Thermo Scientific could
void the user's authority to operate the
equipment.

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Certifications and Compliance | 5
RoHS Compliance
The wireless device is in compliance with the EU
Directive 2011/65/EU (Restriction of the Use of
Certain Hazardous Substances in Electronic and
Electrical Equipment) and the amendment of (EU)
2015/863. Do not dispose of this product with
household trash. Thermo Scientific recycles this
product under certain conditions. Contact us for
more information.

6 | Certifications and Compliance Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
Emerald Wireless Remote
Sensor
FCC part 15 modular qualification:
FCC ID: 2AA9B04
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other antenna
or transmitter.
Industry Canada RSS-210 modular qualification.
This device complies with Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference including
interference that may cause undesired operation of the
device.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
OCEASOFT Emerald (bluetooth component BMD-300) is
compliant with the essential requirements and other relevant
requirements of the following standards and / or normative
documents.
Directives:
• 2014/53/EU Radio Equipment Directive (RED)
• 2014/30/EU EMC Directive
• 2014/35/EU Low Voltage Directive
In application of the following standards:
• EN 300 220-2 V3.1.1
• EN 300220 -1 V3.1.1
• EN 300328 V2.2.2
• IEC 61010-1: 2010 AMD1:2016
• IEC 62368-1: 2014 (2nd Edition)
• EN 61326-1: 2013
• IEC 60950-1:2005 (2nd Edition)+ A1:2009 + A2:2013
• EN 301 489-17 V3.2.1
• EN 301 489-3: V2.2.1
• EN 301 489-1 V2.2.1
• EN 61000-6-2: 2005
• EN 61000-6-4: 2007 / A1: 2011
• IEC 62311: 2017 Recommandation 1999/519/CE
Directive 2013/35/UE
MIC (Japan)
This equipment contains specified radio equipment that has
been certified to the Technical Regulation Conformity
Certification under the Radio Law.
• BMD-300 Type Acceptance Number: 210-106799
FCC Statements
FCC CAUTION: Any changes or modifications
to this equipment not expressly approved by
OCEASOFT may cause, harmful interference and
void the FCC authorization to operate this
equipment.
IC Statements
CE - Conformity with European Regulations

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Certifications and Compliance | 7
Australia / New Zealand
The BMD-300 radio equipment in this device has been tested
to comply with the AS/NZS 4268:2012 / AMDT 1:2013, radio
equipment and systems – short range devices – limits and
methods of measurement.
Bluetooth
• RF-PHY Component (Tested) – DID: D030629
• QDID: 81876
WEEE Compliance
This wireless device complies with the essential requirements
and other relevant provisions of the Waste Electrical and
Electronic Equipment Directive 2012/19/EU (WEEE Directive).
Environmental Protection
RoHS Compliance
Respect local regulations concerning
disposal of packaging, unused wireless
devices and their accessories and promote
their recycling.
The wireless device complies with the restriction
of the use of certain hazardous substances in
electrical and electronic equipment, 2011/65/EU,
2015/863 Restriction of Hazardous Substances
Directive (RoHS Directive). Do not dispose of this
product with household trash. OCEASOFT
recycles this product under certain conditions.
Contact us for more information.

8 | Certifications and Compliance Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
Differential Pressure
Smart Sensor;
Temperature, Humidity
and CO2 Smart Sensor
WEEE Compliance
This device complies with the essential requirements and
other relevant provisions of the Waste Electrical and
Electronic Equipment Directive 2012/19/EU (WEEE Directive).
Environmental Protection
RoHS Compliance
California
Proposition 65
CAUTION: This product can potentially
expose you to chemicals including lead,
which is known to the State of California to
cause cancer. For more information, go to
www.P65Warnings.ca.gov
Respect local regulations concerning
disposal of packaging, unused wireless
devices and their accessories and promote
their recycling.
The wireless device complies with the restriction
of the use of certain hazardous substances in
electrical and electronic equipment, 2011/65/EU,
2015/863 Restriction of Hazardous Substances
Directive (RoHS Directive). Do not dispose of this
product with household trash. OCEASOFT
recycles this product under certain conditions.
Contact us for more information.

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Introduction | 9
Introduction
This user guide covers three Smart Sensor models that are
compatible with the Smart-Vue Pro data logger:
• Emerald Bluetooth connected wireless remote sensor
• Triple - CO2, Temperature and Humidity sensor
• Differential pressure sensor.
The focus in this document is mainly on physical / hardware
aspects of the Smart Sensors listed above.
Where to go for more information:
• For general instructions for using your Smart-Vue Pro
data logger, see the Smart-Vue Pro data logger user
guide.
• For details about configuration and data logging, see the
Smart-Vue Pro web application user guide.

10 | Emerald Bluetooth Enabled Wireless Remote Sensors Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
Emerald Bluetooth Enabled Wireless
Remote Sensors
Smart-Vue Pro data loggers are equipped with Bluetooth low
energy connectivity to use Emerald sensors as wireless
remote sensors. Emerald sensors can have an integrated
temperature sensor or an external Pt100 probe. This enables
you to monitor and manage equipment in hard-to-access
locations or where it is impractical to connect wired sensors
to your Smart-Vue Pro data logger.
Wired and wireless remote sensors connected to a
Smart-Vue Pro data logger offer the same web application
usage and functionality.
Figure 1. Smart-Vue Pro data logger with Emerald
Wireless Remote Sensor (Integrated
Temperature Sensor)
Figure 2. Emerald with external Pt100 sensor
You can use any combination of wired or wireless remote
sensors with your Smart-Vue Pro data loggers with up to two
active wireless remote sensors on Smart-Vue Pro Duo or up
to four on Smart-Vue Pro Quatro.
For the Smart-Vue Pro data logger to detect your nearby
Emerald wireless remote sensor, you must first activate
Bluetooth on the sensor as described below. The Smart-Vue
Pro data logger cannot discover a wireless remote sensor if it
is disabled or in standby mode.
Wireless Remote Sensor
Calibration
It is important to calibrate the sensors on your Smart-Vue Pro
data loggers to fine-tune the accuracy of readings. The
calibration procedure for wireless remote sensors is typically
handled by a qualified metrology laboratory which determines
precise correction coefficients and loads them directly in the
Emerald wireless remote sensor’s memory.
CAUTION: Emerald Bluetooth sensors must have
firmware version 2.3.2 or higher to function as
wireless remote sensors with Smart-Vue Pro data
loggers as described in this chapter.
CAUTION: Calibration parameters are stored
directly in Emerald sensors to adjust readings for
maximum accuracy. Calibration parameters
cannot be edited via the Smart-Vue Pro web
application.

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Emerald Bluetooth Enabled Wireless Remote Sensors | 11
Key Specifications
•Measured Ranges:
- Emerald with internal sensor: -40°C to +85°C.
- Emerald with external Pt100 probe (available for)
-50°C to +200°C or -200°C to +50°C.
•Protection index: Conforms to IP44 for Emerald with
internal sensor, IP40 for Emerald with external sensor +
PT100 sensor, ABS / polycarbonate.
• Operating environment for internal and external Emerald
sensor without Pt100 probe:
• -40°C to +85°C.
• 0 to 90% relative humidity non-condensing.
Inserting the Battery into
your Emerald Sensor
Emerald wireless remote sensors feature a replaceable
battery. Follow these steps to insert or replace the battery.
Figure 3. Inserting the battery in your emerald
sensor
Activating an Emerald
Wireless Remote Sensor
In order for a Smart-Vue Pro data logger to be able to detect
an Emerald wireless remote sensor, you must first activate the
sensor as described here:
1. Place the “strong” side of the magnet (the side without
the adhesive tape) in the circular recess on the back of
the Emerald sensor and leave it there until the Smart-Vue
Pro data logger detects it. The non-adhesive side of the
magnet is noticeably stronger than the other.
Figure 4. Place the magnet on the sensor module
to activate bluetooth
2. Bluetooth connectivity is enabled and the LED blinks
blue. Once Smart-Vue Pro data logger discovers the
Emerald sensor, you may remove the magnet.
When within wireless range, the wireless remote sensor
appears in the sensor pairing screen of the Smart-Vue Pro
data logger. You may connect to it at any time as described in
Pairing a Bluetooth Wireless Remote Sensor.
1. The Lithium battery
is provided in the
product box.
2. Unscrew the three
screws on the back
of the sensor (turn
counterclockwise).
3. Remove the screws. 4. Place the battery in
the slot, respecting
polarity.
5. Replace screws
(turning them
clockwise). Ensure
that the rubber seal is
well seated.
6. Your sensor is ready to
use.

12 | Emerald Bluetooth Enabled Wireless Remote Sensors Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
Identifying the Strong Side of
the Magnet
The magnet has a “weak” side and a “strong” side. Here is a
hint to help you identify which side is which: the metal ring
inside the hole is close to the edge on the “weak” side of the
magnet. The deeper recess on the other side indicates the
“stronger” side.
Figure 5. Strong vs weak side of the magnet
Mounting your Emerald
Sensor
Using the Magnet
You may use the magnet to mount your sensor on
appropriate surfaces (wood, plaster, etc.). To do this, run a
screw through the central hole to fasten the magnet with the
strong side (non-adhesive) facing the Emerald then place the
sensor onto the magnet as shown here:
Figure 6. Mount the sensor on the magnet after
fastening it to a suitable surface
Using Adhesive Tape
You may also choose to mount the Emerald sensor using the
provided adhesive tape.
Note: Clean the magnet before using the adhesive tape on it.
Using Wireless Remote
Sensors with your Data
Loggers
Pairing a Bluetooth Wireless
Remote Sensor
The Smart-Vue Pro data logger supports both wired and
wireless remote sensors. As mentioned previously, wired
sensors are detected and configured automatically by the
data logger when they are physically plugged into the unit.
Pairing the Smart-Vue Pro data logger with a wireless remote
sensor is easy when following the guided touch screens
below:
To pair your wireless remote sensor:
1. Tap the menu icon  Sensors  Remote sensors.
2. Enter your PIN code as configured in the Smart-Vue Pro
web application and tap OK.
3. Tap Pair remote sensors.
Deeper recess on strong
side of the magnet.
Shallow recess on weak
side of the magnet.
CAUTION: This section covers supported
Emerald Bluetooth sensors (firmware version
2.3.2 or higher; check with your authorized
representative if you need more information).

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Emerald Bluetooth Enabled Wireless Remote Sensors | 13
4. The Smart-Vue Pro data logger searches for compatible
sensors within wireless remote range. At first, if no
sensors are found, you may see this message:
Figure 7. Message pending bluetooth sensor
discovery
Only sensors with Bluetooth activated can be discovered.
If your wireless remote sensor does not appear in the list or if
you do not know how to activate it, refer to the instructions in
Activating an Emerald Wireless Remote Sensor. If the
Emerald module is activated, you may need to wait a few
seconds before it is discovered and listed by the Smart-Vue
Pro data logger.
5. When discovered, your sensor is displayed on the
screen.
Figure 8. Tap to pair the wireless remote sensor
Note: Sensors with data logging currently activated or already
connected to another Smart-Vue Pro data logger cannot be
paired.
6. Tap the sensor and confirm the connection by tapping
OK.
7. Wait until pairing is complete which may take a few
seconds. Once pairing is successful, tap OK. The
wireless remote sensor is now paired with your data
logger and shown just like any other sensor connected to
the data logger  Sensors  Show sensors.
Figure 9. Wireless remote sensor indicated by
battery counter and wireless icon
8. Repeat the above steps if you want to pair additional
Bluetooth data loggers.
9. Tap the menu icon to return to the home screen.
If a problem occurs during the pairing procedure, check the
instructions in Appendix 1 - Troubleshooting before
attempting to pair again.
Unpairing an Emerald Wireless
Remote Sensor
To unpair your Emerald sensor:
1. Tap the menu icon  Sensors  Remote sensors
2. Enter your PIN code and tap OK.
3. Tap Unpair remote sensors.
4. Choose the sensor you want to unpair and press OK to
confirm unpairing:
Figure 10. Unpairing a wireless remote sensor
Wireless icon
indicates that the
sensor is a wireless
remote sensor

14 | Emerald Bluetooth Enabled Wireless Remote Sensors Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
5. Wait until the unpairing process is complete which may
take a few seconds then tap OK. The wireless remote
sensor is removed from the list.
Resetting a Wireless Remote
Sensor’s Battery Counter
To reset the Emerald wireless remote sensor’s battery
counter (only after removing or replacing batteries), use the
Reset battery option on your Smart-Vue Pro data logger.
To reset the wireless remote sensor’s battery counter:
1. Tap the menu icon  Sensors  Remote sensors.
2. Enter your PIN code and tap OK.
3. Tap Reset battery.
4. Sensors that are currently paired with the Smart-Vue Pro
data logger are displayed. Tap to select the serial number
of the sensor whose battery you have changed and wish
to reset.
Figure 11. Resetting a wireless remote sensor’s
battery counter
5. Tap OK to confirm that you want to reset the battery
counter.
6. Tap again on OK to return to the remote sensors menu
when done.
Swapping Sensors
The purpose of the Smart-Vue Pro Swap sensor feature is to
replace a Bluetooth wireless remote sensors while it is
currently being used for data logging.
Wired Sensors
With your Smart-Vue Pro data logger, you may directly swap
wired sensors that are physically connected to your data
logger such as for recalibration or to replace damaged cables.
Wired sensors may be replaced at any time whether data
logging is running or not. You must ensure that the existing
and replacement sensors are identical in type.
The process is completely transparent and guarantees
continuity while avoiding down-time or interruptions.
Emerald Wireless Remote Sensors
With wireless remote sensors connected via Bluetooth, you
must use the Smart-Vue Pro data logger interface to swap
wireless remote sensors. To do this, the following conditions
must be met:
• Data logging must be currently running using the wireless
remote sensor you want to replace.
• The new wireless remote sensor must also be paired with
the Smart-Vue Pro data logger (up to four remote
sensors may be paired with Quatro data logger).
• The two wireless remote sensors must be of the same
type.
For example, both must be the same type of Emerald
internal or external (with Pt100 probe) sensor.
Note: When Four (4) maximum wireless remote sensors are
paired with the Smart-Vue Pro data logger, data logging
needs to be stopped for at least one wireless remote sensor
in order to use the swap functionality.
To swap sensors:
1. Tap the menu icon  Sensors  Remote sensors.
2. Enter your PIN code and tap OK.
3. Tap Swap sensor.
4. Tap to select the sensor to replace and tap OK to
confirm.
CAUTION: Only perform this action if you actually
install a new battery in your Emerald wireless
remote sensor module.
CAUTION: The above instructions only affect the
battery contained in Emerald wireless remote
sensors, not the Smart-Vue Pro data logger itself.

Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger Emerald Bluetooth Enabled Wireless Remote Sensors | 15

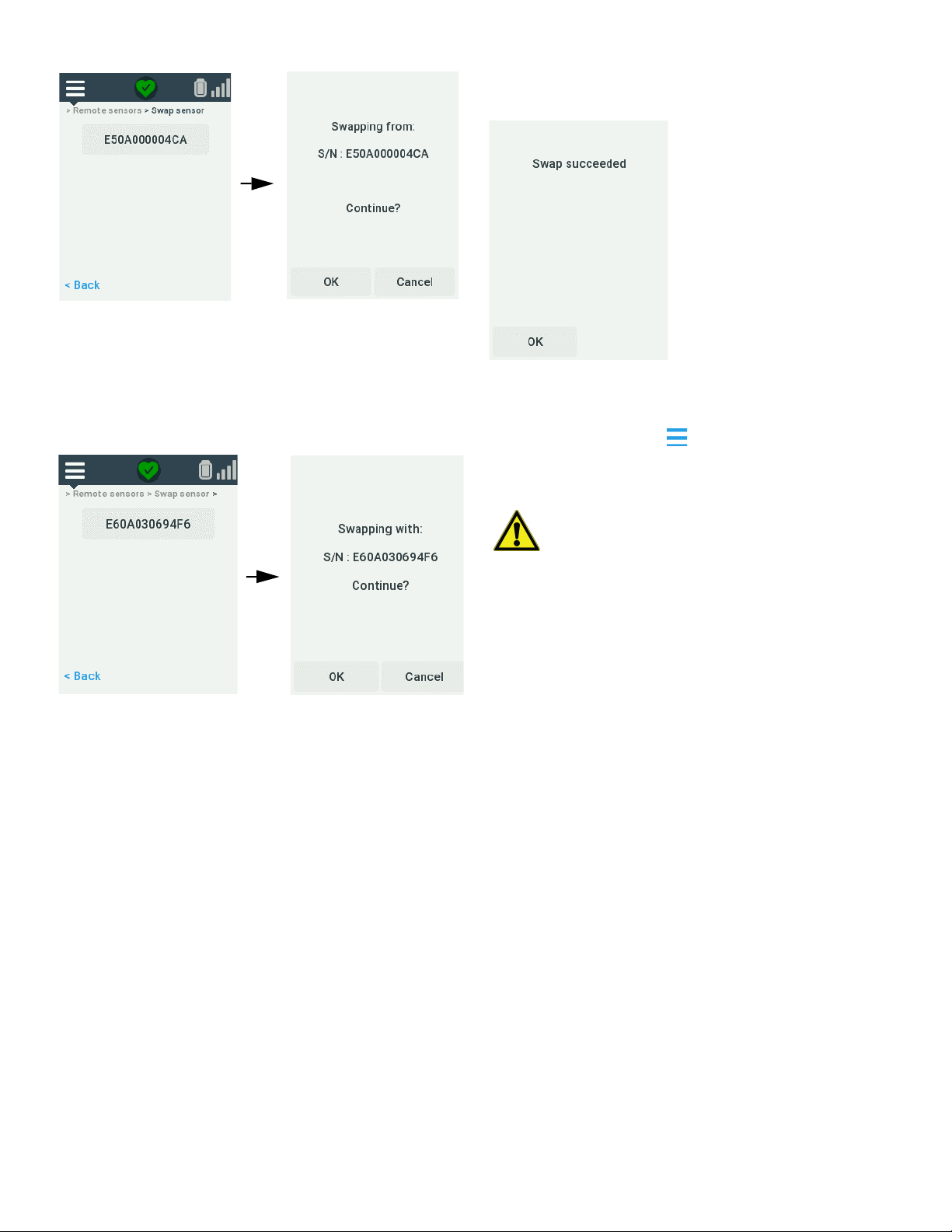

Figure 12. Choose the current wireless remote
sensor you want to replace
5. Tap to highlight the sensor to use (which must already be
paired with your Smart-Vue Pro data logger) and tap OK
to confirm.
Figure 13. Choose the new wireless remote sensor
6. A confirmation message is shown when the process is
complete.
Figure 14. Confirmation message that the swap
process is complete
7. Tap OK  menu icon to return to the home screen.
The new sensor serial number is also taken into account
automatically by the Smart-Vue Pro web application.
Wireless Remote Sensors
in Smart-Vue Pro Web
Application
This section provides additional information regarding the use
of wireless remote sensors in the Smart-Vue web application.
The procedures mentioned here are described in complete
detail in the Smart-Vue web application user guide.
Wireless remote sensors function identically to wired sensors
in the Smart-Vue Pro web application. There are a few subtle
differences to indicate that a wireless remote sensor is being
used but behavior and usage are the same as for other wired
sensors.
CAUTION: You may choose to unpair the first
sensor if you do not expect to use it again on the
same Smart-Vue Pro data logger. If data logging is
not currently running, you may simply unpair the
previous sensor and pair the new one.

16 | Emerald Bluetooth Enabled Wireless Remote Sensors Compatible Sensors for Smart-Vue Pro Duo / Quatro Data Logger
Wireless Remote Sensor on
the Data Logger
If not done already:
1. Pair the wireless remote sensor with your Smart-Vue Pro
data logger as described in Pairing a Bluetooth
Wireless Remote Sensor.
2. Create the Smart-Vue Pro data logger in the web
application by entering its serial number. Then either:
• Click Refresh sensors to request an update of the
sensor list (upon the next data transfer interval) or
• Use the Smart-Vue Pro data logger synchronize
function to update immediately, then click Refresh
in the web application.
3. Once updated, the data logger (via the data logger menu)
displays the wireless remote sensor with the Bluetooth
logo as shown here:
Figure 15. Wireless remote sensor shown on data
logger
Wireless Remote Sensor in the
Sensor List
In the sensor list, wireless remote sensors are indicated by
their serial number and the Bluetooth logo , as shown here:
Figure 16. Wireless remote sensor shown in
sensor list
Starting Data Logging with a
Wireless Remote Sensor
To run a data logging session with this sensor, the process is
identical to that for using a wired sensor (as described in more
detail in the Smart-Vue Pro web application user guide):
1. Create equipment.
2. Assign the wireless remote sensor to it:
Figure 17. Assigning a wireless remote sensor to
equipment
3. Click Start data logging :
Figure 18. Click to configure and launch data
logging
Click to
access
data
logging
settings
