TLV DC3-H User manual

172-65217MA-06 (DC3-H) 7 October 2021
Cyclone Separator
DC3-H
Copyright © 2021 by TLV CO., LTD.
All rights reserved

172-65217MA-06 (DC3-H) 7 Oct 2021
1
Contents
Introduction .......................................................................1
Safety Considerations.......................................................2
Specifications....................................................................4
Configuration.....................................................................4
Installation.........................................................................6
Maintenance......................................................................7
Disassembly/Reassembly.................................................7
Troubleshooting ..............................................................12
TLV EXPRESS LIMITED WARRANTY...........................13
Service ............................................................................15
Introduction
Thank you for purchasing the TLV cyclone separator.
This product has been thoroughly inspected before being shipped from the
factory. When the product is delivered, before doing anything else, check the
specifications and external appearance to make sure nothing is out of the
ordinary. Also be sure to read this manual carefully before use and follow the
instructions to be sure of using the product properly.
This cyclone separator uses centrifugal force to separate condensate from air
or steam in piping lines.
If detailed instructions for the special order specifications or options not
contained in this manual are required, please contact TLV for full details.
This instruction manual is intended for use with the model(s) listed on the front
cover. It is necessary not only for installation but for subsequent maintenance,
disassembly/reassembly and troubleshooting. Please keep it in a safe place for
future reference.

172-65217MA-06 (DC3-H) 7 Oct 2021
2
Safety Considerations
Read this section carefully before use and be sure to follow the instructions.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
The precautions listed in this manual are designed to ensure safety and prevent
equipment damage and personal injury. For situations that may occur as a result of
erroneous handling, three different types of cautionary items are used to indicate
the degree of urgency and the scale of potential damage and danger: DANGER,
WARNING and CAUTION.
The three types of cautionary items above are very important for safety: be sure to
observe all of them as they relate to installation, use, maintenance, and repair.
Furthermore, TLV accepts no responsibility for any accidents or damage occurring
as a result of failure to observe these precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
Indicates an urgent situation which poses a threat of death or
serious injury
Indicates that there is a potential threat of death or serious injury
Indicates that there is a possibility of injury or equipment / product
damage
DO NOT use for toxic, flammable or otherwise hazardous
fluids.
This product is a separator for steam or air that separates and
discharges condensate from steam or air piping systems. Use
only for steam, air and/or condensate. This product is for intended
use only. Improper use may result in such hazards as damage to
the product or malfunctions that may lead to serious accidents.
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the
product or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the
conditions quoted.
Use hoisting equipment for heavy objects (weighing
approximately 20 kg (44 lb) or more).
Failure to do so may result in back strain or other injury if the
object should fall.
Continued on the next page
DANGER
WARNING
CAUTION
WARNING
CAUTION

172-65217MA-06 (DC3-H) 7 Oct 2021
3
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the
discharge of fluids.
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the
surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other
injuries or damage.
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the
product in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the
discharge of fluids.
Do not use excessive force when connecting threaded pipes
to the product.
Over-tightening may cause breakage leading to fluid discharge,
which may cause burns or other injury.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge,
which may cause burns or other injury.
Use only under conditions in which no water hammer will
occur.
The impact of water hammer may damage the product, leading to
fluid discharge, which may cause burns or other injury.
CAUTION

172-65217MA-06 (DC3-H) 7 Oct 2021
4
Specifications
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
CAUTION
Refer to the product nameplate for detailed specifications.
*Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are
PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
**Valve No. is displayed for products with options. This item is omitted from the nameplate when
there are no options.
Configuration
15 –50 mm (1/2–2 in)
No.
Name
1
Body
2
Separator Body
3
Cover
4
Separator
5
Body Gasket
6
Cover Nut
7
Guide Pin
8
Body Bolt
9
Cover Bolt
10
Cover Gasket
11
Wave Spring
12
Body Nut
13
Float Cover
14
Float Cover Bolt
15
Spring Washer
16
Nameplate
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a separator for steam or air that separates and
discharges condensate from steam or air piping systems. Use only for
steam, air and/or condensate. This product is for intended use only.
Improper use may result in such hazards as damage to the product or
malfunctions that may lead to serious accidents.
WARNING
Model
Production Lot No.
Maximum Allowable
Temperature (TMA)*
Maximum Operating
Temperature (TMO)
Nominal Diameter
Maximum Allowable
Pressure*
Maximum Operating
Pressure
Valve No.**
Separator
Outlet
Condensate Outlet
Air/Steam Trap
Outlet
Separator
Outlet
Condensate
Outlet

172-65217MA-06 (DC3-H) 7 Oct 2021
5

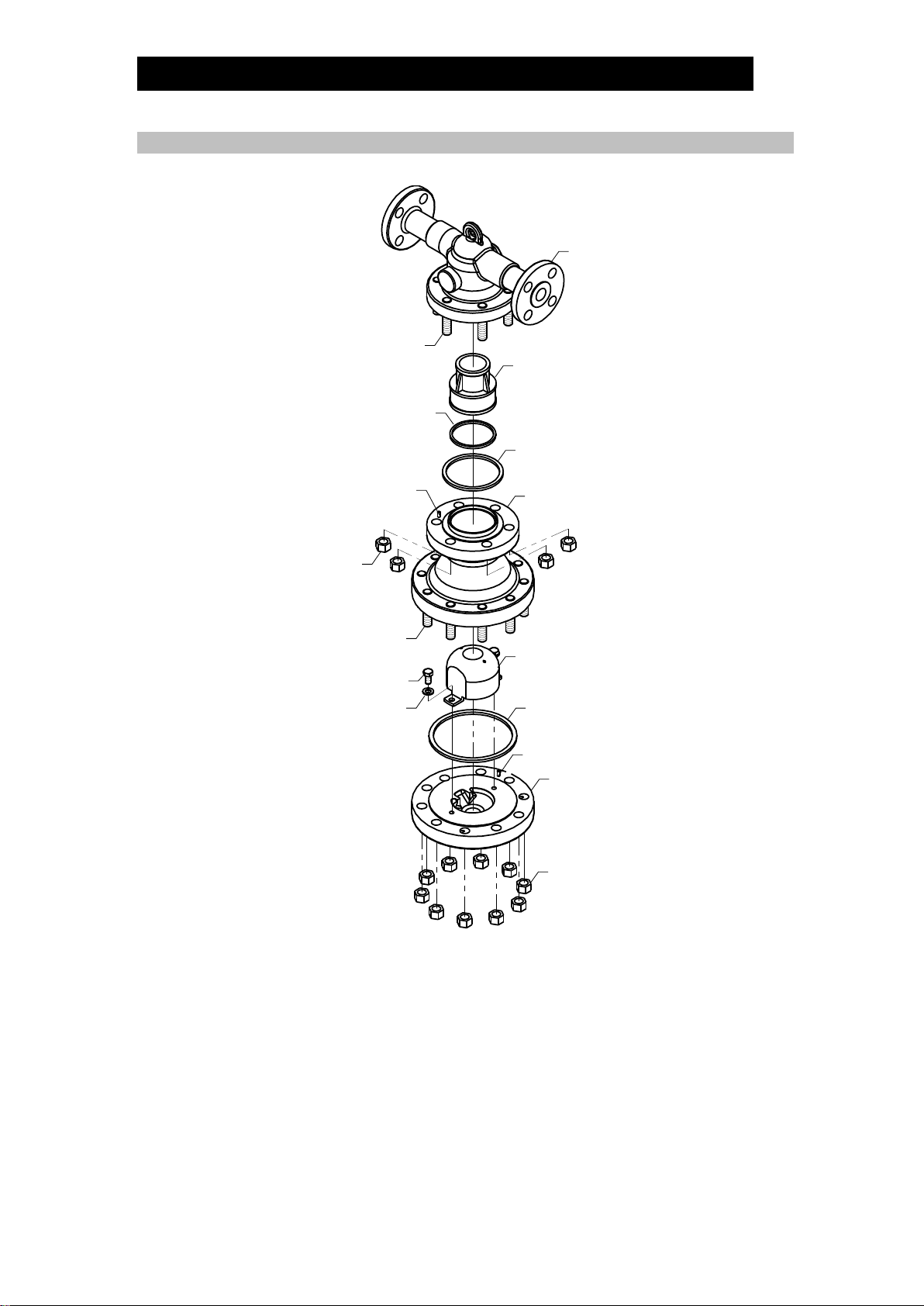

65 –100 mm (21/2–4 in)
No.
Name
1
Body
2
Separator
3
Separator Body
4
Cover
5
Body Gasket
6
Wave Spring
7
Guide Pin
8
Float Cover
9
Body Nut
10
Body Bolt
11
Cover Nut
12
Cover Bolt
13
Baffle
14
Nameplate
15
Float Cover Bolt
16
Spring Washer
17
Gasket
18
Baffle Bolt
19
Baffle Nut

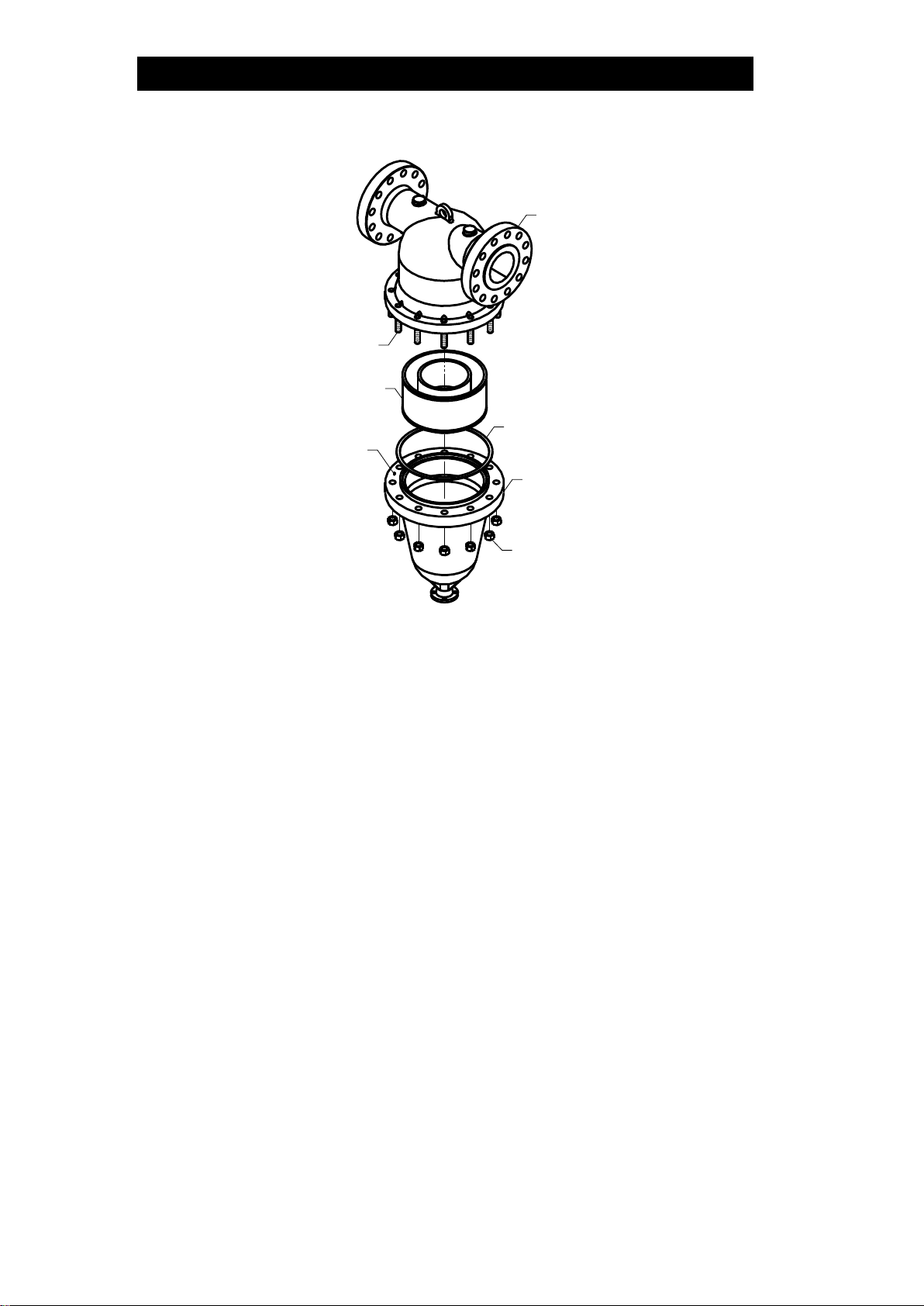

150mm (6 in)
No.
Name
1
Body
2
Separator Body
3
Separator
4
Guide Pin
5
Body Bolt
6
Body Nut
7
Body Gasket
8
Baffle*
9
Baffle Bolt
10
Baffle Nut
11
Nameplate
*Cannot be detached as the
baffle nuts and bolts are
welded on.
Separator
Outlet
Condensate Outlet
Air/Steam Trap
Outlet
Separator
Outlet
Condensate
Outlet
Condensate Outlet
Separator
Outlet
Air/Steam Trap
Outlet
Condensate
Outlet
Separator
Outlet

172-65217MA-06 (DC3-H) 7 Oct 2021
6
Installation
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Do not use excessive force when connecting threaded pipes to the
product. Over-tightening may cause breakage leading to fluid
discharge, which may cause burns or other injury.
CAUTION
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
1. Before installation, be sure to remove all protective seals.
2. Before installing the product, blow out the inlet piping to remove any piping scraps,
dirt and oil. Close the inlet valve after blowdown.
3. Install the product at the point on the piping where the separation of condensate will
have the greatest effect on efficiency. For example, on a steam or air main or
branch at the inlet of equipment requiring high-quality dry steam or air.
4. Install the product so the arrow on the product is pointing in the direction of flow.
5. The product should be inclined no more than 10° horizontally and front-to-back.
6. Install an air trap or steam trap at the condensate outlet. Use of the TLV free float
type trap is advised.
7. To facilitate inspection and maintenance, install a union at the condensate outlet
and ensure that there is sufficient space for maintenance.
8. Open the inlet and outlet valves and check to make sure that the product functions
properly.
If there is a problem, determine the cause using the “Troubleshooting” section in this manual.
Tolerance Angle for Installation: 10°
Make sure the product is installed with the
raised TLV lettering on the body horizontal.
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a separator for steam or air that separates and
discharges condensate from steam or air piping systems. Use only for
steam, air and/or condensate. This product is for intended use only.
Improper use may result in such hazards as damage to the product or
malfunctions that may lead to serious accidents.
WARNING

172-65217MA-06 (DC3-H) 7 Oct 2021
7
Maintenance
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way. Failure to
observe these precautions may result in damage to the product or burns
or other injury due to malfunction or the discharge of fluids.
CAUTION
Parts Inspection
When parts have been removed, or during periodic inspections, use the following
table to inspect the parts and replace any that are found to be defective.
Procedure
Gaskets: Check for warping or scratches
Body Interior: Check for build-up
Disassembly/Reassembly
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble. (Installation, inspection, maintenance, repairs, disassembly,
adjustment and valve opening/closing should be carried out only by trained
maintenance personnel.)
Detaching/Reattaching the Cover for 15 mm –100 mm (1/2–4 in)
Part
During Disassembly
During Reassembly
Cover Nut
Remove with a socket wrench
Consult the table of tightening torques and
tighten to the proper torque
Cover
Remove the cover by pulling it
down, being careful not to
scratch the seating surface
Make sure there are no pieces of the old
gasket left on the sealing surfaces of the
separator body and cover, align the guide
pin on the separator body with the guide
pin hole on the cover and reattach
Cover Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Detaching/Reattaching Parts Inside the Cover for 65 –100 mm (21/2-4 in) only
Part
During Disassembly
During Reassembly
Baffle Nut
Remove with a socket wrench
Consult the table of tightening torques and
tighten to the proper torque
Baffle
Lift off of bolts
Align with bolts and set on float cover
Float Cover Bolt
(Spring Washer)
Remove with a socket wrench
Consult the table of tightening torques and
tighten to the proper torque
Float Cover
Remove by lifting up and off
Place it into position

172-65217MA-06 (DC3-H) 7 Oct 2021
8
Separating/ReattachingBodyandSeparatorBodyfor15mm–100mm(1/2–4in)
Part
During Disassembly
During Reassembly
Body Nut
Remove with a socket wrench
Consult the table of tightening torques and
tighten to the proper torque
Separator Body
Pull down and out from the
body, being careful not to let the
separator and wave spring fall
as they come out with the
separator body
Make sure there are no pieces of the old
gasket left on the sealing surfaces of the
separator body and body, align the guide
pin on the separator body with the guide
pin hole on the body and reattach
Separator
Remove when detaching the
separator body
Insert it into the groove in the separator
body
Wave Spring
Remove with the separator
Insert it into the groove
Body Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Separating/Reattaching Body and Separator Body for 150 mm (6 in) only
Part
During Disassembly
During Reassembly
Body Nut
Remove with a socket wrench
Consult the table of tightening torques and
tighten to the proper torque
Separator Body
Pull down and out from the
body, being careful not to let the
separator fall as it comes out
with the separator body
Make sure there are no pieces of the old
gasket left on the sealing surfaces of the
separator body and body, align the guide
pin on the separator body with the guide
pin hole on the body and reattach
Separator
Remove from the separator
body
Insert it into the groove in the separator
body
Body Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket only if
misshaped or damaged
Baffle
The baffle plate cannot be
detached as the baffle nuts and
bolts are welded on
___
Table of Tightening Torques
Part
Size
Torque
Distance Across
Flats
mm
(in)
Nm
(lbfft)
mm
(in)
Body Nut
15 –40
(1/2–11/2)
160
(115)
24
(15/16)
15 –40
(1/2–11/2)
180
(130)
27
(11/16)
50
(2)
50
(2)
200
(150)
30
(13/16)
65, 80
(21/2, 3)
100
(4)
270
(199)
32
(11/4)
150
(6)
450
(330)
36
(113/32)
Cover Nut
15 –50
(1/2–2)
160
(115)
24
(15/16)
15 –50
(1/2–2)
180
(130)
27
(11/16)
65, 80
(21/2, 3)
160
(115)
24
(15/16)
100
(4)
200
(150)
30
(13/16)
Float Cover Bolt
15 –20
(1/2–3/4)
7
(5)
8
(5/16)
25 –40
(1 –11/2)
10
(7)
10
(3/8)
50 –100
(2 –4)
20
(15)
13
(1/2)
Baffle Nut
65, 80
(21/2, 3)
10
(7)
10
(3/8)
100
(4)
20
(15)
13
(1/2)
NOTE:
-Coat all threaded portions with anti-seize.
-If drawings or other special documentation were supplied for the
product, any torque given there takes precedence over values
shown here.
(1 Nm 10 kgcm)

172-65217MA-06 (DC3-H) 7 Oct 2021
9
Exploded View
15 –50 mm (1/2–2 in)
Body
Guide Pin
Body Nut
Separator
Body Gasket
Wave Spring
Separator Body
Body Bolt Float Cover
Cover GasketSpring Washer
Float Cover Bolt
Guide Pin
Cover
Cover Nut
Cover Bolt

172-65217MA-06 (DC3-H) 7 Oct 2021
10
65 –100 mm (21/2- 4 in)
Body
Wave Spring
Cover Bolt
Separator
Body Gasket
Separator Body Guide Pin
Body Nut
Body Bolt Cover Gasket
Baffle
Baffle Nut
Float Cover Bolt
Spring Washer
Baffle Bolt
Float Cover
Cover Guide Pin
Cover Nut

172-65217MA-06 (DC3-H) 7 Oct 2021
11
150 mm (6 in)
Body
Separator
Body Bolt
Body Nut
Guide Pin
Separator Body
Body Gasket

172-65217MA-06 (DC3-H) 7 Oct 2021
12
Troubleshooting
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
When the product fails to operate properly, use the following table to locate the cause
and remedy.
Problem
Cause
Remedy
Steam or air is
leaking from
sealing surfaces
Gasket deterioration or damage
Replace with new gasket(s)
Improper tightening torques were used
Tighten to the proper torque
Water is mixed in
with the steam or
air from the
separator outlet
Steam/air flow velocity is too high
Take steps necessary to lower
the steam/air flow velocity
Improper installation
Correct the installation

172-65217MA-06 (DC3-H) 7 Oct 2021
13
TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation
(“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or
one of its group companies excluding TLV Corporation (a corporation of the United
States of America), (hereinafter the “Products”) are designed and manufactured by
TLV, conform to the specifications published by TLV for the corresponding part
numbers (the “Specifications”) and are free from defective workmanship and
materials. The party from whom the Products were purchased shall be known
hereinafter as the “Seller”. With regard to products or components manufactured by
unrelated third parties (the “Components”), TLV provides no warranty other than the
warranty from the third party manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV, TII
or TLV group company personnel, or service representatives authorized by TLV;
or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and
maintenance by persons other than TLV or TLV group company personnel, or
service representatives authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV, TII
or TLV group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the
Products or with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water,
nitrogen, carbon dioxide and inert gases (helium, neon, argon, krypton, xenon
and radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the
Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the
first end user. Notwithstanding the foregoing, asserting a claim under this warranty
must be brought within three (3) years after the date of delivery to the initial buyer if
not sold initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY
OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT
NEGATED HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN
DURATION TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS WARRANTY
OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY (INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE), IS REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS REPORTED TO

172-65217MA-06 (DC3-H) 7 Oct 2021
14
THE SELLER IN WRITING WITHIN THE WARRANTY PERIOD, INCLUDING A DETAILED
WRITTEN DESCRIPTION OF THE CLAIMED DEFECT AND HOW AND WHEN THE CLAIMED
DEFECTIVE PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE PRODUCT AND A
COPY OF THE PURCHASE INVOICE IS RETURNED TO THE SELLER, FREIGHT AND
TRANSPORTATION COSTS PREPAID, UNDER A RETURN MATERIAL AUTHORIZATION
AND TRACKING NUMBER ISSUED BY THE SELLER. ALL LABOR COSTS, SHIPPING
COSTS, AND TRANSPORTATION COSTS ASSOCIATEDWITH THE RETURN OR
REPLACEMENT OF THE CLAIMED DEFECTIVE PRODUCT ARE SOLELY THE
RESPONSIBILITY OF BUYER OR THE FIRST END USER. THE SELLER RESERVES THE
RIGHT TO INSPECT ON THE FIRST END USER’S SITE ANY PRODUCTS CLAIMED TO BE
DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION. SHOULD SUCH
INSPECTION REVEAL, IN THE SELLER’S REASONABLE DISCRETION, THAT THE
CLAIMED DEFECT IS NOT COVERED BY THIS WARRANTY, THE PARTY ASSERTING THIS
WARRANTY SHALL PAY THE SELLER FOR THE TIME AND EXPENSES RELATED TO
SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV
GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE
COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO
OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST END USER’S PRODUCT,
DAMAGE TO BUYER’S OR THE FIRST END USER’S PROCESSES, LOSS OF USE, OR
OTHER COMMERCIAL LOSSES. WHERE, DUE TO OPERATION OF LAW,
CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS WARRANTY, UNDER ANY
OTHER EXPRESS WARRANTY NOT NEGATED HEREBY OR UNDER ANY IMPLIED
WARRANTY NOT NEGATED HEREBY (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) CANNOT BE
EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN AMOUNT TO THE PURCHASE
PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION OF CONSEQUENTIAL AND
INCIDENTAL DAMAGES, AND THE PROVISION OF THIS WARRANTY LIMITING REMEDIES
HEREUNDER TO REPLACEMENT, ARE INDEPENDENT PROVISIONS, AND ANY
DETERMINATION THAT THE LIMITATION OF REMEDIES FAILS OF ITS ESSENTIAL
PURPOSE OR ANY OTHER DETERMINATION THAT EITHER OF THE ABOVE REMEDIES IS
UNENFORCEABLE, SHALL NOT BE CONSTRUED TO MAKE THE OTHER PROVISIONS
UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND
ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any
jurisdiction shall, as to such jurisdiction, be ineffective to the extent of such invalidity,
prohibition or unenforceability without invalidating the remaining provisions hereof,
and any such invalidity, prohibition or unenforceability in any such jurisdiction shall not
invalidate or render unenforceable such provision in any other jurisdiction.

172-65217MA-06 (DC3-H) 7 Oct 2021
15
Service
For Service or Technical Assistance: Contact your TLV representative or your regional TLV office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany
Tel:
Fax:
[49]-(0)7263-9150-0
[49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52
8TW, U.K.
Tel:
Fax:
[44]-(0)1242-227223
[44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,
France
Tel:
Fax:
33–(0)4-72482222
[33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel:
Fax:
[1]-704-597-9070
[1]-704-583-1610
In Mexico and Latin America:
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas, Huixquilucan,
Edo. de México, 52763, Mexico
Tel:
Fax:
[52]-55-5359-7949
[52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131, Australia
Tel:
Fax:
[61]-(0)3-9873 5610
[61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214
Tel:
Fax:
[65]-6747 4600
[65]-6742 0345
Room 5406, No. 103 Cao Bao Road, Shanghai, China 200233
Tel:
Fax:
[86]-(0)21-6482-8622
[86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax:
[60]-3-8065-2928
[60]-3-8065-2923
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax:
[66]-2-693-3799
[66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang, Seongnam,
Gyeonggi, 13511, Korea
Tel:
Fax:
[82]-(0)31-726-2105
[82]-(0)31-726-2195
In the Middle East:
Building 2W, No. M002, POBox 371684, Dubai Airport Free Zone, Dubai, UAE
Email:
[email protected]
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-427-1818
[81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-422-1122
[81]-(0)79-422-0112
