FormNo.3406-327RevA
CanopyKit
Multi-PassengerWorkman®GTXUtilityVehicle
ModelNo.07141—SerialNo.316000501andUp
InstallationInstructions
WARNING
CALIFORNIA
Proposition65Warning
ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato
causecancer,birthdefects,orreproductiveharm.
Installation
1
PreparingtheMachine
NoPartsRequired
Procedure
1.Parkthemachineonalevelsurface,settheparking
brake,shutofftheengine,andremovethekeyfrom
theignitionswitch.
2.Removetherearseats.
3.Raisethecargoboxtothedumpposition.
©2016—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3406-327*A

2
InstallingtheKit
Partsneededforthisprocedure:
1Leftloopbracket
1Rightloopbracket
2Tube
1Leftwindshieldsupport
1Rightwindshieldsupport
1Left,rearplate
1Right,rearplate
1Left,frontplate
1Right,frontplate
1Leftcornergusset
1Rightcornergusset
1Rearcrosslink
1Frontcrosslink
2Backingplate
2Crosslinktube
38Flangenut(5/16inch)
2Flangenut(1/4inch)
20Carriagebolt(5/16x1-3/4inches)
4Hex-angebolt(3/8x1inch)
4Flangenut(3/8inch)
2Hex-angebolt(5/16x1inch)
4Carriagebolt(5/16x1inch)
4Clip
1Sunshade
6Sealingwasher
6Hex-angebolt(1/4x1inch)
2Spacer(9/32x5/8inch)
2Flatwasher
2Hex-headbolt(1/4x2-1/2inches)
2Mountingplate
8Carriagebolt(5/16x2inches)
4Plasticwasher
2Flangebushing
2Frictionwasher
4Carriagebolt(5/16x3/4inch)
2Roof-supportbracket
2Self-tappingscrew(1/4x1/2inch)
Procedure
Note:Donottightenanyfastenersexceptwheninstructed.
1.Installtheleftloopbracketasfollows:
A.Removetherivetfromleftpanelbehindtherear
seatbase(Figure1).
B.Installtheleftloopbracketusing2hex-ange
bolts(3/8x1inch)and2nuts(3/8inch)as
showninFigure1.
Figure1
1.Rivet3.Bolt(3/8x1inch)
2.Nut(3/8inch)
C.Securethebracketbehindtherearseatbaseusing
1hex-headbolt(1/4x2-1/2inches),1atwasher
(5/16inch),1spacer(9/32x5/8inch),and1
angenut(1/4inch)asshowninFigure2.
2

Figure2
1.Flangenut(1/4inch)4.Hex-headbolt(1/4x2-1/2
inches)
2.Spacer(9/32x5/8inch)5.Flatwasher(5/16inch)
3.Leftloopbracket
D.Repeatthissteptoinstalltherightloopbracket
ontherightsideofthemachine.
2.UsingthedimensionsshowninFigure3,drill2holes
(5/16inch)intotheoutsideoftheoorplateonthe
leftandrightsidesofthemachine.
Figure3
3.UsingthedimensionsshowninFigure4,drill1hole
(5/16inch)intotheoutsideofthefootboardonthe
leftandrightsidesofthemachine.
Figure4
4.Securethemiddlebracketofthewindshieldsupportto
themachineusing2hex-angebolts(5/16x1inch)
and2nuts(5/16inch)intheholesyoudrilled(Figure
5).
Figure5
1.Windshieldsupport3.Nut(insidedashframe)
2.Hex-angebolt
3

5.Securethelowerbracketofthewindshieldsupportto
theleftsideofthemachineusing4carriagebolts(5/16
x1inch)and4angenuts(5/16inch)intheholesyou
drilledinstep2(Figure6).
Figure6
1.Carriagebolt(5/16x1
inch)
3.Lowerbracketof
windshieldsupport
2.Flangenut(5/16inch)

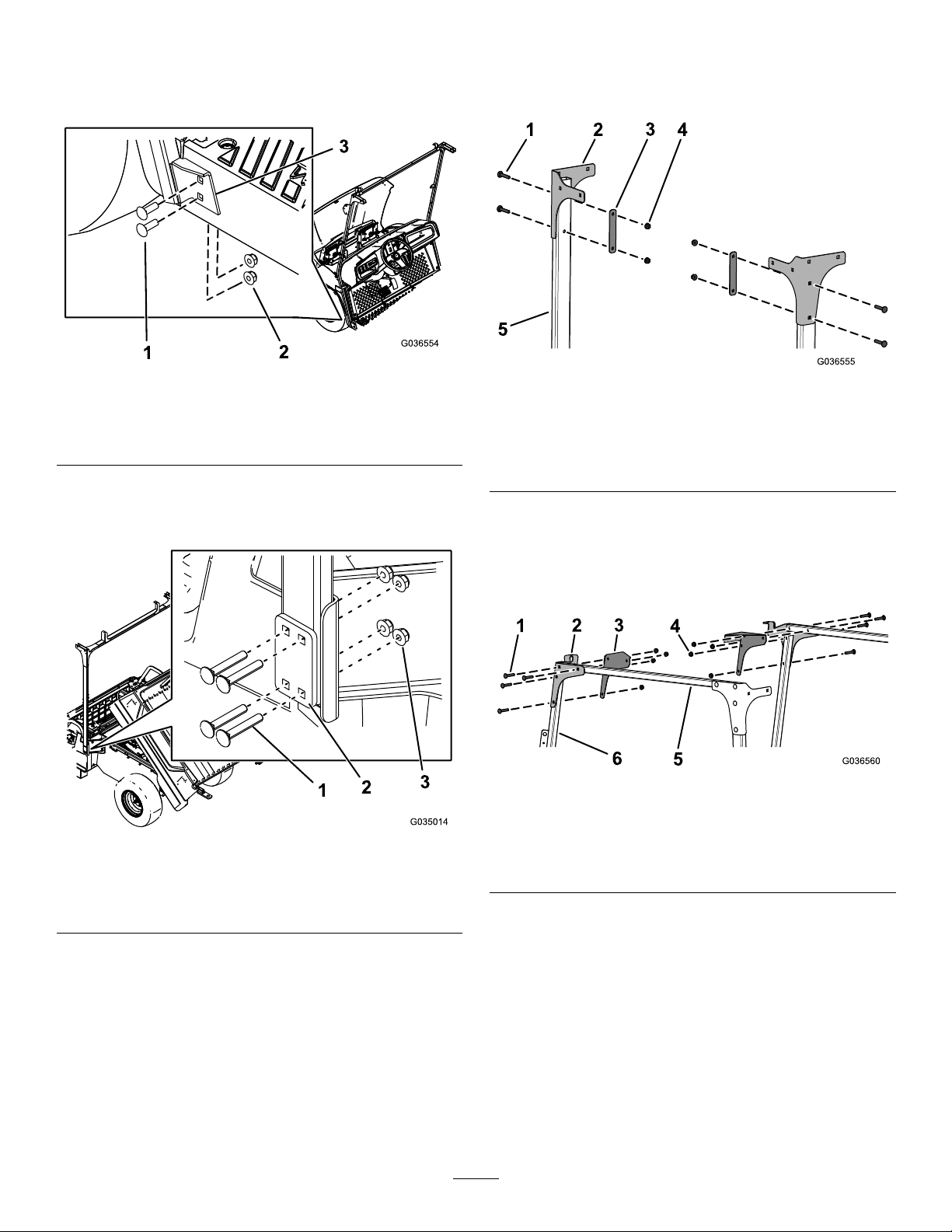

6.Looselyinstallthereartubestotherearloopbrackets
using8carriagebolts(5/16x2inches),2mounting
plates,and8nuts(5/16inch)asshowninFigure7.
Figure7
1.Carriagebolt(5/16x2
inches)
3.Nut(5/16inch)
2.Mountingplate
7.Looselyinstalltheleftandrightrearplatestothetubes
using4carriagebolts(5/16x1-3/4inches),2backing
plates,and4angenuts(5/16inch)asshowninFigure
8.
Figure8
1.Carriagebolt(5/16x1-3/4
inches)
4.Flangenut(5/16inch)
2.Rearplate5.Tube
3.Backingplate
8.Looselyinstalltheleftandrightfrontplatesandcorner
gussetstothecrosslinktubesandtheleftandright
windshieldsupportsusing8carriagebolts(5/16x
1-3/4inches)and8angenuts(5/16inch)asshown
inFigure9.
Figure9
1.Carriagebolt(5/16x1-3/4
inches)
4.Flangenut(5/16inch)
2.Frontplate5.Crosslinktube
3.Cornergusset6.Windshieldsupport
4

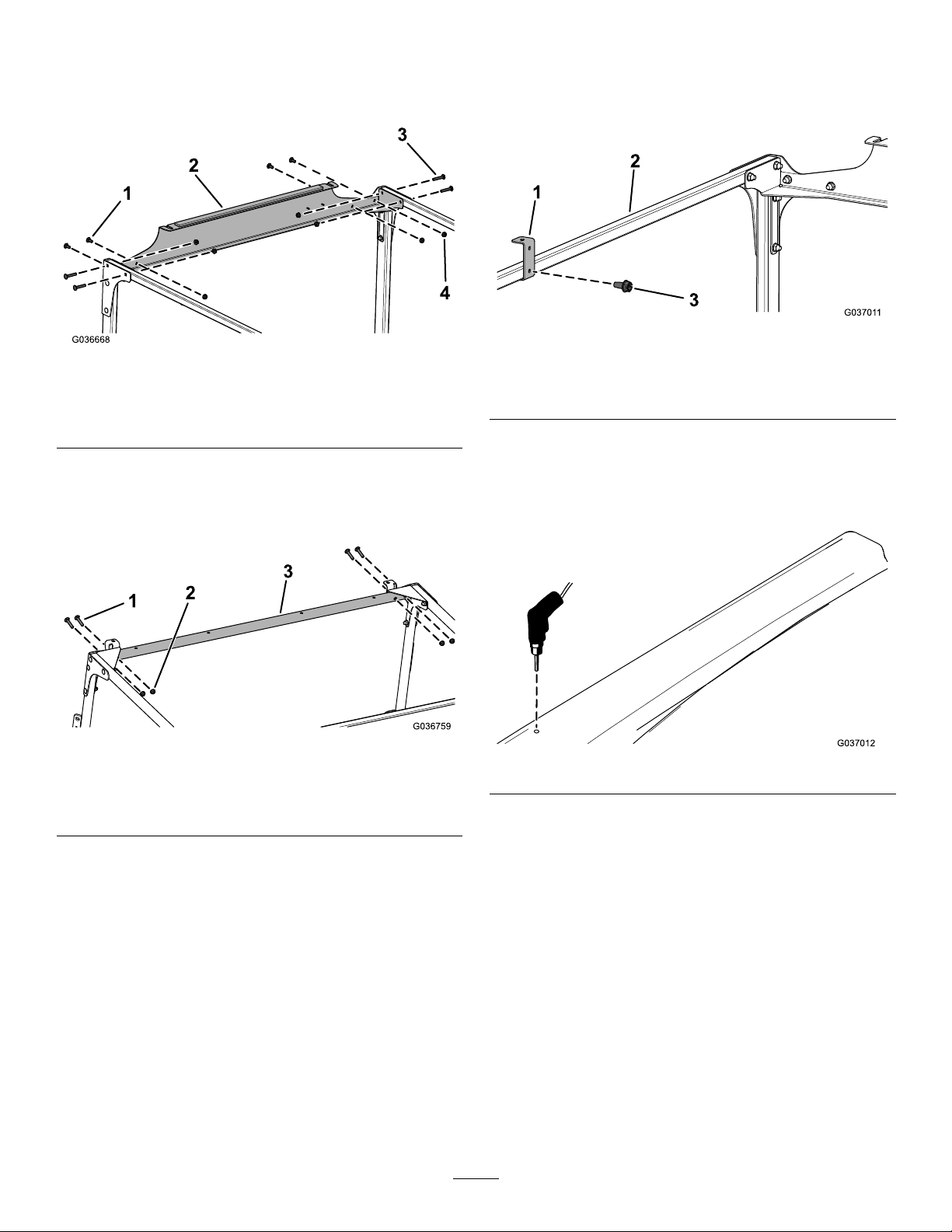

9.Looselyinstalltherearcrosslinktothecrosslinktubes
andrearplatesusing4carriagebolts(5/16x1-3/4
inches),4carriagebolts(5/16x3/4inch),and8ange
nuts(5/16inch)asshowninFigure10.
Figure10
1.Carriagebolt(5/16x3/4
inch)
3.Carriagebolt(5/16x1-3/4
inches)
2.Rearcrosslink4.Flangenut(5/16inch)
10.Looselyinstallthefrontcrosslinktothefrontplates
andcornergussetsusing4carriagebolts(5/16x1-3/4
inch)and4angenuts(5/16inch)asshowninFigure
11.
Figure11
1.Carriagebolt(5/16x1-3/4
inch)
3.Frontcrosslink
2.Flangenut(5/16inch)
11.Tightenallloosefasteners.
12.Installthe2roof-supportbracketstothecrosslink
tubesusing2self-tappingscrews(1/4x1/2inch)as
showninFigure12.
Figure12
1.Roof-supportbracket3.Self-tappingscrew(1/4x
1/2inch)
2.Crosslinktube
13.Setthesunshadedown.
14.Usingtheholeinthetopoftheroof-supportbracket
asthetemplate,drilla7.9mm(5/16inch)holeoneach
sideofthesunshade(Figure13).
Figure13
5

15.Installthesunshadetotheroof-supportbracketusing
2clips,2sealingwashers,and2hex-angebolts(1/4x
1inch)asshowninFigure14.
Figure14
1.Sunshade3.Hex-angebolt(1/4x1
inch)
2.Clip4.Sealingwasher
16.Installthesunshadetothefrontplatesusing2clips,2
sealingwashers,and2hex-angebolts(1/4x1inch)
asshowninFigure15.
Important:Applythread-lockingcompoundto
thehex-angebolts(1/4x1inch)beforeinstalling.
Figure15
1.Hex-angebolt(1/4x1
inch)
4.Clip
2.Sealingwasher5.Frontplate
3.Sunshade
17.Installthesunshadetotherearcrosslinkusing2
hex-angebolts(1/4x1inch),2sealingwashers,
2frictionwashers,4plasticwashers,and2ange
bushings(Figure16).
Important:Applythread-lockingcompoundto
thehex-angebolts(1/4x1inch)beforeinstalling.
Important:Ensurethattheplasticwashersare
installedontothetopandbottomofthesunshade,
asthispreventsdamagingthesunshade.
Figure16
1.Hex-angebolt(1/4x1
inch)
4.Plasticwasher
2.Sealingwasher5.Flangebushing
3.Frictionwasher6.Rearcrosslink
6
