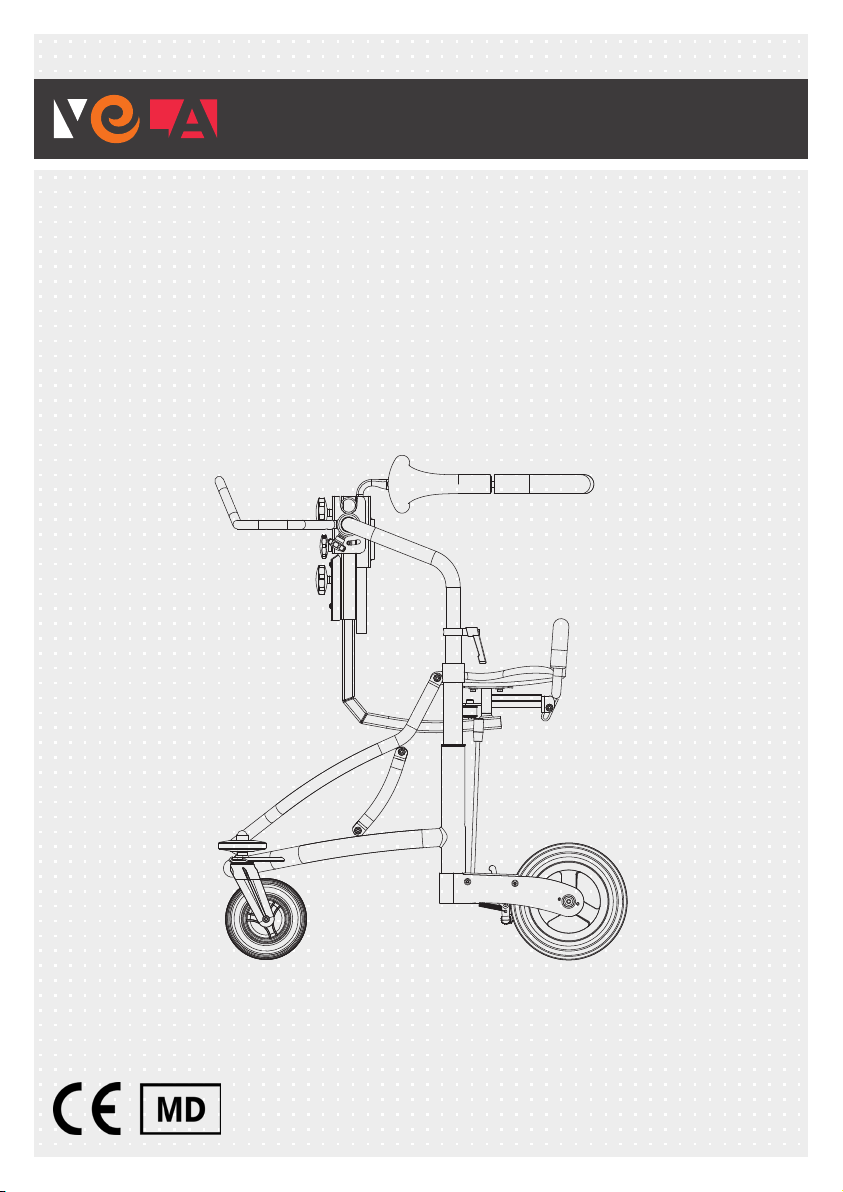

Vela M014000 User manual

VELA Meywalk 4
ISO 9001
ISO 14001
INSTRUCTION FOR USE/INSTRUCCIONES DE USO/
NÁVOD K POUŽITÍ EN/ES/CZ
Manual no.: 106965
Manual n.º:
Příručka č:
Item no.:/
Artículo n.º:
Číslo položky:
Model
Modelo
Model
M014000 Micro
M013000 Small
M011200 Medium
M011250 Large
The design varies depending on the model
El diseño varía según el modelo
Design se liší v závislosti na modelu

TABLE OF CONTENTS / TABLA DE CONTENIDOS / OBSAH
ENGLISH 4
ESPAÑOL 16
ČESKY 28
EN/ES/CZ
VELA Meywalk 4

TABLE OF CONTENTS
1.0. INTRODUCTION 5
1.1. WARNINGS 6
1.2. TROUBLESHOOTING 7
1.3. LABELS USED ON THE GAIT TRAINER 8
1.4. SAFETY 9
1.4.1. Intended use 9
1.4.2. Transport 9
1.5. WARRANTY 9
1.6. UNPACKING THE GAIT TRAINER 10
1.7. MAINTENANCE 10
1.7.1. Wheels 10
1.7.2. Frame 10
1.7.3. Padding 10
1.7.4. Recycling guide 10
1.8. RECYCLING AND DISPOSAL 11
1.9. PRODUCT OVERVIEW 11
2.0. USER MANUAL 12
2.0.1. Assembly of upper part and base 12
2.0.2. Assembly and Replacement of springs 12
2.0.3. Assembly and Replacement of springs (Micro) 12
2.0.4. Height adjustment 12
2.0.5. Brake 13
2.0.6. Seat height adjustment 13
2.0.7. Adjusting the height of the trunk support 13
2.0.8. Tilt function 13
2.0.9. Trunk support 14
2.0.10. Entry and exit 14
2.0.11. Adjusting the Handle 14
2.0.12. Using the rear stop 14
2.0.13. Adjusting the rear stop 15
2.0.14. Walking resistance brake 15
2.0.15. Backstop 15
2.0.16. Direction lock 15

5
1.0. INTRODUCTION
DEAR CUSTOMER
Congratulations on your new VELA gait trainer! We are
sure this gait trainer will give you daily pleasure. This
user manual provides useful information on adjusting,
operating and maintaining your gait trainer.
Important
Please read this user manual carefully and keep it safe
for when you need to refer to it. This manual is also
available on VELA’s website: www.vela.eu, where you
can also find other relevant information.
If you have questions, experience errors or adverse
events, please contact your VELA supplier
We reserve the right to make changes.
VELA
Gøteborgvej 8-12
DK-9200 Aalborg SV
Denmark
www.vela.eu
EN

6
1.1. WARNINGS
Use Only use original spare parts from VELA.
Use Do not make any changes to the accessories that come with the gait trainer.
Use Only use the gait trainer for the intended purpose.
Use Before using it, make sure that all parts of the gait trainer are securely fastened.
Use The gait trainer may only be used under supervision. The wheels roll very easily, so it is
important to be aware of the surroundings and any dangers that the user may encounter.
Use Always activate the brake before you enter or exit the gait trainer.
Use The tilt bar must always be raised and lowered by hand - avoid stepping on the tilt bar.
Use On the sizes: Small, Medium and Large, there is a tilting bar that raises and lowers the
gait trainer when getting in and out. Be prepared for an upward force that grows gradu-
ally as the tilt bar raises. Never let go of the tilt bar in the middle of a raising or lowering
movement, as it can injure the user and helper.
Use Only use the gait trainer on solid surfaces. Avoid using it on sloping, uneven, loose, wet
or icy surfaces, or on surfaces with level dierences, as it may cause tipping risk.
Use The spring system can pose a risk if the gait trainer is used by a very restless user. VELA
Meywalk 4 must never be used without springs.
Use Do not use the gait trainer during adjustments, to avoid pinches from moving parts.
Use VELA Meywalk and its accessories are designed for your safety. Removing parts of the
equipment can result in open pipe ends that can be sharp and cause damage. These
open pipe ends must be closed with plastic plugs - do not touch open pipe ends with
fingers or other body parts.
Use Maintenance other than cleaning should always be performed by a professional.
Use Never service the gait trainer while in use
Use Always follow the recommended maintenance and cleaning instructions
Use Protect the gait trainer’s padded surfaces from direct sunlight, or cover the surfaces as they
can become very hot and cause damage to the skin.

7
1.2. TROUBLESHOOTING
Mistake Possible cause and solution
The gait trainer cannot turn Direction lock may be activated. See section 2.0.16.
Brake function does not work The brake is not activated. See section 2.0.5.
Upper part hangs skewed to one side Check that both springs are fitted correctly. See section
2.0.2. or 2.0.3.
Upper part is stuck Check that both springs are fitted correctly. See section
2.0.2. or 2.0.3.
The gait trainer rolls badly Wheels are blocked. Clean the wheels for wire residue
and the like.
The walking resistance brake may be activated. See
section 2.0.14.
The gait trainer cannot be walked backwards The backstop may be activated. See section 2.0.15.
The handle is loose Tighten the handles
The seat bracket is loose Tighten the handle
The seat height and gait height are lower than before Loosen the handle, move the upper part up to the
desired height and tighten the handle again. See
section 2.0.4.
Trunk support and riser are loose Tighten the handle
The seat height is lower than before The tilt bar is folded down. See section 2.0.10.
If the above does not solve your problem, you should contact your VELA
supplier.
EN

8
1.3. LABELS USED ON THE GAIT TRAINER
Labels 60 x 22,5 mm
The last six digits are the product ID number:
Labels on the gait trainer should be read at a distance of approx. 40 cm under
normal daylight conditions.
For labels related to the operation of the gait trainer, please refer to section
2.0.
UDI: (XX) XXXXXXXXXXXXXX (XX) XXXXXX
<Model name>
<Model ref. no.>
<Manufacturer>
<Adress>
<Webpage>
<Safe working load>
<Production date/order no.>
MEDICO

9
1.4. SAFETY
This gait trainer is CE marked and
complies with applicable EU regula-
tions.
The gait trainer is manufactured by:
VELA, Mads Clausens Vej 1, 9800
Hjørring, Danmark.
1.4.1. INTENDED USE
This device is intended for children
and adults to help them stand up
and move around despite having
reduced or no walking function.
:: Always activate the brake when
you enter or exit the gait trainer.
:: The gait trainer may only be used
under supervision. The wheels roll
very easily, so it is important to
be aware of the surroundings and
any dangers that the user may
encounter.
The VELA Meywalk gait trainers
are tested and approved for the
following maximum load:
:: VELA Meywalk 4 Micro: 60 kg.
:: VELA Meywalk 4 Small: 100 kg.
:: VELA Meywalk 4 Medium: 130 kg.
:: VELA Meywalk 4 Large: 130 kg.
1.4.2. TRANSPORT
When transporting the gait trainer by
car, airplane or any other means of
transport, always use the brake.
The gait trainer is not approved
for use as a passenger seat in any
means of transportation and may
not be used as such.
The gait trainer is designed to be
transported under the following
environmental conditions:
Temperature: - 20°C to + 60°C
Humidity: 15-95%
1.5. WARRANTY
VELA grants a right of claim under
applicable law in the country where
the gait trainer is acquired. The right
of complaint applies only when
using original spare parts and ac-
cessories, as well as customisations
made by professionals.
Note: if an exclusive contractual
agreement has been made directly
with VELA, this applies!
VELA assumes no liability for da-
mages to the product or the user
caused by:
:: Transportation
:: Misuse
:: Normal wear and tear
:: Wrong use
:: Use of spare parts and acces-
sories that are not original VELA
products
:: Adjustments made by unauthori-
sed service technicians
IN GENERAL EN

10
1.6. UNPACKING THE GAIT
TRAINER
The gait trainer comes in
environmentally friendly and
recyclable packaging.
In case of defects or transport
damage to the gait trainer, please
contact your VELA supplier right
away. In such cases, do not attempt
to use the gait trainer or to fix it
yourself.
On delivery you have received:
:: VELA Meywalk 4 gait trainer
:: Trunk support and springs for the
gait trainer. Comes packed in a
separate box together with instal-
lation instructions. Note: Must
be mounted on the gait trainer
before use!
:: Instructions for use
1.7. MAINTENANCE
We recommend an annual inspec-
tion of the gait trainer to identify any
defective or worn parts. All remova-
ble parts should be tightened regu-
larly. You can find various guides on
www.vela.eu.
1.7.1. WHEELS
We recommended you regularly
check the wheels and remove any
residual threads, etc.
1.7.2. FRAME
Clean with lukewarm water and if
necessary, add some pH-neutral
detergent. Desinfection is possible,
but never use solvent-based clean-
ers (such as Turpentine).
1.7.3. PADDING
Synthetic fabric or leather: Clean
with water or mild soap using a hard-
wrung cloth.
Polyuretan foam: Upholstery on
trunk support, handle and rear stop
is easily wiped o with a disinfectant
cloth.
Note: On www.vela.eu you can
find cleaning instructions for all our
standard upholstery types.
1.7.4. RECYCLING GUIDE
Your VELA Meywalk 4 can be re-
used by another person when you
no longer need it as long as the gait
trainer is serviced by a technician
beforehand.
The life expectancy of the gait trainer
is five years for regular and proper
use. We recommend that VELA, your
VELA supplier or a trained professional
perform an annual inspection with
replacement of worn parts.
