Vitek VT-1803 User manual

1
VT-1803
3
11
Robotic vacuum
cleaner
Робот-пылесос
IM VT-1803.indd 1 7/2/19 3:20 PM

IM VT-1803.indd 2 7/2/19 3:20 PM

3
E N G L I S H
ROBOTIC VACUUM CLEANER VT-1803
The robotic vacuum cleaner is intended for room
cleaning in automatic mode.

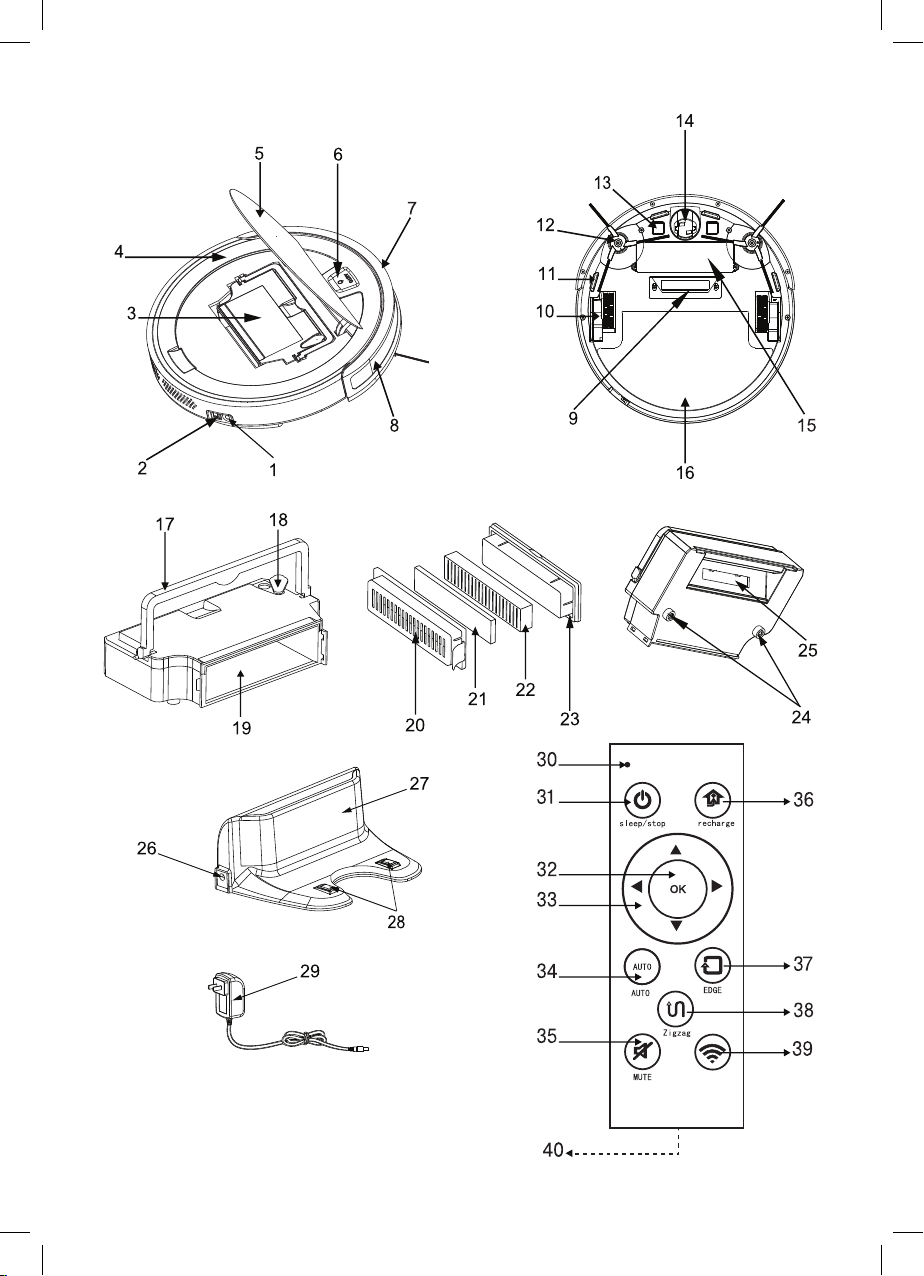

DESCRIPTION
1. AC/DC adapter connection socket
2. Power switch «I/0»
3. Dust bin
4. Body
5. Lid
6. Start/stop button «AUTO »
7. Front bumper
8. Sensor window
9. Suction nozzle
10. Driving wheels
11. Anti-drop sensors
12. Side brushes
13. Contact points for battery charging
14. Front wheel
15. Rechargeable battery
16. Floor wet cleaning attachment
Dust bin
17. Dust bin handle
18. Water inlet plug
19. Filter installation place
20. Filter holder with lock
21. Foam filter
22. HEPA filter
23. HEPA filter holder
24. Water drop openings
25. Garbage spill-proof lid
Charging station
26. Power adapter connection socket
27. Sensor panel
28. Contact points for battery charging
29. Power adapter
Remote control
30. Remote control operation indicator
31. On/standby/off button «sleep/stop »
32. Cleaning on/off button « »
33. Vacuum cleaner manual operation buttons
« »
34. Auto room cleaning button «AUTO »
35. Voice signal on/off button «MUTE »
36. Return to the charging station button
«recharge »
37. «Along the wall» cleaning mode button «EDGE »
38. «Zigzag» cleaning button «Zigzag »
39. Network connection button «WI-FI «
40. Battery holder
SAFETY MEASURES AND OPERATION
RECOMMENDATIONS
Read this instruction manual carefully before using
the robotic vacuum cleaner and keep it for the
whole operation period. Mishandling of the unit may
lead to its breakage and cause harm to the user or
damage to his/her property.
To avoid the risk of fire, electric shock and to pre-
vent injury, observe the following safety measures.
• Use the unit in strict accordance with the instruc-
tion manual.
• Use only the accessories supplied with the unit.
• Before charging the rechargeable battery for the
first time, make sure that voltage of the mains
corresponds to the operating voltage of the
power adapter.
• Do not charge the rechargeable battery in
places with high moisture and high temperature.
Charge the accumulator battery at the tempera-
ture from +5° C to +35° C and relative humidity no
more than 80%.
• If you don’t use the charging station for a long
time, unplug the power adapter.
• Do not touch the power adapter body with wet
hands.
• Do not use the vacuum cleaner outdoors, for
cleaning wet and damp floors.
• Do not use the vacuum cleaner in the rooms with
unsteady furniture, especially if there are fragile
interior objects or burning candles placed on it.
• Do not place or install foreign objects on the vac-
uum cleaner body, make sure that there are no
pets on the vacuum cleaner body.
• Do not switch the unit on if the air inlet is blocked
by a foreign object.
• Keep hair, free hanging clothes and interior objects
away from the vacuum cleaner path of motion.
• Set additional obstacles for the vacuum cleaner
when cleaning the stair landings.
• Do not use the vacuum cleaner for collecting
such inflammable liquids as gasoline or sol-
vents. Do not use the vacuum cleaner in places
where such liquids are stored.
• Do not use the vacuum cleaner for collecting
burning or smoking cigarettes, matches, cinders
as well as fine dust, for example, of plaster, con-
crete, flour or ashes.
• Do not use the vacuum cleaner if:
– the dust bin is not installed;
– the HEPA filter is not installed in the bin.
• Do not immerse the vacuum cleaner, the power
adapter and the charging station into water or
any other liquids.
IM VT-1803.indd 3 7/2/19 3:20 PM

4
ENGLISH
Attention! The unit contains a lithium battery.
Prevent children from swallowing the lithium bat-
tery. If your child has swallowed a battery,
immediately see your doctor.
• Close supervision is necessary when chil-
dren or people with disabilities are near the
operating unit.
• This unit is not intended for usage by children.
• During the operation and breaks between
operation cycles, keep the unit away from
children.
• The unit is not intended to be used by people
with physical or mental disabilities (including
children) or by persons lacking experience or
knowledge if they are not under supervision of
a person who is responsible for their safety or
if they are not instructed by this person on the
usage of the unit.
• Do not leave children unattended to prevent
using the unit as a toy.
• For children safety reasons do not leave
polyethylene bags used as packaging unat-
tended.
Attention! Do not allow children to play with poly-
ethylene bags or packaging film. Danger of suf-
focation!
• Do not use the connecting cord of the power
adapter to carry the charging station. Provide
that the connecting cord does not touch sharp
edges of furniture and hot surfaces. Provide
that the vacuum cleaner does not run over the
connecting cord of the power adapter.
• Periodically check that the power adapter and
the connecting cord are not damaged.
• Never use the unit if the power adapter or
connecting cord is damaged, if the unit
works improperly or after it was dropped.
• Do not attempt to repair the unit. Do not dis-
assemble the unit by yourself, if any mal-
function is detected or after it was dropped,
unplug the unit and apply to any authorized
service center at the contact addresses given
in the warranty certificate and on the website
www.vitek.ru.
• To avoid damages, transport the unit in the origi-
nal packaging only.
• Before you dispose of the vacuum cleaner,
remove the battery and apply to the correspond-
ing center for recycling of it. Do not burn the
vacuum cleaner even if it is badly damaged
without removing the battery to avoid the bat-
tery explosion.
• Transport the unit in the original packaging only.
• Keep the unit in a dry cool place out of reach of
children and people with disabilities.
THE UNIT IS INTENDED FOR HOUSEHOLD USE
ONLY, ITS COMMERCIAL USAGE AND USAGE
IN PRODUCTION AREAS AND WORK SPACES IS
PROHIBITED.
BEFORE THE FIRST USE
After unit transportation or storage under cold
(winter) conditions, it is necessary to keep it
for at least three hours at room temperature
before switching on.
• Unpack the vacuum cleaner and remove any
advertising stickers and package materials.
• Keep the original package.
• Check the unit for damages, do not use it in case
of damages.
• Read the safety instructions and the operation
manual.
• Make sure that operating voltage of the power
adapter corresponds to the voltage of your
mains.
• The unit is intended for operation with AC system
and 50 Hz or 60 Hz frequency, the unit does not
need any additional settings for operating with
the required nominal frequency.
REMOTE CONTROL
Attention! The unit contains a lithium battery.
Prevent children from swallowing the lithium bat-
tery. If your child has swallowed a battery,
immediately see your doctor.
• Press on the side lock of the battery holder (40)
and remove it.
• Install the CR2025 battery into the holder (40)
strictly following the polarity.
• Install the holder (40) in the remote control body.
Notes:
– if there is an isolation insert in the remote con-
trol, remove the insert;
– replace the battery in time;
– do not recharge the battery;
– remove the battery if you are not planning to use
the unit for a long time;
– remove the used battery from the unit and dis-
pose of it safely;
– avoid short circuiting the battery clips.
BEFORE USING THE VACUUM CLEANER
Manual battery charging
It is recommended to charge the battery in manual
mode before using the vacuum cleaner.
IM VT-1803.indd 4 7/2/19 3:20 PM

5
E N G L I S H
• Connect the power adapter (29) connect-
ing cord jack to the socket (1) on the vacuum
cleaner body.
• Connect the power adapter (29) to the mains
socket, you will hear a voice signal and the start/
stop button «AUTO » illumination will be flash-
ing green.
• The duration of the first battery charging should
be at least 8 hours.
Charging station
• Connect the power adapter (29) connecting cord
jack to the socket (26) on the charging station.
• Place the charging station on the flat floor sur-
face next to the wall, the charging station base
must be perpendicular to the floor.
• There should be at least 1,5 meters of free
space in front of the charging station and at least
0,5 meter at the sides.
• Do not place the charging station next to objects
with high reflective power, such as mirrors, oth-
erwise the vacuum cleaner’s return to the charg-
ing station will be hindered.
BEFORE USING THE VACUUM CLEANER
• Remove all kinds of power cords, power exten-
sion cords and other similar items from the floor
that may interfere with the movement of the vac-
uum cleaner.
• The vacuum cleaner is intended for opera-
tion on a smooth floor or on a carpet with low
pile (less than 1 cm). Do not use the vacuum
cleaner for cleaning the floors and carpets with
high pile.
• Make sure that there are no tablecloths, curtains
or other furnishings hanging to the floor along
the path of motion of the vacuum cleaner.
• The free space under the furniture should be
at least 6 centimeters, otherwise the vacuum
cleaner will simply get stuck under the furniture.
• If the distance from the floor to the furniture is
less than 6 centimeters, it is necessary to lift
the furniture or to provide a barrier against the
vacuum cleaner getting in such places.
• Provide additional obstacles for the vacuum
cleaner when cleaning the stair landings.
• Arrange furniture for free movement of the vacuum
cleaner, remove foreign objects from the floor.
• Do not use the vacuum cleaner in the rooms
with unsteady furniture, especially if there
are fragile interior objects or burning candles
placed on it.
• Do not place or install foreign objects on the vac-
uum cleaner body, make sure that there are no
pets on the vacuum cleaner body.
• Before using the vacuum cleaner make sure that
there are no narrow places in the path of motion
of the vacuum cleaner.
USING THE VACUUM CLEANER
Left brush
(the center
is gray)
Right brush
(the center
is yellow)
IM VT-1803.indd 5 7/2/19 3:20 PM
