VWR avantor CO 3100 H User manual

ba77074e05 05/2021
VWR®CO 3100 H - Conductivity Meter
Operating manual
EU cat. no NA cat. no
663-0234 76460-508
3100 H
CO

CO 3100 H
2ba77074e05 05/2021
Legal Address of Manufacturer:
Country of origin: Germany.
Europe
VWR International BV
Researchpark Haasrode 2020
Geldenaaksebaan 464
B-3001 Leuven
[phone]
http://be.vwr.com
United States
VWR International LLC
100 Matsonford Rd
Radnor, PA 19087
[phone]
www.vwr.com
Importer to UK:
VWR International Ltd
Hunter Boulevard, Magna Park
Lutterworth, Leicestershire, LE17 4XN
http://uk.vwr.com

CO 3100 H Contents
3
ba77074e05 05/2021
CO 3100 H - Contents
1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Authorized use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.3 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 General data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Measuring ranges, resolution, accuracy . . . . . . . . . . . . . 14
4 Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Initial commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2.1 Inserting the batteries. . . . . . . . . . . . . . . . . . . . . 16
4.2.2 Switching on the meter. . . . . . . . . . . . . . . . . . . . 17
4.2.3 Setting the date and time . . . . . . . . . . . . . . . . . . 17
5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.1 Switching on the meter . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2 General operating principles . . . . . . . . . . . . . . . . . . . . . . 19
5.2.1 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2.2 Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2.3 Navigation example 1:Setting the language. . . . 21
5.2.4 Example 2 on navigation: Setting the date and
time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.3 Sensor-independent settings . . . . . . . . . . . . . . . . . . . . . 26
5.3.1 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.3.2 Data storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.3.3 Automatic Stability control . . . . . . . . . . . . . . . . . 27
5.4 Conductivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.4.1 General information . . . . . . . . . . . . . . . . . . . . . . 29
5.4.2 Measuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.4.3 Temperature compensation . . . . . . . . . . . . . . . . 31
5.4.4 Settings for conductivity measuring cells . . . . . . 32
5.4.5 Determining the cell constant (calibration in
control standard) . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents CO 3100 H
4ba77074e05 05/2021
5.4.6 Displaying calibration records. . . . . . . . . . . . . . . 37
5.5 Data memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.5.1 Manual storage . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.5.2 Automatic storing at intervals . . . . . . . . . . . . . 40
5.5.3 Displaying and editing the measurement data
memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.5.4 Erasing the measurement data memory. . . . . . . 44
5.6 Transmitting data (USB interface) . . . . . . . . . . . . . . . . . . 44
5.6.1 Options for data transmission . . . . . . . . . . . . . . . 44
5.6.2 Connecting a PC . . . . . . . . . . . . . . . . . . . . . . . . 45
5.7 MultiLab Importer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.8 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.8.1 Resetting the measurement settings . . . . . . . . . 46
5.8.2 Resetting the system settings. . . . . . . . . . . . . . . 47
6 Maintenance, cleaning, disposal, accessories. . . . . . 48
6.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.1.1 Replacing the batteries . . . . . . . . . . . . . . . . . . . . 48
6.2 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.3 Packing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7 What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
8 Firmware update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9 Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10 Technical service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
11 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
12 Compliance with local laws and regulations . . . . . . . 59

CO 3100 H Contents
5
ba77074e05 05/2021

Safety CO 3100 H
6ba77074e05 05/2021
1Safety
This operating manual contains basic instructions that you must follow
during the commissioning, operation and maintenance of the meter.
Consequently, all responsible personnel must read this operating man-
ual before working with the meter.
The operating manual must always be available within the vicinity of the
meter.
Target group The meter was developed for work in the field and in the laboratory.
Thus, we assume that, as a result of their professional training and
experience, the operators will know the necessary safety precautions
to take when handling chemicals.
Safety instructions Safety instructions in this operating manual are indicated by the warn-
ing symbol (triangle) in the left column. The signal word (e.g. "Caution")
indicates the level of danger:
Warning
indicates instructions that must be followed precisely in order to
avoid possibly great dangers to personnel.
Caution
indicates instructions that must be followed precisely in order to
avoid the possibility of slight injuries or damage to the instrument
or the environment.
Further notes
Note
indicates notes that draw your attention to special features.
Note
indicates cross-references to other documents, e.g. operating manu-
als.

CO 3100 H Safety
7
ba77074e05 05/2021
1.1 Authorized use
Authorized use of the meter consists exclusively of the measurement
of conductivity, resistivity, salinity, TDS (total dissolved solids) and tem-
perature in a laboratory or field environment.
The technical specifications as given in chapter 3 TECHNICAL DATA must
be observed. Only the operation and running of the meter according to
the instructions given in this operating manual is authorized.
Any other use is considered unauthorized.
1.2 General safety instructions
This meter is constructed and tested in compliance with the IEC 1010
safety regulations for electronic measuring instruments.
It left the factory in a safe and secure technical condition.
Function and
operational safety
The smooth functioning and operational safety of the meter can only be
guaranteed if the generally applicable safety measures and the specific
safety instructions in this operating manual are followed during opera-
tion.
The smooth functioning and operational safety of the meter can only be
guaranteed under the environmental conditions that are specified in
chapter 3 TECHNICAL DATA.
If the meter was transported from a cold environment to a warm envi-
ronment, the formation of condensate can lead to the faulty functioning
of the meter. In this event, wait until the temperature of the meter
reaches room temperature before putting the meter back into opera-
tion.
Caution
The meter is only allowed to be opened by authorized personnel.

Safety CO 3100 H
8ba77074e05 05/2021
Safe operation If safe operation is no longer possible, the meter must be taken out of
service and secured against inadvertent operation!
Safe operation is no longer possible if the meter:
has been damaged in transport
has been stored under adverse conditions for a lengthy period of
time
is visibly damaged
no longer operates as described in this manual.
If you are in any doubt, please contact the supplier of the meter.
Obligations of the
purchaser
The purchaser of this meter must ensure that the following laws and
guidelines are observed when using dangerous substances:
EEC directives for protective labor legislation
National protective labor legislation
Safety regulations
Safety datasheets of the chemical manufacturers.
Caution
In addition to the safety instructions mentioned here, also follow
the safety instructions of the sensors used.

CO 3100 H Overview
9
ba77074e05 05/2021
2Overview
The CO 3100 H compact precision conductivity meter enables you to
perform conductivity measurements quickly and reliably.
The CO 3100 H provides the maximum degree of operating comfort,
reliability and measuring certainty for all applications.
The proven procedures for determining or adjusting the cell constant
support your work with the conductivity meter.
1 Keypad
2Display
3 Connectors
3100 H
CO
1
2
3

Overview CO 3100 H
10 ba77074e05 05/2021
2.1 Keypad
In this operating manual, keys are indicated by brackets <..> .
The key symbol (e.g. <OK>) generally indicates a short keystroke
(under 2 sec) in this operating manual. A long keystroke (approx.
2 sec) is indicated by the underscore behind the key symbol (e.g.
<OK_>).
<F1>:
<F1__>:
<F2>:
<F2__>:
Softkeys providing situation dependent functions, e.g.:
<F1>/[Menu]: Opens the menu for measurement settings
<F1__>/[Menu]: Opens the menu for system settings
<On/Off>:Switches the meter on or off
<MODE>: Selects the measured parameter
<CAL>:
<CAL__>:
Calls up the calibration procedure
Displays the calibration data
<STR>:
<STR_>:
Saves a measured value manually
Opens the menu for the automatic save function
<RCL>:
<RCL__ >:
Displays the manually stored measured values
Displays the automatically stored measured values
<V>: Increments values, scrolls
<W>: Decrements values, scrolls
<OK>:
<OK_>:
Opens the menu for measurement settings / confirms
entries
Opens the menu for system settings
<HOLD> Freezes the measured value (HOLD function)
Switches the AutoRead measurement on or off

CO 3100 H Overview
11
ba77074e05 05/2021
2.2 Display
Function display
indicators

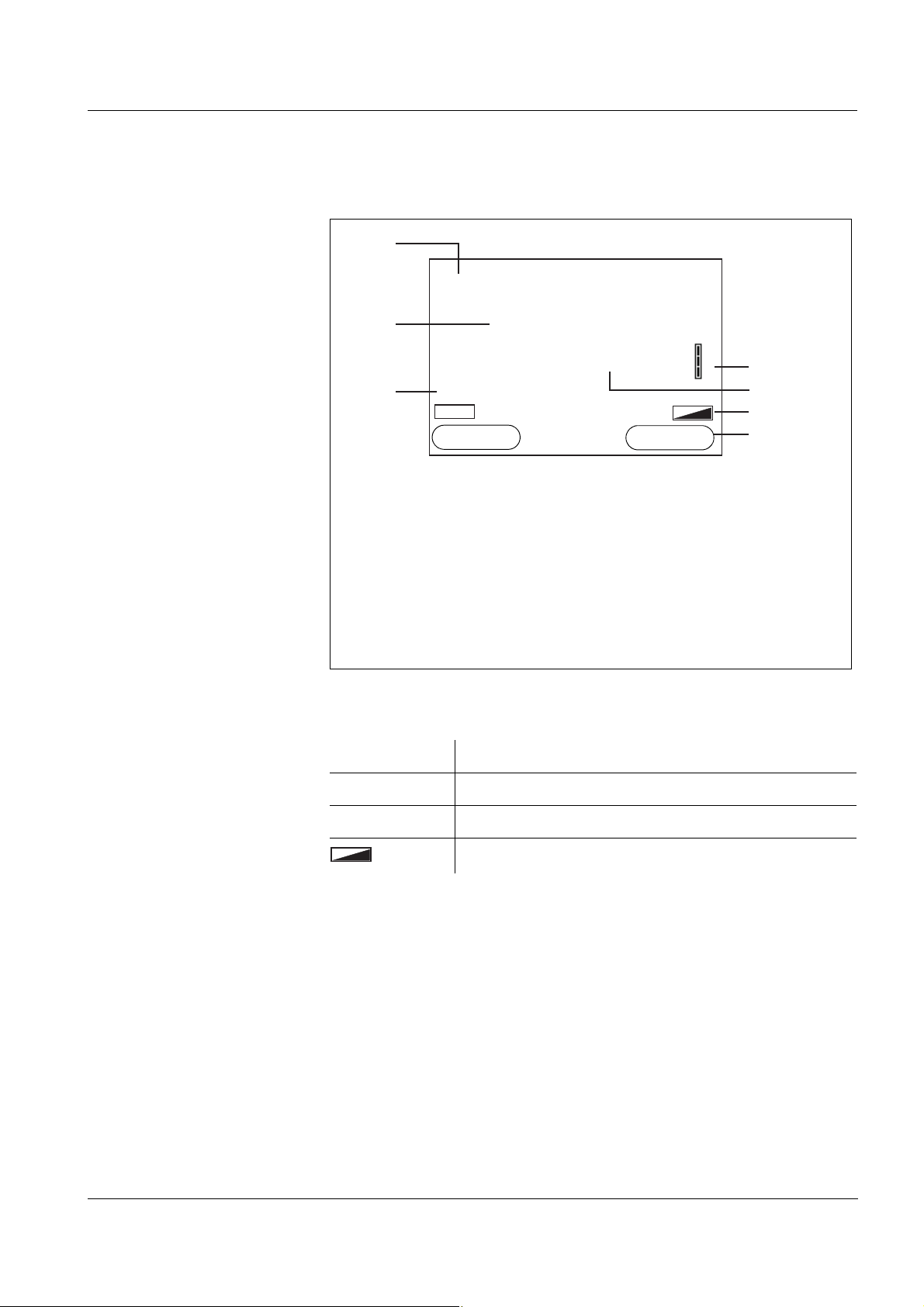

1 Status information
2 Measured value (with unit)
3 Measured parameter
4 Sensor symbol (calibration evaluation, calibration interval)
5 Measured temperature (with unit)
6 Status line
7 Softkeys and date + time
3
2
4
5
6
7
1
HOLD
25.0
1417
°C
µS/cm
[Tr25][nLF][ 0.8401/cm]
ϰ
15.03.2014
10:00
Menu USB output
Error An error occurred during calibration
AR Stability control (AutoRead) is active
HOLD Measured value is frozen (<HOLD> key)
Batteries are almost empty

Overview CO 3100 H
12 ba77074e05 05/2021
2.3 Connectors
Caution
Only connect measuring cells to the meter that cannot return any
voltages or currents that are not allowed (> SELV and > current
circuit with current limiting).
Almost all customary measuring cells fulfill these conditions.

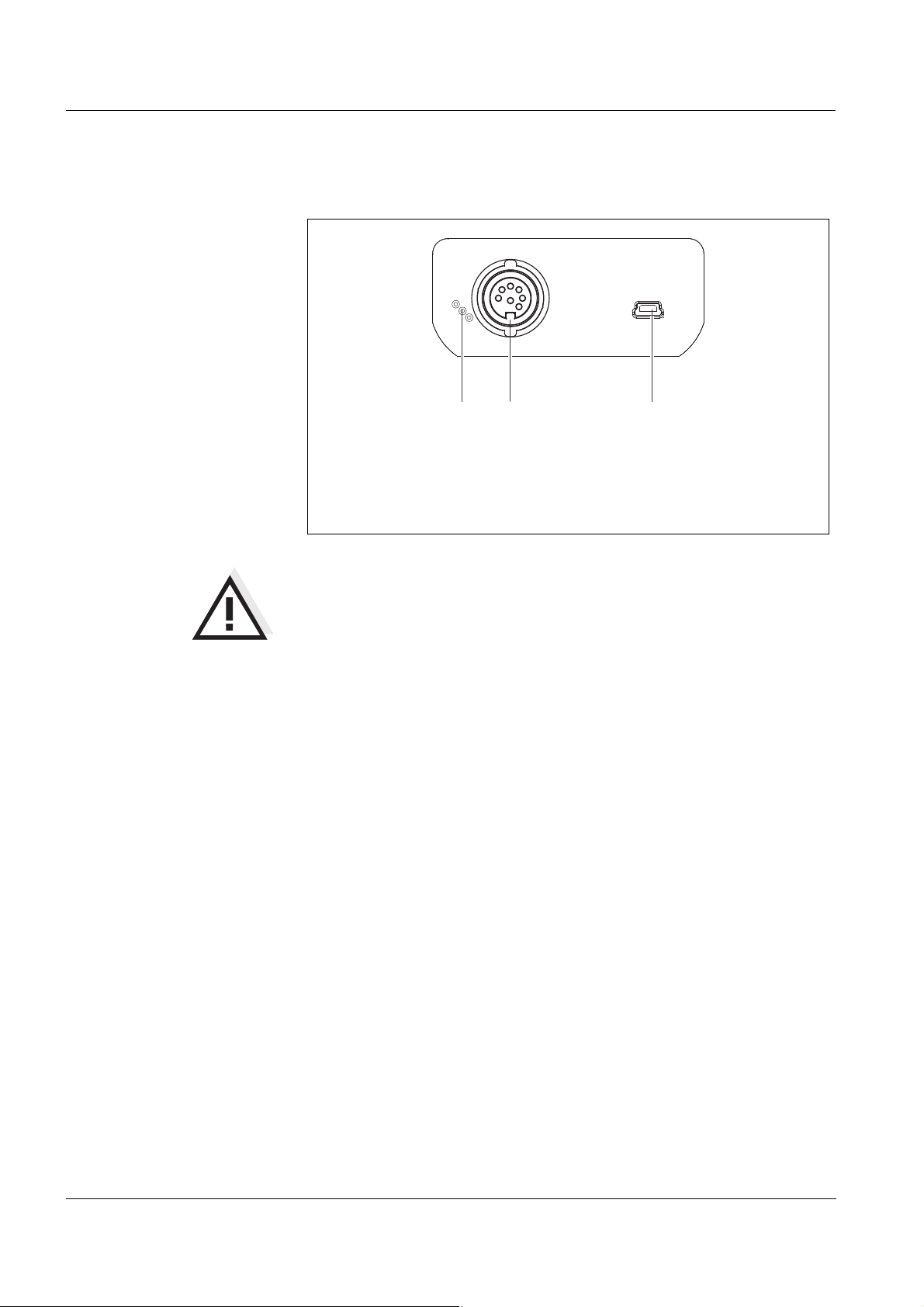

1 Conductivity measuring cell
2 USB B (device) interface
3 Service interface
312

CO 3100 H Technical data
13
ba77074e05 05/2021
3 Technical data
3.1 General data
Dimensions Approx. 180 x 80 x 55 mm
Weight Approx. 0.4 kg
Mechanical structure Type of protection IP 67
Electrical safety Protective class III
Test certificates CE
Ambient
conditions
Storage - 25 °C ... + 65 °C
Operation -10 °C ... + 55 °C
Admissible relative
humidity
Yearly mean: < 75 %
30 days/year: 95 %
Other days: 85 %
Power
supply
Batteries 4 x 1.5 V alkali-manganese batteries, type
AA
Rechargeable
batteries
4 x 1.2 V NiMH rechargeable batteries,
type AA (no charging function)
Operational life Up to 800 h without / 100 h with illumination
USB interface Type USB 1.1
USB B (device), data output
Baud rate Adjustable:
1200, 2400, 4800, 9600, 19200 Baud
Data bits 8
Stop bits 2
Parity None
Handshake RTS/CTS
Cable length Max. 3 m
Guidelines
and norms used
EMC EU directive 2014/30/EU
EN 61326-1
FCC Class A
Meter safety EU directive 2014/35/EU
EN 61010-1
IP protection class EN 60529
RoHS EU directive 2011/65/EU

Technical data CO 3100 H
14 ba77074e05 05/2021
3.2 Measuring ranges, resolution, accuracy
Measuring ranges,
resolution
(depending on the sen-
sor)
Variable Measuring range Resolution
ϰ[µS/cm] 0.000 ... 1.999*
0.00 ... 19.99**
0.0 ... 199.9
200 ... 1999
0.001
0.01
0.1
1
ϰ[mS/cm] 2.00 ... 19.99
20.0 ... 199.9
200 ... 1000
0.01
0.1
1
ρ (Resistivity)
[Ohm*cm]
1.000 ... 1.999
2.00 ... 19.99
20.0 ... 199.9
200 ... 1999
0.001
0.01
0.1
1
ρ (Resistivity)
[kOhm*cm]
2.00 ... 19.99
20.0 ... 199.9
200 ... 1999
0.01
0.1
1
ρ (Resistivity)
[MOhm*cm]
2.00 ... 19.99**
20.0 ... 199.9*
0.01
0.1
SAL 0.0 ... 70.0
according to the IOT table
0.1
TDS 0 ... 1999 mg/l
2.00 ... 19.99 g/l
20.0 ... 199.9 g/l
1
0.01
0.1
T [°C] -5.0 ... +105.0 0.1
T [°F] +23.0 ... +221.0 0.1
* only possible with cells of the cell constant, 0.010 cm-1
** only possible with cells of the cell constant, 0.010 cm-1 or 0.090 ... 0.110 cm-1
Cell constants Cell constant C Values
To be calibrated 0.450 ... 0.500 cm-1
0.800 ... 0.880 cm-1
Adjustable 0.010 cm-1 (fixed)
0.090 ... 0.110 cm-1
0.250 ... 1.000 cm-1
Reference temperature Reference tempera-
ture
Values
Adjustable 20 °C (Tref20)
25 °C (Tref25)

CO 3100 H Technical data
15
ba77074e05 05/2021
Note
The accuracy values specified here apply exclusively to the meter. The
accuracy of the measuring cell has also to be taken into account.
Accuracy (± 1 digit) Parameter Accuracy Temperature of the test
sample
ϰand
ρ / temperature compensation
None (Off) ± 0.5 %
Nonlinear (nLF) ± 0.5 % 0 °C ... + 35 °C
according to EN 27 888
± 0.5 % + 35 °C ... + 50 °C
enhanced nLF function
Linear (lin) ± 0.5 % + 10 °C ... + 75 °C
SAL / range
0.0 ... 42.0 ± 0.1 + 5 °C ... + 25 °C
± 0.2 + 25 °C ... + 30 °C
TDS [mg/l]
± 0.5 %
T [°C] / temperature sensor
NTC 30 ± 0.2
PT 1000 ± 0.3

Commissioning CO 3100 H
16 ba77074e05 05/2021
4 Commissioning
4.1 Scope of delivery
Conductivity meter CO 3100 H
4 batteries 1.5 V Mignon type AA
USB cable
Short instructions
CD-ROM with
– USB drivers
– detailed operating manual
– Software MultiLab Importer
4.2 Initial commissioning
Perform the following activities:
Insert the supplied batteries
Switching on the meter
Set the date and time
4.2.1 Inserting the batteries
1Unscrew the screws (1) on the underside of the meter.
2 Open the battery compartment (2) on the underside of the
meter.
1
2

CO 3100 H Commissioning
17
ba77074e05 05/2021
Caution
Make sure that the poles of the batteries are positioned correctly.
The ± signs on the batteries must correspond to the ± signs in the
battery compartment.
Note
Alternatively, you can also use Ni-MH rechargeable batteries (type
Mignon AA). In order to charge the batteries, an external charging
device is required.
4.2.2 Switching on the meter
Note
The meter has an energy saving feature to avoid unnecessary battery
depletion.
The energy saving feature switches off the meter if no key is pressed
during the adjusted interval. (How to set the switch-off interval, see sec-
tion 5.3.1).
4.2.3 Setting the date and time
3Place four batteries (type Mignon AA) in the battery compart-
ment.
4 Close the battery compartment.
1Press the <On/Off> key.
The meter performs a self-test.
The display shows the manufacturer's logo while the self-test
is being performed.
Subsequently, the meter switches to the measuring mode
(measured value display).
1See section 5.2.4

Operation CO 3100 H
18 ba77074e05 05/2021
5 Operation
5.1 Switching on the meter
Switching on Press the <On/Off> key.
The meter performs a self-test.
The display shows the manufacturer's logo while the self-test is being
performed.
The measured value display appears.
Switching off Press the <On/Off> key.
Automatic switch-off
function
The instrument has an automatic switch-off function in order to save the
batteries (see section 5.3.1). The automatic switch-off function
switches off the meter if no key is pressed for an adjustable period.
The automatic switch-off function is not active
if the communication cable is connected
if the Automatic data storage function is active, or with automatic
data transmission
Display illumination The meter automatically switches off the display illumination if no key
is pressed for 30 seconds. The illumination is switched on with the next
keystroke again.
You can also generally switch the display illumination on or off (see
section 5.3.1).
ϰ
1417 µS/cm
25.0 °C
[Tr25][nLF][0.840 1/cm]
15.03.2014
10:00
Menu
Menu
USB output

CO 3100 H Operation
19
ba77074e05 05/2021
5.2 General operating principles
This section contains basic information on the operation of the
CO 3100 H.
Operating elements,
display
An overview of the operating elements and the display is given in sec-
tion 2.1 and section 2.2.
Operating modes,
navigation
An overview of the operating modes and navigation of the CO 3100 H
is given in section 5.2.1 and section 5.2.2.
5.2.1 Operating modes
The instrument has the following operating modes:
Measuring
The measurement data of the connected sensor are shown in the
measured value display
Calibration
The course of a calibration with calibration information, functions
and settings is displayed
Storing in memory
The meter stores the measurement data manually or automatically
Transmitting data
The meter transmits measurement data and calibration records to
the USB interface automatically or manually.
Setting
The system menu or a sensor menu with submenus, settings and
functions is displayed
5.2.2 Navigation
Measured value display In the measured value display, you can
open the menu for calibration and measurement settings with <F1>
(short keystroke)
Open the Storage & config menu with the sensor-independent set-
tings with <F1__> (long keystroke, approx. 2 s).
Change the display in the measurement window by pressing
<MODE> (e.g. conductivity −> resistivity −> −> −> ).
Menus and dialogs The menus for settings and dialogs in procedures contain further sub-
elements. The selection is made with the <><>keys. The current
selection is displayed with a frame.
Submenus

Operation CO 3100 H
20 ba77074e05 05/2021
The name of the submenu is displayed at the upper edge of the
frame. Submenus are opened by confirming with <OK>. Example:
Settings
Settings are indicated by a colon. The current setting is displayed on
the right-hand side. The setting mode is opened with <OK>. Subse-
quently, the setting can be changed with <><>and <OK>.
Example:
Functions
Functions are designated by the name of the function. They are
immediately carried out by confirming with <OK>.
Example: Display the Calibration record function.
General
Interface
Clock
Service information
Reset
System
15.03.2014
10:00
Back
Language: Deutsch
Beep:Off
Illumination:On
Contrast:48 %
Switchoff time:30 min
General
15.03.2014
10:00
Back
