VWR MCT 100 User manual

VWR®
Photometer MCT 100
Chlorine, Chlorinedioxyde
& Ozone
European Catalogue Number:
705 - 1085
Version: 1
Issued: 23. January 2018
INSTRUCTION MANUAL

2VWR ver 1 23.01.2018
Legal Address of Manufacturer
Europe
VWR International bvba
Researchpark Haasrode 2020
Geldenaaksebaan 464
B-3001 Leuven
+ 32 16 385011
http://be.vwr.com
Country of origin
Made in Germany

3
VWR ver 1 23.01.2018
Table of Contents
Warning ...........................................................5
Safety Information ...................................................5
Delivery contens .....................................................6
Unpacking .........................................................6
Set up.............................................................6
Intended use........................................................7
Symbols and conventions ..............................................8
Unpacking .........................................................8
Overview...........................................................9
Description of Buttons and Switches ......................................9
Operational keys ....................................................10
OTZ (One Time Zero) ...............................................10
Display backlight ..................................................11
Recall of stored data ...............................................11
Countdown / reaction period .........................................11
Menu selections...................................................12
Recall of stored data ...............................................12
Transmitting stored data.............................................12
Setting date and time...............................................13
Calibration ........................................................13
User calibration ...................................................13
Factory calibration reset .............................................14
Guidelines for photometric measurements ................................15
Method notes ....................................................15
Correct position of the vial ...........................................16
Correct filling of the vial.............................................16
Methods ..........................................................18
Chlorine LR with Tablet (CL 6) ........................................18
Chlorine HR with Tablet (CL 10) .......................................20
Ozone with Tablet (O 3) .............................................22
Chlorine dioxide with Tablet (CLO2) ....................................24
Troubleshooting ....................................................26
Operating messages................................................26
Error codes.......................................................26
Repair and maintenance ..............................................27
User replaceable accessories and spare parts ...............................27
Technical service ....................................................27

4VWR ver 1 23.01.2018
Warranty..........................................................28
Compliance with local laws and regulations ...............................28
Equipement disposal .................................................28

5
VWR ver 1 23.01.2018
Warning
CAUTION
The accuracy of the instrument is only valid if the instrument is used in an environment
with controlled electromagnetic disturbances according to DIN 61326. Wireless devices,
e.g. wireless phones, must not be used near the instrument.
Safety Information
Read this entire manual carefully before use!
Carefully read and follow the SAFETY INSTRUCTIONS at the beginning of this manual!
The system may only be used by qualified persons!
Keep this manual for later reference!
Also observe important notices in order to avoid malfunctions and faults.
If possible, save the complete transport packaging for later transport.
Follow the safety instructions listed here for your own safety!
The safety instructions draw your attention to potential dangers. They also contain information
for how you can prevent danger with appropriate conduct.
Use is only permitted for qualified persons.
WARNING!
The device may not be operated in explosion-prone rooms.
Health hazard!
Observe the required protective measures when handling the
sample!
Health hazard!!
Do not handle depleted batteries or leaking material with bare
hands! Wear protective gloves! Avoid contact with the eyes
and skin!
WARNING!
Breakage of glass. Danger of cutting injuries.
Despite protection from the transport packaging, breakage of
glass can occur during transport. The resulting broken shards
may have sharp edges and could cause cutting injuries when
handled carelessly. Look out for broken glass when unpack-
ing, and wear protective gloves.
When handling the system, always ensure a firm grip in order
to avoid breakage of glass!
Do not strike the test bottles against edged during transport
of the system!
WARNING!
Reagents are intended for chemical analysis only and must be
kept out of the hands of children!

6VWR ver 1 23.01.2018
WARNING!
Ensure proper disposal of reagent solutions.
Material Safety Data Sheets are available on request
Delivery contents
Standard contents for MCT 100:
1 Photometer in plastic case
1 Instruction manual
1 Test Certificate
4 batteries (Type AAA)
1 battery compartment cover
4 screws
1 screwdriver
3 Round vials with cap, height 48 mm, Ø 24 mm
1 Cleaning brush
1 Stirring rod, plastic
1 Syringe, 5 ml
Different Refill Packs available on request.
Unpacking
Carefully inspect all items to ensure that every part of the list below is present and no visible
damage has occurred during shipment. If there is any damage or something is missing, please
contact your local distributor immediately.
Set up

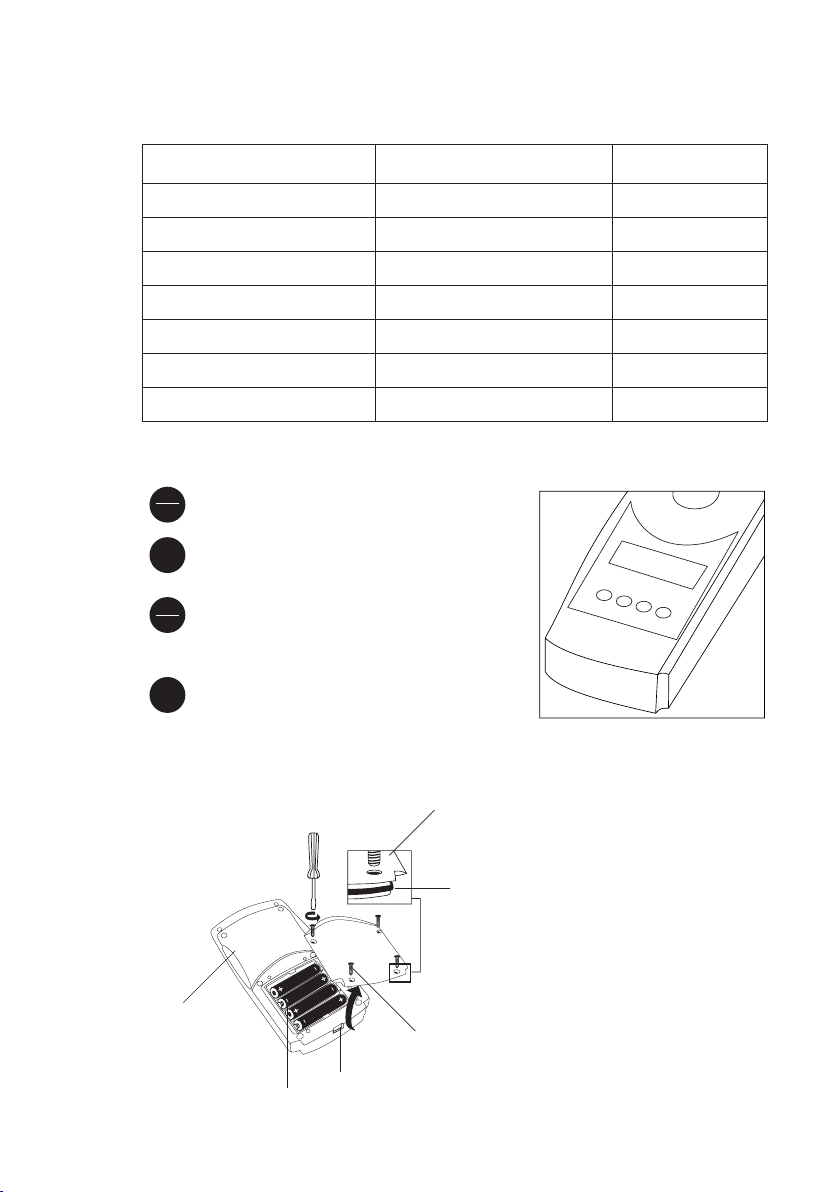

Before working with the photometer insert the batteries (delivery contents).

7
VWR ver 1 23.01.2018
CAUTION:
To ensure that the instrument is water proof:
• seal ring (E) must be in position
• battery compartment cover (B) must be fixed with the four screws
If the batteries are removed for more than one minute the date and time menu starts auto-
matically when the photometer is switched on the next time.
Intended use
MCT 100 is a photometer for determining the concentration of water contents. The MCT 100
Photometer is only used for determining 4 parameters. Always adhere to the limits specified
in chapter “Technical Data”. To ensure correct and intended usage, the instructions, especially
the “Important Safety Information”, have to be read and understood.
The instrument is not used as intended if
• it is used in application areas not stated in these instructions.
• it is used in conditions which deviate from the ones described in these instructions.
AAA/LR 03
AAA/LR 03
AAA/LR03
AAA/LR03
(D) batteries
(E) seal ring
(C) notch
(F) instrument back
(B) battery compart-
ment cover
(A) screws

8VWR ver 1 23.01.2018
The safety instructions in this operating manual must be observed.
The instrument may only be used under the conditions and for the purposes for which it
was designed.
The instrument must be handled with care (do not throw, drop, etc.) and used in accordance
with the technical data. It must be protected against soiling.
Symbols and conventions
CAUTION! This symbol indicates a potential risk and alerts you
to proceed with caution
Product Specifications
Instrument single wavelength, direct reading colorimeter
Light source: LEDs, interference filters (IF) and photosensor in transparent
cell chamber. Wavelength specifications of the IF:
530 nm = 5 nm
Wavelength accuracy ± 1 nm
Photometric accuracy* 3% FS (T = 20° C – 25° C)
Photometric resolution 0.01 A
Power supply 4 batteries (AAA/LR 03)
Operating time 17hr operating time or 5000 test measurements in
continuous mode when display backlight is off
Auto-OFF automatic switch off
10 minutes after last keypress
Display backlit LCD (on keypress)
Storage internal ring memory for 16 data sets
Interface IR interface for data transfer
Time real time clock und date
Calibration user and factory calibration
resetting to factory calibration possible
Dimensions 155 x 75 x 35 mm (LxWxH)
Weight approx. 260 g (incl. batteries)
Ambient conditions temperature: 5–40°C
rel. humidity: 30–90% (non-condensing)
Waterproof floating; as defined in IP 68 (1 hour at 0.1 meter)
*measured with standard solutions
To ensure maximum accuracy of test results, always use the reagent systems supplied by
the instrument manufacturer.

9
VWR ver 1 23.01.2018
Overview
Reagent Quantity cat. no.
DPD NO. 1 TABLETS PACK OF 100 84200.601
DPD NO. 3 TABLETS PACK OF 100 84201.601
GLYCINE TABLETS PACK OF 100 84202.601
DPD NO. 1 HIGH CALCIUM TABLETS PACK OF 100 84203.601
DPD NO. 3 HIGH CALCIUM TABLETS PACK OF 100 84204.601
CHLORINE DPD NO. 1 HR TABLETS PACK OF 100 84205.601
CHLORINE DPD NO. 3 HR TABLETS PACK OF 100 84206.601
Description of Buttons
Switching the photometer on or off
Select the required test using the [MODE] key.
Performing Zero /
performing Test
Press the [!] key to turn
the display backlight on or off
On
Off
Mode
Zero
Test
!
!
Mode
Zero/Test
On/Off
AAA/LR03
AAA/LR03
AAA/LR03
AAA/LR03
(D) batteries
(E) seal ring
(C) notch
(F) instrument back
(B) battery compart-
ment cover
(A) screws

10 VWR ver 1 23.01.2018
Operational keys
Switch the unit on using the [ON/OFF] key.
The display shows the following:
Select the required test using the [MODE] key.
Scroll Memory (SM)
To avoid unnecessary scrolling for the required test method, the in-
strument memorizes the last method used before being switched off.
When the instrument is switched on again, the scroll list comes up with
the last used test method first.
The display shows the following:

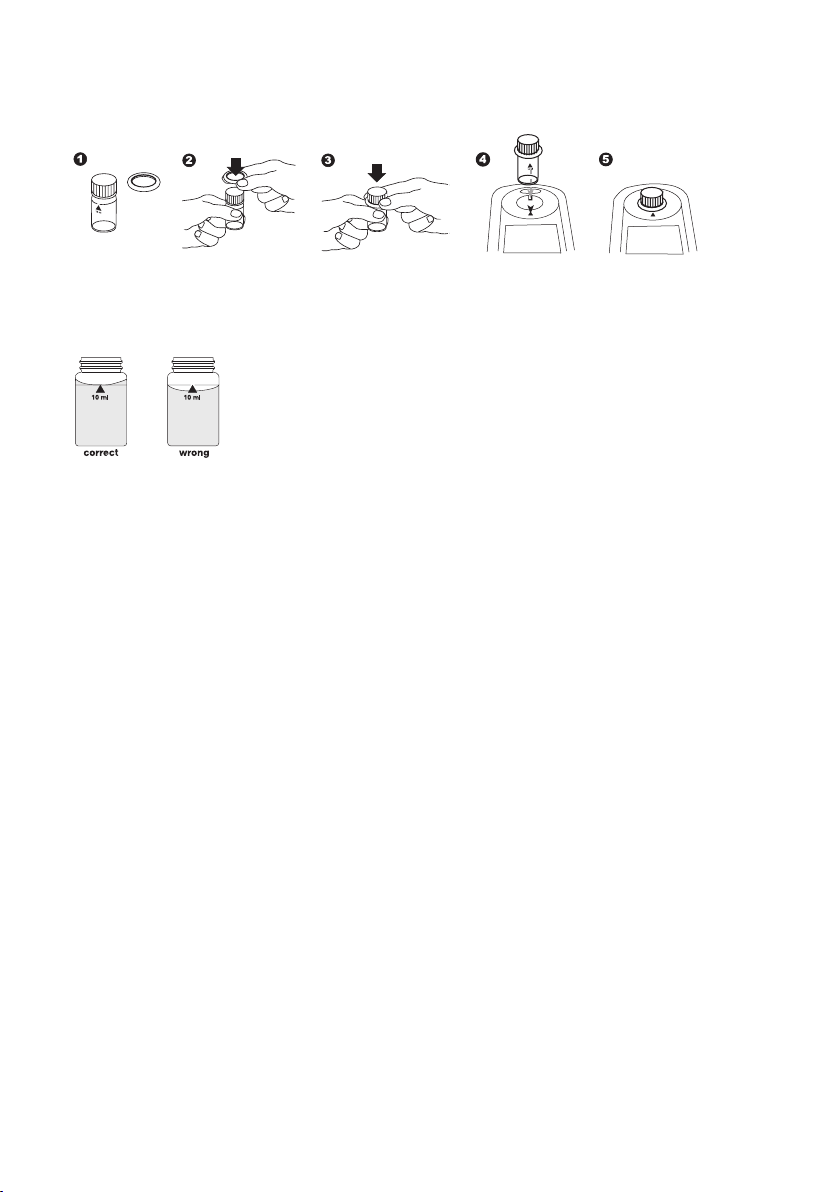

Fill a clean vial with the water sample up to the 10 ml mark, screw
the cap on and place the vial in the sample chamber making sure that
the marks are aligned.
Press the [ZERO/TEST] key (see OTZ).
The "Method" symbol flashes for approx. 8 seconds.
The display shows the following:
After zero calibration is completed, remove the vial from the sample
chamber. The characteristic coloration appears after the addition of
the reagents.
Replace the cap on the vial and place in the sample chamber making
sure that the marks are aligned.
Press the [ZERO/TEST] key.
(For Countdown/reaction period see page 11
The "Method" symbol flashes for approx. 3 seconds.
The result appears in the display.
The result is saved automatically.
Repeating the test:
Press the [ZERO/TEST] key again.
OTZ (One Time Zero):
The zero setting is held in memory until the instrument is switched
off. It is not necessary to perform a new zero each time, if the water
samples under test are from the same body of water and the conditions
of testing are the same.
The zero setting can be repeated each time if necessary.
Repeating the zero:
Press the [ZERO/TEST] key for 2 seconds.
Zero
Test
METHOD
METHOD
METHOD
RESULT
On
Off
Mode
Zero
Test
Zero
Test
Zero
Test
0.0.0
METHOD
