WE-EF VLR100 LED Series User manual

Safety Notice
The manufacturer is discharged from liability when damage
is caused by improper use or installation.
If any luminaire and/or accessory is subsequently modi-
fied, the persons responsible for the modification shall be
considered as manufacturer.
VLR100 LED_250522 / 006-1294
Technical specifications are subject to change.
© WE-EF 2022
we-ef.com
WE-EF LIGHTING USA
Tel [phone]
[email protected]
WE-EF LIGHTING
Installation and
Maintenance Instructions for
Linear Wallwasher
VLR100 LED Series

120-
277 V
max. ø 0.335 in 18 AWG
1.65
A
1.57
L
ø 0.197
B
1.89
2.28
C
180
º
1.65
A
1.89
L
ø 0.236
B
1.89
2.68
C
180
º

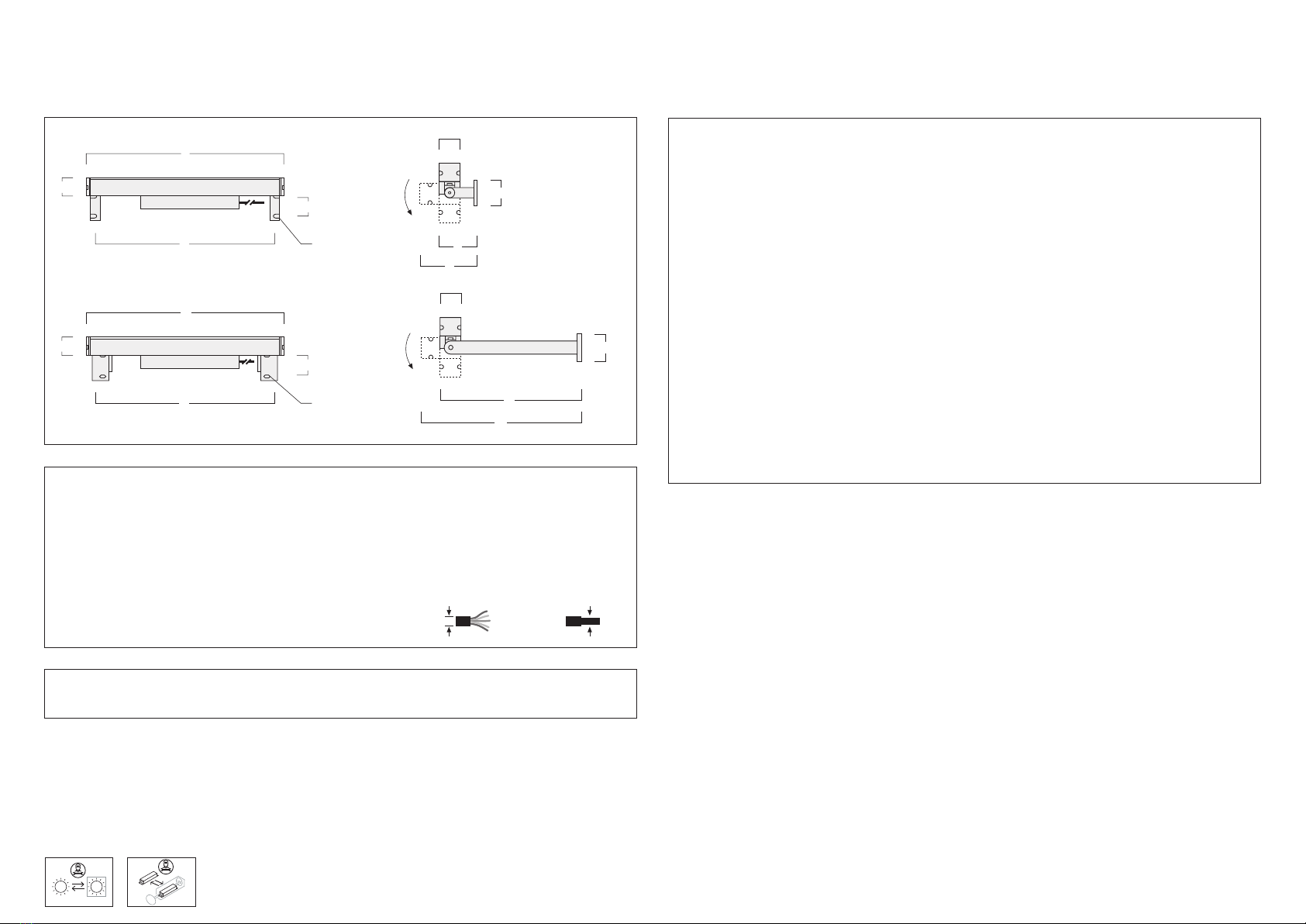

Linear Wallwasher
IP67, IK08
Light source
VLR110 ......................... 16 LED 10W*
VLR120 ......................... 32 LED 20W*
VLR130 ..........................48 LED 30W*
VLR140 ..........................64 LED 40W*
VLR150 ..........................80 LED 50W*
* Nominal power, for latest data refer to
www.we-ef.com
Class I, ta = 25°C
Weight:
VLR100 ...........................2.6 – 10.6 lb
Due to the used materials these luminaires are not
suitable for durable underwater use.
Tools required
– 3 mm and 5 mm Allen keys
Installation
The product must be installed and maintained by
a suitably qualified professional in compliance with
latest building/construction and/or electrical regu-
lations and relevant legislation.
Attention! Switch off mains electrical supply prior
to installing and connecting the luminaire. Do not
open luminaire while mains supply is switched on.
Notice: If the luminaire is modified by anybody
other than the original manufacturer, then the
warranty will no longer be valid and shall become
the full responsibility of the modifying person/
organisation. Claims based on defects attributable
to improper installation and/or application, and the
consequences thereof, are excluded.
In case of component failure, LED replacement
due to abnormal circumstances or at end of life,
replacement must be carried out by a suitably qua-
lified and trained professional.
In case of questions please contact our technical
hotline: [phone] (from Monday - Friday
from 08.00 until 16.00 hours).
Maintenance
Apart from cleaning the product’s exterior surfaces,
no special maintenance work is required. Do not
use high-pressure cleaners.
Protect our environment: Discard used LEDs in
compliance with the most recent environmental
legislation.

Typ L A B C
VLR 110 12.91 11.30 3.46 5.20
VLR 120 24.72 23.11 3.46 5.20
VLR 130 36.53 34.92 3.46 5.20
VLR 140 48.35 46.73 3.46 5.20
VLR 150 60.16 58.54 3.46 5.20
VLR 120 LA 24.72 23.11 16.69 18.43
VLR 130 LA 36.53 34.92 16.69 18.43
VLR 140 LA 48.35 46.73 16.69 18.43
Table 1
Installation Procedure
Luminaire is factory sealed and does not need to
be opened during installation.
1) Switch off the mains electrical supply.
2) Determine position of the fixing screws D(not
included). Check table 1 about the distance of
the drilling holes.
Drill corresponding fixing holes and insert dowel
E(not included, choose suitable fixing material).
G
F
C
A
E
B
D
Remove foil before use
LN
PE
0–10 V +
0–10 V -
VLR110 Remote
3) Install wall bracket Bto luminaire Aand fix it
applying 2Nm (17.7in-lb) of pressure by use of
the screws G.
4) Install the luminaire Ato the determined positi-
on by use of the screws D.
5) Connect cable C:
a) for the remote version (VLR110) the cable C
of the gear box Fis connected to the mains
supply in accordance with labelled cables.
b) for the integral version the cable Cof the
luminaire is connected to the mains supply
in accordance with labelled cables.
6) After the luminaire Ais connected, the bracket
can get adjusted by loosening and respectively
tightening screws G.
7) Remove film from the lens before use.
ATTENTION: Make sure not to damage any
electrical cable, water pipes or other devices.
Remove foil before use
LN
PE
G
C
B
E
A
B
0–10 V +
0–10 V -
VLR120/130/140/150 Integral
