Page 3 of 6WIKA Data Sheet CT 10.01 ∙ 12/2009
Specifications Model CPG1000
Pressure range mbar 0 … 70 1)
Over pressure safety mbar 350
Burst pressure mbar 3500
Resolution mbar 0.001
Pressure range bar 0 … 1 0 ... 2 -1 ... +1 1) -1 ... +2 1) 0 ... 7 0 ... 20
Over pressure safety bar 2 4 2 4 14 42
Burst pressure bar 35 35 35 35 70 140
Resolution bar 0.0001 0.0001 0.0001 0.0001 0.0001 0.001
Pressure range bar 0 ... 35 0 ... 70 0 ... 140 0 ... 200 0 ... 350 0 ... 700
Over pressure safety bar 70 140 210 420 700 1100
Burst pressure bar 140 700 700 700 700 1100
Resolution bar 0.001 0.001 0.01 0.01 0.01 0.01
Pressure range bar abs. 0 ... 1 0 ... 2 0 ... 7 0 ... 20
Over pressure safety bar abs. 2 4 14 42
Burst pressure bar abs. 35 35 70 140
Resolution bar abs. 0.0001 0.0001 0.0001 0.001
Measurement uncertainty
Relative pressure % / FS ± 0.05; (± 0.1 for 0 ... 70 mbar)
Vacuum measuring ranges % / FS
% / FS
± 0.25; (measuring ranges up to max. 35 bar) 2)
± 0.1; (measuring ranges -1 ... +1 bar and -1 ... +2 bar)
Types of pressure
Relative pressure, absolute pressure (up to 20 bar abs) and vacuum measuring ranges)
Pressure connection ¼" NPT male (incl. adapter ¼" NPT female on G ½ male)
Pressure medium All liquids and gases compatible with 316 stainless steel 1)
Data logger 3) Cyclic logger: automatic recording of up to 8500 values;
Cycle time: selectable from 1 ... 3600 sec. in the following steps
1 sec., 2 sec., 5 sec., 10 sec., 30 sec., 1 min., 2 min., 5 min., 10 min., 30 min. and 1 h
Material
Wetted parts
316 stainless steel
Housing
stainless steel
One year stability 0.05 % of span
Permissible
Medium temperature °C -10 ... +55 (lower boundary above the freezing temperature of the medium)
Operating temperature °C -10 ... +55
Storage temperature °C -20 ... +70
Compensated temperature range °C 0 ... +50
Temperature coefficients 0.005 % of span per °C outside the range of 0 ... 50 °C
Display 5 1/2-digit display, character size 16.53 mm (0.65")
20-segment bar graph, 0 ... 100 %
Pressure units
psi, bar, mbar, Kg/cm², inH2O (4 °C, 20 °C or 60 °F), ft H2O (4 °C, 20 °C or 60 °F),
cmH2O (4 °C and 20 °C), mH2O (4 °C and 20 °C), kPa, MPa, inHg, mmHg, TORR,
custom engineering unit
Recording options Min/Max memory
Sampling rate 0.5/second to 10/second, selectable
PC-connection RS-232, USB with optional USB serial adapter
Power supply DC 4,5 V, 3 AA batteries
Battery life 1500h without backlight;
2000h at slow sample rate;
battery life can be displayed on bar graph to indicate the amount of time left
Low battery indicator displayed icon near the end of battery life
EMC Tested to 2004/108/EC, EN 61 326-1 Emission (Group 1, Class B) and Immunity (Ap-
pendix A)
ATEX II 3G Ex nA IIB T6
CSA Class I, Division 2, Groupe A, B, C, D
Ingress protection IP 65
Calibration 3.1 calibration certificate per DIN EN 10 204 (option: DKD-calibration certificate)
Dimensions mm 111 x 127 x 38
Weight g 455
1) The measuring ranges which are thus marked are to be used exclusively with clean and non-corrosive gases.
2) For measuring instruments with a max. measuring range of up to 2 bar, the working order in the vacuum measuring range is limited to -350 mbar.
(The measuring ranges -1 ... +1 bar and -1 ... +2 bar are excluded.)

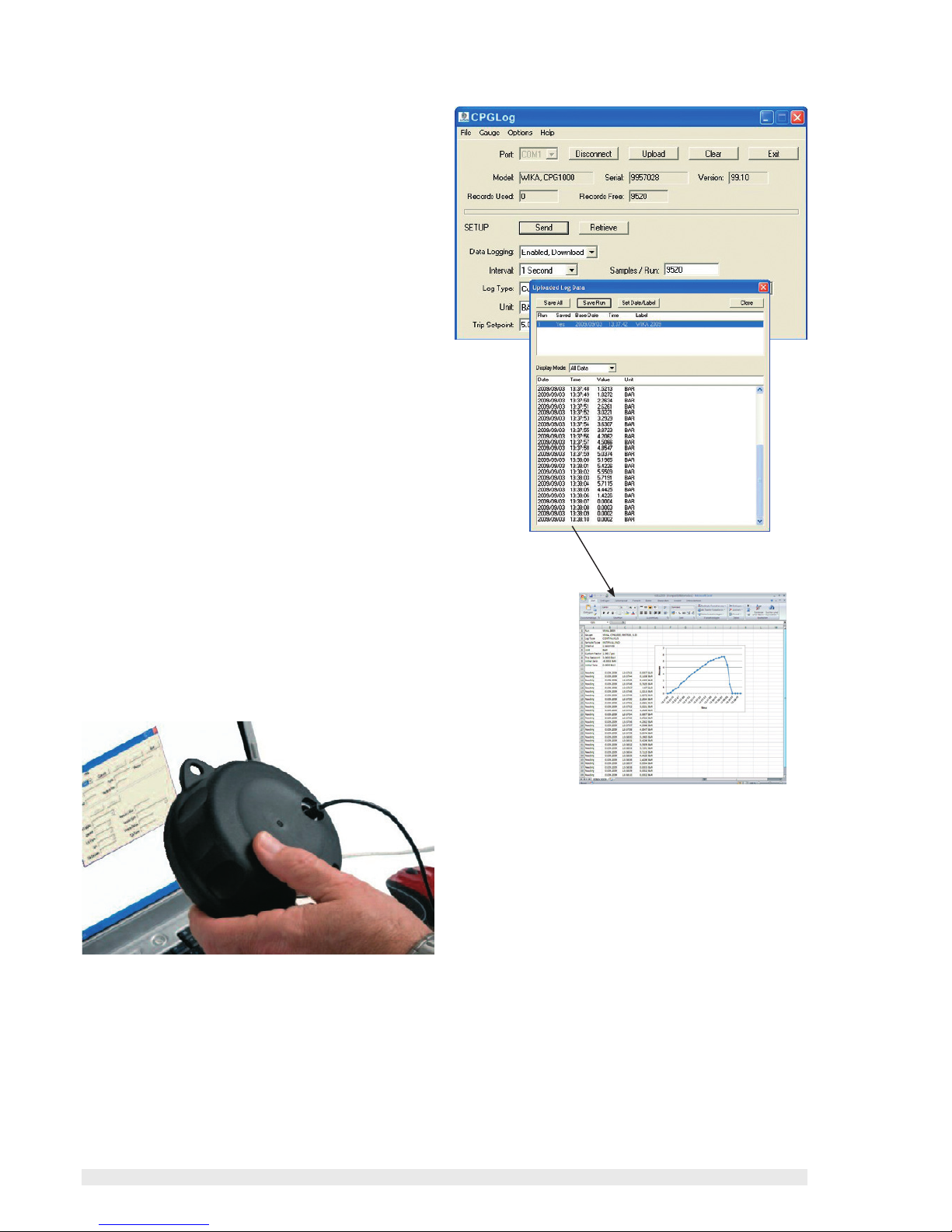

3) CPGLog data logger evaluation software is required for the utiisation of the logger functionality.
