Submersible pressure transmitter, model LH-10
Pegelsonde, Typ LH-10
Submersible pressure transmitter, model LH-10
Sonda de pozo, modelo LH-10
Transmetteur de pression immergeable, type LH-10

2WIKA operating instructions submersible pressure transmitter, model LH-10
EN
DE
14075011.03 07/2016 EN/DE/FR/ES
FR
ES
© 2013 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d'emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta!
Operating instructions model LH-10 Page 3 - 16
Betriebsanleitung Typ LH-10 Seite 17 - 30
Mode d'emploi type LH-10 Page 31 - 44
Manual de instrucciones modelo LH-10 Página 45 - 58

3WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
Contents
Contents
Declarations of conformity can be found online at www.wika.com.
1. General information 2
2. Safety 3
3. Specications 6
4. Design and function 7
5. Transport, packaging and storage 8
6. Commissioning, operation 9
7. Maintenance and cleaning 11
8. Faults 12
9. Dismounting, return and disposal 13

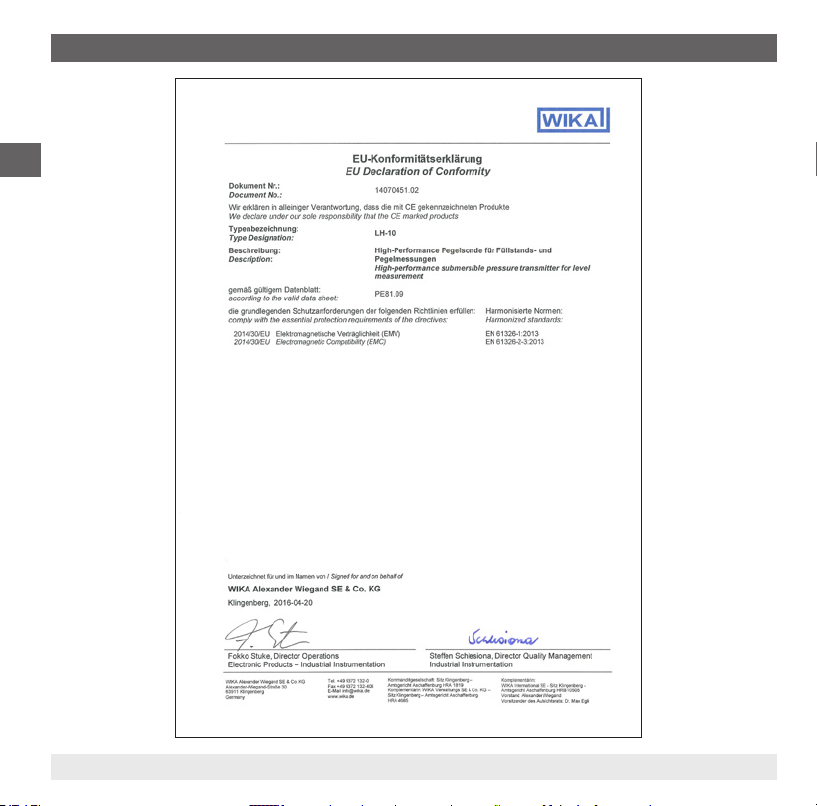

Appendix 1: EU Declaration of conformity 14

4WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
1. General information
1. General information
■
The submersible pressure transmitter described in the operating instructions has been designed and manufactured
using state-of-the-art technology. All components are subject to stringent quality and environmental criteria during
production. Our management systems are certied to ISO 9001 and ISO 14001.
■
These operating instructions contain important information on handling the instrument.Working safely requires that
all safety instructions and work instructions are observed.
■
Observe the relevant local accident prevention regulations and general safety regulations for the instrument's range
of use.
■
The operating instructions are part of the product and must be kept in the immediate vicinity of the instrument and
readily accessible to skilled personnel at any time.
■
Skilled personnel must have carefully read and understood the operating instructions prior to beginning any work.
■
The manufacturer's liability is void in the case of any damage caused by using the product contrary to its intended
use, non-compliance with these operating instructions, assignment of insuciently qualied skilled personnel or
unauthorised modications to the instrument.
■
The general terms and conditions contained in the sales documentation shall apply.
■
Subject to technical modications.
■
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: PE 81.09
- Application consultant: Tel.: [phone]
Fax: [phone]
[email protected]

5WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious injury or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light injuries or damage to equipment or the
environment, if not avoided.
Information
... points out useful tips, recommendations and information for ecient and trouble-free operation.
WARNING!
... indicates a potentially dangerous situation that can result in burns, caused by hot surfaces or liquids, if
not avoided.
2. Safety
WARNING!
Before installation, commissioning and operation, ensure that the appropriate submersible pressure trans-
mitter has been selected in terms of measuring range, design and specic measuring conditions.
Non-observance can result in serious injury and/or damage to the equipment.
Further important safety instructions can be found in the individual chapters of these operating instructions.
2.1 Intended use
The submersible pressure transmitter is used to convert hydrostatic pressure into an electrical signal.
The instrument is suitable for operation within an ambient temperature range from -10 ... +50 °C.
The instrument has been designed and built solely for the intended use described here, and may only be used
accordingly.
1. General information / 2. Safety

6WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
The technical specications contained in these operating instructions must be observed. Improper handling or opera-
tion of the pressure transmitter outside of its technical specications requires the instrument to be taken out of service
immediately and inspected by an authorised WIKA service engineer.
The manufacturer shall not be liable for claims of any type based on operation contrary to the intended use.
2.2 Personnelqualication
WARNING!
Riskofinjuryshouldqualicationbeinsucient!
Improper handling can result in considerable injury and damage to equipment.
The activities described in these operating instructions may only be carried out by skilled personnel who
have the qualications described below.
Skilled personnel
Skilled personnel are understood to be personnel who, based on their technical training, knowledge of measurement
and control technology and on their experience and knowledge of country-specic regulations, current standards and
directives, are capable of carrying out the work described and independently recognising potential hazards.
Special operating conditions require further appropriate knowledge, e.g. of aggressive media.
2.3 Special hazards
WARNING!
For hazardous media such as acetylene, ammable or toxic gases and liquids, etc., in addition to all
standard regulations, the appropriate existing codes or regulations must also be followed.
WARNING!
Residual media in the dismounted instrument can result in a risk to persons, the environment and
equipment.
Take sucient precautionary measures.
Do not use this instrument in safety or emergency stop devices. Incorrect use of the instrument can result in
injury.
2. Safety

7WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
If the serial number becomes illegible due to mechanical damage or overpainting, traceability will no longer be
possible.
Explanation of symbols
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant European directives.
CSA, Canadian Standard Association®
The instrument has been inspected and certied by CSA International.Instruments bearing this mark
comply with the applicable Canadian standards on safety (including explosion protection).
2. Safety
2.4 Labelling, safety marks
Product label
Model
Pin assignment
see explanation of symbols
Measuring range
Output signal
Power supply
S# serial number
P# product number

8WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
3.Specications
3. Specications
Measuring ranges
Relative pressure
bar Measuring range 0 ... 0.1 0 ... 0.16 0 ... 0.25 0 ... 0.4 0 ... 0.6 0 ... 1 0 ... 1.6
Overpressure limit 1 1.5 2 2 3 5 8
Burst pressure 2 2 2.4 2.4 4 610
Measuring range 0 ... 2.5 0 ... 4 0 ... 6 0 ... 10 0 ... 16 0 ... 25
Overpressure limit 8 10 10 10 16 25
Burst pressure 10 10 10 10 16 25
inWC Measuring range 0 ... 50 0 ... 100 0 ... 150 0 ... 250
Overpressure limit 750 750 750 1,100
Burst pressure 950 950 950 1,600
psi Measuring range 0 ... 5 0 ... 10 0 ... 15 0 ... 25 0 ... 50 0 ... 100 0 ... 150
Overpressure limit 30 45 70 120 150 150 150
Burst pressure 35 60 90 180 150 150 150
Measuring range 0 ... 160 0 ... 200 0 ... 300
Overpressure limit 160 200 300
Burst pressure 160 200 300
mH2O Measuring range 0 ... 1 0 ... 1.6 0 ... 2.5 0 ... 4 0 ... 6 0 ... 10 0 ... 16
Overpressure limit 10 15 20 20 30 50 80
Burst pressure 20 20 24 24 40 60 100
Measuring range 0 ... 25 0 ... 40 0 .. 60 0 ... 100 0 ... 160 0 ... 250
Overpressure limit 80 100 100 100 160 250
Burst pressure 100 100 100 100 160 250
When choosing the FEP cable, measuring ranges up to and including 0 ...10 bar, 0 ... 150 psi and 0 ... 100 mH2O are
available.
The given measuring ranges are also available in mbar, kPa and MPa.

9WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
Output signals
Signal type Signal
Current (2-wire) 4 ... 20 mA
Current (3-wire) 0 ... 20 mA
Voltage (3-wire) DC 0 ... 5 V
DC 0 ... 10 V
DC 0.5 ... 2.5 V
Power supply
The power supply depends on the selected output signal.
■
4 ... 20 mA: DC 10 ... 30 V
■
0 ... 20 mA: DC 10 ... 30 V
■
DC 0 ... 5 V: DC 10 ... 30 V
■
DC 0 ... 10 V: DC 14 ... 30 V
■
DC 0.5 ... 2.5 V: DC 5 ... 30 V (suitable for battery
operation)
Ingress protection (per IEC 60529)
IP 68
Permissible temperature ranges
■
Fluid
- PUR cable: -10 ... +50 °C
- FEP cable: -10 ... +85 °C
■
Ambient: -10 ... +50 °C
■
Storage: -30 ... +80 °C
Submersion depths
■
Submersible pressure
transmitter with FEP cable: up to 100 m
■
Submersible pressure
transmitter with PUR cable: up to 300 m
CE conformity
EMC directive 2004/108/EC, EN 61326 emission (group 1,
class B) and immunity (industrial application)
For special model numbers, e.g. LH-10000, please note the specications stated on the delivery note.
For further specications see WIKA data sheet PE 81.09 and the order documentation.
4. Design and function
4.1 Description
The prevailing pressure is measured at the sensor element through the deformation of a diaphragm. By supplying
power, this deformation of the diaphragm is converted into an electrical signal.The output signal from the pressure
transmitter is amplied and proportional to the prevailing pressure.
4.2 Scope of delivery
Cross-check scope of delivery with delivery note.
3.Specications/4.Designandfunction

10 WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
5. Transport, packaging and storage
5.1 Transport
Check the submersible pressure transmitter for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
5.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g. change in installation site, sending for
repair).
5.3 Storage
Permissible conditions at the place of storage:
Storage temperature: -30 ... +80 °C
Mount the protection cap for storing the submersible pressure transmitter, so that the diaphragm will not be damaged.
Avoid exposure to the following factors:
■
Direct sunlight or proximity to hot objects
■
Mechanical vibration, mechanical shock (putting it down hard)
■
Soot, vapour, dust and corrosive gases
■
Humid or wet environment
■
Potentially explosive environments, ammable atmospheres
Store the submersible pressure transmitter in its original packaging in a location that fulls the conditions listed above.
If the original packaging is not available, pack and store the instrument as described below:
1. Wrap the instrument in an antistatic plastic lm.
2. Place the instrument along with shock-absorbent material in the packaging.
3. If stored for a prolonged period of time (more than 30 days), place a bag containing a desiccant inside the packaging.
WARNING!
Before storing the instrument (following operation), remove any residual media.This is of particular
importance if the medium is hazardous to health, e.g. caustic, toxic, carcinogenic, radioactive, etc.
5. Transport, packaging and storage

11WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
6. Commissioning, operation
WARNING!
Observe the working conditions in accordance with chapter 3 “Specications”.
CAUTION!
Prior to commissioning, the submersible pressure transmitter must be subjected to a visual inspection.
■
Leaking uid is indicative of damage.
■
Only use the submersible pressure transmitter if it is in perfect condition with respect to safety.
6.1 Mechanical mounting

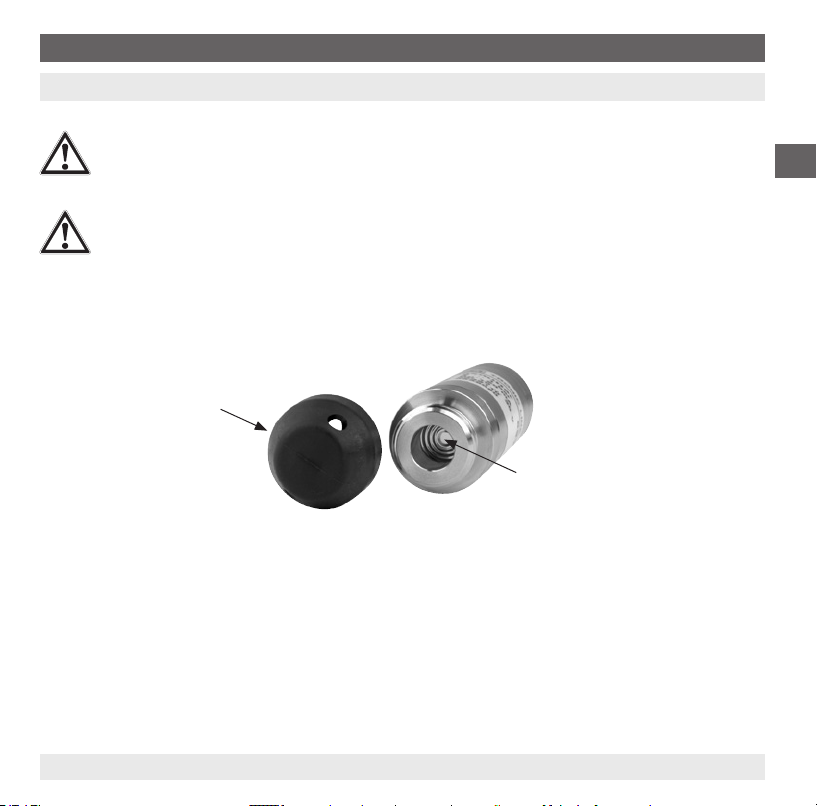

The protection cap protects the internal diaphragm from damage. Remove the protective cap if the medium is viscous
or contaminated.
6. Commissioning, operation
Requirements for mounting point
The existence of strong electromagnetic elds in a frequency range of < 100 MHz may result in increased measuring
errors up to 0.5 %. Do not install the instruments in the vicinity of strong electromagnetic sources of interference (e.g.
transmitting devices, radio equipment), or use sheath current lters where applicable.
Protection cap
Internal diaphragm

12 WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
6.2 Electrical mounting
6.2.1 Connection assembly
■
Use the submersible pressure transmitter with shielded cable and ground the shield on at least one end of the lead,
if the lines are longer than 30 m or leave the building.
■
When the shield of the cable is being connected, no potential dierences should exist between the medium, the
vessel and the ground connection of the junction box or the control cabinet.
■
Make sure that no moisture enters at the cable end.
6.2.2 Pin assignment
Cable outlet 2-wire 3-wire
U+brown brown
U-green green
S+- white
Shield grey grey
6.2.3 Setting up a voltage supply
The power supply for the instrument must be made via an energy-limited electrical circuit in accordance with section
9.4 of UL/EN/IEC 61010-1, or an LPS to UL/EN/IEC 60950-1 / CSA C22.2 No.60950-1, or class 2 in accordance with
UL1310/UL1585 (NEC or CEC).The power supply must be suitable for operation above 2,000 m should the instrument
be used at this altitude.
■
Power supply
The power supply depends on the selected output signal.
4 ... 20 mA: DC 10 ... 30 V
0 ... 20 mA: DC 10 ... 30 V
DC 0 ... 5 V: DC 10 ... 30 V
DC 0 ... 10 V: DC 14 ... 30 V
DC 0.5 ... 2.5 V:
DC 5 ... 30 V (suitable for battery operation)

13WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
6. Commissioning, operation / 7. Maintenance and cleaning
■
LoadinΩ
Current output (2-wire): ≤ (power supply - 10 V) / 0.02 A - (cable length in m x 0.14 Ω)
Current output (3-wire): ≤ (power supply - 3 V) / 0.02 A - (cable length in m x 0.14 Ω)
Voltage output (3-wire): > 100 kΩ
6.3 Functional check
The output signal must be proportional to the prevailing pressure. If this is not the case, this may indicate a damaged
diaphragm. In this case, see chapter 8 “Faults”.
7. Maintenance and cleaning
7.1 Maintenance
This submersible pressure transmitter is maintenance-free.
Repairs must only be carried out by the manufacturer.
7.2 Cleaning
CAUTION!
■
Prior to cleaning, switch o and disconnect the submersible pressure transmitter from the voltage
supply.
■
Clean the instrument with a moist cloth.
■
Wash or clean the dismounted instrument before returning it, in order to protect persons and the environ-
ment from exposure to residual media.
■
Residual media in dismounted instruments can result in a risk to persons, the environment and
equipment. Take sucient precautionary measures.
■
Do not use any pointed or hard objects for cleaning, as they may damage the diaphragm of the process
connection.
For information on returning the instrument see chapter 9.2 “Return”.

14 WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
8. Faults
In the event of any faults, rst check whether the submersible pressure transmitter is mounted correctly, mechanically
and electrically.
Faults Causes Measures
No output signal Cable break Check the continuity, and if necessary exchange
the cable
No/wrong power supply Correct the power supply
No/wrong output signal Wiring error Rectify the wiring
Signal span too small/drops Mechanical overload caused by overpres-
sure
Replace instrument; if it fails repeatedly, contact
the manufacturer.
Diaphragm damaged, e.g. due to impacts,
abrasive/aggressive medium; corrosion at
diaphragm; transmission medium missing
Replace instrument; if it fails repeatedly, contact
the manufacturer.
Signal span varies/inaccurate Operating temperature too high/low Operate the instrument in the permissible
temperature range
Deviating zero point signal Operating temperature too high/low Operate the instrument in the permissible
temperature range
Diaphragm damaged, e.g. due to impacts,
abrasive/aggressive medium; corrosion at
diaphragm; transmission medium missing
Replace instrument; if it fails repeatedly, contact
the manufacturer.
If complaint is unjustied, we will charge you the complaint processing fees.
CAUTION!
If faults cannot be eliminated by means of the measures listed above, shut down the submersible pressure
transmitter immediately, and ensure that pressure is no longer present, and secure the instrument from
being put back into operation inadvertently. In this case, contact the manufacturer. If a return is needed,
please follow the instructions given in chapter 9.2 “Return”.
8. Faults

15WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
9. Dismounting, return and disposal
WARNING!
Residual media in the dismounted instrument can result in a risk to persons, the environment and
equipment. Take sucient precautionary measures.
9.1 Disassembly
WARNING!
Risk of burns!
Let the instrument cool down suciently before dismounting it!
During dismounting there is a risk of residual, dangerously hot media.
9.2 Return
WARNING!
Strictly observe the following when shipping the submersible pressure transmitter:
All submersible pressure transmitters delivered to WIKA must be free from any kind of hazardous substances
(acids, bases, solutions, etc.).
When returning the instrument, use the original packaging or a suitable transport package.
To avoid damage:
1. Mount the protection cap.
2. Wrap the instrument in an antistatic plastic lm.
3. Place the instrument along with shock-absorbent material in the packaging. Place shock-absorbent material evenly
on all sides of the transport packaging.
4. If possible, place a bag containing a desiccant inside the packaging.
5. Label the shipment as carriage of a highly sensitive measuring instrument.
Information on returns can be found under the heading “Service” on our local website.
9.3 Disposal
Incorrect disposal can put the environment at risk.
Dispose of instrument components and packaging materials in an environmentally compatible way and in accordance
with the country-specic waste disposal regulations.
9. Dismounting, return and disposal

16 WIKA operating instructions submersible pressure transmitter, model LH-10
14075011.03 07/2016 EN/DE/FR/ES
EN
Appendix 1: EU Declaration of conformity

17WIKA Betriebsanleitung Pegelsonde, Typ LH-10
DE
14075011.03 07/2016 EN/DE/FR/ES
Inhalt
Inhalt
Konformitätserklärungen nden Sie online unter www.wika.de.
1. Allgemeines 18
2. Sicherheit 19
3. Technische Daten 22
4. Aufbau und Funktion 23
5. Transport, Verpackung und Lagerung 24
6. Inbetriebnahme, Betrieb 25
7. Wartung und Reinigung 27
8. Störungen 27
9. Demontage, Rücksendung und Entsorgung 28
Anlage 1: EU-Konformitätserklärung 30

18 WIKA Betriebsanleitung Pegelsonde, Typ LH-10
DE
14075011.03 07/2016 EN/DE/FR/ES
1. Allgemeines
1. Allgemeines
■
Die in der Betriebsanleitung beschriebene Pegelsonde wird nach dem aktuellen Stand der Technik konstruiert und
gefertigt. Alle Komponenten unterliegen während der Fertigung strengen Qualitäts- und Umweltkriterien. Unsere
Managementsysteme sind nach ISO 9001 und ISO 14001 zertiziert.
■
Diese Betriebsanleitung gibt wichtige Hinweise zum Umgang mit dem Gerät.Voraussetzung für sicheres Arbeiten ist
die Einhaltung aller angegebenen Sicherheitshinweise und Handlungsanweisungen.
■
Die für den Einsatzbereich des Gerätes geltenden örtlichen Unfallverhütungsvorschriften und allgemeinen
Sicherheitsbestimmungen einhalten.
■
Die Betriebsanleitung ist Produktbestandteil und muss in unmittelbarer Nähe des Gerätes für das Fachpersonal
jederzeit zugänglich aufbewahrt werden.
■
Das Fachpersonal muss die Betriebsanleitung vor Beginn aller Arbeiten sorgfältig durchgelesen und verstanden
haben.
■
Die Haftung des Herstellers erlischt bei Schäden durch bestimmungswidrige Verwendung, Nichtbeachten dieser
Betriebsanleitung, Einsatz ungenügend qualizierten Fachpersonals sowie eigenmächtiger Veränderung am Gerät.
■
Es gelten die allgemeinen Geschäftsbedingungen in den Verkaufsunterlagen.
■
Technische Änderungen vorbehalten.
■
Weitere Informationen:
- Internet-Adresse: www.wika.de / www.wika.com
- zugehöriges Datenblatt: PE 81.09
- Anwendungsberater: Tel.: [phone]
Fax: [phone]
[email protected]

19WIKA Betriebsanleitung Pegelsonde, Typ LH-10
DE
14075011.03 07/2016 EN/DE/FR/ES
Symbolerklärung
WARNUNG!
… weist auf eine möglicherweise gefährliche Situation hin, die zum Tod oder zu schweren Verletzungen
führen kann, wenn sie nicht gemieden wird.
VORSICHT!
… weist auf eine möglicherweise gefährliche Situation hin, die zu geringfügigen oder leichten Verletzungen
bzw. Sach- und Umweltschäden führen kann, wenn sie nicht gemieden wird.
Information
… hebt nützliche Tipps und Empfehlungen sowie Informationen für einen ezienten und störungsfreien
Betrieb hervor.
WARNUNG!
… weist auf eine möglicherweise gefährliche Situation hin, die durch heiße Oberächen oder Flüssigkeiten
zu Verbrennungen führen kann, wenn sie nicht gemieden wird.
2. Sicherheit
WARNUNG!
Vor Montage, Inbetriebnahme und Betrieb sicherstellen, dass die richtige Pegelsonde hinsichtlich Messbe-
reich, Ausführung und spezischen Messbedingungen ausgewählt wurde.
Bei Nichtbeachten können schwere Körperverletzungen und/oder Sachschäden auftreten.
Weitere wichtige Sicherheitshinweise benden sich in den einzelnen Kapiteln dieser Betriebsanleitung.
2.1 Bestimmungsgemäße Verwendung
Die Pegelsonde dient dazu hydrostatischen Druck in ein elektrisches Signal umzuwandeln.
Das Gerät eignet sich für den Betrieb in einem Umgebungstemperaturbereich von -10 ... +50 °C.
Das Gerät ist ausschließlich für den hier beschriebenen bestimmungsgemäßen Verwendungszweck konzipiert und
konstruiert und darf nur dementsprechend verwendet werden.
1. Allgemeines / 2. Sicherheit

20 WIKA Betriebsanleitung Pegelsonde, Typ LH-10
DE
14075011.03 07/2016 EN/DE/FR/ES
Die technischen Spezikationen in dieser Betriebsanleitung sind einzuhalten. Eine unsachgemäße Handhabung oder
ein Betreiben des Druckmessumformers außerhalb der technischen Spezikationen macht die sofortige Stilllegung
und Überprüfung durch einen autorisierten WIKA-Servicemitarbeiter erforderlich.
Ansprüche jeglicher Art aufgrund von nicht bestimmungsgemäßer Verwendung sind ausgeschlossen.
2.2 Personalqualikation
WARNUNG!
VerletzungsgefahrbeiunzureichenderQualikation!
Unsachgemäßer Umgang kann zu erheblichen Personen- und Sachschäden führen.
Die in dieser Betriebsanleitung beschriebenen Tätigkeiten nur durch Fachpersonal nachfolgend beschrie-
bener Qualikation durchführen lassen.
Fachpersonal
Das Fachpersonal ist aufgrund seiner fachlichen Ausbildung, seiner Kenntnisse der Mess- und Regelungstechnik
und seiner Erfahrungen sowie Kenntnis der landesspezischen Vorschriften, geltenden Normen und Richtlinien in der
Lage, die beschriebenen Arbeiten auszuführen und mögliche Gefahren selbstständig zu erkennen.
Spezielle Einsatzbedingungen verlangen weiteres entsprechendes Wissen, z. B. über aggressive Medien.
2.3 Besondere Gefahren
WARNUNG!
Bei gefährlichen Messstoen wie z. B. Acetylen, brennbaren oder giftigen Stoen etc. müssen über die
gesamten allgemeinen Regeln hinaus die einschlägigen Vorschriften beachtet werden.
WARNUNG!
Messstoreste in ausgebauten Pegelsonden können zur Gefährdung von Personen, Umwelt und
Einrichtung führen.
Ausreichende Vorsichtsmaßnahmen ergreifen.
Dieses Gerät nicht in Sicherheits- oder in Not-Aus-Einrichtungen benutzen. Fehlerhafte Anwendungen des
Gerätes können zu Verletzungen führen.
2. Sicherheit
