WIL-RICH 5810 User manual

1WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
5810 & 5830
LEVEL LIFT HITCH
CHISEL PLOW
Printed in USA (74244C) 5/12
ASSEMBLY MANUAL
WIL-RICH
PO Box 1030
Wahpeton, ND 58074
PH [phone]
Fax [phone]
www.wil-rich.com

2
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
PERSONAL SAFETY IS IMPORTANT!
ALL PERSONNEL INVOLVED WITH THE ASSEMBLY
AND/OR OPERATION OF THIS EQUIPMENT MUST BE
INFORMED OF PROPER SAFETY PROCEDURES.
OPERATOR'S AND ASSEMBLY MANUALS PROVIDE
THE NECESSARY INFORMATION. IF THE MANUAL IS
LOST FOR A PARTICULAR IMPLEMENT, ORDER A
REPLACEMENT AT ONCE. OPERATOR'S AND
ASSEMBLY MANUALS ARE AVAILABLE AT NO
CHARGE UPON REQUEST.
ADDRESS INQUIRIES TO:
WIL-RICH LLC
PO BOX 1030
WAHPETON, ND 58074
PH [phone] FAX [phone]

3WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
GRADE 2 GRADE 5 GRADE 8
TORQUE IN FOOT POUNDS
BOLT DIA 3/8 1/2 5/8 3/4 7/8 1
HEX HEAD 9/16 3/4 15/16 1-1/8 1-5/1 1-1/2
UNC GR2 18 45 89 160 252 320
UNC GR5 30 68 140 240 360 544
UNC GR8 40 100 196 340 528 792
UNF GR2 21 51 102 178 272 368
UNF GR5 32 70 168 264 392 572
UNF GR8 48 112 216 368 792 840
Whenreplacingabolt,useonlyaboltofthesame
gradeorhigher.Exceptinshearboltapplications,
whereyoumustusethesamegradebolt.
Boltswithnomarkingsaregrade2
Grade5 boltsfurnished withthe machineare
identifiedbythreeradiallinesonthehead.
Grade8 boltsfurnished withthe machineare
identifiedbysixradiallinesonthehead.
AllU-boltsaregrade5.
THIS SYMBOL USED TO CALL YOUR
ATTENTIONTOINSTRUCTIONSCON-
CERNINGYOURPERSONALSAFETY.
BESURETOOBSERVEANDFOLLOW
THESEINSTRUCTIONS
Removeallwiresandarrangethepartsconve-
niently.
NOTE:Alwayswearsafetyglassesorgoggles
andbecarefulwhencuttingwiresandsteelbands
astheyareundertensionandwillspringback
whencut.
Wherevertheterms"left"and"right"areused,
itmustbeunderstoodtomeanfromaposition
behindandfacingthemachine.
Lubricateallbearingsandmovingpartsasyou
proceedandmakesuretheyworkfreely.
Looselyinstallallboltsconnectingmatingparts
beforefinaltightening.
Whentighteningbolts,theymustbetorquedto
thepropernumberoffoot-poundsasindicated
inthetableunlessspecified.Itisimportantthat
allboltsbekepttight.
Onnewmachines,allnutsandboltsmustbere-
checkedafterafewhoursofoperation.
ASSEMBLY INFORMATION
Refer to Operator's Manual for safety instructions.
Do not stand or climb on machine when operating.
Use clean hazard flashers and SMV sign when
transporting.
Observe highway traffic regulations.
TO AVOID INJURY AND/OR MACHINE DAMAGE:
CAUTION
23325
Failure to follow these
instructions may result in
personal injury and/or
equipment damage.
Just before and during
operation be sure no one is
on or around the implement.
Before activating the
hydraulic system, check
hoses for proper
connections.
With wings down always
install hydraulic cylinder
channel lock(s) for
transporting.
Before lowering the wings for
the first time, make sure the
entire system has been
charged with oil.
CAUTION
54374

4
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
10FT MAIN FRAME
Note: Adequately support frame during
assembly, (allow sufficient ground clear-
ance for shank installation).
Note: See shank placement pages for cor-
rect locations of all add-on stubs.
10 FT MAIN FRAME
10 FT MAIN AXLE
MAIN MAST TUBE
AXLE CLAMP ASSEMBLY
3/4NCx14
GR5 BOLT
HEADLESS PIN 1x3-7/32
1/4x2-1/4 ROLL PIN
1NCx2-1/2 HEX BOLT
WING FOLD LINK - 4FT WING
ONLY
1NC LOCK NUT
FRAMESARE SUPPLIED WITH MAINAXLES ASSEMBLED IN FRAME. SEE PAGE 20
FORADDITIONALAXLEASSEMBLYINFORMATION

5WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
13FT MAIN FRAME
Note: See shank placement pages for cor-
rect locations of all add-on stubs.
Refer to Operator's Manual for safety instructions.
Do not stand or climb on machine when operating.
Use clean hazard flashers and SMV sign when
transporting.
Observe highway traffic regulations.
TO AVOID INJURY AND/OR MACHINE DAMAGE:
CAUTION
23325
13 FT MAIN FRAME
13 FT MAIN AXLE
MAIN MAST TUBE
AXLE CLAMP ASSEMBLY
3/4NCx14 GR5 BOLT
HEADLESS PIN 1x3-7/32
1/4x2-1/4 ROLL PIN
FRAMESARE SUPPLIED WITH MAINAXLES ASSEMBLED IN FRAME. SEE PAGE 20
FORADDITIONALAXLEASSEMBLY INFORMATION

6
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
5810 WING REST
WING REST
3/4NCx6
GR5 BOLT
LEFT HITCH POLE
RIGHT HITCH
POLE
NOTE: WING REST ON FRONT OF MAIN
FRAME MOUNTS ON TOP OF MAIN
FRAME TUBING AND BOLTS INTO HITCH
POLE PLATES.
NOTE: 4FT WING REQUIRES NO WING
REST. THE REST IS BUILT INTO THE
WING SIDE OF THE HINGE.
STAND CLEAR AT ALL TIMES:
DANGER
Never walk or stand in the
path of the wings.
Completely lower wings
before performing service
or adjustments.
Failure to do so wil l result in
serious injury or death.
22128
Use wing lock pin to lock wing
only when unit is to be stored to
prevent unplanned unfolding.
Store pin in lower hole when not
in use. Lock pin can be used on
eitheror rearwinglock, preferably
the front for access.
WING LICK PIN
SPRING LOCK PIN
WING LOCK PIN STORAGE

7WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
5830 WING REST
NOTE: WING REST ON FRONT OF MAIN
FRAME MOUNTS ON TOP OF MAIN
FRAME TUBINGAND BOLTS INTO HITCH
POLE PLATES.
NOTE: 6FT WING USES 1 WING REST ON
BACK OF IMPLEMENT.
3/4NCx6
GR5 BOLT
LEFT HITCH POLE WING LOCK PIN
WING REST
6’, 9’ & 12’ WINGS
WING REST
9’ & 12’ WINGS ONLY
3/4NCx2 GR5 BOLT
NOTE: BEFORE MOUNTING THE REAR
WING REST DETERMINE IF PLANNED
REAR ATTACHEMENTS NEED TO BE
MOUNTED FIRST.
PLATE
WING REST PLATE
SPRING LOCK PIN
RIGHT HITCH POLE
Use wing lock pin to lock wing
only when unit is to be stored to
prevent unplanned unfolding.
Store pin in lower hole when not
in use. Lock pin can be used on
eitheror rearwinglock, preferably
the front for access. WINGSTOP
SPRINGPIN
LOCKPINSTORAGEHOLE
LOCK
PIN
WING STOP VARIES BY
WING COMBINATION

8
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
10FT & 13FT PIVOT HITCH
LEFT HITCH POLE
RIGHT HITCH POLE
HITCH TIE TUBE
3/4NCx5-1/2 GR5 BOLT
MOUNT PLATE PAINTED
3/4NCx6 GR5 BOLT
NOTE: SEE PAGE 9 FOR CONTINUED
PIVOT HITCH ASSEMBLY
NOTE: ASSEMBLE ALL PARTS OF THE MAIN HITCH BEFORE ANY HARD-
WARE IS TIGHTENED.

9WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
10FT & 13FT PIVOT HITCH (CONTINUED)
MAIN FRAME
OUTER POLE
BRACE-RIGHT
CHISEL PLOW PIVOT HITCH
OUTER POLE BRACE-LEFT
3/4NCx6 GR5 BOLT
REAR CENTER
MAST TUBE
FRONT MAST LEVER
5810 FRONT LIFT TUBE - 62"
5830 FRONT LIFT TUBE - 103”
LINKAGE PIN 1-1/4x6-3/16
LINKAGE PIN 1-1/4x5-3/16
CAT HITCH
HEADLESS PIN
1-1/2X6-9/16
PIVOT SHAFT
ROLL PIN 3/8DIAX3
5/8NCx3-1/2 GR8 BOLT
5/8NCx3 GR5 BOLT
5/8NC 2POSLK NUT
1/2-13NCx1-1/2 GR5 BOLT
1NCx2-1/2 GR5 BOLT
1NC NUT
NYLON LOCK
3/4NCx2 GR8 BOLT
GUAGE WHEEL
JACK SEE PAGE 11
MOUNT PLATE PAINTED
5/8NC 2POSLK NUT
LINKAGE PIN
1-1/4x6-3/16
CLEVIS
HITCH
DANGER
CRUSHING HAZARD
Topreventserious injuryordeath:
Do not stand between implement
andmovingtractor.
Stop tractor engine and set park
brakebeforeinstallingpins.
UTILITY
POLE
NOTE: ASSEMBLE ALL PARTS
OF THE MAIN HITCH BEFORE
ANY HARDWARE IS TIGHTENED.

10
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
UTILITY POLE ASSEMBLY
FRONT HINGE TUBE ASSEMBLY - 13 FT MAIN FRAME
1/4" NUT
RUBBER EDGING
LIGHT PLUG HOLDER
1/4"x1" BOLT
3/8" NUT
3/8" LOCK WASHER
3/8" FLAT WASHER
3/8NCx6x4-3/4
U-BOLT
MANUAL TUBE
HOLDER
OPERATORS MANUAL
TUBE
1/4" FLAT WASHER
1/4"x3/4" BOLT
1/4" LOCK WASHER
HYD HOSE BRACKET
1NCX2-1/2 GR5 BOLT
5800 4TH HINGE - 12 FT
WING
1NCX4-1/2 GR5 BOLT
1NC LOCKNUT
4TH HINGE PLATE
5800 CP 4TH HINGE
TUBE
1NCX2-1/2 GR5 BOLT
1NC LOCKNUT
1 FLAT WASHER
5/8NCX7 GR5 BOLT

11 WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
LOCK PIN
SPRING LOCK
PIN
CAT HITCH
ON UNITS PRODUCED 2010 & UP - WITH UNIT FULLY
RAISED AND UNHITCHED,INSERT LOCK PIN INTO
CAT HITCH AS SHOWN TO HOLD FOR HITCHING.
REMOVE PIN AND STORE WHEN OPERATING
JACK MOUNT & FRONT ADJUST
1X2-3/8 PIN
POLE JACK
WING LOCK PIN
(5/8DIAx4-15/16)
HAIR PIN COTTER
(.14DIAx2.56)
LOCATE HOSE HOLDER WHERE
NOTEDTOTHISHITCHTUBE
LOCK PIN STORAGE
HAIR PIN COTTER
(.14DIAx2.56)
JACK MOUNT TUBEJACK MOUNT TUBE
ADJUSTMENT SCREW
1/4 X 2-1/4 ROLL PIN
ADJUSTMENT WRENCH

12
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
CASTERING GAUGE WHEEL
PIVOT GUAGE WHEEL MOUNT
TOP GAUGE WHEEL ARM
GAUGE WHEEL TUBE
GAUGE PIVOT BRACKET
SHIM
CASTER WHEEL LEG
LINK ARM STOP COLLAR
WHL ASSY 95L x 15 6B 6"8P GRAY
5/8NCx4x3-1/4 U-BOLT
1/2NFx3-1/4 GR5 BOLT
1/2NF NUT 2POSLK
WHEEL BOLT 1/2-20NFx1 (13/16 HEAD)
3/8NCx3 GR5 BOLT
3/8NC NUT 2POSLK
PIVOT BOLT
GAUGE WHEEL JACK
1NF LOCK NUT
NOTE: TIGHTEN LOCKNUTS
SNUGGLY, BUT DO NOT
OVER TIGHTEN. GAUGE
WHEEL TUBES MUST BE
ABLE TO PIVOT WHEN AD-
JUSTING.
NOTE: DEPENDING ON SHANK LOCATIONS, LOCATE GAUGE
WHEELS AT FRONT OUTSIDE CORNER OF MAIN INNER WING
APPROX. AS SHOWN.
6 BOLT HUB W/2"
SPINDLE ASSY
RIGID GAUGE WHEEL
GAUGE WHEEL MOUNT
HINGE PLATE
GAUGE WHEEL MAST
ADJUST ROD SUB ASSY
GAUGE WHEEL LEG
GAUGE WHEEL LOCK
6 BOLT HUB W/2"
SPINDLE ASSY
WHL ASSY 95L x 15 6B 6"8P GRAY
5/8NCx4x3-1/4 U-BOLT
BLT HEX 5/8NCX6 8YZ
1/2NCx2-1/2 GR5 BOLT
1/2NCx3-1/4 GR5 BOLT
WHEEL BOLT 1/2-20NFx1 (13/16
HEAD)
1/2NC NUT 2POSLK
1/2NC NUT 2POSLK
NOTE: LOCATE GAUGE WHEELS AT FRONT OUTSIDE CORNER
OF MAIN INNER WING APPROX. AS SHOWN.
NOTE: GAUGE WHEEL LESS
GAUGE WHEEL MOUNT IS USED
ON 4' WING, SEE PAGE 14
5/8NC NUT 2POSLK
5/8NC NUT 2POSLK
1/2NCx3-1/4 GR5 BOLT-DO NOT OVER TIGHTEN
GAUGE WHEEL CRANK

13 WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
STAND CLEAR AT ALL TIMES:
DANGER
Never walk or stand in the
path of the wings.
Completely lower wings
before performing service
or adjustments.
Failure to do so wil l result in
serious injury or death.
22128
4FT WING
Note: See shank placement pages
for correct locations of all add-on
stubs.
1NCx4-1/2 GR5 BOLT
1NCx5-1/2 GR5 BOLT
1” FLAT WASHER
4x30 HYD CYLINDER
4FT 5810/30 CP WING -
LEFT WING SHOWN
1NC NYLON LOCKNUT
2X4 -1FT STUB -
SEE PAGE 20
5/8X4 U-BOLT
1NCx2-1/2 GR5 BOLT
1NC NYLON LOCKNUT
WING ANCHOR
1/4X2-1/4 ROLL PIN
1X4 PIN
ALL MAIN LIFT CYLINDERS ARE
ASSEMBLEDWITH THE ROD ENDS UP

14
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
6' WING
STAND CLEAR AT ALL TIMES:
DANGER
Never walk or stand in the
path of the wings.
Completely lower wings
before performing service
or adjustments.
Failure to do so will result in
serious injury or death.
22128
UNITS ARE SUPPLIED WITH WING AXLES ASSEMBLED
IN WINGS. SEE PAGE 18 FOR SPECIFIC WINGAXLEAS-
SEMBLY INFORMATION.
ALLMAIN LIFT CYLINDERSAREAS-
SEMBLED AS SHOWN WITH THE
ROD ENDS UP
6FT 5810/30 CP WING -
LEFT WING SHOWN
LIFT LINK ARM - SHORT
WING LIFT LINK
4x30 HYD
CYLINDER
3/4NCX14
GR5 BOLT
AXLE CLAMP ASSEMBLY
1NCx5-1/2 GR5 BOLT - DO NOT OVERTIGHTEN
LOCK NUT, BOLT SHOULD ROTATE
1NCx4-1/2
GR5 BOLT
1” FLAT WASHER
CP WING AXLE ASSY - LEFT
WING MAST TUBE
AXLE ADJUST STRAP
HEADLESS PIN (1x4-1/8)
HEADLESS PIN
(1x3-7/32)
1/4 X 2-1/4 ROLL PIN
1NCX2-1/2 GR5 BOLT
1NC NYLON LOCKNUT
3/4NCX2-1/2 GR5 BOLT
1NCX3-1/2 GR5 BOLT
WING REST FLAT
1NC LOCKNUT
4x12.6 HYD
CYLINDER
4x10.8 HYD
CYLINDER
LEFT WING LIFT
BRACKET
RIGHT WING
LIFT BRACKET
1NCX4-1/2 GR5 BOLT
LINK BUSHING
1” FLAT WASHER
5830 WING REST
ASSEMBLELIFT BRACKETS
INTHISHOLEON5810UNITS
1-1/4 JAM NUT

15 WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
Note: See shank placement pages for correct locations of all add-on stubs.
WING LIFT LINK
3/4NCX14 GR5 BOLT
AXLE CLAMP ASSEMBLY
1” FLAT WASHER
CP WING AXLE ASSY - LEFT
WING MAST TUBE
HEADLESS PIN (1x3-7/32)
1NCX2-1/2 GR5 BOLT
1NC NYLON LOCKNUT
3/4NCX2-1/2 GR5 BOLT
1NCX3-1/2 GR5 BOLT
LIFT LINK ARM - SHORT
1NC LOCKNUT
4x30 HYD CYLINDER
1NCx4-1/2 GR5 BOLT
1/4 x 2-1/4 ROLL PIN HEADLESS PIN
(1x4-1/8)
9FT WING
STAND CLEAR AT ALL TIMES:
DANGER
Never walk or stand in the path of the wings. Completely lower wings before performing service or adjustments. Failure to do so will result in serious injury or death.
22128
SEE PAGE 18 & 19
4x12.6 HYD CYLINDER
4x10.8 HYD CYLINDER
RIGHT WING LIFT BRACKET LEFT WING LIFT BRACKET
1NCx4-1/2 GR5 BOLT
9FT4IN 5810/30 CP WING - LEFT SHOWN
WING REST FLAT
BUSHING
1NCx5-1/2 GR5 BOLT - DO NOT OVER-
TIGHTEN LOCK NUT, BOLT SHOULD
UNITSARE SUPPLIED WITH WING AXLESASSEMBLED IN WINGS. SEE PAGE
18 FOR SPECIFIC WINGAXLEASSEMBLY INFORMATION.
ALL MAIN LIFT CYLINDERSARE
ASSEMBLED AS SHOWN WITH
THE ROD ENDS UP
AXLE ADJUST STRAP
1-1/4 JAM NUT

16
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12

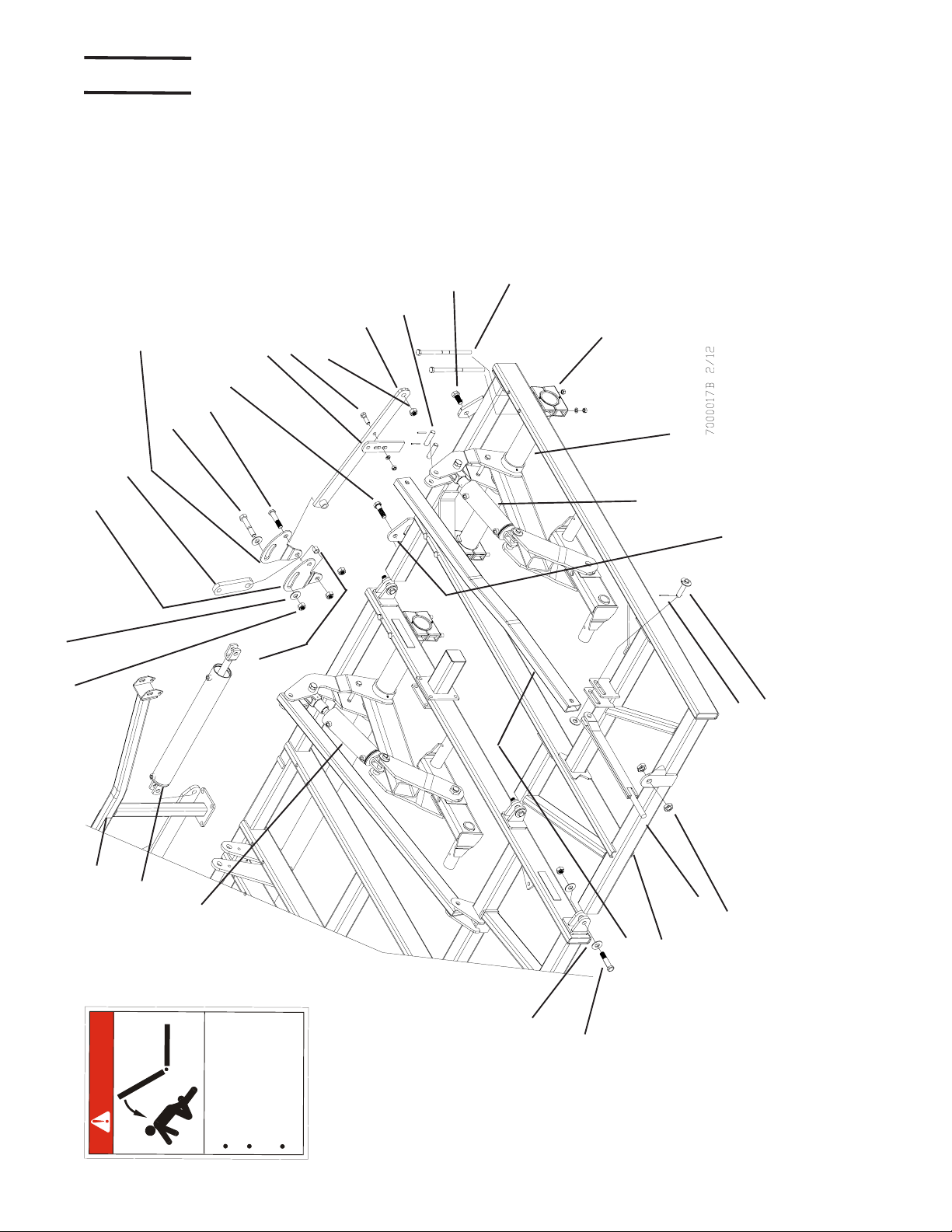

12 FT INNER WING ASSEMBLY
CP WING AXLE
ASSY - LEFT
Note: See shank placement pages for
correct locations of all add-on stubs.
STAND CLEAR AT ALL TIMES:
DANGER
Never walk or stand in the
path of the wings.
Completely lower wings
before performing service
or adjustments.
Failure to do so will result in
serious injury or death.
22128
12FT 5810/30 CP WING
- LEFT WING SHOWN
WING LINK STRAP
WING LIFT LINK
AXLE CLAMP
ASSEMBLY
1NCx5-1/2 GR5 BOLT
1” FLAT WASHER
1NCX2-1/2 GR5 BOLT
1NC NYLON LOCKNUT
3/4NCX2-1/2 GR5 BOLT
1NCX3-1/2 GR5 BOLT
WING REST FLAT
1NC LOCKNUT
4x30 HYD
CYLINDER
4x10.8 HYD
CYLINDER
1NCx4-1/2 GR5 BOLT
LEFT WING LIFT BRACKET
BUSHING
RIGHT WING LIFT BRACKET
BLTHEX1NC
X4-1/2
1” WASHER
12FTWING
BRACE
BLTHEX1NC
X2-1/2
BLTHEX1NC
X2-1/2
NUTHEX1NCLOCK
NUTHEX1NCLOCK
SEE PAGE 16 FOR WING
AXLE & LIFT ASSY INFO
UNITSARE SUPPLIED WITH WING AXLESASSEMBLED IN WINGS. SEE PAGE
18 FOR SPECIFIC WINGAXLEASSEMBLY INFORMATION.
ALL MAIN LIFT CYLINDERSARE
ASSEMBLED AS SHOWN WITH
THE ROD ENDS UP
AXLE ADJUST
STRAP
1-1/4 JAM NUT
1/4 x 2-1/4 ROLL PIN HEADLESS PIN
(1x4-1/8)

17 WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
PIN1-4
WING AXLE ASSEMBLY
2INHUB&SPINDLE
CLEVIS PLATE,
MOUNT AS
SHOWN
WINGAXLE-
LEFTSHOWN
3/4NCx14
GR5BOLT
BLTHEX1/2-20NF
X3-1/4 LOCKNUT
HEX1/2-20NF
1/4x2-1/4
ROLL PIN
WINGMAST
TUBE
ADJUST
SCREW
1-1/4JAMNUTS
PIN1-4-7/8
HYDCYL4X10.8
PIN1-6-3/8
BLT HEX
1NCX6
Note: Hardware is secured with matching hex
nuts and lock washers unless specified.
NUT HEX
1NCLOCK
1/4x2-1/4
ROLL PIN
WSHR FLAT 1
1/4x2-1/4
ROLL PIN
WSHR FLAT1
AXLE CLAMP
ASSEMBLY
BLT HEX 3/
4NCX7
BUSHING
NUT HEX
3/4LOCK
NOTE:CYLINDERSASSEMBLED
WITHROD UPAS SHOWN
ALLMAIN LIFT CYLINDERSAREASSEMBLEDAS
SHOWN WITH THE ROD ENDS UP
NOTE:TIEMAINAXLEMASTSTOGETHER
WITHBUSHINGANDBOLTASSHOWNON
THEWINGAXLE.

18
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
3' OUTER WING
STAND CLEAR AT ALL TIMES:
DANGER
Never walk or stand in the
path of the wings.
Completely lower wings
before performing service
or adjustments.
Failure to do so will result in
serious injury or death.
22128
Note: See shank placement pages
for correct locations of all add-on
stubs.
3FT CP WING - LEFT (SHOWN)
HEADLESS PIN 1x6-13/16
PIN ROLL 5/16 DIAx2
4x24 HYD CYLINDER
PIN1X5-1/8
1/4x2-1/4
ROLL PIN
1 FT SHANK STUB
SHANK PLATE
WSHR FLAT 1
PIN1X3-1/8
BLTHEX
3/4NCX4
Note: Hardware is secured with matching hex
nuts and lock washers unless specified. Note: On unit with 12 ft inner wings
and 3 ft outer wings unigue wing
fold links, brackets and rest stops
are required.
WING FOLD LINK - 11.00”
OVERALL LENGTH
RESTRICTED FOLD REST STOP
LIFT BRACKET

19 WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
STUB EXTENSIONS
Note: See shank placement pages
(40-49) for locations of stubs.
2FT CHISEL PLOW STUB (2X5/6)
STUB PLATE
CP SHANK STUB (2x5/6)
STUB PLATE PAINTED
3/4-10NCx4 GR5 BOLT
3/4 LOCK WASHER
3’ OUTER WING
MAIN FRAME OR
MAIN INNER WING
CP SHANK STUB
(2X5/6)
3/4 NC NUT
SHANK STUB PLATE
3/4 X 4-1/2 NC BOLT
NUT 2POSLK 3/4NC 5Z

20
WIL-RICH 5810/5830 CHISEL PLOW ASSY (74244C) 5/12
5800 MAIN AXLE AND WALKING TANDEM
MAIN AXLE
1-1/2NF HYDRA JAM LOCK NUT
LEFT WALKING TANDEM
RIGHT WALKING TANDEM
CLEVIS PLATE,
MOUNT AS
SHOWN
TANDEM SHAFT
BEARING BUSHING
PIN(1x6.38)
1” FLAT WASHER
1/4x2-1/4
ROLL PIN
4x12.6 HYD CYLINDER (MAIN AXLE)
4X10.8 HYD CYLINDER (WING AXLE)
SEAL
BEARING CONE 1-3/4ID
MAINFRAMEAXLE(13 FT)SHOWN, MAKECERTAINTHECORRECT4X12.6 IN.CYLINDERS
ARE INSTALLED WITH THE RODS UPAS SHOWN. MOUNT CYLINDERS ON WINGAXLE IN
SIMILAR MANNER. MAIN FRAME AND WING AXLES ARE SUPPLIED WITH WALKING TAN-
DEMSASSEMBLED.
1” NC LOCK NUT
1” NC X 6 BOLT
3/4” NC LOCK NUT
3/4” NC X
7 BOLT
BUSHING
CHANNEL LOCK FOR MAIN AXLE, ALWAYS
UTILIZE WHEN TRANSPORTING THE UNIT.
