SOILPRO 513 ASSEMBLY MANUAL74325D 8/15
1
ASSEMBLY INSTRUCTIONS
Printed in USA (74325D) 8/15
WIL-RICH
PO Box 1030
Wahpeton, ND 58074
PH [phone]
Fax [phone]
www.wil-rich.com

SOILPRO513ASSEMBLY MANUAL74325D 8//15 2
WARRANTY
The only warranty Wil-Rich gives and the only warranty the dealer is authorized to give is as
follows:
We warrant products sold by us to be in accordance with our published specifications or those
specifications agreed to by us in writing at time of sale. Our obligation and liability under this
warranty is expressly limited to repairing, or replacing, at our option, within 12 months after date of
retail delivery, any product not meeting the specifications. We make no other warranty, express
or implied and make no warranty of merchantability or of fitness for any particular purpose.
Our obligation under the warranty shall not include any transportation charges or costs or installa-
tionoranyliabilityfordirect,indirectorconsequentialdamageordelay. If requested by us, products
or parts for which a warranty claim is made are to be returned transportation prepaid to our factory.
Any improper use, operation beyond rated capacity, substitution of parts not approved by us, or any
alteration or repair by others in such manner as in our judgment affects the product materially and
adversely shall void this warranty. No employee or representative is authorized to change this
warranty in any way or grant any other warranty.
Wil-Rich reserves the right to make improvement changes on any of our products without notice.
When warranty limited or not applicable: Warranty on hoses, cylinders, hubs, spindles, engines,
valves, pumps or other trade accessories are limited to the warranties made by the respective
manufactures of these components. Rubber tires and tubes are warranted directly by the respec-
tive tire manufacturer only, and not by Wil-Rich.
Warranty does not apply to any machine or part which has been repaired or altered in any way so
as in the our judgment to affect its reliability, or which has been subject to misuse, negligence or
accident.
A Warranty Validation and Delivery Report Form must be filled out and received by Wil-Rich
to initiate the warranty coverage.
WARRANTY CLAIMS PROCEDURE
1. The warranty form must be returned toWil-Rich within fifteen (15) working days from the repair
date.
2. Parts returned to Wil-Rich without authorization will be refused. The parts must be retained at
the dealership for ninety (90) days after the claim has been filed. If the Service Department would
liketo inspect the parts, a packing slip will be mailed to the dealer.Thepackingslipmustbereturned
with the parts. The parts must be returned prepaid within thirty (30) days of receiving authorization.
After the parts are inspected and warranty is verified, credit for the return freight will be issued to
the dealer.
3. Parts that will be scrapped at the dealership will be inspected by a Wil-Rich Sales Representa-
tive, District Sales Manager or Service Representative within the ninety (90) day retaining period.

SOILPRO 513 ASSEMBLY MANUAL74325D 8/15
3
ALL PERSONNEL INVOLVED WITH THE ASSEMBLY AND/OR OPERATION OF THIS
EQUIPMENT MUST BE INFORMED OF PROPER SAFETY PROCEDURES. OPERATOR’S/
ASSEMBLY MANUALS PROVIDE THE NECESSARY INFORMATION. IF THE MANUAL IS
LOST FOR A PARTICULAR IMPLEMENT, ORDER A REPLACEMENT AT ONCE.
OPERATOR’SANDASSEMBLY MANUALSAREAVAILABLEAT NO CHARGE UPON RE-
QUEST.
PERSONALSAFETY IS IMPORTANT!
ADDRESSINQUIRIESTO: WIL-RICH POBOX1030
WAHPETON,ND58074
PH(701)642-2621 FAX [phone]
This Safety Alert symbol
means ATTENTION! BE-
COME ALERT YOUR
SAFETY IS INVOLVED!
TheSafetyAlertsymbol iden-
tifies important safety mes-
sages on the SoilPro 513 and
inthismanual. Whenyousee
thissymbol,bealerttothepos-
sibility of personal injury or
death. Followtheinstructions
inthesafety message.
WhyisSAFETYimportantto you?
3 Big Reasons Accidents Disable and Kill
Accidents Cost
Accidents Can Be Avoided
SIGNALWORDS:
Note the use of the signal
words DANGER, WARNING
andCAUTION withthe safety
messages. The appropriate
signalwordforeachmessage
has been selected using the
followingguidelines:
DANGER
An immediate and spe-
cific hazard which WILL
resultin severe personal
injury or death if the
proper precautions are
not taken.
WARNING
A specific hazard or un-
safe practice which
COULD result in severe
personal injury or death
if the proper precautions
are not taken
CAUTION
Unsafe practices which
COULD result in per-
sonal injury if proper
practices are not taken,
or as a reminder of good
safety practices.

SOILPRO513ASSEMBLY MANUAL74325D 8//15 4
CONTENTS
GENERALINFORMATION .......................................... 5
TRANSPORTSAFETY ..................................................6
ASSEMBLY
AXLEASSEMBLY .........................................................7
GANGANDAXLEPLACMENT ....................................8
MAINFRAMEASSEMBLY ............................................ 9
GANGLIFTASSEMBY ................................................10
HITCH ASSEMBLY ..................................................... 11
9SHANKFOLDINGWINGANCHOR........................12
JACK ASSEMBLY ......................................................13
UTILITYPOLEASSEMBLY ........................................14
SHANKFRAMEASSEMBLY ......................................15
HINGEASSEMBLY ......................................................16
WINGASSEMBLY .......................................................17
FOLDINGLINKAGE9SHANKREARFRAME ..........18
HOSECLAMPASSEMBLY .........................................19
LIFTHYDRAULICS-5,7,AND9SHANK .................20
LIFTHYDRAULICS-11AND13SHANK ..................21
DISCLIFTHYDRAULICS-5,7,AND9SHANK .......22
DISCLIFTHYDRAULICS-11AND13SHANK .........23
FOLDHYDRAULICS11AND13SHANK ..................24
FOLDHYDRAULICS9SHANK..................................25
SHANKASSEBMLY ....................................................26
HARROWARMASSEMBLY ......................................27
HARROWSTOPASSEMBLY .....................................28
3-BARHARROWASSEMBLY ...................................29
HARROW/BASKETASSEMLBY ...............................30
4-BARHARROWASSEMBLY ...................................31
2-BARHARROWASSEMLBY ...................................32
SPANNERTUBEASSEMBLY .....................................33
COILTINEHARROWPLACEMENT .........................34
HYDRAULICBASKETARM ................................. 35-36
HYDRAULICBASKETMOUNT5-30/7-24 ................37
HYDRAULICBASKETMOUNT7-30/9-24 ................38
HYDRAULICBASKETMOUNT9-24FOLDING .......39
HYDRAULICBASKETMOUNT11-24/13-24.............40
ROLLINGBASKETHYDDRAULICS-RIGID .............41
ROLLINGBASKETHYDRAULICS9-24FOLDING .. 42
ROLLINGBASKETHYDRAULICS11AND
13FOLDING ................................................................43
HYDRAULICBASKETVALVEMOUNT .....................44
SPIKETOOTHHARROWMOUNTS .........................45
SPIKETOOTHHARROWSECTION .........................46
SMVSIGN ....................................................................47
DECALS ................................................................. 48-49
LIGHTS ........................................................................50

SOILPRO 513 ASSEMBLY MANUAL74325D 8/15
5
GRADE 2 GRADE 5 GRADE 8
TORQUE IN FOOT POUNDS
BOLT DIA 3/8 1/2 5/8 3/4 7/8 1
HEX HEAD 9/16 3/4 15/1 1-1/8 1-5/1 1-1/2
UNC GR2 18 45 89 160 252 320
UNC GR5 30 68 140 240 360 544
UNC GR8 40 100 196 340 528 792
UNF GR2 21 51 102 178 272 368
UNF GR5 32 70 168 264 392 572
UNF GR8 48 112 216 368 792 840
When replacing a bolt, use only a bolt of the
same grade or higher. Except in shear bolt
applications, where you must use the same
gradebolt.
Bolts with no markings are grade 2
Grade5boltsfurnishedwiththemachine are
identifiedby three radiallinesonthehead.
Grade8boltsfurnishedwiththemachine are
identifiedby six radiallineson the head.
AllU-bolts are grade5.
THISSYMBOLUSEDTOCALLYOURATTEN-
TIONTOINSTRUCTIONSCONCERNINGYOUR
PERSONALSAFETY.
BESURETOOBSERVEANDFOLLOWTHESE
INSTRUCTIONS
Removeallwiresand arrange the partscon-
veniently.
NOTE: Always wear safety glasses or
goggles and be careful when cutting wires
andsteelbandsastheyareundertensionand
willspringbackwhencut.
Wherevertheterms"left"and"right"areused,
it must be understood to mean from a posi-
tionbehindandfacing the machine.
Lubricate all bearings and moving parts as
youproceedandmakesuretheyworkfreely.
Loosely install all bolts connecting mating
partsbeforefinaltightening.
Whentighteningbolts, they must betorqued
tothe proper numberoffoot-poundsas indi-
cated in the table unless specified. It is im-
portantthatall bolts be kepttight.
Onnewmachines,allnutsandboltsmustbe
recheckedafter a few hoursofoperation.
ASSEMBLY INFORMATION
Refer to Operator's Manual for safety instructions.
Do not stand or climb on machine when operating.
Use clean hazard flashers and SMV sign when
transporting.
Observe highway traffic regulations.
TO AVOID INJURY AND/OR MACHINE DAMAGE:
CAUTION
23325
FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN PERSONAL
INJURYAND/OR EQUIPMENT DAMAGE.
CAUTION
5333 4
Just before and during
operation be sure no oneis
on or around the
implement.
Before activating the
hydraulic system, check
hoses for proper
connections.
With wings down always
install hydraulic cylinder
channel lock(s) for
transporting.
Before lowering the wings for
the first time, make sure the
entiresystemhas beencharged
withoil.
MODIFICATIONS
Itisthepolicy of Wil-Rich toimproveitsprod-
uctswheneverpossibleandpracticaltodoso.
We reserve the right to make changes, im-
provements and modifications at any time
without incurring obligation to make such
changes, improvements on any equipment
soldpreviously.

SOILPRO513ASSEMBLY MANUAL74325D 8//15 6
SAFETY The safety chain should be hooked long
enoughtopermitfullturns.Unnecessaryslack
shouldbetakenup.
Intermediate support is to be used if there is
more than 6" of unsupported chain on either
sideofthe primary attachingpoint.
The intermediate support should not be
mounted more than 6" from the primary at-
tachingpoint.(See figure below)
The intermediate support is available from
yourWil-Richdealer.
SMVMOUNTINGBRACKET
SMV EMBLEM
NYLONTIEWRAP CI-77643
Thebracketprovidedisdesignedtomountto
numerousframesizesand can be orientated
indifferentpositions toavoidinterferencewith
implementcomponents.
TheSMVemblemistobesecuredas near to
therearandcentered,or as near tothe leftof
centerofimplement as practical.
Emblemisto be 2to6feetabove the ground
measuredfromtheloweredgeoftheemblem.
Keepsafetydecalsclean.Replaceanysafety
decals that are damaged, destroyed, miss-
ing, painted over or can no longer be read.
Replacement safety decals are available
throughyourdealer.
Thepurpose ofthesafety chain istoprovide
anauxiliaryattachingsystemtoretainthecon-
nection between towing and towed machine
in the event of separation of the primary at-
tachingsystem.
1/4NCx3/4BOLT
SAFETYCHAIN
CLEVISENDTO
TRACTOR
SAFETYCHAIN
MOUNT
CI-77825
PRIMARYATTACHINGPOINT
INTERMEDIATE
SUPPORT
6"MAX

SOILPRO 513 ASSEMBLY MANUAL74325D 8/15
7

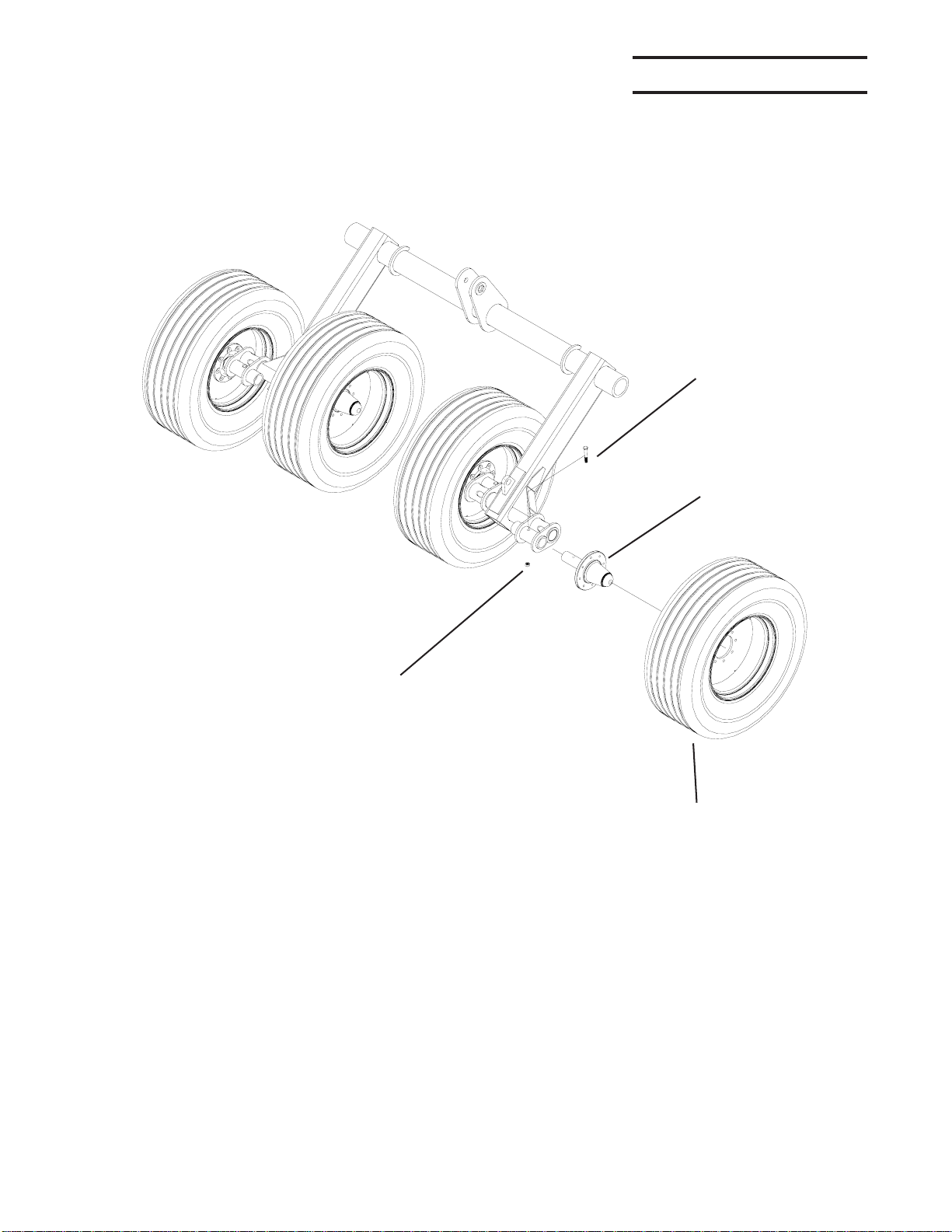

AXLE ASSEMBLY
WHL
ASSY 385/
65R22.5
(W106012)
5/8 x 4-1/2
GR 5 BOLT
(88381)
8 BOLT HUB
& SPINDLE
(247987)
5/8 LOCK
NUT
(88369)

SOILPRO513ASSEMBLY MANUAL74325D 8//15 8

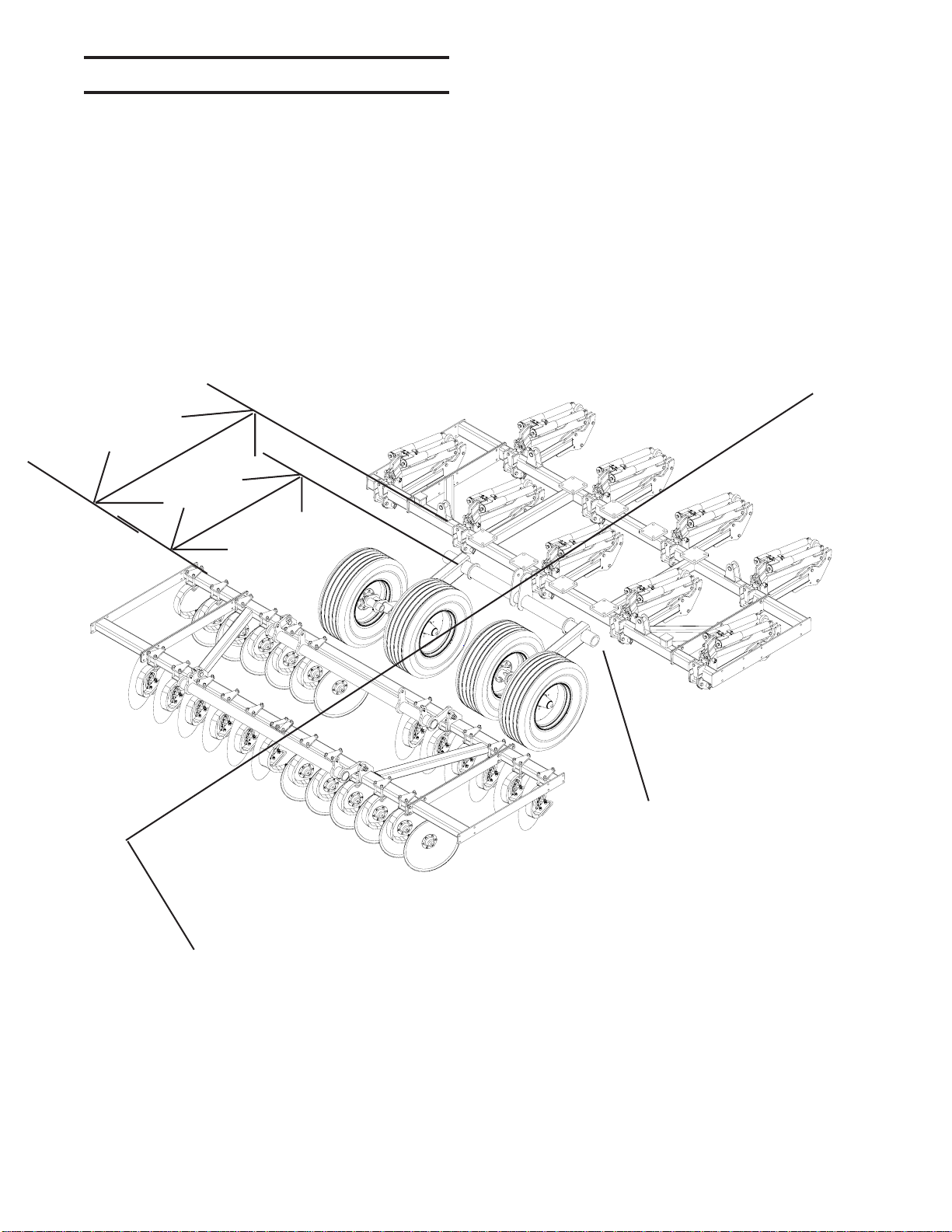

GANG AND AXLE SPACING
NOTE: PLACE DISC FRAME
ANDAXLE AS SHOWN. BOT-
TOM OF ROCK SHAFT TUBE
SHOULD BE SUPPORTED 25”
OFF GROUND.
ROCK SHAFT TUBE
87INCHES
96INCHES
CENTER LINE

SOILPRO 513 ASSEMBLY MANUAL74325D 8/15
9

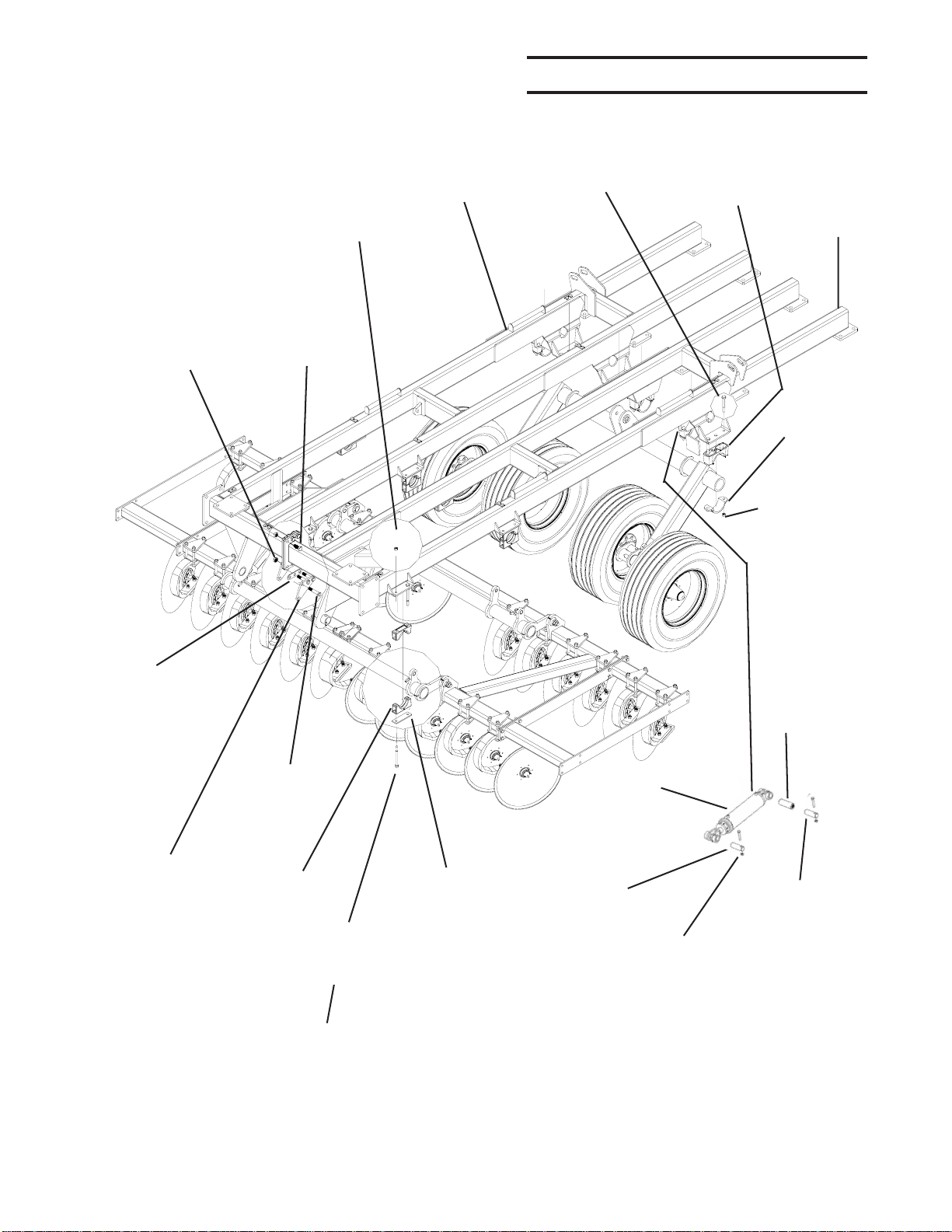

MAIN FRAME ASSEMBLY
SPACER
PLATE
(247211)
1” LOCK
NUT
(88348)
LEVELING
PLATE
(247210)
1 X 2-1/2
GR 5 BOLT
(88393)
3/4 x 8-1/2
GR 5 BOLT
(88487)
RIGHT
FRAME
HALF
(247204)
3/4 x 6
GR 5 BOLT
(88293) LEFT
FRAME
HALF
(247205)
AXLE CLAMP
BASE
(221098)
ZERK
(88528)
AXLE
CLAMP
CAP
(221097)
ZERK
(88550)
3/4 LOCK
NUT
(88356)
AXLE CLAMP
(34132)
3/4 LOCK
NUT
(88356)
1 x 5
GR 5 BOLT
(88312)
PIN - 1-1/2”
X 4-1/4”
(W104654)
NUT 2POSLK
1/2-13NC 5Z
(88363)
CYLINDER
PLATE
(350695)
NOTE: BOLT ORIENTATION. TORQUE
THESE BOLTS EVENLY. IF THEYARE NOT
TORQUED EVENLY, PART FAILURE MAY
OCCUR.
PIN - 1-1/2”
X 9-1/4”
(238524)
PLASTIC
BUSHING
(353398)

SOILPRO513ASSEMBLY MANUAL74325D 8//15 10

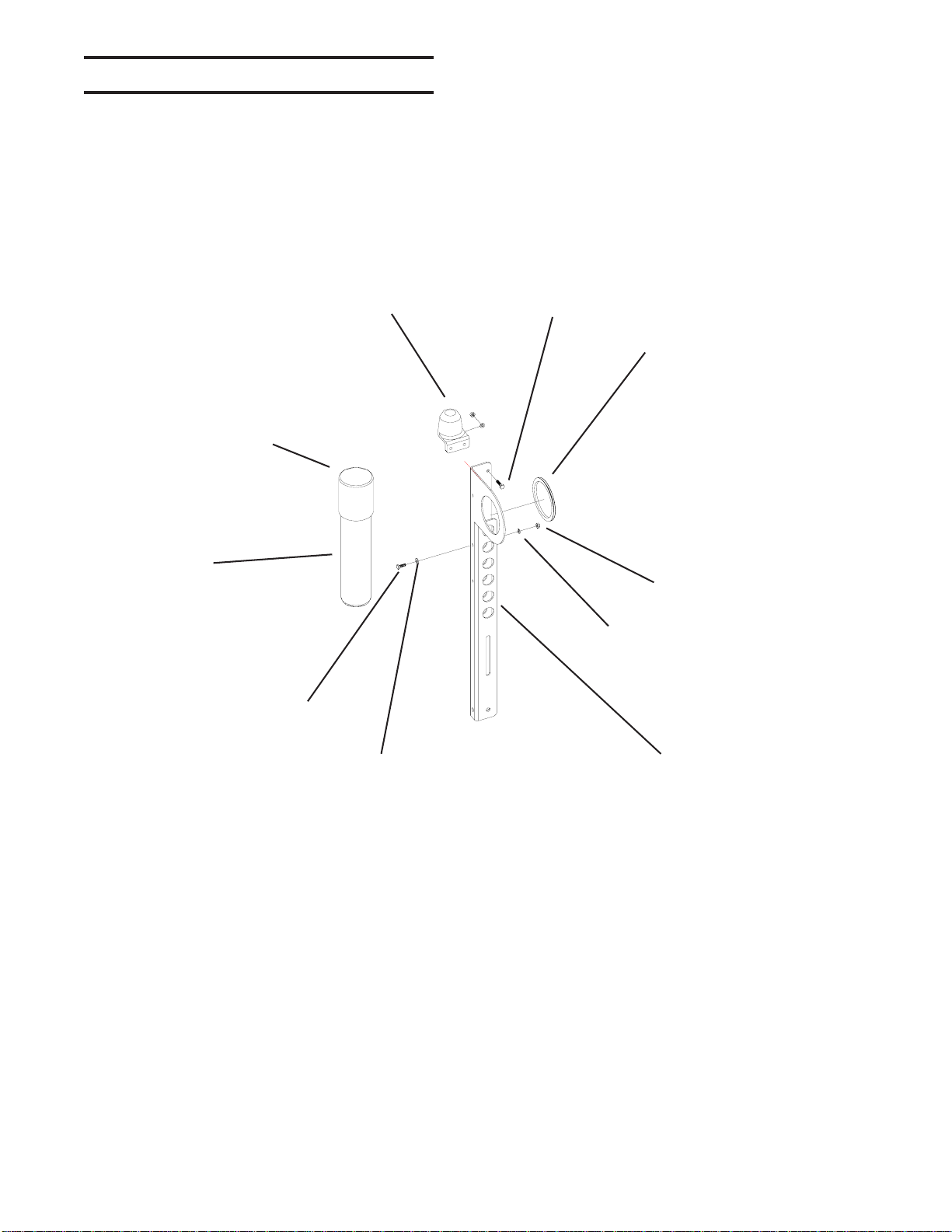

GANG LIFT ASSEMBLY
ADJUST
TUBE
(247105)
HEADLESS PIN
1-1/4X3.38
(68034)
& ROLL PINS
PIN ROLL 1/
4 X 2-1/4 Z
(42484)
4 X 8 CYLINDER (MAIN
FRAME)
3-3/4 X 8 CYLINDER
(WING)
BSHG MCHRY 1-1/4
X 1-7/8 X 14GA Z
(88440)
HEADLESS PIN(2)
1X4.00 (221714)
