WimTec SanTec FLUSH User manual

PRESENTATION
The non-contact WC-control

The non-contact WC-control
SanTec FLUSH Page 2
Automatic infrared WC control
Non-contact infrared WC control for application in public
as well as in private areas.
Available either for 6V battery operation or 12V power
supply via external power unit 230V/12V/50Hz
Maximum hygiene
due to automatical and manual activation and as well
optional intermediate flush for handicapped areas.
Easy and quick installation
on every flushing cistern type SanTec SLK or Geberit UP
300. Upgrading is possible at every time due to a battery
operated electronics.
Manual flushing
Additional mechanical release due to push button possible
(power blackout or empty battery)
PRODUCT PRESENTATION
Product features

PRODUCT PRESENTATION
SanTec FLUSH Page 3
SanTec FLUSH 6V SLK Matt chromium art. no. 103 083
Infrared WC control for 6V battery Shine chromium art. no. 103 090
supply, suitable for SanTec SLK White art. no. 103 168
cistern Steel art. no. 103 113
SanTec FLUSH 12V SLK Matt chromium art. no. 103 120
Infrared WC control for 12 external Shine chromium art. no. 103 137
supply, suitable for SanTec SLK White art. no. 103 144
cistern Steel art. no. 103 151
SanTec FLUSH 6V UP 300 Matt chromium art. no. 101 143
Infrared WC control for 6V battery Shine chromium art. no. 102 284
supply, suitable for Geberit UP 300 White art. no. 102 291
cistern Steel art. no. 102 802
SanTec FLUSH 12V UP 300 Matt chromium art. no. 100 136
Infrared WC control for 12 external Shine chromium art. no. 102 321
supply, suitable for Geberit UP 300 White art. no. 102 338
cistern Steel art. no. 102 796
SanTec 230V power unit art. no. 231 120
SanTec FIX WC - SanTec SLK art. no. 102 918
SanTec FIX WC - UP 300 art. no. 101 829
The non-contact WC-control
Types and art. no.
Automatic flushing
after leaving the WC
(switchable) Minimum stay
time 15 sec.
Contactless manual flush
can be activated by approa-
ching the hand to the infra-
red sensor or by pushing
the manual push button.
Optional flush
with connection to a prop
handle with integrated
push button or external
push button
(not at battery operated
variant)
Optional
intermediate flush
every 10 min.
(only at program 3)
(not at battery operated
variant)
SanTec FIX WC
Function
top edge floor completed

PRODUCT PRESENTATION

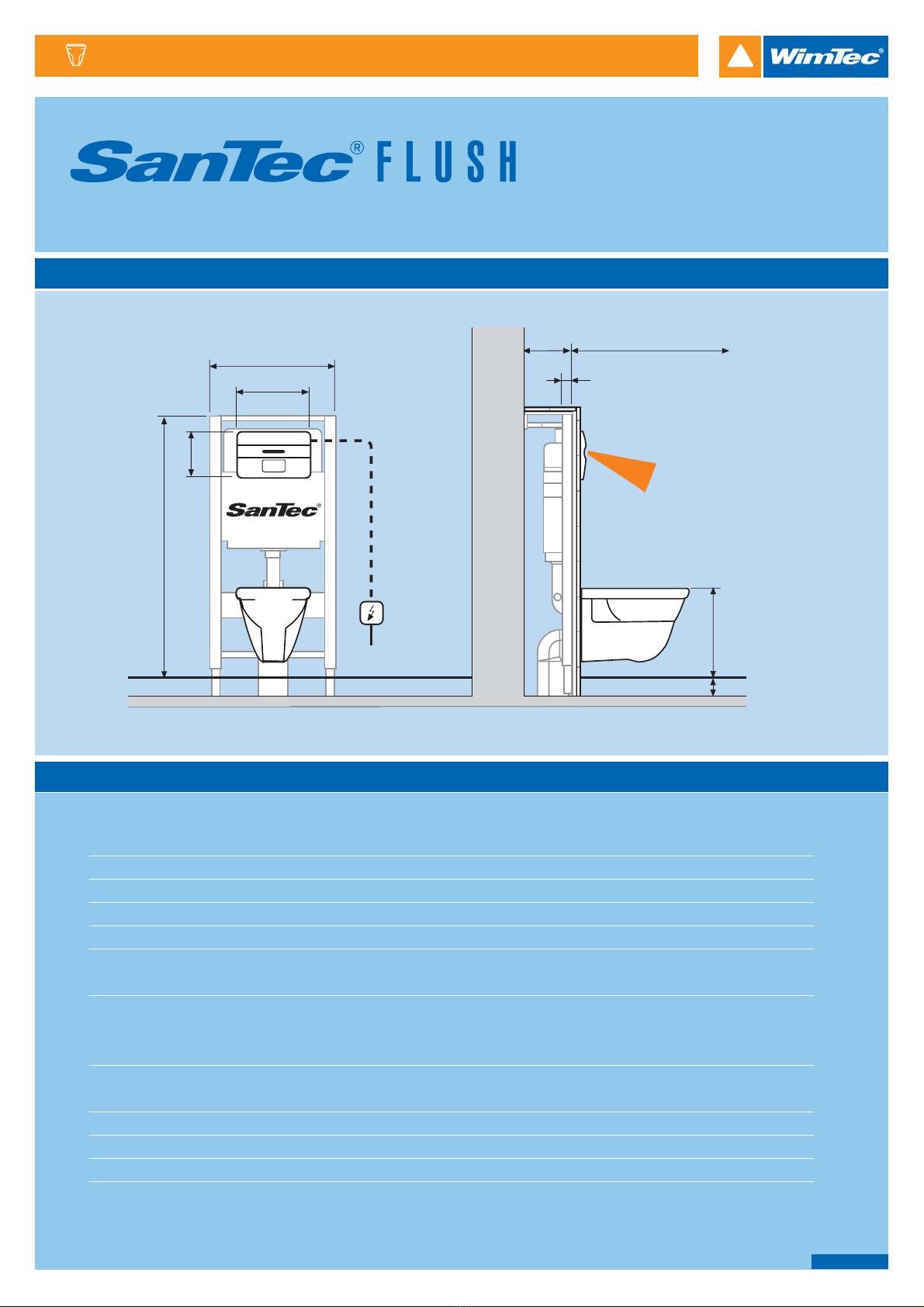

Installation dimensions in cm
External supply: 12V AC / 50Hz
Power consumption: 1VA (average), 15 VA (peak)
Feed line: 2 x 1 mm2at cable lenghts up to 50 m (H03VV-F 2X1,0)
Battery supply: 6V lithium (2 pcs. CRP2P)
Battery life: approx. 25.000 flushings
Active range: approx. 60 cm pre-adjusted
30 - 80 cm adjustable
Manual flushing: contactless release with close range reflex via
hand in front of the infrared window or manual
by pushing the push button.
Automatic flushing: after use, minimum stay time 15 sec.
(only at programs 2 and 3)
Intermediate flushing: every 10 min. (only at program 3)
Front panel: 250 x 165 mm
Material front panel: ABS
Available surfaces: matt chromium, shine chromium, white, steel
SanTec FLUSH Page 4
The non-contact WC-control
Technical specifications
16,5
115
24,5
51,5
0-25
15,5-20
4,5min. 135
active range
approx. 60 cm
Place of
installation of
mains unit as
desired
41
top edge floor
completed

The non-contact WC-control
PRODUCT PRESENTATION
Adjustment of flushing programs
SanTec FLUSH Page 5
Adjustment of flushing programs (only possible in the first 10 sec. after initiation): as
soon as battery or mains adaptor will be connected
(program 2 factory-made pre-adjusted)
Diagnostics LED
Red LED flashes at
wide range reflex
during the first 5 minu-
tes after initiation.
Additional at battery
operated variant:
battery control LED
begins to flash when
battery becomes
empty.
12V version: connection to power supply
6V version: insert batteries
For changing the flushing program of an already adjusted WC-control, the power supply must
be disconnected (disconnect external power supply unit or remove the batteries) for at least
30 sec., afterwards a new programming is possible.
The device makes a selftest, then the diagnostics LED flashes 3 times quickly.
From that time there are 10 sec. for adjusting the flushing program.
Via close range reflex (hold hand approx. 2 cm in front of infrared window=> see picture) it
is now possible to choose between 3 different programs.
*1 slow flash = program 1
no automatic flushing - via close range reflex only manual flushing releasable
** 2 slow flashes = program 2 (preset)
as program 1, but additional automatic flushing after leaving the WC
minimum stay time 15 sec.
*** 3 slow flashes = program 3
as program 2, but additional intermediate flushes every 10 min. for handicapped areas
minimum stay time 15 sec.
Remove hand at the desired program - the control confirms the program by flashing twice
quickly.
Afterwards there are further 10 sec. for changing the flushing program again. After lapse of
this time, the device flashes 3 times quickly and it changes after 60 sec. into normal function.
1.
2.
3.
4.
5.

The non-contact WC-control
PRODUCT PRESENTATION
SanTec FLUSH Page 6
Installation
Push-button
(optional)
SanTec FIX-WC mounting element with
SanTec SLK cistern
Art.No. 102 918
Art.No. 103 076 (with smell absorption)
Geberit UP 300 cistern
Art.No. 101 829
Art.No. 102 055 (with smell absorption)
Water inlet
Power supply
(Additionally)
Wall mounted
box for power
supply unit.
(Location user defined)
WimTecGmbH
Netzteil
230V/12V/50Hz
BV02071
LN12
230V-/20mA12V-/2VA
230V/50Hz
SanTec FIX
Mounting element
for the installation
of prop handles
Art.Nr. 101 881
(for non barrier-free
sanitary rooms)
Power supply only for
type 12V neccessary.
12V Supply
Motor lifter
Mounting frame
Electronic panel
Battery or power
operation
Conduction2x1,5mm2
max. 50 m
Wiring for
fastener with
push-button
(optional for
12V external
version)
Wiring for push-
button
(optional for 12V
external version)

The non-contact WC-control
PRODUCT PRESENTATION

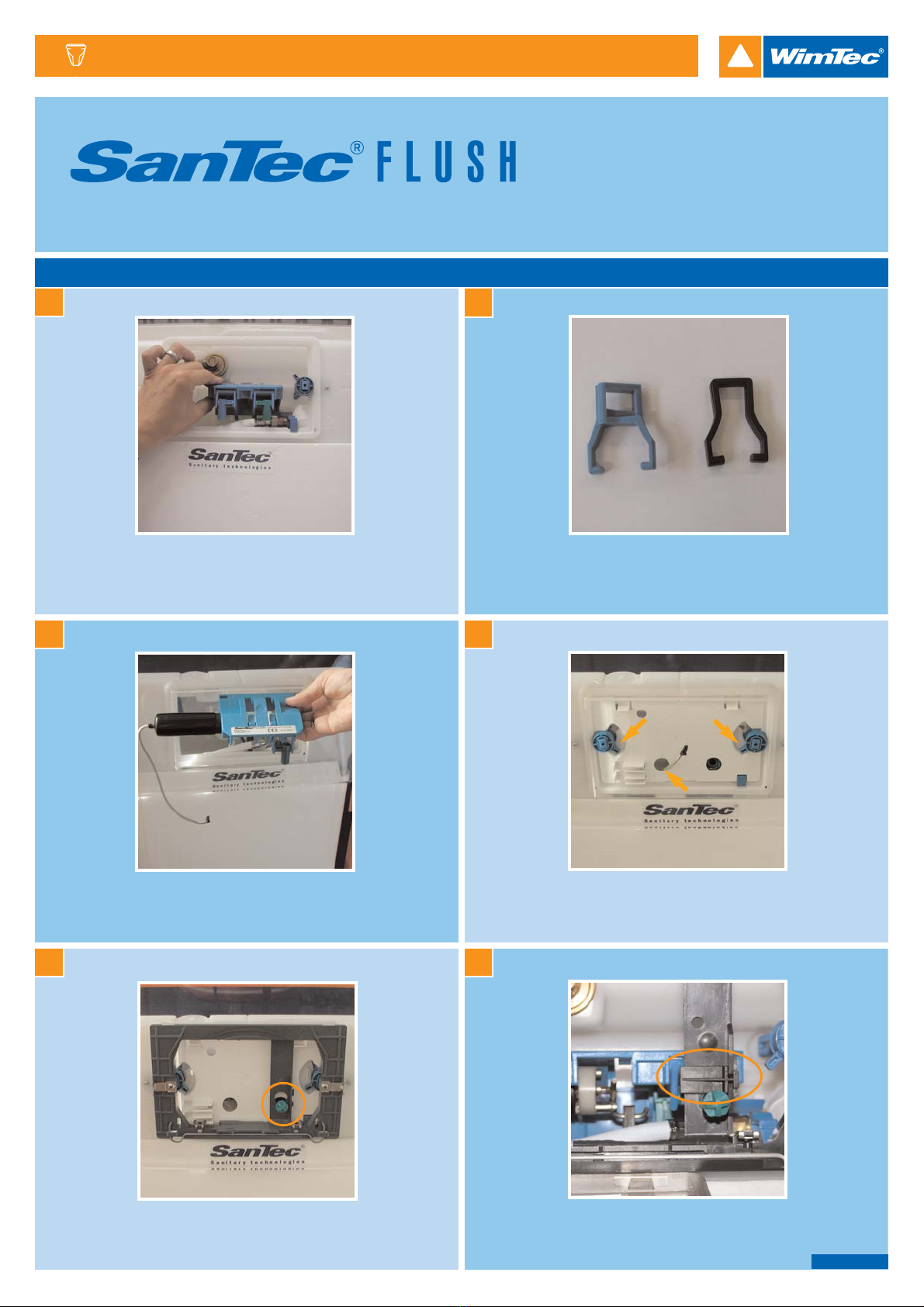

Remove standard bearing block out of the
flushing cistern.
Install distance bolt, push botton rod and backing
board; lead through the cable of the motor lifter
resp. the power supply (only 12V type).
Install mounting frame and adjust push botton bolt.
1
4
5
2
Insert bearing block with integrated motor lifter.
3
SanTec FLUSH Page 7
Installation
Exchange pull clamp - remove the blue clamp and
insert the black one.
Mount fixing clamp for push bolt.
6

The non-contact WC-control
PRODUCT PRESENTATION
External power supply 230V/12V.
Connect cable from the motor lifter
Connect 12V power supply
7
10
11
8
9
12
SanTec FLUSH Page 8
Installation SanTec FLUSH 12V
Connect main supply 230V.
Connect 12V power supply to control.
CAUTION! Don’t install the
transformer in the cistern!
Installation according IP20 e.g. in
a wall mounted box, inserted
ceiling or junction box.
Mounting and installation must be perfor-
med by licensed craftsmen to ÖVE EN
8001 and VDE 0100.
Install front panel and fix it with the safty screws on
both sides. After 60 sec. the device is ready for
operation.

The non-contact WC-control
PRODUCT PRESENTATION

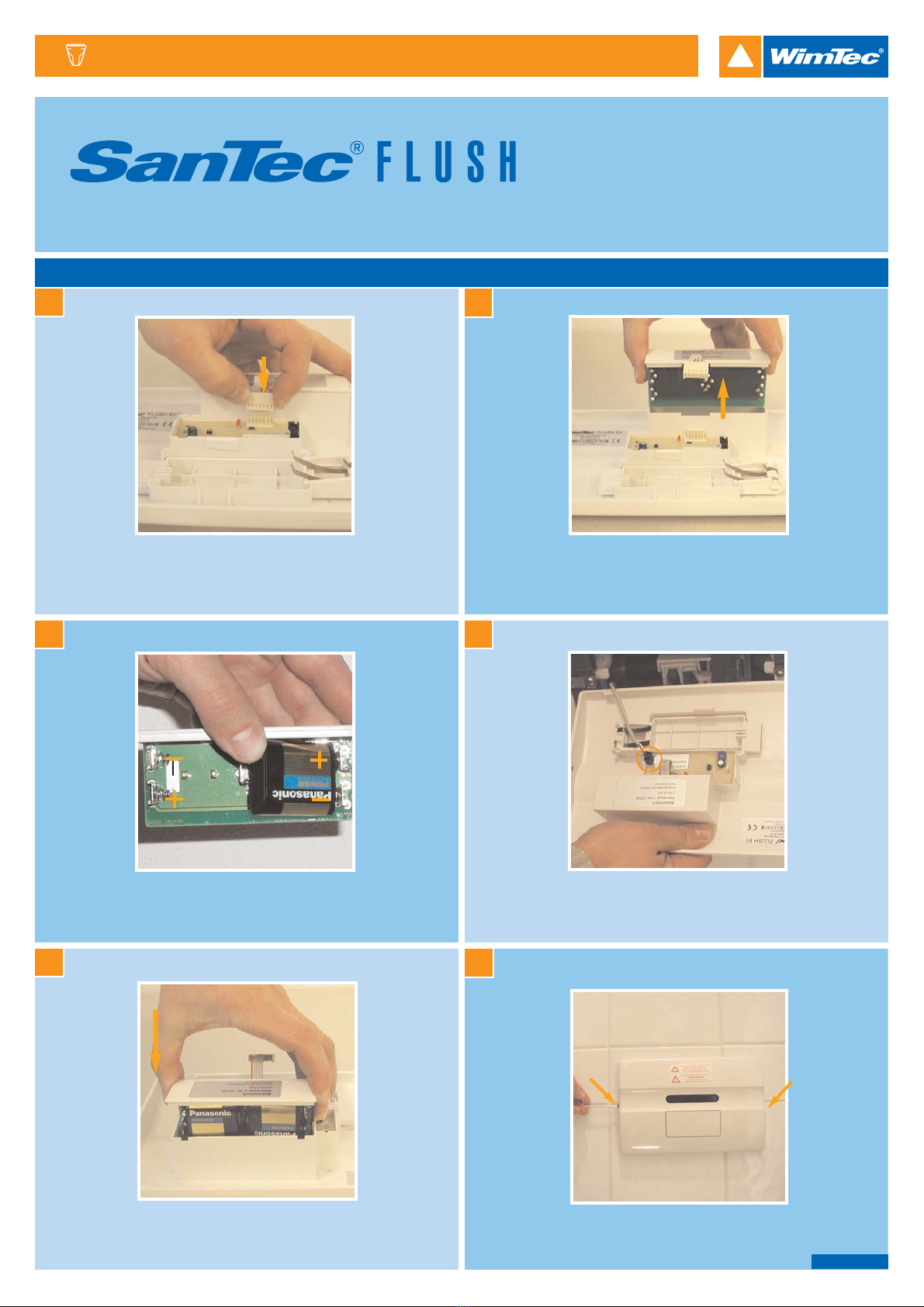

Take down the connector of the battery
module carefully.
Connect cable from the motor lifter.
Insert battery case and plug connector.
7
10
11
8
Insert batteries - pay attention to polarity!
9
SanTec FLUSH Page 9
Installation SanTec FLUSH 6V
Lift of the cover carefully upright and
unplug the battery case.
Install front panel and fix it with the safety screws on
both sides.After 60 sec. the device is ready for
operation.
12

The non-contact WC-control

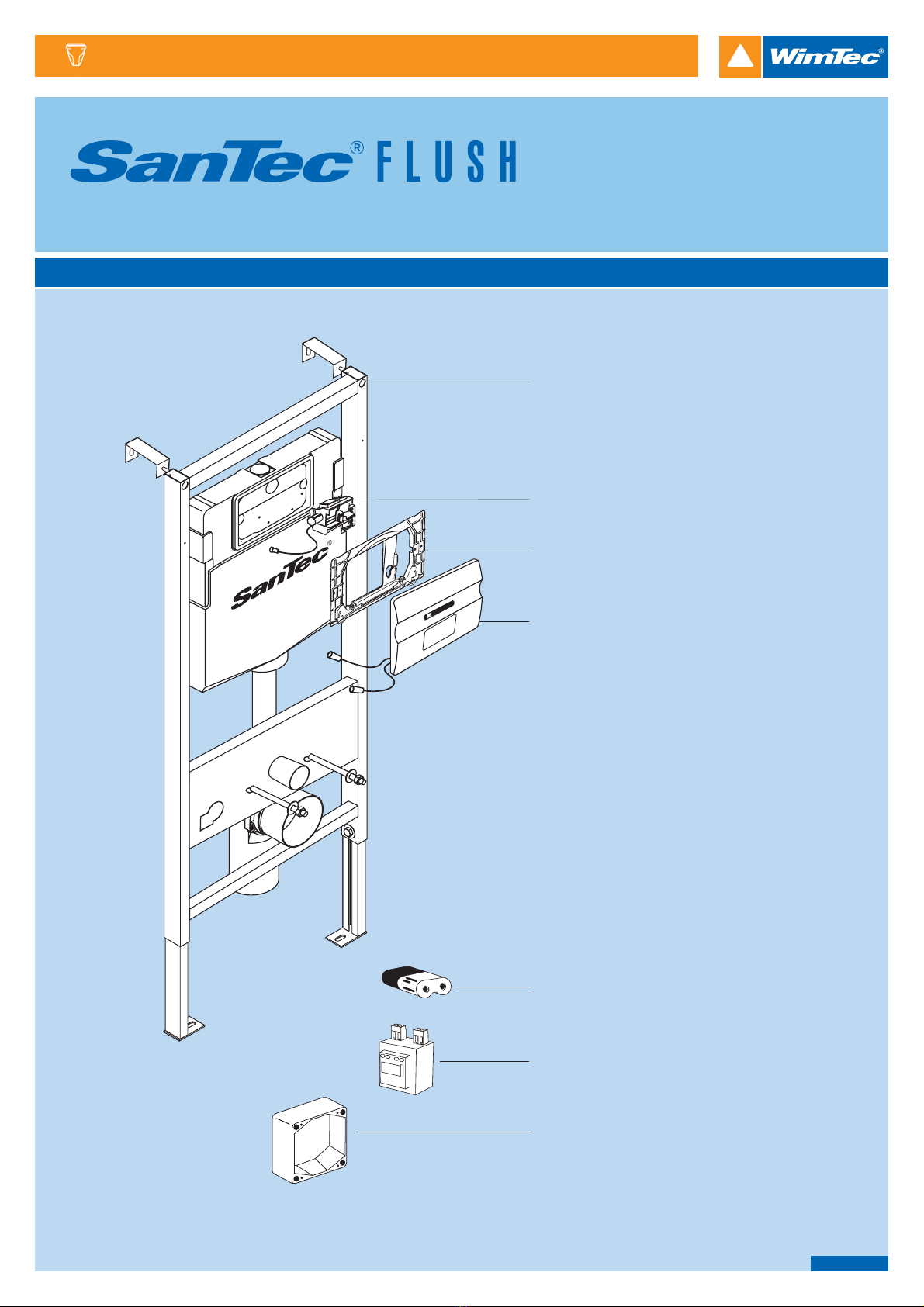

Product layout
SanTec FLUSH Page 10
PRODUCT PRESENTATION
WimTecGmbH
Netzteil
230V/12V/50Hz
BV02071
L N 1 2
230V-/20mA12V-/2VA
SanTec FIX WC assembly element
with SanTec SLK cistern
art.no.: 102 918
with UP 300 flushing cistern
art.no.: 101 829
Mounting frame
art.no.: 408 973
Electronic plate
for SanTec SLK flushing cistern:
art.no.: 232 127 - 12V matt chromium
art.no.: 233 134 - 12V shine chromium
art.no.: 232 141 - 12V white
art.no.: 232 158 - 12V steel
art.no.: 232 080 - 6V matt chromium
art.no.: 232 097 - 6V shine chromium
art.no.: 232 103 - 6V white
art.no.: 232 110 - 6V steel
for Geberit UP 300 flushing cistern:
art.no.: 231 144 - 12V matt chromium
art.no.: 231 151 - 12V shine chromium
art.no.: 231 168 - 12V white
art.no.: 231 335 - 12V steel
art.no.: 231 175 - 6V matt chromium
art.no.: 231 182 - 6V shine chromium
art.no.: 231 199 - 6V white
art.no.: 231 342 - 6V steel
Flush box for Power supply unit
art.no.: 101 294
(accessory, not included in scope of supply)
Power supply unit for variant 12V
external
art.no.: 231 120 (accessory, not included in scope of supply)
Bearing block with
integrated motor lifter
for SanTec SLK cistern art.no.: 232 042
for UP 300 flushing cistern art.no.: 231 137
6V Lithium Battery
art.no.: 230 741 (2 pcs. necessary)

The non-contact WC control
PRODUCT PRESENTATION

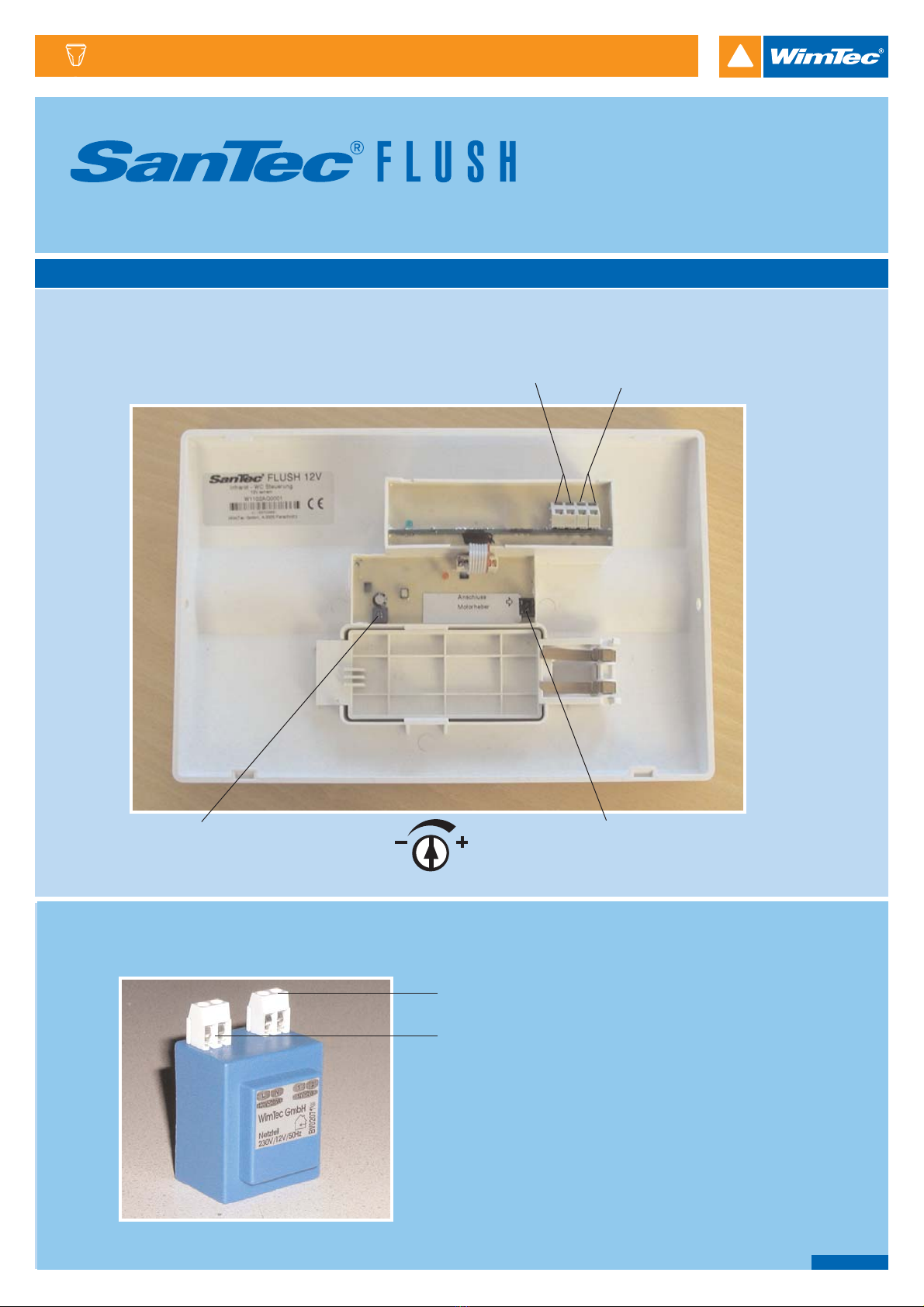

Connection elements and adjustments - 12V
SanTec FLUSH Page 11
Power supply unit
Backside of electronic plate
connection external
push button (optional) connection 12V / 50 Hz
power supply
connection to
motor lifter
connection 12V to
SanTec FLUSH
power supply
230V / 50 Hz
External Power supply unit suitable for installation
in control cabinets.
Accessory: not included in scope of supply
(Art.No. 231 120)
Place of installation according to protection class
IP20 as desired. Allowed cable length to
electronics up to max. 50 m.
active range controller
approx. at 60 cm pre-adjusted
30 - 80 cm adjustable

The non-contact WC control
PRODUCT PRESENTATION
Connection elements and adjustments - 6V
Backside of electronic plate
connection to
motor lifter
active range controller
approx. at 60 cm pre-adjusted
30 - 80 cm adjustable
Battery case:
Battery type: 2 pcs. CRP2P (lithium 6V)
Replace always both batteries
Pay attention to polarity!
WimTec Elektronische Steuerungs- u. Meßgeräte GmbH
p: A - 3325 Ferschnitz, Freidegg 50
t: (0 74 73) 5000 f: - 500
m: [email protected] www.wimtec.com
Edition 29 05 2007; Presentation SanTec FLUSH English
