WOOSIM PORTI-P440 User manual

http://www.woosim.com
MODEL PORTI-P440
(4inch Panel Printer)
Rev 4.0
All specifications are subjected to change without notice

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
2
All specifications are subjected to change without notice
 Copyright
PORTI-P440 4inch Panel Printer Operator’s Manual.
Copyright ⓒ2017 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of Woosim Systems Inc.
And may not be reproduced in whole or in part without the prior written permission of Woosim
System Inc.
 Trademark
a registered trademark of Woosim Systems Inc.
All other trademark are the properties of their respective companies.
 Caution
Some semiconductor devices are easily damaged by static electricity. You should turn the printer
“OFF”, before you connect or removed the cable on the rear side, in order to guard the printer
against the static electricity.
If the printer is damaged by the static electricity, you should turn the printer “OFF”
 Notice
The contents of this manual are subject to change without notice.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
3
 Introduction
The PORTI-P440 is an extremely simple and functional panel printer.
It is the ideal solution for applications which require the immediate printing of data on a paper,
whether they be of an industrial, professional or laboratory nature.
Medical analyzer, Industrial instrument, Recorder, Geological analyzer, Underground analyzer, Chemical
analyzer, Metallic analyzer, etc.
The general features of PORTI-P440 printer are as follows:
Very silent printing thru direct thermal printing method.
High speed(40mm/sec, MAX)
High resolution(203dpi : 8dots/mm).
UART(RS-232C or TTL) interface
Support text and graphic printing.
Easier paper loading by CLAMSHELL design.
Easier maintenance with self-diagnostics.
In field programming –Update Firmware, Download Fonts and Logos
Microsoft Windows/Windows CE, Linux, Android compatible
Flow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer.
Agency Approvals

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
4
 Operating Precautions
Please follow the precautions below to enjoy and maintain the full performance of the
printer.
Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows:
◆ Operating temperature :-10°C to 50°C
◆ Relative humidity : 30% to 85%
● Do not install the printer near devices that generate strong electromagnetic fields
such as a copy machine.
● Do not open the platen cover during printing .
● Do not remove or reinstall the communication cable during printing or transmission.
● Do not touch the connectors of the communication during printing.
● Switch the POWER OFF when not in use.
● Do not other solvent.
Thermal Paper Handling
● Store the thermal paper in a cool, dry and dark place.
● Do not rub the paper with hard object.
● Do not leave the paper with hard object.
● Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods.
● Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies.
● Do not use chemical glue.
●Always use the clean thermal paper.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
5
 Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
These equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception , which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
6
CONTENTS
1. Outline ................................................................................................................................................................. 7
1.1. Model classifications ..................................................................................................................................... 7
1.2. Product Part Number System....................................................................................................................... 7
1.3. Specifications.................................................................................................................................................. 8
2. Setting up the printer....................................................................................................................................... 9
2.1. Printer & Accessories .................................................................................................................................... 9
2.2. Printer Features.............................................................................................................................................10
2.2.1. Part Name................................................................................................................................................10
2.2.2. Dimension................................................................................................................................................10
2.3. Panel Installation...........................................................................................................................................11
2.4. Replacing the paper roll ..............................................................................................................................12
2.5. Setting operation mode...............................................................................................................................13
2.6. Power supply.................................................................................................................................................14
3. Interface..............................................................................................................................................................15

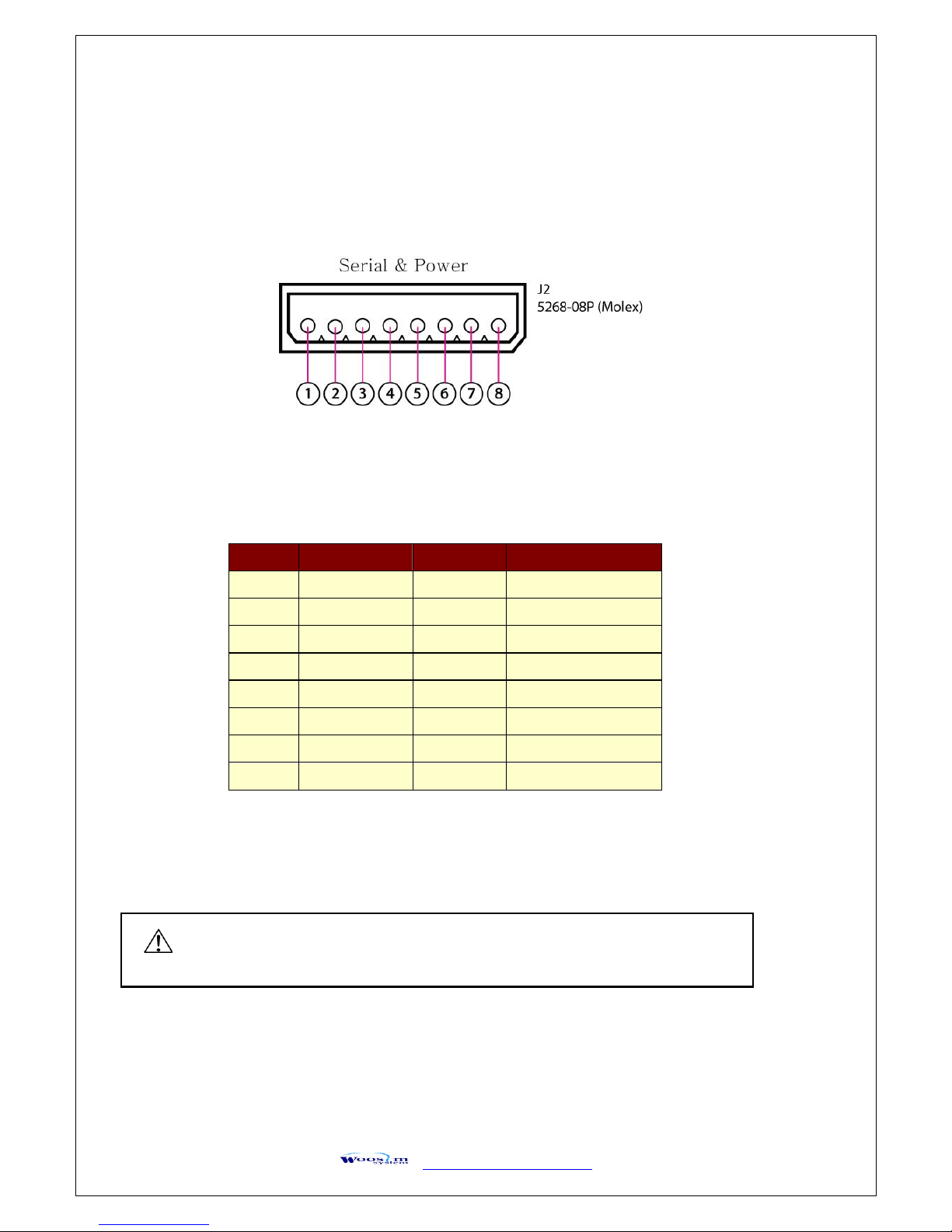

3.1. UART(RS-232C or TTL) .................................................................................................................................15
4. Using the printer...............................................................................................................................................16
4.1. Control panel ................................................................................................................................................16
4.2. The self test...................................................................................................................................................16
5. Consumable Parts.............................................................................................................................................17
5.1. Recommended paper...................................................................................................................................17
5.2 Printing position ............................................................................................................................................17
6. Revision History ................................................................................................................................................18

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
7
1
1. . O Ou ut tl li in ne e
1.1. Model classifications
1.2. Product Part Number System
PORTI–P440 ( ) ( )
Model name
Interface
A0 : UART
Power
None : DC 9V
Model name / Interface Spec.
Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1
Note) The above table is the interface format which is supported.
But some of the interfaces are not supported according to the product
and please contact us, if you have any questions regarding the interface.
S40
SC30
W25
.
.
.
Wired
Wireless
A
RS-232C
1
Bluetooth
B
TTL
2
IrDA
C
USB
0
None
D
RS-485
E
Parallel
Z
None

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
8
1.3. Specifications
Item
Specification
Printing method
Direct thermal line printing
Characters per line
- Font A : 69cpl / Font B : 92cpl / Font C : 104cpl
- KOR, CHN, JPN : 34cpl
Character size
- Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16
- KOR : 24X24(16X24) / CHN, JPN : 24X24
Optional Characters
Alphanumeric:95, Extended Graphics:128X31 pages, International:10,
Simplified/Traditional Chinese, Japanese, Korean
Resolution
203dpi, 8dots/mm
Print width
4-inch (104mm, 832dots)
Printing speed
40mm/sec (MAX)
Dimensions
143.0 x 77.7 x 49.1mm
Weight (w/o roll paper)
227g
Interface
UART(RS-232C or TTL), USB (option)
Paper supplied
Thermal roll paper (113mm wide - 38ø)
Barcode supplied
1-dimension : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,
CODE-128, ITF, CODABAR
2-dimension : PDF417, Micro PDF417, Truncated PDF417, QR-CODE,
DATA Matrix, Maxicode
Etc :GS1 databar
Driver
Microsoft Windows, Linux
H/W spec
MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit
Receive buffer size
1M bytes
Input Power
9VDC, Standby 60mA and Max 3A
Environment
conditions
Temperature
-10°C ~50°C (operating)
-30°C ~ 70°C (storage)
Humidity
30% - 80% (operating)
10% - 90% (storage)
MCBF (Mean Cycle
Between failure)
Mechanical
37,000,000 lines
Head
Approximately 50Km
< Table 1 >

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
9
2
2. . S Se et tt ti in ng g u up p t th he e p pr ri in nt te er r
2.1. Printer & Accessories
When unpacking your printer box make sure it contains the printer and all accessories.
If any accessories are missing or damage, please contact your dealer for assistance.
Porti-P440
Thermal roll paper

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
10
2.2. Printer Features
2
2. .2 2. .1 1. . P Pa ar rt t N Na am me e
2
2. .2 2. .2 2. . D Di im me en ns si io on n
[unit : mm]

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
11

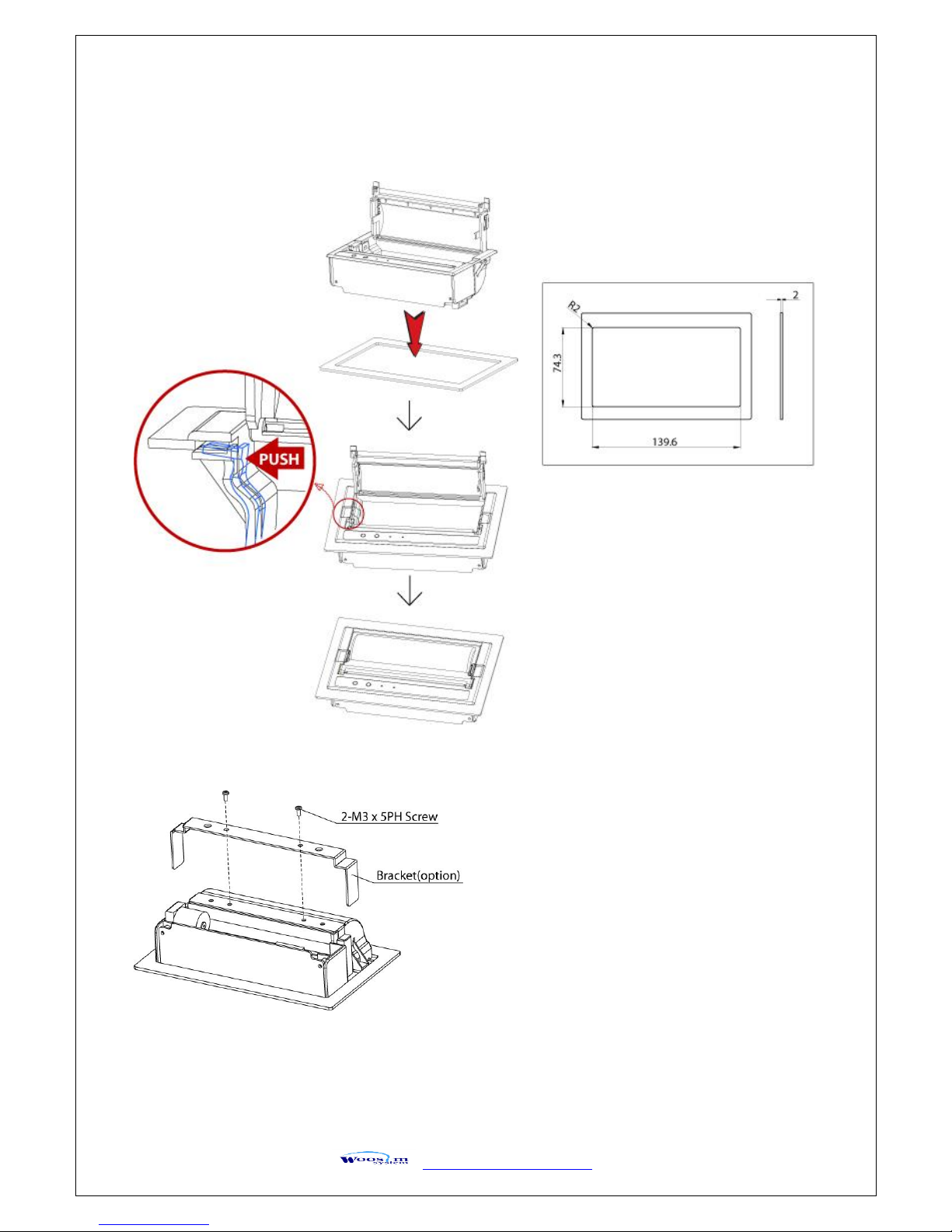

2.3. Panel Installation
Uses the bracket(option) and the printer
once more will be able to fix to the panel.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
12

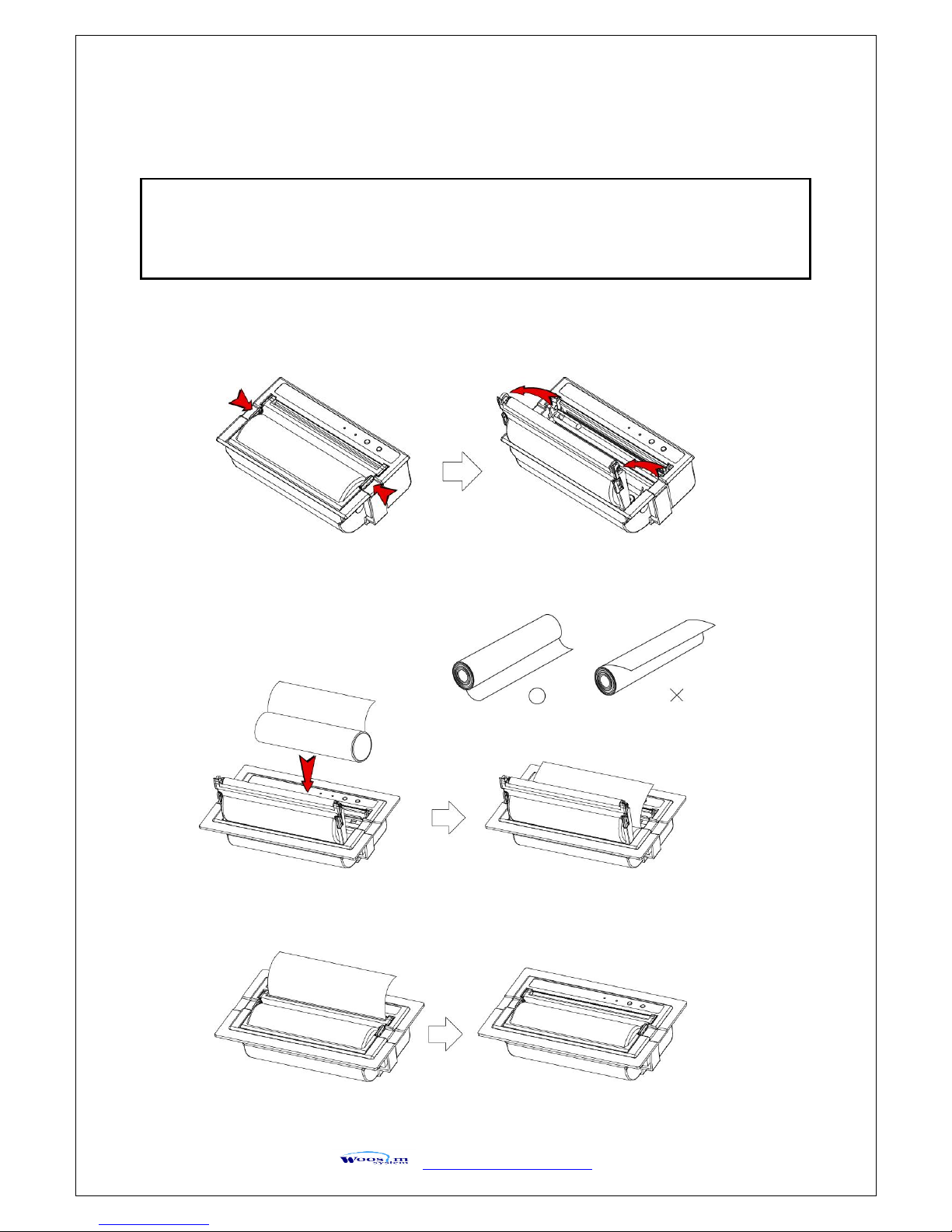

2.4. Replacing the paper roll
1. Make sure that the printer is not receiving data; otherwise, data may be lost.
2. Open the paper cover using finger on both side of printer, and remove the remaining paper.
3. Insert the paper roll as shown.
4. Tear the excess paper off using the edge of paper door as a tear bar.
Note : Be sure to use paper rolls that meet the specifications.
Do not use paper rolls that have the paper glued to the core because the printer can not
detect the paper end correctly.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
13
2.5. Setting operation mode
Change the mode and option using the MODE Code.
MODE button : use for changing OPTION status. (Error Lamp)
FEED button : use for changing MODE status. (Power Lamp)
[Example] The defaults of the printer are :
UART / 9600 bps / 8 data bit / No parity / 1 stop bit / Density low
If a user wants to modify the defaults with
Protocol UART / 57600 bps / 7 data bit / Odd parity / 2 stop bit / Density high
Press MODE Button during the Error Lamp flicking 5 times.
You will see the Power Lamp and the Error Lamp flickers once.
Press the MODE Button once and the Error Lamp flickers twice.
And then, interface mode has set to Protocol UART mode.
When you press FEED button once again, Power Lamp flickers twice and
the Error Lamp flickers once.
Press MODE Button 3 times, Error Lamp flickers 4 times.
And then, baudrate has set to 57,600 bps.
When you press FEED Button once again, Power Lamp flickers 3 times
and the Error Lamp flickers twice.
Press MODE Button once, Error Lamp flickers once.
And then Data Bit has set to 7 data bit.
When you press FEED Button once again, Power Lamp flickers 4 times
and the Error Lamp flickers once.
Press MODE Button once, Error Lamp flickers twice.
And then the Parity bit has set to Odd parity bit.
When you press FEED Button once again, Power Lamp flickers 5 times
and Error Lamp flickers once.
Press MODE Button once, Error Lamp flickers twice.
And then the density has set to 2 stop bit.
When you press FEED Button once again, Power Lamp flickers 6 times
and Error Lamp flickers once.
Press MODE Button twice, Error Lamp flickers 3 times.
And then the density has set to Density high.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
14
2.6. Power supply
The following specifications are requested for Power supply.
INPUT POWER: DC9V / Max 3A
Avoid using power supply which its power capacity of power current is extremely high.
If all the mode have set, press the MODE Button and the FEED Button at the same time
after then release the buttons at the same time.
The printer will print out the mode status which has modified.
(Protocol UART / 57600 bps / 7 data bit / Odd parity / 2 stop bit / Density high)
If the status is not correct, please try it again according to the procedure.
MODE
POWER Lamp
(Green)
ERROR Lamp
(Red)
Option
Communication
Port
1
1
UART
USB
2
Protocol UART
Protocol USB
Baud Rate
2
1
9600 bps
2
19200 bps
3
38400 bps
4
57600 bps
5
115200 bps
Data Bit
3
1
7 Data bit
2
8 Data bit
Parity
4
1
No Parity
2
Odd Parity
3
Even Parity
Stop bit
5
1
1 stop bit
2
2 stop bit
Density
6
1
Density Low
2
Density Medium
3
Density High
< Table 2 >

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
15
3
3. . I In nt te er rf fa ac ce e
3.1. UART(RS-232C or TTL)
The Porti-P440 printer has a UART(RS-232C or TTL) interface and power connector is connected
by 8 pin female connector.
In the following table, the signals present on the connector are listed:
WARNING
A wrong connection of power supply connector could be damage the printer.
Pin no.
Signal name
Direction
Function
8
INPUT
9VDC/3A
7
INPUT
9VDC/3A
6
TxD
Output
Transmit Data
5
RxD
Input
Receive Data
4
N.C
3
N.C
2
GND
Ground
1
GND
Ground
<J2 : MOLEX (5268-08P)>
Applicable connector : MOLEX 5264-08P or equivalent.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
16
4
4. . U Us si in ng g t th he e p pr ri in nt te er r
4.1. Control panel
4.2. The self test
Button
- FEED : When the printer is on, paper can be feed manually by pressing
and holding the FEED button for more than one second.
- MODE : MODE Button is for use to change communication mode.
Do not operate the mode button without instructions.
Panel Lamp
- POWER(Green) : Printer is ON and ready to receive data.
- ERROR (Red) : Indicates a fault condition or a printer error.
(details : no paper, paper cover opened. etc.)
Self-Test prints out the current setting value of printer. The way of self-test is as follows.
1. Insert proper paper into the printer.
2. Power on while pressing feed button to start self-test.
3. Printer will print out the current status. (F/W version and set contents)
4. And then pattern of characters will be printed out.
5. Self-test will be finished automatically and turned to the standby status.
※In case printer does not work properly, please contact Woosim customer service center.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
17
5
5. . C Co on ns su um ma ab bl le e P Pa ar rt ts s
5.1. Recommended paper
5.2 Printing position
Type : Thermal Paper
Paper width : 113mm
Paper thickness : 60±5㎛
Outer diameter : Ø38mm or less
Recording side : Outside of roll
Cautions
1. Do not paste the paper to the core. And the roll paper which has near end mark
printing on its near end is recommended.
2. Chemicals or oil may change the color of paper, or printed characters may fade.
3. Change of paper color starts from approx. 70℃.
Pay attention to heat, humidity and sun light.
4. Color of paper may be changed by being scratched by nail or hard metal, etc.

P440 Rev. 4.0
http://www.woosim.com
2018-07-11
18
6
6. . R Re ev vi is si io on n H Hi is st to or ry y
Date
Version
Comments
Jun. 07. 2017
4.0
RX Version renewal
*Change page layout (B5→A4)
* Delete address
