Patio-Brush

3
WG441E WG441E.X
Patio-Brush
PRODUCT SAFETY
GENERAL SAFETY WARNINGS
WARNING: Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock, fire
and/or serious injury.
Save all warnings and
instructions for future
reference.
This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe way
and understand the hazards
involved. Children shall not play
with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
The appliance is only to be
used with the power supply
unit provided with the
appliance.
POWERDRIVEN BRUSH
SAFETY WARNINGS
1. Brushes should not be
mounted on machines
having a speed in excess of
the maximum permissible
brush speed.
2.Damaged brushes should
not be used.
3.Rust discoloration or
other signs of chemical
or mechanical changes of
the fill material may cause
premature failure.
4.Brushes should be stored in
suitable racks, containers or
boxes in such a manner that
they are protected against
the effects of:
a)High Humidity, heat, water
or other liquids which might
cause damage to the brush.
b)Exposure to acids, or fumes
from acids, which might
induce deterioration.
c)Any temperature low enough
to cause condensation on
the brush when removed
from storage to an area of
higher temperature.
d)Distortion of any of the
brush components.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open
or shred cells or battery
pack.
b)Do not short-circuit a
battery pack. Do not

4
WG441E WG441E.X
Patio-Brush
store battery packs
haphazardly in a box or
drawer where they may
short-circuit each other
or be short-circuited by
conductive materials.
When battery pack is not
in use, keep it away from
other metal objects, like
paper clips, coins, keys,
nails, screws or other small
metal objects, that can
make a connection from one
terminal to another. Shorting
the battery terminals
together may cause burns or
a fire.
c) Do not expose battery
pack to heat or fire. Avoid
storage in direct sunlight.
d)Do not subject battery
pack to mechanical
shock.
e) In the event of battery
leaking, do not allow
the liquid to come into
contact with the skin or
eyes. If contact has been
made, wash the affected
area with copious
amounts of water and
seek medical advice.
f) Seek medical advice
immediately if a cell or
battery pack has been
swallowed.
g)Keep battery pack clean
and dry.
h)Wipe the battery pack
terminals with a clean
dry cloth if they become
dirty.
i) Battery pack needs to
be charged before use.
Always refer to this
instruction and use
the correct charging
procedure.
j) Do not maintain battery
pack on charge when not
in use.
k)After extended periods
of storage, it may be
necessary to charge and
discharge the battery
pack several times
to obtain maximum
performance.
l) Recharge only with the
charger specified by
Worx. Do not use any
charger other than that
specifically provided for
use with the equipment.
m)Do not use any battery
pack which is not
designed for use with the
equipment.
n)Keep battery pack out of
the reach of children.
o) Retain the original
product literature for
future reference.
p)Remove the battery from
the equipment when not
in use.

5
WG441E WG441E.X
Patio-Brush
q)Dispose of properly.
r) Do not mix cells of
different manufacture,
capacity, size or type
within a device.
s) Do not remove battery
pack from its original
packaging until required
for use.
t) Observe the plus (+) and
minus (–) marks on the
battery and ensure correct
use.

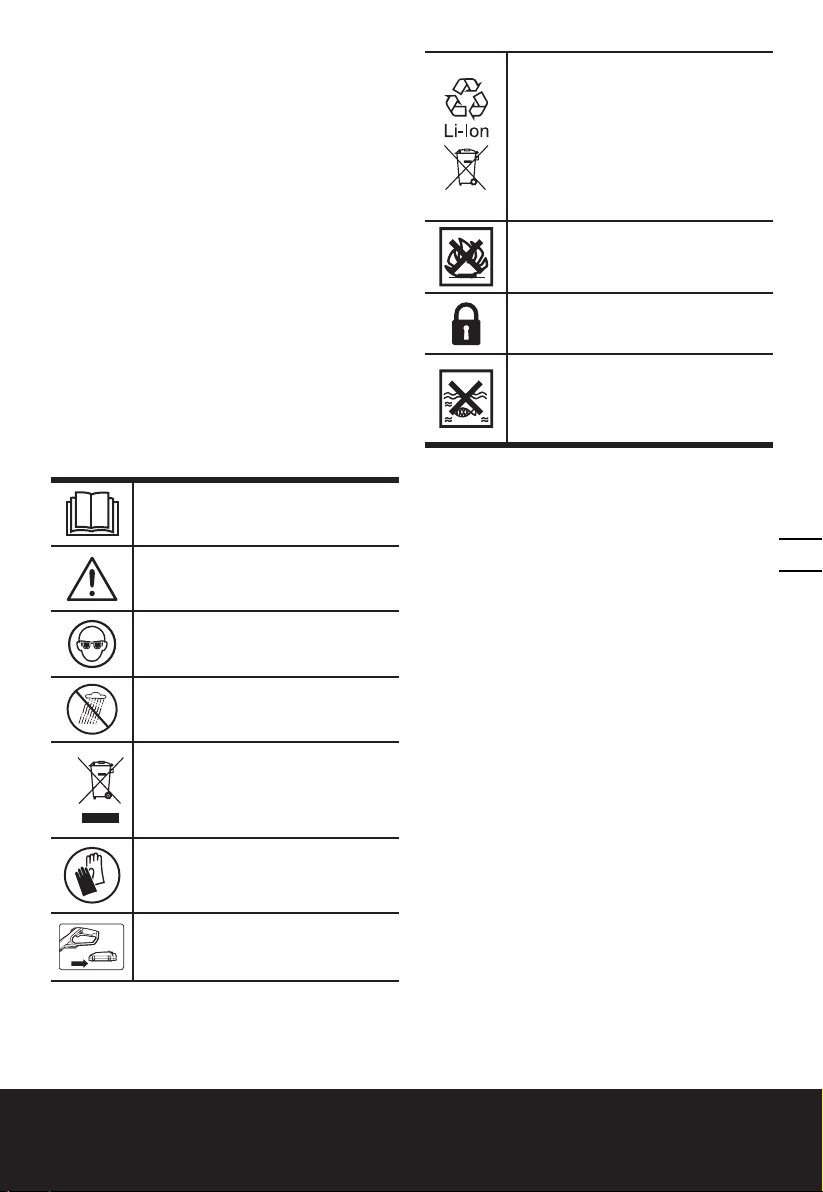

SYMBOLS
Read the operator’s manual
Warning
Wear eye protection
Do not expose to rain
Waste electrical products must not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or
retailer for recycling advice.
Wear protective gloves.
Remove battery from the socket before
carrying out any adjustment, servicing
or maintenance.
Li-Ion battery. This product has been
marked with a symbol relating to
‘separate collection’ for all battery
packs and battery pack. It will then
be recycled or dismantled in order to
reduce the impact on the environment.
Battery packs can be hazardous
for the environment and for human
health since they contain hazardous
substances.
Do not burn
Lock
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not
dispose of waste batteries as unsorted
municipal waste.

6
WG441E WG441E.X
Patio-Brush
12
7
6
13
2
4
1
15
11
9
10
3
14
16
17
18
19
5
8

7
WG441E WG441E.X
Patio-Brush
A1
A4
A3
A2
BC
Click!
3
2
4
2
1
1
100%
0%

8
WG441E WG441E.X
Patio-Brush
12
3
click!
D1
D4
D3
D2
F1
E
4
5

9
WG441E WG441E.X
Patio-Brush
H/L
I
H
G
J1
F2
2
1
J2

10
WG441E WG441E.X
Patio-Brush
J4
J3

11
WG441E WG441E.X
Patio-Brush
COMPONENT LIST
1. SPEED CONTROL BUTTON
2. ON/OFF SWITCH
3. BATTERY PACK RELEASE BUTTON *
4. BATTERY PACK *
5. HOSE RETAINING CLIP
6. LOWER SHAFT
7. WATER SUPPLY SWITCH
8. DRIVE ARM (REMOVABLE)
9. HARD NYLON BRISTLES (WA0291)
10. SAFETY GUARD
11. BRUSH COVER LOCKING BUTTON
12. HOSE ADAPTOR
13. UPPER SHAFT
14. HANDLE LOCKING KNOB
15. AUXILIARY HANDLE
16. SOFT NYLON BRISTLES (WA0290) *
17. HARD NYLON JOINT CLEANING BRUSH
(WA0292) *
18. METAL  HARD NYLON JOINT CLEANING BRUSH
(WA0293)
19. JOINT ALIGNMENT MARK
* Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type Designation WG441E WG441E.X (441-
designation of machinery, representative of
Battery-operated brush)
WG441E WG441E.X **
Rated voltage 20 V Max.***
Max. No-load speed 700 /min
Water pressure 0.6 MPa
Rotational speed H700 /min; L500 /min
Machine weight (bare tool) 2.9 kg
** X=1-999,A-Z,M1-M9 there are only used for
different customers, there are no safe relevant
changes between these models.
*** Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal voltage
is 18 volts.
Category Type Capacity
20V Battery WA3014 4.0Ah
20V Charger WA3880 2.0A
We recommend that you purchase your accessories
listed in the above list from the same store that sold
you the tool. Refer to the accessory packaging for
further details. Store personnel can assist you and
offer advice.
NOISE INFORMATION
A weighted sound pressure LpA= 65.2 dB(A)
KpA 3.0 dB(A)
A weighted sound power LwA= 78.61 dB(A)
KwA 3.0 dB(A)
VIBRATION INFORMATION
Vibration emission value ah< 2.5 m/s2
Uncertainty K = 1.5 m/s

12
WG441E WG441E.X
Patio-Brush
OPERATION INSTRUCTIONS
NOTE: Read instruction handbook before
operation this machine.
INTENDED USE
The device is intended as a handhold cleaning and
maintenance device.

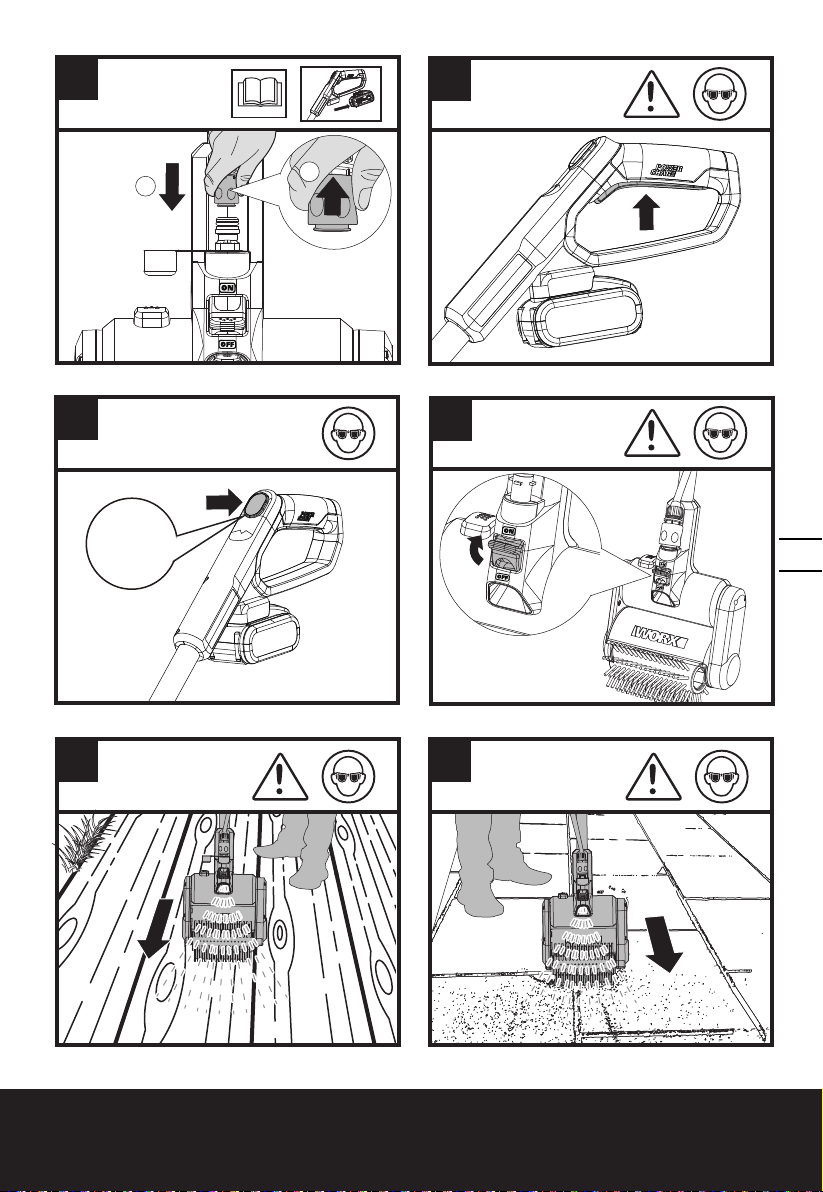

ASSEMBLY AND OPERATION

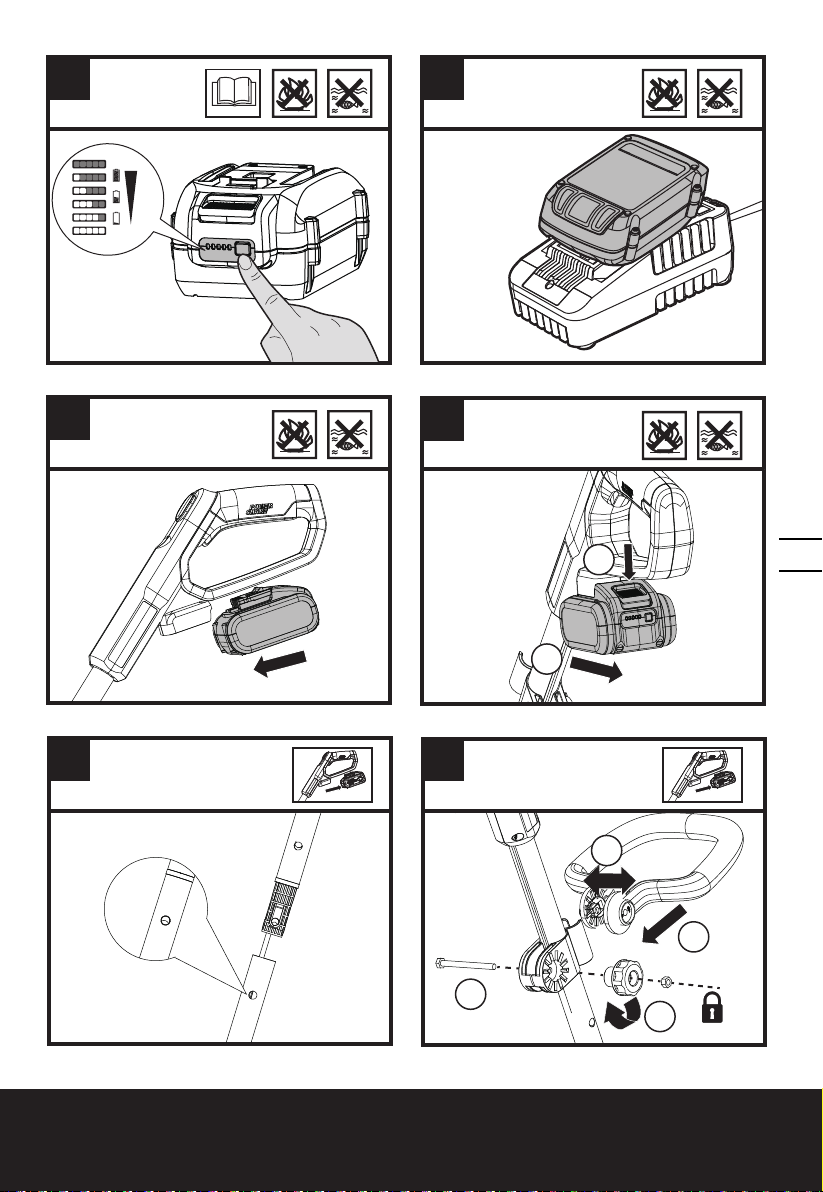

ACTION FIGURE
BEFORE OPERATION
Checking the battery charge condition
NOTE: Fig. A1 only applies for the battery
pack with battery indicator light. See Fig. A1
Charging the battery pack
More details can be found in charger’s
manual See Fig. A2
Installing the battery pack See Fig. A3
Removing the battery pack See Fig. A4
ASSEMBLY
Assembling the shaft See Fig. B
Assembling the auxiliary handle See Fig. C
Replacing the brush
NOTE: Choose a suitable brush according
to your work. See more details in the
ACCESSORIES section.
See Fig.
D1-D4
Using the hose retaining clip See Fig. E
Attaching the garden hose to the brush
NOTE: After the garden hose is attached,
check the connection by gently pulling
upon the garden hose. It should not be
pulled off.
See Fig.
F1, F2
OPERATION
Starting
WARNING! Do not start or operate
the machine if others are in the
area! Never lift the device off the ground
during operation, as there is danger of
entanglement !
See Fig. G
Adjusting the speed See Fig. H
Water supply
WARNING! Do not connect the
machine to water supplies that
are dirty, rusty, muddy, or corrosive.
See Fig. I
Cleaning
WARNING: Make sure that the
surface to be cleaned is free from
debris e.g. stones, screws etc., which
could be flung up.
Never put your hands or feet near to the
rotating brushing equipment!

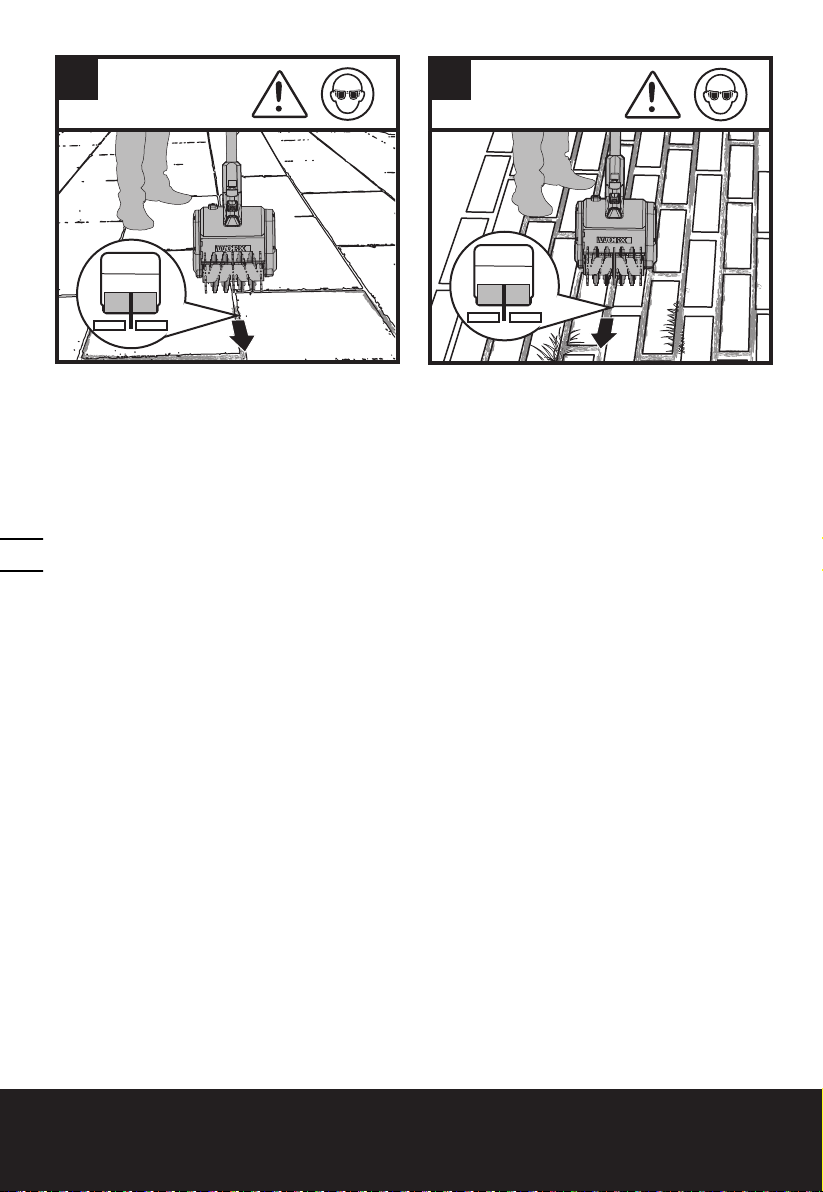

CleaningwithSoft nylon bristles See Fig. J1
Cleaning with Hard nylon bristles See Fig. J2
Cleaning with Hard nylon joint cleaning
brush
NOTE: Make sure the joint brush is
aligned with the centre of the joint by
using the joint alignment mark.
See Fig. J3
Cleaning with Metal / hard nylon joint
cleaning brush See Fig. J4
MAINTENANCE
Check if the tool and the brush are in good condition
before use. Replace the brush if it wears down to a
diameter of ø approx. 90 mm.
Do not immerse the tool in water. Do not spray or clean
it with water. Protect he tool against moisture. Clean the
outside of the tool with a damp cloth or soft brush. Do not
use abrasives or harsh cleaning agents.
Clean the brush in water or with a strong water jet or a
hard brush.
Repairs must be carried out by a Worx service point.
ENVIRONMENTAL
PROTECTION
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your Local Authority or
retailer for recycling advice.

13
WG441E WG441E.X
Patio-Brush
DECLARATION OF
CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Battery-operated multifunctional brush
Type WG441E WG441E.X (441 - designation of
machinery, representative of Battery-operated
multifunctional brush)
Function Cleaning ground surface
Complies with the following Directives:
2006/42/EC, 2014/30/EU, 2011/65/EU&(EU)2015/863
Standards conform to
EN 60335-1, EN ISO 12100, EN 55014-1, EN 55014-2
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
2020/12/07
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

14
WG441E WG441E.X
Patio-Brush
DECLARATION OF
CONFORMITY
We,
Positec (UK & Ireland) Ltd.
PO Box 6242, Newbury, RG14 9LT, UK
On behalf of Positec declare that the product
Description Battery-operated multifunctional
brush
Type WG441E WG441E.X (441 - designation of
machinery, representative of Battery-operated
multifunctional brush)
Function Cleaning ground surface
Complies with the following regulations:
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment
Regulations
Standards conform to
BS EN 60335-1,
BS EN ISO 12100,
BS EN 55014-1,
BS EN 55014-2
The person authorized to compile the technical file,
Name Jim Kirkwood
Address Positec (UK & Ireland) Ltd.,
PO Box 6242, Newbury, RG14 9LT, UK
2020/12/07
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

Copyright © 2021, Positec. All Rights Reserved.
AR01556203
www.worx.com
After-sales Service and Application
At www.worx.com you can order spare parts or arrange the
collection of a product in need of servicing or repair.
Tel. Service: 0345 202 9679
E-Mail: [e-mail]
