YOKOGAWA DLM3022 User manual

IM DLM3054-01EN
1st Edition
Features Guide
Mixed Signal Oscilloscope
DLM3024, DLM3034, DLM3054
Digital Oscilloscope
DLM3022, DLM3032, DLM3052
nbn Austria GmbH

i
IM DLM3054-01EN
Thank you for purchasing the DLM3022, DLM3032, or DLM3052 digital oscilloscope or the DLM3024, DLM3034,
DLM3054 mixed signal oscilloscope.
This features guide contains useful information about the features of this instrument. To ensure correct use,
please read this manual thoroughly before operation. After reading this manual, keep it in a safe place. The
manuals for this instrument are listed on the next page. Please read all manuals.
Contact information of Yokogawa offices worldwide is provided on the following sheet.
Document No. Description
PIM 113-01Z2 List of worldwide contacts
Notes
• The contents of this manual are subject to change without prior notice as a result of continuing improvements
to the instrument’s performance and functions. The figures given in this manual may differ from those that
actually appear on your screen.
• Every effort has been made in the preparation of this manual to ensure the accuracy of its contents. However,
should you have any questions or find any errors, please contact your nearest YOKOGAWA dealer.
• Copying or reproducing all or any part of the contents of this manual without the permission of YOKOGAWA is
strictly prohibited.
• The TCP/IP software of this product and the documents concerning it have been developed/created by
YOKOGAWA based on the BSD Networking Software, Release 1 that has been licensed from the Regents of
the University of California.
Trademarks
• Microsoft, Internet Explorer, MS-DOS, Windows, Windows 7, Windows 8.1, and Windows 10 are registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• Adobe and Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated.
• DLM is a registered trademark of Yokogawa Electric Corporation.
• In this manual, the ® and TM symbols do not accompany their respective registered trademark or trademark
names.
• Other company and product names are trademarks or registered trademarks of their respective holders.
Revisions
• 1st Edition: November 2018
1st Edition: November 2018 (YMI)
All Rights Reserved, Copyright © 2018 Yokogawa Test & Measurement Corporation

ii IM DLM3054-01EN
Manuals
The following manuals, including this one, are provided as manuals for this instrument. Please read all manuals.
Manual Title Manual No. Description
DLM3022, DLM3032, DLM3052
Digital oscilloscope
DLM3024, DLM3034, DLM3054
Mixed Signal Oscilloscope
Features Guide
IM DLM3054-01EN This document. The supplied CD contains the PDF file of this
manual.
This manual explains all the instrument’s features other than
the communication interface features.
DLM3022, DLM3032, DLM3052
Digital oscilloscope
DLM3024, DLM3034, DLM3054
Mixed Signal Oscilloscope
User’s Manual
IM DLM3054-02EN The supplied CD contains the PDF file of this manual.
The manual explains how to operate this instrument.
DLM3022, DLM3032, DLM3052
Digital oscilloscope
DLM3024, DLM3034, DLM3054
Mixed Signal Oscilloscope
Getting Started Guide
IM DLM3054-03EN Provided as a printed manual.
This guide explains the handling precautions, common
operations, troubleshooting measures, and specifications of
this instrument.
DLM3022, DLM3032, DLM3052
Digital oscilloscope
DLM3024, DLM3034, DLM3054
Mixed Signal Oscilloscope
Operation Guide
IM DLM3054-04EN Provided as a printed manual.
Explains the basic operations of this instrument. Operations
are described in steps from “Preparation” to “Displaying
Waveforms,” “Measuring Waveforms,” and “Saving Screen
Captures.”
DLM3022, DLM3032, DLM3052
Digital oscilloscope
DLM3024, DLM3034, DLM3054
Mixed Signal Oscilloscope
Communication Interface
User’s Manual
IM DLM3054-17EN The supplied CD contains the PDF file of this manual.
Explains the functions of the this instrument’s communication
interface, how to configure it, and how to control this
instrument from a PC using the interface.
DLM3022, DLM3032, DLM3052
Digital Oscilloscope
DLM3024, DLM3034, DLM3054
Mixed Signal Oscilloscope
IM DLM3054-92Z1 Document for China
The “EN” and “Z1” in the manual numbers are the language codes.
Manuals in the CD
The included CD (manual CD) contains the following English and Japanese manuals.
File Name Manual No. Description
Features Guide & Users Manual.pdf IM DLM3054-01EN
IM DLM3054-02EN
Features Guide and User’s Manual
Communication Interface.pdf IM DLM3054-17EN Communication Interface User’s Manual
Online Help
A help document in HTML format stored in the instrument. The contents of this document are the same as
the Features Guide (IM DLM3054-01EN). For the operating procedure, see the Getting Started Guide, IM
DLM3054-03EN.

iii
IM DLM3054-01EN
Contents
Manuals ............................................................................................................................................ii
1 Vertical Axis (Analog Signal)
Turning the Display On and Off (Display) ..................................................................................... 1-1
Vertical Scale (SCALE knob) ........................................................................................................ 1-1
Waveform Vertical Position (POSITION knob).............................................................................. 1-2
Input Coupling (Coupling) ............................................................................................................. 1-3
Probe Attenuation (Probe) ............................................................................................................ 1-3
Inverted Waveform Display (Invert) .............................................................................................. 1-4
Linear Scaling (LinearScale)......................................................................................................... 1-4
Label Display (Label) .................................................................................................................... 1-5
Bandwidth Limit (Bandwidth) ........................................................................................................ 1-5
Offset (Offset) ............................................................................................................................... 1-5
2 Vertical Axis (Logic Signal)
Turning the Display On and Off (Display) ..................................................................................... 2-1
Vertical Display Range (SCALE knob).......................................................................................... 2-1
Vertical Position (POSITION knob)............................................................................................... 2-1
Setting the Bits (Bit Setup)............................................................................................................ 2-1
Bus Display (Bus) ......................................................................................................................... 2-3
State Display (State)..................................................................................................................... 2-4
Setting the Display Order of Bits and the Bus (Bit Order)............................................................. 2-5
Deskew (Deskew)......................................................................................................................... 2-5
3 Horizontal Axis (Time Axis)
Time Scale (TIME/DIV knob) ........................................................................................................ 3-1
4 Triggering
Trigger mode (Trigger Mode) ........................................................................................................ 4-1
Trigger Type (Type)....................................................................................................................... 4-2
Signal Type and Trigger Type Combinations ................................................................................ 4-3
Basic Trigger Settings ................................................................................................................... 4-4
Edge Trigger [EDGE] .................................................................................................................... 4-4
Edge OR Trigger [ENHANCED].................................................................................................... 4-8
Pattern Trigger [ENHANCED] ....................................................................................................... 4-9
Pulse Width Trigger [ENHANCED] ............................................................................................. 4-13
Rise/Fall Time Trigger [ENHANCED].......................................................................................... 4-14
Runt Trigger [ENHANCED] ......................................................................................................... 4-16
Timeout Trigger [ENHANCED]................................................................................................... 4-17
Window Trigger [ENHANCED]................................................................................................... 4-18
Window OR Trigger [ENHANCED] ............................................................................................. 4-20
Interval Trigger [ENHANCED].................................................................................................... 4-21
Serial Bus Trigger [ENHANCED] ................................................................................................ 4-23

iv IM DLM3054-01EN
Contents
FlexRay Bus Trigger [ENHANCED, option] ................................................................................ 4-24
CAN Bus Trigger [ENHANCED, option]...................................................................................... 4-30
CAN FD Bus Trigger [ENHANCED, option] ................................................................................ 4-38
LIN Bus Trigger [ENHANCED, option]........................................................................................ 4-44
CXPI Bus Trigger [ENHANCED, option] ..................................................................................... 4-48
SENT Trigger [ENHANCED, option] ........................................................................................... 4-56
UART Trigger [ENHANCED, option] ........................................................................................... 4-62
I2C Bus Trigger [ENHANCED, option]......................................................................................... 4-64
SPI Bus Trigger [ENHANCED, option]........................................................................................ 4-69
User-Defined Serial Bus Trigger [User Define, ENHANCED]..................................................... 4-72
TV Trigger [ENHANCED] ............................................................................................................ 4-74
Trigger B [B TRIG] ...................................................................................................................... 4-77
5 Executing Actions
Action Mode (Mode)...................................................................................................................... 5-1
Action to Execute When Conditions Are Met (Action)................................................................... 5-1
Number of Actions (Action Count/Nogo Count) ............................................................................ 5-2
Executing Action-on-Trigger or GO/NO-GO determination (Exec) ............................................... 5-3
GO/NO-GO Determination (Go/Nogo AND, Go/Nogo OR)........................................................... 5-3
Notes about Action........................................................................................................................ 5-7
6 Waveform Acquisition
Record length (Record Length)..................................................................................................... 6-1
Acquisition mode (Mode) .............................................................................................................. 6-2
High Resolution Mode (Hi Resolution).......................................................................................... 6-3
Sampling Mode (Sampling Mode)................................................................................................. 6-4
Waveform Acquisition (RUN/STOP).............................................................................................. 6-5
Acquiring the Waveform Once (SINGLE) ..................................................................................... 6-5
7 Display
Types of Windows......................................................................................................................... 7-1
Display Format (Format)............................................................................................................... 7-1
Display Interpolation (Dot Connect).............................................................................................. 7-2
Graticule (Graticule)...................................................................................................................... 7-3
Scale Value Display (Scale Value)................................................................................................ 7-3
Waveform Intensity (Intensity) ...................................................................................................... 7-3
Accumulation (Accumulate) .......................................................................................................... 7-4
8 Displaying XY Waveforms
Turning the XY Waveform Display On and Off (Display) .............................................................. 8-1
X-Axis and Y-Axis Source Waveforms (X Trace/Y Trace)............................................................. 8-1
Configuring the Display (Display Setup) ....................................................................................... 8-1
Display Source Window (Time Range) ......................................................................................... 8-2
Display Area (T Range1/T Range2).............................................................................................. 8-2
Measurement (Measure Setup) .................................................................................................... 8-2

v
IM DLM3054-01EN
Contents
9 Computed and Reference Waveforms
Computation Mode (Mode) ........................................................................................................... 9-1
Computation Source Waveforms (Source1/Source2)................................................................... 9-1
Reference Waveforms .................................................................................................................. 9-2
Operators (Operation)................................................................................................................... 9-3
Initial Point (Initial Point) ............................................................................................................... 9-6
Setting Labels and Units (Label/Unit) ........................................................................................... 9-6
Scaling (Ranging) ......................................................................................................................... 9-7
User-Defined Computation (User Define, Option) ........................................................................ 9-7
10 FFT
Turning the FFT On or Off (Display) ........................................................................................... 10-1
Analysis Source Waveform (Trace) ............................................................................................ 10-1
FFT Conditions (FFT Setup) ....................................................................................................... 10-2
Number of FFT Points (FFT Point) ............................................................................................. 10-3
Analysis Range (Time Range) .................................................................................................... 10-3
Scale Value (Display Setup) ....................................................................................................... 10-4
Cursor Measurement (Measure Setup) ...................................................................................... 10-4
11 Cursor Measurement
Turning Cursor Measurement On and Off (Display) ....................................................................11-1
Cursor Mode (Type).....................................................................................................................11-1
Measurement Source Waveform (Trace).....................................................................................11-1
ΔT Cursors (ΔT)...........................................................................................................................11-2
ΔV Cursors (ΔV) ..........................................................................................................................11-2
ΔT&ΔV Cursors (ΔT&ΔV) ............................................................................................................11-3
Marker Cursors (Marker)..............................................................................................................11-3
Angle Cursors (Degree)...............................................................................................................11-4
Moving the Cursors (Cursor/Marker) ...........................................................................................11-4
Cursor Jumping (Cursor Jump/T Cursor Jump)...........................................................................11-5
12 Automated Measurement of Waveform Parameters
Turning Automated Measurement On or Off (Mode)................................................................... 12-1
Source Window (Time Range).................................................................................................... 12-1
Measurement Time Period (T Range1/T Range2)...................................................................... 12-1
Automated Measurement of Waveform Parameters................................................................... 12-2
Statistics (Statistics).................................................................................................................... 12-7
Enhanced Parameter Measurement (Enhanced) ..................................................................... 12-12
Notes about Automated Measurement of Waveform Parameters ............................................ 12-13

vi IM DLM3054-01EN
Contents
13 Zooming in on Waveforms
Turning the Zoom Windows On or Off (Display) ......................................................................... 13-1
Display Format (Format)............................................................................................................. 13-1
Displaying the Main Window (Main)............................................................................................ 13-2
Auto Scrolling (Auto Scroll)......................................................................................................... 13-2
Zoom Source Waveforms (Trace)............................................................................................... 13-2
Zoom Factor (ZOOM knob)......................................................................................................... 13-2
Zoom Position (Z1 Position, Z2 Position).................................................................................... 13-3
Vertical Zoom (Vertical Zoom)..................................................................................................... 13-3
14 Searching Waveforms
Search Source Waveform........................................................................................................... 14-1
Search Type (Type)..................................................................................................................... 14-1
Search Conditions (Condition Setup).......................................................................................... 14-4
Displaying Detected Waveforms (Display Setup) ....................................................................... 14-7
Search Skip (Skip Mode) ............................................................................................................ 14-7
Search Range (Start/End Point) ................................................................................................. 14-8
Detected Point number (Pattern No.).......................................................................................... 14-8
Executing a Search (Search)...................................................................................................... 14-8
15 Analyzing and Searching Serial Bus Signals
Turning the Analysis and Search Feature On or Off (Display).................................................... 15-1
Serial Bus Signal Type (Type)..................................................................................................... 15-2
Bus Setup (Setup)....................................................................................................................... 15-2
Search Setup (Search) ............................................................................................................... 15-2
Zoom Position (Z1 Position, Z2 Position).................................................................................... 15-3
Decoded Display (Decode)......................................................................................................... 15-3
List Display (List)......................................................................................................................... 15-4
Trend Display (Trend) ................................................................................................................. 15-4
Saving the Analysis Results........................................................................................................ 15-4
Analyzing and Searching FlexRay Bus Signals (Option)............................................................ 15-5
Analyzing and Searching CAN Bus Signals (Option).................................................................. 15-7
Analyzing and Searching CAN FD Bus Signals (Option)............................................................ 15-9
Analyzing and Searching LIN Bus Signals (Option).................................................................. 15-14
Analyzing and Searching CXPI Bus Signals (Option)............................................................... 15-17
Analyzing and Searching SENT Signals (Option)..................................................................... 15-23
Analyzing and Searching UART Signals (Option).................................................................... 15-28
Analyzing and Searching I2C Bus Signals (Option) .................................................................. 15-31
Analyzing and Searching SPI Bus Signals (Option) ................................................................. 15-33
Analyzing and Searching User-Defined Serial Bus Signals (User Define) ............................... 15-35

vii
IM DLM3054-01EN
Contents
16 Waveform Histogram Display
Turning the Histograms On or Off (Display)................................................................................ 16-1
Source Waveform (Trace)........................................................................................................... 16-1
Source Axis (Type)...................................................................................................................... 16-1
Range Setup (Range Setup)....................................................................................................... 16-1
Measurement (Measure Setup) .................................................................................................. 16-2
17 Power Supply Analysis Feature (Power Analysis and Power
Measurement, Option)
Overview of the Power Supply Analysis Feature ........................................................................ 17-1
Switching Loss Analysis (SW Loss) ............................................................................................ 17-2
Safe Operating Area Analysis (SOA) .......................................................................................... 17-7
Harmonic Analysis (Harmonics).................................................................................................. 17-8
Measuring Inrush Current by Computing the Joule Integral (I2t)............................................... 17-12
Power Measurement (Power Measurement) ............................................................................ 17-14
18 Displaying and Searching History Waveforms
Display Mode (Mode).................................................................................................................. 18-2
Average (Average)...................................................................................................................... 18-2
Highlighting (Select No.) ............................................................................................................. 18-2
Display Range (Start/End No.).................................................................................................... 18-2
List of Timestamps (List)............................................................................................................. 18-2
Searching History Waveforms (Search)...................................................................................... 18-3
Replay (Replay) .......................................................................................................................... 18-4
Notes on Using the History Feature............................................................................................ 18-4
19 Printing and Saving Screen Captures
Destination Type (Print To).......................................................................................................... 19-1
Printing on the Built-in Printer (BuiltIn) (Option).......................................................................... 19-2
Printing on a USB Printer (USB)................................................................................................. 19-2
Printing on a Network Printer (Network) ..................................................................................... 19-4
Saving Screen Captures to Files (File) ....................................................................................... 19-5
Printing and Saving Screen Captures to Multiple Destinations (Multi)........................................ 19-7
20 Saving and Loading Data
Storage Device You Can Save and Load From .......................................................................... 20-1
Saving Data (Save)..................................................................................................................... 20-2
Saving Waveform Data (Waveform) ........................................................................................... 20-2
Saving Setup Data (Setup) ......................................................................................................... 20-5
Saving Other Types of Data (Others).......................................................................................... 20-5
Serial Bus Analysis Results (Others - Serial Bus (FlexRay/CAN/CAN FD/LIN/CXPI)) ............... 20-8
Serial Bus Analysis Results
(Others - Serial Bus (SENT/UART/I2C/SPI))..............................................................................20-11
Loading Data (Load) ................................................................................................................. 20-14
File Operations (Utility) ............................................................................................................. 20-16

viii IM DLM3054-01EN
Contents
21 Ethernet Communication (Network)
TCP/IP(TCP/IP) .......................................................................................................................... 21-2
FTP Server (FTP Server)............................................................................................................ 21-3
Mail (Mail) ................................................................................................................................... 21-4
Network Drive (Net Drive)........................................................................................................... 21-5
Network Printer (Net Print).......................................................................................................... 21-6
SNTP (SNTP) ............................................................................................................................. 21-6
22 Other Features
Auto Setup (AUTO SETUP)........................................................................................................ 22-1
Default Settings (DEFAULT SETUP) .......................................................................................... 22-2
Snapshot (SNAP SHOT)............................................................................................................. 22-2
Clear Trace (CLEAR TRACE)..................................................................................................... 22-3
Calibration (Calibration) .............................................................................................................. 22-3
Remote Control (Remote Control) .............................................................................................. 22-4
System Configuration (System Configuration)............................................................................ 22-6
Overview (Overview)................................................................................................................... 22-9
Self-Test (Self Test)................................................................................................................... 22-10
Touch Panel (TOUCH) .............................................................................................................. 22-10
Appendix
Appendix 1 How to Calculate the Area of a Waveform...........................................................App-1
Appendix 2 User-Defined Computation..................................................................................App-3
FFT Function .......................................................................................................App-7
Appendix 3 ASCII Data File Format ..................................................................................... App-10
Appendix 4 TCP and UDP Port Numbers............................................................................. App-11
Appendix 5 How Power Measurement Items Are Determined .............................................App-12
Appendix 6 Trigger and Detected Points of SENT Signals .................................................. App-13
Appendix 7 Firmware Version and New Features ................................................................App-14
Index

1-1
IM DLM3054-01EN
1 Vertical Axis (Analog Signal)
You can configure the vertical scale, vertical position, input coupling, probe attenuation, linear scaling, and
bandwidth limit settings of the CH1 through CH4 input signals.
If you are using a probe that is compatible with this instrument’s probe interface, the instrument automatically
configures the input impedance (50 Ω or 1 MΩ) and the probe attenuation.
Turning the Display On and Off (Display)
Select whether show or hide each channel’s input signal waveform.
• ON: The waveform is shown.
• OFF: The waveform is hidden.
Vertical Scale (SCALE knob)
The vertical scale is used to adjust the displayed waveform amplitude so that you can easily view signals. Set
the vertical scale by voltage per grid square (V/div) or current per grid square (A/div) on the screen.
Set the vertical scale using the SCALE knob for each channel.
The SCALE knob is shared between channels. Press the CH1 to CH4 keys to select the channel that you want
to set the vertical scale for. The LED between the SCALE and POSITION knobs illuminates in the color assigned
to the selected channel (yellow, green, magenta, or cyan).

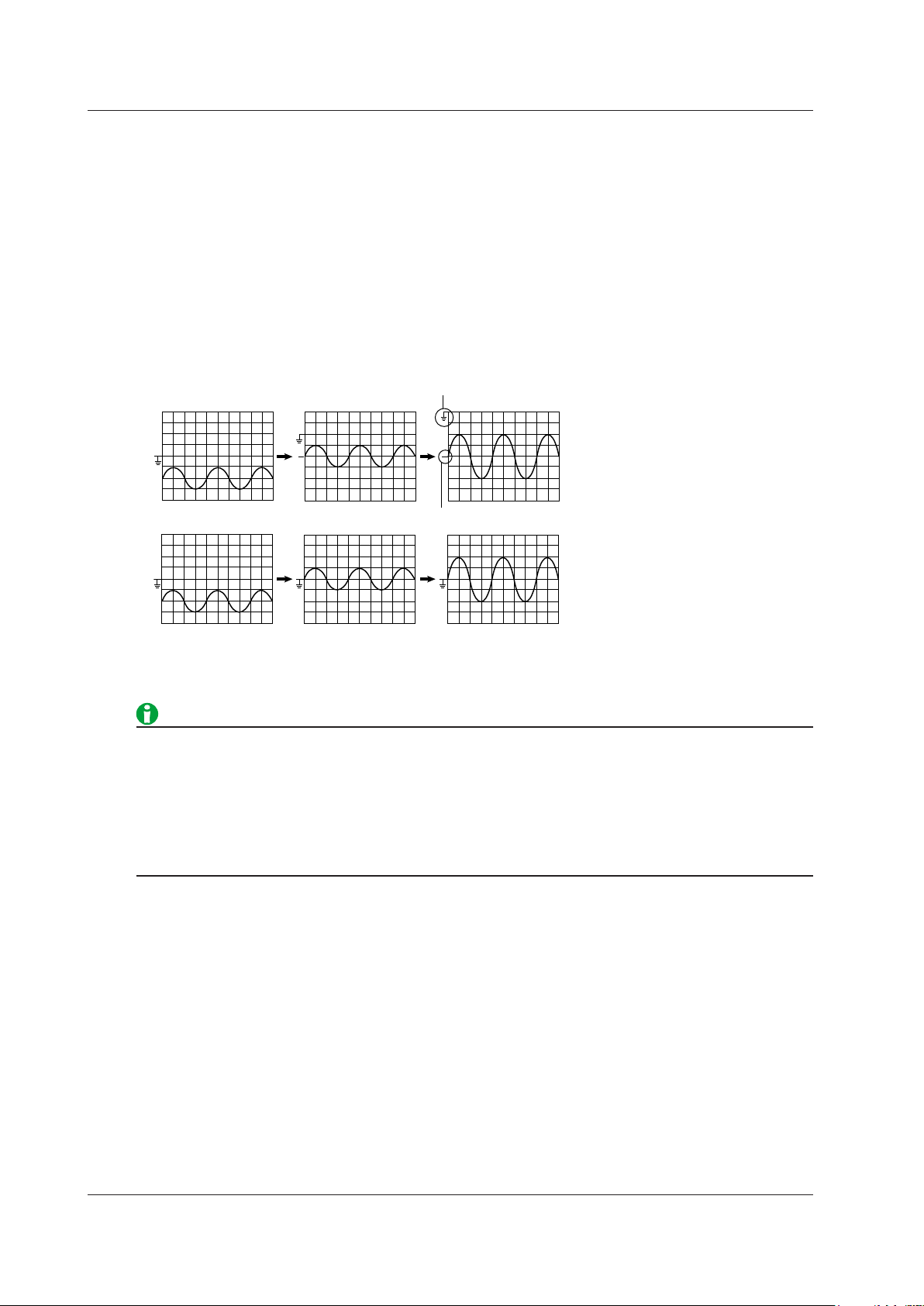

Setup Example
1 div = 1.00 V
1 div = 0.500 V
If 1.00 V/div is changed
to 0.500 V/div
Vertical position
mark
Ground level
mark

1-2 IM DLM3054-01EN
• The SCALE knob has a push switch. If you push the SCALE knob, the FINE indicator illuminates, and you
can set the vertical scale with higher resolution.
Measurement Resolution and Effective Data Range
This instrument uses an 8-bit A/D converter to sample the input signal. The instrument’s effective data range
is 250 levels (LSB). The effective data range is ±5 divisions from the center of the screen, but only up to ±4
divisions of data can be displayed on the screen. If you move the vertical position after stopping waveform
acquisition, you can change the display range of the effective data.
Vertical Scale Setting
To measure the voltage or current with high accuracy, increase the vertical scale so that the input signal is
measured with the largest possible amplitude within the effective data range.
If you display multiple waveforms (set the vertical scale to a low value) so that they do not overlap without
dividing the screen, the resolution of the A/D converter cannot be used to its fullest potential. To make
accurate measurements, divide the screen, and set the vertical scale of each waveform to a high value.

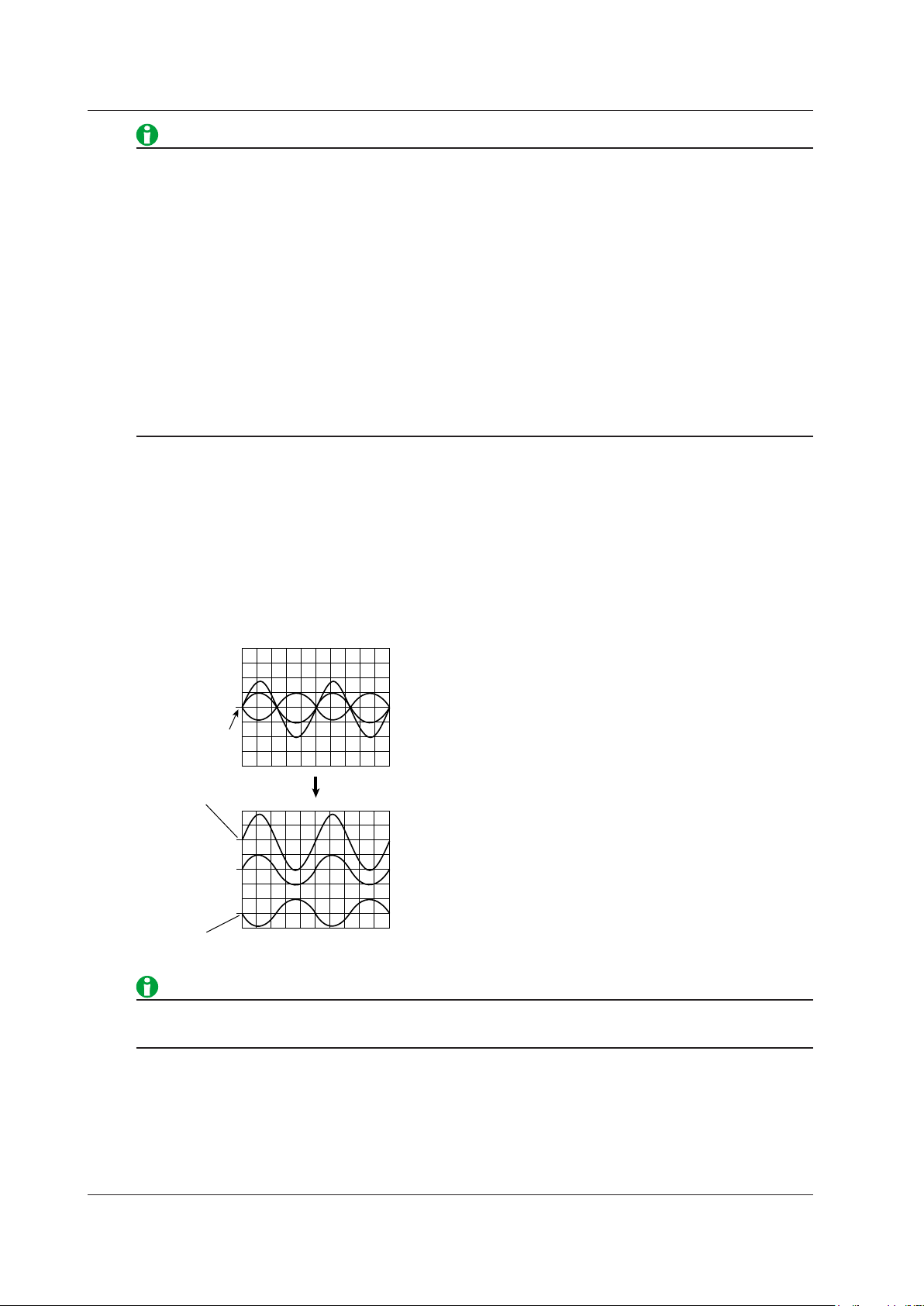

Waveform Vertical Position (POSITION knob)
You can move the display position (vertical position) of each waveform in the range of ±4 divisions.
The vertical scale changes with the vertical position (mark) at the center.
Set the vertical position using the POSITION knob for each channel.
The POSITION knob is shared between channels. Press the CH1 to CH4 keys to select the channel that you
want to set the vertical position for. The key corresponding to the selected channel illuminates, and the LED
between the SCALE and POSITION knobs illuminates in the color assigned to the selected channel (yellow,
green, magenta, or cyan).
Position 2.00 div
Position –3.00 div
Position 0.00 div
Vertical position
mark
After stopping signal acquisition, data falling outside the measurement range when you change the vertical
position is handled as overflow data.
1 Vertical Axis (Analog Signal)

1-3
IM DLM3054-01EN
Input Coupling (Coupling)
You can change the coupling used to input analog signals into the vertical (voltage) control circuit.
Select one of the following input coupling options.
AC
Displays only the AC component of the input signal. The input impedance is 1 MΩ.
DC
Displays both the AC and DC components of the input signal. The input impedance is 1 MΩ.
DC50
Displays both the AC and DC components of the input signal. The input impedance is 50 Ω. Pay attention
because the maximum input voltage (current) is small.
Vertical control
circuit
Input
terminal
1 MΩ
DC
Vertical control
circuit
Input
terminal
50 Ω
DC50
Ω
Vertical control
circuit
Input
terminal
1 MΩ
AC
Probe Attenuation (Probe)
When using a probe, the instrument’s attenuation ratio setting must be aligned with the probe attenuation so
that the voltage (current) and scale values are displayed correctly. Set the attenuation ratio to match the probe
attenuation.
Probe Type (Type)
Select the type of probe to set the attenuation ratio of.
• Voltage: Voltage probe
• Current: Current probe
Attenuation Ratio (Attenuation)
Select the attenuation ratio from the following.
Voltage probe
0.001: 1, 0.002: 1, 0.005: 1, 0.01: 1, 0.02: 1, 0.05: 1, 0.1: 1, 0.2: 1, 0.5: 1, 1: 1, 2: 1, 5: 1, 10: 1, 20: 1, 50: 1, 100:
1, 200: 1, 500: 1, 1000: 1, 2000: 1
Current probe
0.001 A: 1 V, 0.002 A: 1 V, 0.005 A: 1 V, 0.01 A: 1 V, 0.02 A: 1 V, 0.05 A: 1 V, 0.1 A: 1 V, 0.2 A: 1 V, 0.5 A: 1 V, 1 A:
1 V, 2 A: 1 V, 5 A: 1 V, 10 A: 1 V, 20 A: 1 V, 50 A: 1 V, 100 A: 1 V, 200 A: 1 V, 500 A: 1 V, 1000 A: 1 V, 2000 A: 1 V
Using a probe has the following advantages.
• Prevents the disturbance of the voltage and current of the circuit being measured.
• Allows signals to be applied with no distortion.
• Expands the voltage range that the instrument can measure.
1 Vertical Axis (Analog Signal)

1-4 IM DLM3054-01EN
Automatic Zero Adjustment of Current Probes (Probe Zero CAL)
Automatic zero adjustment of current probes can be executed when all the following conditions are met.
• A current probe compatible with the instrument’s probe interface is connected to the signal input terminal.
• The input coupling is set to DC.
If the current probe’s residual offset is large, an error may occur when automatic zero adjustment is executed.
If this happens, adjust the current probe’s residual offset to zero.
Demagnetization and Automatic Zero Adjustment of Current Probes (DEMAG &
ZeroCAL)
Demagnetization and automatic zero adjustment of current probes can be executed when all the following
conditions are met.
• A current probe with a YOKOGAWA probe interface (e.g., PBC100, PBC050) is connected to the signal input
terminal.
• The input coupling is set to DC.
When you demagnetize and perform automatic zero adjustment on a current probe, do not clamp the
conductor. If you demagnetize a current probe while the conductor is clamped, the current that flows through
the conductor as a result of demagnetization may damage components of the DUT circuitry.
Deskew (Deskew)
You can adjust for the time offsets (skew) between the CH1 to CH4 signals, which are caused by the use of
different types of probes, and monitor the signals. You can adjust each channels (CH1 to CH4) separately.
Selectable range: −1000.0 ns to 1000.0 ns (0.01 ns resolution)
Inverted Waveform Display (Invert)
Waveforms can be inverted across the waveform vertical position. Only the display is inverted. Cursor
measurements, automated measurement of waveform parameters, and computation functions are performed on
the non-inverted waveform. The trigger function is also executed on the non-inverted waveform.
Linear Scaling (LinearScale)
The following computation is performed based on the specified scaling coefficient A and offset B, and cursor
measurement values and automated measurement values of waveform parameters are displayed using the
scaled values. You can assign units to scaled values.
By using this function, you can multiply the voltage divider ratio of the external voltage divider to the measured
values of this instrument and convert measured voltage into current.
Y(Unit)=AX + B
X: Value before scaling
Y: Value after scaling
Turning Linear Scaling On and Off (Mode)
Set whether to perform linear scaling.
• ON: Linear scaling is performed.
• OFF: Linear scaling is not performed.
1 Vertical Axis (Analog Signal)

1-5
IM DLM3054-01EN
Unit (Unit)
You can set the unit using up to four alphanumeric characters.
Scaling Coefficient (A) and Offset (B)
The selectable ranges of scaling coefficient A and offset B are as follows:
Selectable of A and B −10.000E+30 to +10.000E+30
Default settings A 1.0000E+00
B 0.0000E+00
Label Display (Label)
You can assign labels using up to 8 characters to be displayed.
Turning Label Display On and Off (Display)
• ON: Shows labels
• OFF: Hides labels
Label (Name)
Set the label name when you set the label display to ON.
Bandwidth Limit (Bandwidth)
You can set a upper bandwidth limit on the analog signal for each channel.
This allows you to observe waveforms with components above the specified frequency removed.
Select the frequencies to limit from the following.
FULL (no bandwidth limit), 200 MHz, 100 MHz, 20 MHz, 10 MHz, 5 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 125
kHz, 62.5 kHz, 32 kHz, 16 kHz, 8 kHz
When high resolution mode is on, the bandwidth limit is set at 200 MHz even when bandwidth limit is set to
FULL.
Offset (Offset)
If you set an offset when measuring an analog signal that is riding on top of a given voltage (or current), the
given voltage (or current) is subtracted from the input signal. This allows you to only view the changes in the
signal at a higher vertical scale setting.
You can set the offset for each channel.
Selectable Range for Voltage
Input Coupling Voltage Scale (With probe = 1:1) Selectable Offset Voltage Range
AC/DC 500 μV/div to 50 mV/div −1.0 V to 1.0 V
0.1 V/div to 0.5 V/div −10.0 V to 10.0 V
1 V/div to 10 V/div −100.0 V to 100.0 V
DC50 500 μV/div to 50 mV/div −1.0 V to 1.0 V
0.1 V/div to 1 V/div −5.0 V to 5.0 V
You can set the offset in 0.01 mV steps. For 500 μV/div, you can set the offset in 5 μV steps.
Resetting the Offset
Press the RESET key to set the offset value to 0 V.
1 Vertical Axis (Analog Signal)

1-6 IM DLM3054-01EN
Offset Cancel (Offset Cancel)
You can set whether or not to apply the specified offset to various measured values.
The offset-cancel feature ON/OFF setting applies to all channels. The default setting is off.
• ON
The specified offset is applied to the result of cursor measurements, computations, and automated
measurement of waveform parameters. The offset is subtracted from the input signal, and various
measurements are performed. The vertical position is set to zero.
• OFF
The specified offset is not applied to the result of cursor measurements, computations, and automated
measurement of waveform parameters. The offset is not subtracted from the input signal, and various
measurements are performed. The vertical position on the screen corresponds to the offset.
1.00 V/div
Offset 0.00 V
Position 0.00 div
1.00 V/div
Offset –2.00 V
Position 0.00 div
0.500 V/div
Offset –2.00 V
Position 0.00 div
When Offset Cancel is set OFF
When Offset Cancel is set ON
Vertical position mark
Ground level mark
• The offset setting applies to all input coupling settings (AC, DC, DC50).
• If you change the probe attenuation, the vertical scale settings change the values that have been scaled
with the new attenuation ratio.
• The offset value does not change even if you change the vertical scale. However, if the offset value goes
outside the selectable range, the offset is set to the maximum or minimum value in the vertical scale range.
If you do not change the offset and set the vertical scale back to its original value, the offset returns to its
original value.
1 Vertical Axis (Analog Signal)

2-1
IM DLM3054-01EN
2 Vertical Axis (Logic Signal)
You can configure the vertical display range, bus display on/off, threshold level, and other settings for the input
(logic) signals.
Logic signals are applied through the logic signal input port (8 bits) on the front panel.
Turning the Display On and Off (Display)
Select whether to show or hide the logic signal waveform. When shown, logic signal waveforms are displayed in
the CH4 waveform display area.
• ON: The waveforms are shown.
• OFF: The waveforms are hidden.
Vertical Display Range (SCALE knob)
You can set the logic signal’s vertical display range to one of three levels.
Press LOGIC, and use the SCALE knob to set the range while the key is illuminated.
Vertical Position (POSITION knob)
You can move the logic signal’s vertical display position within ±4 divisions.
Press LOGIC, and use the POSITION knob to set the position while the key is illuminated.
Setting the Bits (Bit Setup)
For each bit, you can turn on or off the display, set the label (name), and threshold level (Threshold, Level).
You can set whether to set the threshold level separately for each bit (ThresholdType) and noise
rejection (Noise Rejection) .
Turning the Display On or Off
For each bit, you can turn the display on or off. You can also turn on or off the display of all bits at once.
Label (Name)
Set the label that appears when the bit display is turned on using up to eight characters.

2-2 IM DLM3054-01EN
Threshold Level (Threshold, Level)
Set the level (threshold level) of the logic signal to detect, high or low.
Preset (Threshold)
Selecting from the following presets automatically sets the threshold level.
If you select User, you can set the level in the range of −10 V to 10 V in 0.1 V steps.
CMOS(5 V) 2.5 V
CMOS(3.3 V) 1.6 V
CMOS(2.5 V) 1.2 V
CMOS(1.8 V) 0.9 V
ECL −1.3 V
User −10.0 V to 10.0 V
The selectable range varies depending on the logic probe that you use.
• Model 701988: ±40 V (in 0.05 V steps)
• Model 701989: ±6 V (in 0.05 V steps)
Setting Whether to Set the Threshold Level Separately for Each Bit (ThresholdType)
When the 701989 logic probe is connected, you can select whether to set the threshold level separately for each
bit.
• All: Set the threshold level of all bits to the same value
• Each: Set the threshold level for each bit
When you connect one of the following logic probes to the instrument, Threshold Type is set automatically.
• Model 701988: Fixed to All. The setup menu does not appear.
• Model 701989: Each (select All or Each)
Noise Rejection (Noise Rejection)
When the 701989 logic probe is connected, you can apply hysteresis to the threshold level so that the high and
low states do not change as long as the signal level changes within that range.
Select the hysteresis from one of the following settings below.
Hysteresis of approximately 100 mV around the threshold level*
Hysteresis of approximately 250 mV around the threshold level*
* The above values are approximate values. They are not strictly warranted.
The hysteresis is fixed at approximately 80 mV for the 701988 logic probe, so the setup menu will not appear.
2 Vertical Axis (Logic Signal)

2-3
IM DLM3054-01EN
Bus Display (Bus)
Bits 0 to 7 can be displayed as bus signals.
Turning the Display On and Off (Display)
You can turn the bus display on and off. If you turn it on, a bus display appears according to the specified bus bit
assignments (Assignment), label (Name), and format (Format).
• ON: The bus display is shown.
• OFF: The bus display is hidden.
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
2E 2F
Bus display (Hex)
Bus Bit Assignments (Assignment)
Set which bits to assign to the bits on the bus (from the MSB to LSB). The bit assignments here are used to
measure the bus value during cursor measurement.
Edit Menu
In the assignment edit menu, you can select a position in the bus to assign a bit, delete an assigned bit, and so
on.
Bits
Select the bit to assign from the group of bits.
Label (Name)
Set the label that appears when the bus display is turned on using up to eight characters.
Format (Format)
Select the format for displaying the bus.
• Bin: Binary notation
• Hex: Hexadecimal notation
2 Vertical Axis (Logic Signal)

2-4 IM DLM3054-01EN
State Display (State)
The state display shows logic signal data that has been sampled on the edge of the signal specified as the clock
source. Even when the input signal changes, the state is retained until the clock source edge changes.
Display ON/OFF (State)
You can turn the state display on and off. If you turn it on, the state is shown according to the specified clock
source (Clock), detection level (Threshold), and clock source polarity (Polarity).
• ON: The state display is shown.
• OFF: The state display is hidden.
State Display Example
Clock source
(Polarity: )
State display
Input signal
Repetitive high-frequency pulse
Unknown area
Clock Source (Clock)
Select from the following.
CH1 to CH3, LOGIC (Bit0 to Bit7)
Clock Source Polarity (Polarity)
Select the clock source polarity.
When the clock source changes from low to high
When the clock source changes from high to low
When the clock source changes from low to high or from high to low
Detection Level (Threshold)
Set the level for detecting edges. Set this when the clock source is set to CH1 to CH3.
Range: ± 5 div
Hysteresis (Hysteresis)
You can apply a hysteresis to the detection level so that edges are not detected on small changes. Set this when
the clock source is set to CH1 to CH3.
Selectable range: 0.3 div to 8.0 div
Resolution: 0.1 div
• When the state display is ON, Math/Ref4 cannot be used.
• When the clock source is set to LOGIC, the source bit waveform is shown as-is.
2 Vertical Axis (Logic Signal)

2-5
IM DLM3054-01EN
Assignment(Assignment)
You can set whether to apply the state display separately for the bus and each bit. You can also set them all at
once.
Source Bit (Source Bit)
Set this when the clock source is set to LOGIC. Select from the following.
Bit0 to Bit7
Setting the Display Order of Bits and the Bus (Bit Order)
Set the vertical display order of bits and the bus on the screen. Select the bit or bus to move and then specify
the destination.
Deskew (Deskew)
You can adjust for the time offsets (skew) between the logic signal and other signals, which are caused by the
use of different types of probes, to measure signals. Deskewing of the logic signal is performed on all eight bits
collectively.
Range: −1000.0 ns to 1000.0 ns (0.01 ns resolution)
2 Vertical Axis (Logic Signal)
