YOKOGAWA DLM4038 User manual

User’s
Manual DLM4000 Series
Mixed Signal Oscilloscope
Getting Started Guide
IM DLM4038-03EN
9th Edition

Product Registration
Thank you for purchasing YOKOGAWA products.
YOKOGAWA provides registered users with a variety of information and services.
Please allow us to serve you best by completing the product registration form
accessible from our website.
http://tmi.yokogawa.com/
PIM 103-04E

i
IM DLM4038-03EN
Thank you for purchasing the DLM4000 Series Mixed Signal Oscilloscope. This getting started guide
primarily explains the handling precautions and basic operations of the DLM4000. To ensure correct
use, please read this manual thoroughly before beginning operation.
Keep this manual in a safe place for quick reference in the event that a question arises.
List of Manuals
The following manuals, including this one, are provided as manuals for the DLM4000 series. Please
read all manuals.
Manual Title Manual No. Description
DLM4000 Series
Mixed Signal Oscilloscope
Features Guide
IM DLM4038-01EN The manual explains all the DLM4000 features other
than the communication interface features.
(included in the accompanying manual CD)
DLM4000 Series
Mixed Signal Oscilloscope
User’s Manual
IM DLM4038-02EN The manual explains how to operate the DLM4000.
(included in the accompanying manual CD)
DLM4000 Series
Mixed Signal Oscilloscope
Getting Started Guide
IM DLM4038-03EN This guide. Provided as a printed manual. This guide
explains the handling precautions, basic operations,
and specifications of the DLM4000.
(included in the accompanying manual CD)
DLM4000 Series
Mixed Signal Oscilloscope
Communication Interface User’s Manual
IM DLM4038-17EN The manual explains the DLM4000 communication
interface features and instructions on how to use them.
(included in the accompanying manual CD)
Model DLM4038, DLM4058 Mixed
Signal Oscilloscope
IM DLM4038-92Z1 Document for China
The “EN” and “Z1” in the manual numbers are the language codes.
Contact information of Yokogawa offices worldwide is provided on the following sheet.
Document No. Description
PIM 113-01Z2 List of worldwide contacts
Notes
• The contents of this manual are subject to change without prior notice as a result of continuing
improvements to the instrument’s performance and functionality. The figures given in this manual
may differ from those that actually appear on your screen.
• Every effort has been made in the preparation of this manual to ensure the accuracy of its
contents. However, should you have any questions or find any errors, please contact your nearest
YOKOGAWA dealer.
• Copying or reproducing all or any part of the contents of this manual without the permission of
YOKOGAWA is strictly prohibited.
• The TCP/IP software of this product and the documents concerning it have been developed/created
by YOKOGAWA based on the BSD Networking Software, Release 1 that has been licensed from
the Regents of the University of California.
Trademarks
• Microsoft, Internet Explorer, MS-DOS, Windows, Windows 7, Windows 8, Windows 8.1, and
Windows 10 are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
• Adobe and Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated.
• DLM is a registered trademark of Yokogawa Electric Corporation.
• In this manual, the ® and TM symbols do not accompany their respective registered trademark or
trademark names.
• Other company and product names are registered trademarks or trademarks of their respective
holders.
9th Edition: July 2018 (YMI)
All Rights Reserved, Copyright © 2012 Yokogawa Test & Measurement Corporation

ii IM DLM4038-03EN
Disposing of YOKOGAWA Products
When disposing of YOKOGAWA products, follow the laws and ordinances of the country or region
where the product will be disposed of.
Revisions
• 1st Edition: November 2012
• 2nd Edition: February 2013
• 3rd Edition: June 2013
• 4th Edition: February 2015
• 5th Edition: May 2015
• 6th Edition: January 2016
• 7th Edition: October 2016
• 8th Edition: October 2017
• 9th Edition: July 2018

iii
IM DLM4038-03EN
Checking the Contents of the Package
Unpack the box and check the contents before operating the instrument. If the wrong items have been
delivered, if items are missing, or if there is a problem with the appearance of the items, contact your
nearest YOKOGAWA dealer.
DLM4000
Check that the product that you received is what you ordered by referring to the model name and suffix
code given on the name plate on the left side panel.
MODEL SUFFIX1Specifications
DLM4038 Mixed Signal Oscilloscope, 8 channels+ 8-bit switchable logic, 350 MHz
DLM4058 Mixed Signal Oscilloscope, 8 channels+ 8-bit switchable logic, 500 MHz
Power cord2-D
-F
-Q
-R
-H
-N
UL/CSA Standard power cord, Maximum rated voltage: 125 V
VDE Standard power cord, Maximum rated voltage: 250 V
BS Standard power cord, Maximum rated voltage: 250 V
AS Standard power cord, Maximum rated voltage: 250 V
GB Standard power cord, Maximum rated voltage: 250 V
NBR Standard power cord, Maximum rated voltage: 250 V
Language
(One option can be
selected for the factory
default message
language and panel
sheet language)
-HJ
-HE
-HC
-HG
-HF
-HK
-HL
-HS
Japanese
English
Chinese
German
French
Korean
Italian
Spanish
Options /L16
/B5
/M1
/M2
/M3
/P8
/C1
/C8
/G2
/G3
/G4
/F1
/F2
/F3
/F4
/F5
/F6
/F7
/F8
/F9
/F10
/F11
/E1
/E2
/E3
Logic 16 bits
Built-in printer
Memory expansion to 6.25/25/62.5 M points
Memory expansion to 12.5/62.5/125 M points
Memory expansion to 25M/125M/250M points
8 probe power terminals3
GP-IB interface
Approx. 7.2 GB of internal storage
User-defined computation
Power supply analysis
Power supply analysis (includes user-defined computation)
UART trigger and analysis
I2C + SPI trigger and analysis
UART + I2C + SPI trigger and analysis
CAN + LIN trigger and analysis + CXPI analysis
FlexRay trigger and analysis
CAN + LIN + FlexRay trigger and analysis + CXPI analysis
CAN + CAN FD + LIN trigger and analysis + CXPI analysis
CAN + CAN FD + LIN + FlexRay trigger and analysis + CXPI analysis
SENT trigger and analysis
PSI5 analysis
SENT + PSI5 trigger and analysis
Four extra 701939 passive probes in addition to the four standard 701939
passive probes
Four 701946 miniature passive probes instead of the four standard 701939
passive probes
Eight 701946 miniature passive probes instead of the four standard 701939
passive probes
1 For products whose suffix code contains “Z,” an exclusive manual may be included. Please read it along with the
standard manual.
2 Make sure that the attached power cord meets the designated standards of the country and area that you are
using it in.
3 Option /P8 is necessary to use a probe that is not compatible with the probe interface and that requires a power
supply. For detailed specifications, see sections 2.4 and 6.9.

iv IM DLM4038-03EN
Note
The SUFFIX (suffix code) inscribed in the name plate on the DLM4000 case indicates the installed options at
the time of factory shipment. After you add options through additional option licenses, check the options on
the DLM4000 overview screen.*
* For details on additional option licenses, see “Overview (Overview)” in chapter 22, “Other Features” of the
features guide, IM DLM4038-01EN.
NO. (Instrument number)
When contacting the dealer from which you purchased the instrument, please give them the instrument
number.
Standard Accessories
The instrument is shipped with the following accessories. Make sure that all accessories are present
and undamaged.
Item Model or Part No. Quantity Specifications and Notes
Power cord1A1006WD
A1009WD
A1054WD
A1024WD
A1064WD
A1088WD
1 UL/CSA standard
VDE standard
BS standard
AS standard
GB standard
NBR standard
Rubber feet B8080FR 4 —
Printer roll paper2B9988AE 1 —
500-MHz passive probe3701939 4 —
Soft case B8059GG 1 —
Front cover B8069CH 1 —
Panel sheet See below. 1 Japanese, Chinese, German, French, Korean,
Italian, or Spanish
Manuals
Printed manuals IM DLM4038-03EN 1 Getting Started Guide (this guide)
IM DLM4038-92Z1 1 Document for China
PIM 113-01Z2 1 List of worldwide contacts
Manual CD B8069RZ 1 Contains PDFs of the user’s manuals
(For the types of manuals that CD contains,
see the next page.)
Standard accessories are not covered by warranty of this instrument.
Checking the Contents of the Package

v
IM DLM4038-03EN
Soft case
B8059GG
Rubber feet
B8080FR 4 feet
Printer roll paper
2
B9988AE 1 roll
500-MHz passive probe3
701939 4 probes
Front panel protection cover
B8069CH
UL/CSA Standard
A1006WD
VDE Standard
A1009WD
BS Standard
A1054WD
AS Standard
A1024WD
DFQR
Power cord (one cord that matches the suffix code is included)1
GB Standard
A1064WD
H
NBR Standard
A1088WD
N
Panel sheet
One of the following:
Japanese (HJ)
Chinese (HC)
German (HG)
French (HF)
Korean (HK)
Italian (HL)
Spanish (HS)
Manuals
• Printed manuals • Manual CD
1 Make sure that the attached power cord meets the designated standards of the country and area that you
are using it in.
2 When using the optional built-in printer (/B5)
3 On models with the /E1 option, four 701939 passive probes are provided in addition to the four standard
701939 passive probes.
On models with the /E2 option, four 701946 miniature passive probes are provided instead of the four
standard 701939 passive probes.
On models with the /E3 option, eight 701946 miniature passive probes are provided instead of the four
standard 701939 passive probes.
Checking the Contents of the Package

vi IM DLM4038-03EN
Manual CD
The English folder in the manual CD contains the PDF files shown below. The CD also contains
Japanese manuals.
File Name Manual Title Manual No.
Communication Interface.pdf DLM4000 Series Mixed Signal Oscilloscope
Communication Interface User’s Manual
IM DLM4038-17EN
Features Guide&Users Manual.pdf DLM4000 Series Mixed Signal Oscilloscope
Features Guide
IM DLM4038-01EN
DLM4000 Series Mixed Signal Oscilloscope
User’s Manual
IM DLM4038-02EN
Getting Started Guide.pdf DLM4000 Series Mixed Signal Oscilloscope
Getting Started Guide
IM DLM4038-03EN
To view the PDF files above, you need Adobe Reader.
WARNING
Never play this manual CD, which contains the user’s manuals, in an audio CD player.
Doing so may cause loss of hearing or speaker damage due to the large sounds that may be
produced.
French
AVERTISSEMENT
Ce CD contient les manuels d’utilisation. Ne jamais insérer ce CD dans un lecteur de CD
audio. Cela pourrait entraîner une perte d’audition ou l’endommagement des enceintes en
raison du volume potentiellement élevé des sons produits.
Optional Accessories (Sold separately)
The following optional accessories are available for purchase separately. For information about
ordering accessories, contact your nearest YOKOGAWA dealer.
• Use the accessories specified in this manual. Moreover, use the accessories of this product only
with Yokogawa products that specify them as accessories.
• Use the accessories of this product within the rated range of each accessory. When using several
accessories together, use them within the specification range of the accessory with the lowest
rating.
Item Model/
Part No.
Min.
Q’ty Specifications Manual No.
PBDH1000 differential probe with
YOKOGAWA probe interface 701924 1 DC to 1 GHz bandwidth, 1 MΩ, ±35 V maximum IM 701924-01E
PBDH0150 differential probe with
YOKOGAWA probe interface 701927 1 DC to 150 MHz bandwidth, ±1400 V maximum IM 701927-01EN
PBC100 current probe with
YOKOGAWA probe interface 701928 1 DC to 100 MHz bandwidth, 30 Arms IM 701928-01E
PBC050 current probe with
YOKOGAWA probe interface 701929 1 DC to 50 MHz bandwidth, 30 Arms
Passive probe 701939 1 DC to 500 MHz bandwidth, 10 MΩ IM 701939-01E
Miniature passive probe 701946 1 DC to 500 MHz bandwidth, 10 MΩ IM 701946-01EN
Passive probe (wide temperature
range) 702906 1
DC to 200 MHz bandwidth, 10 MΩ,
operating temperature range:
- 40°C to +85°C (excluding the phase
adjustment side)
IM 702906-01EN
PBL100 logic probe 701988 1 100 MHz toggle frequency, 1 MΩ IM 701988-01E
PBL250 logic probe 701989 1 250 MHz toggle frequency, 100 kΩ IM 701989-01E
Checking the Contents of the Package

vii
IM DLM4038-03EN
Item Model/
Part No.
Min.
Q’ty Specifications Manual No.
100:1 high-voltage passive probe
701944 1 DC to 400 MHz bandwidth, 1000 Vrms,
1.2 m in length IM 701944-01E
701945 1 DC to 250 MHz bandwidth, 1000 Vrms,
3m in length
FET probe* 700939 1 DC to 900 MHz bandwidth, 2.5 MΩ, 1.8 pF IM 700939-01E
Differential probe*
700924 1 DC to 100 MHz bandwidth,
±1400 V maximum IM 700924-01E
700925 1 DC to 15 MHz bandwidth,
±500 V maximum IM 700925-01E
701920 1 DC to 500 MHz bandwidth,
±30 V maximum (common-mode input) IM 701920-01E
701921 1 DC to 100 MHz bandwidth,
±700 V maximum IM 701921-01E
701922 1 DC to 200 MHz bandwidth,
±60V maximum (common-mode input) IM 701922-01E
701926 1 DC to 50 MHz bandwidth,
7000 V maximum (common-mode input) IM 701926-01E
Current probe*
701917 1 DC to 50 MHz bandwidth, 5 Arms IM 701917-01EN
701918 1 DC to 120 MHz bandwidth, 5 Arms IM 701917-01EN
701930 1 DC to 10 MHz bandwidth, 150 Arms IM 701930-01E
701931 1 DC to 2 MHz bandwidth, 500 Arms IM 701931-01E
701932 1 DC to 100 MHz bandwidth, 30 Arms IM 701932-01E
701933 1 DC to 50 MHz bandwidth, 30 Arms IM 701933-01E
PBL500 5 GHz low capacitance
probe 701974 1 — IM 701974-01E
Deskew signal source 701936 1 Approx. 0 to 5 V, approx. 0 to 100 mA,
approx. 0 to 1 A, approx. 15 kHz IM 701936-01EN
Mini clip adapter 700971 1 set For 701939 passive probes —
BNC adapter 700972 1 — —
Logic probe accessory kit 701909 1 set For the 701989 —
Probe stand 701919 1 — IM 701919-01E
PCB adapter 366945 1 set For 701939 passive probes —
Solder-in adapter 366946 1 set For 701939 passive probes —
GO/NO-GO cable 366973 1 — —
Soft carrying case 701968 1 For the DLM4000 series,
shoulder type, three pockets —
Rack mount kit 701969-E 1 EIA standard IM 701969-02EN
701969-J 1 JIS standard IM 701969-01EN
Optional accessories (sold separately) are not covered by warranty of this instrument.
* Used by connecting to a probe power terminal (/P8 option) or a probe power supply (701934; sold
separately).
Spare Parts (Sold Separately)
The spare parts below are available for purchase separately. Check that all contents are present and
undamaged.
For information about ordering spare parts, contact your nearest YOKOGAWA dealer.
Name Part No. Minimum Q’ty Note
Printer roll paper B9988AE 10 Thermo-sensitive paper, 111 mm × 10 m
Checking the Contents of the Package

viii IM DLM4038-03EN
Safety Precautions
This product is designed to be used by a person with specialized knowledge.
This instrument is an IEC safety class I instrument (provided with a terminal for protective earth
grounding).
The general safety precautions described herein must be observed during all phases of operation.
If the instrument is used in a manner not specified in this manual, the protection provided by the
instrument may be impaired.
This manual is part of the product and contains important information. Store this manual in a safe place
close to the instrument so that you can refer to it immediately. Keep this manual until you dispose of
the instrument.
YOKOGAWA assumes no liability for the customer’s failure to comply with these requirements.

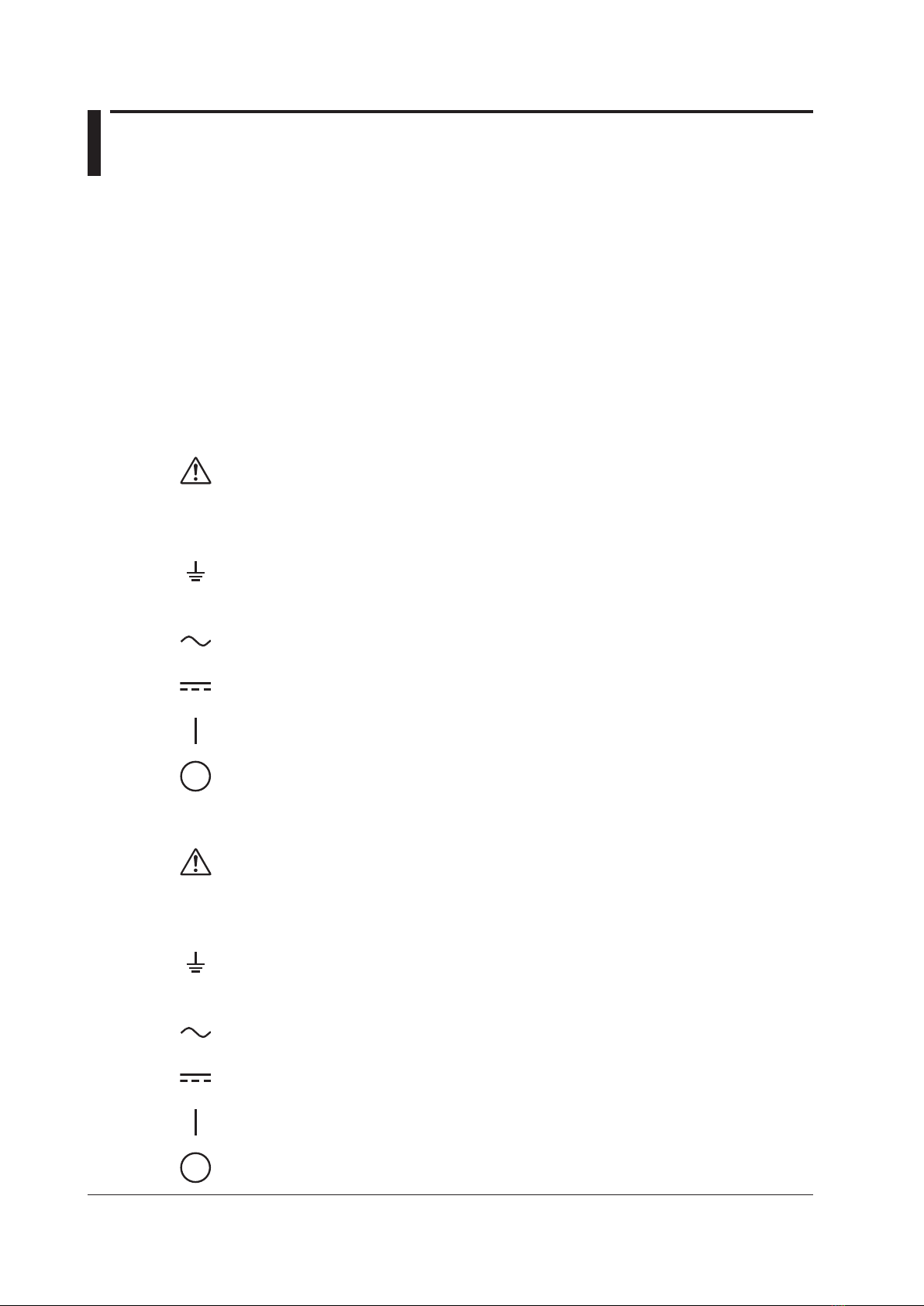

The following symbols are used on this instrument.
Warning: handle with care. Refer to the user’s manual or service manual. This symbol appears
on dangerous locations on the instrument which require special instructions for proper handling
or use. The same symbol appears in the corresponding place in the manual to identify those
instructions.
Ground (earth) or functional ground terminal (do not use this terminal as a protective ground
terminal.)
Alternating current
Direct current
On (power)
Off (power)
French
Avertissement : À manipuler délicatement. Toujours se reporter aux manuels d’utilisation et
d’entretien. Ce symbole a été apposé aux endroits dangereux de l’instrument pour lesquels
des consignes spéciales d’utilisation ou de manipulation ont été émises. Le même symbole
apparaît à l’endroit correspondant du manuel pour identifier les consignes qui s’y rapportent.
Borne de terre ou borne de terre fonctionnelle (ne pas utiliser cette borne comme prise de
terre.)
Courant alternatif
Courant direct
Marche (alimentation)
Arrêt (alimentation)

ix
IM DLM4038-03EN
Failure to comply with the precautions below could lead to injury
or death or damage to the instrument.
WARNING
Use the Instrument Only for Its Intended Purpose
This instrument is a waveform measuring device that monitors and measures electrical
signals. Do not use this instrument for anything other than as a waveform measuring device.
Check the Physical Appearance
Do not use the instrument if there is a problem with its physical appearance.
Use the Correct Power Supply
Before connecting the power cord, ensure that the source voltage matches the rated supply
voltage of the DLM4000 and that it is within the maximum rated voltage of the provided power
cord.
Use the Correct Power Cord and Plug
To prevent the possibility of electric shock or fire, be sure to use the power cord supplied by
YOKOGAWA. The main power plug must be plugged into an outlet with a protective earth
terminal. Do not invalidate this protection by using an extension cord without protective earth
grounding. Additionally, do not use the power cord supplied with this instrument with another
instrument.
Connect the Protective Grounding Terminal
Make sure to connect the protective earth to prevent electric shock before turning on the
power. The power cord that comes with the instrument is a three-prong type power cord.
Connect the power cord to a properly grounded three-prong outlet.
Do Not Impair the Protective Grounding
Never cut off the internal or external protective earth wire or disconnect the wiring of the
protective earth terminal. Doing so may result in electric shock or damage to the instrument.
Do Not Use When the Protection Functions Are Defective
Before using this instrument, check that the protection functions, such as the protective
grounding and fuse, are working properly. If you suspect a defect, do not use the instrument.
Do Not Operate in an Explosive Atmosphere
Do not operate the instrument in the presence of flammable gasses or vapors. Doing so is
extremely dangerous.
Do Not Remove the Covers or Disassemble or Alter the Instrument
Only qualified YOKOGAWA personnel may remove the covers and disassemble or alter the
instrument. The inside of the instrument is dangerous because parts of it have high voltages.
Ground the Instrument before Making External Connections
Securely connect the protective grounding before connecting to the item under measurement
or to an external control unit. Before touching a circuit, turn off its power and check that it has
no voltage. To prevent the possibility of electric shock or an accident, connect the ground of
the probe and input connector to the ground of the item being measured.
Safety Precautions

xIM DLM4038-03EN
Measurement Category
The measurement category of the DLM4000 signal input terminals is Other (O). Do not use it
to measure the main power supply or for Measurement Categories II, III, and IV.
Install or Use the Instrument in Appropriate Locations
• Do not install or use the instrument outdoors or in locations subject to rain or water.
• Install the instrument so that you can immediately remove the power cord if an abnormal or
dangerous condition occurs.
Accessories
Use the accessories specified in this manual. Moreover, use the accessories of this product
only with Yokogawa products that specify them as accessories.
Do not use faulty accessories.
CAUTION
Operating Environment Limitations
This product is a Class A (for industrial environments) product. Operation of this product in a
residential area may cause radio interference in which case the user will be required to correct
the interference.
French
AVERTISSEMENT
Utiliser l’instrument aux seules fins pour lesquelles il est prévu
Cet instrument est un appareil de mesure de forme d’onde pour le contrôle et la mesure des
signaux électriques. Ne pas utiliser cet instrument à d’autres fins que celles de mesure de
forme d’onde.
Inspecter l’apparence physique
Ne pas utiliser l’instrument si son intégrité physique semble être compromise.
Vérifier l’alimentation
Avant de brancher le cordon d’alimentation, vérifier que la tension source correspond à
la tension d’alimentation nominale du DLM4000 et qu’elle est compatible avec la tension
nominale maximale du cordon d’alimentation.
Utiliser le cordon d’alimentation et la fiche adaptés
Pour éviter les risques de choc électrique ou d’incendie, utilisez le cordon d’alimentation fourni
par YOKOGAWA. La fiche doit être branchée sur une prise secteur raccordée à la terre. En
cas d’utilisation d’une rallonge, celle-ci doit être impérativement reliée à la terre. Par ailleurs,
n’utilisez pas le cordon d’alimentation fourni pour cet instrument avec un autre appareil.
Brancher la prise de terre
Avant de mettre l’instrument sous tension, penser à brancher la prise de terre pour éviter tout
choc électrique. Le cordon d’alimentation livré avec l’instrument est doté de trois broches.
Brancher le cordon d’alimentation sur une prise de courant à trois plots et mise à la terre.
Safety Precautions

xi
IM DLM4038-03EN
Ne pas entraver la mise à la terre de protection
Ne jamais neutraliser le fil de terre interne ou externe, ni débrancher la borne de mise à la
terre. Cela pourrait entraîner un choc électrique ou endommager l’instrument.
Ne pas utiliser lorsque les fonctions de protection sont défectueuses
Avant d’utiliser l’instrument, vérifier que les fonctions de protection, telles que le raccordement
à la terre et le fusible, fonctionnent correctement. En cas de dysfonctionnement possible, ne
pas utiliser l’instrument.
Ne pas utiliser dans un environnement explosif
Ne pas utiliser l’instrument en présence de gaz ou de vapeurs inflammables. Cela pourrait
être extrêmement dangereux.
Ne pas retirer le capot, ni démonter ou modifier l’instrument
Seul le personnel YOKOGAWA qualifié est habilité à retirer le capot et à démonter ou modifier
l’instrument. Certains composants à l’intérieur de l’instrument sont à haute tension et par
conséquent, représentent un danger.
Relier l’instrument à la terre avant de le brancher sur des connexions externes
Toujours relier l’instrument à la terre avant de le brancher aux appareils à mesurer ou à une
commande externe. Avant de toucher un circuit, mettre l’instrument hors tension et vérifier
l’absence de tension. Pour éviter tout risque de choc électrique, brancher la terre de la sonde
et du connecteur d’entrée sur la terre de l’appareil à mesurer.
Catégorie de mesure
La catégorie de mesure des terminaux d’entrée de signal du DLM4000 est Autre (O). Ne pas
l’utiliser pour mesurer l’alimentation électrique, ni pour les catégories de mesure II, III et IV.
Installer et utiliser l’instrument aux emplacements appropriés
• Ne pas installer, ni utiliser l’instrument à l’extérieur ou dans des lieux exposés à la pluie ou
à l’eau.
• Installer l’instrument de manière à pourvoir immédiatement le débrancher du secteur en
cas de fonctionnement anormal ou dangereux.
Accessoires
Utiliser les accessoires spécifiés dans ce manuel. En outre, utiliser les accessoires de ce
produit uniquement avec des produits Yokogawa pour lesquels ils sont spécifiés comme
accessoires.
Ne pas utiliser d’accessoires défectueux.
ATTENTION
Limitations relatives à l’environnement opérationnel
Ce produit est un produit de classe A (pour environnements industriels). L’utilisation de ce
produit dans un zone résidentielle peut entraîner une interférence radio que l’utilisateur sera
tenu de rectifier.
Safety Precautions

xii IM DLM4038-03EN
Sales in Each Country or Region
Waste Electrical and Electronic Equipment
Waste Electrical and Electronic Equipment (WEEE), Directive
(This directive is valid only in the EU.)
This product complies with the WEEE directive marking requirement. This marking indicates
that you must not discard this electrical/electronic product in domestic household waste.
Product Category
With reference to the equipment types in the WEEE directive, this product is classified as a
“Monitoring and control instruments” product.
When disposing of products in the EU, contact your local Yokogawa Europe B.V. office.
Do not dispose in domestic household waste.
EU Battery Directive
EU Battery Directive
(This directive is valid only in the EU.)
Batteries are included in this product. This marking indicates they shall be sorted out and
collected as ordained in the EU battery directive.
Battery type: Lithium battery
You cannot replace batteries by yourself. When you need to replace batteries, contact your
local Yokogawa Europe B.V. office.
Authorized Representative in the EEA
Yokogawa Europe B.V. is the authorized representative of Yokogawa Test & Measurement Corporation
for this product in the EEA. To contact Yokogawa Europe B.V., see the separate list of worldwide
contacts, PIM 113-01Z2.

xiii
IM DLM4038-03EN
Conventions Used in This Manual
Unit
k: Denotes 1000. Example: 100 kS/s (sample rate)
K: Denotes 1024. Example: 720 KB (file size)
Displayed Characters
Bold characters in procedural explanations are used to indicate panel keys and soft keys that are used
in the procedure and menu items that appear on the screen.
Notes
The notes and cautions in this manual are categorized using the following symbols.
Improper handling or use can lead to injury to the user or damage to the
instrument. This symbol appears on the instrument to indicate that the user must
refer to the user’s manual for special instructions. The same symbol appears
in the corresponding place in the user’s manual to identify those instructions.
In the manual, the symbol is used in conjunction with the word “WARNING” or
“CAUTION.”
WARNING Calls attention to actions or conditions that could cause serious or fatal injury to
the user, and precautions that can be taken to prevent such occurrences.
CAUTION Calls attention to actions or conditions that could cause light injury to the user or
damage to the instrument or user’s data, and precautions that can be taken to
prevent such occurrences.
French
AVERTISSEMENT Attire l’attention sur des gestes ou des conditions susceptibles
de provoquer des blessures graves (voire mortelles), et sur les
précautions de sécurité pouvant prévenir de tels accidents.
ATTENTION Attire l’attention sur des gestes ou des conditions susceptibles de
provoquer des blessures légères ou d’endommager l’instrument ou les
données de l’utilisateur, et sur les précautions de sécurité susceptibles
de prévenir de tels accidents.
Note Calls attention to information that is important for proper operation of the
instrument.

xiv IM DLM4038-03EN
Contents
List of Manuals...................................................................................................................................i
Checking the Contents of the Package............................................................................................ iii
Safety Precautions......................................................................................................................... viii
Sales in Each Country or Region.................................................................................................... xii
Conventions Used in This Manual ................................................................................................. xiii
Chapter 1 Component Names and Functions
1.1 Top Panel, Front Panel, Right Side Panel, Left Side Panel, and Rear Panel................... 1-1
1.2 Keys and Knobs ............................................................................................................... 1-4
1.3 Screens ...........................................................................................................................1-11
Chapter 2 Making Preparations for Measurements
2.1 Handling Precautions ....................................................................................................... 2-1
2.2 Installing the Instrument ................................................................................................... 2-3
2.3 Connecting the Power Supply and Turning the Power Switch On and Off....................... 2-6
2.4 Connecting Probes........................................................................................................... 2-9
2.5 Correcting a Probe Phase .............................................................................................. 2-14
2.6 Connecting Logic Probes ............................................................................................... 2-16
2.7 Attaching the Panel Sheet.............................................................................................. 2-18
2.8 Loading Roll Paper into the Built-In Printer (Option) ...................................................... 2-19
Chapter 3 Common Operations
3.1 Key and Jog Shuttle Operations....................................................................................... 3-1
3.2 Entering Values and Strings ............................................................................................. 3-3
3.3 Using USB Keyboards and Mouse Devices ..................................................................... 3-5
3.4 Synchronizing the Clock..................................................................................................3-11
3.5 Performing Auto Setup ................................................................................................... 3-12
3.6 Resetting the DLM4000 to Its Factory Default Settings ................................................. 3-14
3.7 Calibrating the DLM4000................................................................................................ 3-15
3.8 Starting and Stopping Waveform Acquisition ................................................................. 3-16
3.9 Displaying Help .............................................................................................................. 3-17
Chapter 4 Rear Panel Input and Output
4.1 External Trigger Input (TRIGGER IN) .................................................................................4-1
4.2 Trigger Output (TRIGGER OUT)...................................................................................... 4-2
4.3 Video Signal Output (VIDEO OUT (XGA)) ....................................................................... 4-4
4.4 GO/NO-GO Signal Output................................................................................................ 4-5
Chapter 5 Troubleshooting, Maintenance, and Inspection
5.1 If a Problem Occurs.......................................................................................................... 5-1
5.2 Recommended Part Replacement ................................................................................... 5-2

xv
IM DLM4038-03EN
1
2
3
4
5
6
App
Index
Chapter 6 Specifications
6.1 Signal Input Section ......................................................................................................... 6-1
6.2 Triggering Section ............................................................................................................ 6-4
6.3 Time Axis.......................................................................................................................... 6-8
6.4 Display.............................................................................................................................. 6-8
6.5 Features ........................................................................................................................... 6-9
6.6 Built-in Printer (/B5 Option) ............................................................................................ 6-16
6.7 Storage........................................................................................................................... 6-16
6.8 USB Ports for Peripherals .............................................................................................. 6-16
6.9 Auxiliary I/O Section ....................................................................................................... 6-17
6.10 Computer Interface......................................................................................................... 6-18
6.11 General Specifications ................................................................................................... 6-19
6.12 External Dimensions ...................................................................................................... 6-22
Appendix
Appendix 1 Relationship between the Time Axis Setting, Record Length, and Sample Rate..... App-1
Appendix 2 USB Keyboard Key Assignments..................................................................... App-11
Contents

1-1
Component Names and Functions
IM DLM4038-03EN
1
2
3
4
5
6
App
Index
Chapter 1 Component Names and Functions
1.1 Top Panel, Front Panel, Right Side Panel, Left
Side Panel, and Rear Panel
Top Panel
Handle
Built-in printer (option)
Prints the display.
Inlet holes
Front Panel
LCD
ESC key
Soft keys
Description of the displayed
contents → Section 1.3
Use this key to clear soft key menus and pop-up menus.
Jog shuttle
Use the jog shuttle to change values
and move cursors.
Turn the shuttle ring to vary the rate at
which values change. The rate is set
according to the shuttle ring angle.
Use the soft keys to select items on the setup
menus that appear during configuration.
Probe compensation signal
output terminal (1 kHz/1 Vp-p)
Transmits phase compensation signals
for probes. Phase correction procedure
→ Section 2.5
Functional ground terminal
When correcting a probe phase,
connect the probe’s ground wire to this
terminal.
USB ports for peripherals
Use these ports to connect a USB
keyboard, mouse, or storage device.
USB keyboard or mouse
→ Section 3.3
USB storage → User’s Manual
Keys and knobs → Section 1.2
Logic signal input port LOGIC(L)1
Connect a logic probe to this terminal to observe
8-bit logic signals. → Section 2.6
1 Analog signal input channel CH8 and 8-bit logic signal input port L cannot measure signals simultaneously.
The signal that corresponds to the key that is illuminated, either CH8 or L, can be measured.
2 Logic signal input ports LOGIC(A|B) are equipped on models with the /L16 option.
Signal input terminals - probe interface
terminals (CH1 to CH8)1
Connect probes to these terminals to observe
analog signals. → Section 2.4
Power switch → Section 2.3
Logic signal input ports LOGIC (A|B)2
Connect a logic probe to this terminal to observe
up to 16-bit logic signals. → Section 2.6

1-2 IM DLM4038-03EN

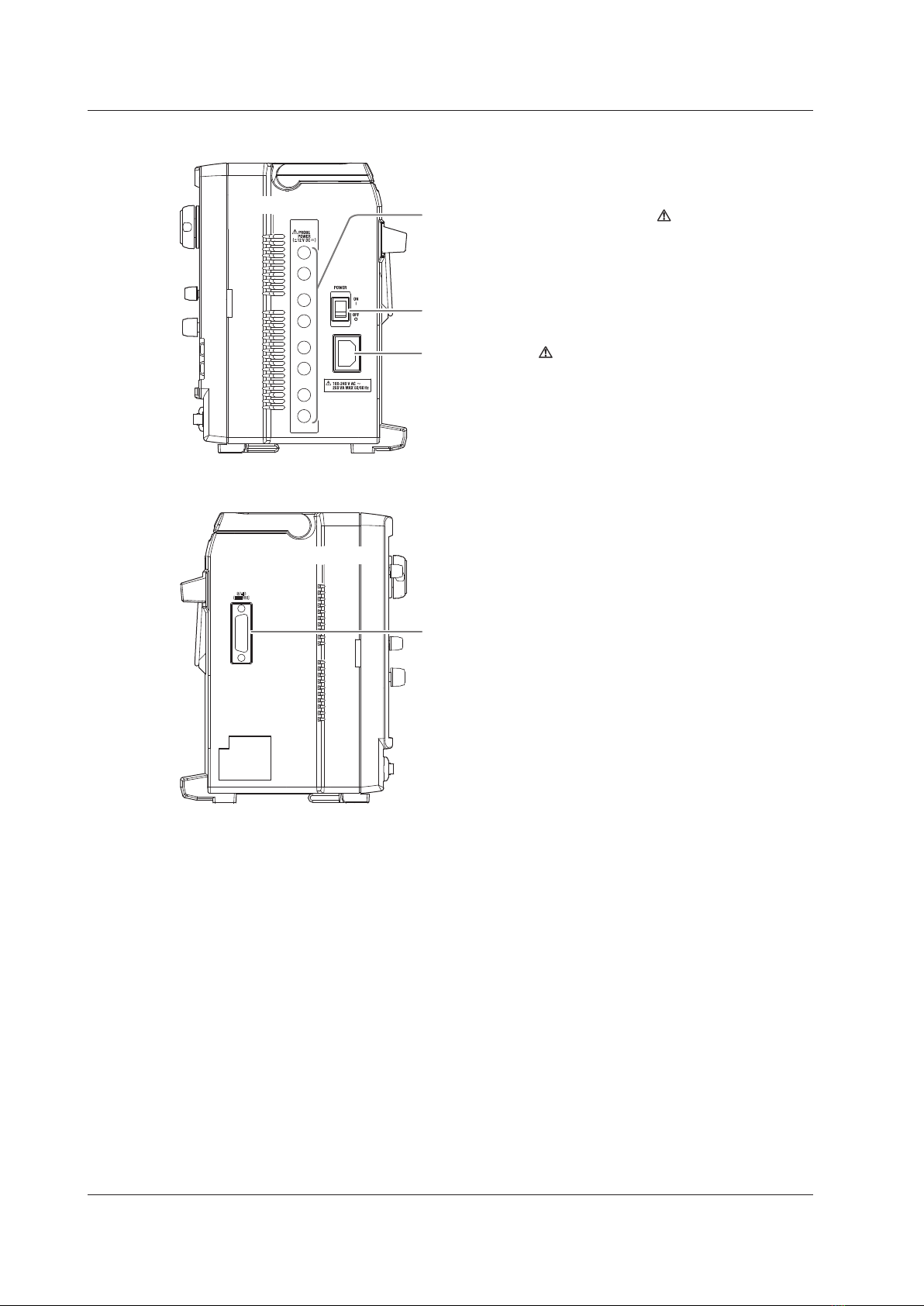

Right Side Panel
Power connector → Section 2.3
Main power switch → Section 2.3
8 probe power terminals (optional)
Use these terminals to supply power to a YOKOGAWA
FET probe or current probe. → Section 2.4
Inlet holes
Left Side Panel
GP-IB connector
Use this connector to communicate with the DLM4000
through the GP-IB interface.
→ Communication Interface User’s Manual
Inlet holes
1.1 Top Panel, Front Panel, Right Side Panel, Left Side Panel, and Rear Panel

1-3
Component Names and Functions
IM DLM4038-03EN
1
2
3
4
5
6
App
Index

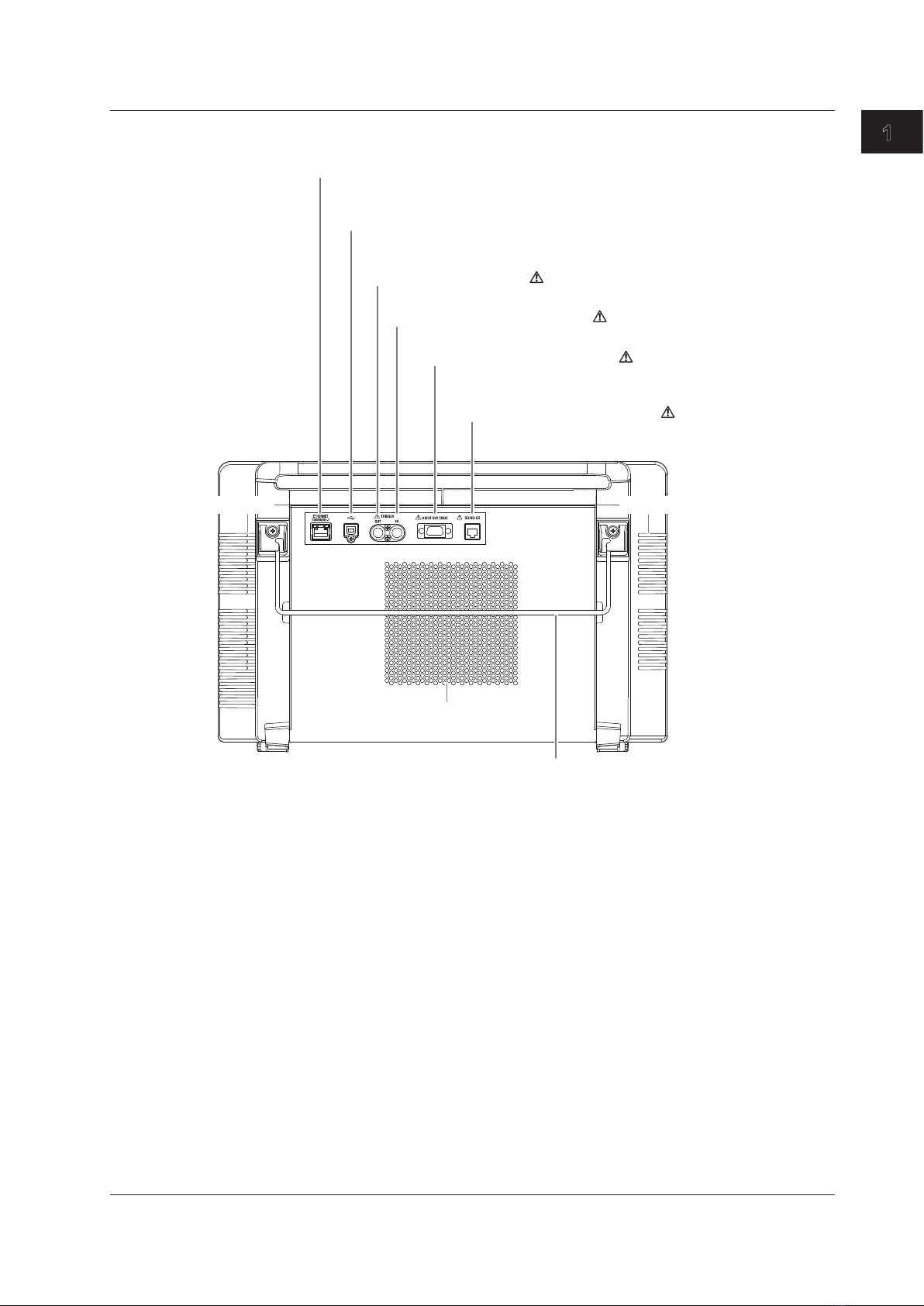

Rear Panel
Outlet holes
Inlet holes
Inlet holes
GO/NO-GO output connector
This connector transmits GO/NO-GO result signals.
→ Section 4.4
Video signal output terminal
Use this terminal to view the DLM4000 display on an external display.
→ Section 4.3
External trigger input terminal
Use this terminal to apply external trigger signals. → Section 4.1
USB port for PCs
Use this port to connect the DLM4000 to a PC that has a USB port.
→ Communication Interface User’s Manual
Ethernet port
Use this port to connect the DLM4000 to a network.
→ Features Guide and Communication Interface User’s Manual
Trigger output terminal
Use this terminal to transmit trigger signals. → Section 4.2
Stand → Section 2.2
1.1 Top Panel, Front Panel, Right Side Panel, Left Side Panel, and Rear Panel
