YOKOGAWA AQ1100A User manual

User’s
Manual AQ1100A, AQ1100B, AQ1100D
OLTS
Multi Field Tester
IM AQ1100-01EN
4th Edition

i
IM AQ1100-01EN
Thank you for purchasing the AQ1100A, AQ1100B, and AQ1100D OLTS (Optical Loss Test Set) Multi
Field Tester.
This user’s manual explains the features, operating procedures, and handling precautions of the
AQ1100A, AQ1100B, and AQ1100D. To ensure correct use, please read this manual thoroughly before
operation. Keep this manual in a safe place for quick reference in the event that a question arises.
This manual is one of three AQ1100A, AQ1100B, and AQ1100D manuals. Please read all the manuals.
Manual Title Manual No. Description
AQ1100A, AQ1100B, AQ1100D OLTS
Multi Field Tester Operation Guide
IM AQ1100-02EN This guide focuses on the handling precautions,
basic operations, and specifications of the AQ1100A,
AQ1100B, and AQ1100D.
AQ1100A, AQ1100B, AQ1100D OLTS
Multi Field Tester
User’s Manual (included in CD)
IM AQ1100-01EN This manual. Explains all AQ1100A, AQ1100B, and
AQ1100D features, except for the communication
features, and how to use them.
AQ1100A, AQ1100B, AQ1100D OLTS
Multi Field Tester Communication
Interface User’s Manual (included in
CD)
IM AQ1100-17EN Explains the features related to using communication
commands to control the AQ1100A, AQ1100B, and
AQ1100D.
Notes
• Thecontentsofthismanualaresubjecttochangewithoutpriornoticeasaresultofcontinuing
improvements to the instrument’s performance and functionality. The figures given in this manual
may differ from those that actually appear on your screen.
• Everyefforthasbeenmadeinthepreparationofthismanualtoensuretheaccuracyofits
contents. However, should you have any questions or find any errors, please contact your nearest
YOKOGAWA dealer.
• Copyingorreproducingalloranypartofthecontentofthismanualwithoutthepermissionof
YOKOGAWA is strictly prohibited.
Trademarks
• Microsoft,Windows,andWindowsXPareeitherregisteredtrademarksortrademarksofMicrosoft
Corporation in the United States and/or other countries.
• Adobe,Acrobat,andPostScriptaretrademarksofAdobeSystemsIncorporated.
• Inthismanual,theTMand®symbolsdonotaccompanytheirrespectiveregisteredtrademarkor
trademark names.
• Othercompanyandproductnamesareregisteredtrademarksortrademarksoftheirrespective
holders.
Revisions
1st Edition: November 2009
2nd Edition: December 2014
3rd Edition: December 2015
4th Edition: October 2017
4th Edition: October 2017 (YMI)
All Rights Reserved, Copyright © 2009 Yokogawa Electric Corporation
All Rights Reserved, Copyright © 2014 Yokogawa Test & Measurement Corporation

ii IM AQ1100-01EN
Conventions Used in This Manual
Notes
The notes and cautions in this manual are categorized using the following symbols.
Improper handling or use can lead to injury to the user or damage to the
instrument. This symbol appears on the instrument to indicate that the user must
refer to the user’s manual for special instructions. The same symbol appears
in the corresponding place in the user’s manual to identify those instructions.
Inthemanual,thesymbolisusedinconjunctionwiththeword“WARNING”or
“CAUTION.”
WARNING Callsattentiontoactionsorconditionsthatcouldcauseseriousorfatalinjuryto
the user, and precautions that can be taken to prevent such occurrences.
CAUTION Callsattentiontoactionsorconditionsthatcouldcauselightinjurytotheuser
or cause damage to the instrument or user’s data, and precautions that can be
taken to prevent such occurrences.
Note Calls attention to information that is important for proper operation of the
instrument.
Symbols and Conventions Used in Procedural Explanations
The contents of the procedural explanations are indicated using the following symbols.
Procedure Carry out the procedure according to the step numbers. All procedures are
written under the assumption that you are starting operation at the beginning
of the procedure, so you may not need to carry out all the steps in a procedure
when you are changing the settings.
Explanation This section describes the setup items and the limitations regarding the
procedures. It may not give a detailed explanation of the feature. For a detailed
explanation of the feature, see chapter 2.
Character Notations
Hard Key Names and Soft Key Names in Bold Characters
Indicate panel keys that are used in the procedure and soft keys and menu items that appear on the screen.
Unit
k Denotes 1000. Example: 12 kg, 100 kHz

iii
IM AQ1100-01EN
51, 5.2, 6.1, 6.2, 6.3, 7.2, 7.3, 7.4, 12.7, 12.8, 12.9
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
Contents
Conventions Used in This Manual ....................................................................................................ii
Chapter 1 Features
1.1 Overview .......................................................................................................................... 1-1
1.2 Optical Power Meter and Light Source............................................................................. 1-2
1.3 Loss Testing...................................................................................................................... 1-4
1.4 Multicore Loss Testing...................................................................................................... 1-5
1.5 IP Testing (Option)............................................................................................................ 1-6
1.6 Other Features ................................................................................................................. 1-7
Chapter 2 Common Operations
2.1 Key, Rotary Knob, and Arrow Key Operations.................................................................. 2-1

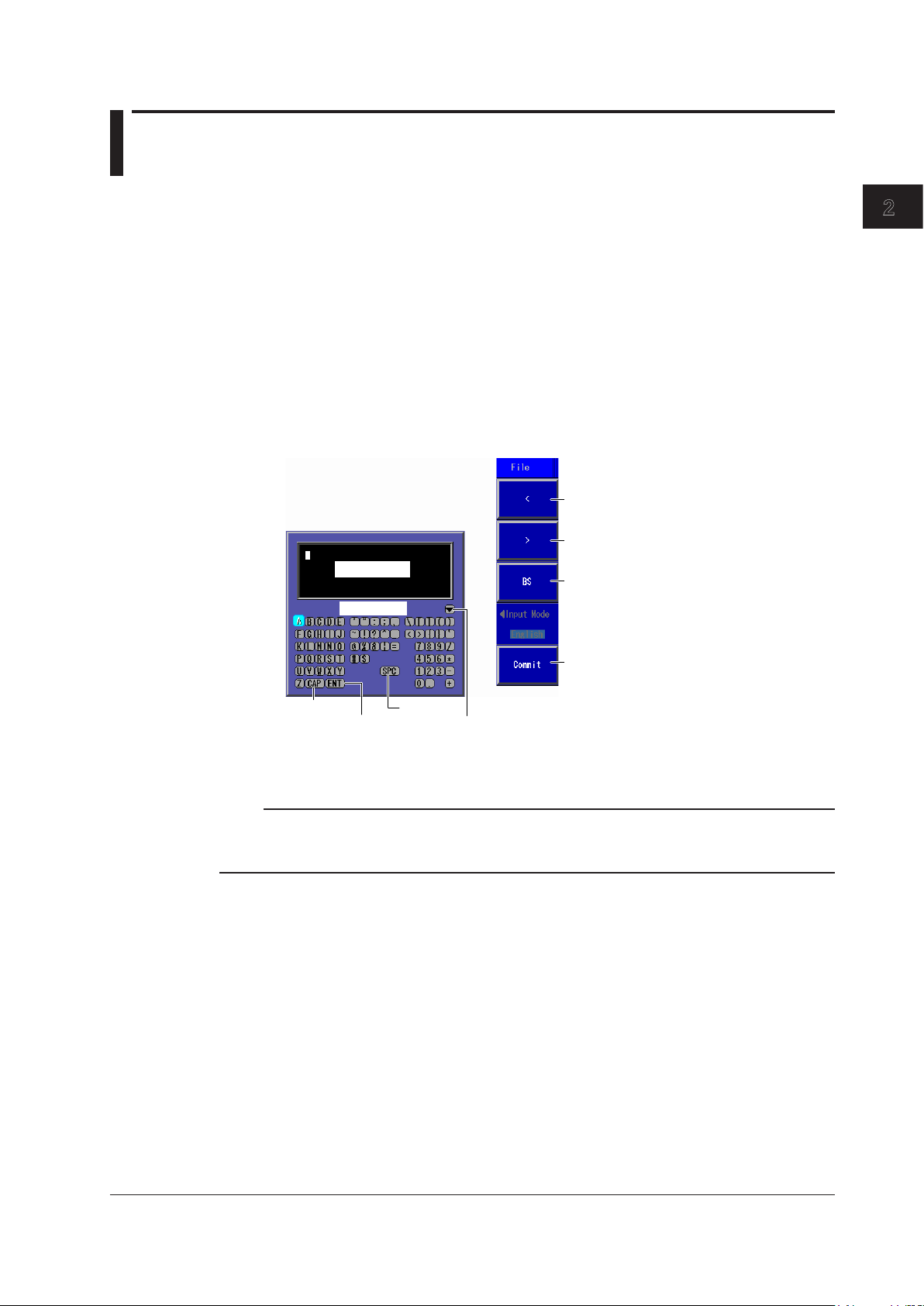

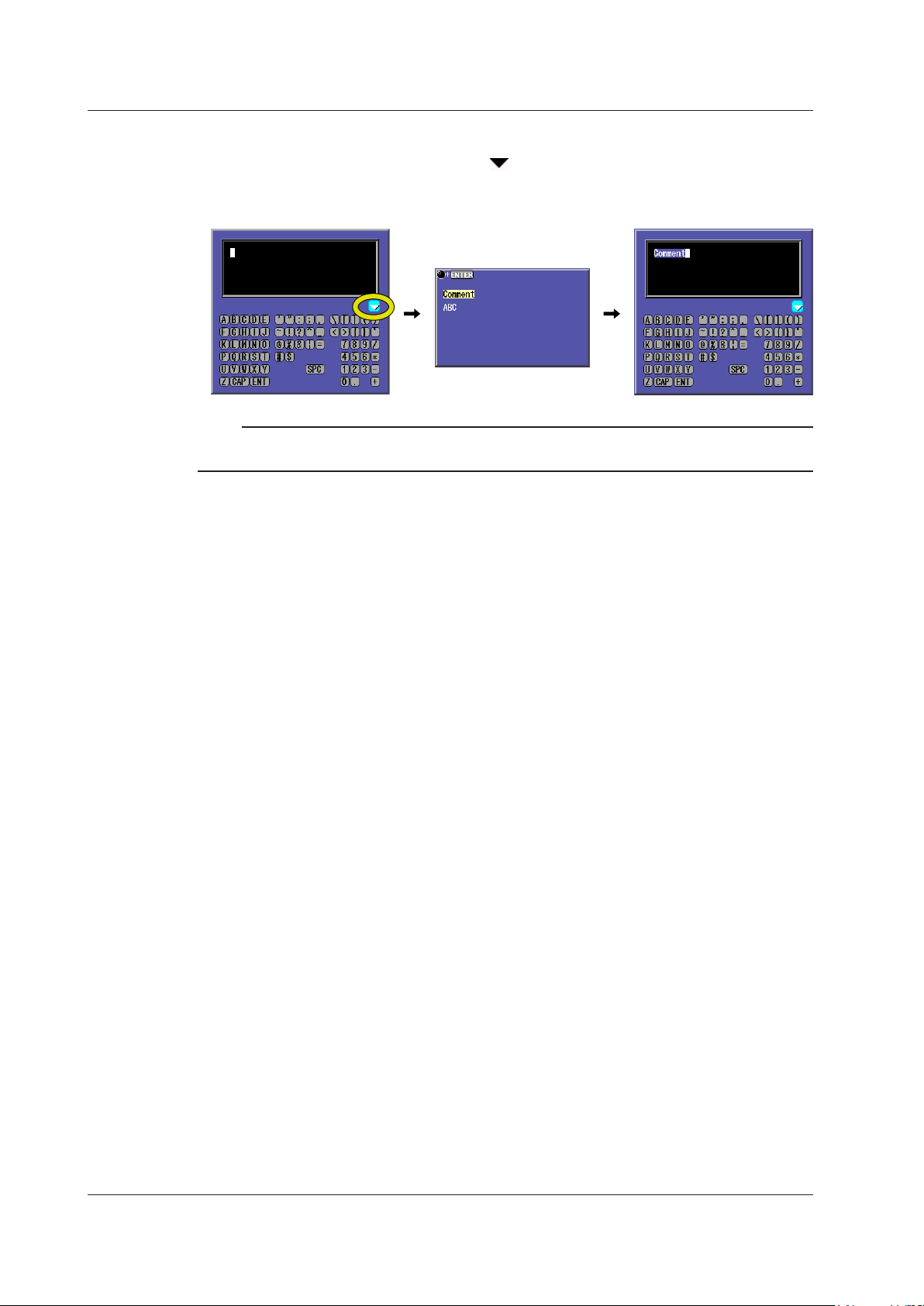

2.2 Entering Strings................................................................................................................ 2-3
Chapter 3 Optical Power Meter
3.1 Making Preparations for Measurements .......................................................................... 3-1

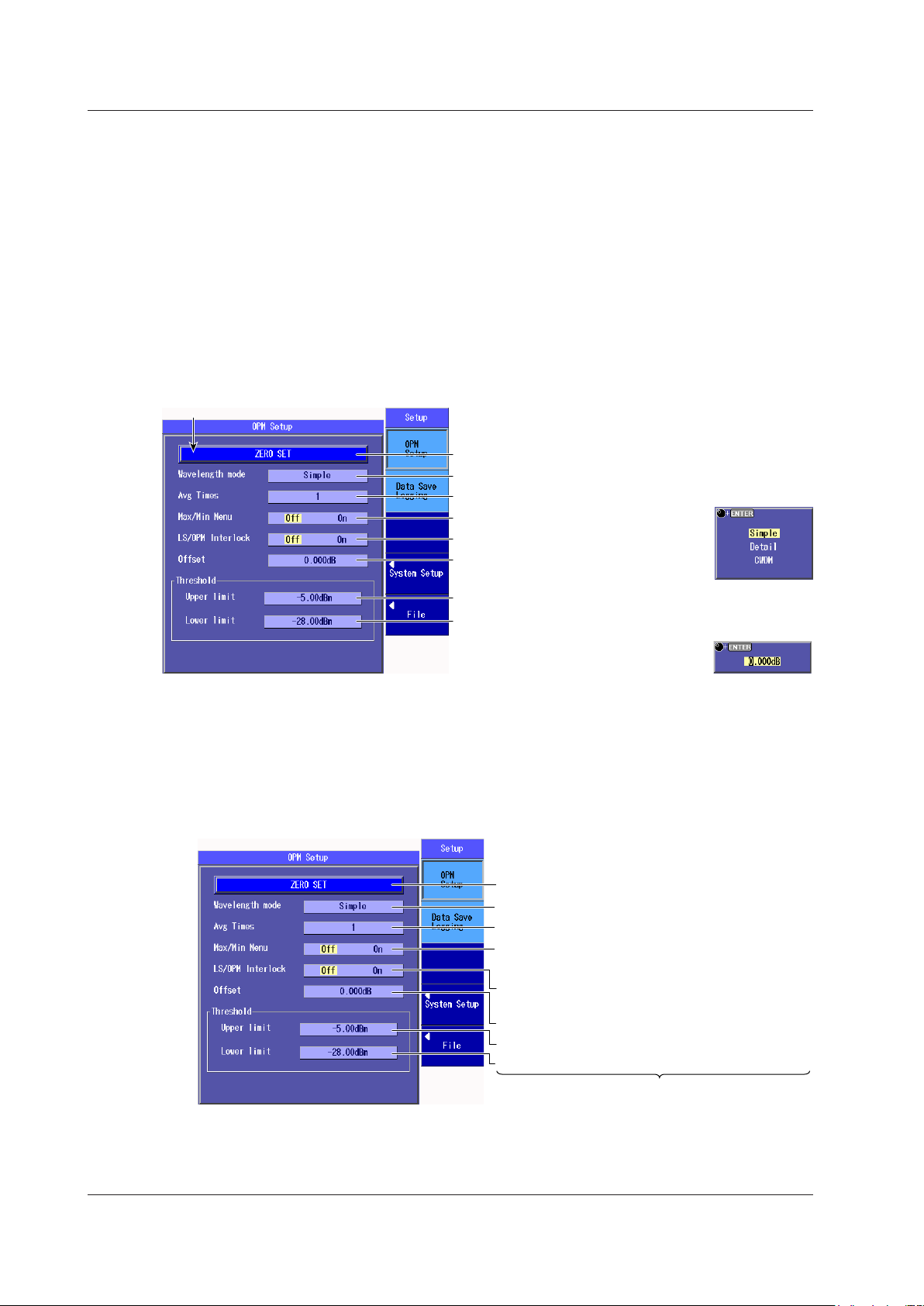

3.2 Setting Optical Power Measurement Conditions and Holding the Display....................... 3-2

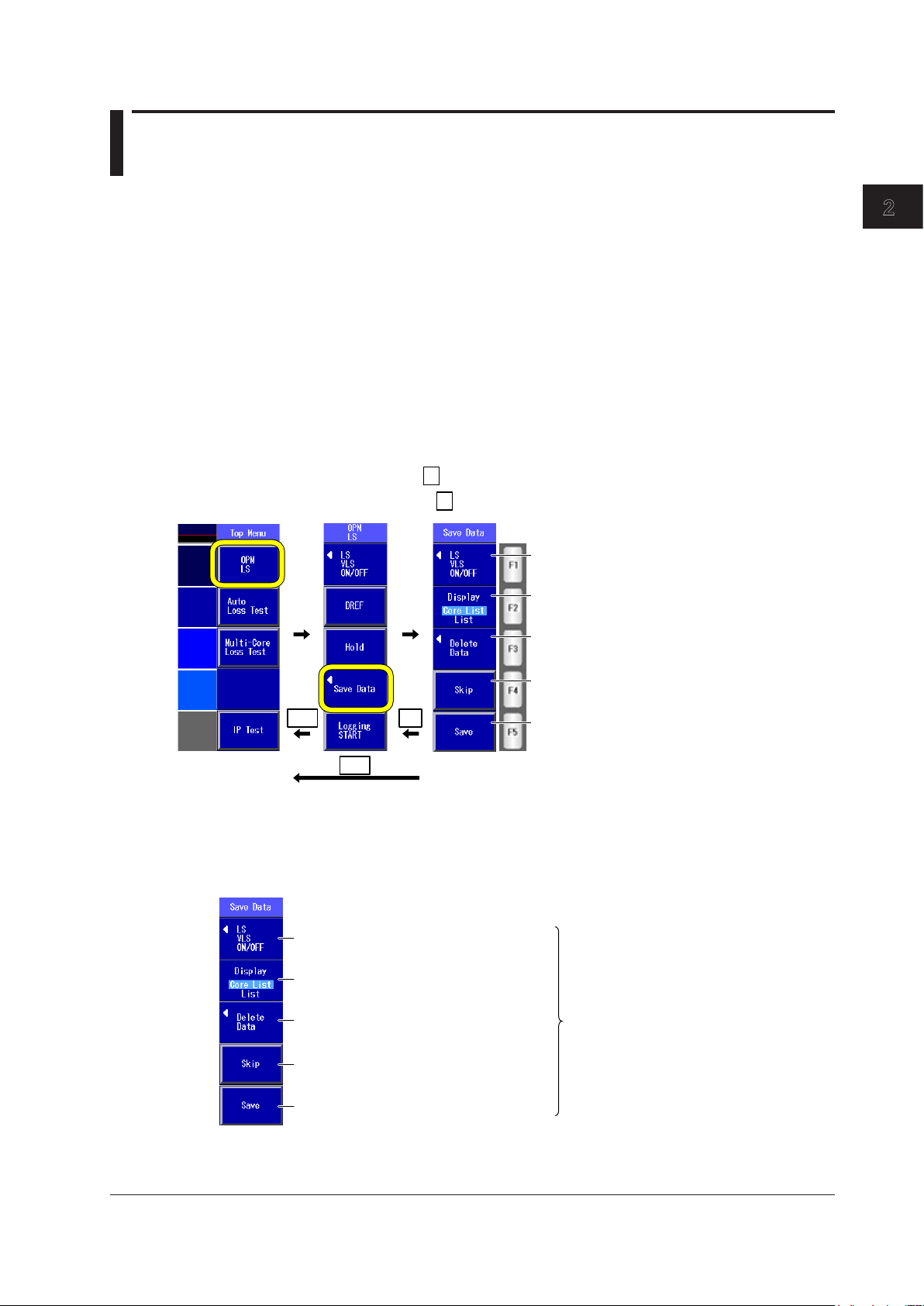

3.3 Logging Measured Values and Saving Logged Results................................................... 3-5
3.4 Selecting and Saving Core and Tape Numbers ............................................................. 3-10
Chapter 4 PON Power Meter (-PPM suffix code)
4.1 Making Preparations for Measurements .......................................................................... 4-1
4.2 Setting PON System Optical Power Measurement Conditions and Holding the Display . 4-2
4.3 Selecting and Saving Core and Tape Numbers ............................................................... 4-5
Chapter 5 Light Source
5.1 Producing Measurement Light ......................................................................................... 5-1
5.2 Turning On the Visible Light (Option) ............................................................................... 5-3
Chapter 6 Loss Testing (-SPM and -HPM suffix codes)
6.1 MakingPreparationsandAdjustmentsforLossTesting................................................... 6-1
6.2 Performing an Auto Loss Test........................................................................................... 6-3
6.3 Performing a Loop-Back Loss Test................................................................................... 6-7
Chapter 7 Multicore Loss Testing (-SPM and -HPM suffix codes)
7.1 CreatingNewProjects...................................................................................................... 7-1
7.2 SharingProjects ............................................................................................................... 7-3
7.3 Performing a Multicore Loss Test ..................................................................................... 7-6
7.4 OpticalPowerAdjustment ................................................................................................ 7-8
Chapter 8 Checking Fiber End Faces
8.1 Using Fiber Inspection Probes to View the Status of Optical Fiber End Faces................ 8-1
Chapter 9 IP Testing (Option)
9.1 Performing an IP Test....................................................................................................... 9-1

iv IM AQ1100-01EN
Contents
Chapter 10 File Operation and Printing
10.1 Connecting a USB Storage Medium to the USB Port .................................................... 10-1
10.2 Saving and Loading Data ............................................................................................... 10-2
10.3 Deleting and Copying Files ............................................................................................ 10-5
10.4 Changing File Names..................................................................................................... 10-7
10.5 Creating Folders............................................................................................................. 10-9
10.6 Deleting and Copying Folders ...................................................................................... 10-10
10.7 Initializing the Internal Memory..................................................................................... 10-12
10.8 Printing ......................................................................................................................... 10-13
10.9 Specifying the Items That Are Displayed in the File List............................................... 10-14
Chapter 11 Other Operations
11.1 Configuring the Language, Beep, Start Menu, USB Function, and Screen Color...........11-1
11.2 Configuring Power Save Settings....................................................................................11-2
11.3 Resetting This Instrument to Its Factory Default Settings ...............................................11-3
11.4 Configuring Network Settings (Option)............................................................................11-4
11.5 Restricting Operations.....................................................................................................11-6
Chapter 12 Troubleshooting, Maintenance, and Inspection
12.1 If a Problem Occurs........................................................................................................ 12-1
12.2 Error Messages .............................................................................................................. 12-2
12.3 Viewing the Product Information..................................................................................... 12-5
12.4 Performing a Self Test .................................................................................................... 12-6
12.5 Updating the Firmware ................................................................................................... 12-7
12.6 Performing a Mechanical Inspection and Checking Operations..................................... 12-8
12.7 Replacing the Battery Pack ............................................................................................ 12-9
12.8 Replacing an Optical Adapter....................................................................................... 12-12
12.9 Routine Maintenance ................................................................................................... 12-14
12.10 Storage Precautions..................................................................................................... 12-15
12.11 Recommended Replacement Parts ............................................................................. 12-16
12.12 Calibration .................................................................................................................... 12-17
Appendix
Appendix 1 Data File Formats...............................................................................................App-1
Index

1-1
IM AQ1100-01EN
Features
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
1.1 Overview
This instrument is an OLTS (Optical Loss Test Set) with the features listed below. It is used in the
optical fiber and line installation and maintenance servicing of access networks, which link telephone
exchanges and service providers with subscribers, and user networks, which enable communication
within a corporation or building.
• Opticalpowermeter
• Loss-measurementlightsourceandvisiblelightsource
• Lossmeasurementthatmakesuseofitslightsourceandopticalpowermeterfeatures(losstest).
• Efficientmulticorelosstestingformeasuringlossinmulticorefibers
• SimpleIPtestingthroughpinging(option)
Optical fiber
Telephone exchanges
Measurement in
cable installations
AQ1100A/
AQ1100B/
AQ1100D
Consumer
Corporate user
Chapter 1 Features

1-2 IM AQ1100-01EN
1.2 Optical Power Meter and Light Source
Optical Power Meter
The three instrument types listed below are available for measuring different types of optical power.
Suffix Code Optical Power Type
-SPM Standard
-HPM High input
-PPM PON (passive optical network)

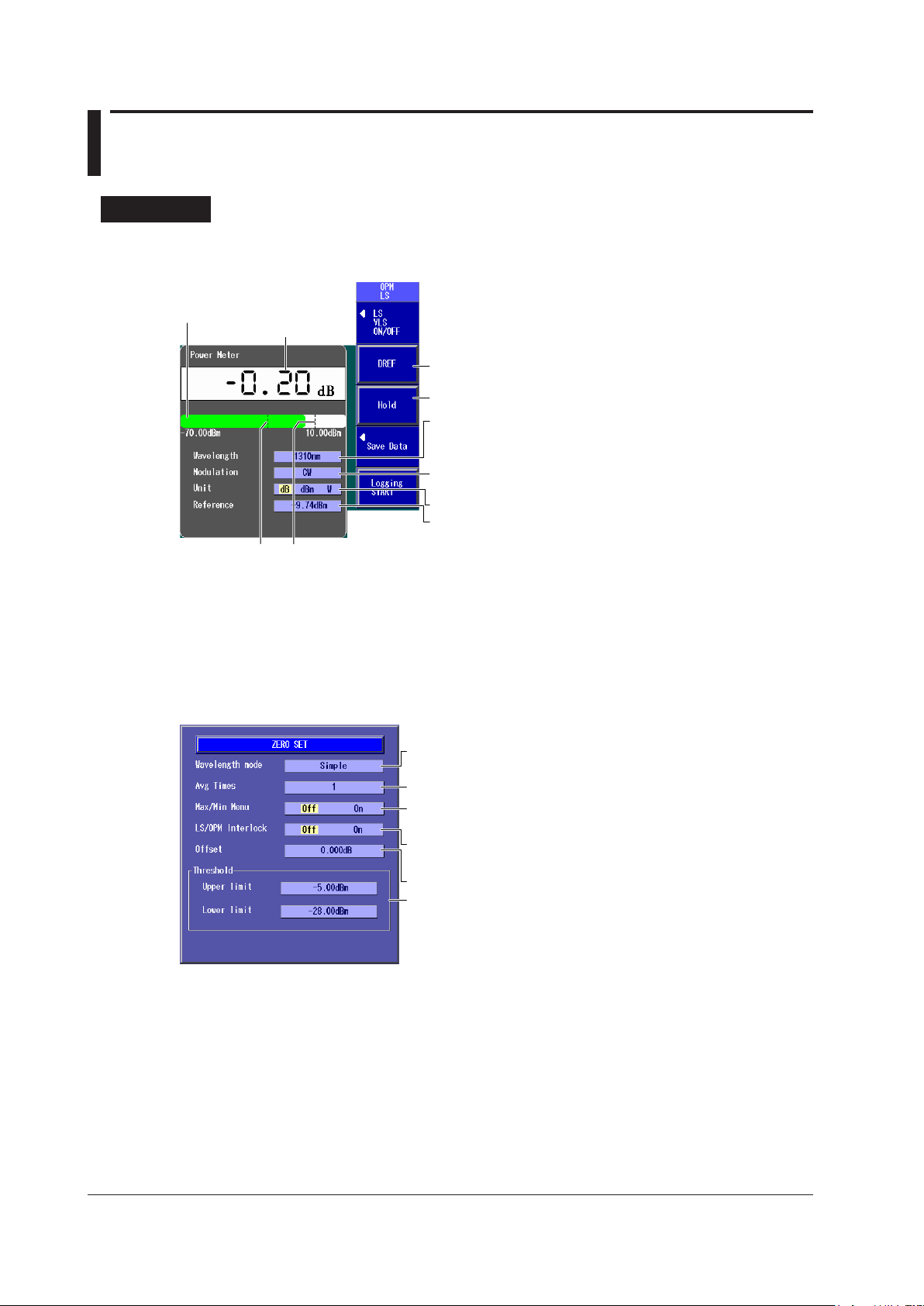

If you are using this instrument to measure optical power, the various settings listed below can be
configured.
Item Models with -SPM or
-HPM Suffix Codes
Models with -PPM Suffix Codes
Normal power meter
selected
PON power meter
selected
Wavelength Yes Fixed10, 11 Fixed10, 11
Wavelength mode1Yes — —
Modulation mode2Yes — —
Unit Yes (dB, dBm, W) Yes (dB, dBm, W) Yes (dBm, W)
Reference3Yes Yes —
Measured value display hold Yes Yes Yes
Measured value logging Yes Yes —
Zero set4Yes Yes Yes
Average count5Yes Yes Yes
Maximum and minimum value
display6Yes Yes —
Interlocking of light source and
optical power meter settings7Yes Yes —
Offset8Yes Yes Yes
Threshold9Yes Yes Yes
Measurement of the optical
power from ONU to OLT for a
particular signal wavelength10
— — Yes
Measurement of the optical
power from OLT to ONU for a
particular signal wavelength11
— — Yes
Yes: Can be set or executed, —: Not available
1 Wavelengths can be set with the wavelength mode set to Simple, Detail, or CWDM.
•Simple: You can select from a list of preset wavelengths.
•Detail: You can set the wavelength to a value from 800 to 1700 nm in 1 nm steps.
•CWDM: You can set the wavelength to a value from 1270 to 1610 nm in 20 nm steps along the CWDM
wavelength grid.
2 You can select the modulation frequency of the incident rays from a list of presets. You can also select CW
(continuous).
3 You can make the displayed measured value the reference and display subsequent measured values as
relative values.
4Youcanadjusttheinternaldeviationoftheopticalpowermeasurementsectionandobtainmoreaccurate
absolute optical power values.
5 You can display averaged measured values.
6 You can display the maximum and minimum measured values.
7 You can interlock the light source and optical power meter settings when you connect an optical fiber
between the light source port of an AQ1100A, AQ1100B, or AQ1100D and the optical power measurement
port of another AQ1100A, AQ1100B, or AQ1100D.
8 You can add a specified value (the offset value) to measured optical power values.
9 You can set upper and lower threshold values and determine whether or not the measured values fall within
them.
10 You can measure the optical power of an upstream signal from the ONU (optical network unit: the user’s
optical terminal) to the OLT (optical line termination: the telephone exchange’s optical terminal). The optical
power of the 1310 nm (data wavelength) signal is measured.
11 You can measure the optical power of downstream signals from the OLT to the ONU. The optical power of
the 1490 nm (data wavelength) and 1550 nm (video wavelength) signals is measured.

1-3
IM AQ1100-01EN
Features
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
Loss Measurement Light Source
Three instrument models, with the measurement light wavelengths listed below, are available for
different applications.
Model Measurement Light Wavelength
AQ1100A SM 1310 nm, SM 1550 nm
AQ1100B SM 1310 nm, SM 1550 nm, SM 1625 nm
AQ1100D GI 850 nm, GI 1300 nm, SM 1310 nm, SM 1550 nm
You can produce continuous light or light that has been modulated at the selected frequency (modulation
mode).
Visible Light Source (Optional)
The visible light source is available on models with the /VLS option.
You can produce visible light to visually identify breaks in the optical fiber under test. You can turn the
visible light on and off independently of the measurement light source.
1.2 Optical Power Meter and Light Source

1-4 IM AQ1100-01EN
1.3 Loss Testing
Optical fiber and optical line degradation can be measured easily.
You can measure optical loss with models with -SPM or -HPM suffix codes.
Auto Loss Testing (Using one AQ1100A, AQ1100B, or AQ1100D as
the light source and another as the optical power meter)
Using this instrument as a light source and optical power meter, you can easily measure optical fiber
and line degradation.
Light Source
You can set up to three measurement light wavelengths and produce them in order. You can
produceaconstantleveloflightifyouusetheopticalpoweradjustmentfeature.
Optical Power Meter
This instrument automatically identifies the measurement light from this instrument that it is
connected to and measures the optical power.
• Thefollowingitemscanbespecifiedorexecuted.Fordetailsabouttheseitems,seesection1.2.
The unit, reference, offset, and threshold values can be specified.
The zero set and measured value display hold operations can be executed.
• Youcanattachfiber information to the measured values and save them.*
* Because this instrument is capable of identifying optical fiber and line cores, it is possible to number cores
and tapes.
Light source
(AQ1100A/AQ1100B/AQ1100D)
Light source
port
Optical power meter
(AQ1100A/AQ1100B/AQ1100D)
Optical power
measurement
port
Fiber under
loss test
Loop-Back Loss Test (Using one AQ1100A, AQ1100B, or AQ1100D)
You can use the light source and optical power meter features on a single AQ1100A, AQ1100B, or
AQ1100D to perform a loop-back loss test on an optical fiber or line. To perform loss testing, connect
one end of the fiber that you need to perform loss testing on to this instrument light source port, and
connect the other end to the optical power measurement port of the same AQ1100A, AQ1100B, or
AQ1100D.
Light source
port
Optical power
measurement
port
Fiber under loss test
Light source and Optical power meter
(
AQ1100A/AQ1100B/AQ1100D
)

1-5
IM AQ1100-01EN
Features
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
1.4 Multicore Loss Testing
Multicore optical fiber and optical line degradation can be measured efficiently.
You can measure optical loss with models with -SPM or -HPM suffix codes.
Master and Slave
Connect two AQ1100s and specify the optical power meter as the master and the light source as the
slave. You can also use the AQ1200 multi-field tester series instead of this instrument as the master or
slave.
Specifying the Optical Communication Fiber
 Totransfer,betweenthemasterandslave,projectsetupinformationandinformationaboutthefiber
under loss test, you must specify a fiber from the multicore optical fiber to use for communication.
Connect one end of the optical communication fiber to the master’s light source port (optical port 2),
and connect the other end to the slave’s optical power measurement port (optical port 1).
Information That Is Transferred from Master to Slave
The following information can be transferred through the optical communication fiber from the
master to the slave.
• Projectinformation(seebelowforfurtherdetails)
• Losstestresults*
* Each time that the selected fiber’s loss test finishes, that fiber’s loss test result is automatically transferred.
Connecting the Optical Fiber under Loss Test
All fibers other than the optical communication fiber can be tested. For each optical fiber under
loss test, connect one end to the master’s optical power measurement port, and connect the other
end to the slave’s light source port. The core and tape numbers of the fibers under loss test are
transferred from the master to the slave.
Master
(AQ1100A/AQ1100B/AQ1100D)
Light source port
(optical port 2)
Optical power
measurement port
Slave
(AQ1100A/AQ1100B/AQ1100D)
Light source port
Fiber under
loss test
Communication fiber Optical power
measurement port
(optical port 1)
Executing a Loss Test
Transmit light from the slave. The master will automatically identify up to three different wavelengths
in the light from the slave and measure the optical power. Continue the loss test, switching the cores
between the master and the slave in order.
Projects
Youcancreateprojectswiththemaster.Youcanspecifythefollowingprojectinformation:
 Theprojectname,thenumberofthecoretostartlosstestingat,thetapenumbertype,thenumber
of cores, and the transmitted or measured measurement light wavelengths (up to 3).
• Youcantransferprojectsfromthemastertotheslaveandshareinformation.
• Whenthemasterandtheslaveshareaprojectandusethatprojecttoperformlosstesting,iftesting
is stopped, the data up to the stop point is saved and you can begin testing again from the next
core.
• YoucansaveandloadprojectsasCSVfiles.

1-6 IM AQ1100-01EN
1.5 IP Testing (Option)
You can check whether or not the network layer of an Ethernet LAN line is established. Before
performing an IP test, make sure that the optical fiber or line is connected physically.
IP testing is available on models with the /LAN option.
Pinging
To ping an address (perform a simple IP test), specify the address and configure the Tx frame settings
listed below. The results of pinging the address appear on the screen.
The frame length, Tx mode (continuation, number of frames to send, and transmission time), and
measurement interval

1-7
IM AQ1100-01EN
Features
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
1.6 Other Features
In addition to the features described so far, this instrument also has the following features.
• Datasavingandloading
• Languageselection
• Beepon/off
• Startupmenuselection
• USBfunctionselection(storage/communication)
• Screencolorselection
• Currentdateandtimeconfiguration(seetheoperationguide,IMAQ1100-02EN)
• Powersavesettings
• Networksettings(onmodelswiththe/LANoption)
• Setupinformationinitialization(tothefactorydefaultvalues)
• Thisinstrumentinformationdisplay(model,serialno.,suffixcode,version,etc.)
• Selftestexecution
• Firmwareversionupdating

2-1
IM AQ1100-01EN
Common Operations
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
2.1 Key, Rotary Knob, and Arrow Key Operations
To make this manual easier to read, we have omitted or simplified explanations of the kinds of
operations listed below.
• Repetitiveoperations
• Detailedoperationsforproceedingtothedesiredsetupmenuordialogboxandinformationabout
the accompanying screen changes.
• Setupitemsthatuserscanconfigureiftheyhaveageneralunderstandingofthem.
Below, we will compare examples of detailed setup operation explanations with explanations that have
been omitted or simplified.
Key Operations
The examples below explain the process for turning on the power, waiting for the top menu to appear,
and then opening the Save Data menu. The first menu in the figure below is the top menu for models
with -SPM or -HPM suffix codes.
1. Press the OPM LS soft key (
F1
) to display the OPM LS menu.
2. Press the Save Data soft key (
F4
) to display the Save Data menu.
MENU
MENU
ESC
A
B
A
C
C
Menu operation types A through C are listed below.
A: A selection menu appears when you press
the soft key. When you press a soft key that
corresponds to an item on the menu, the
selected item is confirmed, or the action that
corresponds to it is performed.
B: The selected setting switches each time you
press the soft key.
C: When you press the soft key, the item that
corresponds to it is confirmed, or the action
that corresponds to it is performed.
To return to the previous menu, press ESC.
To return to the top menu, press MENU.
In this manual, steps 1 and 2 listed above and the setup operations in the menu that follows them are
written as shown below.
Setup Operation Example
Press the OPM LS soft key and then the Data Save soft key to display the following screen.
In the menu that appears, turn the light
source or visible light source on or off.
Set the list to show (Core List, List).
In the menu that appears, execute the
deletion of the selected data.
Executes skipping
Saves data
At this point, the soft key names are
omitted, and the settings that the soft keys
are used to configure and the actions
that pressing them causes are explained.
Options and ranges are listed afterwards.
• Stepnumbersareusedwhentherearemanyoperationsandwhenoperationsmustbe
performed in different menus.
• Theexplanationforreturningtothepreviousmenuisomitted.
Chapter 2 Common Operations

2-2 IM AQ1100-01EN
Rotary Knob and Arrow Key Operations
This section explains how to operate a menu and the operations to perform when a setup dialog box
appears. We will use the dialog box that appears when you press the OPM Setup soft key as an
example.
1. Press the OPM Setup soft key to display the OPM Setup dialog box.
2. Use the rotary knob or the arrow keys to move the cursor to the item that you need to
configure or execute.
The item at the cursor location is highlighted.
3. Press ENTER.
• Next,followtheinstructionsinthefigurebelowthatcorrespondtothetypeofitemthatyouare
configuring or executing.
• Inthismanual,steps2and3listedaboveareindicatedusingtheexpression“usingtherotary knob
and ENTER.”
E
E
F
F
G
G
G
D
For setup operation types E and G, to reset the selected
item to its previous settings, press ESC.
To return to the top menu, press MENU.
The item at the cursor location
is highlighted.
Setup operation types D through G are
listed below.
D: Press ENTER to confirm the item or
execute its corresponding action.
E: Press ENTER to display a menu. Turn
the rotary knob or press the up and
down arrow keys to move the cursor
to the item that you want to select.
Then press ENTER to select the item.
F: The selected setting switches each
time you press ENTER.
G: Press ENTER to display a text box.
Turn the rotary knob or press the up
and down arrow keys to increase
or decrease a number. To move be-
tween digits, press the left and right
arrow keys. After you have entered
a number, press ENTER to set the
value to that number.
Example of
menu for E
Example of text
box for G
In this manual, steps 1 through 3 listed above and the setup operations in the menu that follows them
are written as shown below.
Setup Operation Example
Press the OPM Setup soft key to display the following screen.
Performs zero set
Set the wavelength mode (Simple, Detail, CWDM).
Set the average count (1, 10, 50, 100).
Turns the display of the max/min value menu on and
off
At this point, the settings that the items are used to
configure and the actions that selecting them causes are
explained. Options and ranges are listed afterwards.
Turns on and off the interlocking of the light source
and optical power meter settings
Set the offset (–9.900 to 9.900 dB).
Set the upper threshold value (–80.00 to 40.00 dB).
Set the lower threshold value (–80.00 to 40.00 dB).
• Theexplanationsofrotaryknob,arrowkey,andENTERkeyoperationsareomitted.
• Theexplanationofhowtoresettheselecteditemtoitsprevioussettingisomitted.
• Theexplanationforreturningtothepreviousmenuisomitted.
2.1 Key, Rotary Knob, and Arrow Key Operations

2-3
IM AQ1100-01EN
Common Operations
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
2.2 Entering Strings
After you have selected a setup item and pressed ENTER, a character input dialog box will appear if it
is necessary. This section explains the operations that you can perform after the dialog box appears.
Entering Strings
1. Using the rotary knob and ENTER, enter a string. The string that you entered appears in the
edit screen.
2. Press the various soft keys to edit the string as necessary.
3. After you have finished entering and editing the string, press the OK soft key to confirm the
string that you entered and close the character input dialog box. The string be applied to the
relevant item.
You can also confirm the string by moving the cursor to ENT on the displayed keyboard and then pressing
ENTER.
Character input dialog box
Edit screen
Confirms
the input
Space
Switches between
uppercase and
lowercase letters
Keyboard
Input history
Strings that you have entered in the past remain in
the input history. You can enter these strings (see
the next page).
Moves the cursor to the left
Moves the cursor to the right
Deletes the previous character
Confirms the entered string
Note
• Ifthereisalimittothelengthofthestring,youwillnotbeabletoentercharactersafterthelimitis
reached.
• YoucanalsoenterstringsusingaUSBkeyboard.

2-4 IM AQ1100-01EN
Entering Strings from the History
1. Using the rotary knob and ENTER, select to display the input history screen.
2. Using the rotary knob and ENTER, choose the string that you want to enter. The string
appears in the edit screen.
Note
Entered strings are saved to the input history when you confirm them. Up to 50 strings can be saved. Newer
strings appear at the top of the input history.
2.2 Entering Strings

3-1
IM AQ1100-01EN
Optical Power Meter
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
3.1 Making Preparations for Measurements
Remove the optical fiber cables from this instrument and close the optical connector covers, or make
sure that the power meter is not receiving any light, and then start the optical power meter zero set
procedure.
Procedure
Performing Zero Set
Press the OPM LS soft key, SETUP, and then the OPM Setup soft key to display the following screen.
The figure below shows the screen that appears on models with -SPM and -HPM suffix codes. On
modelswiththe-PPMsuffixcode,thereisno“Wavelengthmode”item.
Performs zero set
Explanation
Perform zero set whenever necessary, such as after you have turned on the power or when the
ambienttemperaturechanges.Performingzerosetadjuststheinternaldeviationoftheopticalpower
measurement section and enables you to obtain more accurate absolute optical power values.
Chapter 3 Optical Power Meter

3-2 IM AQ1100-01EN
3.2 Setting Optical Power Measurement Conditions
and Holding the Display
Procedure
Power Meter Screen
Press the OPM LS soft key to display the following screen.
Sets the reference to the currently displayed measured value
Holds the measured value display
Measured value
Bar graph display of
the measured value
Set the wavelength.
This setting varies depending on the model or the wavelength mode
that you set in the detailed setup screen in the next section.
These lines indicate the upper and lower threshold values
Lower threshold
line
Upper threshold
line
Set the modulation mode (CW, 270Hz, 1kHz, 2kHz).
Can be set on models with -SPM or -HPM suffix codes.
Set the unit (dB, dBm, W).
Set the reference manually (–80 to 40 dBm).
The Reference box appears if you press the DREF soft key or set
the unit to dB.
(see the detailed setup screen in section).
Detailed Setup Screen
Press SETUP and then the OPM SETUP soft key to display the following screen.
The figure below shows the screen that appears on models with -SPM and -HPM suffix codes. On
modelswiththe-PPMsuffixcode,thereisno“Wavelengthmode”item.
Set the wavelength mode (Simple, Detail, CWDM).
Can be set on models with -SPM or -HPM suffix codes.
Set the average count (1, 10, 50, 100).
Turns the display of the max/min value menu on
and off
Turns the interlocking of the light source and
optical power meter settings on and off
Set the offset (–9.900 to 9.900 dB).
Set the threshold values (–80 to 40 dBm).
You can set the upper and lower values.

3-3
IM AQ1100-01EN
Optical Power Meter
1
2
3
4
5
6
7
8
9
10
11
12
Index
App
Explanation
Wavelength
The light receiving element of the optical power measurement section has a wavelength sensitivity
characteristic.Thisinstrumentmeasuresopticalpowermoreaccuratelybyadjustingthesensitivity
according to the specified wavelength. The measurable wavelength range varies depending on the
model.
Models with -SPM or -HPM Suffix Codes
The wavelength ranges and steps vary depending on the wavelength mode that you set in the
detailed setup screen. You can set the wavelength within the following ranges.
Wavelength Mode Range and Steps
Simple You can select from 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, and
1650 nm.
Detail You can set the wavelength to a value from 800 to 1700 nm in 1 nm steps.
CWDM You can set the wavelength to a value from 1270 to 1610 nm in 20 nm steps.
Models with -PPM Suffix Codes
You can set the wavelength to one of the following values.
1310 nm, 1490 nm, 1550 nm
Modulation Mode
On models with -SPM or -HPM suffix codes, you can set the modulation mode for optical measurement
to one of the following options.
CW (continuous light), 270 Hz, 1 kHz, 2 kHz
Unit
You can set the optical power display unit to one of the following options.
dB (relative value), dBm (absolute value), W (absolute value)
• Thefollowingprefixes are attached to W: m (10–3),μ(10–6), n (10–9), and p (10–12).
• TherelationshipbetweentheabsolutevaluesdBmandWisindicatedbelow.
PdBm = 10 × log (Pw× 103)
Where PdBm is the optical power in units of dBm and Pwis the optical power in units of W.
Reference
You can set a reference and display measured values as relative values (display their difference from
the reference).
• PresstheDREFsoftkeytomakethedisplayedmeasuredvaluethereferenceanddisplay
subsequent measured values as relative values. The unit will change to dB.
• PresstheDREFsoftkeyorsettheunittodBtodisplaytheReferenceboxinthePowerMeter
screen.
• YoucansetthereferencemanuallyintheReferencebox.Therangeis–80to40dBm.
• IfyousettheunittodBmorW,theReferenceboxdisappearsandthemeasuredvaluesare
displayed as absolute values.
Wavelength Mode
On models with the -SPM and -HPM suffixes, you can set the mode to one of the following options.
Simple, Detail, CWDM
When you change the wavelength mode, the wavelength range and steps for the Wavelength item
change as explained above.
Average Count
Averages of the measured values are displayed. You can set the number of values to average to one
of the following options.
1, 10, 50, 100
3.2 Setting Optical Power Measurement Conditions and Holding the Display

3-4 IM AQ1100-01EN
Turning the Maximum and Minimum Value Menu On and Off
In the Power Meter screen, you can display a menu that shows the maximum (Max) and minimum (Min)
measured values.
On The menu is displayed.
Off The menu is not displayed.
Turning the Maximum and Minimum Value Display On and Off
In the menu that appears in the Power Meter screen, you can start the display of the maximum and
minimum measured values. The maximum and minimum value displays are constantly updated
while measurement is being performed.
On The maximum and minimum measured values from the time that you selected On are constantly
updated and displayed.
Off The maximum and minimum values are not displayed. The maximum and minimum values are
reset when you select Off.
Measured value
Turns the max/min value display on and off
Maximum value
Minimum value
Turning the Interlocking of the Light Source and Optical Power
Meter Settings On and Off

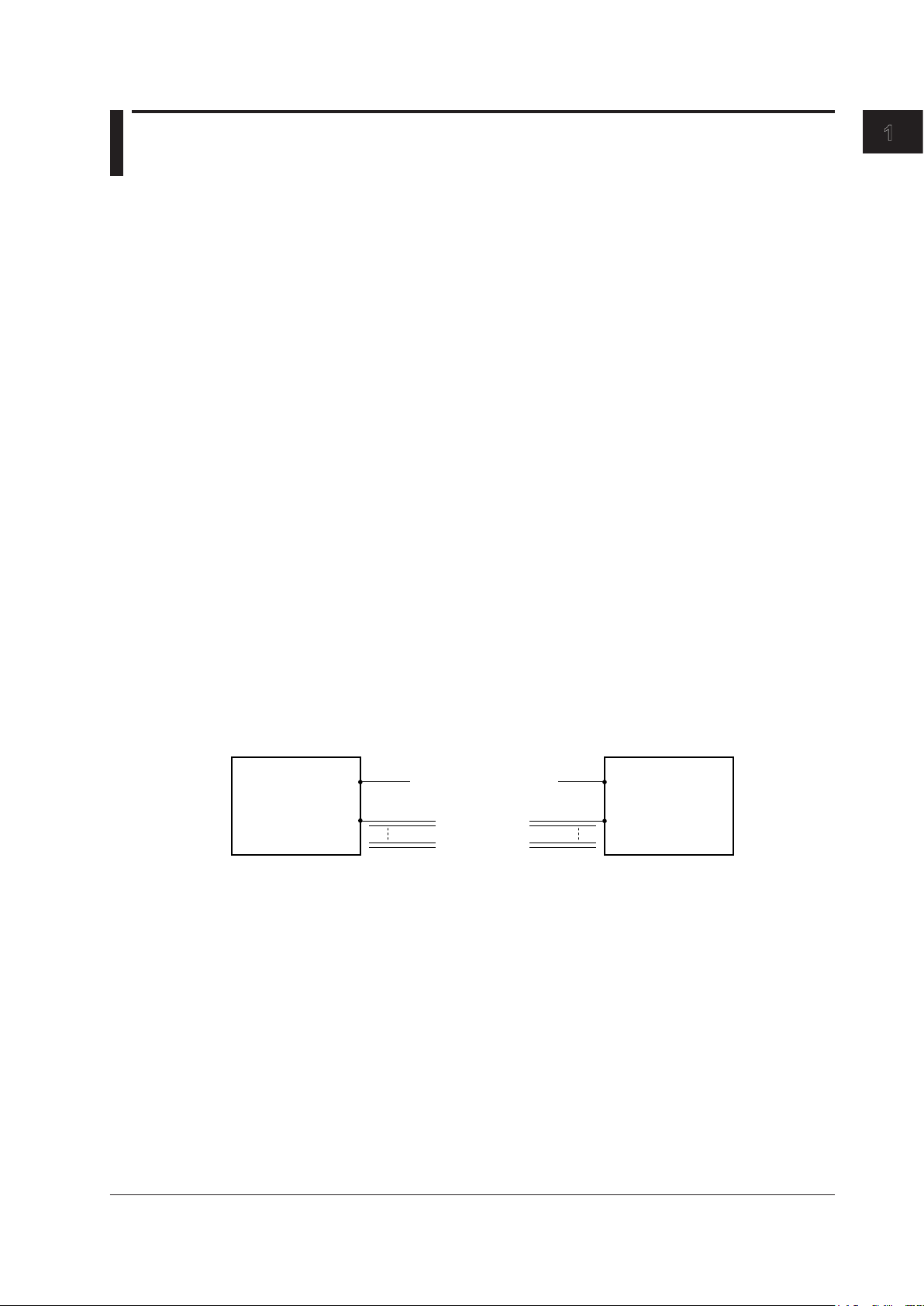

You can connect an optical fiber between the light source port of an AQ1100A, AQ1100B, or AQ1100D
and the optical power measurement port of another AQ1100A, AQ1100B, or AQ1100D and use
this setting so that the power meter settings are synchronized to the light source wavelength and
modulation mode settings.
On After On is selected, the power meter settings are synchronized to the light source settings.
Off The power meter settings are not synchronized to the light source settings.
Offset
The value that you specify (the offset value) is added to the measured optical power values that are
displayed.
The range is –9.900 to 9.900 dB.
Threshold Value
You can set upper and lower threshold values and determine whether or not the measured values fall
within them.
• Therangefortheupperandlowerthresholdvaluesis–80to40dBm.Youmustsetthevaluesso
that the upper threshold value is greater than the lower threshold value.
• Whenameasuredvalueiswithintheupperandlowerthresholds,itsbargraphisgreen.
• Whenameasuredvalueexceedstheupperthresholdorfallsbelowthelowerthreshold,itsbar
graph is red.
Holding the Measured Value Display
When you press the HOLD soft key, the following actions are held: the updating of the measured
values, bar graph, and maximum and minimum values and the showing or hiding of the maximum and
minimum value display. The values at the time that you pressed the HOLD soft key remain displayed.
To release the hold on the display, press the HOLD soft key again.
Not updated
The display is being held.
3.2 Setting Optical Power Measurement Conditions and Holding the Display
